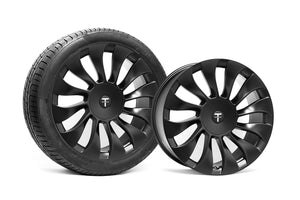

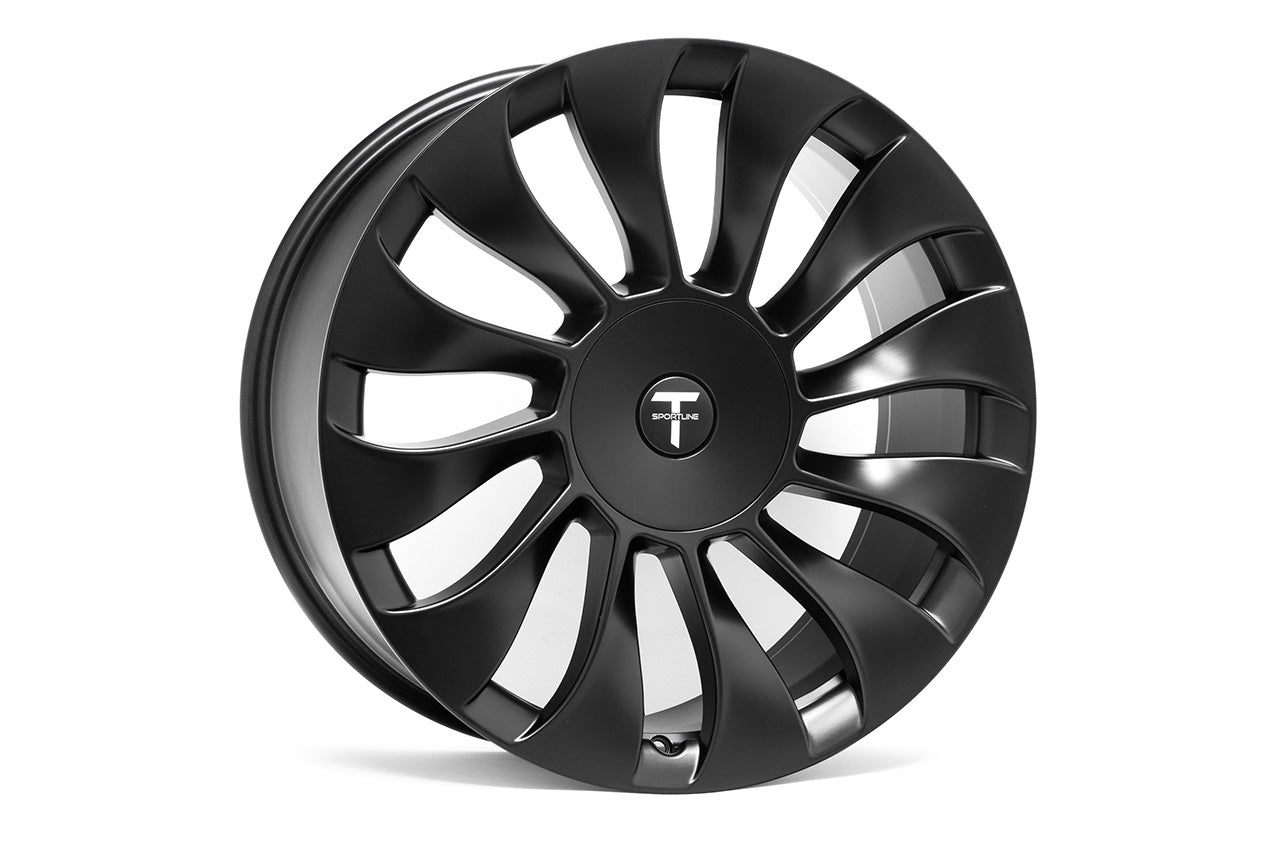

Name: TSV 20" Tesla Model Y Wheel and Tire Package (Set of 4)
Brand: T Sportline
SKU: SV20101005114SB
Price: 1850.0 USD
Availability: InStock

Description

Upgrade your Tesla Model Y with the T Sportline TSV 20-inch flow-forged wheel and tire package. Inspired by Tesla's iconic Überturbine wheel design, the TSV features an aggressive turbine-style spoke pattern that brings a distinctive Performance-inspired appearance to the Model Y. Manufactured using a precision flow-forging process, these wheels offer a strong, durable construction engineered for everyday driving and performance use. The 20x10-inch square configuration accommodates factory-size 255/40R20 tires or wider 275/40R20 tires for additional wheel protection and a more substantial stance. Engineered specifically for the Tesla Model Y, TSV wheels accept factory Tesla lug nuts, center caps and TPMS sensors, eliminating the need for special mounting hardware. Choose wheels only or a professionally mounted and balanced wheel and tire package delivered ready to install. With their Überturbine-inspired styling and 20-inch proportions, TSV wheels offer a compelling combination of aggressive appearance, responsive handling and everyday practicality.

Tesla Model Y Compatibility

Confirmed Fit

Approved for all Tesla Model Y versions from 2020–Present

2020 2021 2022 2023 2024 2025 2026

✓ Approved to replace factory 18", 19", 20" or 21" wheels & tires

Rear-Wheel Drive VersionsStandard Range RWD, Rear-Wheel Drive and Long Range RWD

All-Wheel Drive VersionsLong Range AWD, All-Wheel Drive and Dual Motor AWD

Performance ModelModel Y Performance configurations

Model Y LSix-seat Model Y L configurations

Wheel and Wheel & Tire Package Offerings

20x10" Fitment Wheels & Tires (Square = all 4 wheels & tires the same size)

Wheel Package — What Is Included

Set of 4 wheels
4x 20x10" TSV wheels 4x color-matched T Sportline wheel center caps

Wheel & Tire Package — What Is Included

Set of 4 wheels & tires—mounted, balanced, & ready to install!
4x 20x10" TSV wheels 4x 255/40R20 or 275/40R20 tires 4x factory-spec Tesla TPMS sensors 4x color-matched T Sportline wheel center caps

Recommended Add-On Options

Lug Nuts or Lug Nut Covers — No lug nuts are included. Factory lug nuts can be reused with optional covers or replaced with our forged or titanium lug nuts
Tesla Tire Road Hazard Protection — Rest easy with tire protection
Curb Protection Guards — Protect rims against scrapes
Ceramic Coating — Protect the finish and make cleaning easier

Wheel Features and Benefits

Wheel Specifications

Wheel Model: TSV
Vehicle: Tesla Model Y
Wheel Size: 20x10" front and rear
Offset: +40mm
Bolt Pattern: 5x114.3
Center Bore: 64.1mm
Construction: Flow Forged
Wheel Weight: 35.05 lbs per wheel
Load Rating: 900 kg / 1,984 lbs per wheel
Tire Sizes: 255/40R20 or 275/40R20
Finish: Satin Black
Testing Standards: JWL, VIA, SAE J2530 and TÜV
Factory Hardware: Compatible with factory Tesla lug nuts, center caps and TPMS sensors

Flow-Forged Strength & Durability

TSV wheels are manufactured using a precision flow-forging process that forms and strengthens the wheel barrel while optimizing material distribution. This produces a strong, durable wheel structure engineered for the weight and performance demands of the Tesla Model Y. Compared with conventional gravity-cast construction, flow forging can improve barrel strength and material efficiency. Each TSV 20x10" wheel weighs 35.05 lbs and carries a 900 kg (1,984 lbs) load rating, combining robust construction with a distinctive Überturbine-inspired design.

20-Inch Sporty OEM+ Balance

The 20-inch setup offers a sportier appearance and responsive steering feel while maintaining practical everyday usability. Compared with 18-inch and 19-inch setups, 20-inch wheels generally provide a firmer ride and a more performance-oriented appearance. They typically offer greater ride comfort and sidewall protection than 21-inch packages, depending on tire selection.

Choose factory-size 255/40R20 tires for familiar 20-inch proportions or wider 275/40R20 tires for a more substantial stance and additional wheel protection.

Überturbine Inspired Design

The TSV wheel is inspired by Tesla's 21-inch Überturbine design. Its tightly spaced, finned multi-spoke face amplifies the performance-oriented turbine appearance that has become a signature look on high-performance Teslas, while providing proper Model Y fitment in a more practical 20-inch size.

Tesla Compatibility

Accepts factory Tesla lug nuts
Accepts factory Tesla center caps
Accepts factory Tesla TPMS sensors
Includes color-matched T Sportline center caps
No aftermarket wheel hardware required
Will NOT void Tesla Warranty
Does NOT work with factory Tesla "Aero Covers / Hubcaps"
Does NOT work with factory Tesla Überturbine or Induction wheel center covers

Square Fitment & Tire Rotation

The 20x10" square setup uses the same wheel and tire size at all four corners, allowing conventional front-to-rear tire rotation. Choose factory-size 255/40R20 tires for a familiar fitment or wider 275/40R20 tires for additional wheel protection and a more aggressive stance.

TSV 20-Inch Wheel Weight

35.05 lbsper wheel

Scale photo coming soon

Tire Comparison & Selection Guide

	255/40R20	275/40R20
Tire Type	Stock Tesla Tire Size	Extra-Wide / Wheel Protection
Range & Efficiency	Factory-size 20-inch baseline	Wider tires may reduce range
Ride Comfort	Balanced 20-inch ride	Additional sidewall cushion
Pothole Protection	Factory-size 20-inch protection	Additional sidewall height
Curb Protection	Factory-size sidewall profile	Extra width helps shield wheel edge
Handling & Steering	Balanced everyday response	Wider performance-oriented footprint
Dry Traction	Balanced everyday grip	Wider tire footprint potential
Wet & Snow Traction	Depends on tire model	Depends on tire model
Tire Rotation	Front-to-rear rotation	Front-to-rear rotation

Choose 255/40R20 if your priority is: Factory-size 20-inch fitment, balanced everyday handling, efficiency and tire rotation.

Choose 275/40R20 if your priority is: Extra tire width, additional sidewall coverage and a wider stance while retaining tire rotation.

Rating Key: Not Rated Good Better Best

Choose the right tire type for your driving: All-season for everyday use, all-weather for enhanced year-round versatility, summer for warm-weather performance, or dedicated winter tires for cold and snowy conditions. Tire model, rolling resistance, construction, inflation pressure, compound and tread design also affect driving characteristics.

View Instructions & Tesla Tire Care Guide DIY Installation instructions and Learn more about proper Tesla tire maintenance & rotation for maximum range and tread wear

View the T Sportline Tesla Wheel & Tire DIY Installation Guide
Follow the recommended cold tire pressures on your vehicle's Tire and Loading Information label (located inside the driver-side door jamb). Check pressure after the vehicle has been parked out of direct sunlight for more than three hours. Use our AMAXX Tesla Digital Tire Inflator for convenient pressure checks and adjustments.
Rotate tires every 6,250 miles, or sooner if tread-depth difference reaches 2/32 inch, to help maximize tread life and maintain even wear.
When installing wheels, torque the 21mm lug nuts to 129 lb-ft (175 Nm).
After tire service, drive approximately five miles to allow the TPMS readings to update.
Tire pressure changes with temperature, driving and sunlight. Underinflation can reduce range, accelerate wear and create a safety risk.
Teslas do not come with a spare! Consider purchasing a Tesla spare tire package to ensure you never get stranded with a flat.

Shipping

Shipping is calculated at Checkout.

Shipping & Handling charges subject to change without prior notification. PLEASE NOTE THAT INTERNATIONAL SHIPMENTS ARE SUBJECT TO CUSTOMS TAXES/DUTIES, AS CHARGED BY YOUR COUNTRY (THERE ARE NO U.S. CUSTOMS FEES). INTERNATIONAL CUSTOMERS ARE RESPONSIBLE FOR PAYMENT OF THESE FEES. Due to service availability, some international orders may need to be sent to the nearest international airport.
FAQ

Can I use my Aero Covers / Hubcaps on the 20" TSV?
No, the Aero Covers / Hubcaps only fit on your factory wheels.

Which tire sizes are offered with the 20" TSV package?
Available fitments include the factory-size 255/40R20 and the extra-wide 275/40R20 for additional wheel protection.

Do your TSV wheels fit my factory center caps?
Yes, 20x10" TSV wheels fit your factory Tesla 57.2mm center caps. They also fit your factory TPMS sensors and factory lug nuts, so no aftermarket wheel hardware is required.

How are the 20" TSV wheels made?
They are flow forged and tested to JWL, VIA, SAE J2530 and TÜV standards.

Do I need to change the color of my existing lug nuts and center caps to match my new TSV wheels?
That's an aesthetic decision only you can make. All TSV wheels come with T Sportline color-matched center caps.

What is the warranty on TSV wheels?
Click here for T Sportline Limited Warranty

How long until my TSV wheels arrive after my order?
We process orders within 72 hours unless your wheels are back-ordered. Please allow 1–7 business days of transit time from the day you receive a tracking number. We will email you if your wheels are back-ordered.

Do you ship internationally?
Yes! We ship worldwide and offer flat rate FedEx/DHL shipping to select countries.

Will installing your Wheel & Tire Package void my warranty?
Changing wheels and tires won't void your Tesla warranty unless Tesla can prove that our wheels caused the need for repairs. Also, we use factory-size or acceptable alternate size tires only. In other words, your warranty will still be valid when your windshield wiper malfunctions, even if you've upgraded to our Wheel & Tire Package.

Can I use my factory Tesla Überturbine or Induction wheel center covers on the 20" TSV wheels?
No. Factory Tesla Überturbine and Induction wheel center covers are designed for their respective original factory wheels and are not compatible with TSV wheels.

Are TSV wheels the same as Tesla's factory Überturbine wheels?
No. TSV wheels are T Sportline aftermarket wheels inspired by the appearance of Tesla's factory Überturbine wheels. The TSV 20-inch package features a 20x10" square fitment that allows front-to-rear tire rotation with matching tires, unlike the original staggered 21-inch Model Y Performance Überturbine configuration.
