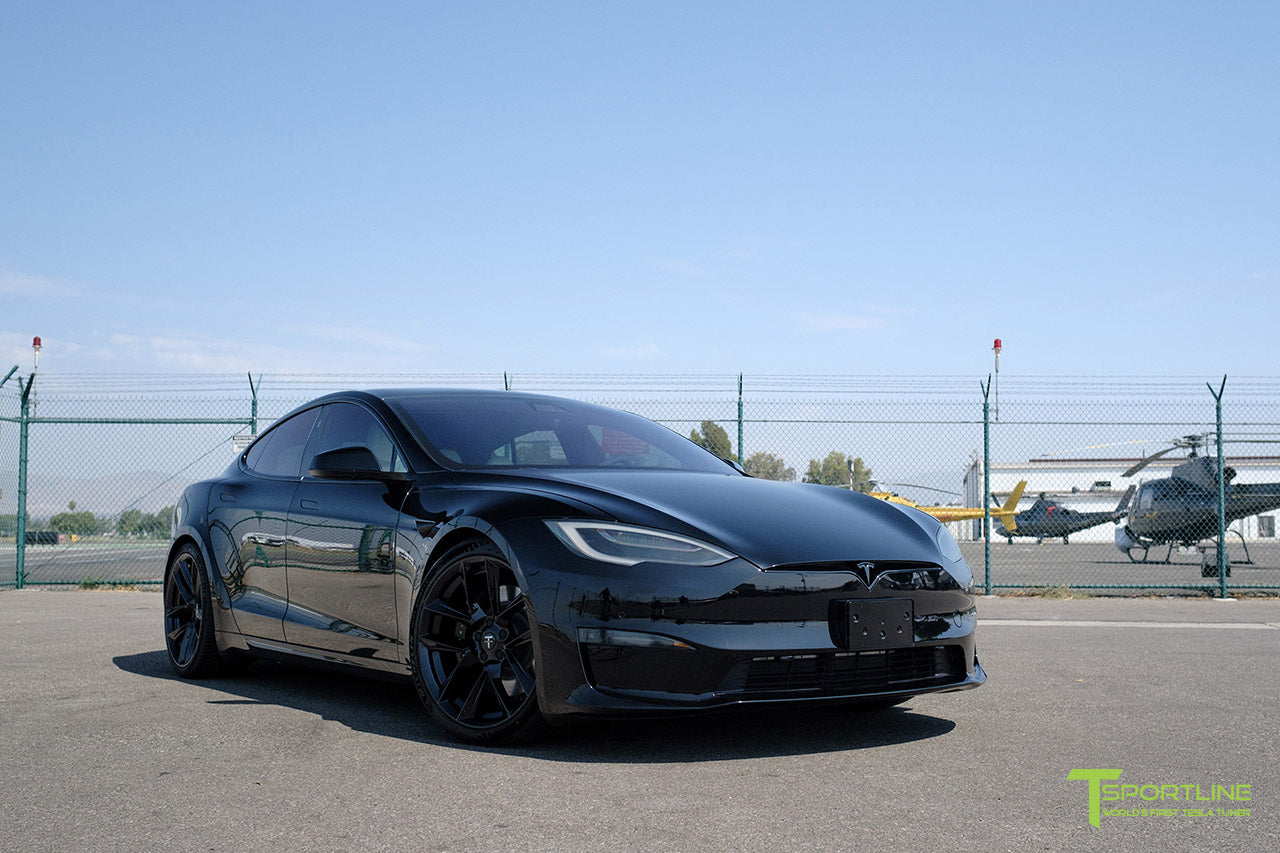

    The Tesla Model S Long Range & Plaid Wheel Guide (Jun 2021 - Present)

    Tesla Model S Wheel Guide, OEM, Aftermarket, and Mods

    Updated 12/12/2022

    View Model S Wheel Gallery Here

    Everything you need to know about your Tesla Model S Wheels on your Tesla Model S Long Range and Plaid.



    19 inch Tesla Model S Aero Wheel

    19" Tesla Model S Cardenio Aero Wheel

    This was the wheel originally included as standard on all Long Range and Plaid Tesla Model S. This Tesla Model S Wheel included a base split-7 wheel design with an Aero Wheel Cover attachment. The Tesla Model S Aero Wheel was only available in gray color.

    Size: 19x9.5" Front, 19x10.5" Rear
    Offset: +40 Front, +40 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 26.3 lbs (27.9 lbs with aero cover) Front, 27.15 lbs (28.75 lbs with aero cover) Rear
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Tesla Option: No Charge
    Tire Spec: Pirelli P Zero - 255/45R19 104Y XL Front, 285/40ZR19 107Y XL Rear (Overall Diameter: 28.1" Front, 28" Rear / Revolutions Per Mile: 740 Front, 742 Rear); Continental ProContact RX - 255/45R19 104W XL Front, 285/40R19 107W XL Rear (Overall Diameter: 28" Front, 28" Rear / Revolutions Per Mile: 741 Front, 743 Rear)


    21 inch Tesla Model S Arachnid Wheel

    21" Tesla Model S Arachnid Wheel

    The Arachnid Wheel was the only optional wheel upgrade for the Model S. It included a center wheel cap that attaches to the center cap hole. The Arachnid was only available in Gunpowder (satin matte gray).

    Size: 21x9.5" Front, 21x10.5" Rear
    Offset: +40 Front, +45 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 32 lbs Front, 36 lbs Rear
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Tesla Option: $4,500
    Tire Spec (Factory Install): Michelin Pilot Sport 4S - 265/35ZR21 101Y Front, 295/30ZR21 102Y XL (Overall Diameter: 28.3" Front, 28" Rear / Revolutions Per Mile: 735 Front, 743 Rear)
    Tesla Aftermarket Option: $6,000
    Tire Spec (Winter Tire Aftermarket Install): Pirelli P Zero Winter - 265/35ZR21 101Y Front, 295/30ZR21 102Y XL


    Offered by T Sportline:

    As the World's First Tesla Tuner, we engineer our wheels to fit within the factory parameters of your Model S. We use the hashtag motto #alloriginal, which means our wheels use the following:

    • The factory Tesla center caps. (COLOR MATCHED T Sportline center cap included with every wheel.)
    • The factory lug nuts
    • The factory tires.
    • The factory tire pressure sensors.

    The fact that we have designed all our wheels to fit all the factory hardware alleviates the need to fiddle with aftermarket lug nuts, branded center caps and different tire sizes. All you need to do is swap the wheels!

    19 inch Tesla Model S TSR Tesla Aftermarket Wheel

    19" TSR Wheel - Flow Forged

    The T Sportline TSR wheel is intended for the Model S owner looking for a similar appearance to the Tesla Roadster wheel. Each 19" TSR is load rated at 900 kg/1,980 lbs.

    Size: 19x9.5" Front, 19x10.5" Rear
    Offset: +35 Front and Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 19x9.5": 26.55 lbs, 19x10.5": TBD lbs
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $1,800 per set of four
    Finishes: Satin Black and Gloss Black


    19 inch Tesla Model S TSF Tesla Aftermarket Wheel

    19" TSF Wheel - Flow Forged

    The T Sportline TSF Wheel is inspired by the T Sportline Limited Edition Falcon Wheel that celebrated the success of Space X. Each 19" TSF is load rated at 900 kg/1,980 lbs.

    Size: 19x9.5" Front, 19x10.5" Rear
    Offset: +35 Front and Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 19x9.5": 25.5 lbs, 19x10.5": 28.35 lbs
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $1,800 per set of four
    Finishes: Space Gray, Satin Black, and Gloss Black


    19 inch Tesla Model S TSS Tesla Aftermarket Wheel

    19" TSS Wheel - Flow Forged

    The T Sportline TSS wheel is intended for the Model S owner looking for a similar appearance to the 21" factory Arachnid wheel on a Model S. Each 19" TSS is load rated at 900 kg/1,980 lbs.

    Size: 19x9.5"
    Offset: +35
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 27.85 lbs
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $1,700 per set of four
    Finishes: Space Gray, Satin Black, and Gloss Black


    19 inch Tesla Model S TST Tesla Aftermarket Wheel

    19" TST Wheel - Flow Forged

    The T Sportline TST wheel is intended for the Model S owner looking for a similar appearance to the first version 21" factory Turbine wheel on a Model S. Each 19" TST is load rated at 900 kg/1,980 lbs.

    Size: 19x9.5"
    Offset: +35
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 26.95 lbs
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $1,700 per set of four
    Finishes: Space Gray, Satin Black, and Gloss Black


    19 inch Tesla Model S TSSF Tesla Aftermarket Wheel

    19" TSSF Wheel - Fully Forged

    Size: 19x10"
    Offset: +40 Front, +30 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 25.65 lbs Front, 26.6 lbs Rear
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $5,500 per set of four
    Finishes: Matte Black, Gloss Black, Anthracite Gray, Brush Satin, Diamond Black, Cyber Bronze, and Custom Colors


    19 inch Tesla Model S TS115 Tesla Aftermarket Wheel

    19" TS115 Wheel - Fully Forged

    Size: 19x10"
    Offset: +40 Front, +30 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 23.25 lbs Front, 24 lbs Rear
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $5,500 per set of four
    Finishes: Matte Black, Gloss Black, Anthracite Gray, Brush Satin, Diamond Black, Cyber Bronze, and Custom Colors


    19 inch Tesla Model S TS117 Tesla Aftermarket Wheel

    19" TS117 Wheel - Fully Forged

    Size: 19x10"
    Offset: +40 Front, +30 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 23.65 lbs Front, 24.2 lbs Rear
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $5,500 per set of four
    Finishes: Matte Black, Gloss Black, Anthracite Gray, Brush Satin, Diamond Black, Cyber Bronze, and Custom Colors


    20 inch Tesla Model S TSR Tesla Aftermarket Wheel

    20" TSR Wheel - Flow Forged

    The T Sportline TSR wheel is intended for the Model S owner looking for a similar appearance to the Tesla Roadster wheel. Each 20" TSR is load rated at 900 kg/1,980 lbs.

    TRACK PACK COMPATIBLE

    Size: 20x10.0"
    Offset: +35
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 29.6 lbs
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $2,700 per set of four
    Finishes: Satin Black and Gloss Black


    20 inch Tesla Model Y TSF Tesla Aftermarket Wheel

    20" TSF Wheel - Flow Forged

    The T Sportline TSF Wheel is inspired by the T Sportline Limited Edition Falcon Wheel that celebrated the success of Space X. Each 20" TSF is load rated at 900 kg/1,980 lbs.

    Size: 20x10.0"
    Offset: +35
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 27.3 lbs
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $2,600 per set of four
    Finishes: Space Gray, Satin Black, and Gloss Black


    20 inch Tesla Model S TSV Tesla Aftermarket Wheel

    20" TSV Wheel - Flow Forged

    The T Sportline TSV wheel is intended for the Model S owner looking for a similar appearance to the 21" factory Uberturbine wheel on a Model Y. Each 20" TSV is load rated at 900 kg/1,980 lbs.

    Size: 20x10.0"
    Offset: +35
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 35.05 lbs
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $2,600 per set of four
    Finishes: Satin Gray and Satin Black


    20 inch Tesla Model S TS5 Tesla Aftermarket Wheel

    20" TS5 Wheel - Flow Forged

    The T Sportline TS5 wheel is intended for the Model S owner looking for a similar appearance to the 20" factory Zero G wheel from the Tesla Model 3 Track Package. Each 20" TS5 is load rated at 900 kg/1,980 lbs.

    Size: 20x10.0"
    Offset: +35
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 29.8 lbs
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $2,600 per set of four
    Finishes: Satin Gray and Satin Black


    20 inch Tesla Model S TSS Tesla Aftermarket Wheel

    20" TSS Wheel - Flow Forged

    The T Sportline TSS wheel is intended for the Model S owner looking for a similar appearance to the 21" factory Arachnid wheel on a Model S. Each 20" TSS is load rated at 900 kg/1,980 lbs.

    Size: 20x10"
    Offset: +35
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 30.45 lbs
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $2,500 per set of four
    Finishes: Space Gray, Satin Black, and Gloss Black


    20 inch Tesla Model S TST Tesla Aftermarket Wheel

    20" TST Wheel - Flow Forged

    The T Sportline TST wheel is intended for the Model S owner looking for a similar appearance to the first version 21" factory Turbine wheel on a Model S. Each 20" TST is load rated at 900 kg/1,980 lbs.

    Size: 20x10"
    Offset: +35
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 31 lbs
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $2,100 for a set of four
    Finishes: Space Gray, Satin Black, and Gloss Black


    20 inch Tesla Model S TLX115 Tesla Aftermarket Wheel

    20" TXL115 Wheel - Fully Forged

    TRACK PACK COMPATIBLE

    Size: 20x10" Front & Rear or 20x10" Front, 20x11" Rear
    Offset: +33 Front, + 40 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 24.2 lbs Front (Estimated), 25.2 lbs Rear
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $4,195 per set of four
    Finishes: Matte Black, Gloss Black, Anthracite Gray, Brush Satin, Diamond Black, Cyber Bronze, and Custom Colors


    20 inch Tesla Model S TSSF Tesla Aftermarket Wheel

    20" TSSF Wheel - Fully Forged

    TRACK PACK COMPATIBLE

    Size: 20x10" Front, 20x11" Rear
    Offset: +33 Front +40 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 26 lbs Front, 28 lbs Rear (Estimated)
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $5,700 per set of four
    Finishes: Matte Black, Gloss Black, Anthracite Gray, Brush Satin, Diamond Black, Cyber Bronze, and Custom Colors

    20 inch Tesla Model S TS114 Tesla Aftermarket Wheel

    20" TS114 Wheel - Fully Forged

    TRACK PACK COMPATIBLE

    Size: 20x10" Front, 20x11" Rear
    Offset: +33 Front +40 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 25 lbs Front, 26 lbs Rear (Estimated)
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $5,700 per set of four
    Finishes: Matte Black, Gloss Black, Anthracite Gray, Brush Satin, Diamond Black, Cyber Bronze, and Custom Colors


    20 inch Tesla Model S TS115 Tesla Aftermarket Wheel

    20" TS115 Wheel - Fully Forged

    TRACK PACK COMPATIBLE

    Size: 20x10" Front, 20x11" Rear
    Offset: +33 Front, +40 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 20x10": 25 lbs; 20x11": 26 lbs (Estimated)
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $5,700 per set of four
    Finishes: Matte Black, Gloss Black, Anthracite Gray, Brush Satin, Diamond Black, Cyber Bronze, and Custom Colors


    20 inch Tesla Model S TS117 Tesla Aftermarket Wheel

    20" TS117 Wheel - Fully Forged

    TRACK PACK COMPATIBLE

    Size: 20x10" Front, 20x11" Rear
    Offset: +33 Front, +40 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 20x10": 26.9 lbs; 20x11": 27.9 lbs (Estimated)
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $5,700 per set of four
    Finishes: Matte Black, Gloss Black, Anthracite Gray, Brush Satin, Diamond Black, Cyber Bronze, and Custom Colors


    20 inch Tesla Model S TS118 Tesla Aftermarket Wheel

    20" TS118 Wheel - Fully Forged

    TRACK PACK COMPATIBLE

    Size: 20x10" Front, 20x11" Rear
    Offset: +33 Front, +40 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: TBD
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $5,000 per set of four
    Finishes: Matte Black, Gloss Black, Anthracite Gray, Brush Satin, Diamond Black, Cyber Bronze, and Custom Colors


    21 inch Tesla Model S TSR Tesla Aftermarket Wheel

    21" TSR Wheel - Flow Forged

    The T Sportline TSR wheel is intended for the Model S owner looking for a similar appearance to the Tesla Roadster wheel. Each 21" TSR is load rated at 900 kg/1,980 lbs.

    Size: 21x9.5" Front, 21x10.5" Rear
    Offset: +35 Front, +35 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 21x9.5": 29.8 lbs, 21x31": 30.55 lbs
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $2,150 per set of four
    Finishes: Satin Black and Gloss Black


    21 inch Tesla Model S TSF Tesla Aftermarket Wheel

    21" TSF Wheel - Flow Forged

    The T Sportline TSF Wheel is inspired by the T Sportline Limited Edition Falcon Wheel that celebrated the success of Space X. Each 21" TSF is load rated at 900 kg/1,980 lbs.

    Size: 21x9.5" Front, 21x10.5" Rear
    Offset: +35 Front, +35 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 21x9.5": 29.25 lbs, 21x10.5": 30.55 lbs
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $2,150 per set of four
    Finishes: Space Gray, Satin Black, and Gloss Black


    21 inch Tesla Model S TXL115 Tesla Aftermarket Wheel

    21" TXL115 Wheel - Fully Forged

    TRACK PACK COMPATIBLE

    Size: 21x9.5" Front, 21x10.5" Rear
    Offset: +30 Front, +33 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 25.9 lbs Front, 27 lbs Rear
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $4,495 per set of four
    Finishes: Matte Black, Gloss Black, Anthracite Gray, Brush Satin, Diamond Black, Cyber Bronze, and Custom Colors


    21 inch Tesla Model S TSSF Tesla Aftermarket Wheel

    21" TSSF Wheel - Fully Forged

    TRACK PACK COMPATIBLE

    Size: 21x9.5" Front, 21x10.5" Rear
    Offset: +30 Front, +33 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 30.2 lbs Front, 31.4 lbs Rear
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $6,000 per set of four
    Finishes: Matte Black, Gloss Black, Anthracite Gray, Brush Satin, Diamond Black, Cyber Bronze, and Custom Colors

    21 inch Tesla Model S TS112 Tesla Aftermarket Wheel

    21" TS112 Wheel - Fully Forged

    TRACK PACK COMPATIBLE

    Size: 21x9.5" Front, 21x10.5" Rear
    Offset: +30 Front, +33 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: TBD
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $6,000 per set of four
    Finishes: Matte Black, Gloss Black, Anthracite Gray, Brush Satin, Diamond Black, Cyber Bronze, and Custom Colors


    21 inch Tesla Model S TS114 Tesla Aftermarket Wheel

    21" TS114 Wheel - Fully Forged

    TRACK PACK COMPATIBLE

    Size: 21x9.5" Front, 21x10.5" Rear
    Offset: +30 Front, +33 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 29.2 lbs Front, 30 lbs Rear
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $6,000 per set of four
    Finishes: Matte Black, Gloss Black, Anthracite Gray, Brush Satin, Diamond Black, Cyber Bronze, and Custom Colors


    21 inch Tesla Model S TS115 Tesla Aftermarket Wheel

    21" TS115 Wheel - Fully Forged

    TRACK PACK COMPATIBLE

    Size: 21x9.5" Front, 21x10.5" Rear
    Offset: +30 Front, +33 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 27.55 lbs Front, 28.85 lbs Rear
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $6,000 per set of four
    Finishes: Matte Black, Gloss Black, Anthracite Gray, Brush Satin, Diamond Black, Cyber Bronze, and Custom Colors


    21 inch Tesla Model S TS117 Tesla Aftermarket Wheel

    21" TS117 Wheel - Fully Forged

    TRACK PACK COMPATIBLE

    Size: 21x9.5" Front, 21x10.5" Rear
    Offset: +30 Front, +33 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 28.5 lbs Front, 29.4 lbs Rear
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $6,000 per set of four
    Finishes: Matte Black, Gloss Black, Anthracite Gray, Brush Satin, Diamond Black, Cyber Bronze, and Custom Colors


    21 inch Tesla Model S TS118 Tesla Aftermarket Wheel

    21" TS118 Wheel - Fully Forged

    TRACK PACK COMPATIBLE

    Size: 21x9.5" Front, 21x10.5" Rear
    Offset: +35 Front, +40 Rear
    PCD: 5x120
    Center Bore: 64.1mm
    Weight: 27.55 lbs Front, 28.85 lbs Rear
    Lug Nut Spec: 21mm Hex, 14x1.50 Thread
    Lug Nut Torque Spec: 129lb-ft
    Price: Starting from $6,000 per set of four
    Finishes: Matte Black, Gloss Black, Anthracite Gray, Brush Satin, Diamond Black, Cyber Bronze, and Custom Colors
