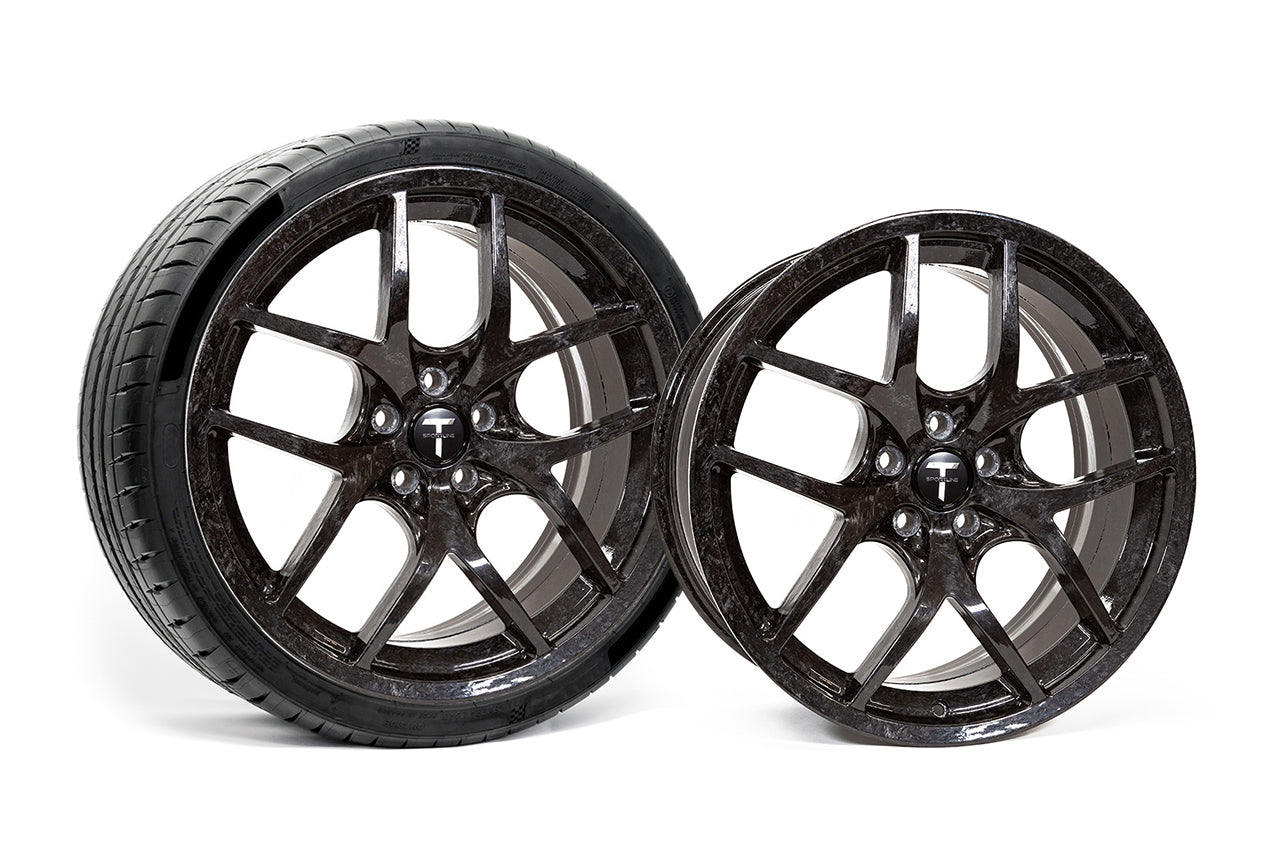

Name: TSC 20" Tesla Model 3 Forged Carbon Fiber Wheel and Tire Package (Set of 4)
Brand: T Sportline
SKU: SC2095950511435GB
Price: 6995.0 USD
Availability: InStock

SC2095950511435GB

TSC 20" Tesla Model 3 Forged Carbon Fiber Wheel and Tire Package (Set of 4)

$6,995.00 $6,995.00

Select Wheel Color

High-Gloss Forged Carbon

Select Option - Add Tires (Ships Bolt-on Ready! Mounted & Balanced including TPMS)

No Tires (Purchase Wheels Only)

Falken Azenis FK510 Performance Summer 245/35R20

Michelin Pilot Sport 4S Performance Summer 245/35R20

Michelin Pilot Sport Cup 2 Track & Competition 245/35R20

Continental ExtremeContact DWS06 Plus All Season 245/35R20

Michelin Pilot Sport All Season 4 245/35R20

You Must Confirm Model Year👇🏻

October 2020 - Present

2017 - September 2020

Description

Upgrade your Tesla Model 3 with T Sportline TSC 20-inch Forged Carbon Fiber wheels and wheel-and-tire packages. Made in the USA from forged carbon fiber composite, the TSC delivers an exotic high-gloss forged-carbon appearance, engineered strength and exceptionally low mass. Each 20x9.5-inch square wheel weighs 20.25 lbs, features a +35mm offset and carries a 750 kg (1,653 lbs) load rating per wheel. Choose 245/35R20 tires in all-season, summer performance or Michelin Pilot Sport Cup 2 track and competition versions; the square fitment allows front-to-rear tire rotation. TSC wheels accept factory Tesla center caps and TPMS sensors, and come with gloss black T Sportline center caps and the required special black mag lug nuts. Factory Tesla lug nuts, lug caps and wheel locks are not compatible with these forged-carbon wheels. Select four wheels only or a professionally mounted, balanced, TPMS-equipped wheel-and-tire package.

Tesla Model 3 Compatibility

Confirmed Fit

Approved for all Tesla Model 3 versions from 2017–Present

2017 2018 2019 2020 2021 2022 2023 2024 2025 2026

✓ Approved to replace factory 18", 19" or 20" wheels & tires

Rear-Wheel Drive Versions Mid Range RWD, Standard Range, Standard Range Plus, Rear-Wheel Drive and Long Range RWD

All-Wheel Drive Versions Long Range AWD, All-Wheel Drive and Dual Motor AWD

Performance Model All Tesla Model 3 Performance configurations

New Model 3 / Highland 2024–Present RWD, Long Range RWD, Long Range AWD and Performance configurations

Wheel and Wheel & Tire Package Offerings

20x9.5" Fitment Wheels & Tires (Square = all 4 wheels & tires the same size)

Wheel Package — What Is Included

Set of 4 wheels
4x 20x9.5" TSC wheels 4x gloss black T Sportline wheel center caps 20 special black mag lug nuts (included)

Wheel & Tire Package — What Is Included

Set of 4 wheels & tires—mounted, balanced, & ready to install!
4x 20x9.5" TSC wheels 4x 245/35R20 tires 4x factory-spec Tesla TPMS sensors matched to the selected model year 4x gloss black T Sportline wheel center caps 20 special black mag lug nuts (included)

Recommended Add-On Options

Factory Tesla Wheel Trade-In — Ask about applicable trade-in rebates for your original Model 3 wheels
Tesla Tire Road Hazard Protection — Rest easy with tire protection
Ceramic Coating — Protect the finish and make cleaning easier

Wheel Features and Benefits

Wheel Specifications

Wheel Model: TSC
Vehicle: Tesla Model 3
Wheel Size: 20x9.5" front and rear
Offset: +35mm
Bolt Pattern: 5x114.3
Center Bore: 64.1mm
Construction: 100% Forged Carbon Fiber Composite
Country of Manufacture: Made in the USA
Wheel Weight: 20.25 lbs per wheel
Load Rating: 750 kg / 1,653 lbs per wheel
Tire Sizes: 245/35R20
Finish: High-Gloss Forged Carbon
Engineering / Testing: FEA analyzed under 3,400 lbs; engineered to SAE J3204 wheel testing requirements
Factory Hardware: Compatible with factory Tesla center caps and TPMS sensors; factory lug nuts, lug caps and wheel locks are NOT compatible
Included Mounting Hardware: Special black mag lug nuts, 20 pieces (required for TSC installation)

Forged Carbon Strength & Lightweight Design

Unlike a conventional forged aluminum wheel, the TSC is molded from advanced forged carbon fiber composite and engineered for Tesla load and impact requirements. At just 20.25 lbs per 20x9.5-inch wheel, its low rotational mass can help improve responsiveness while the striking forged-carbon pattern distinguishes each wheel.

The TSC carries a 750 kg (1,653 lbs) load rating. The design has undergone finite-element analysis at a 3,400 lb test load and was developed to SAE J3204 engineering requirements. Made in the USA, TSC wheels use their own special black mag lug nuts, which are included with each wheel set.

20-Inch Sporty OEM+ Balance

The 20-inch setup delivers the sportiest appearance and the sharpest steering feel of the Model 3 wheel sizes, matching the diameter of the factory Model 3 Performance 20-inch wheels with an exotic forged-carbon look. Compared with 18-inch and 19-inch setups, 20-inch wheels generally provide a firmer ride and a more performance-oriented look. The 245/35R20 tires are slightly wider and taller than the factory 235/35R20 size, adding a little sidewall cushion and wheel-edge protection.

TSC Forged Carbon Fiber Design

Forged carbon fiber creates an unmistakable mottled high-gloss carbon pattern, offering an exotic-car-inspired look that differs from the woven appearance of traditional carbon fiber. The TSC wheel was developed specifically for Tesla fitments and is manufactured in the USA using a forged-carbon process.

Its lightweight composite construction and distinctive multi-spoke appearance help transform the Model 3 in the same 20-inch diameter as the factory Model 3 Performance wheels. Gloss black T Sportline center caps are included, and compatible factory Tesla center caps may also be installed.

Tesla Compatibility

Factory Tesla lug nuts, aftermarket/Tesla wheel lock nuts and lug caps are NOT compatible
Accepts factory Tesla center caps
Accepts factory Tesla TPMS sensors
Includes color-matched T Sportline center caps
Includes special black mag lug nuts
Will NOT void Tesla Warranty
Does NOT work with factory Tesla "Aero Covers / Hubcaps"

Square Fitment & Tire Rotation

The 20x9.5" square setup uses the same wheel and tire size at all four corners, allowing conventional front-to-rear tire rotation when all four tires share the same size and a compatible tread design.

TSC 20-Inch Wheel Weight

20.25 lbsper wheel

Scale photo coming soon

Tire Comparison & Selection Guide

	245/35R20 Fitment	Choosing a Tire Model
Tire Type	Slightly wider and taller than the factory 235/35R20 size	All-season, performance summer or track & competition
Range & Efficiency	Slightly wider, taller tires may reduce range slightly	All-season tires generally offer lower rolling resistance than summer and track tires
Ride Comfort	Slightly taller sidewall than the factory 20-inch tire	All-season tires generally emphasize quietness and comfort
Pothole Protection	Slightly more sidewall height than the factory 20-inch tire	Correct cold tire pressure is essential for maximum protection
Curb Protection	Extra width helps shield the wheel edge	Sidewall shape and rim-protector design vary by tire model
Handling & Steering	Wider 20x9.5-inch wheels and tires sharpen steering response	Summer performance and Pilot Sport Cup 2 tires provide the sharpest response
Dry Traction	Wider footprint at all four corners	Pilot Sport Cup 2 track tires provide maximum dry grip for events
Wet & Snow Traction	Wider footprint depends more on tire model	Summer and track tires are not intended for freezing or snowy conditions; choose all-season for year-round use
Tire Rotation	Front-to-rear rotation	Same tire size at all four corners

245/35R20 Fitment: Slightly wider and taller than the factory 235/35R20 size, adding wheel-edge protection and a wider footprint while keeping front-to-rear tire rotation.

Choose the tire model for your driving: Select the Michelin Pilot Sport All Season 4 or Continental ExtremeContact DWS06 Plus for year-round flexibility, the Michelin Pilot Sport 4S or Falken Azenis FK510 for maximum warm-weather grip, or the Michelin Pilot Sport Cup 2 for track and competition use.

Rating Key: Not Rated Good Better Best

Choose the right tire type for your driving: All-season for everyday use, all-weather for enhanced year-round versatility, summer for warm-weather performance, or dedicated winter tires for cold and snowy conditions. Tire model, rolling resistance, construction, inflation pressure, compound and tread design also affect driving characteristics.

View Instructions & Tesla Tire Care Guide DIY Installation instructions and Learn more about proper Tesla tire maintenance & rotation for maximum range and tread wear

View the T Sportline Tesla Wheel & Tire DIY Installation Guide
Follow the recommended cold tire pressures on your vehicle's Tire and Loading Information label (located inside the driver-side door jamb). Check pressure after the vehicle has been parked out of direct sunlight for more than three hours. Use our AMAXX Tesla Digital Tire Inflator for convenient pressure checks and adjustments.
Rotate tires every 6,250 miles, or sooner if tread-depth difference reaches 2/32 inch, to help maximize tread life and maintain even wear.
When installing wheels, torque the 21mm lug nuts to 129 lb-ft (175 Nm).
After tire service, drive approximately five miles to allow the TPMS readings to update.
Tire pressure changes with temperature, driving and sunlight. Underinflation can reduce range, accelerate wear and create a safety risk.
Teslas do not come with a spare! Consider purchasing a Tesla spare tire package to ensure you never get stranded with a flat.

Shipping

Shipping is calculated at Checkout.

Shipping & Handling charges subject to change without prior notification. PLEASE NOTE THAT INTERNATIONAL SHIPMENTS ARE SUBJECT TO CUSTOMS TAXES/DUTIES, AS CHARGED BY YOUR COUNTRY (THERE ARE NO U.S. CUSTOMS FEES). INTERNATIONAL CUSTOMERS ARE RESPONSIBLE FOR PAYMENT OF THESE FEES. Due to service availability, some international orders may need to be sent to the nearest international airport.
FAQ

Can I use my Aero Covers / Hubcaps on the 20" TSC?
No, the Aero Covers / Hubcaps only fit on your factory wheels.

Does the 20" TSC use the factory 20" Model 3 tire size?
No. It uses 245/35R20 tires on 20x9.5" wheels, slightly wider and taller than the factory 235/35R20 tire, in all-season, summer performance or Michelin Pilot Sport Cup 2 track and competition versions.

Do your TSC wheels fit my factory center caps?
Yes, 20x9.5" TSC wheels fit compatible factory Tesla center caps and your factory TPMS sensors. Factory Tesla lug nuts, wheel locks and lug caps are NOT compatible; the required TSC-specific black mag lug nuts are included.

How are the 20" TSC wheels made?
They are made in the USA from 100% forged carbon fiber composite, developed using finite-element analysis, evaluated under a 3,400 lb design load and engineered to SAE J3204 testing requirements.

Which TSC wheel finishes are offered?
The TSC is available in a distinctive high-gloss forged carbon finish. Gloss black T Sportline center caps and the required black mag lug nuts are included.

What is the warranty on TSC wheels?
Click here for T Sportline Limited Warranty

How long until my TSC wheels arrive after my order?
Custom Order — Contact us to confirm timing.

Do you ship internationally?
Yes! We ship worldwide and offer flat rate FedEx/DHL shipping to select countries.

Will installing your Wheel & Tire Package void my warranty?
Changing wheels and tires won't void your Tesla warranty unless Tesla can prove that our wheels caused the need for repairs. Also, we use factory-size or acceptable alternate size tires only. In other words, your warranty will still be valid when your windshield wiper malfunctions, even if you've upgraded to our Wheel & Tire Package.
