    T520101005114SB

    TS5 20" Tesla Model Y Wheel and Tire Package (Set of 4)

    Select Wheel Color

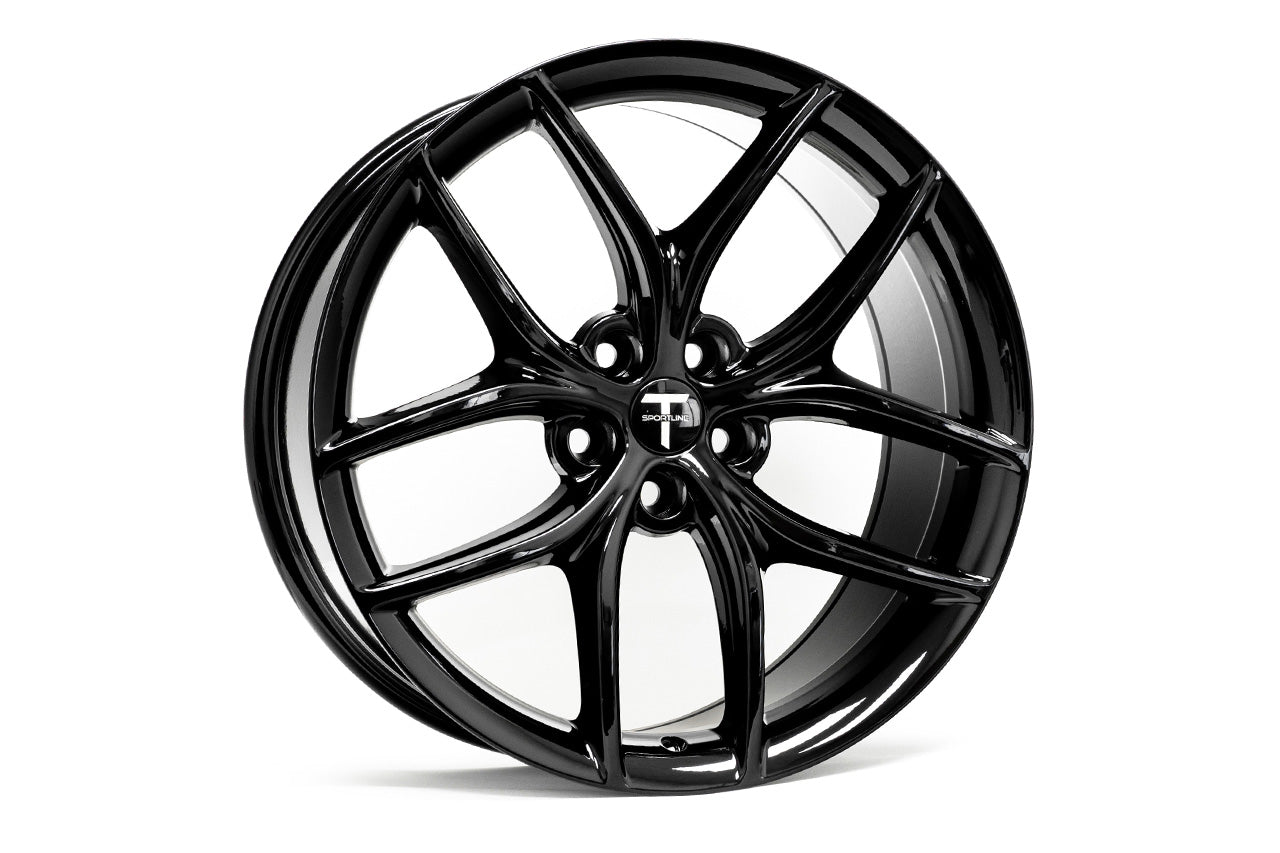

    Satin Black

    Satin Black

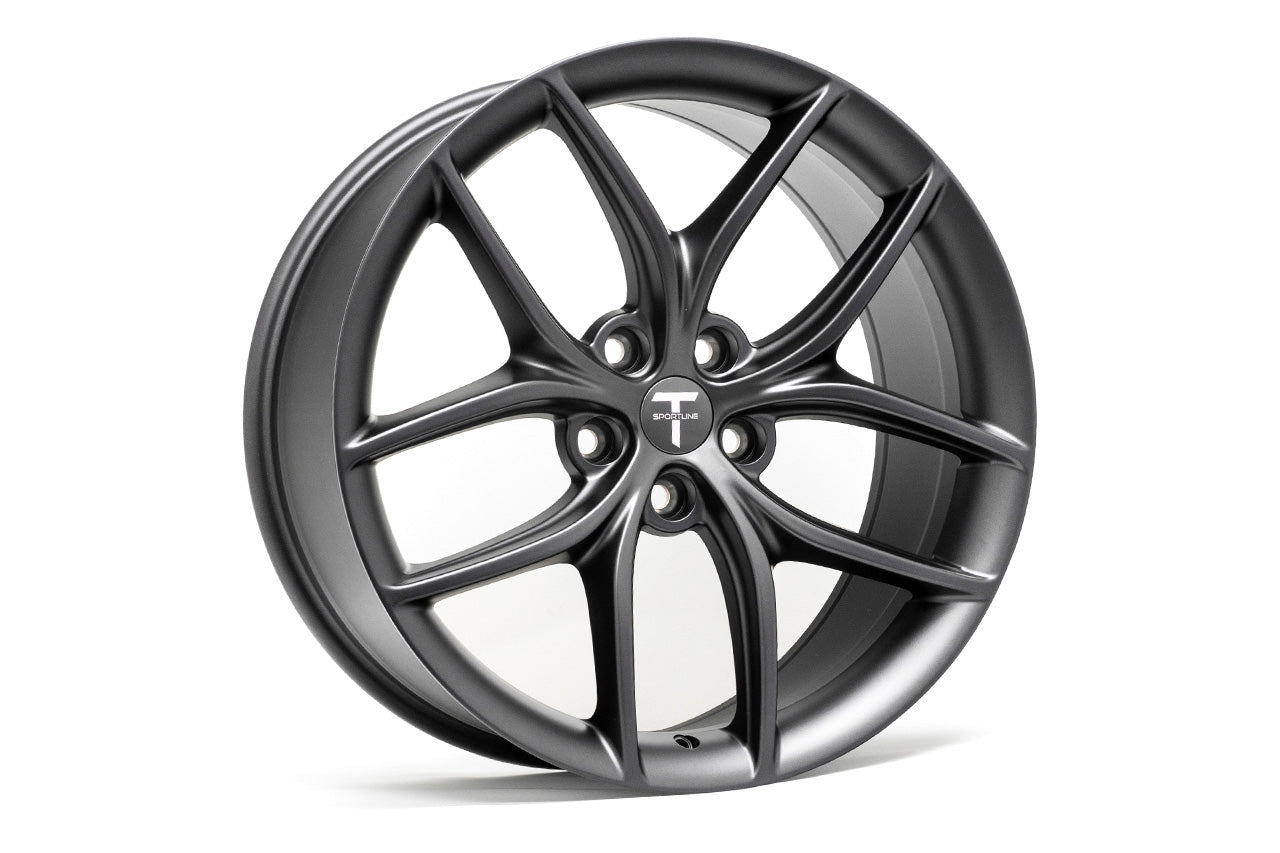

    Satin Gray

    Satin Gray

    Select Wheel Size - You Must Confirm Model Y or YL👇🏻
    Select Option - Add Tires (Ships Bolt-on Ready! Mounted & Balanced including TPMS)

    Tesla Model Y compatibility

    Confirmed fit

    Approved for all Tesla Model Y versions from 2020–Present.

    • 2020
    • 2021
    • 2022
    • 2023
    • 2024
    • 2025
    • 2026
    • 2027

    Approved to replace factory 18", 19", 20" or 21" wheels and tires

    • Rear-Wheel Drive VersionsStandard Range RWD, Rear-Wheel Drive and Long Range RWD
    • All-Wheel Drive VersionsLong Range AWD, All-Wheel Drive and Dual Motor AWD
    • Performance ModelModel Y Performance configurations
    • Model YLSix-seat Model YL configurationsWheels approved; choose tires marked “Y & YL”.
    Hub, lug nuts, TPMS and center caps
    Center bore
    64.1 mm
    Lug nuts
    Uses your factory Tesla lug nuts (not included)
    TPMS sensors
    Accepts factory Tesla TPMS sensors; tire packages include four, installed
    Center caps
    Fits factory Tesla center caps; color-matched T Sportline caps included
    Lug torque
    129 lb-ft (175 Nm), 21 mm socket

    Changing wheels and tires won't void your Tesla warranty unless Tesla can prove that our wheels caused the need for repairs.

    Wheels only, or ready to bolt on

    Wheels only

    $1,950

    • 4 × 20x10" TS5 wheels
    • 4 × color-matched T Sportline center caps

    Have your tires mounted and balanced at any tire shop.

    Wheel & tire package

    From$3,095

    • 4 × 20x10" TS5 wheels
    • 4 × 255/40R20 or 275/40R20 tires of your choice, mounted and balanced
    • 4 × factory-spec Tesla TPMS sensors, installed
    • 4 × color-matched T Sportline center caps

    20 tire choices. Ships mounted, balanced and ready to bolt on.

    Lug nuts are not included. The wheels use your factory Tesla lug nuts; lug nut covers and replacement lug nuts are in the add-ons below.

    Choose your tires

    $3,095$4,295
    Tire type
    Brand
    SizeCompare tire sizes
    Strong in
    Features

    “Strong in” uses T Sportline’s 1 to 5 ratings of the tires offered here; 4 or 5 counts as strong. These are our assessments, not manufacturer test data.

    20 tires

    SummerFits Model Y

    Falken

    Azenis FK510

    255/40R20 101Y

    Max-performance summer tire with strong wet grip

    Strong in wet grip

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    $3,595

    Includes Wheels/Tires/TPMS Mounted & Balanced

    SummerFits Model Y

    Michelin

    Pilot Sport 4S

    255/40R20 101Y

    Benchmark max-performance summer tire for dry and wet grip

    Strong in wet grip

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    $3,795

    Includes Wheels/Tires/TPMS Mounted & Balanced

    SummerFits Model Y

    Michelin

    Pilot Sport EV

    255/40R20 101W

    EV performance summer tire with noise-reducing foam

    Strong in ride comfort, quiet and wet grip

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    Built for EVsTesla factory tire (T0)Noise-reducing foam

    $3,895

    Includes Wheels/Tires/TPMS Mounted & Balanced

    SummerFits Model Y & YL

    Michelin

    Pilot Sport 4S

    275/40R20 106Y

    Benchmark max-performance summer tire for dry and wet grip

    Strong in wet grip

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    Extra wheel protection

    $3,895

    Includes Wheels/Tires/TPMS Mounted & Balanced

    All SeasonFits Model Y

    Falken

    Azenis FK460 A/S Silent Core

    255/40R20 101Y

    Ultra-high-performance all-season with Silent Core noise-reducing foam

    Strong in quiet and wet grip

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    Built for EVsNoise-reducing foam

    $3,395

    Includes Wheels/Tires/TPMS Mounted & Balanced

    All SeasonFits Model Y

    Hankook

    iON evo AS SUV

    255/40R20 101W

    EV all-season for SUVs with noise-reducing foam

    Strong in range, ride comfort, quiet and wet grip

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    Built for EVsNoise-reducing foam

    $3,895

    Includes Wheels/Tires/TPMS Mounted & Balanced

    All SeasonFits Model Y

    Michelin

    Pilot Sport All Season 4

    255/40R20 101Y

    Ultra-high-performance all-season with near-summer grip

    Strong in wet grip

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    $3,795

    Includes Wheels/Tires/TPMS Mounted & Balanced

    All SeasonFits Model Y

    Pirelli

    P Zero All Season

    255/40R20 101H

    Performance all-season

    Strong in quiet and wet grip

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    Noise-reducing foam

    $4,095

    Includes Wheels/Tires/TPMS Mounted & Balanced

    All SeasonFits Model Y

    Sailun

    ERANGE EV

    255/40R20 101W

    Value-priced EV all-season built for range and a quiet ride

    Strong in range and quiet

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    Built for EVs

    $3,395

    Includes Wheels/Tires/TPMS Mounted & Balanced

    All SeasonFits Model Y & YL

    Continental

    ExtremeContact DWS06 Plus

    275/40R20 106Y

    Ultra-high-performance all-season for dry, wet and light snow

    Strong in ride comfort and wet grip

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    Extra wheel protection

    $3,495

    Includes Wheels/Tires/TPMS Mounted & Balanced

    All SeasonFits Model Y & YL

    Falken

    Azenis FK460 A/S

    275/40R20 106Y

    Ultra-high-performance all-season with responsive handling

    Strong in wet grip

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    Extra wheel protection

    $3,595

    Includes Wheels/Tires/TPMS Mounted & Balanced

    All SeasonFits Model Y & YL

    Michelin

    Pilot Sport All Season 4

    275/40R20 106Y

    Ultra-high-performance all-season with near-summer grip

    Strong in wet grip

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    Extra wheel protection

    $3,695

    Includes Wheels/Tires/TPMS Mounted & Balanced

    All SeasonFits Model Y & YL

    Nitto

    NT420V

    275/40R20 106W

    Performance all-season for SUVs

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    Extra wheel protection

    $3,095

    Includes Wheels/Tires/TPMS Mounted & Balanced

    All WeatherFits Model Y

    Michelin

    CrossClimate2

    255/40R20 101W

    All-weather tire with a 3PMSF rating

    Strong in ride comfort, wet grip and snow

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    3PMSF severe snow

    $3,895

    Includes Wheels/Tires/TPMS Mounted & Balanced

    All WeatherFits Model Y & YL

    Nitto

    Motivo 365

    275/40R20 106W

    All-weather performance tire with a 3PMSF rating

    Strong in wet grip and snow

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    3PMSF severe snowExtra wheel protection

    $3,295

    Includes Wheels/Tires/TPMS Mounted & Balanced

    ❄️ WinterFits Model Y

    Michelin

    X-Ice Snow+

    255/40R20 101H

    Studless winter tire for ice and snow

    Strong in ride comfort, quiet and snow

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    3PMSF severe snow

    $4,295

    Includes Wheels/Tires/TPMS Mounted & Balanced

    ❄️ WinterFits Model Y

    Pirelli

    Winter Sottozero 3

    255/40R20 101W

    Performance winter tire for cold, wet and snowy roads

    Strong in wet grip and snow

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    3PMSF severe snowBuilt for EVsTesla factory tire (T0)Noise-reducing foam

    $4,095

    Includes Wheels/Tires/TPMS Mounted & Balanced

    ❄️ WinterFits Model Y & YL

    Continental

    VikingContact 8

    275/40R20 106T

    Studless winter tire for ice and deep snow

    Strong in ride comfort and snow

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    3PMSF severe snowExtra wheel protection

    $3,595

    Includes Wheels/Tires/TPMS Mounted & Balanced

    ❄️ WinterFits Model Y & YL

    Michelin

    X-Ice Snow SUV

    275/40R20 106H

    Studless winter tire for SUVs on ice and snow

    Strong in ride comfort, quiet and snow

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    3PMSF severe snowExtra wheel protection

    $3,595

    Includes Wheels/Tires/TPMS Mounted & Balanced

    OverlandFits Model Y

    Nitto

    Nomad Grappler

    255/40R20 101H

    Crossover all-terrain with a 3PMSF rating and a quiet ride

    Strong in ride comfort, quiet and snow

    Range
    ★★★★★
    Ride comfort
    ★★★★★
    Quiet
    ★★★★★
    Wet grip
    ★★★★★
    Snow
    ★★★★★
    Off-road
    ★★★★★

    3PMSF severe snow

    $3,395

    Includes Wheels/Tires/TPMS Mounted & Balanced

    Tire size comparison255/40R20 vs 275/40R20 Show line-by-line comparison

    Swipe to compare tire sizes.

    Tire size255/40R20Stock Tesla Tire Size275/40R20Extra-Wide / Wheel Protection
    Range & Efficiency★★★Factory-size 20-inch baseline★★★Wider tires may reduce range
    Ride Comfort★★★Balanced 20-inch ride★★★Additional sidewall cushion
    Pothole Protection★★★Factory-size 20-inch protection★★★Additional sidewall height
    Curb Protection★★★Factory-size sidewall profile★★★Extra width helps shield wheel edge
    Handling & Steering★★★Balanced everyday response★★★Wider performance-oriented footprint
    Dry Traction★★★Balanced everyday grip★★★Wider tire footprint potential
    Wet & Snow Traction★★★Depends on tire model★★★Depends on tire model
    Tire Rotation★★★Front-to-rear rotation★★★Front-to-rear rotation

    Rating key: ★★★ Best · ★★★ Better · ★★★ Good · ★★★ Not rated

    Choose the right tire type for your driving: All-season for everyday use, all-weather for enhanced year-round versatility, summer for warm-weather performance, or dedicated winter tires for cold and snowy conditions. Tire model, rolling resistance, construction, inflation pressure, compound and tread design also affect driving characteristics.

    Choose 255/40R20 if your priority is: Factory-size 20-inch fitment, balanced everyday handling, efficiency and tire rotation.

    Choose 275/40R20 if your priority is: Extra tire width, additional sidewall coverage and a wider stance while retaining tire rotation.

    Model Y photos on TS5 wheels

    Finish:

    Zero-G-inspired flow-forged 20-inch wheels for the Model Y

    Upgrade your Tesla Model Y with the T Sportline TS5 20-inch flow-forged wheel and tire package. Inspired by Tesla's exclusive Zero-G wheel design, the TS5 features a distinctive five-spoke performance style that brings a track-inspired appearance to the Model Y while maintaining a refined OEM+ look. Manufactured using a precision flow-forging process, these wheels offer strong, durable construction engineered for everyday driving. Each 20x10-inch wheel weighs 28.95 lbs and is designed specifically for the Tesla Model Y. The square configuration accommodates factory-size 255/40R20 tires or wider 275/40R20 tires for additional wheel protection and a more substantial stance. TS5 wheels accept factory Tesla lug nuts, center caps and TPMS sensors, eliminating the need for special mounting hardware. Choose wheels only or a professionally mounted and balanced wheel and tire package delivered ready to install. With their Zero-G-inspired styling and 20-inch proportions, TS5 wheels offer an excellent balance of sporty appearance, responsive handling and everyday practicality.

    TS5 20-inch specifications

    Flow Forged, square fitment

    Sizes and setups

    SetupFront wheelsRear wheelsTire sizesFits
    SquareSame size at all four cornersSelected

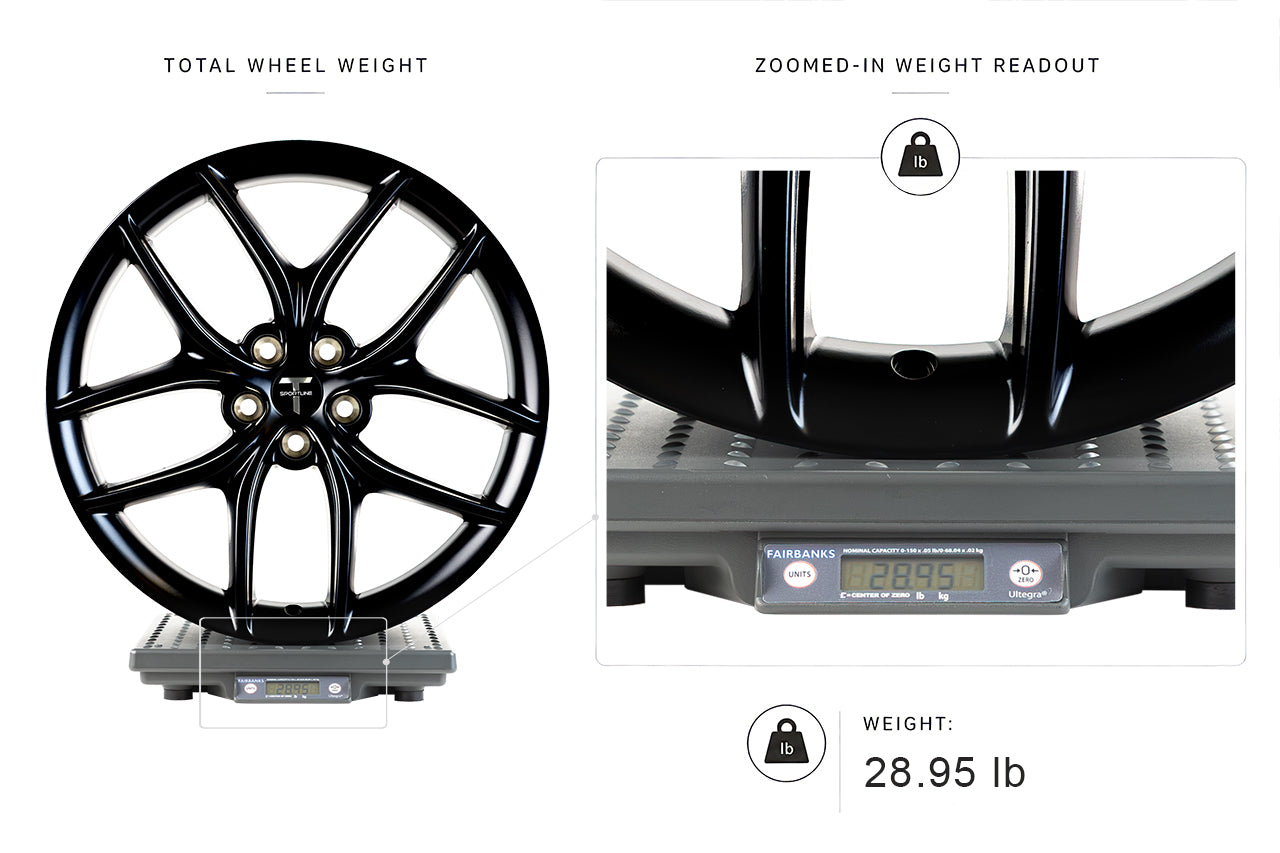

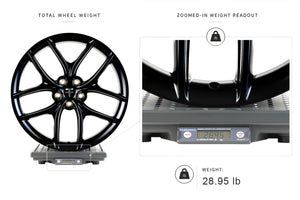

    20 × 10 inOffset +40 mm · 28.95 lb
    20 × 10 inOffset +40 mm · 28.95 lb
    255/40R20275/40R20
    Model Y, Model YL

    Model YL: the wheels are approved; choose tires marked “Y & YL”.

    Square

    The same wheel and tire size at all four corners. Tires can be rotated front to rear, so they wear evenly and last longer, and you get the widest choice of tires.

    Width is the wheel's rim width in inches; a wider wheel carries a wider tire for a bigger footprint and a fuller look. Offset is the distance from the wheel's centerline to its mounting face, which sets how far in or out the wheel sits. Every setup listed is approved for the Model Y with the tire sizes shown.

    Wheel details

    Bolt pattern
    5 × 114.35 lugs on a 114.3 mm circle, matching the Model Y's hubs.
    Center bore
    64.1 mmThe opening that centers the wheel on the hub.
    Load rating
    900 kg1,984 lb per wheel.
    Construction
    Flow ForgedA cast face with a barrel spun under heat and pressure, for strength at a lower weight.
    Testing
    JWL, VIA, SAE J2530, TÜVManufactured in a TÜV-certified facility.
    Finishes
    Satin Black, Satin Gray
    Center caps
    Color-matched T Sportline center caps included
    Factory hardware
    Accepts factory Tesla lug nuts, center caps and TPMS sensors

    Features and benefits

    Lighter & Stronger Than Tesla WheelsRead more

    TS5 wheels are manufactured using a flow-forged process and tested to JWL, VIA, SAE J2530 and TÜV standards. Factory Tesla wheels are typically gravity cast, which can result in heavier wheels with lower strength-to-weight performance. Our wheels use an advanced flow-forging process to increase strength while reducing weight—helping improve resistance to road-hazard damage, reduce unsprung mass, and preserve range.

    20-Inch Sporty OEM+ BalanceRead more

    The 20-inch setup offers a sportier appearance and responsive steering feel while maintaining practical everyday usability. Compared with 18-inch and 19-inch setups, 20-inch wheels generally provide a firmer ride and a more performance-oriented appearance. They typically offer greater ride comfort and sidewall protection than 21-inch packages, depending on tire selection.

    Choose factory-size 255/40R20 tires for familiar 20-inch proportions or wider 275/40R20 tires for a more substantial stance and additional wheel protection.

    Zero-G Inspired DesignRead more

    The TS5 split-spoke wheel design was inspired by Tesla Zero-G Track Package wheels. Its svelte split-spoke face presents lightweight, performance-focused footwork—ideal for enthusiast owners seeking standout looks and an overachieving lightweight wheel.

    Square Fitment & Tire RotationRead more

    The 20x10" square setup uses the same wheel and tire size at all four corners, allowing conventional front-to-rear tire rotation. Choose factory-size 255/40R20 tires for a familiar fitment or wider 275/40R20 tires for additional wheel protection and a more aggressive stance.

    Installation and care

    Instructions & Tesla tire care guide

    DIY installation instructions, plus how to maintain and rotate your tires for maximum range and tread life.

    • View the T Sportline Tesla Wheel & Tire DIY Installation Guide
    • Follow the recommended cold tire pressures on your vehicle's Tire and Loading Information label (located inside the driver-side door jamb). Check pressure after the vehicle has been parked out of direct sunlight for more than three hours. Use our AMaxx Tesla Digital Tire Inflator for convenient pressure checks and adjustments.
    • Rotate tires every 6,250 miles, or sooner if tread-depth difference reaches 2/32 inch, to help maximize tread life and maintain even wear.
    • When installing wheels, torque the 21mm lug nuts to 129 lb-ft (175 Nm).
    • After tire service, drive approximately five miles to allow the TPMS readings to update.
    • Tire pressure changes with temperature, driving and sunlight. Underinflation can reduce range, accelerate wear and create a safety risk.
    • Teslas do not come with a spare! Consider a Tesla spare tire package to ensure you never get stranded with a flat.

    Shipping

    Shipping is calculated at checkout. International shipments are subject to customs taxes and duties charged by your country.

    Warranty

    Covered by the T Sportline limited warranty. Read the warranty

    Questions?

    Talk to a T Sportline wheel specialist before you order. Contact us

    Questions owners ask

    Can I use my Aero Covers / Hubcaps on the 20" TS5?

    No, the Aero Covers / Hubcaps only fit on your factory wheels.

    Which tire sizes are offered with the 20" TS5 package?

    Available fitments include the factory-size 255/40R20 and the extra-wide 275/40R20 for additional wheel protection.

    Do your TS5 wheels fit my factory center caps?

    Yes, 20x10" TS5 wheels fit your factory Tesla center caps. They also fit your factory TPMS sensors and factory lug nuts, so no aftermarket wheel hardware is required.

    How are the 20" TS5 wheels made?

    They are flow forged and tested to JWL, VIA, SAE J2530 and TÜV standards.

    Do I need to change the color of my existing lug nuts and center caps to match my new TS5 wheels?

    That's an aesthetic decision only you can make. All TS5 wheels come with T Sportline color-matched center caps.

    What is the warranty on TS5 wheels?
    How long until my TS5 wheels arrive after my order?

    We process orders within 72 hours unless your wheels are back-ordered. Please allow 1–7 business days of transit time from the day you receive a tracking number. We will email you if your wheels are back-ordered.

    Do you ship internationally?

    Yes! We ship worldwide and offer flat rate FedEx/DHL shipping to select countries.

    Will installing your Wheel & Tire Package void my warranty?

    Changing wheels and tires won't void your Tesla warranty unless Tesla can prove that our wheels caused the need for repairs. In other words, your warranty will still be valid when your windshield wiper malfunctions, even if you've upgraded to our Wheel & Tire Package. Also, we use factory-size or acceptable alternate size tires only.

    How much do TS5 20-inch wheels weigh?

    Each 20x10" TS5 flow-forged wheel weighs 28.95 lbs and has a load rating of 900 kg (1,984 lbs). Wheel weight does not include the tire, TPMS sensor or lug nuts.

    Are TS5 wheels the same as Tesla's original Zero-G wheels?

    No. TS5 wheels are T Sportline aftermarket wheels inspired by Tesla's Zero-G wheel design, originally offered as part of the Model 3 Track Package. The TS5 is engineered specifically for the Tesla Model Y, offering a 20x10" square fitment that allows front-to-rear tire rotation with matching tires.

    Can I rotate my tires with the TS5 20-inch package?

    Yes. The TS5 20x10" square fitment uses matching wheel and tire sizes at all four corners, allowing conventional front-to-rear tire rotation, subject to the tire manufacturer's recommendations.
