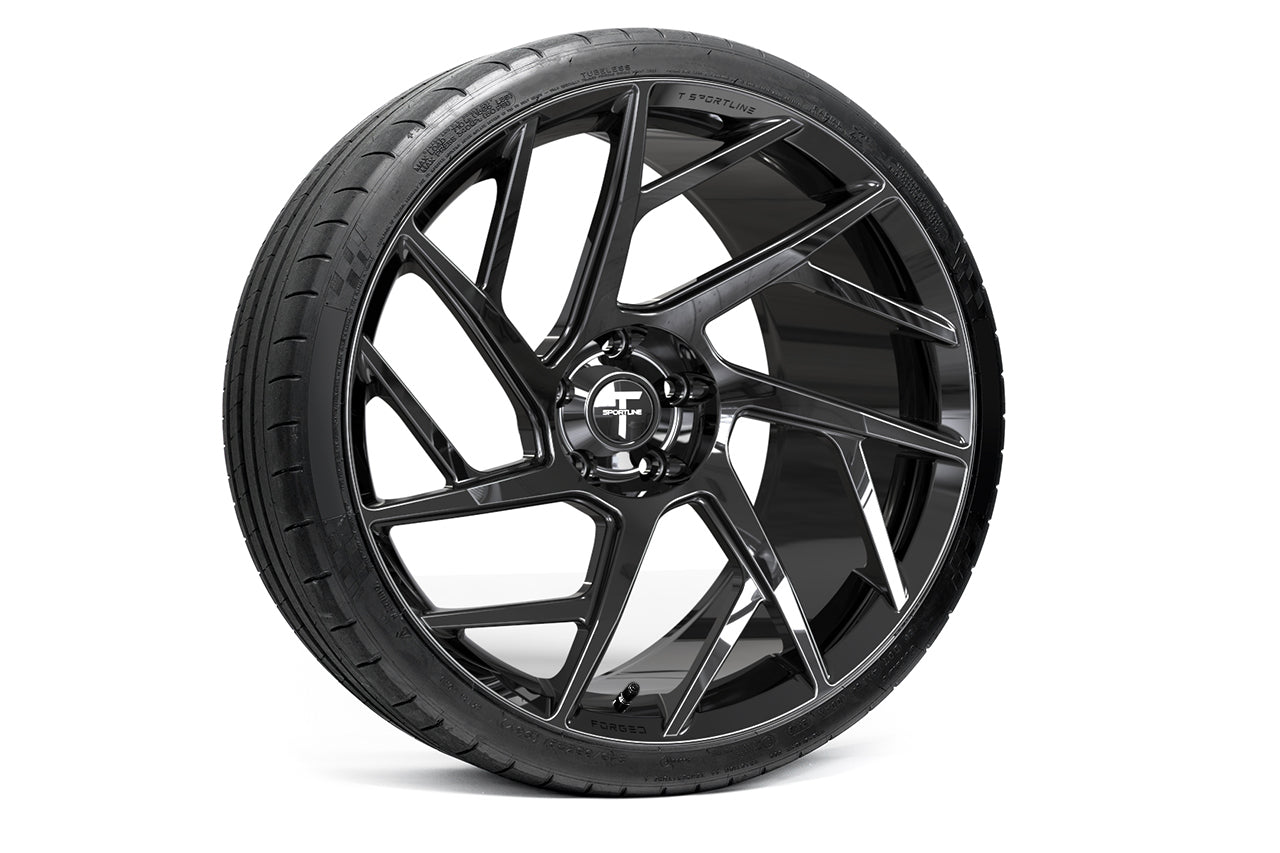

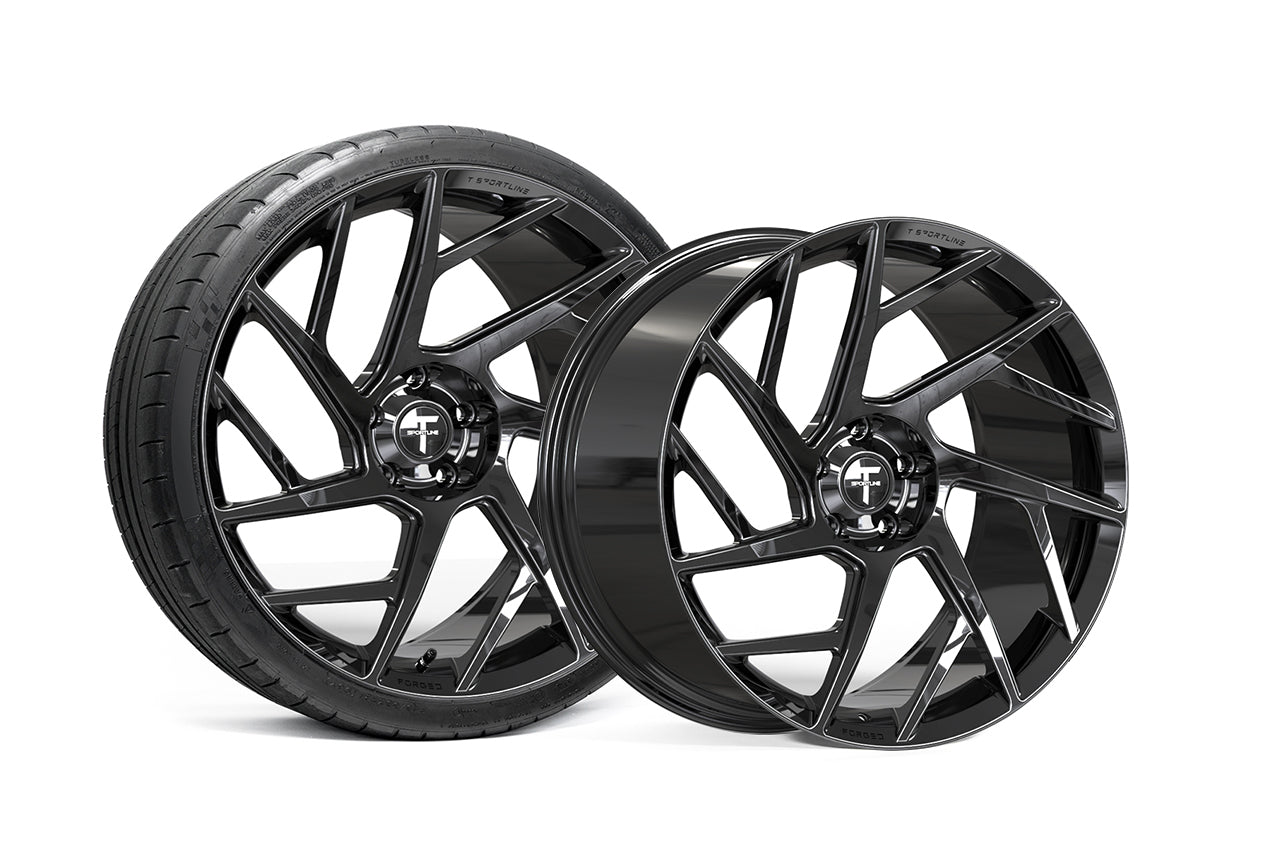

    TS117D 21" Superwide Tesla Model S Plaid & Long Range Fully Forged Lightweight Tesla Wheels and Tire Packages

    Select Color Option
    Satin Black

    Satin Black

    Gloss Black

    Gloss Black

    Anthracite Gray

    Anthracite Gray

    Cyber Bronze

    Cyber Bronze

    Brushed Satin

    Brushed Satin

    Diamond Black

    Diamond Black

    Custom Finish

    Custom Finish

    Select Wheel Size Option
    Tire & Brand


    z
    z
    • Description

      TRACK PACK COMPATIBLE

      Includes

      • Square - 21x9.5" Front & Rear
        • 4x 21x9.5" Wheels
        • 4x 265/35-21 Tires
        • 4x T Sportline Wheel Center Caps
        • 4x Factory Spec Tire Pressure Monitor Sensor (TPMS) for Tesla
        • 1x Rear Spacer Kit
        • No additional hardware required. Use your factory lug nuts!
      • Square - 21x10.5" Front & Rear (includes hardware kit)
        • 4x 21x10.5" Wheels
        • 4x 285/30-21 Tires
        • 4x T Sportline Wheel Center Caps
        • 4x Factory Spec Tire Pressure Monitor Sensor (TPMS) for Tesla
        • 1x Rear Spacer Kit
        • No additional hardware required. Use your factory lug nuts!
      • Staggered - 21x9.5" Front & 21x10.5" Rear
        • 2x 21x9.5" & 2x 21x10.5" Wheels
        • 2x 265/35-21 & 2x 295/30-21 Tires
        • 4x T Sportline Wheel Center Caps
        • 4x Factory Spec Tire Pressure Monitor Sensor (TPMS) for Tesla
        • No additional hardware required. Use your factory lug nuts!
      • Superwide - 21x10.5" Front & 21x11.5" Rear
        • 2x 21x10.5" & 2x 21x11.5" Wheels
        • 2x 285/30-21 & 2x 325/30-21 Tires
        • 4x T Sportline Wheel Center Caps
        • 4x Factory Spec Tire Pressure Monitor Sensor (TPMS) for Tesla
        • No additional hardware required. Use your factory lug nuts!

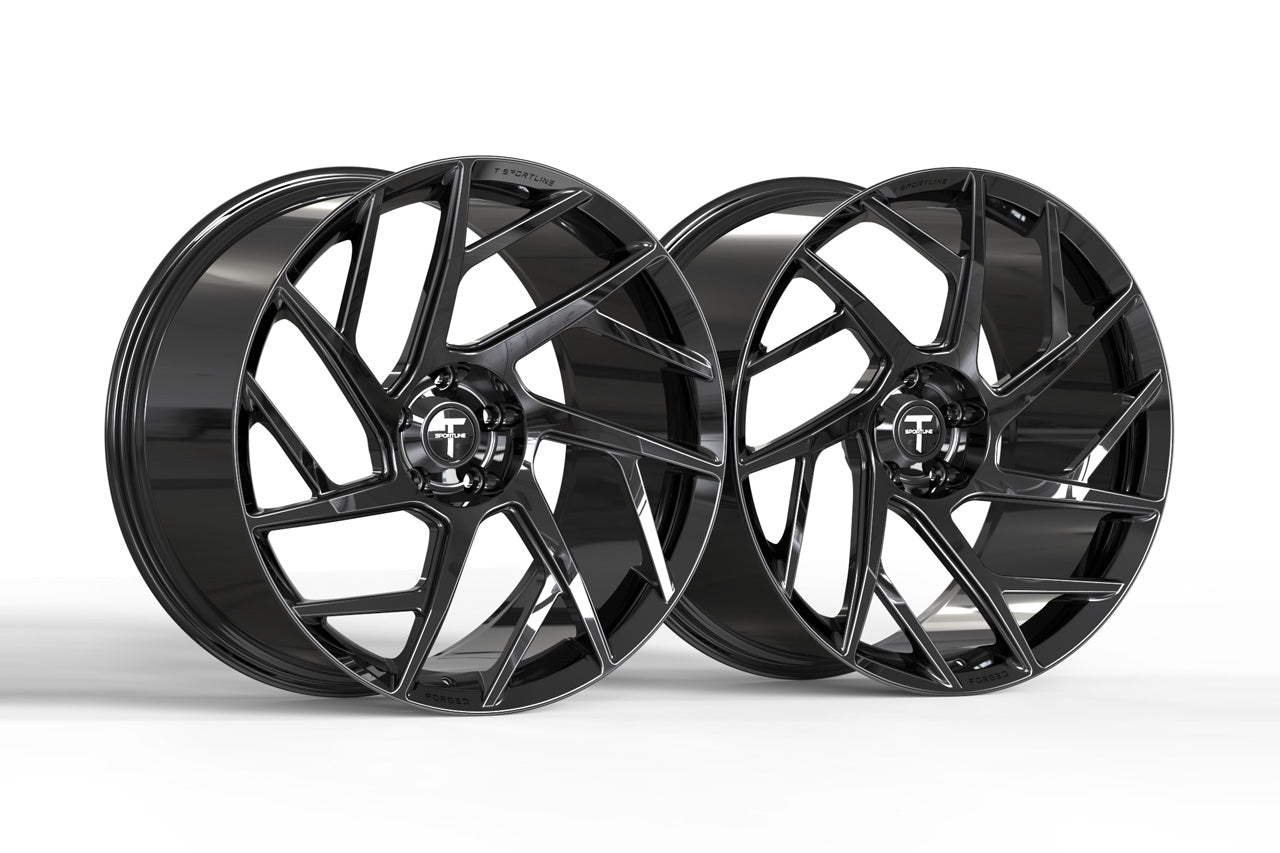

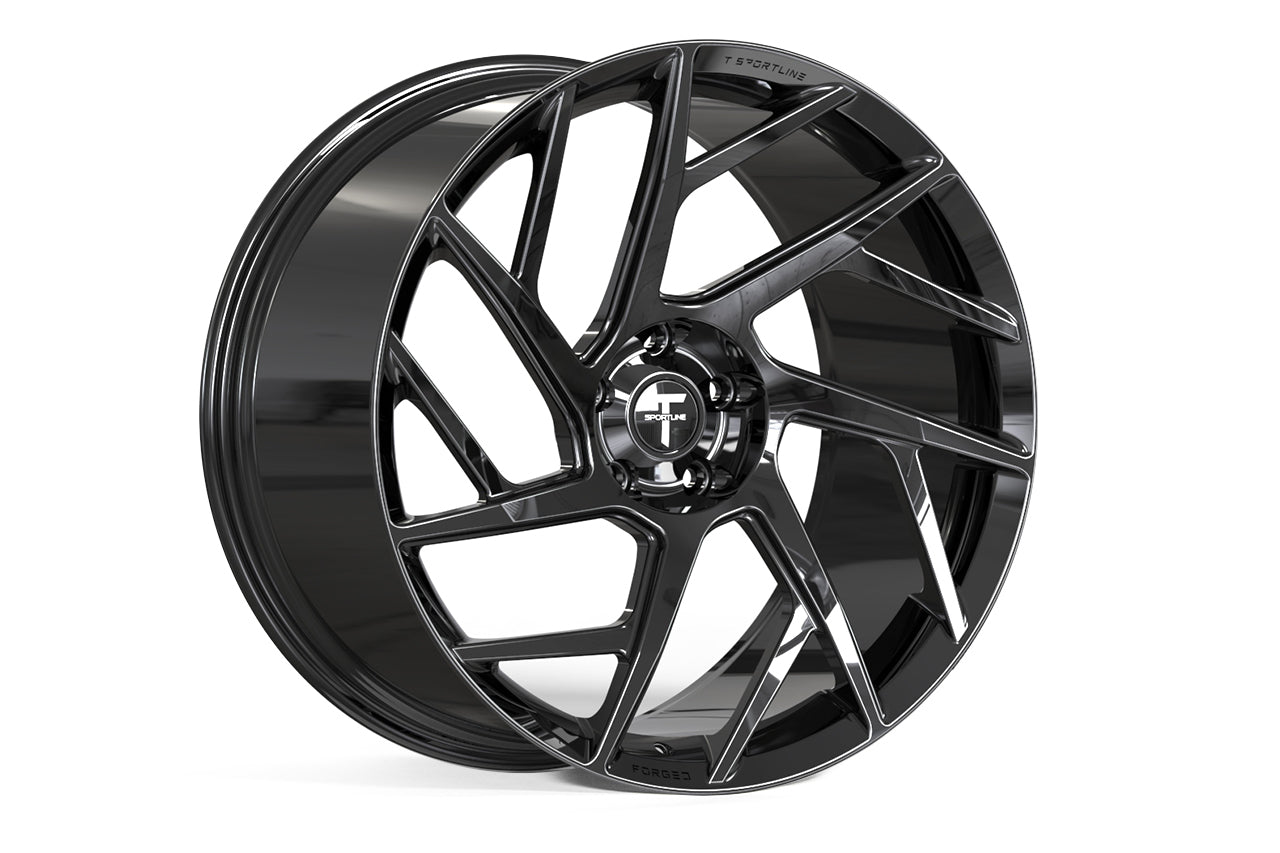

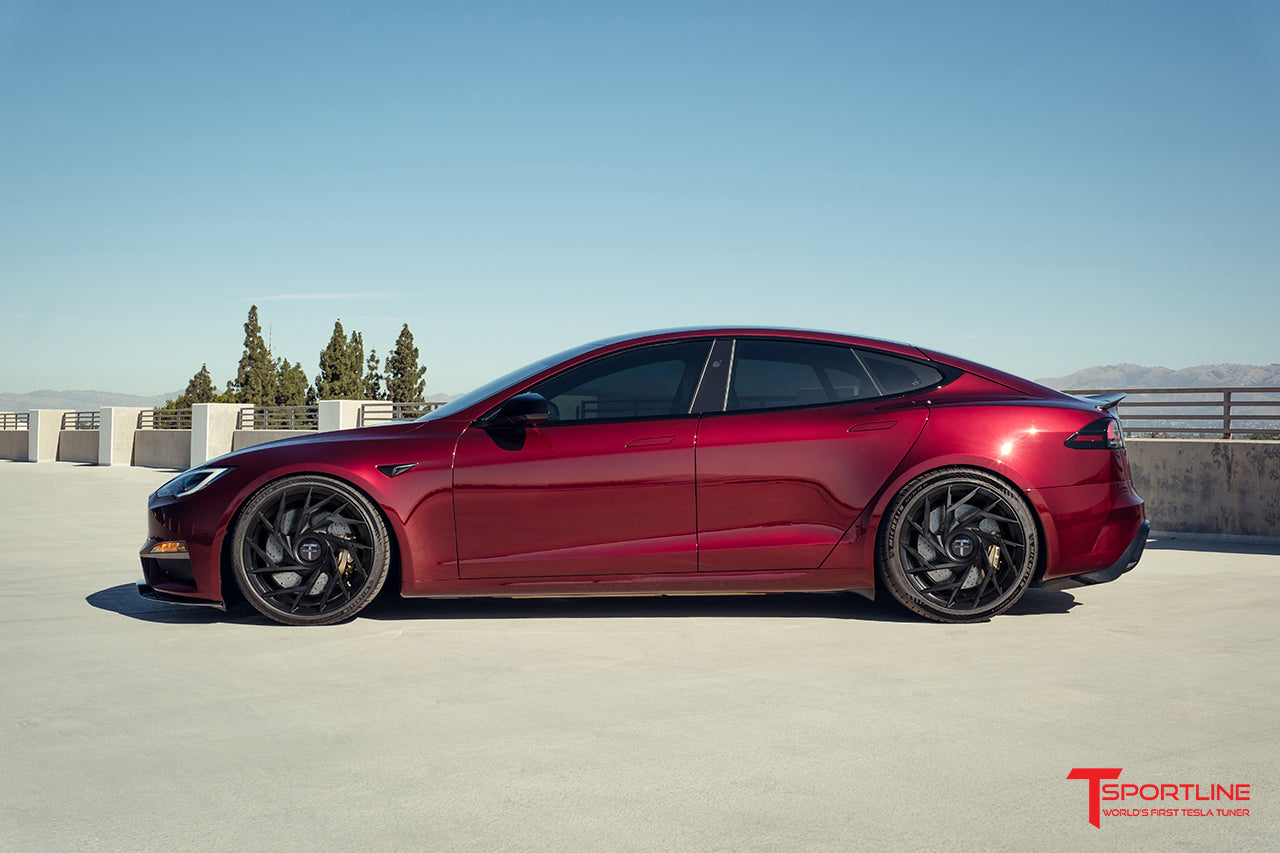

      Engineered specifically for the Tesla Model S, the TS117D is a 21” directional forged wheel designed to push fitment and performance to the absolute limit. Built around the widest Plaid and Long Range fitment possible, the TS117D delivers an aggressive flush stance without rubbing, giving the Model S a commanding presence while maintaining daily drivability and full functionality.

      Each wheel is CNC forged from premium-grade aluminum to maximize strength while dramatically reducing weight compared to conventional cast wheels. The result is sharper handling, improved acceleration response, and a lighter overall driving feel that complements the instant torque of the Model S Plaid platform.

      The directional design adds motion and depth even at a standstill, while the precision-machined details reflect the craftsmanship behind every set. Dual knurled bead seats are integrated into the barrel to help prevent tire slippage under hard launches and high-performance driving conditions, making the TS117D equally capable on the street or at the drag strip.

      Purpose-built for enthusiasts who demand uncompromising fitment, lightweight performance, and premium forged construction, the TS117D transforms the Tesla Model S into a more aggressive, functional, and refined performance machine.




      Knurled Bead



      Our four standard color offerings are Satin Black, Gloss Black, Anthracite Grey and Cyber Bronze. We offer two premium colors, Brush Satin and Diamond Black. For those that want to personalize the color and finish, contact us! Our bespoke custom team can get it done - have your 'spec’d color’ as you wish!



      These wheels will only fit the 2021-2026 Model S Long Range and Plaid.

      Specifications

      • Size:See sizes above
      • Bolt Pattern (PCD): 5x120
      • Center Bore: 64.1
      • Construction: Forged
      • Weight:
        • 21x10.5": 33.4 lbs
        • 21x11.5": 34.1 lbs
        • 21x9.5": TBD
        • 21x10.5": TBD
          • vs Tesla 21" Arachnid: 32 lbs Front, 36 lbs Rear
      • Load Rating: 900 kg/1,984 lbs
      • Tire Size:
        • Staggered Superwide: 21x10.5": 285/30-21  | 21x11.5": 325/30-21
        • Staggered Standard: 21x9.5": 265/35-21  |  21x10.5": 295/30-21
        • Square Range Saver: 21x9.5": 265/35-21  | 21x9.5": 265/35-21
        • Square Standard: 21x10.5": 285/30-21  |  21x10.5": 285/30-21
      • Colors: Satin Black, Gloss Black, Anthracite Gray, Brush Satin, Diamond Black, Cyber Bronze, and Custom finishes available
      • Tires (subject to availability and fitment): Falken Azenis FK510 Performance, Hankook ION EV All Season, Kumho Ecsta Sport S, Michelin Pilot Sport All Season 4, Michelin Pilot Sport 4S Performance



      Fitment Size Options

      • Fits 2021-Present
      • Range Setup: 21x9.5"+30 Front & Rear (Square). 15mm rear spacer included
      • Range Wide Setup: 21x10.5"+34 Front & Rear (Square). 15mm rear spacer included
      • Performance Setup: 21x9.5"+30 Front & 21x10.5"+34  Rear (Staggered)
      • Performance Setup: 21x10.5"+34 Front & 21x11.5"+37 Rear (Staggered)



      Tire Information



      Description

      • 21 inch TSW115A wheel built exclusively for the Tesla Model S.
      • Manufactured in a Forged Process.
      • FEA Analysis tested under 3,400 lbf
      • Manufactured in a TüV certified facility.
      • Accepts factory Tesla center cap, factory Tesla lug nut, and factory Tesla TPMS sensor.
      • Great alternative to 19" Tesla Model S factory wheel, 21" Tesla Model S Arachnid wheel. View our Model S Wheel Guide Here.
      • Color matched T Sportline center cap included, but you can use a factory Tesla center cap.
    • Shipping

      Shipping is calculated at Checkout.

      Shipping & Handling charges subject to change without prior notification. PLEASE NOTE THAT INTERNATIONAL SHIPMENTS ARE SUBJECT TO CUSTOMS TAXES/DUTIES, AS CHARGED BY YOUR COUNTRY (THERE ARE NO U.S. CUSTOMS FEES). INTERNATIONAL CUSTOMERS ARE RESPONSIBLE FOR PAYMENT OF THESE FEES. Due to service availability, some international orders may need to be sent to the nearest international airport.

    • FAQ

      Do your TSW Series Forged Wheels fit my factory center caps?
      Yes, 21" TSW Series forged wheels fit your factory Tesla center caps. They also fit your factory TPMS and lug nuts. In other words, there is no need to use any aftermarket hardware.

      Do I need to change the color of my existing lug nuts and center caps to match to my new TSW Series Forged Wheels?
      That's an aesthetic decision only you can make. All TSW Series Forged Wheels come with T Sportline color matched center caps. For those who purchase Anthracite Gray, Matte Black, Gloss Black or other dark colors, we recommend purchasing our Lug Nut Cap Covers for a stealth appearance.

      What is the warranty on TSW Series Forged Wheels?
      Click here for T Sportline Limited Warranty

      How long until my TSW Series Forged Wheels arrive after my order?
      We process orders within 72 hours (unless your wheels are backordered). Please allow for 1-7 business days transit time from the day you receive a tracking number. We will email you if your wheels are backordered.

      Do you ship internationally?
      Yes! We ship worldwide and offer flat rate Fedex/DHL shipping to select countries.

      Will installing your wheels void my warranty?
      Changing wheels won't void your Tesla warranty unless Tesla can prove that our wheels caused the need for repairs. In other words, your warranty will still be valid when your rear window cracks, even if you've upgraded to our wheels.
