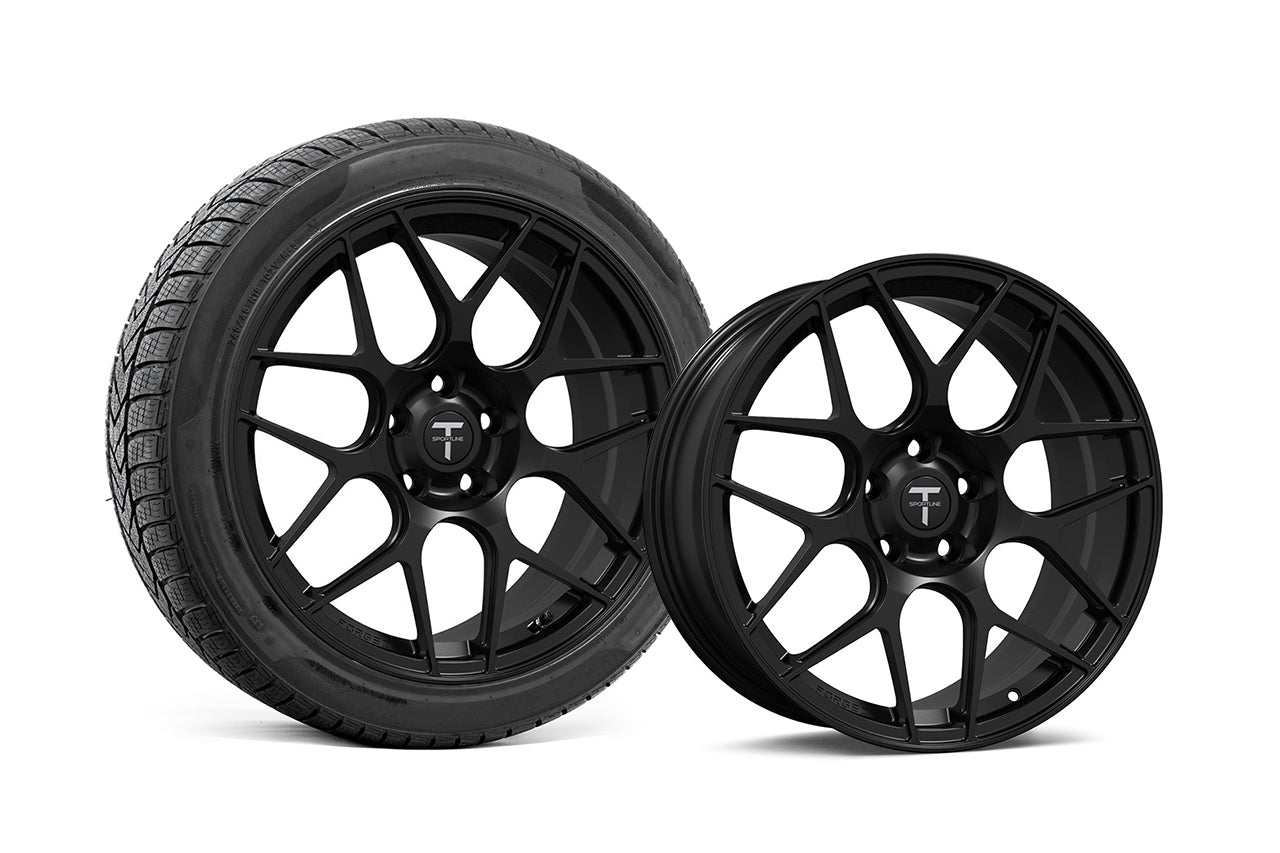

Upgrade your Tesla Model Y with the T Sportline TXL117 19-inch fully forged wheel and tire package. The TXL117 delivers a bold, performance-driven interpretation of the modern Tesla wheel, combining sharp, sculpted multi-spoke lines with an open architecture that emphasizes the brakes and creates a lightweight, athletic appearance. Precision forged and CNC-machined from high-strength aluminum, it provides exceptionally low mass, high strength and precise bolt-on compatibility with factory Tesla lug nuts, center caps and TPMS sensors. Choose 19x8.5-inch wheels for lighter weight, range optimization and added curb protection, or 19x9.5-inch wheels for factory width and a sportier look and feel. Available 255/45R19, 275/45R19 and 255/50R19 tire configurations let you prioritize factory-style balance, a wider performance stance or rugged overland capability while preserving the refined ride and responsive handling of a 19-inch Tesla Model Y package.

Tesla Model Y Compatibility

Confirmed Fit

Approved for all Tesla Model Y versions from 2020–Present

2020 2021 2022 2023 2024 2025 2026

✓ Approved to replace factory 18", 19", 20" or 21" wheels & tires

Rear-Wheel Drive Versions Standard Range RWD, Rear-Wheel Drive and Long Range RWD

All-Wheel Drive Versions Long Range AWD, All-Wheel Drive and Dual Motor AWD

Performance Model Model Y Performance configurations

Model Y L Six-seat Model Y L configurations

Wheel and Wheel & Tire Package Offerings

19x8.5" or 19x9.5" Fitment Wheels & Tires (Square = all 4 wheels & tires the same size)

Wheel Package — What Is Included

Set of 4 wheels
4x 19x8.5" or 19x9.5" TXL117 fully forged wheels 4x color-matched T Sportline wheel center caps

Wheel & Tire Package — What Is Included

Set of 4 wheels & tires—mounted, balanced, & ready to install!
4x 19x8.5" or 19x9.5" TXL117 fully forged wheels 4x 255/45R19, 275/45R19 or 255/50R19 tires 4x factory-spec Tesla TPMS sensors 4x color-matched T Sportline wheel center caps

Recommended Add-On Options

Lug Nuts or Lug Nut Covers — No lug nuts are included. Factory lug nuts can be reused with optional covers or replace the factory lug nuts with our forged or titanium lug nuts
Tesla Tire Road Hazard Protection — rest easy with tire-protection
Curb Protection Guards — Protect rims against scrapes
Ceramic Coating — protect the finish and make cleaning easier

Wheel Features and Benefits

Wheel Specifications

Wheel Model: TXL117 — Tesla eXtra Lightweight
Vehicle: Tesla Model Y
Wheel Size: 19x8.5" or 19x9.5" front and rear
Offset: +35
Bolt Pattern: 5x114.3
Center Bore: 64.1mm
Construction: Fully Forged Monoblock
Wheel Weight: TBD by wheel width
Load Rating: 750 kg / 1,650 lbs per wheel
Tire Sizes: 255/45R19, 275/45R19 or 255/50R19

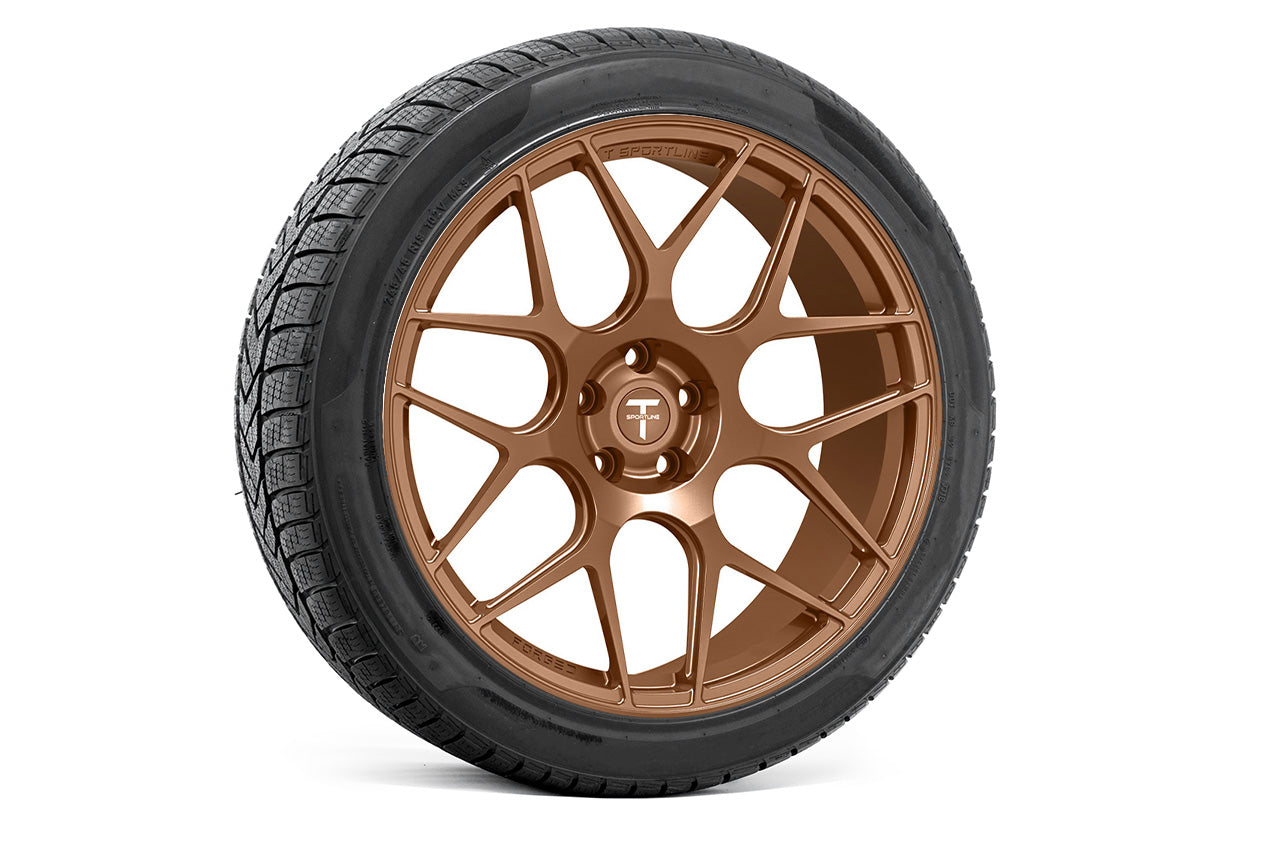

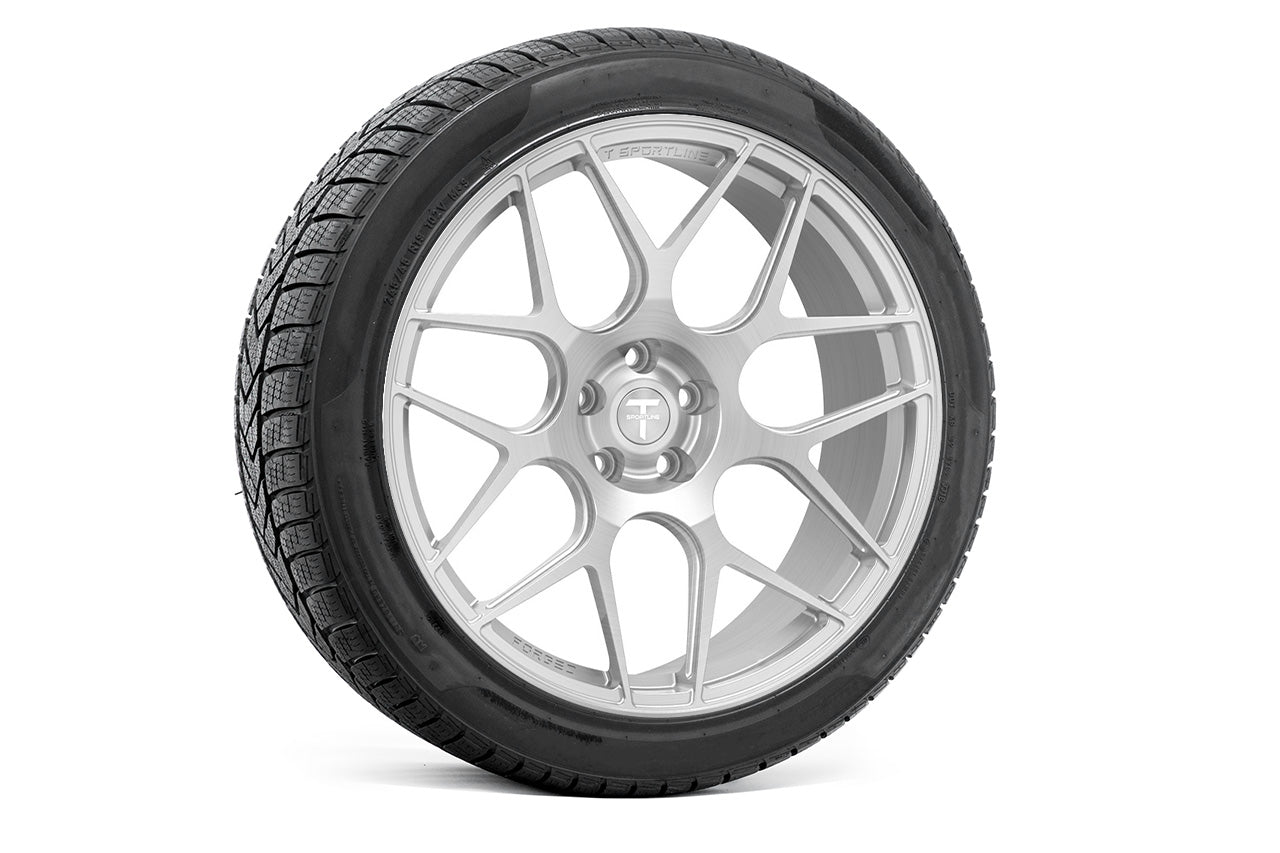

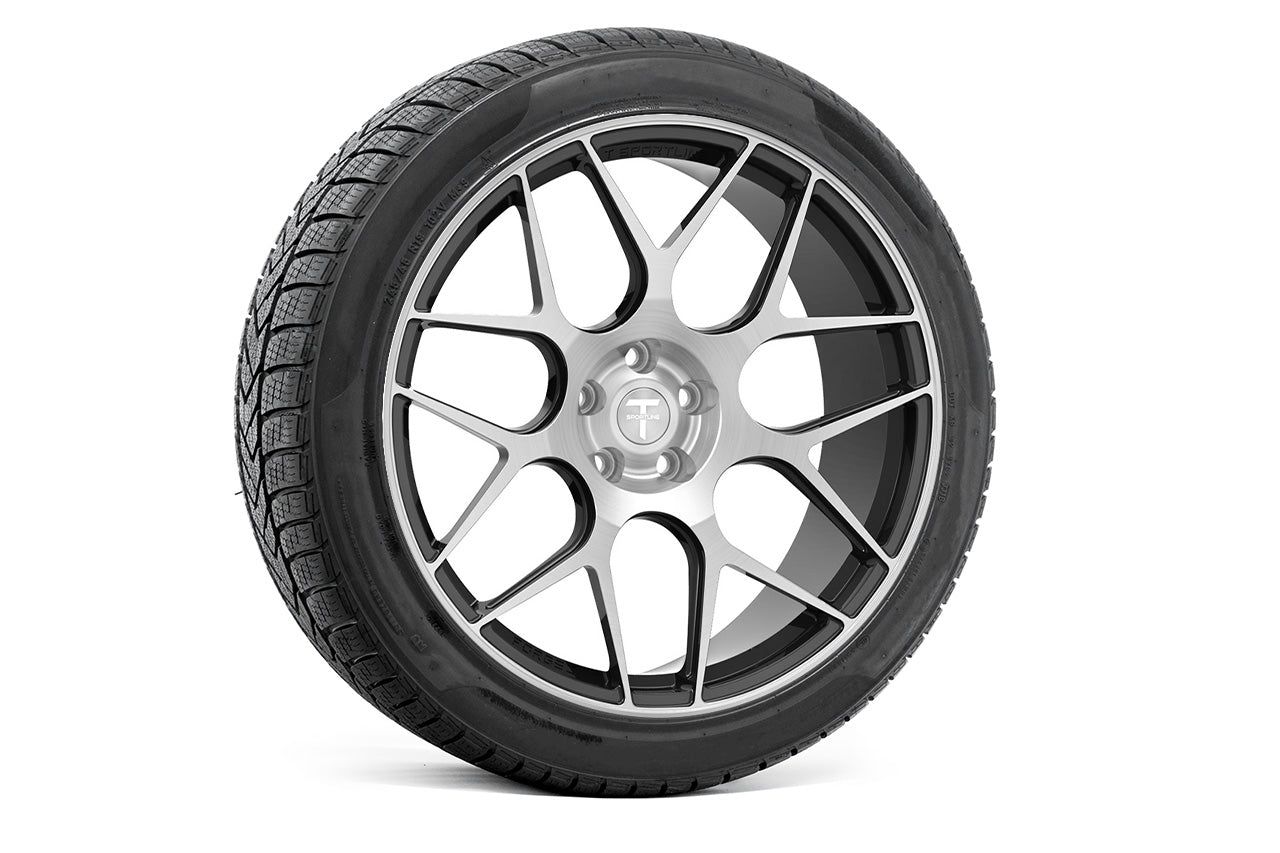

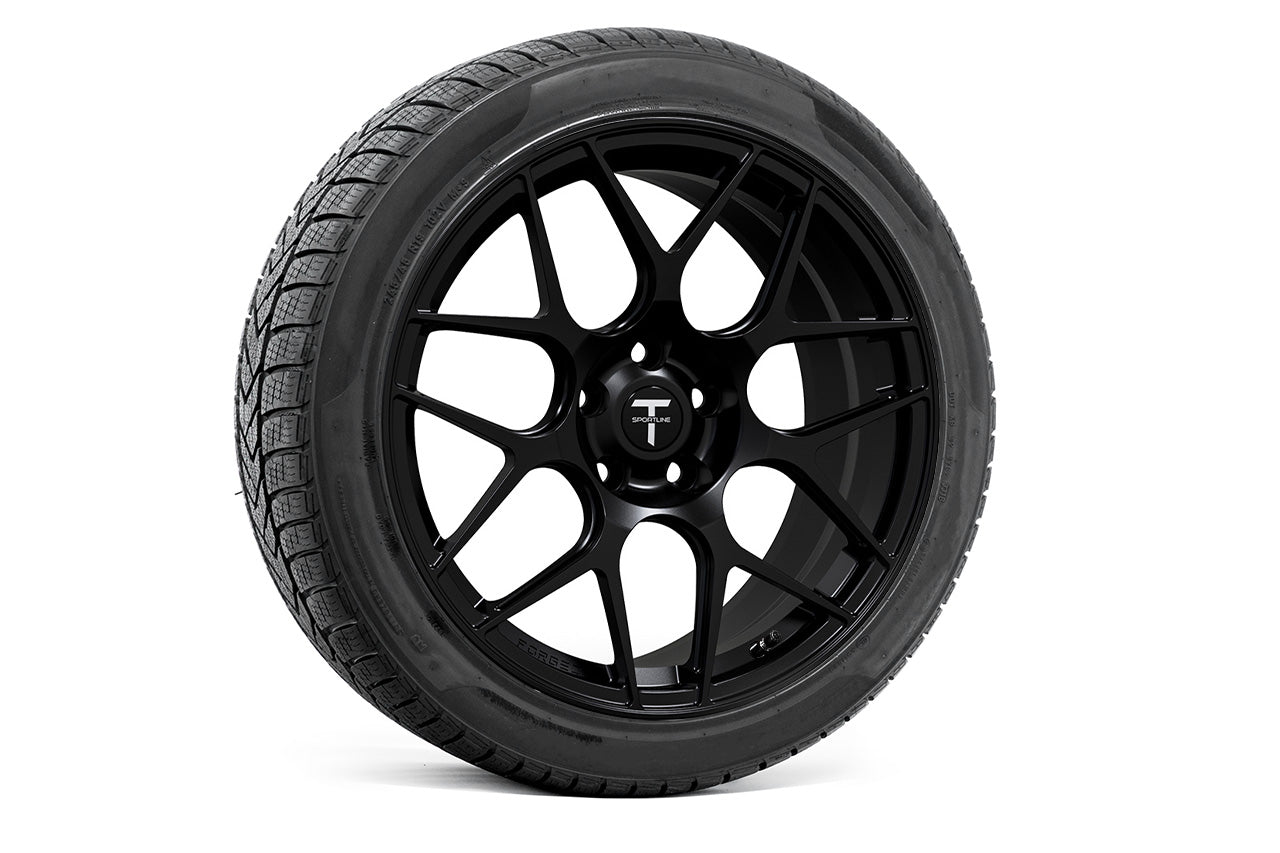

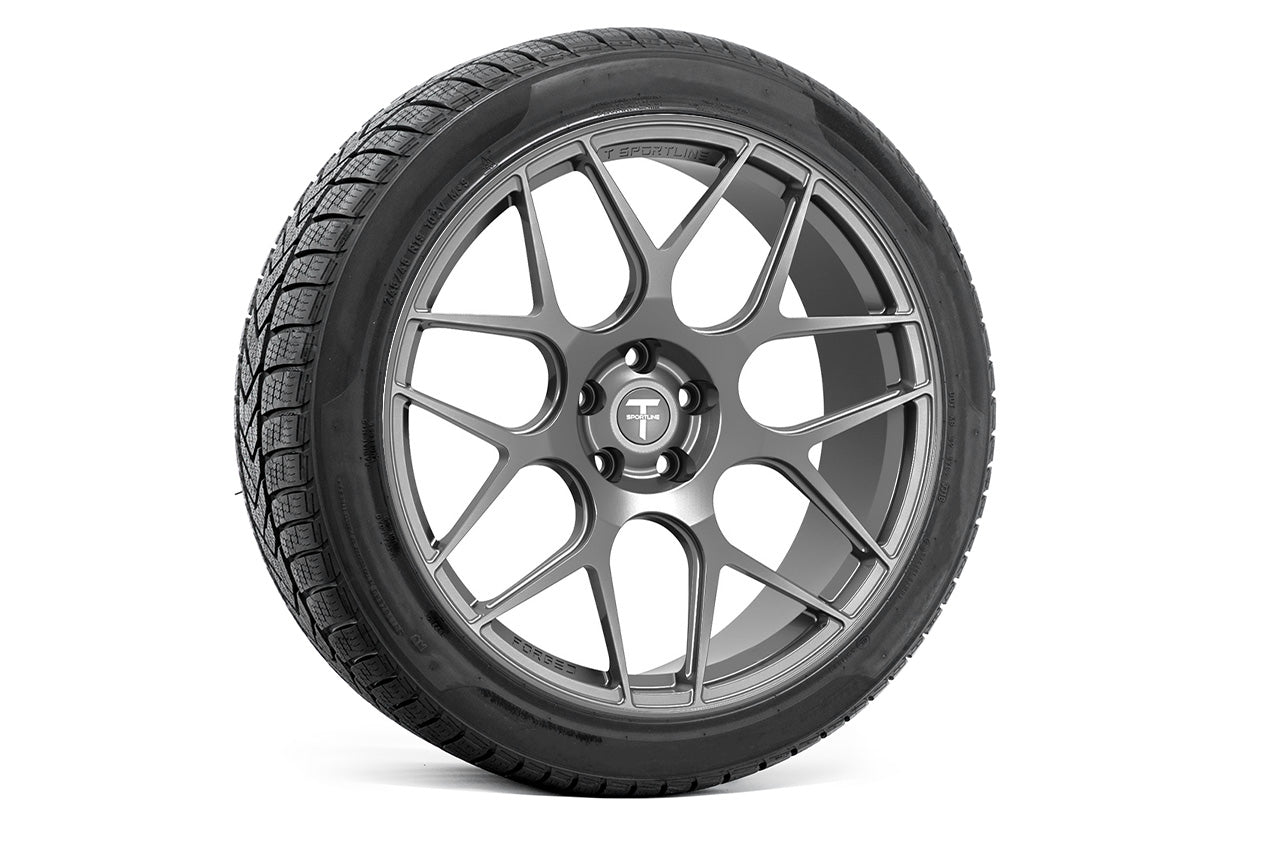

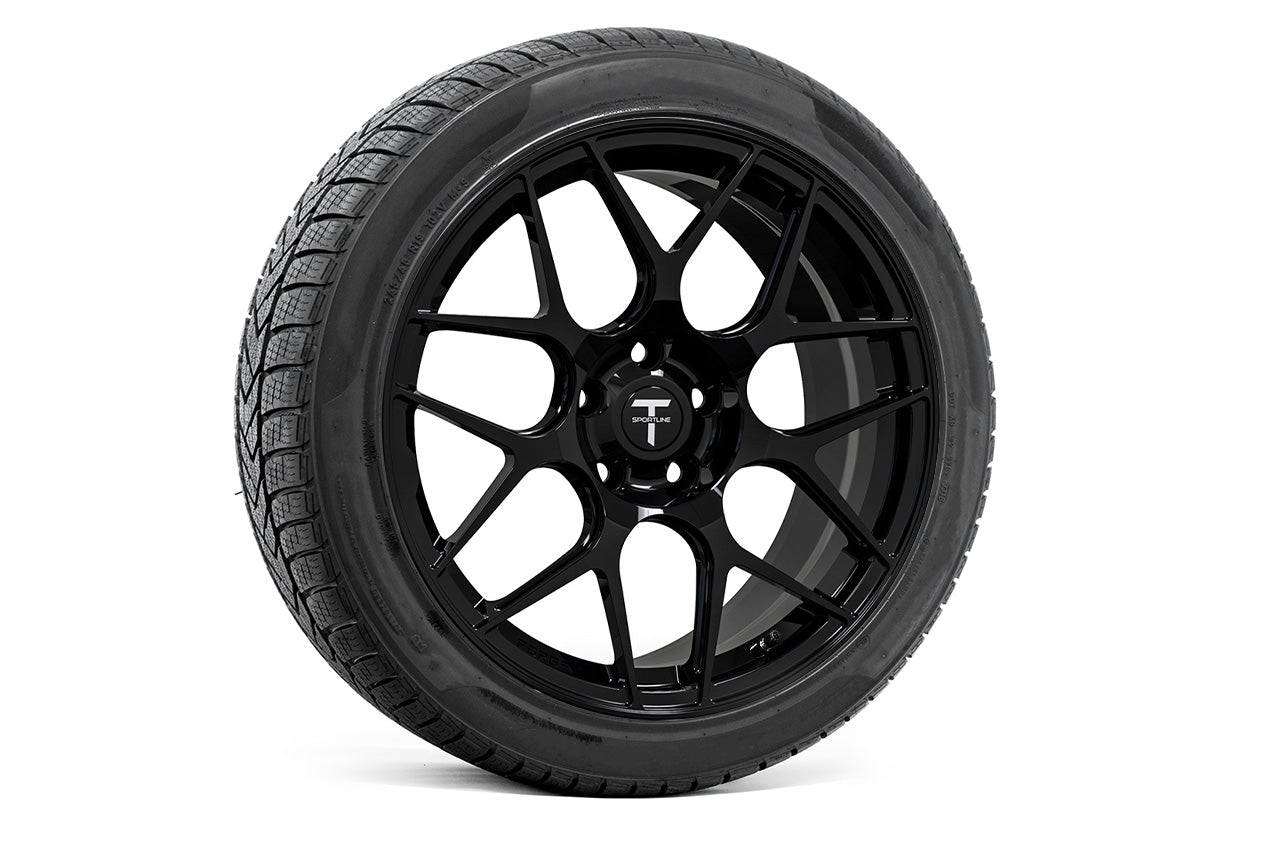

Finishes: Satin Black, Gloss Black, Anthracite Gray, Cyber Bronze, Brushed Satin, Diamond Black or Custom Finish
Testing Standards: JWL, VIA and SAE J2530
Bead Surface: Dual knurled bead seats to help prevent tire slippage
Factory Hardware: Compatible with factory Tesla lug nuts, center caps and TPMS sensors

Knurled No-Slip Beads

Dual knurled bead seats provide added tire grip to help prevent tire slippage under high torque and hard acceleration.

TXL117 dual knurled no-slip wheel bead seats

19-Inch OEM+ Balance

The 19-inch setup preserves the balanced ride, efficiency and handling characteristics associated with the factory Model Y 19-inch package while delivering a distinctive fully forged appearance. It offers a softer ride than 20-inch and 21-inch wheel-and-tire packages, although it is not quite as soft as an 18-inch setup. Compared with 18-inch wheels, the 19-inch package preserves a slightly sportier appearance and more responsive feel. Optional wider and taller tire choices provide additional wheel protection or a more rugged overland stance.

Ultra Strength & Lightest Wheels for Tesla

TXL Fully Forged wheels represent the next level in wheel strength, weight reduction, and performance. Each wheel is manufactured from a solid block of high-strength aluminum using a precision forging and CNC-machining process and tested to JWL, VIA, and SAE J2530 standards.

While our flow-forged wheels already provide a significant upgrade over typical gravity-cast factory Tesla wheels, fully forged construction takes performance even further. The forging process produces a stronger, more refined material structure, allowing us to remove additional material and reduce weight without sacrificing strength.

The result is an exceptionally strong, lightweight wheel engineered to reduce unsprung mass, improve resistance to road-hazard damage, and help preserve vehicle efficiency and range—making fully forged TXL wheels our premium choice for Tesla owners seeking the highest level of wheel performance.

Tesla Compatibility

Accepts factory Tesla lug nuts
Accepts factory Tesla center caps
Accepts factory Tesla TPMS sensors
Includes color-matched T Sportline center caps
No aftermarket wheel hardware required
Will NOT void Tesla Warranty
Does NOT work with factory Tesla "Aero Covers / Hub Caps"

Square Fitment & Tire Rotation

Each 19x8.5" or 19x9.5" square setup uses the same wheel and tire size at all four corners, allowing conventional front-to-rear tire rotation.

TXL117 Wheel Weight Photo Coming Soon Final 19-inch wheel weights pending

Tire Comparison & Selection Guide

	255/45R19	275/45R19	255/50R19
Tire Type	Stock Tesla Tire Size	Extra-Wide / Performance	Overland / Off-Road
Range & Efficiency	Factory-size, lower-drag profile	Wider and heavier—may reduce range slightly	Taller and heavier—may reduce range a few percent
Ride Comfort	Balanced factory ride	Added sidewall cushion	Tallest sidewall cushion
Pothole Protection	Factory-level protection	Additional impact-absorbing sidewall	Maximum protection
Curb Protection	Factory sidewall profile	Extra width helps shield the wheel edge	Tallest sidewall protection
Handling & Steering	Balanced everyday response	Wide, performance-focused footprint	Softer, comfort-oriented response
Dry Traction	Balanced everyday grip	Widest contact patch	Good everyday and trail grip
Wet & Snow Traction	Narrowest footprint cuts through water and snow	Wider footprint depends more on tire model	All-terrain tread handles changing conditions well
Overland & Off-Road	Not recommended	Not recommended	Excellent performance

Choose 255/45R19 if your priority is: Factory-size fitment, balanced range, predictable handling and broad tire availability.

Choose 275/45R19 if your priority is: Extra wheel protection, a wider stance and increased dry-road traction.

Choose 255/50R19 if your priority is: Rugged looks, maximum sidewall protection and overland or off-road capability.

View Instructions & Tesla Tire Care Guide DIY Installation instructions and Learn more about proper Tesla tire maintenance & rotation for maximum range and tread wear

View the T Sportline Tesla Wheel & Tire DIY Installation Guide
Follow the recommended cold tire pressures on your vehicle's Tire and Loading Information label (located on inside the driver side door jam). Check pressure after the vehicle has been parked out of direct sunlight for more than three hours. Use our AMAXX Tesla Digital Tire Inflator for convenient pressure checks and adjustments.
Rotate tires every 6,250 miles, or sooner if tread-depth difference reaches 2/32 inch, to help maximize tread life and maintain even wear.
When installing wheels, torque the 21 mm lug nuts to 129 lb-ft (175 Nm).
After tire service, drive approximately five miles to allow the TPMS readings to update.
Tire pressure changes with temperature, driving and sunlight. Underinflation can reduce range, accelerate wear and create a safety risk.
Teslas do not come with a spare! Consider purchasing a Tesla spare tire package to ensure you never get stranded with a flat.

Shipping

Shipping is calculated at Checkout.

Shipping & Handling charges subject to change without prior notification. PLEASE NOTE THAT INTERNATIONAL SHIPMENTS ARE SUBJECT TO CUSTOMS TAXES/DUTIES, AS CHARGED BY YOUR COUNTRY (THERE ARE NO U.S. CUSTOMS FEES). INTERNATIONAL CUSTOMERS ARE RESPONSIBLE FOR PAYMENT OF THESE FEES. Due to service availability, some international orders may need to be sent to the nearest international airport.
FAQ

Can I use my Aero Covers / Hubcaps on the 19" TXL117?
No, the Aero Covers / Hubcaps only fit on your factory wheels.

Which tire sizes are offered with the 19" TXL117 package?
Available configurations include the factory-size 255/45R19, the extra-wide 275/45R19 for additional wheel protection and dry-road grip, and the 255/50R19 overland option for a taller sidewall and more rugged stance.

Do your TXL117 wheels fit my factory center caps?
Yes, 19x8.5" and 19x9.5" TXL117 wheels fit your factory Tesla center caps. They also fit your factory TPMS sensors and factory lug nuts, so no aftermarket wheel hardware is required.

How are the 19" TXL117 wheels made?
They are fully forged monoblock wheels, precision CNC-machined from high-strength aluminum and tested to JWL, VIA and SAE J2530 standards.

Do I need to change the color of my existing lug nuts and center caps to match my new TXL117 wheels?
That's an aesthetic decision only you can make. All TXL117 wheels come with T Sportline color-matched center caps.

What is the warranty on TXL117 wheels?
Click here for T Sportline Limited Warranty

How long until my TXL117 wheels arrive after my order?
We process orders within 72 hours unless your wheels are back-ordered. Please allow 1–7 business days of transit time from the day you receive a tracking number. We will email you if your wheels are back-ordered.

Do you ship internationally?
Yes! We ship worldwide and offer flat rate FedEx/DHL shipping to select countries.

Will installing your Wheel & Tire Package void my warranty?
Changing wheels and tires won't void your Tesla warranty unless Tesla can prove that the wheels or tires caused the need for repairs. Your warranty remains valid when an unrelated vehicle component malfunctions.
