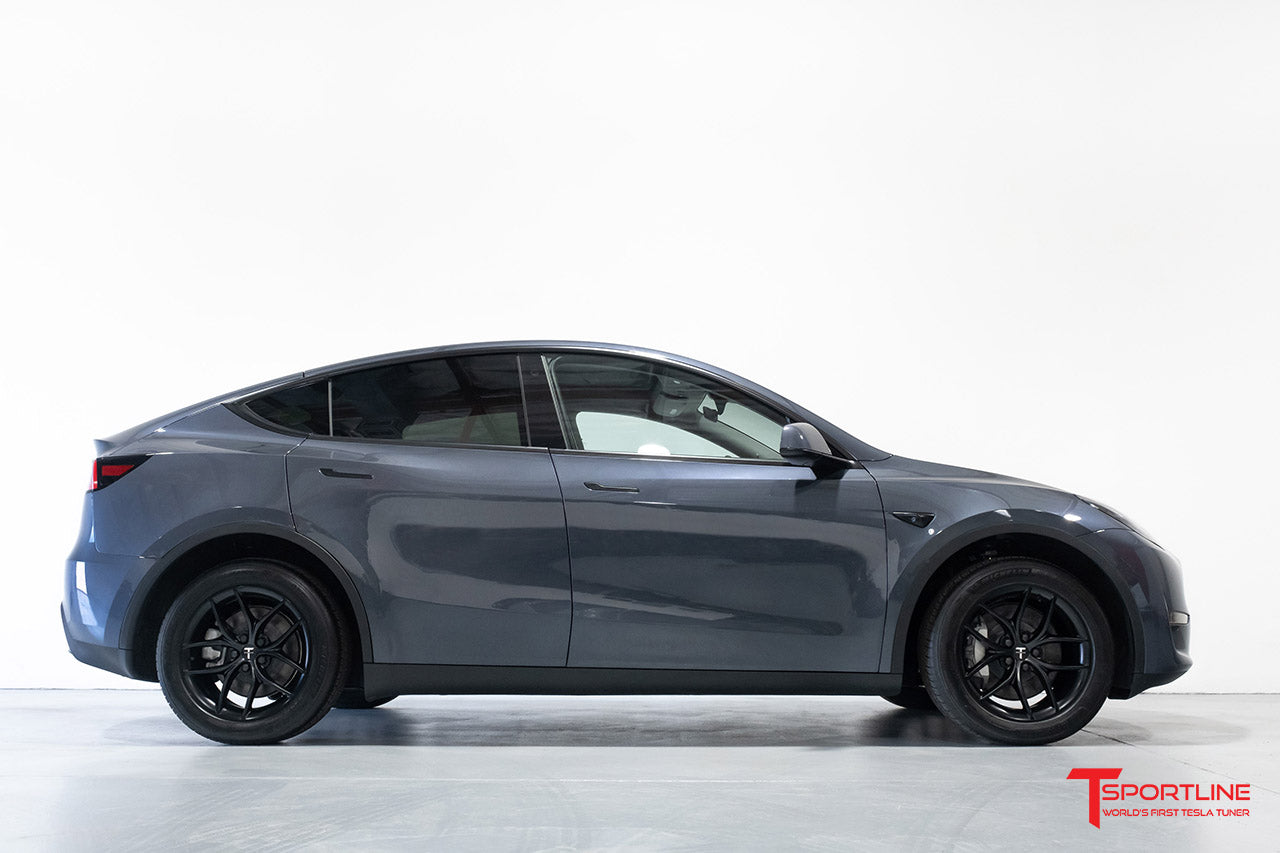

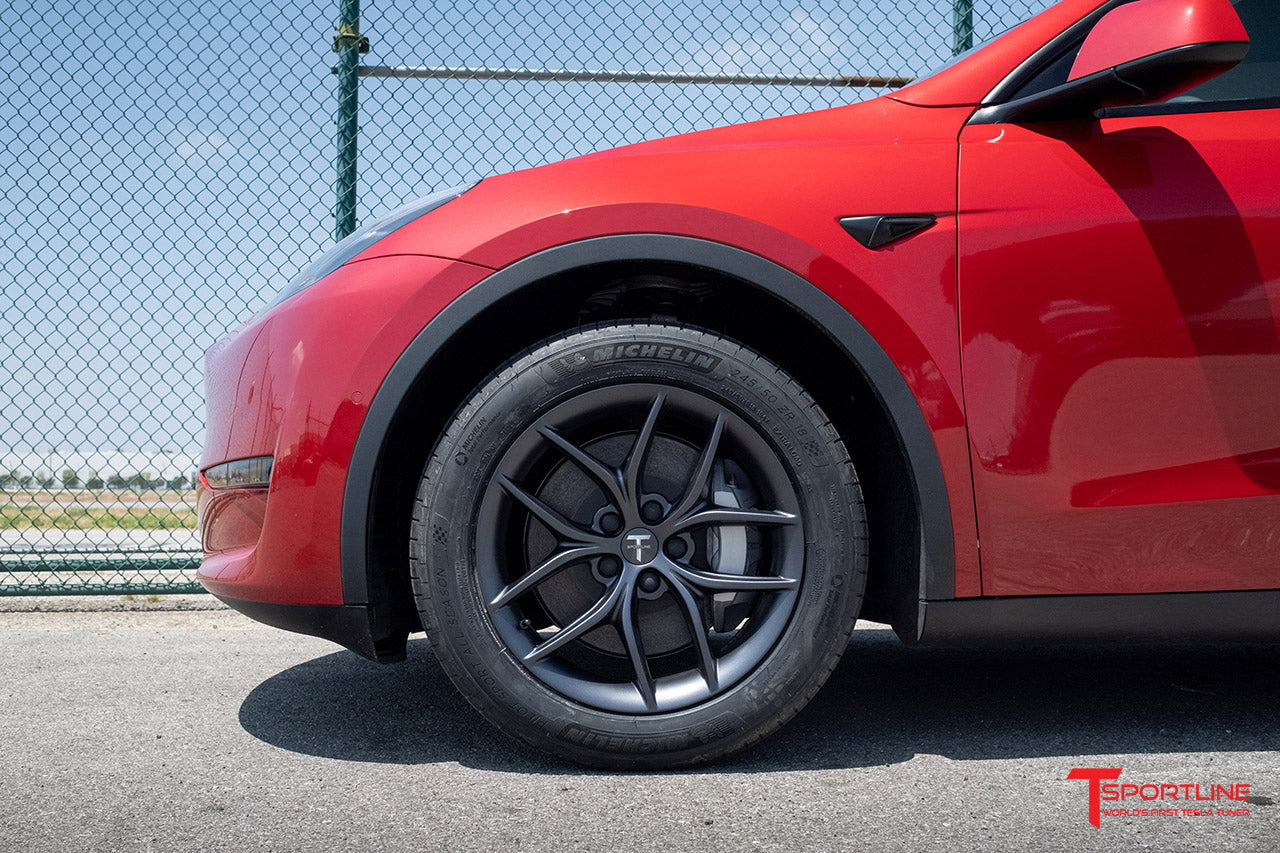

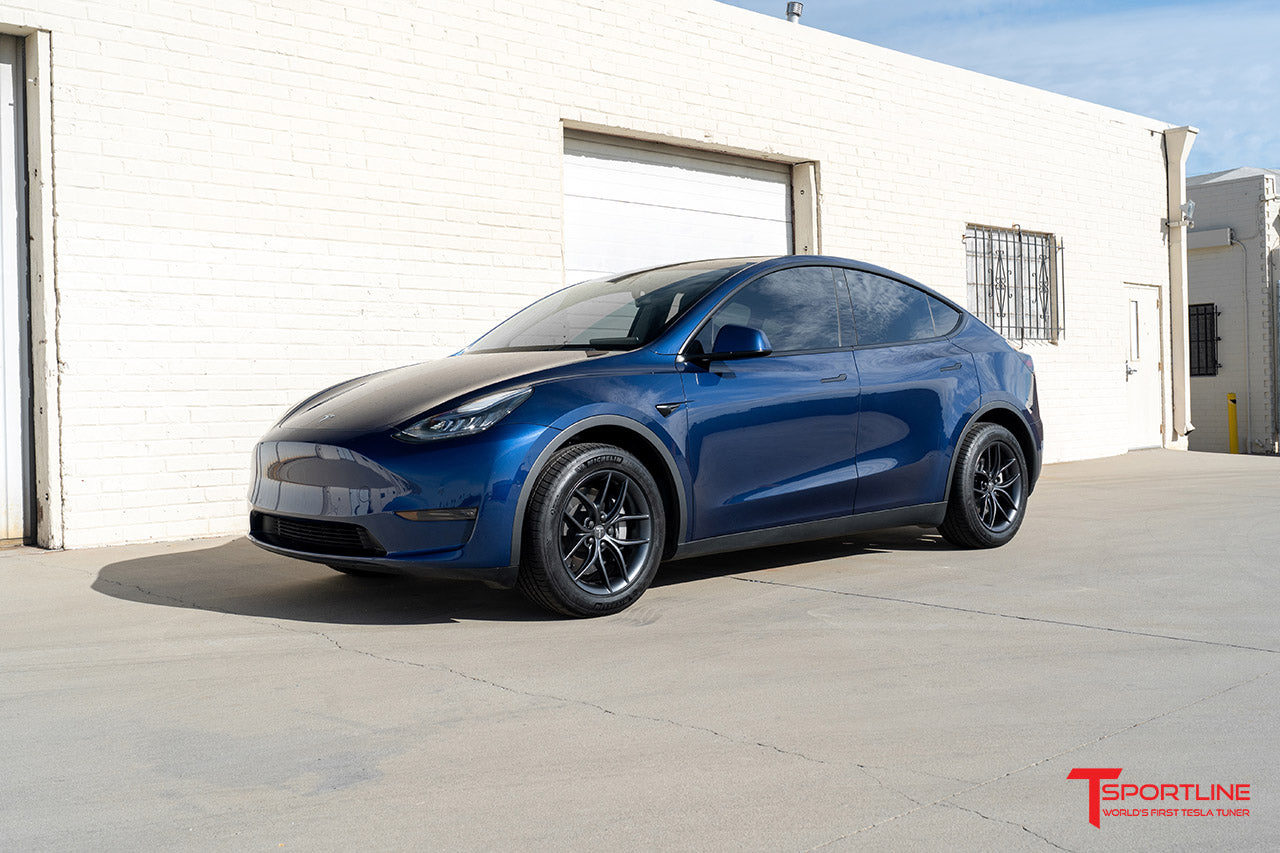

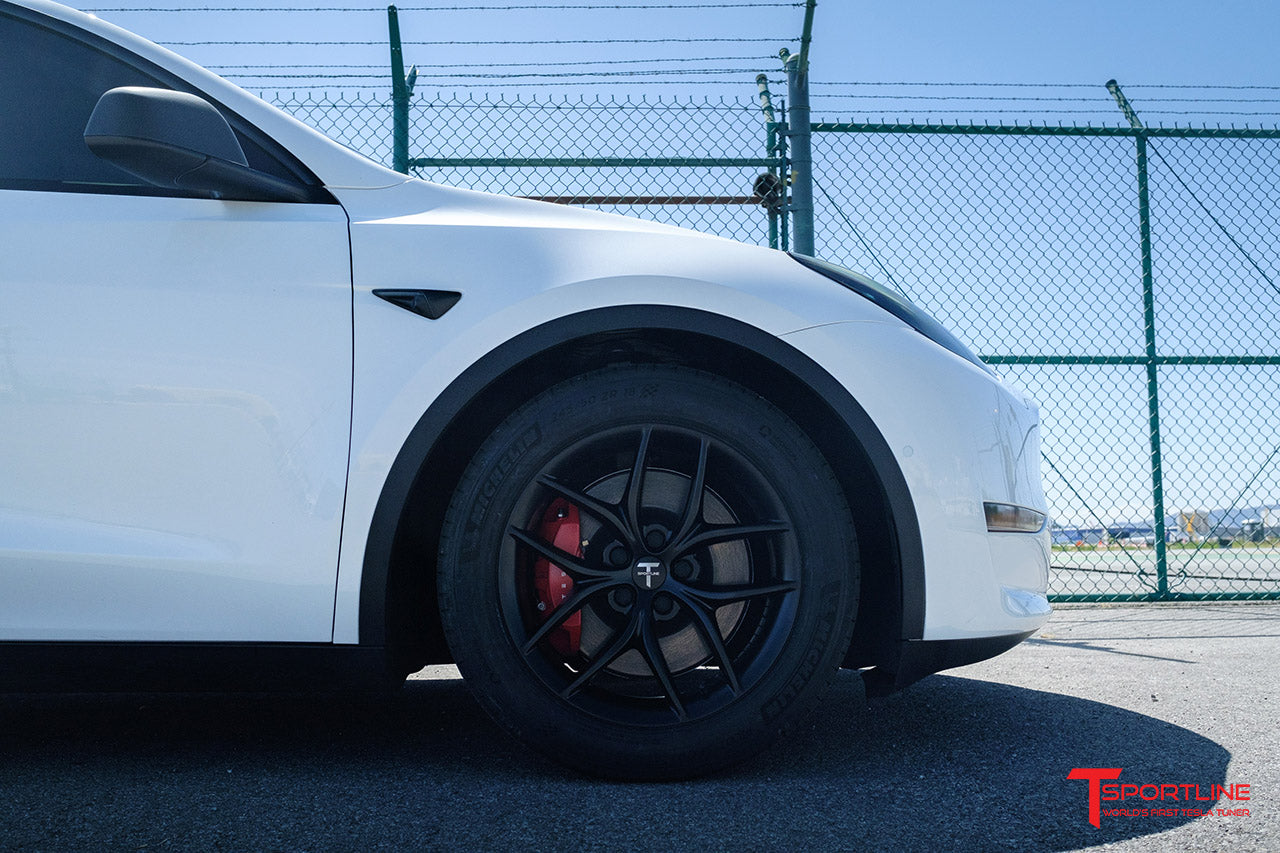

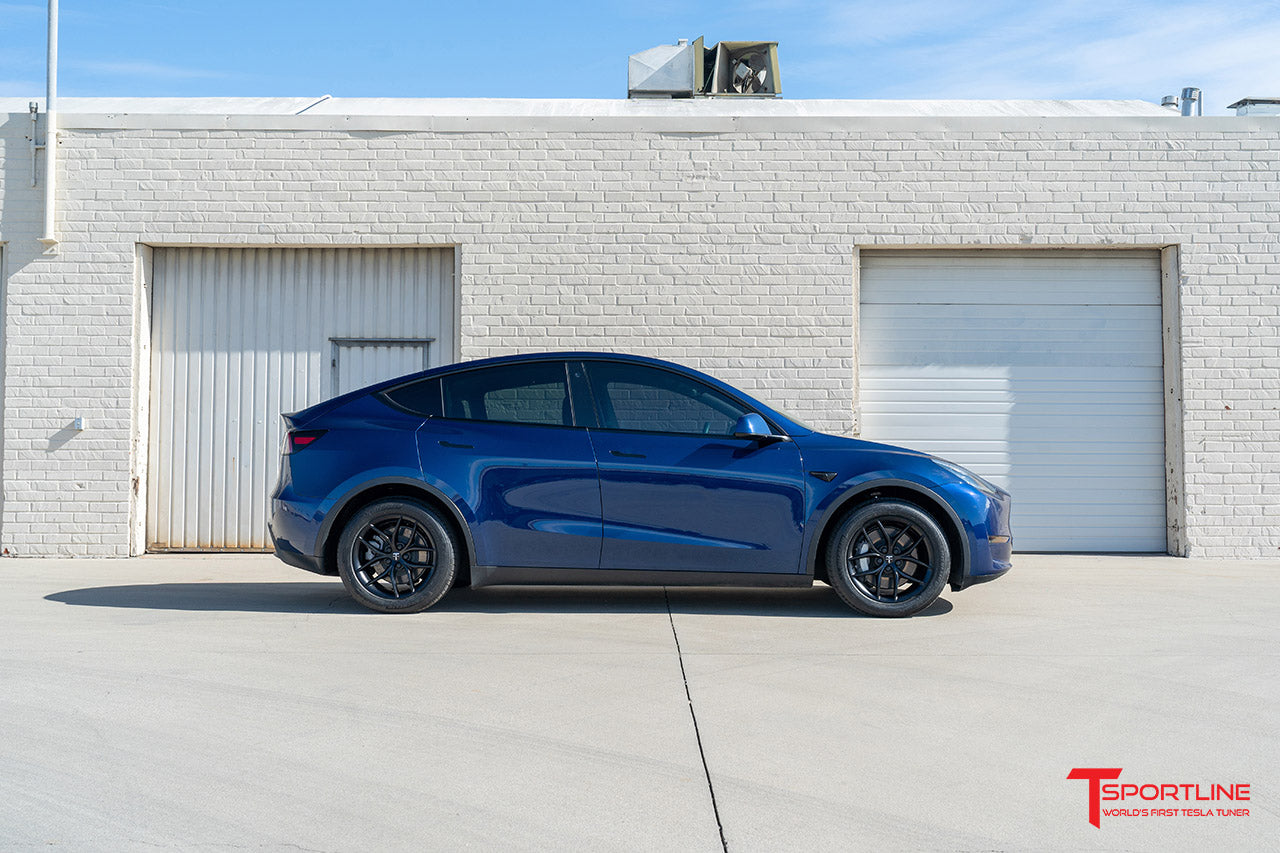

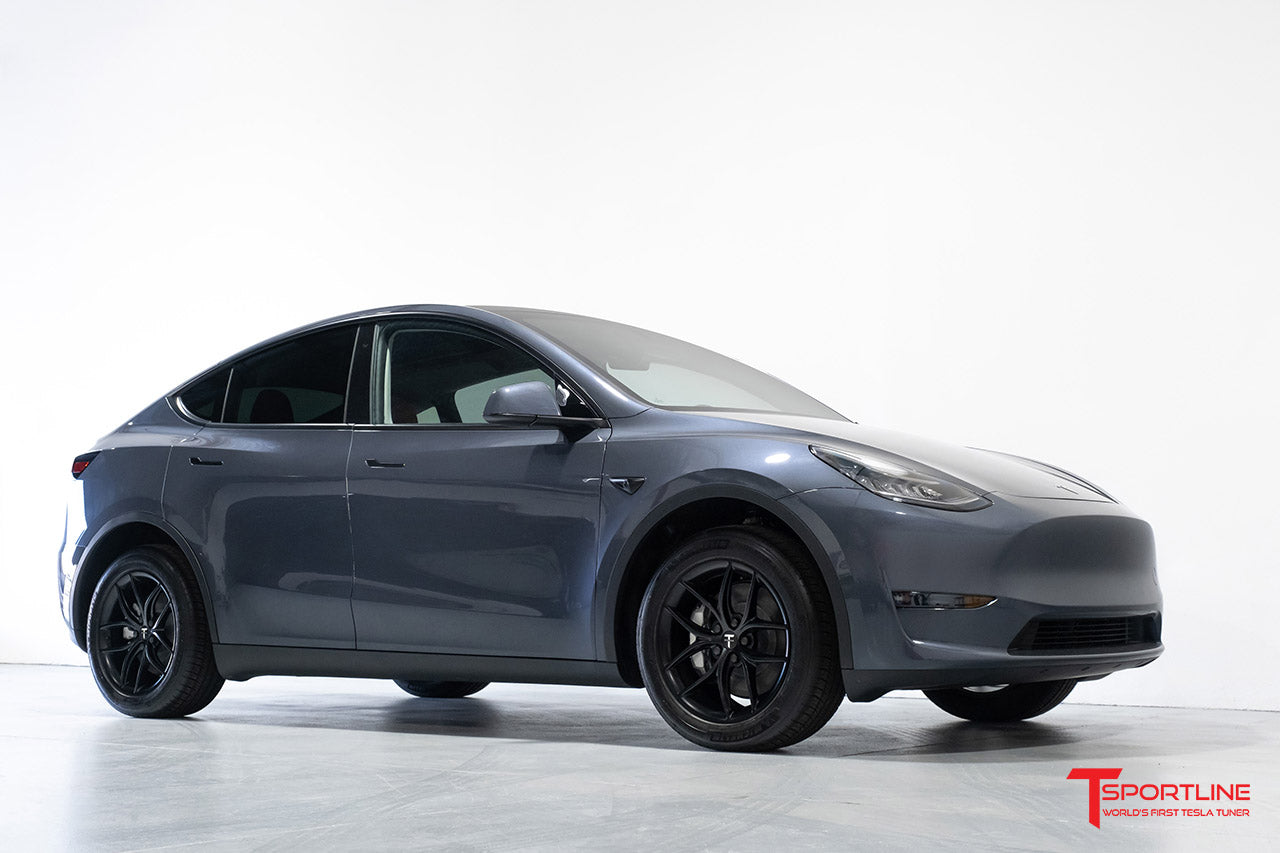

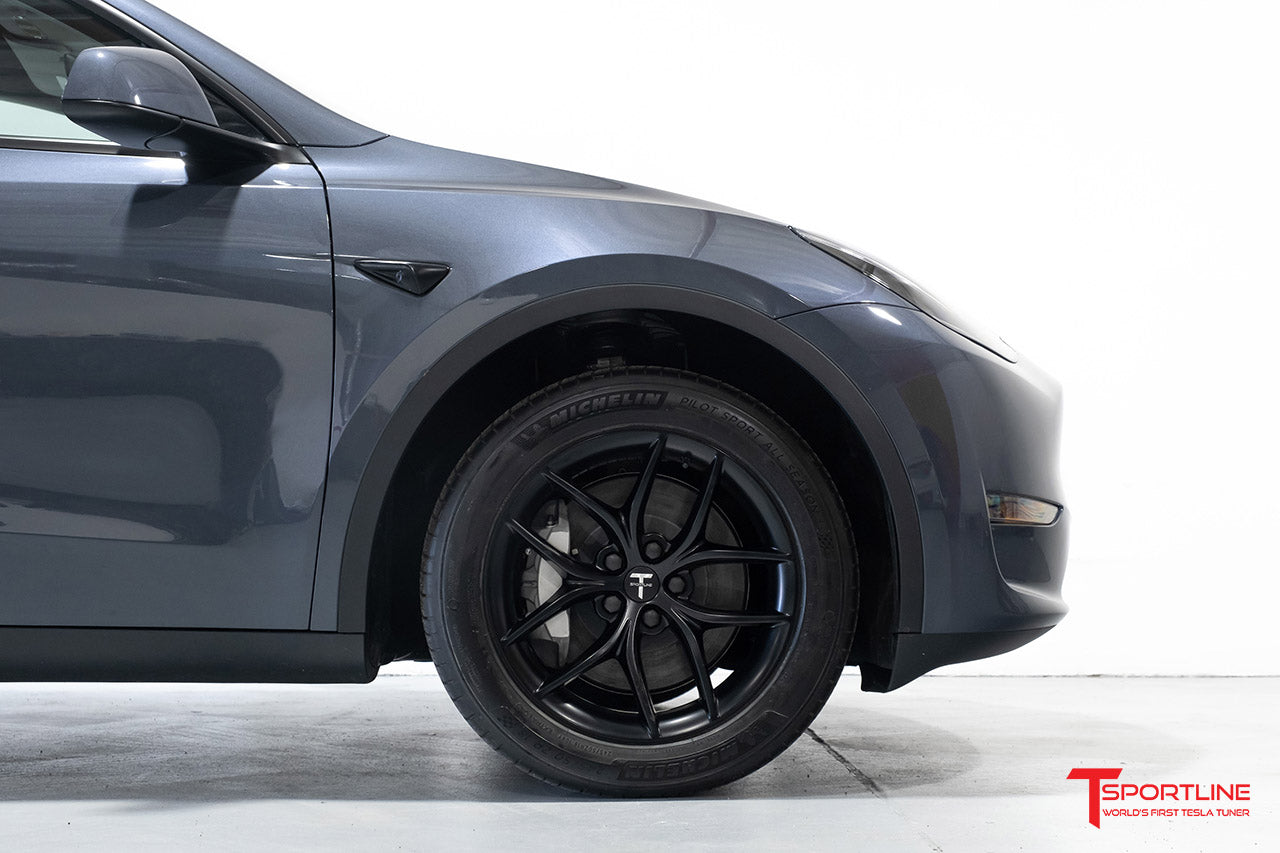

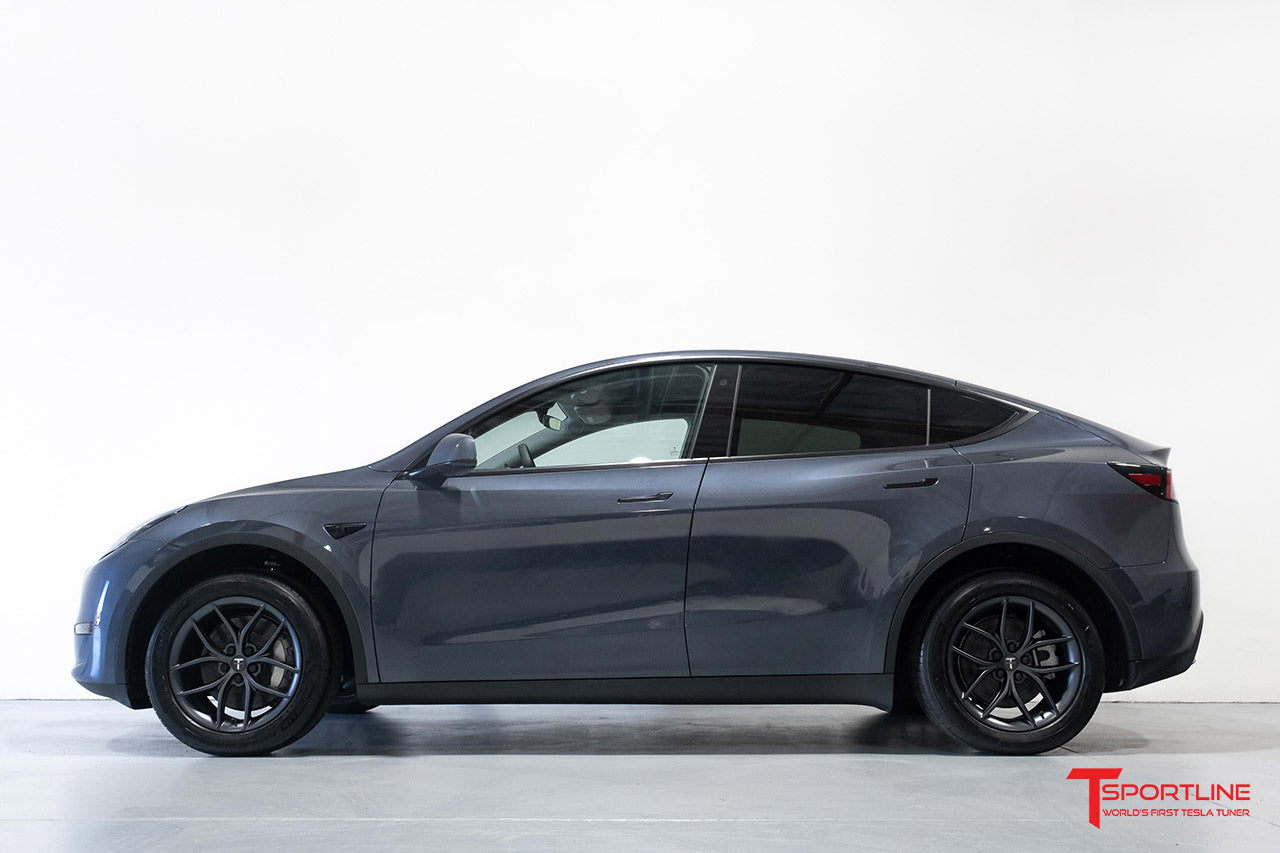

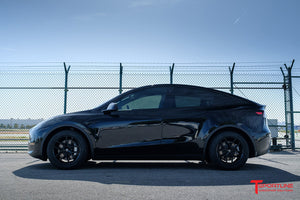

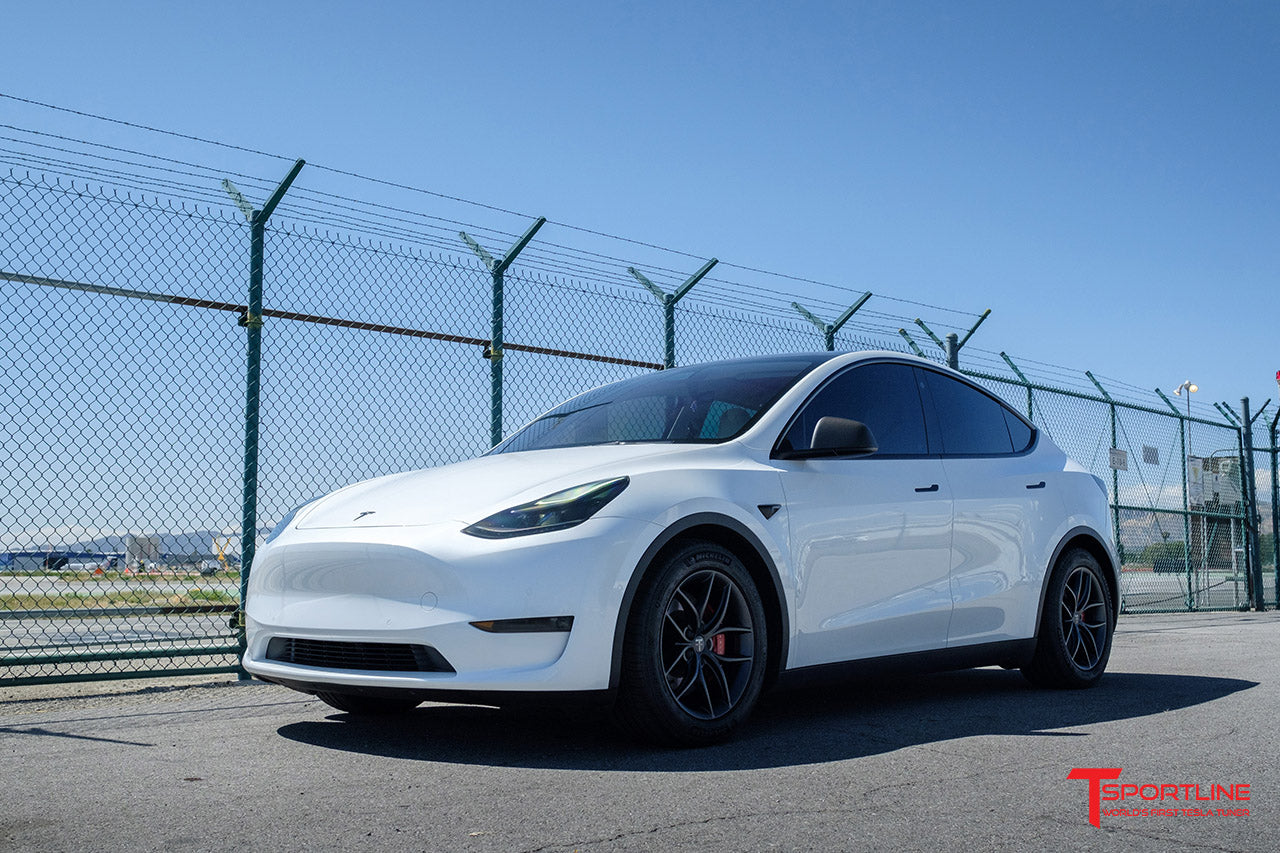

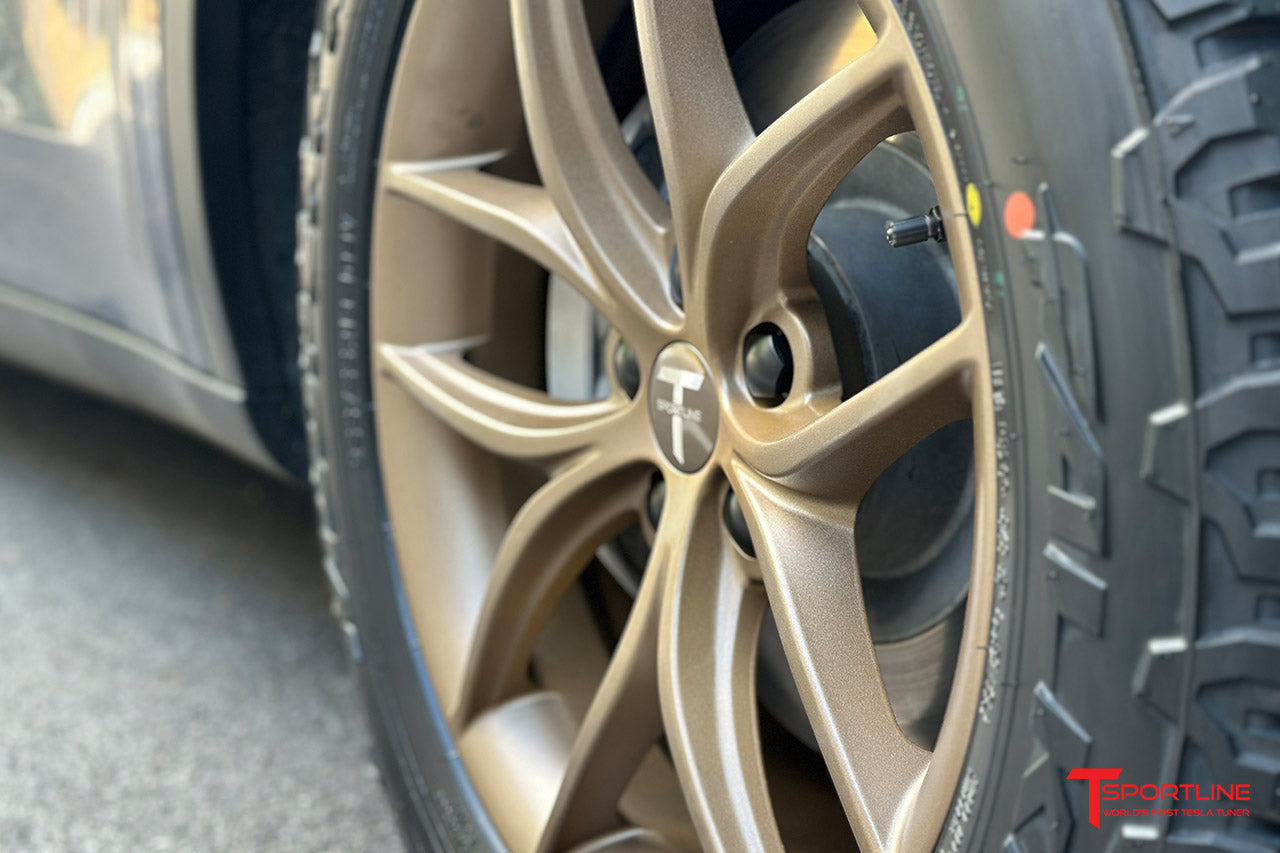

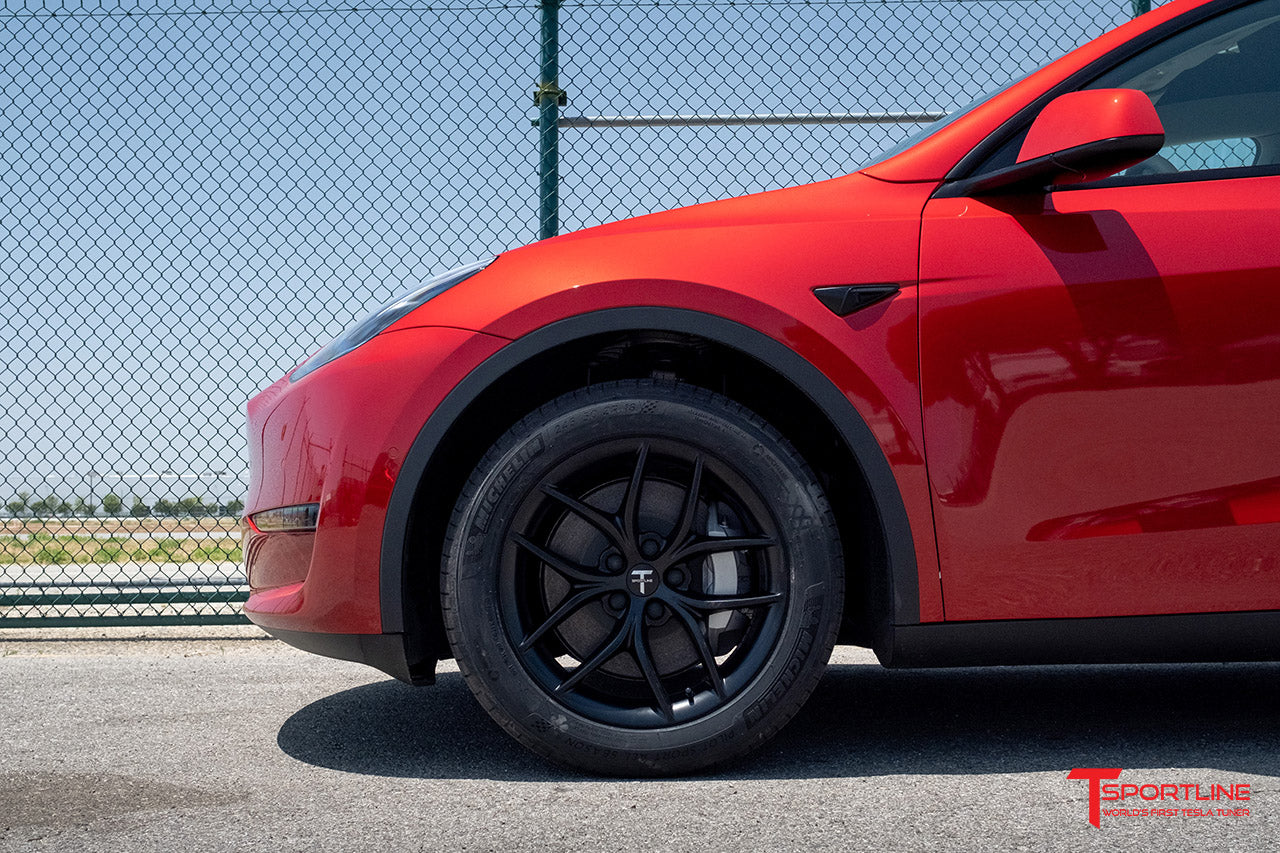

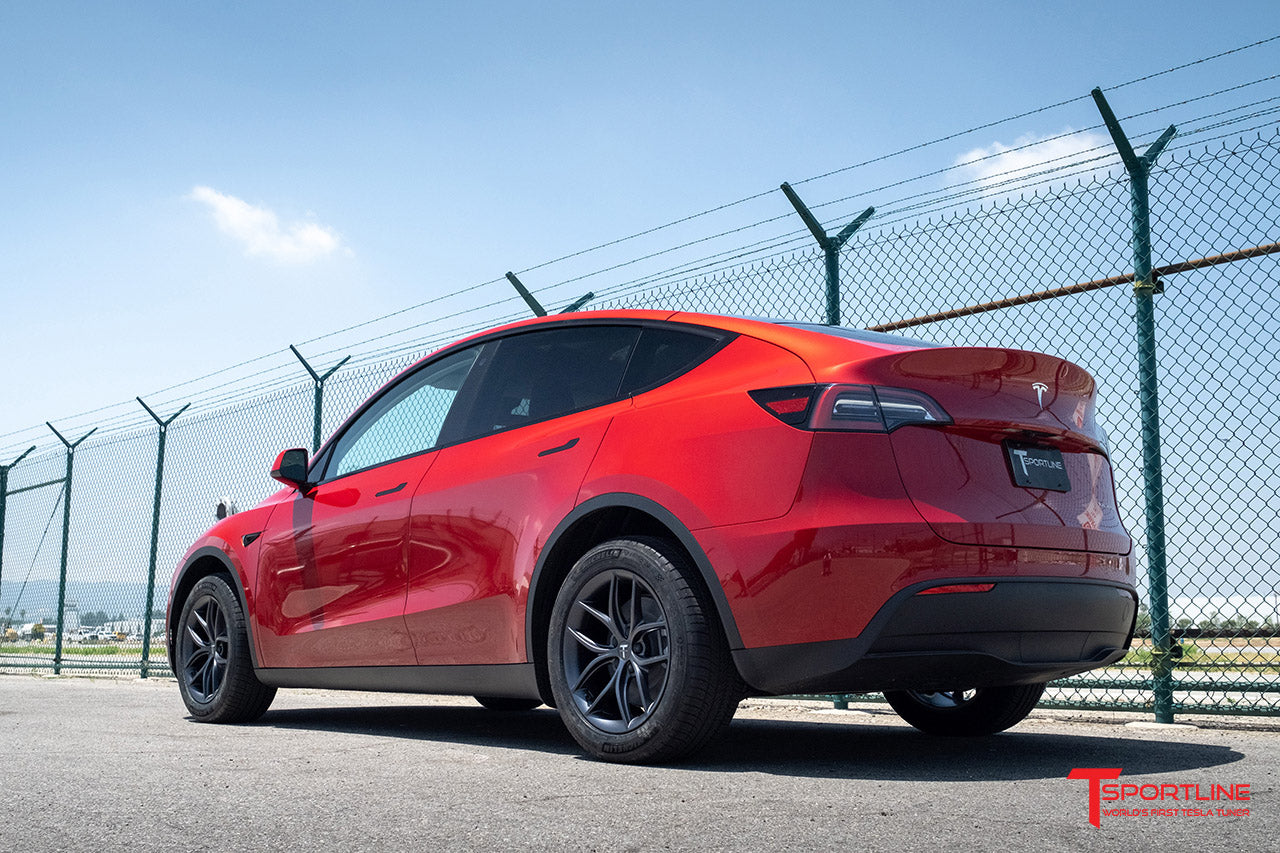

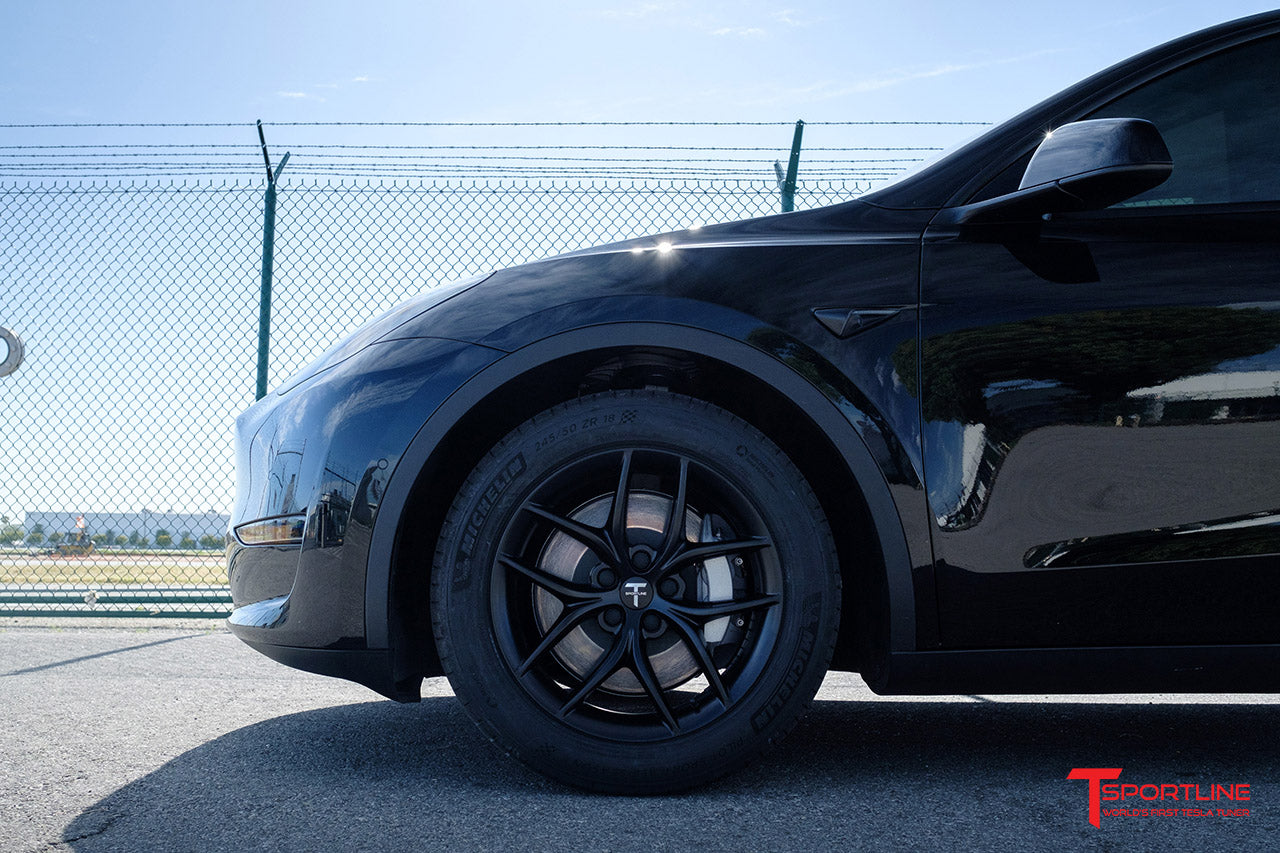

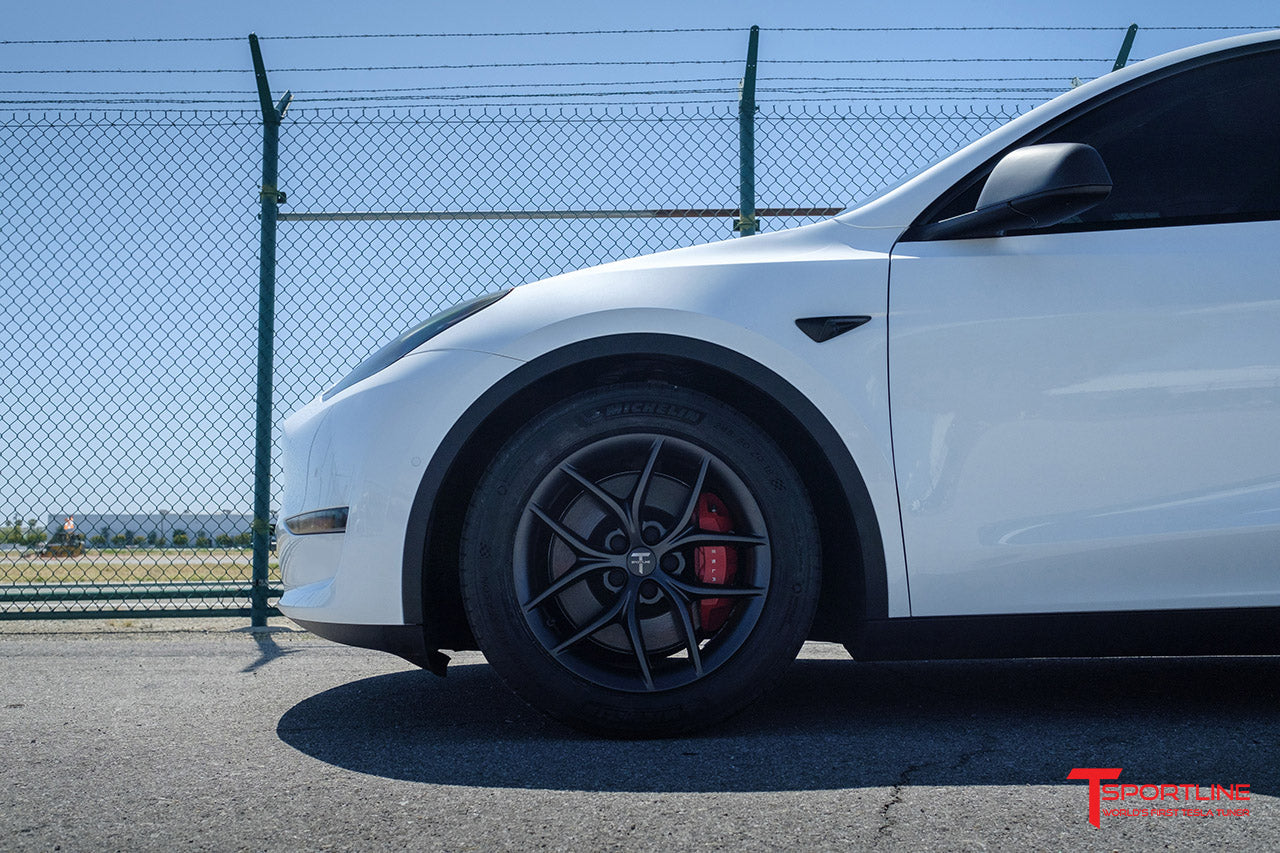

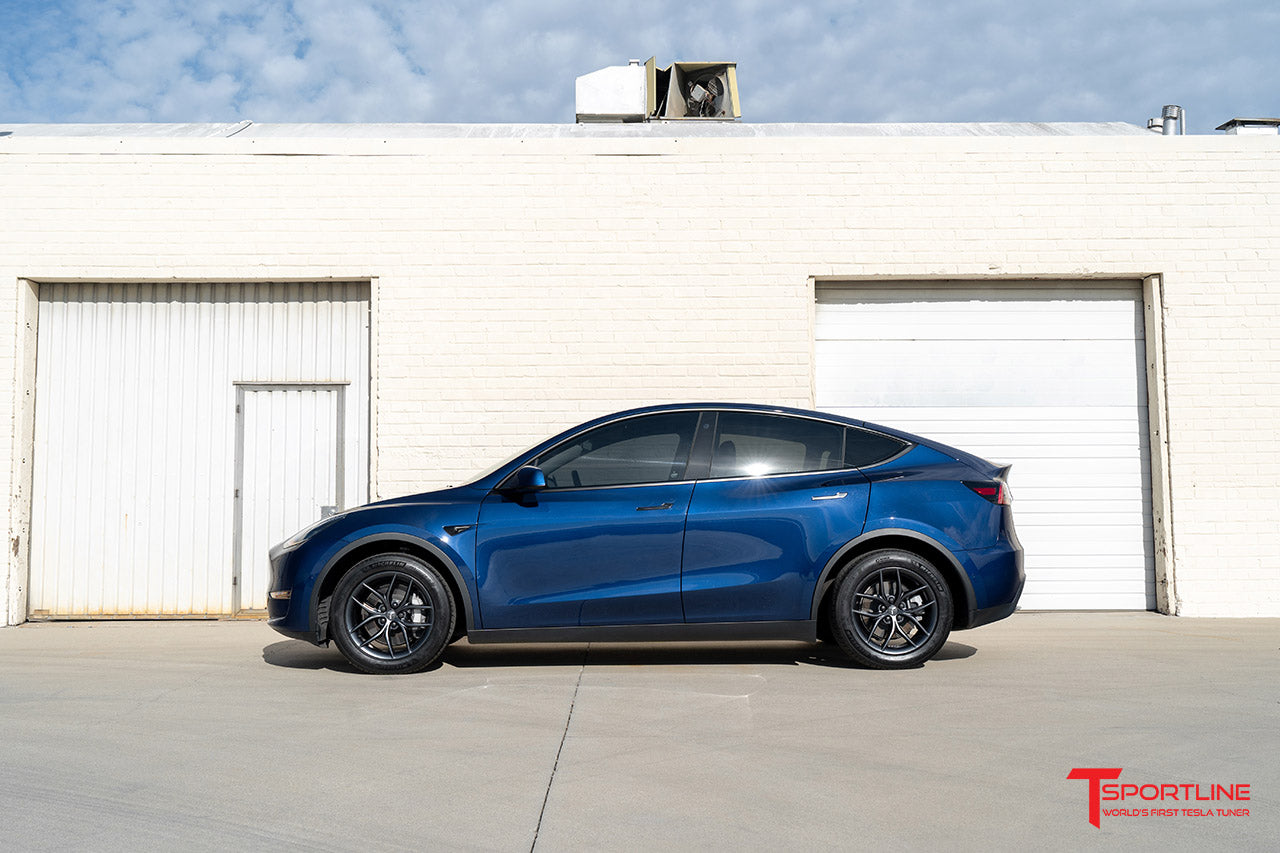

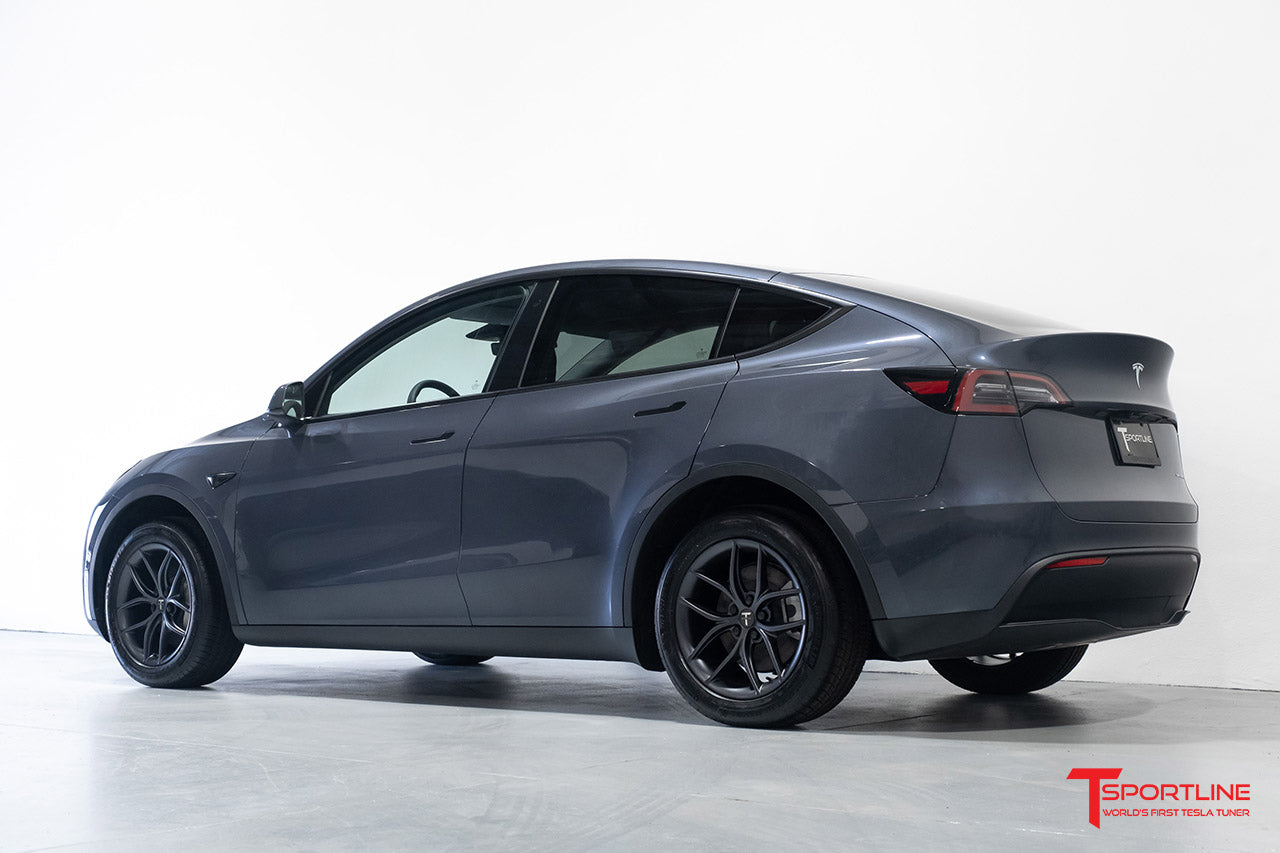

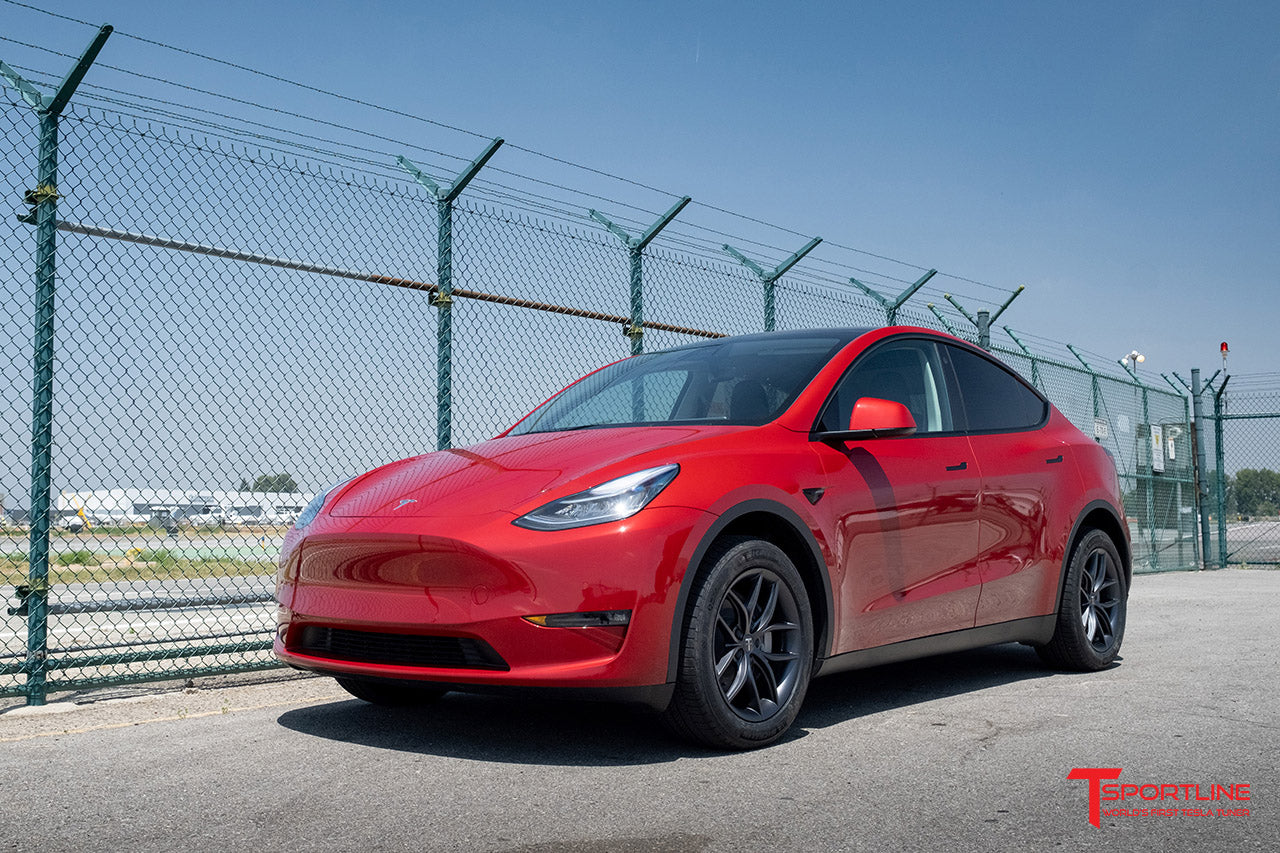

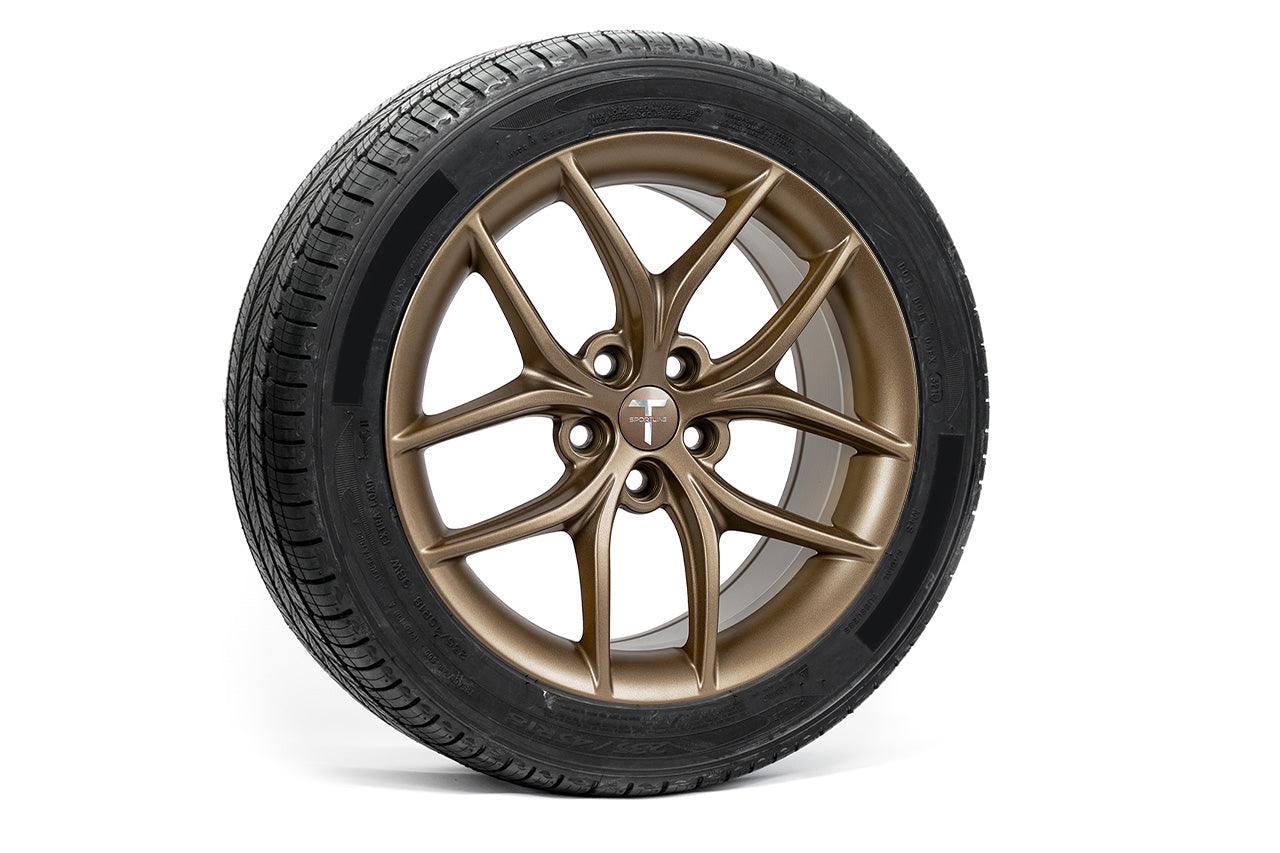

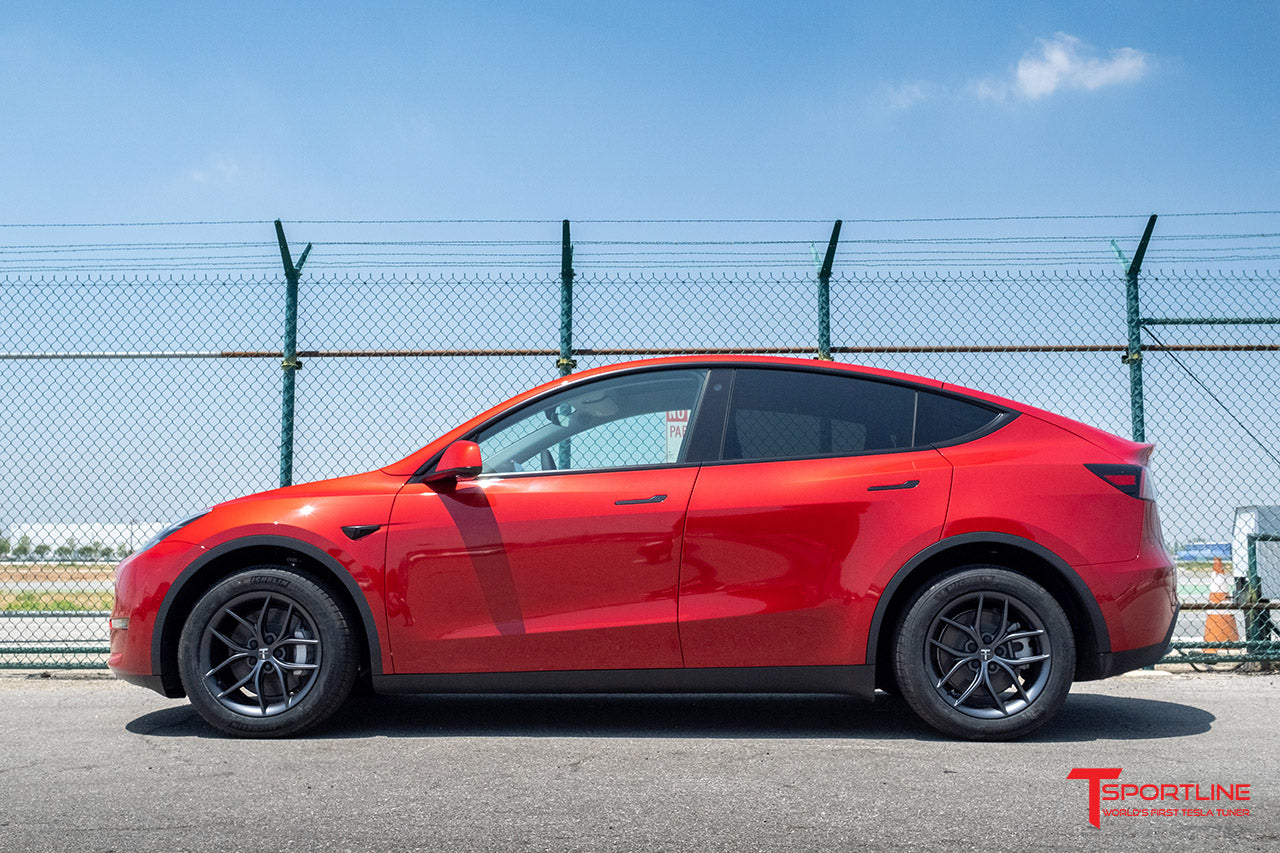

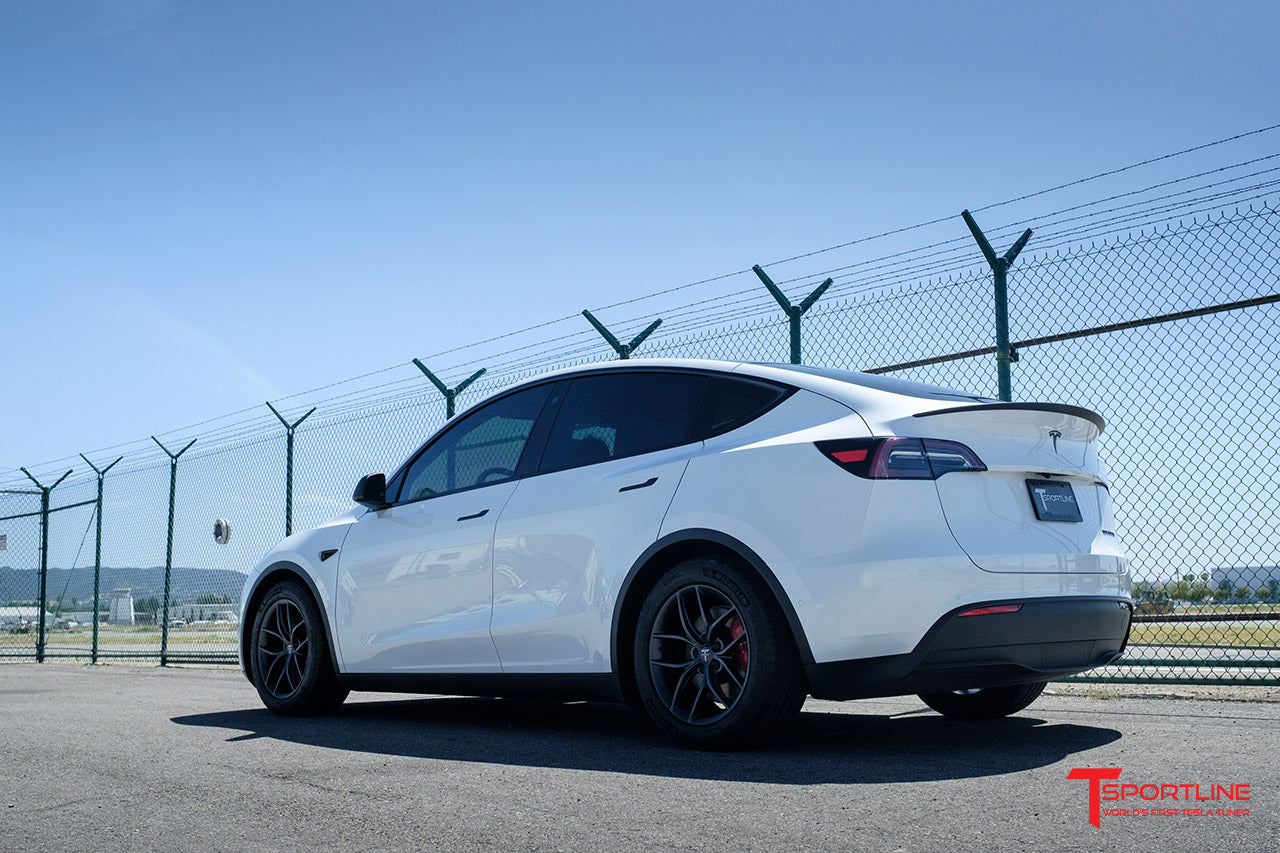

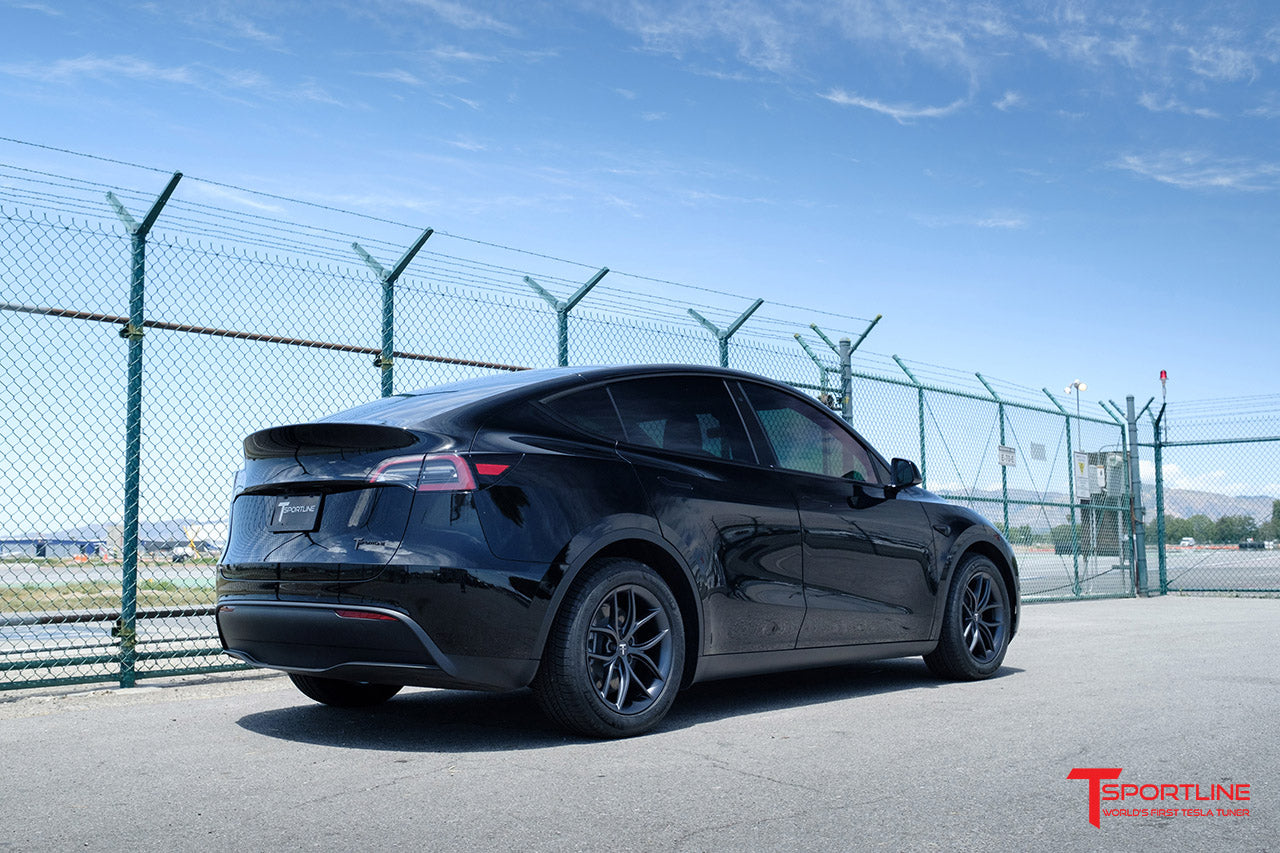

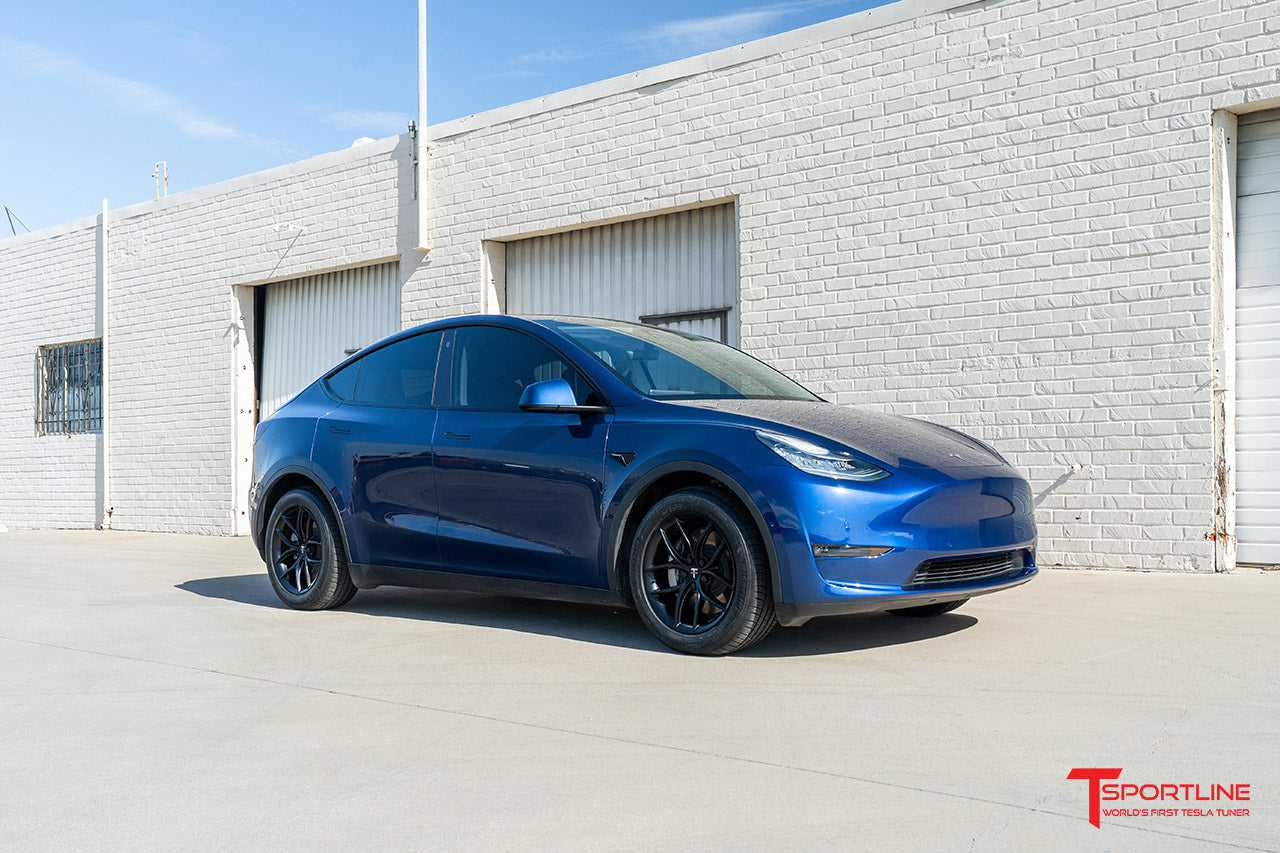

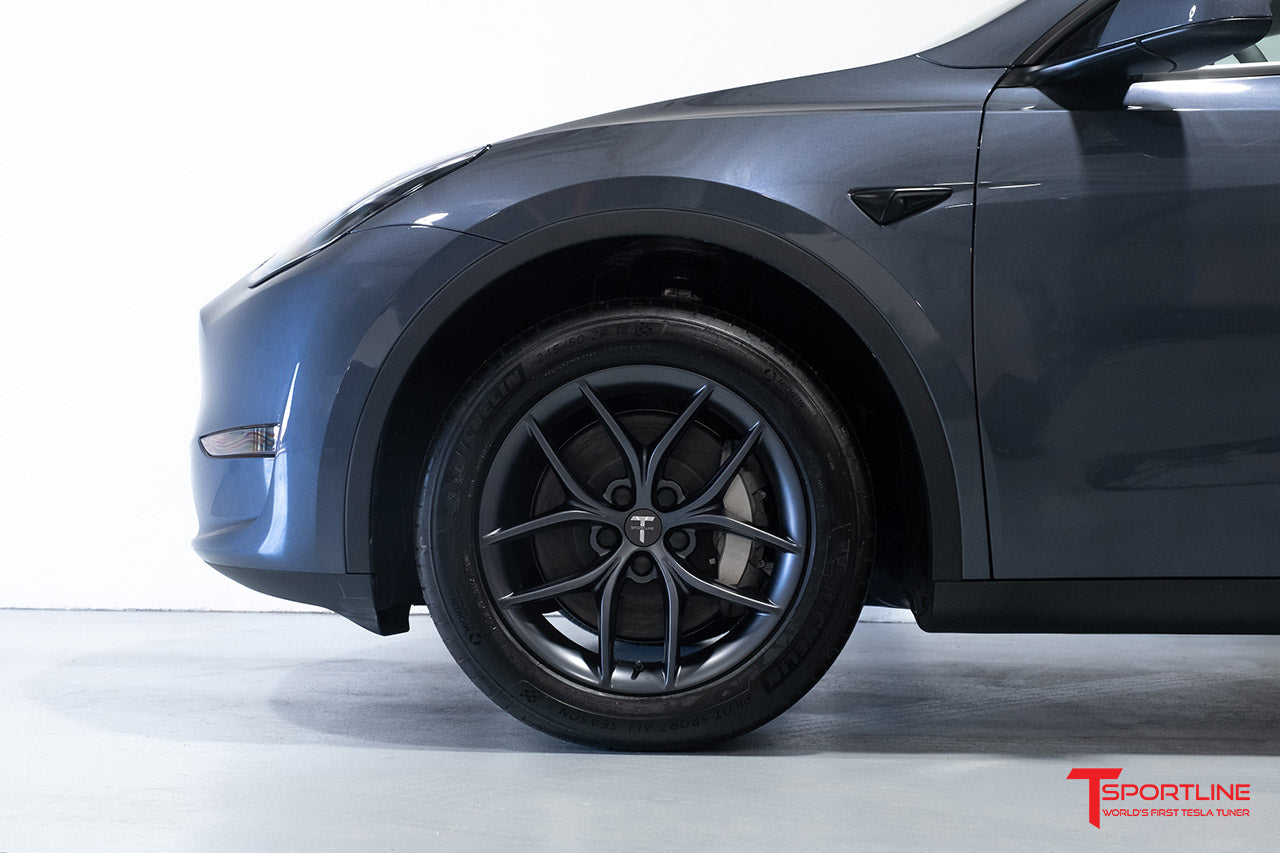

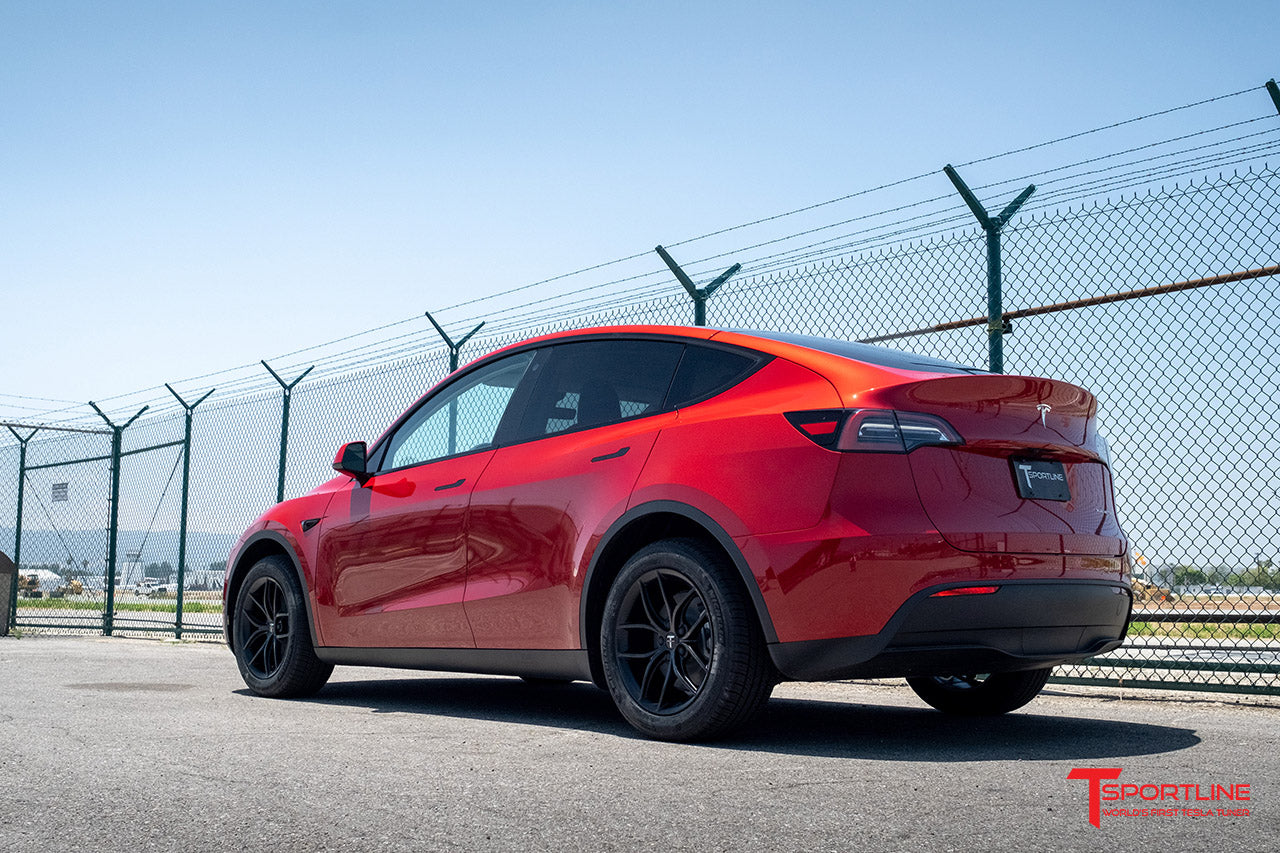

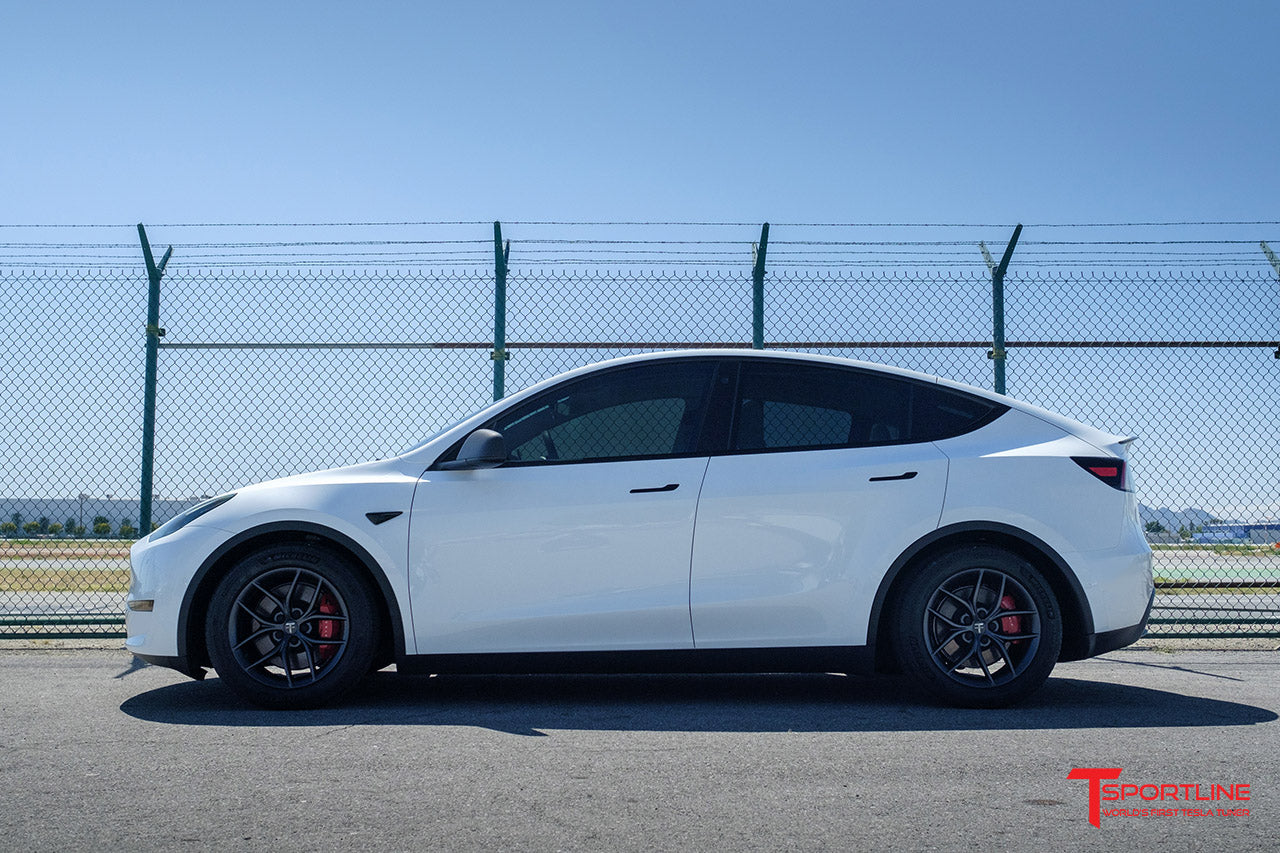

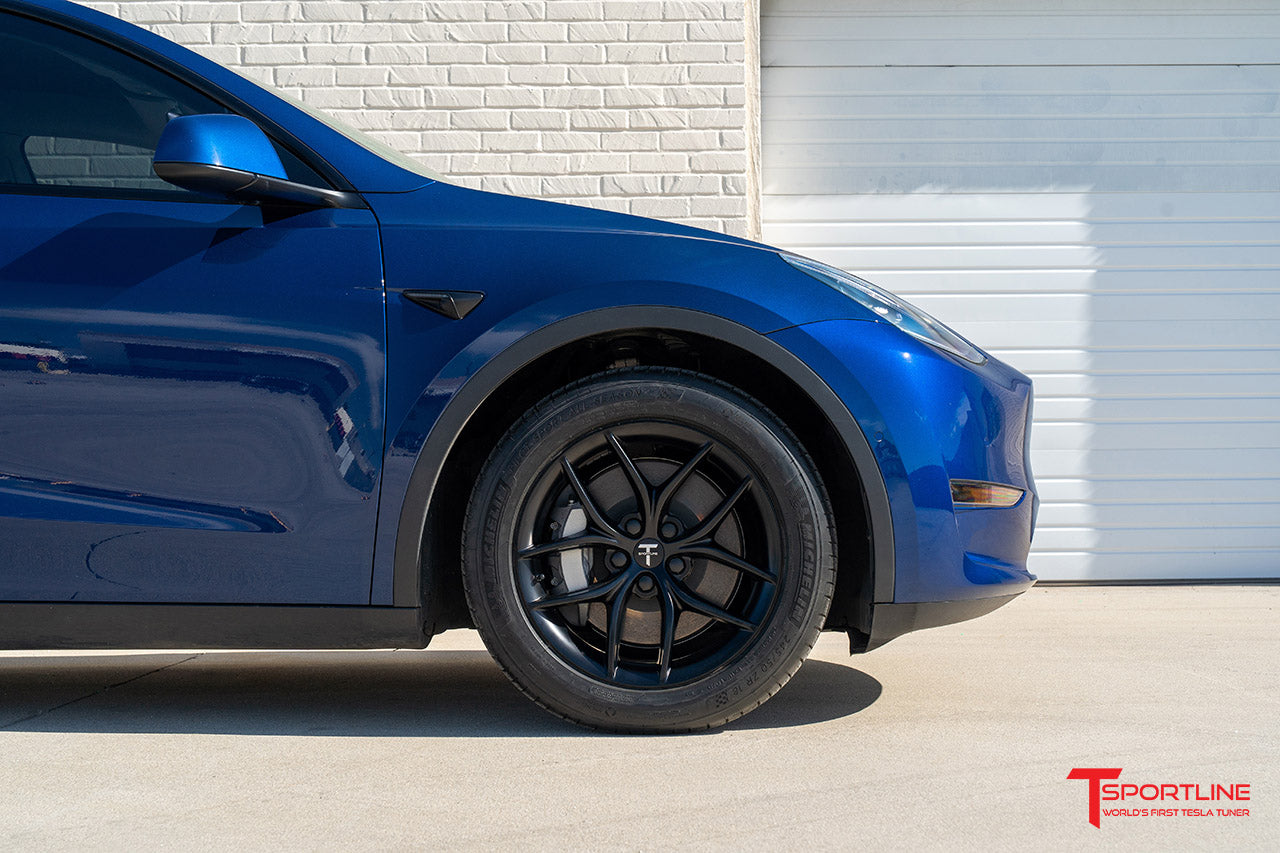

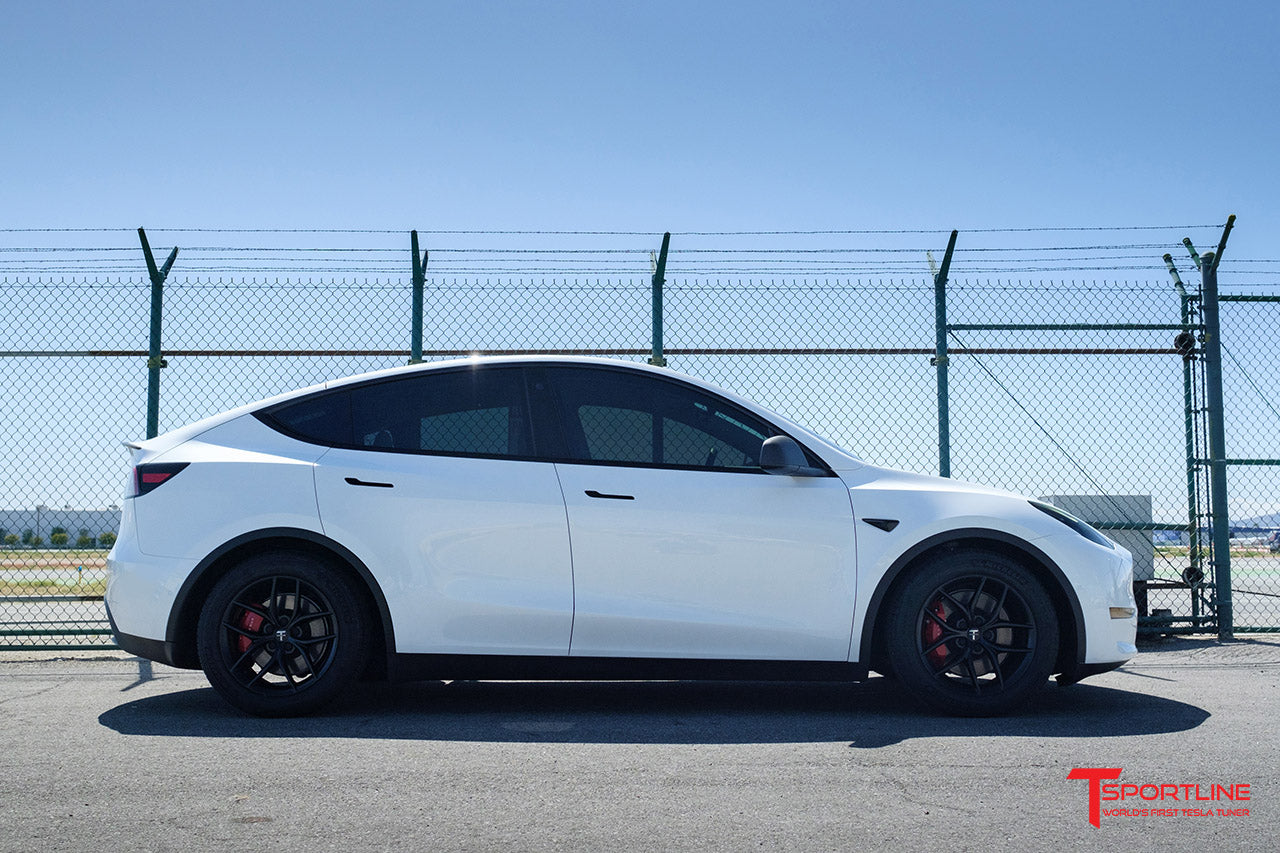

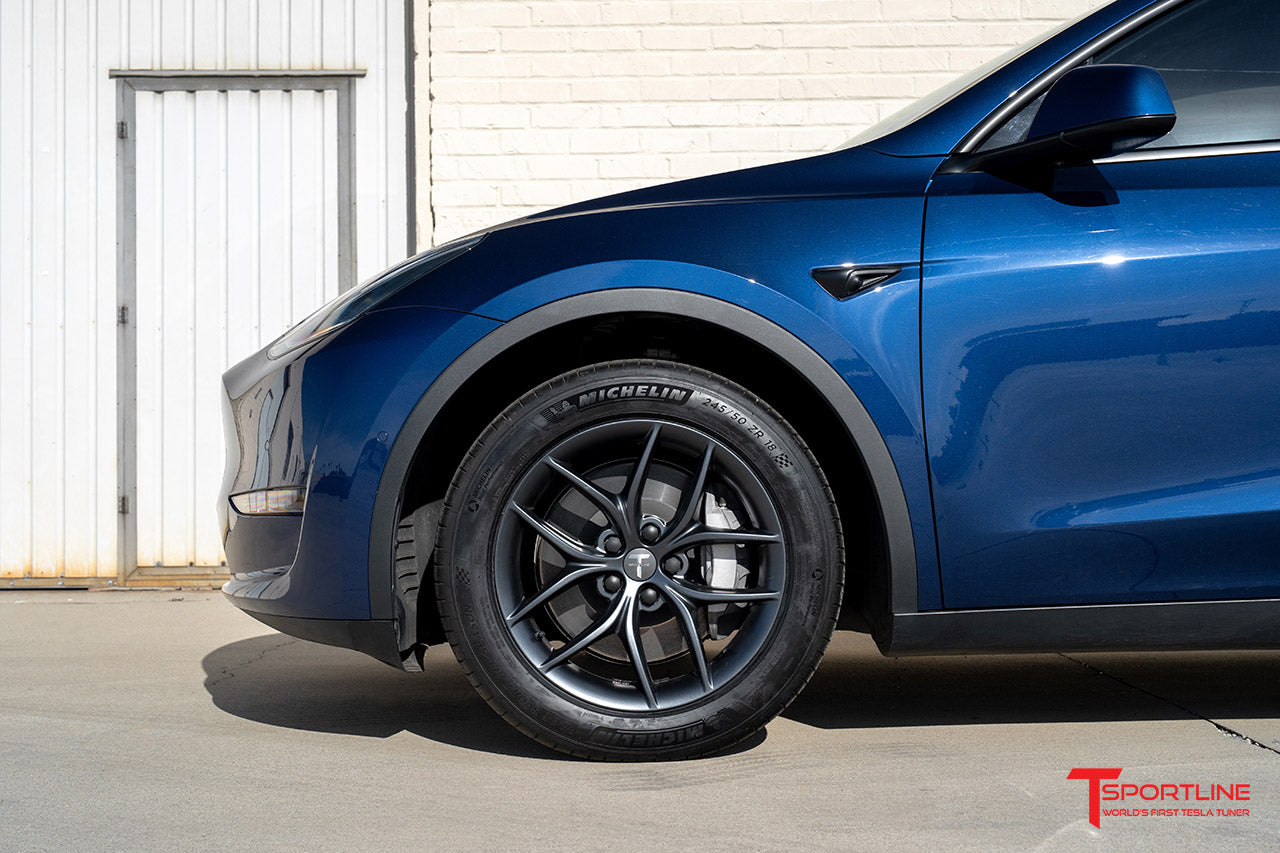

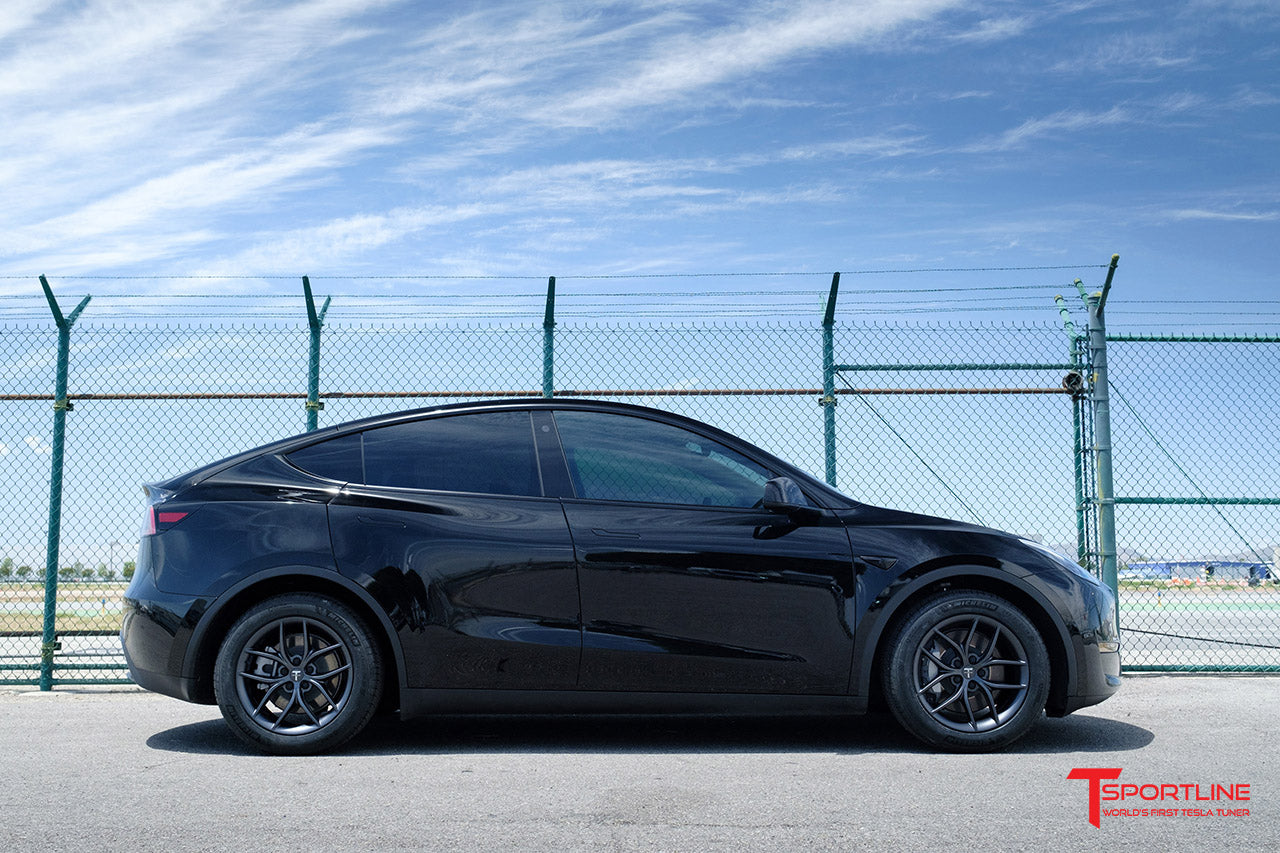

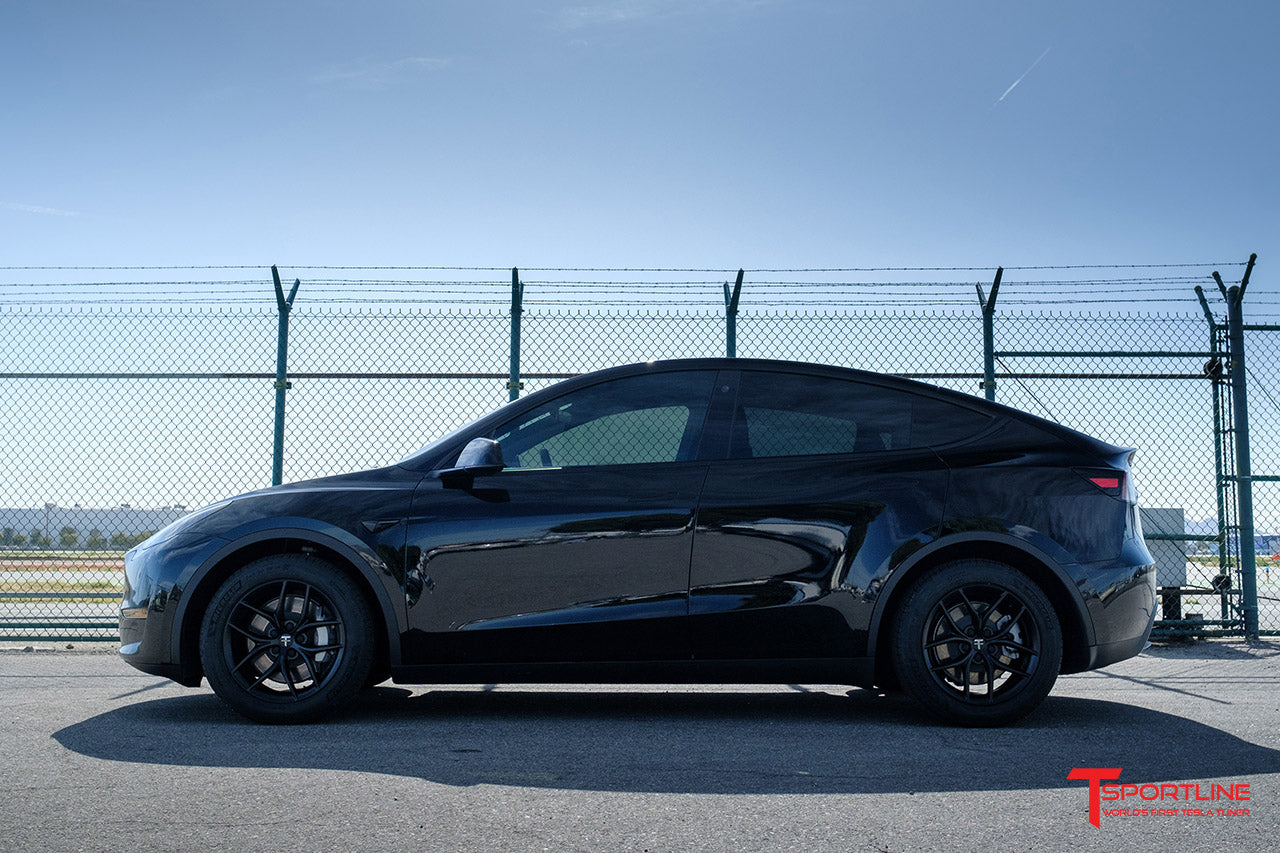

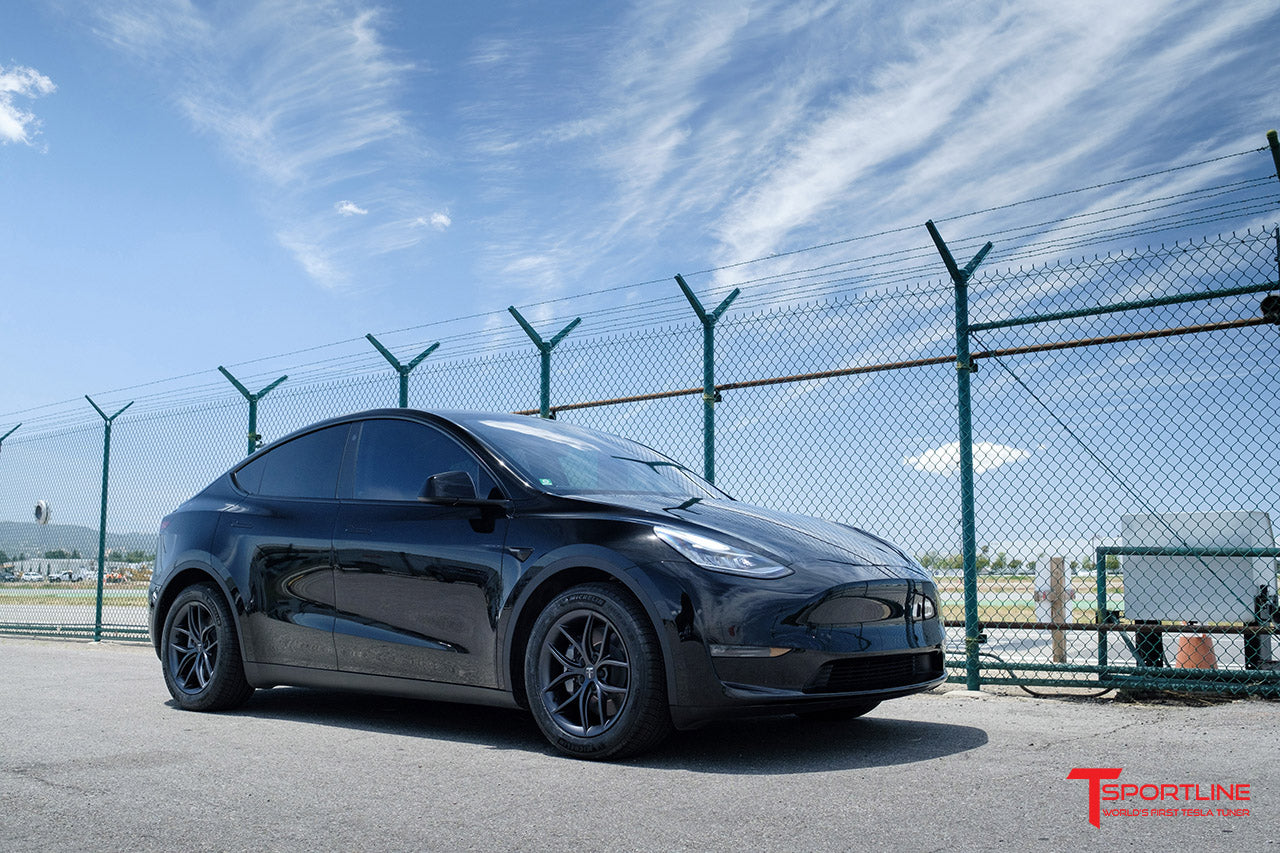

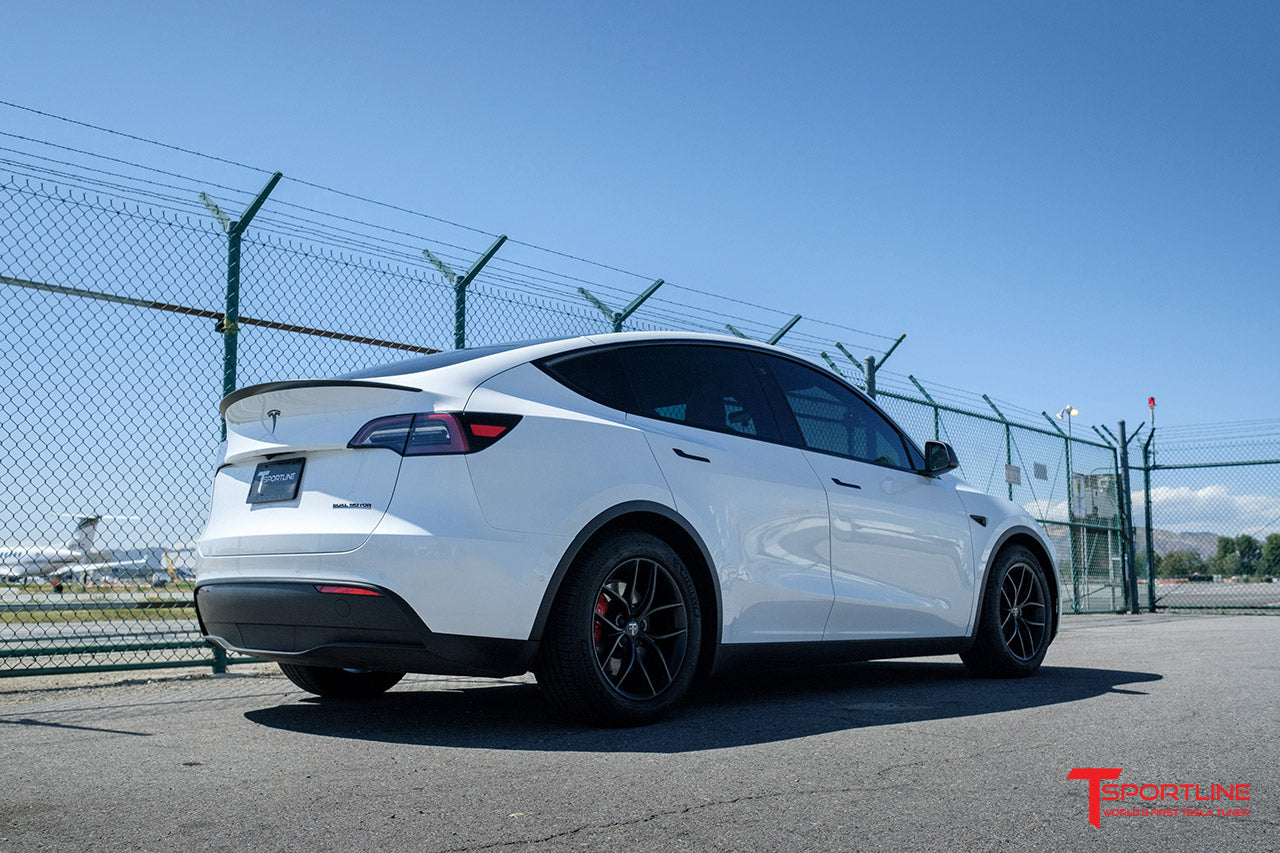

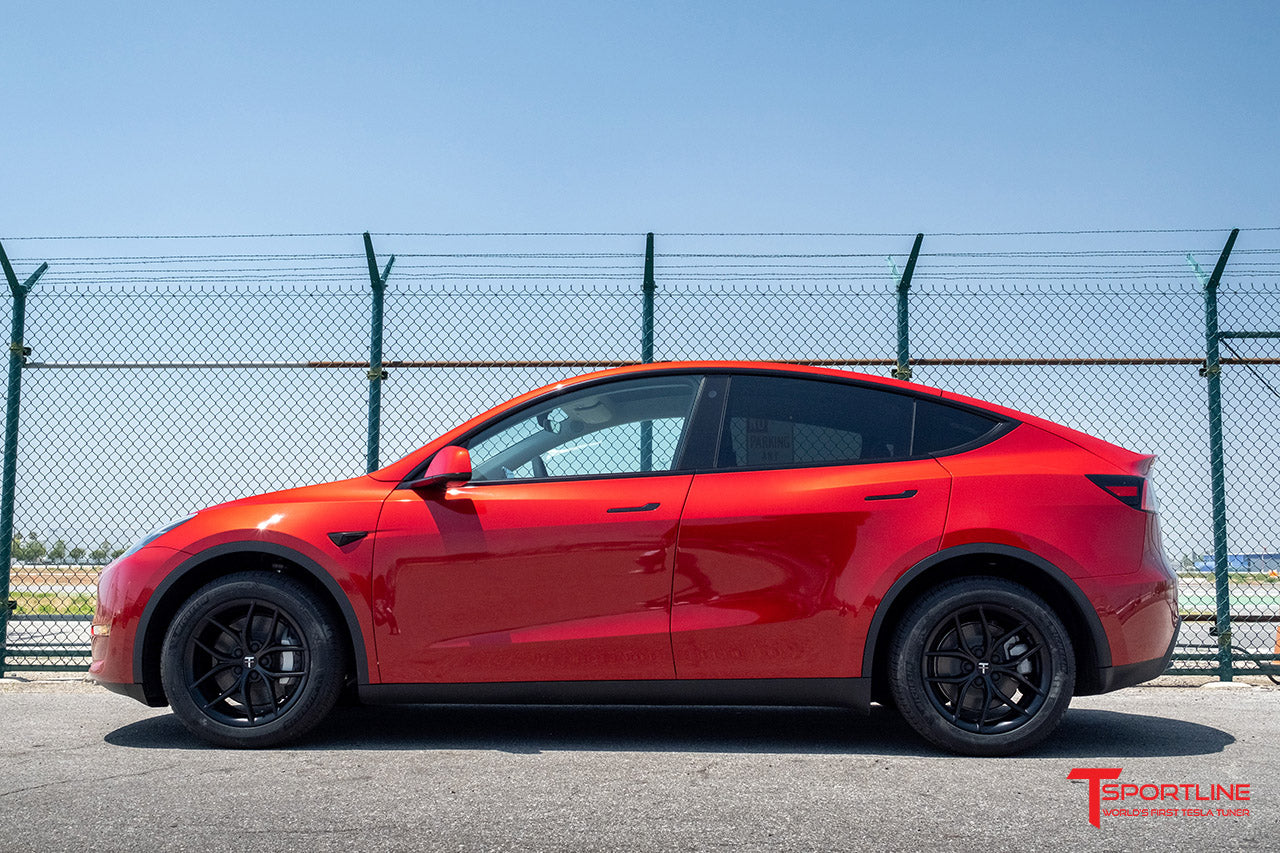

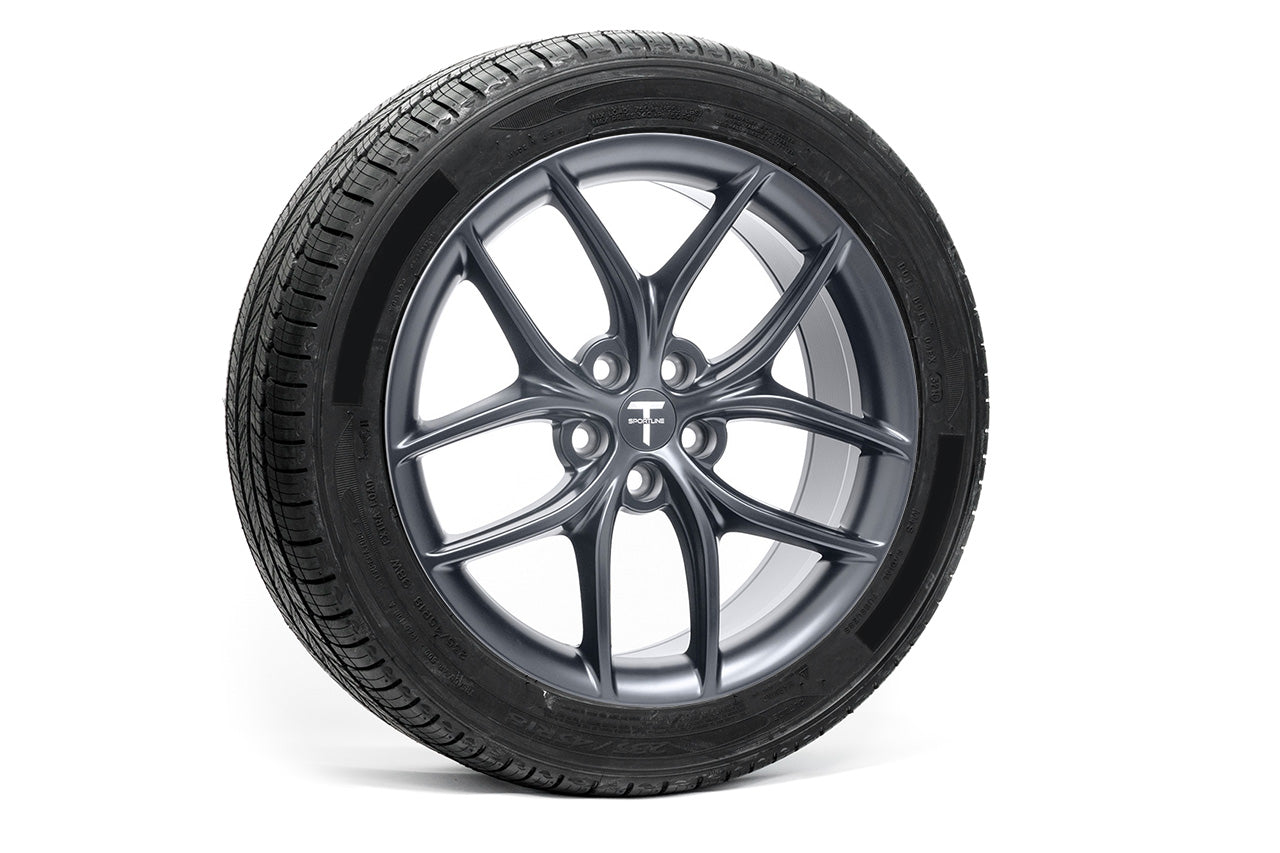

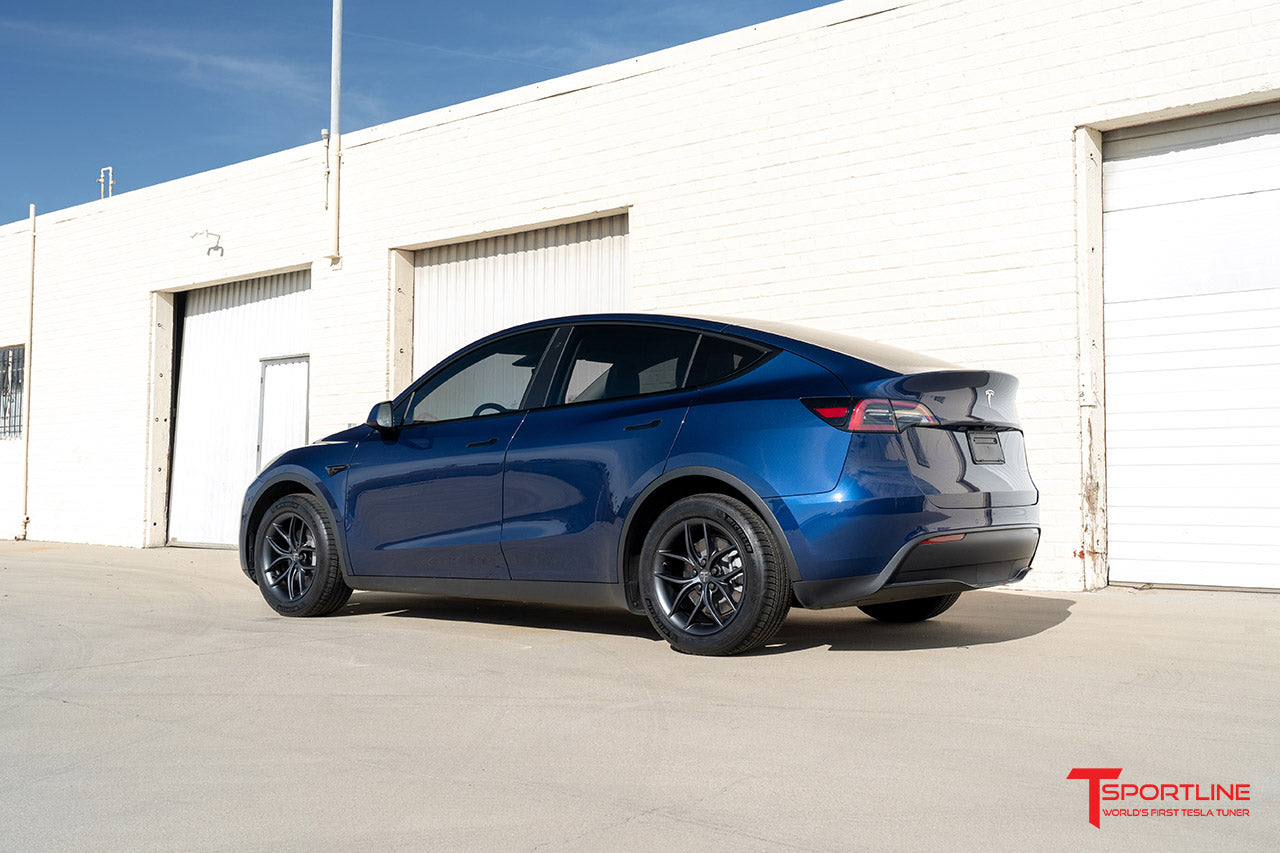

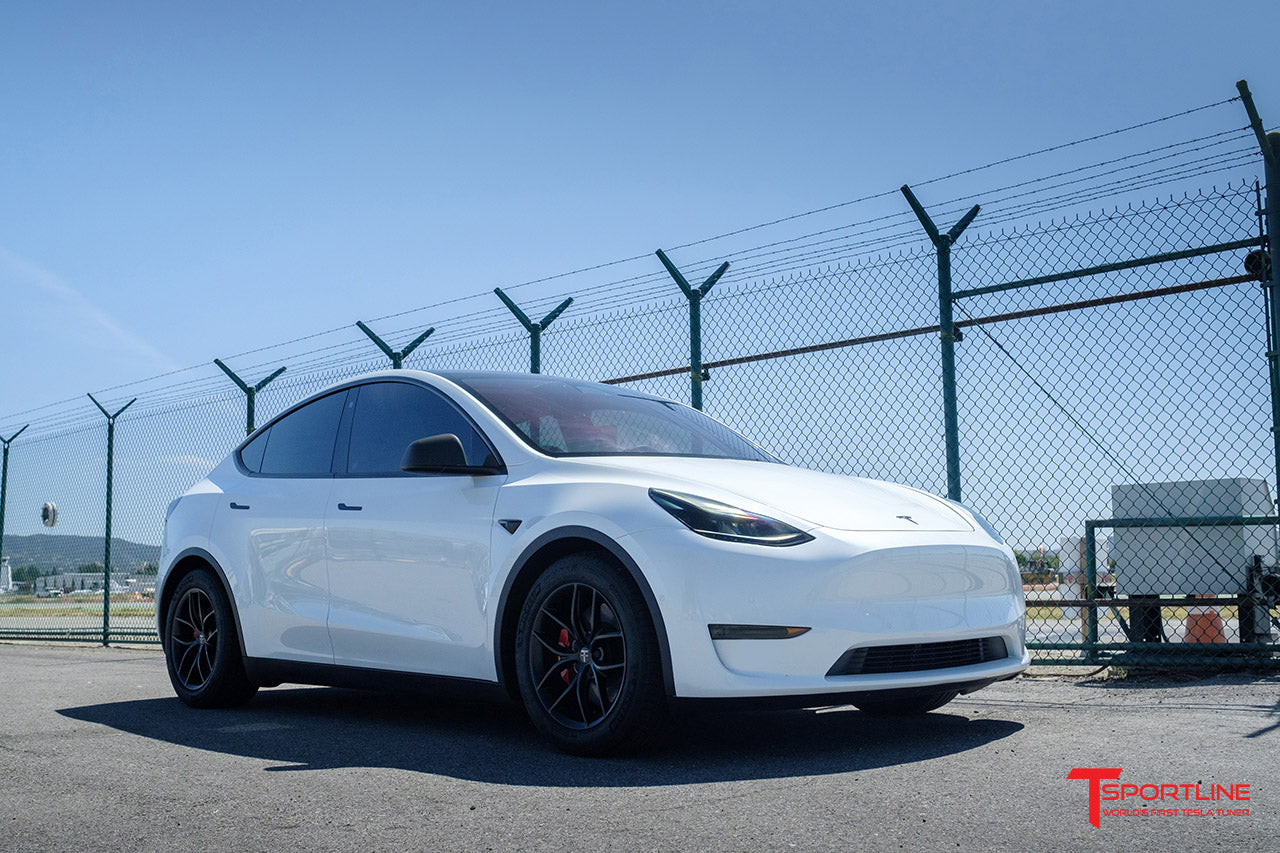

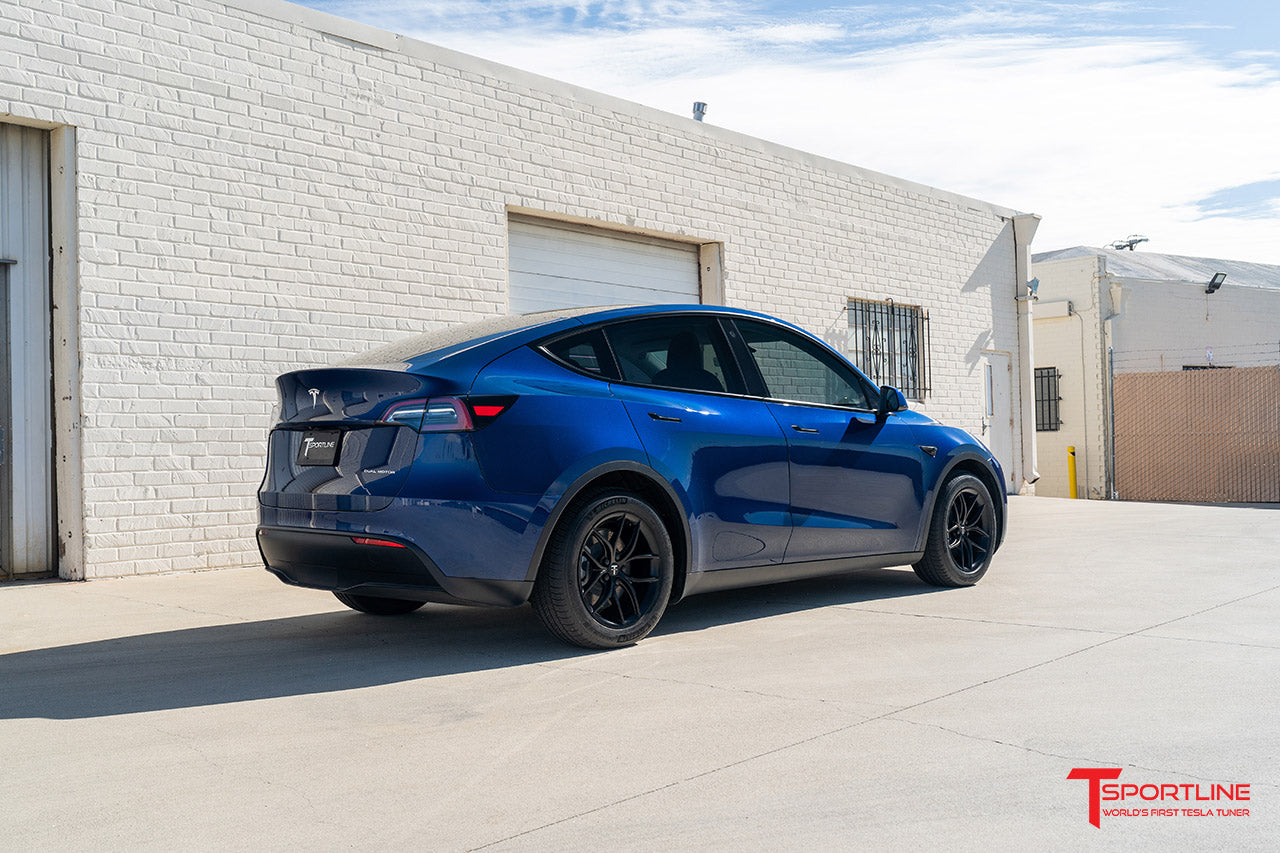

Upgrade your Tesla Model Y with the T Sportline TS5 18-inch wheel and tire package. Inspired by Tesla Zero-G track package wheels, the TS5 features a sleek split-spoke design, lightweight flow-forged construction and precise bolt-on compatibility with factory Tesla lug nuts, center caps and TPMS sensors. At approximately 22.25 pounds per wheel, the TS5 helps reduce unsprung and rotating mass, while the 18-inch tire setup adds sidewall cushion for a smoother ride, improved pothole protection and reduced risk of curb damage.

Tesla Model Y Compatibility

Confirmed Fit

Approved for all Tesla Model Y versions from 2020–Present

✓2020 ✓2021 ✓2022 ✓2023 ✓2024 ✓2025 ✓2026

✓ Approved to replace factory 18", 19", 20" or 21" wheels & tires

Rear-Wheel Drive Versions Standard Range RWD, Rear-Wheel Drive and Long Range RWD

All-Wheel Drive Versions Long Range AWD, All-Wheel Drive and Dual Motor AWD

Performance Model Model Y Performance configurations

Model Y L Six-seat Model Y L configurations

Wheel and Wheel & Tire Package Offerings

18x8.5" Fitment Wheels & Tires (Square = all 4 wheels & tires the same size)

Wheel Package — What Is Included

Set of 4 wheels

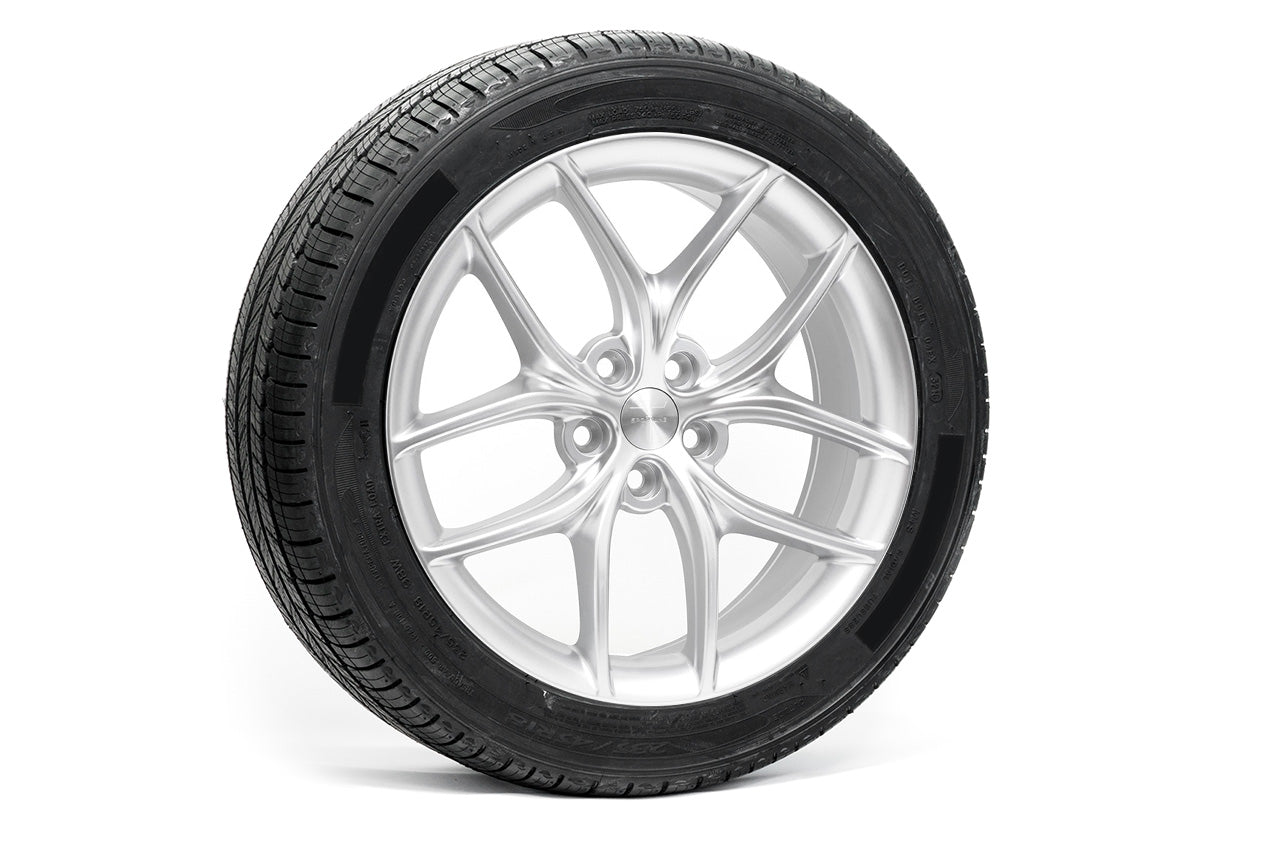

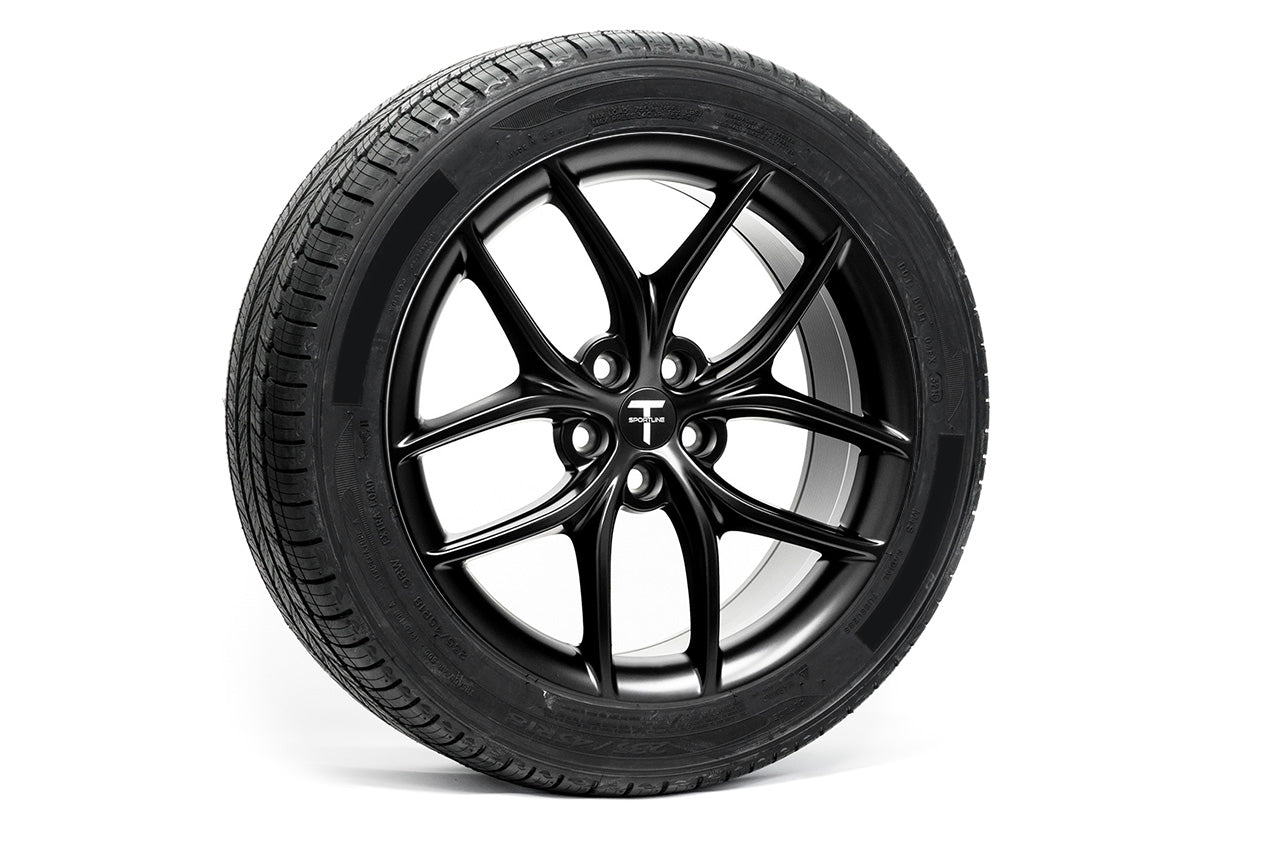

4x 18x8.5" TS5 wheels 4x color-matched T Sportline wheel center caps

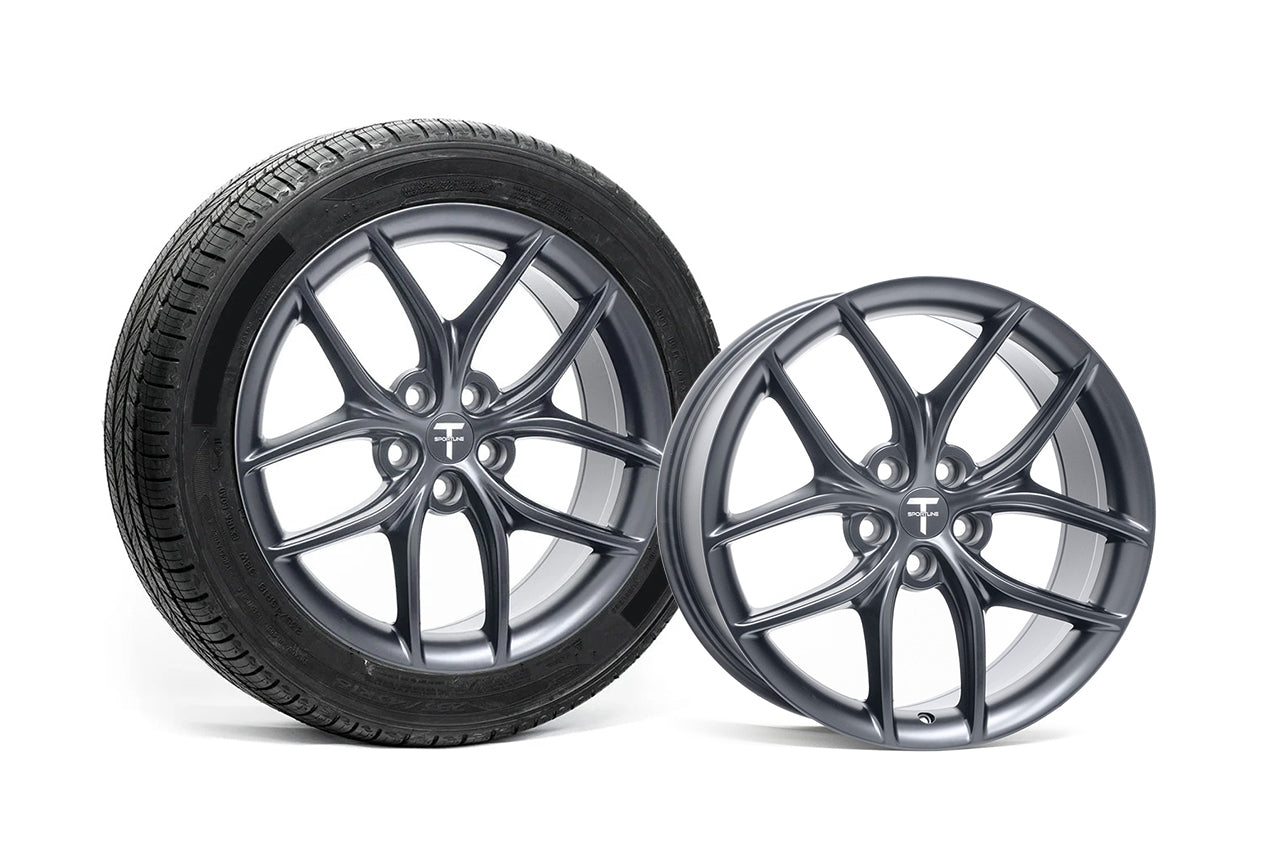

Wheel & Tire Package — What Is Included

Set of 4 wheels & tires—mounted, balanced, & ready to install!
4x 18x8.5" TS5 wheels 4x 235/55R18, 245/50/18 or 255/55/18 tires 4x factory-spec Tesla TPMS sensors 4x color-matched T Sportline wheel center caps

Recommended Add-On Options

1Lug Nuts or Lug Nut Covers — No lug nuts are included. Factory lug nuts can be reused with optional covers or replace the factory lug nuts with our forged or titanium lug nuts
2Tesla Tire Road Hazard Protection — rest easy with tire-protection
3Curb Protection Guards — Protect rims against scrapes
4Ceramic Coating — protect the finish and make cleaning easier

Wheel Features and Benefits

Wheel Specifications

Wheel Model: TS5
Vehicle: Tesla Model Y
Wheel Size: 18x8.5" front and rear
Offset: +35
Bolt Pattern: 5x114.3
Center Bore: 64.1mm
Construction: Flow Forged
Wheel Weight: 22.25 lbs nominal average
Load Rating: 750 kg / 1,653 lbs per wheel
Tire Sizes: 235/55R18, 245/50/18 or 255/55/18

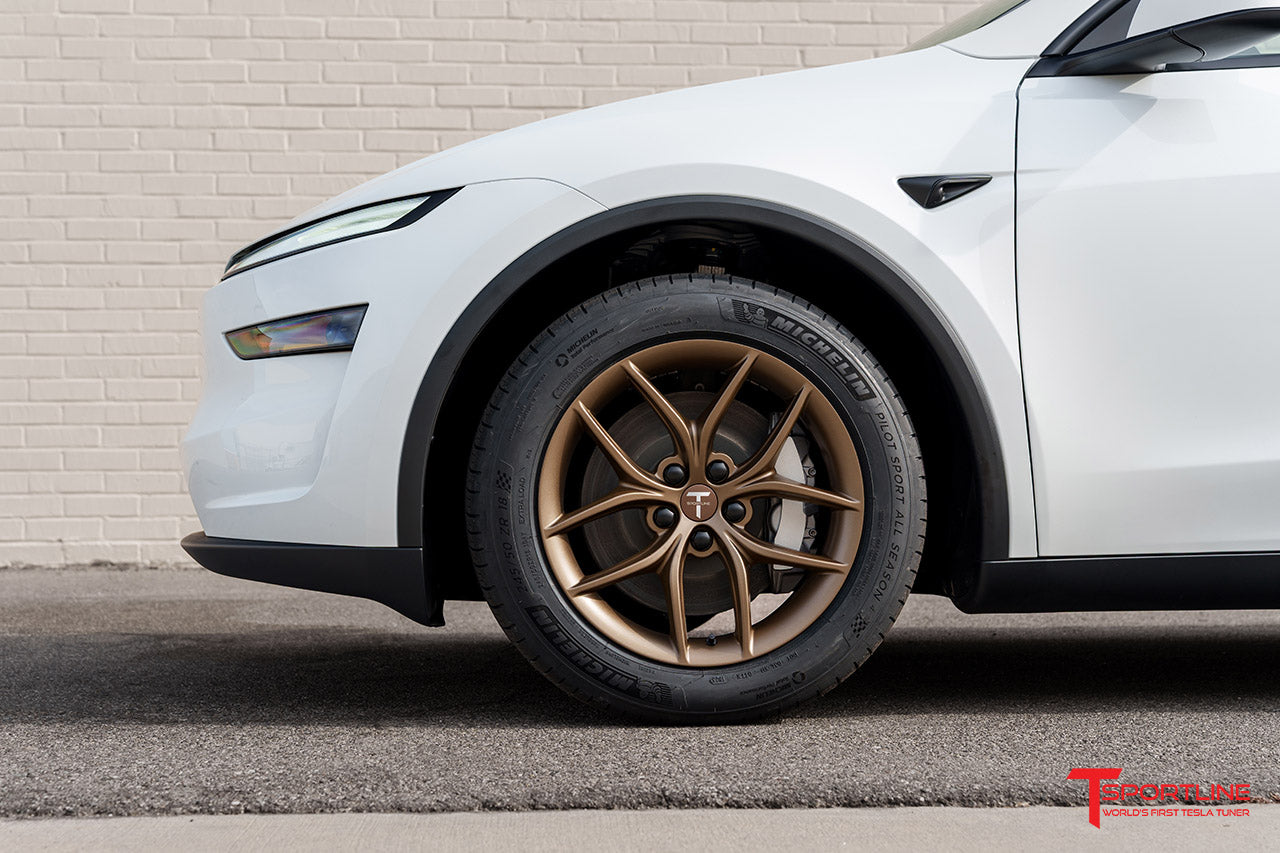

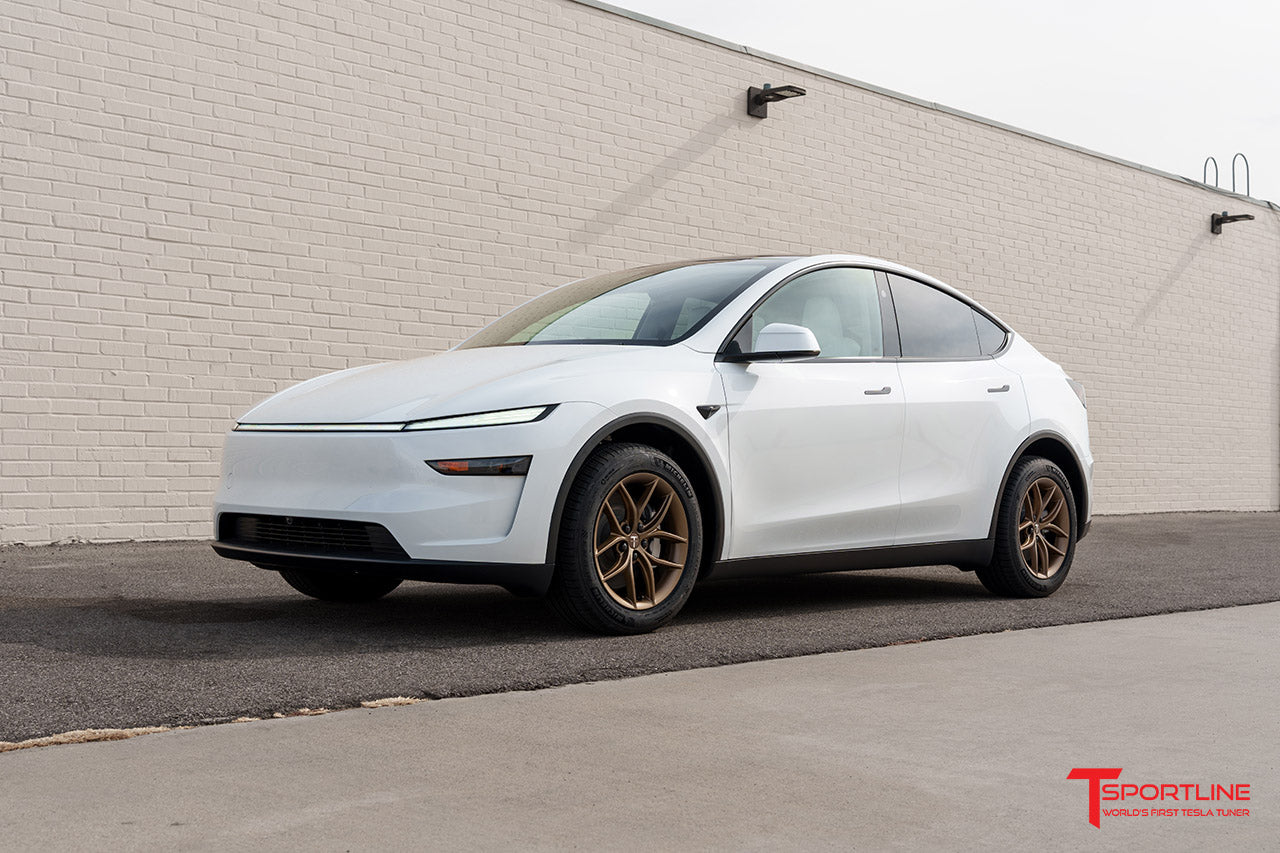

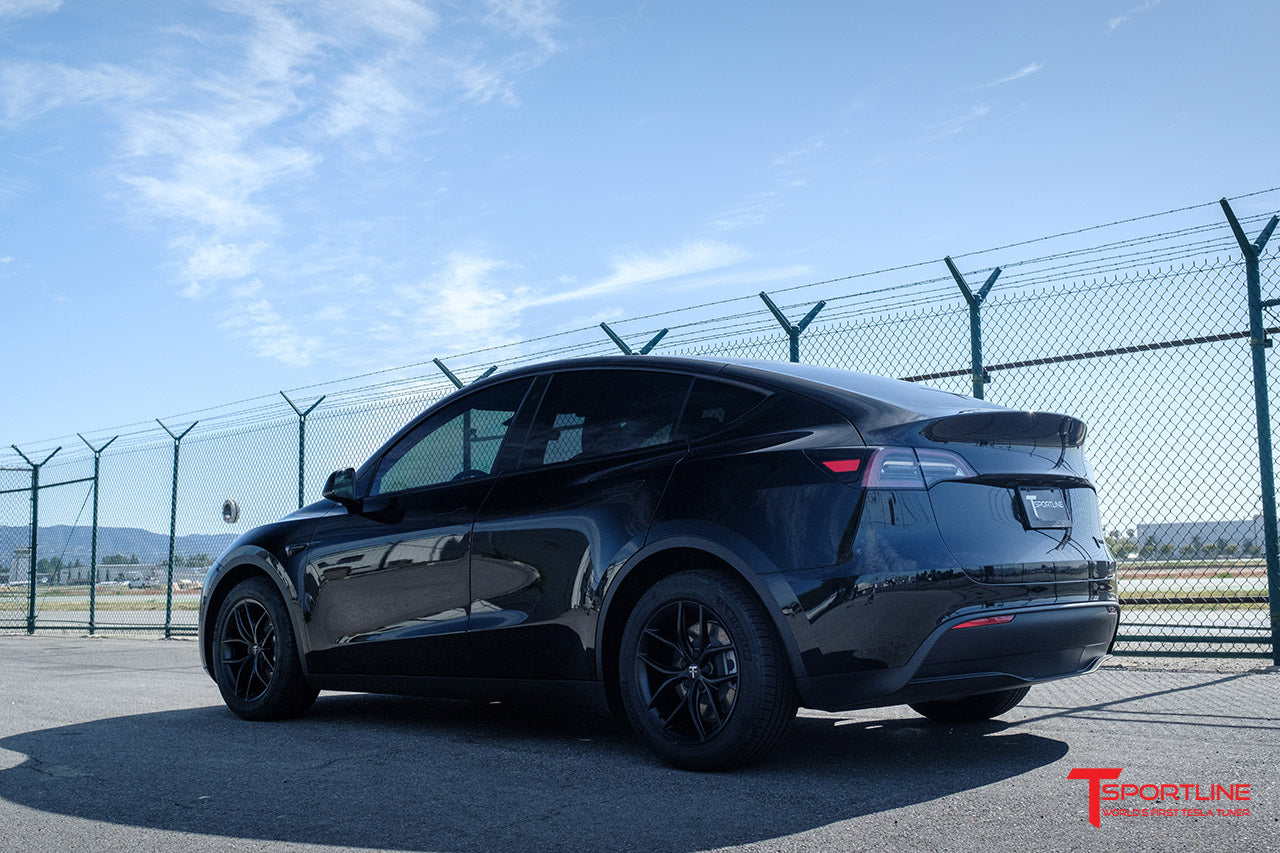

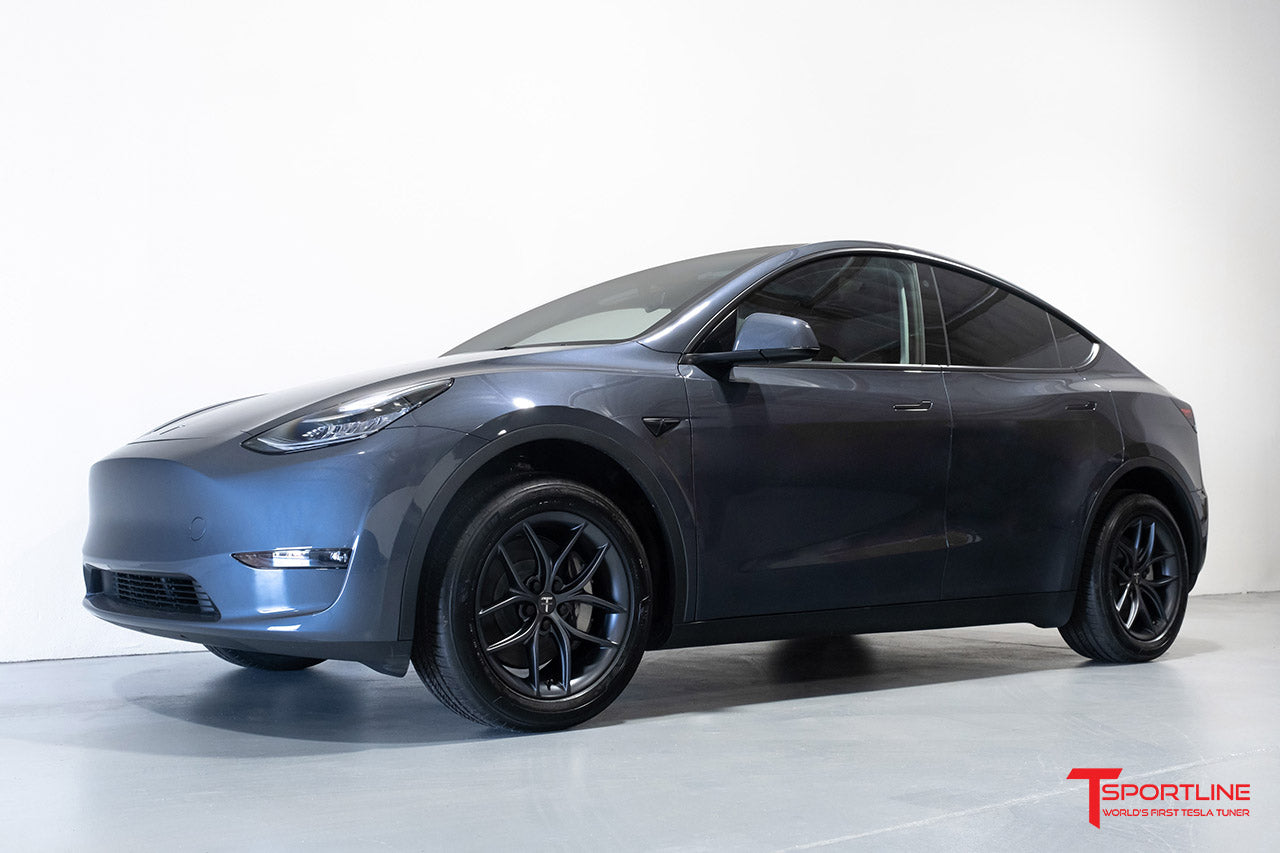

Finishes: Satin Black, Satin Gray and Satin Bronze
Testing Standards: JWL, VIA and SAE J2530
Factory Hardware: Compatible with factory Tesla lug nuts, center caps and TPMS sensors

Zero-G Inspired Design

The TS5 split-spoke wheel design was inspired by Tesla Zero-G track package wheels. The svelte looking split spoke presents lightweight and performance focused footwork, perfect for enthusiast owners seeking the a strong emphasis on great looks and lightweight overachiever.

18-Inch Ride Comfort

Downsizing to an 18-inch wheel creates room for a taller tire sidewall, helping absorb sharp impacts from rough pavement and potholes while providing additional protection from curb contact.

Lighter & Stronger Than Tesla Wheels

TS5 wheels are manufactured using a flow forged process and tested to JWL, VIA and SAE J2530 standards. Factory Tesla wheels are typically gravity cast, which can result in heavier wheels with lower strength-to-weight performance. Our wheels use an advanced flow-forging process to increase strength while reducing weight—helping improve resistance to road-hazard damage, reduce unsprung mass, and preserve range.

Tesla Compatibility

Accepts factory Tesla lug nuts
Accepts factory Tesla center caps
Accepts factory Tesla TPMS sensors
Includes color-matched T Sportline center caps
No aftermarket wheel hardware required
Will NOT void Tesla Warranty
Does NOT work with factory Tesla "Aero Covers / Hub Caps"

Square Fitment & Tire Rotation

The 18x8.5" square setup uses the same wheel and tire size at all four corners, allowing conventional front-to-rear tire rotation.

Tire Comparison & Selection Guide

← Swipe or scroll to compare tire sizes →

	235/55R18	245/50/18	255/55/18
Tire Type	Stock Tesla Tire Size	Sport / Performance	Overland / Off-Road
Range & Efficiency	Narrower, lower-drag profile★★★	Wider performance footprint★★☆	Wider, taller and heavier—reduce range a few percent☆☆☆
Ride Comfort	Taller sidewall cushion★★☆	More direct road feel★☆☆	Tallest sidewall cushion★★★
Pothole Protection	More impact-absorbing sidewall★★☆	Shorter sidewall★☆☆	Maximum protection★★★
Curb Protection	Taller sidewall protection★☆☆	Wider, squarer sidewall profile★★☆	Tallest and widest maximum protection★★★
Handling & Steering	Comfort-oriented response★★☆	Sharper, more responsive feel★★★	Softer than the other tires★☆☆
Dry Traction	Balanced everyday grip★★☆	Wider contact patch★★★	Balanced everyday grip★☆☆
Wet & Snow Traction	Narrower footprint cuts through water and snow★★☆	Wider footprint★☆☆	Handles it well★★★
Overland & Offroad	Not recommended☆☆☆	Not recommended☆☆☆	Excellent performance★★★

Choose 235/55R18 if your priority is: Maximum range, wet/snow performance and balanced ride comfort.

Choose 245/50/18 if your priority is: Handling, steering response, dry traction and a wider performance stance.

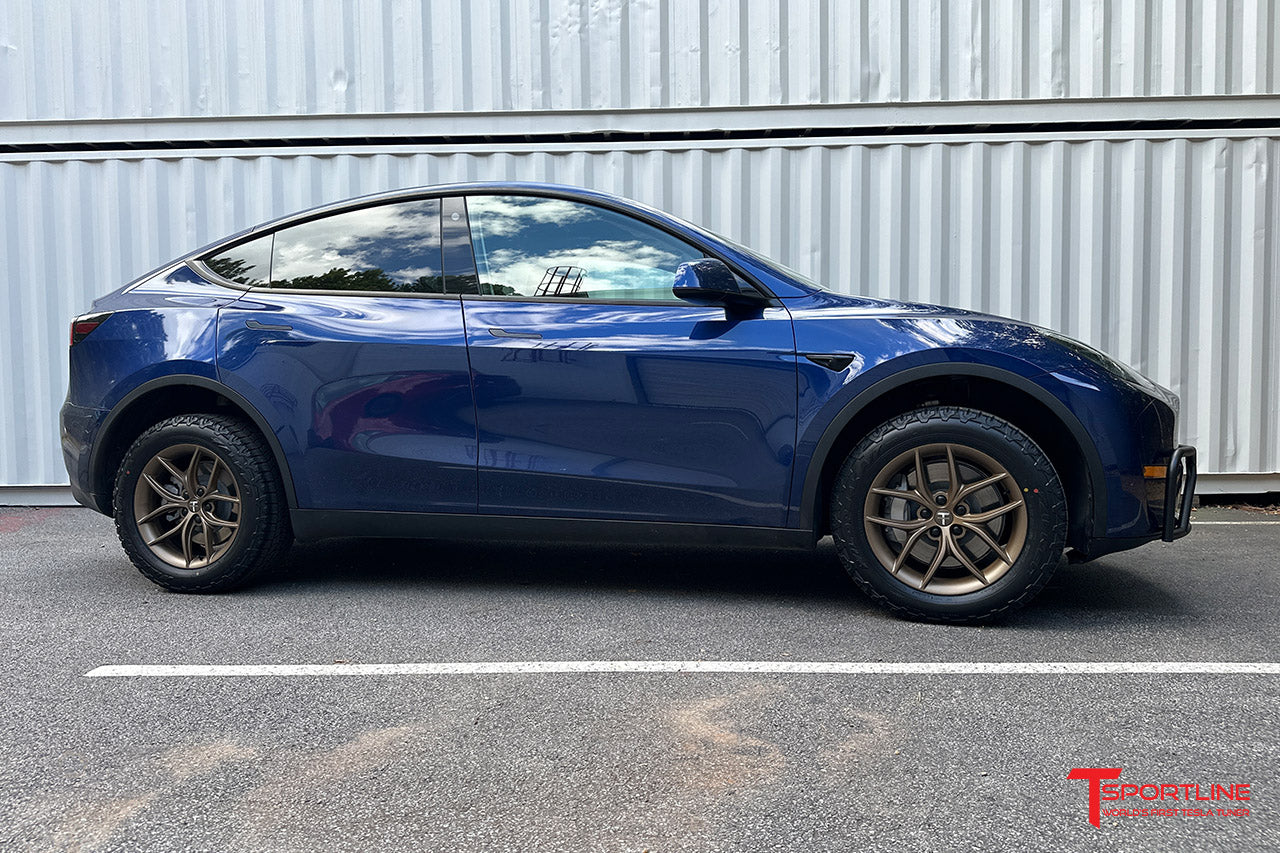

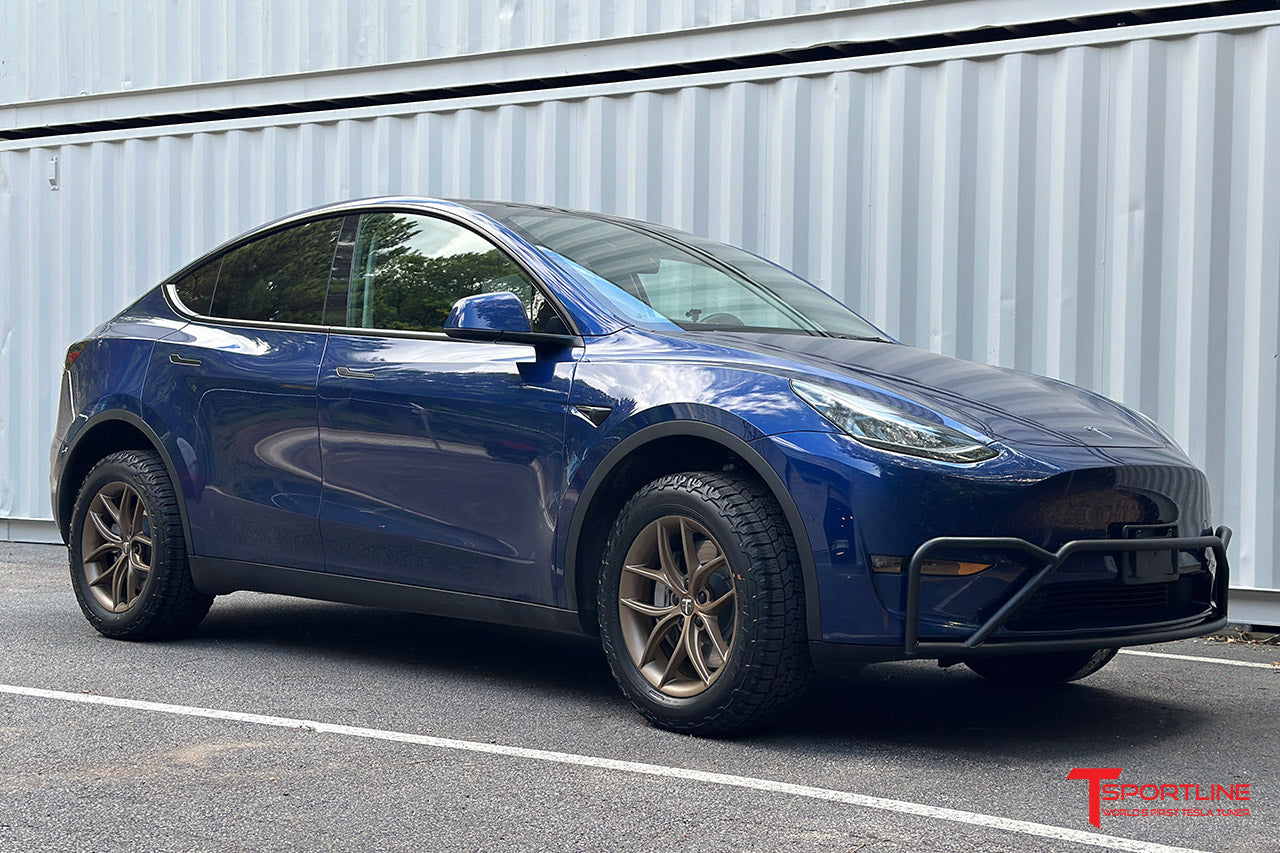

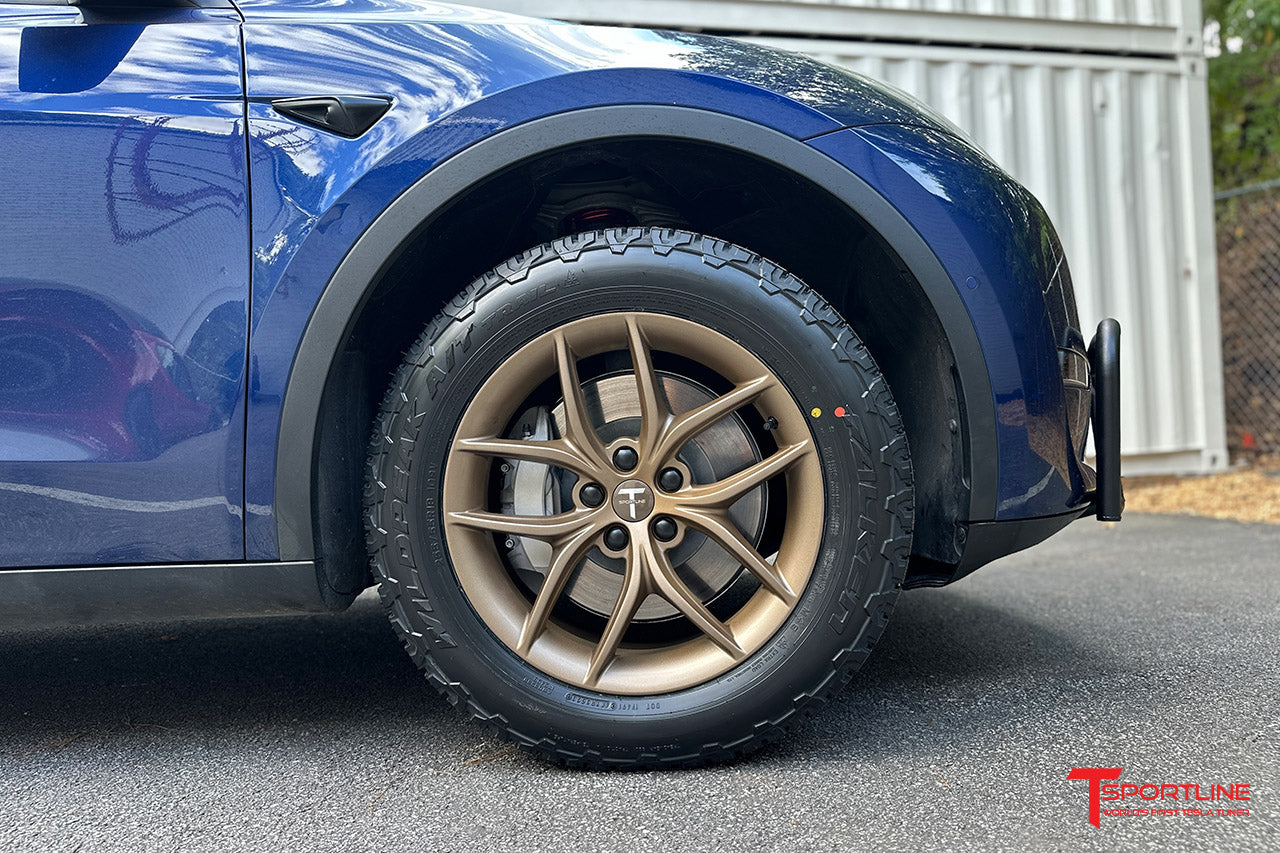

Choose 255/55/18 if your priority is: Rugged looks, maximum ride comfort, pothole and curb protection, and overland/off-road capability.

Rating Key: ☆☆☆Not Rated ★☆☆Good ★★☆Better ★★★Best

View Instructions & Tesla Tire Care Guide DIY Installation instructions and Learn more about proper Tesla tire maintenance & rotation for maximum range and tread wear

View the T Sportline Tesla Wheel & Tire DIY Installation Guide
Follow the recommended cold tire pressures on your vehicle's Tire and Loading Information label (located on inside the driver side door jam). Check pressure after the vehicle has been parked out of direct sunlight for more than three hours. Use our AMAXX Tesla Digital Tire Inflator for convenient pressure checks and adjustments.
Rotate tires every 6,250 miles, or sooner if tread-depth difference reaches 2/32 inch, to help maximize tread life and maintain even wear.
When installing wheels, torque the 21 mm lug nuts to 129 lb-ft (175 Nm).
After tire service, drive approximately five miles to allow the TPMS readings to update.
Tire pressure changes with temperature, driving and sunlight. Underinflation can reduce range, accelerate wear and create a safety risk.
Teslas do not come with a spare! Consider purchasing a Tesla spare tire package to ensure you never get stranded with a flat.

Shipping

Shipping is calculated at Checkout.

Shipping & Handling charges subject to change without prior notification. PLEASE NOTE THAT INTERNATIONAL SHIPMENTS ARE SUBJECT TO CUSTOMS TAXES/DUTIES, AS CHARGED BY YOUR COUNTRY (THERE ARE NO U.S. CUSTOMS FEES). INTERNATIONAL CUSTOMERS ARE RESPONSIBLE FOR PAYMENT OF THESE FEES. Due to service availability, some international orders may need to be sent to the nearest international airport.
FAQ

Can I use my Aero Covers / Hubcaps on the 18" TS5?
No, the Aero Covers / Hubcaps only fit on your factory wheels.

Do your TS5 wheels fit my factory center caps?
Yes, 18x8.5" TS5 wheels fit your factory Tesla center caps. They also fit your factory TPMS and your factory lug nuts. In other words, there's no need to use any aftermarket hardware.

How are the 18" TS5 wheels made?
They are flow forged. They are tested to the JWL, VIA and SAE J2530 standards.

Do I need to change the color of my existing lug nuts and center caps to match my new TS5 wheels?
That's an aesthetic decision only you can make. All TS5 wheels come with T Sportline color-matched center caps.

What is the warranty on TS5 wheels?
Click here for T Sportline Limited Warranty

How long until my TS5 wheels arrive after my order?
We process orders within 72 hours (unless your wheels are back-ordered). Please allow for 1-7 business days transit time from the day you receive a tracking number. We will email you if your wheels are back-ordered.

Do you ship internationally?
Yes! We ship worldwide and offer flat rate FedEx/DHL shipping to select countries.

Will installing your Wheel & Tire Package void my warranty?
Changing wheels and tires won't void your Tesla warranty unless Tesla can prove that our wheels caused the need for repairs. Also, we use factory-size tires only. In other words, your warranty will still be valid when your windshield wiper malfunctions, even if you've upgraded to our Wheel & Tire Package.
