Name: TY117 21" Tesla Model Y Wheel and Tire Package (Set of 4)
Brand: T Sportline
SKU: Y721951055114SB
Price: 4695.0 USD
Availability: InStock

Description

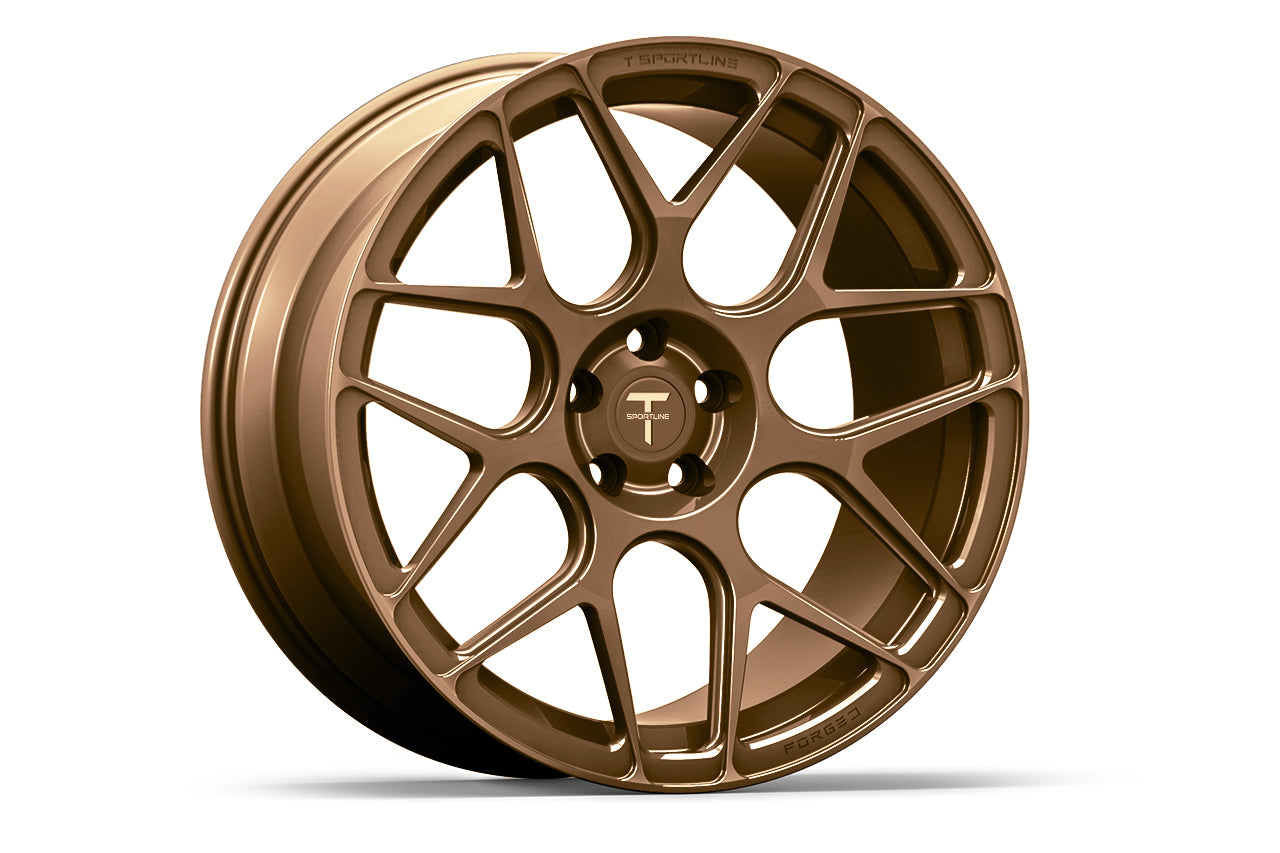

Upgrade your Tesla Model Y with the T Sportline TY117 21-inch fully forged wheel and tire package. The TY117 brings a bold, performance-focused multi-spoke design to the Model Y, with sharply sculpted spokes and an open architecture that puts the brakes on display. Precision forged from high-strength aluminum and CNC-machined for a strong, lightweight monoblock construction, the staggered 21x9.5-inch front and 21x10.5-inch rear configuration weighs 28.5 lbs (21x9.5") and 29.4 lbs (21x10.5") per wheel, carries a 900 kg (1,984 lbs) load rating per wheel and features +30mm front and +38mm rear offsets. Choose factory-size 255/35R21 front and 275/35R21 rear tires, or wider 275/35R21 front and 295/35R21 rear tires for extra wheel-edge coverage and a more aggressive stance. The seven finish options are Satin Black, Gloss Black, Anthracite Gray, Cyber Bronze, Brushed Clear, Diamond Black and Custom Finish. TY117 wheels accept factory Tesla lug nuts, center caps and TPMS sensors. Choose a set of four wheels only or a professionally mounted and balanced wheel-and-tire package ready for installation.

Tesla Model Y Compatibility

Confirmed Fit

Approved for all Tesla Model Y versions from 2020–Present

2020 2021 2022 2023 2024 2025 2026

✓ Approved to replace factory 18", 19", 20" or 21" wheels & tires

Rear-Wheel Drive VersionsStandard Range RWD, Rear-Wheel Drive and Long Range RWD

All-Wheel Drive VersionsLong Range AWD, All-Wheel Drive and Dual Motor AWD

Performance ModelModel Y Performance configurations

Model Y LSix-seat Model Y L configurations

Wheel and Wheel & Tire Package Offerings

21x9.5" Front / 21x10.5" Rear Fitment Wheels & Tires (Staggered = wider rear wheels & tires)

Wheel Package — What Is Included

Set of 4 wheels
2x 21x9.5" TY117 front wheels 2x 21x10.5" TY117 rear wheels 4x color-matched T Sportline wheel center caps

Wheel & Tire Package — What Is Included

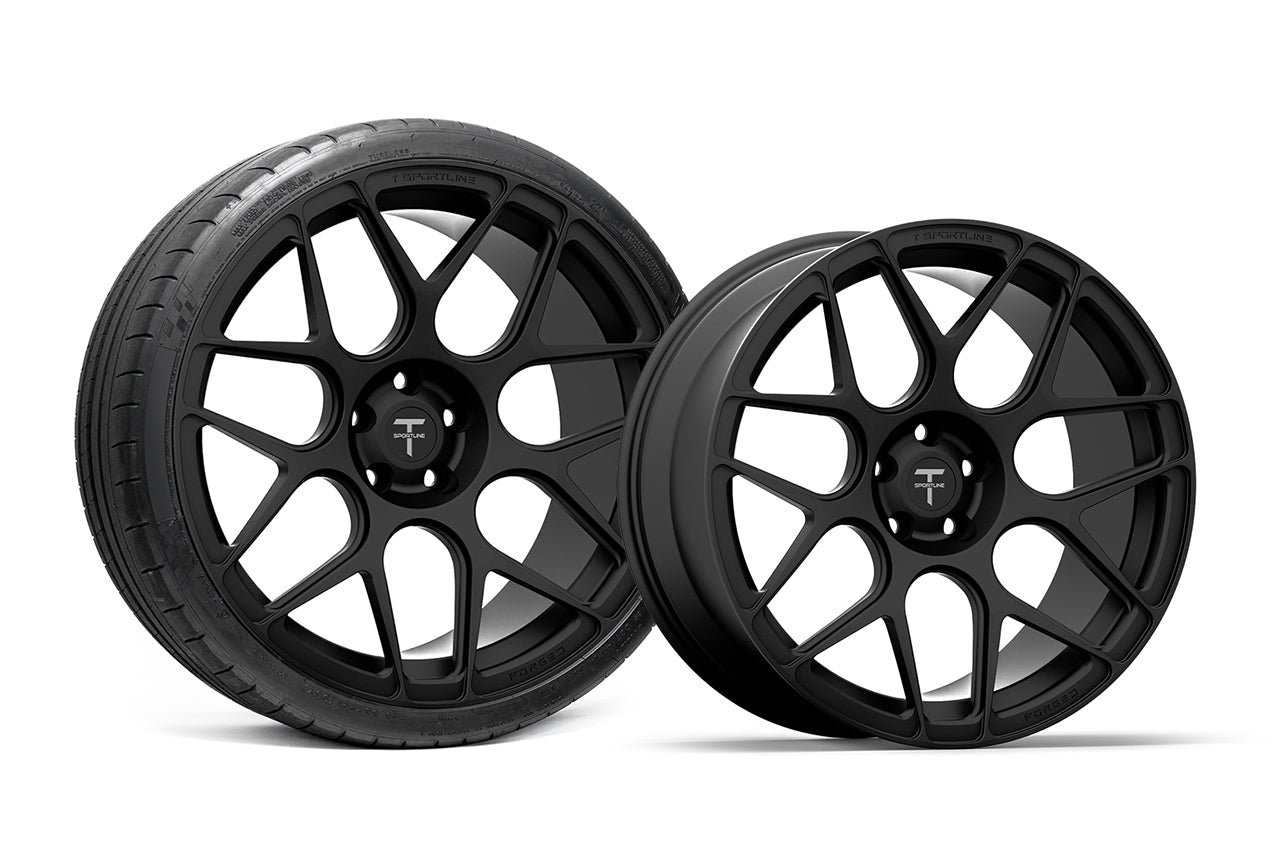

Set of 4 wheels & tires—mounted, balanced, & ready to install!
2x 21x9.5" TY117 front wheels 2x 21x10.5" TY117 rear wheels 2x 255/35R21 or 275/35R21 front tires 2x 275/35R21 or 295/35R21 rear tires, according to selected package 4x factory-spec Tesla TPMS sensors 4x color-matched T Sportline wheel center caps

Recommended Add-On Options

Lug Nuts or Lug Nut Covers — No lug nuts are included. Factory lug nuts can be reused with optional covers or replaced with our forged or titanium lug nuts
Tesla Tire Road Hazard Protection — Rest easy with tire protection
Curb Protection Guards — Protect rims against scrapes
Ceramic Coating — Protect the finish and make cleaning easier

Wheel Features and Benefits

Wheel Specifications

Wheel Model: TY117
Vehicle: Tesla Model Y
Wheel Size: 21x9.5" front / 21x10.5" rear — Staggered Fitment (wider rear wheels)
Offset: +30mm on 21x9.5" (front) / +38mm on 21x10.5" (rear)
Bolt Pattern: 5x114.3
Center Bore: 64.1mm
Construction: Fully Forged Monoblock
Wheel Weight: 28.5 lbs (21x9.5") or 29.4 lbs (21x10.5") per wheel
Load Rating: 900 kg / 1,984 lbs per wheel
Tire Sizes: 255/35R21 front / 275/35R21 rear or 275/35R21 front / 295/35R21 rear

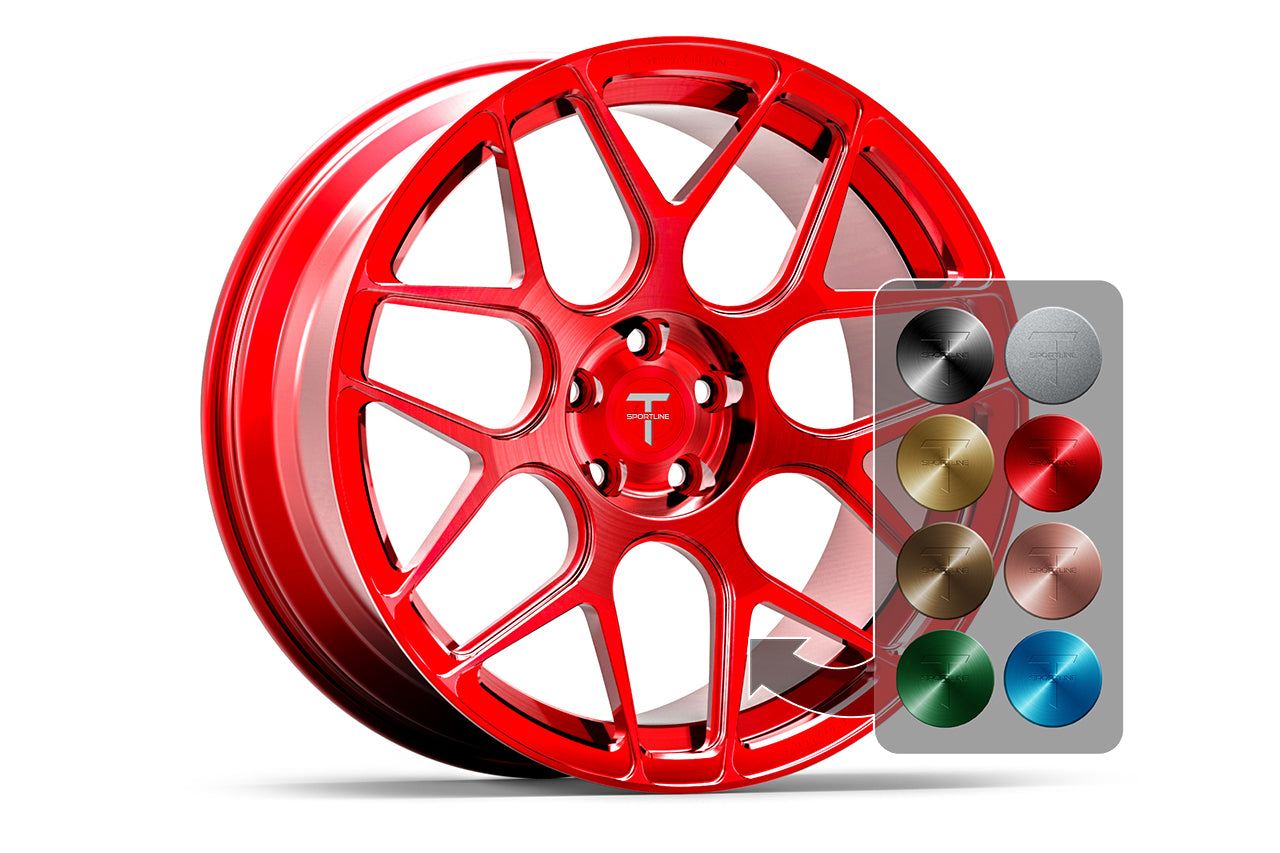

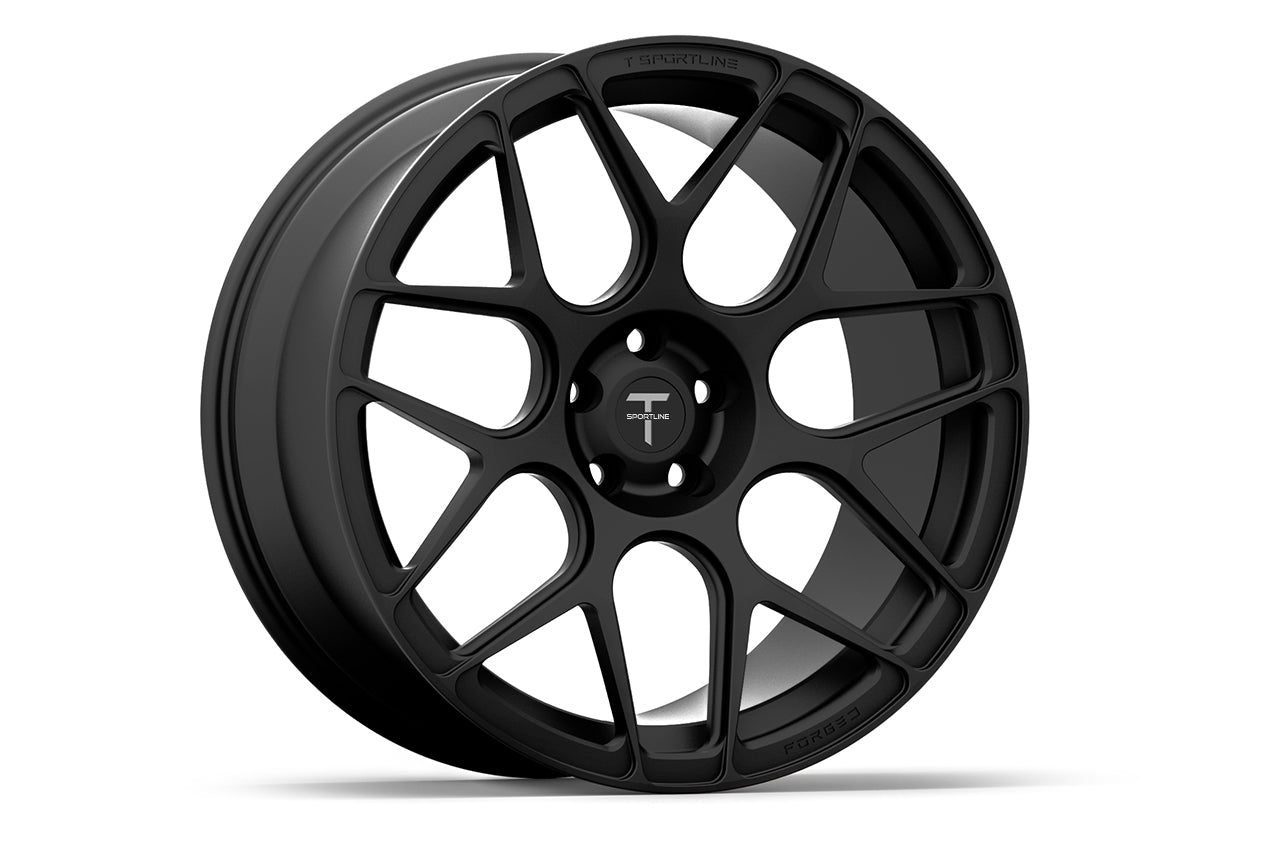

Finishes: Satin Black, Gloss Black, Anthracite Gray, Cyber Bronze, Brushed Clear, Diamond Black and Custom Finish
Testing / Facility: FEA analyzed under 3,400 lbs; manufactured in a TÜV-certified facility
Factory Hardware: Compatible with factory Tesla lug nuts, center caps and TPMS sensors

Fully Forged Strength & Lightweight Design

Each TY117 wheel is fully forged from high-strength aluminum and CNC-machined to reduce unnecessary mass while retaining a robust structure for high-torque Tesla driving. The 21x9.5-inch and 21x10.5-inch wheels weigh 28.5 lbs and 29.4 lbs, with a 900 kg (1,984 lbs) load rating.

The design was evaluated using finite-element analysis under a 3,400 lb load, and the wheel is manufactured in a TÜV-certified facility. Fully forged construction emphasizes strength-to-weight performance, crisp handling and a refined performance look.

21-Inch Performance Stance

The 21-inch setup delivers the most performance-focused appearance and sharpest steering response of the Model Y wheel sizes. Compared with 18-inch, 19-inch and 20-inch setups, 21-inch wheels use lower-profile tires, which generally provide a firmer ride and less sidewall protection against potholes and curbs.

Choose the factory Model Y Performance 255/35R21 front and 275/35R21 rear tire sizes, or wider 275/35R21 front and 295/35R21 rear tires for a more aggressive stance and additional wheel protection.

TY117 Forged Multi-Spoke Design

The TY117 features sharp, sculpted multi-spoke lines and an open wheel face that showcases the Model Y brake hardware. Its fully forged construction and seven finish options make it a premium, performance-inspired alternative to factory wheels in the performance-focused 21-inch diameter.

Tesla Compatibility

Accepts factory Tesla lug nuts
Accepts factory Tesla center caps
Accepts factory Tesla TPMS sensors
Includes color-matched T Sportline center caps
No aftermarket wheel hardware required
Will NOT void Tesla Warranty
Does NOT work with factory Tesla "Aero Covers / Hubcaps"

Staggered Fitment

The staggered setup uses 21x9.5" front and 21x10.5" rear wheels with factory-size 255/35R21 front and 275/35R21 rear tires, or wider 275/35R21 front and 295/35R21 rear tires, creating an aggressive performance stance. Staggered wheel and tire packages cannot be rotated front to rear.

TY117 21-Inch Wheel Weight

21x9.5"28.5 lbsper wheel

21x10.5"29.4 lbsper wheel

Scale photo coming soon

Tire Comparison & Selection Guide

	Staggered 255/35R21 Front / 275/35R21 Rear	Staggered 275/35R21 Front / 295/35R21 Rear
Tire Type	Stock Tesla Tire Size	Extra-Wide / Wheel Protection
Range & Efficiency	Factory-size baseline	Wider tires may reduce range
Ride Comfort	Factory 21-inch ride	Additional sidewall cushion
Pothole Protection	Factory-size 21-inch protection	Additional sidewall height
Curb Protection	Factory-size sidewall profile	Extra width helps shield the wheel edge
Handling & Steering	Performance-focused staggered balance	Widest performance-oriented footprint
Dry Traction	Wider rear tires for acceleration grip	Widest contact patch
Wet & Snow Traction	Depends on tire model	Depends on tire model
Tire Rotation	No front-to-rear rotation	No front-to-rear rotation

Choose Staggered 255/35R21 + 275/35R21 if your priority is: Factory Model Y Performance 21-inch tire sizes and a performance-focused staggered stance.

Choose Staggered 275/35R21 + 295/35R21 if your priority is: The widest tires, additional wheel-edge protection and the most aggressive 21-inch stance.

Rating Key: Not Rated Good Better Best

Choose the right tire type for your driving: All-season for everyday use, all-weather for enhanced year-round versatility, summer for warm-weather performance, or dedicated winter tires for cold and snowy conditions. Tire model, rolling resistance, construction, inflation pressure, compound and tread design also affect driving characteristics.

View Instructions & Tesla Tire Care Guide DIY Installation instructions and Learn more about proper Tesla tire maintenance & rotation for maximum range and tread wear

View the T Sportline Tesla Wheel & Tire DIY Installation Guide
Follow the recommended cold tire pressures on your vehicle's Tire and Loading Information label (located inside the driver-side door jamb). Check pressure after the vehicle has been parked out of direct sunlight for more than three hours. Use our AMAXX Tesla Digital Tire Inflator for convenient pressure checks and adjustments.
Staggered fitments cannot be rotated front to rear.
When installing wheels, torque the 21mm lug nuts to 129 lb-ft (175 Nm).
After tire service, drive approximately five miles to allow the TPMS readings to update.
Tire pressure changes with temperature, driving and sunlight. Underinflation can reduce range, accelerate wear and create a safety risk.
Teslas do not come with a spare! Consider purchasing a Tesla spare tire package to ensure you never get stranded with a flat.

Shipping

Shipping is calculated at Checkout.

Shipping & Handling charges subject to change without prior notification. PLEASE NOTE THAT INTERNATIONAL SHIPMENTS ARE SUBJECT TO CUSTOMS TAXES/DUTIES, AS CHARGED BY YOUR COUNTRY (THERE ARE NO U.S. CUSTOMS FEES). INTERNATIONAL CUSTOMERS ARE RESPONSIBLE FOR PAYMENT OF THESE FEES. Due to service availability, some international orders may need to be sent to the nearest international airport.
FAQ

Can I use my Aero Covers / Hubcaps on the 21" TY117?
No, the Aero Covers / Hubcaps only fit on your factory wheels.

Which tire sizes are offered with the 21" TY117 package?
Available fitments include factory-size 255/35R21 front and 275/35R21 rear tires, or wider 275/35R21 front and 295/35R21 rear tires for additional wheel protection.

Do your TY117 wheels fit my factory center caps?
Yes, 21x9.5" and 21x10.5" TY117 wheels fit your factory Tesla center caps. They also fit your factory TPMS sensors and factory lug nuts, so no aftermarket wheel hardware is required.

How are the 21" TY117 wheels made?
They are fully forged monoblock wheels, manufactured in a TÜV-certified facility and evaluated using finite-element analysis under a 3,400 lb load.

Do I need to change the color of my existing lug nuts and center caps to match my new TY117 wheels?
That's an aesthetic decision only you can make. All TY117 wheels come with T Sportline color-matched center caps.

What is the warranty on TY117 wheels?
Click here for T Sportline Limited Warranty

How long until my TY117 wheels arrive after my order?
We process orders within 72 hours when your wheels are in stock; if we do not have them in stock, lead time is typically 4–5 weeks. Please allow 1–7 business days of transit time from the day you receive a tracking number. We will email you if your wheels are back-ordered.

Do you ship internationally?
Yes! We ship worldwide and offer flat rate FedEx/DHL shipping to select countries.

Will installing your Wheel & Tire Package void my warranty?
Changing wheels and tires won't void your Tesla warranty unless Tesla can prove that our wheels caused the need for repairs. Also, we use factory-size or acceptable alternate size tires only. In other words, your warranty will still be valid when your windshield wiper malfunctions, even if you've upgraded to our Wheel & Tire Package.

How much does a 21-inch TY117 wheel weigh, and what is its load rating?
The TY117 21x9.5" wheel weighs 28.5 lbs and the 21x10.5" wheel weighs 29.4 lbs. Each fully forged wheel carries a 900 kg (1,984 lbs) load rating.

Can I rotate my tires with the 21" TY117 package?
No. The staggered setup uses wider 21x10.5" rear wheels and tires, so the tires cannot be rotated front to rear.

Which TY117 wheel finishes are offered?
Satin Black, Gloss Black, Anthracite Gray, Cyber Bronze, Brushed Clear, Diamond Black and Custom Finish. Each set includes color-matched T Sportline center caps.
