    The Tesla Model X Long Range & Plaid Wheel Guide (October 2021 - Present)

    Updated 10/21/2021


    20" Tesla Model X Cyberstream Wheel

    20

    • Size: 20X9.0" Front, 20x9.5" Rear
    • Offset: +40 Front, +35 Rear
    • PCD: 5X120
    • Center Bore: 64.1mm
    • Lug Nut Specs: 21mm, 14X1.50 Thread
    • Lug Nut Torque Spec: 129lb-ft
    • Weight: 32 lbs front, 33.2 lbs rear (Estimated)
    • Price: No Charge
    • Details: This was offered to Tesla Model X owners through the Tesla Model X Configurator when initially ordering the vehicle and it is the base wheel for the Model X.
    • Tire sizes: Front 265/45-20 Front, 275/45-20 Rear.

    22" Tesla Model X Turbine Wheel

    22" Tesla Turbine Wheel Onyx Black

    • Size: 22X9.0" Front, 22x10.0" Rear
    • Offset: +35 Front, +35 Rear (Estimated)
    • PCD: 5X120
    • Center Bore: 64.1mm
    • Lug Nut Specs: 21mm, 14X1.50
    • Lug Nut Torque Spec: 129lb-ft
    • Weight: 37.6 lbs front, 40.4 lbs rear (Estimated)
    • Price: $5,500.00
    • Details: The 22" Turbine Wheel for the 2021 Refresh is the second generation Turbine Wheel for the Tesla Model X.
    • Tire Sizes: Front 265/35-22, Rear 285/35-22.

    What we offer at T Sportline:



    As the World's First Tesla Tuner, we engineer our wheels to fit within the factory parameters of your Model X. We use the hashtag motto #alloriginal, which means our wheels use the following:

    1. The factory Tesla center caps. (we do include our own COLOR MATCHED center cap with every wheel.) 2. The factory lug nuts. 3. The factory tires. 4. The factory tire pressure sensors.

    The fact that we have designed all our wheels to fit all the factory hardware alleviates the need to fiddle with aftermarket lug nuts, branded center caps and different tire sizes. All you need to swap are the wheels!

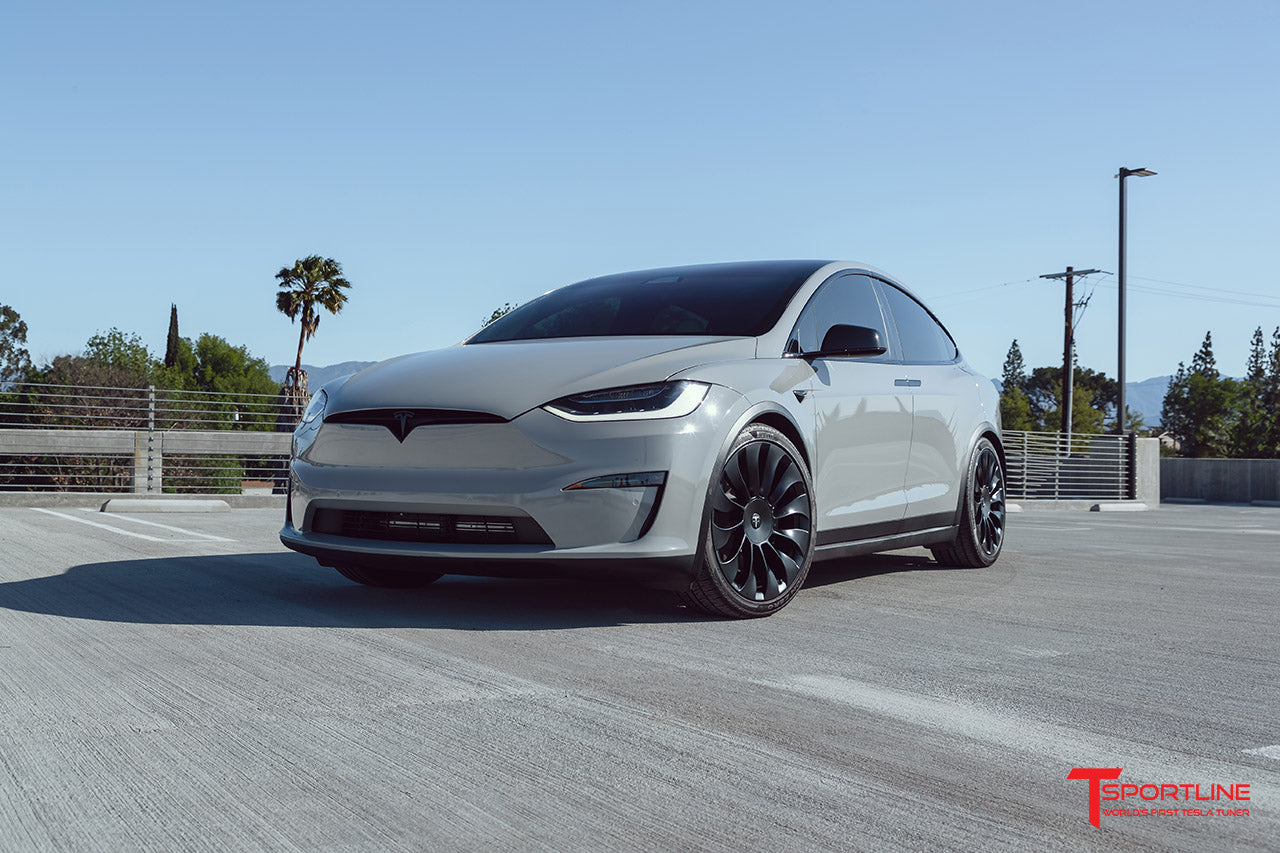

    20" TSV Wheel - Flow Forged



    Tesla Model X 20" Uberturbine Style TSV Flow Forged Wheel



    • Size: 20X9.0" Front, 20X10.0" Rear
    • Offset: +35 Front, +40 Rear
    • PCD: 5X120
    • Center Bore: 64.1mm
    • Weight: 20x9.0" = TBD, 20x10.0 = 35.05lbs
    • Lug Nut Spec: 21mm Hex, 14X1.50 Thread
    • Lug Nut Torque Spec: 129lb-ft
    • Price: Starting from $2,300 per set of four
    • Finishes: Satin Gray and Satin Black.
    • Details: The T Sportline TSV is intended for the Model X owner looking for a similar look to the 21" factory Uberturbine wheel on a Model Y. Each 20" TSV is load rated at 900kg/1,980 lbs.



    20" TS5 Wheel - Flow Forged



    Tesla Model X 20" Zero G Style TS5 Flow Forged Wheel



    • Size: 20X9.0" Front, 20X10.0" Rear
    • Offset: +35 Front, +40 Rear
    • PCD: 5X120
    • Center Bore: 64.1mm
    • Weight: 20x9.0": 26.75lbs; 20x10": 29.8lbs
    • Lug Nut Spec: 21mm Hex, 14X1.50 Thread
    • Lug Nut Torque Spec: 129lb-ft
    • Price: Starting from $2,300 per set of four
    • Finishes: Satin Gray, Satin Black and Gloss Black.
    • Details: The T Sportline TS5 is intended for the Model X owner looking for a similar look to the 20" factory Zero G wheel from the Tesla Model 3 Track Package. Each 20" TS5 is load rated at 900kg/1,980 lbs.



    20" TSS Wheel - Flow Forged

    • Size: 20X9.0" Front, 20X10.0" Rear
    • Offset: +35 Front, +40 Rear
    • PCD: 5X120
    • Center Bore: 64.1mm
    • Weight: 20x9.0" = 29.7lbs, 20x10.0 = 30.45lbs
    • Lug Nut Spec: 21mm Hex, 14X1.50 Thread
    • Lug Nut Torque Spec: 129lb-ft
    • Price: Starting from $2,100 per set of four
    • Finishes: Space Gray, Satin Black, and Gloss Black.
    • Details: The T Sportline TSS is intended for the Model X owner looking for a similar look to the 21" factory Arachnid wheel on a Model S. Each 20" TSS is load rated at 900kg/1,980 lbs.



    20" TST Wheel - Flow Forged

    • Size: 20×9.0″ front, 20×10.0″ rear
    • Offset: +35 front, +40 rear
    • PCD: 5X120
    • Center Bore: 64.1mm
    • Lug Nut Specs: 21mm, 14X1.50
    • Lug Nut Torque Spec: 129lb-ft
    • Weight: 28.8lbs front, 31 lbs rear
    • Price: Starting from $1,900 per set of four
    • Finishes: Space Gray, Satin Black, and Gloss Black.
    • Details: The T Sportline TST 20″ Tesla Model X turbine style wheel is built for both the Tesla Model X and Tesla Model S. The TST 20″ wheel set for the Tesla Model X comes in a staggered 20×9.0″ front and 20×10.0″ rear for ultimate performance and conforms to the factory 20″ wheel size. The TST is manufactured in a flow forged process. Each TST 20″ wheel is load rated at 900 kg.
    • Recommended Tire sizes: 265/45-20 for 20×9.0″ and 275/45-20 for 20×10.0″.

    20" TST Wheel - Cast (Discontinued)

    Metallic-Grey-20%22-TST-Wheels-Squared

    • Size: 20×9.0″ front, 20×10.0″ rear
    • Offset: +35 front, +40 rear
    • PCD: 5X120
    • Center Bore: 64.1mm
    • Lug Nut Specs: 21mm, 14X1.50
    • Lug Nut Torque Spec: 129lb-ft
    • Weight: 32.8lbs front, 34.8lbs rear
    • Price: Starting from $1,800 per set of four
    • Finishes: Brilliant Silver, Metallic Grey, Matte Black, Gloss Black, and Chrome.
    • Details: The T Sportline TST 20″ Tesla Model X turbine style wheel was built for both the Tesla Model X and Tesla Model S. The TST 20″ wheel set for the Tesla Model X was offered in a staggered 20×9.0″ front and 20×10.0″ rear for ultimate performance and conforms to the factory 20″ wheel size. The TST was manufactured in a low pressure cast process. Each TST 20″ wheel is load rated at 900 kg.
    • Recommended Tire sizes: 255/45-20 for 20×9.0″ and 275/45-20 for 20×10.0″.

    22" TSV Wheel - Flow Forged





    • Size: 22X9.0" Front, 22X10.0" Rear
    • Offset: +30 Front, +40 Rear
    • PCD: 5X120
    • Center Bore: 64.1mm
    • Weight: 22x9.0" = 39.45lbs, 22x10.0 = 41.5lbs
    • Lug Nut Spec: 21mm Hex, 14X1.50 Thread
    • Lug Nut Torque Spec: 129lb-ft
    • Price: Starting from $2,800 per set of four
    • Finishes: Satin Gray and Satin Black.
    • Details: The T Sportline TSV is intended for the Model X owner looking for a similar look to the 21" factory Uberturbine wheel on a Model Y. Each 22" TSV is load rated at 900kg/1,980 lbs.



    22" TSS Wheel - Flow Forged

    • Size: 22X9.0", 22X10.0"
    • Offset: +30 front, +30 rear
    • PCD: 5X120
    • Center Bore: 64.1mm
    • Lug Nut Specs: 21mm, 14X1.50
    • Lug Nut Torque Spec: 129lb-ft
    • Weight: 32.15lbs front, 34.3lbs rear (estimated)
    • Price: Starting from $2,700 per set of four
    • Finishes: Space Gray, Satin Black, and Gloss Black .
    • Details: The T Sportline TSS is intended for the Model X owner looking for a similar look to the 21" factory Arachnid wheel on a Model S. The TSS 22″ wheel set for the Tesla Model X comes in a staggered 22×9.0″ front and 22×10.0″ rear for ultimate performance and conforms to the factory 22″ wheel size. The TSS is manufactured in a flow forged process. Each TSS 22″ wheel is load rated at 900 kg.
    • Recommended Tire sizes: 265/35-22 for 22×9.0″ and 285/35-22 for 22×10.0″.



    22" MX114 Wheel

    Diamond-Black-21%22-MX114-Wheels-Squared

    • Size: 22X9.5", 22X10.5"
    • Offset: +30 front, +30 rear
    • PCD: 5X120
    • Center Bore: 64.1mm
    • Lug Nut Specs: 21mm, 14X1.50
    • Lug Nut Torque Spec: 129lb-ft
    • Weight: Front: 31.3lbs, Rear: 29.35lbs
    • Price: Starting from $6,600 per set of four
    • Details: The T Sportline MX114 22″ Forged Model X Wheels stem from its 21″ Model S counterpart, the TS114. The MX114 forged wheel is engineered specifically for the Model X owner who wants to retain factory tire sizes, but gain more functionality by saving weight and retaining maximum range. Each wheel is designed, engineered and manufactured in California.
    • This wheel is available in 8 finishes: Matte Black, Gloss Black, Anthracite Gray, Bright White, Brush Satin, Diamond Black, Velocity Red, and Imperial Red.
    • Recommended Tire sizes: 265/35-22 for 22×9.5″ and 285/35-22 for 22×10.5″. We recommend the Pirelli Scorpion Zero Asimmetrico Tire for an optimal driving experience.

    22" MX117 Wheel
    • Size: 22X9.5", 22X10.5"
    • Offset: +30 front, +30 rear
    • PCD: 5X120
    • Center Bore: 64.1mm
    • Lug Nut Specs: 21mm, 14X1.50
    • Lug Nut Torque Spec: 129lb-ft
    • Weight: Front: 29.87lbs , Rear: 29.25lbs
    • Price: Starting from $6,600 per set of four
    • Details: Each wheel is designed, engineered and manufactured in California.
    • This wheel is available in 8 finishes: Matte Black, Gloss Black, Anthracite Gray, Bright White, Brush Satin, Diamond Black, Velocity Red, and Imperial Red.
    • Recommended Tire sizes: 265/35-22 for 22×9.5″ and 285/35-22 for 22×10.5″. We recommend the Pirelli Scorpion Zero Asimmetrico Tire for an optimal driving experience.

    22" MX5 Wheel (Discontinued)

    22%22-Gloss-Black-MX5-Wheel-Squared

    • Size: 22X9.0", 22X10.0"
    • Offset: +25 front, +25 rear
    • PCD: 5X120
    • Center Bore: 64.1mm
    • Lug Nut Specs: 21mm, 14X1.50
    • Lug Nut Torque Spec: 129lb-ft
    • Weight: 38lbs front, 38.6lbs rear
    • Price: $5,000.00 - $8,000.00
    • Details: The MX5 Wheel set comes in a staggered size of 22×9.0″ front and 22×10.0″ rear. The MX5 22×9.0″ weighs approximately 38lbs, while the MX5 22×10.0″ weighs approximately 38.4lbs. Each wheel is designed, engineered and manufactured in California.
    • This wheel was available in 11 finishes: Jet Black, Matte Black, Gloss Black, Metallic Matte Grey, Brushed Satin, Brushed Nickel, Diamond Black, Velocity Red, Chrome, Limited Uber Rose, and Limited Ghost Gold.
    • Recommended Tire sizes: 265/35-22 for 22×9.0″ and 285/35-22 for 22×10.0″. We recommend the Pirelli Scorpion Zero Asimmetrico Tire for an optimal driving experience.

    22" MX115 Wheel (Discontinued)

    Gloss-Black-21%22-MX115-Wheels-Squared

    • Size: 22X9.0", 22X10.0"
    • Offset: +25 front, +25 rear
    • PCD: 5X120
    • Center Bore: 64.1mm
    • Lug Nut Specs: 21mm, 14X1.50
    • Lug Nut Torque Spec: 129lb-ft
    • Weight: 24.6lbs front, 25.8lbs rear
    • Price: $5,000.00 - $8,000.00
    • Details: The T Sportline MX115 wheel stems from its 21″ Model S counterpart, the TS115. The MX115 forged wheel is engineered specifically for the Model X owner who wants to retain factory tire sizes, but gain more functionality by saving weight and retaining maximum range. Each wheel is designed, engineered and manufactured in California.
    • This wheel was available in 11 finishes: Jet Black, Matte Black, Gloss Black, Metallic Matte Grey, Bright White, Brushed Satin, Brushed Nickel, Diamond Black, Velocity Red, Limited Uber Rose, and Limited Ghost Gold.
    • Recommended Tire sizes: 265/35-22 for 22×9.0″ and 285/35-22 for 22×10.0″. We recommend the Pirelli Scorpion Zero Asimmetrico Tire for an optimal driving experience.

    22" MX118 Wheel
    • Size: 22X9.0", 22X10.0"
    • Offset: +25 front, +25 rear
    • PCD: 5X120
    • Center Bore: 64.1mm
    • Lug Nut Specs: 21mm, 14X1.50
    • Lug Nut Torque Spec: 129lb-ft
    • Weight: Front: 28.8lbs , Rear: 30.4lbs
    • Price: $5,000.00 - $8,000.00
    • Details: Each wheel is designed, engineered and manufactured in California.
    • This wheel is available in 8 finishes: Matte Black, Gloss Black, Matte Grey, Bright White, Brush Satin, Diamond Black, Velocity Red, and Imperial Red.
    • Recommended Tire sizes: 265/35-22 for 22×9.0″ and 285/35-22 for 22×10.0″. We recommend the Pirelli Scorpion Zero Asimmetrico Tire for an optimal driving experience.
