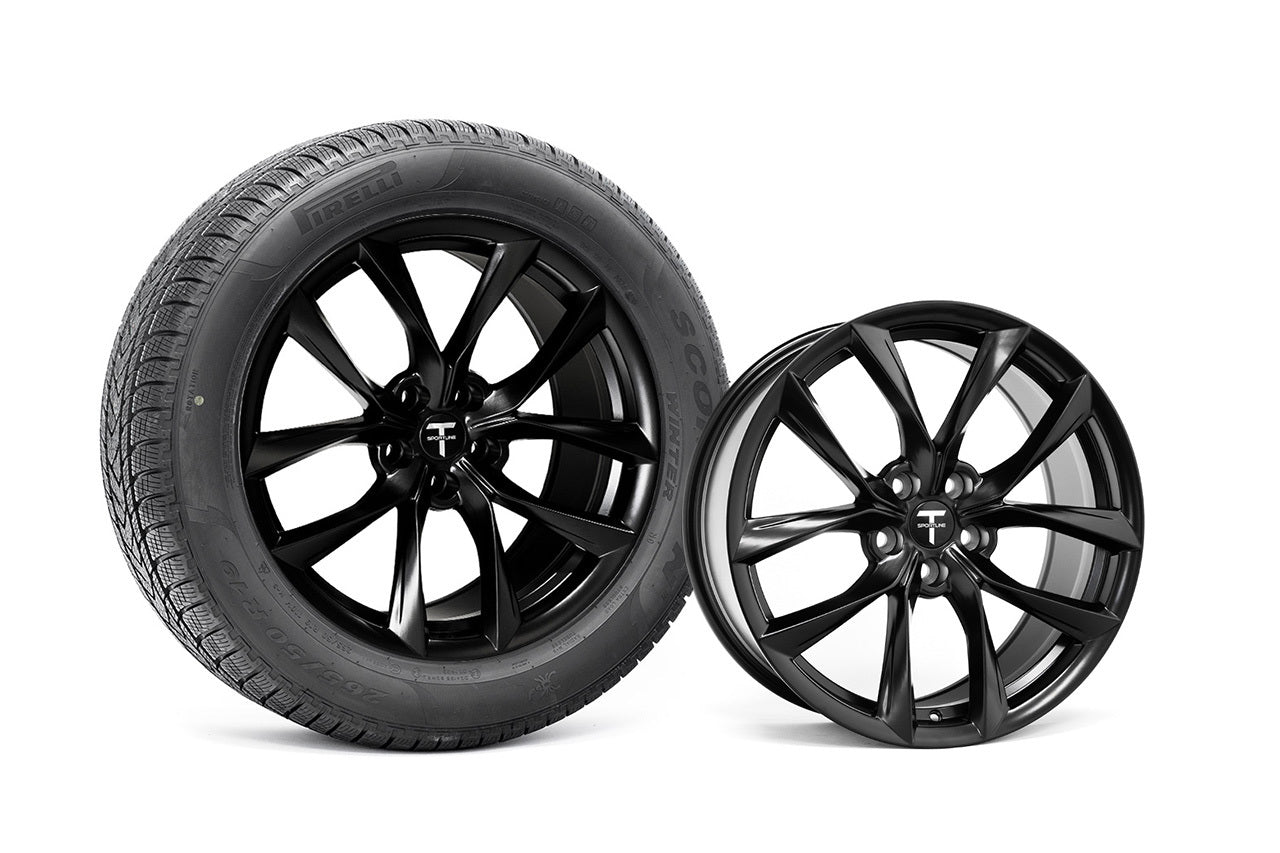

Name: TSS 19" Tesla Model X Wheel and Tire Package (Set of 4)
Brand: T Sportline
SKU: SS19858505120SB
Price: 1800.0 USD
Availability: InStock

Description

Upgrade your Tesla Model X with the T Sportline TSS 19-inch wheel and tire package. Inspired by Tesla's iconic Arachnid wheel, the TSS features a chiseled triangular split-five-spoke design, flow-forged construction and precise bolt-on compatibility with factory Tesla lug nuts, center caps and TPMS sensors. Choose 19x8.5-inch square fitment with 265/50R19 tires or a taller 255/55R19 overland setup to tailor your Model X for comfortable everyday driving or a more rugged stance. The 19-inch package delivers a softer ride than the factory 20-inch and 22-inch setups, with taller sidewalls that help protect the wheels from potholes and curbs, and the square fitment allows front-to-rear tire rotation.

Tesla Model X Compatibility

Confirmed Fit

Approved for all Tesla Model X versions from September 2015–May 2026

Sep 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 2026

✓ Approved to replace factory 20" or 22" wheels & tires

All-Wheel Drive Versions Long Range, Dual Motor and All-Wheel Drive configurations

Performance & Plaid Models All Tesla Model X Performance and Plaid configurations

2016–2020 Model X Built September 2015–February 2021 with factory 20" Slipstream or Helix, or 22" Turbine wheels

2021–2026 Model X Built March 2021–May 2026 with factory 20" Cyberstream or Perihelix, or 22" Turbine or Machina wheels

Wheel and Wheel & Tire Package Offerings

19x8.5" Fitment Wheels & Tires (Square = all 4 wheels & tires the same size)

Wheel Package — What Is Included

Set of 4 wheels
4x 19x8.5" TSS wheels 4x color-matched T Sportline wheel center caps

Wheel & Tire Package — What Is Included

Set of 4 wheels & tires—mounted, balanced, & ready to install!
4x 19x8.5" TSS wheels 4x 265/50R19 or 255/55R19 tires 4x factory-spec Tesla TPMS sensors matched to the selected model year 4x color-matched T Sportline wheel center caps

Recommended Add-On Options

Lug Nuts or Lug Nut Covers — No lug nuts are included. Factory lug nuts can be reused with optional covers or replaced with our forged or titanium lug nuts
Tesla Tire Road Hazard Protection — Rest easy with tire protection
Curb Protection Guards — Protect rims against scrapes
Ceramic Coating — Protect the finish and make cleaning easier

Wheel Features and Benefits

Wheel Specifications

Wheel Model: TSS
Vehicle: Tesla Model X
Wheel Size: 19x8.5" front and rear
Offset: +35mm
Bolt Pattern: 5x120
Center Bore: 64.1mm
Construction: Flow Forged
Wheel Weight: 23.7 lbs per wheel
Load Rating: 900 kg / 1,984 lbs per wheel
Tire Sizes: 265/50R19 or 255/55R19

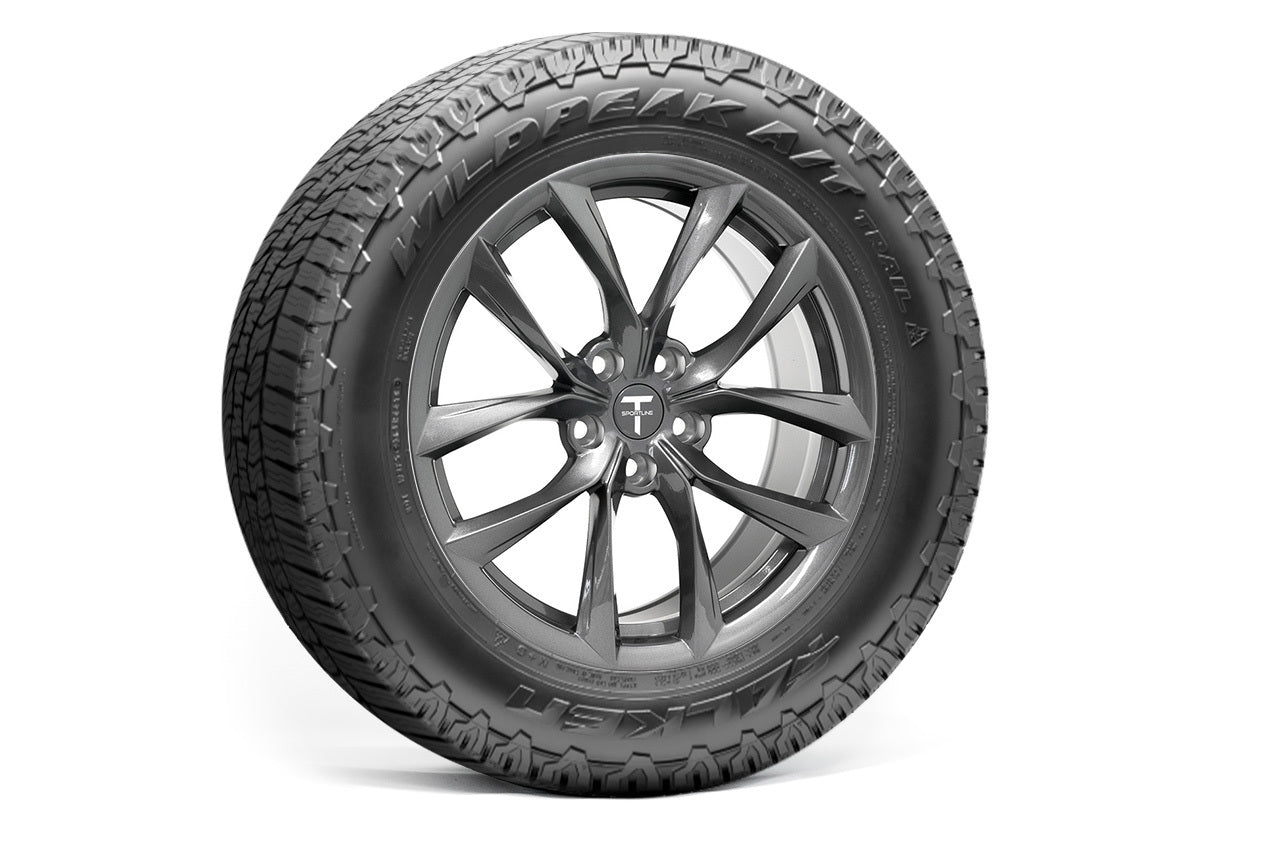

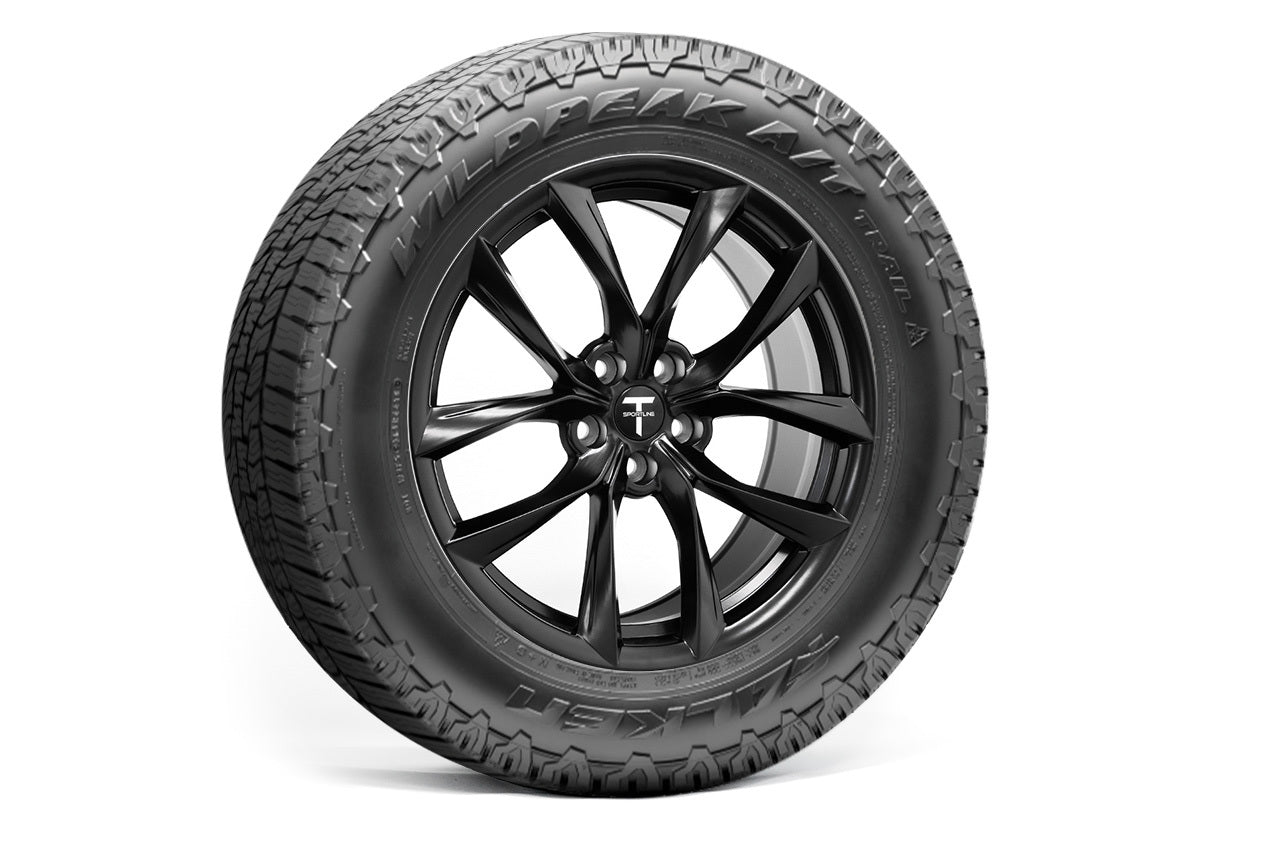

Finishes: Satin Black and Space Gray
Testing Standards: JWL, VIA and SAE J2530
Factory Hardware: Compatible with factory Tesla lug nuts, center caps and TPMS sensors

Lighter & Stronger Than Tesla Wheels

TSS wheels are manufactured using a flow-forged process and tested to JWL, VIA and SAE J2530 standards. Factory Tesla wheels are typically gravity cast, which can result in heavier wheels with lower strength-to-weight performance. Our wheels use an advanced flow-forging process to increase strength while reducing weight—helping improve resistance to road-hazard damage, reduce unsprung mass, and preserve range.

19-Inch Ride Comfort

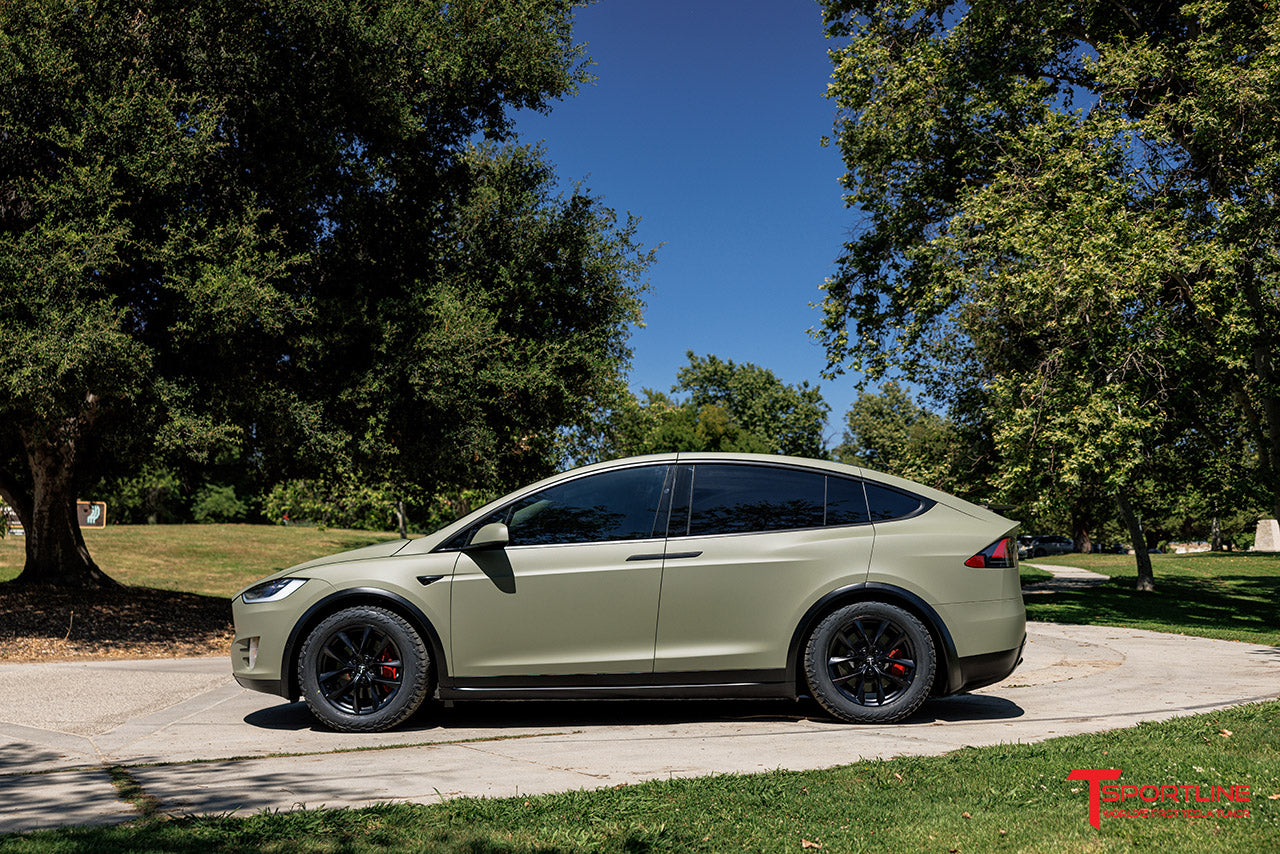

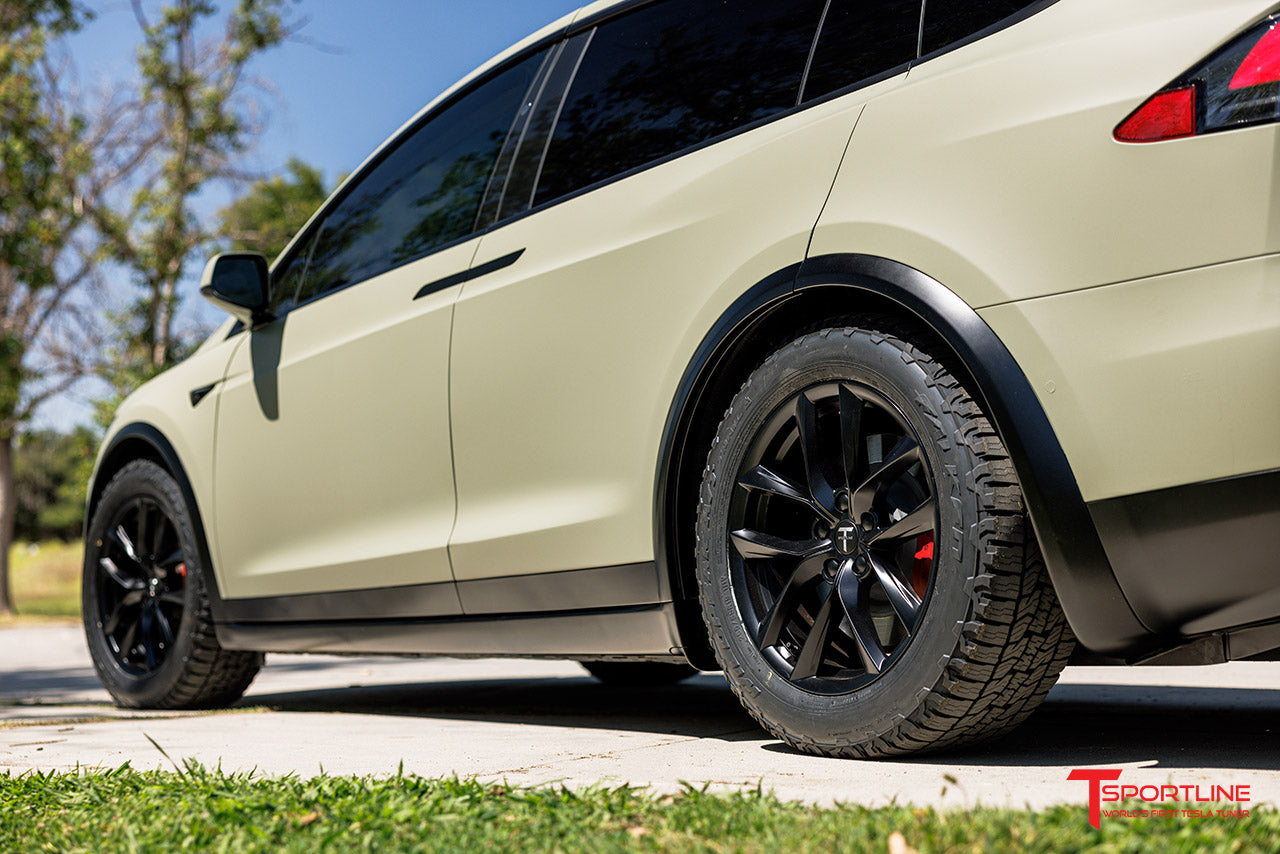

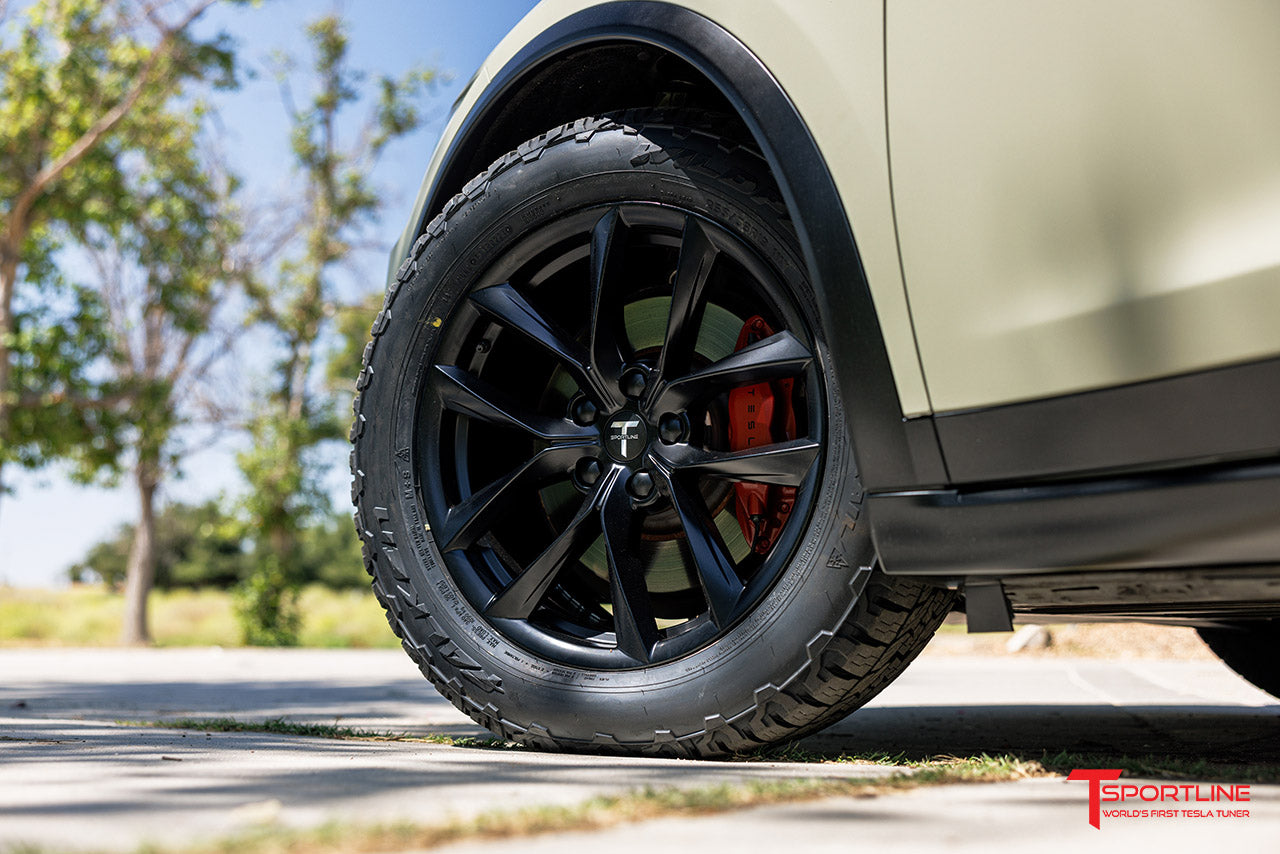

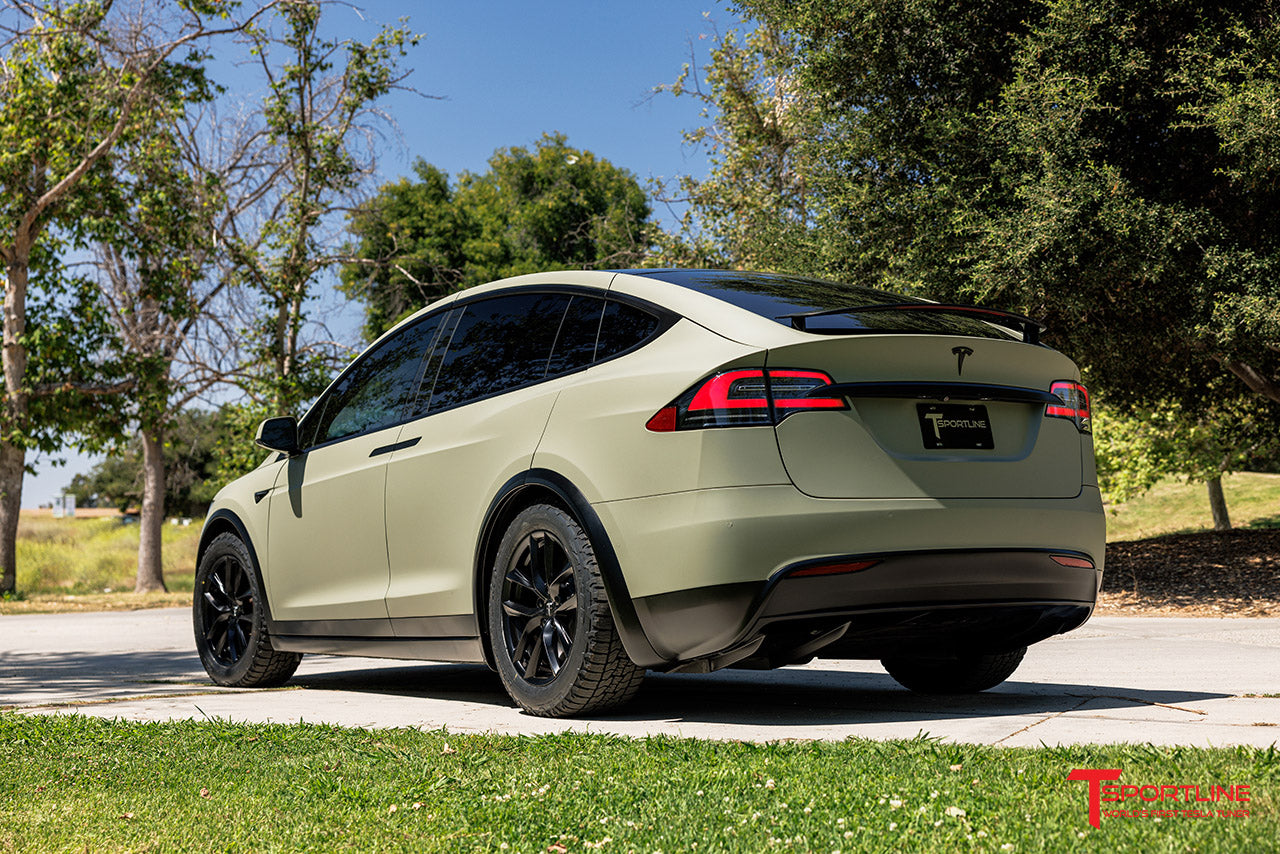

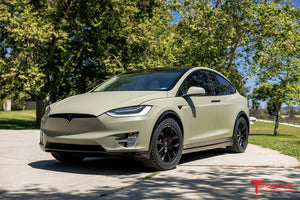

Downsizing from the factory 20-inch or 22-inch Model X wheels to a 19-inch wheel creates room for a taller tire sidewall, helping absorb sharp impacts from rough pavement and potholes while providing additional protection from curb contact. The 265/50R19 tire keeps an overall diameter close to the factory tires, and the 255/55R19 overland option adds even more sidewall for a rugged stance.

Arachnid Inspired Design

The TSS chiseled triangular spoke wheel design was inspired by Tesla Arachnid wheels. A look that immediately evokes a sporty and upgraded vibe, this is a timeless look that Tesla owners continue to love. The split five-spoke design achieves good looks while allowing for lightweight wheels.

Tesla Compatibility

Accepts factory Tesla lug nuts
Accepts factory Tesla center caps
Accepts factory Tesla TPMS sensors
Includes color-matched T Sportline center caps
No aftermarket wheel hardware required
Will NOT void Tesla Warranty
Does NOT work with factory Tesla "Aero Covers / Hubcaps"

Square Fitment & Tire Rotation

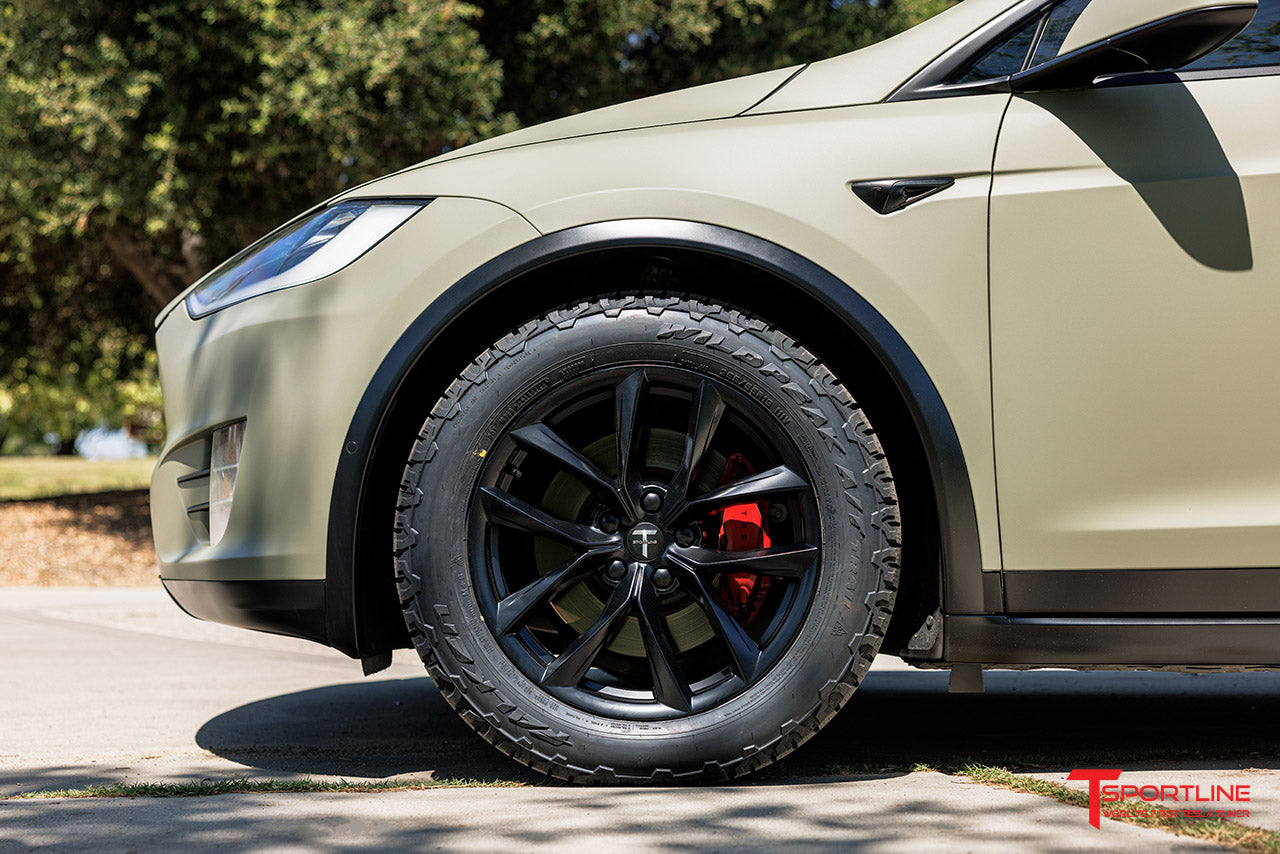

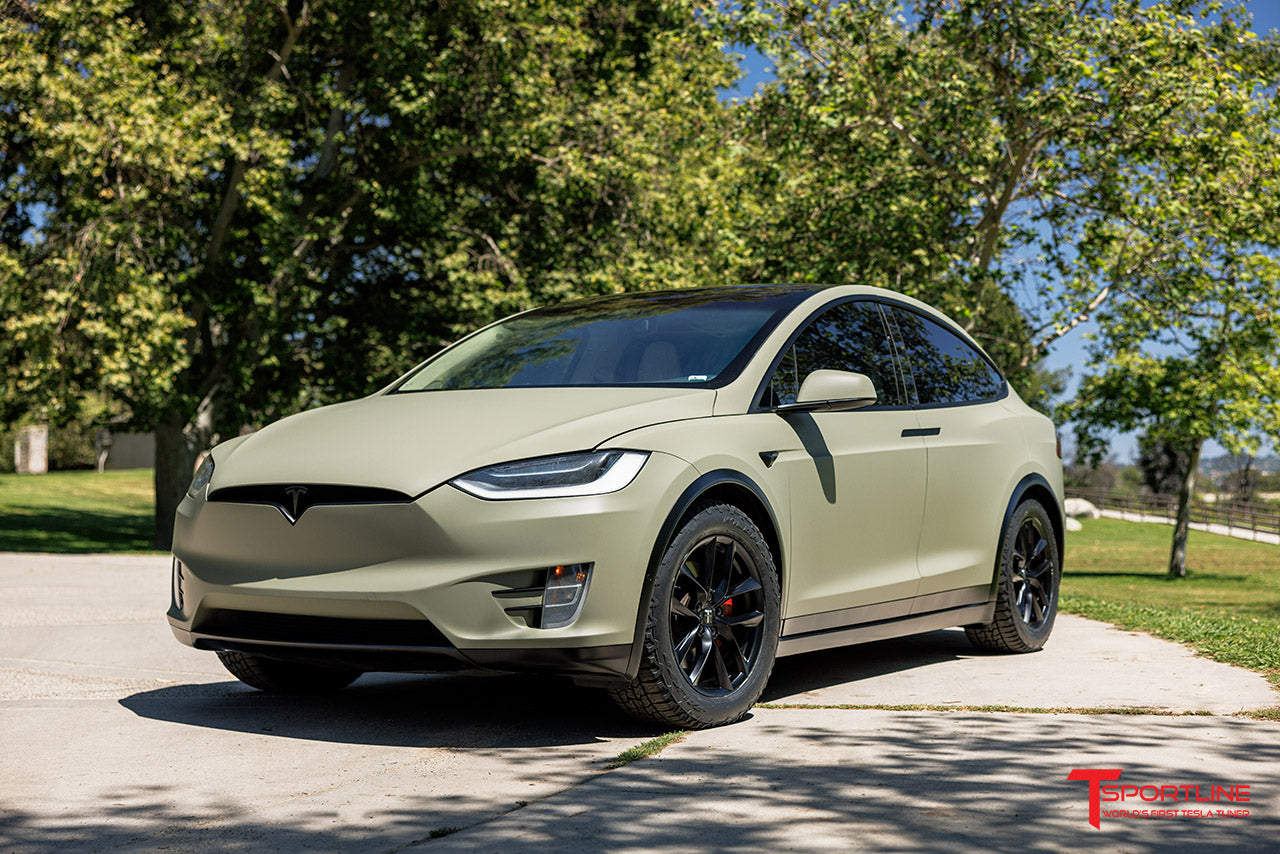

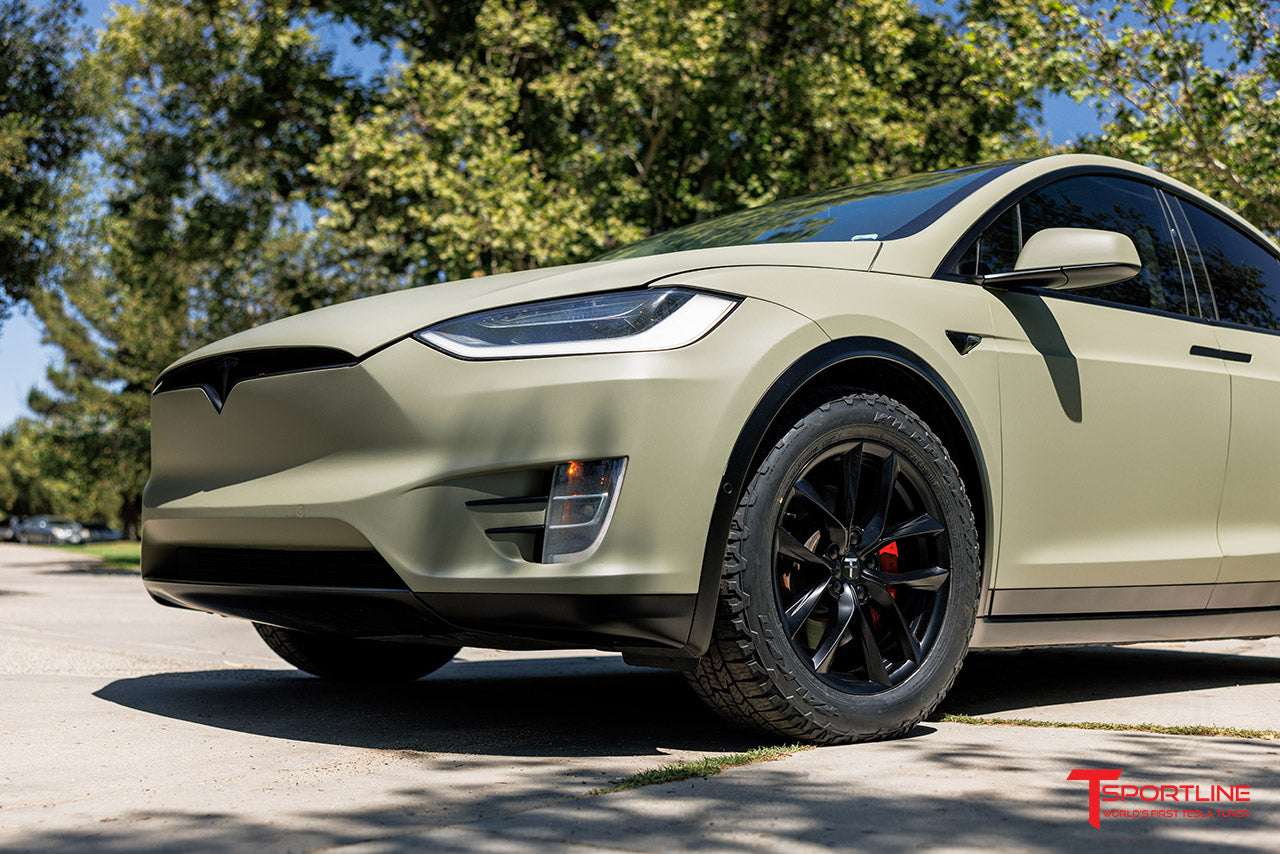

The 19x8.5" square setup uses the same wheel and tire size at all four corners, allowing conventional front-to-rear tire rotation, unlike the factory staggered 20-inch and 22-inch Model X setups. Choose 265/50R19 tires for responsive everyday driving and the widest tire selection, or 255/55R19 overland tires for a taller sidewall and more rugged stance.

TSS 19-Inch Wheel Weight 19x8.5"23.7 lbsper wheel Scale photo coming soon

Tire Comparison & Selection Guide

	265/50R19	255/55R19
Tire Type	Street / Everyday	Overland / Off-Road
Range & Efficiency	Street tread, lower rolling resistance	Taller and heavier—may reduce range a few percent
Ride Comfort	Tall 19-inch sidewall cushion	Tallest sidewall cushion
Pothole Protection	More sidewall than factory 20-inch and 22-inch tires	Maximum protection
Curb Protection	Taller sidewall profile	Tallest sidewall protection
Handling & Steering	Wider street footprint, more responsive	Softer, comfort-oriented response
Dry Traction	Wider street contact patch	Good everyday and trail grip
Wet & Snow Traction	Depends on tire model—winter and snow-rated options offered	All-terrain tread handles changing conditions well
Overland & Off-Road	Not recommended	Excellent performance

Choose 265/50R19 if your priority is: Range, responsive on-road handling, dry grip and the widest choice of summer, all-season, all-weather and winter tires.

Choose 255/55R19 if your priority is: Rugged looks, maximum ride comfort, pothole and curb protection, and overland/off-road capability.

Rating Key: Not Rated Good Better Best

Choose the right tire type for your driving: All-season for everyday use, all-weather for enhanced year-round versatility, summer for warm-weather performance, or dedicated winter tires for cold and snowy conditions. Tire model, rolling resistance, construction, inflation pressure, compound and tread design also affect driving characteristics.

View Instructions & Tesla Tire Care Guide DIY Installation instructions and Learn more about proper Tesla tire maintenance & rotation for maximum range and tread wear

View the T Sportline Tesla Wheel & Tire DIY Installation Guide
Follow the recommended cold tire pressures on your vehicle's Tire and Loading Information label (located inside the driver-side door jamb). Check pressure after the vehicle has been parked out of direct sunlight for more than three hours. Use our AMAXX Tesla Digital Tire Inflator for convenient pressure checks and adjustments.
Rotate tires every 6,250 miles, or sooner if tread-depth difference reaches 2/32 inch, to help maximize tread life and maintain even wear.
When installing wheels, torque the 21mm lug nuts to 129 lb-ft (175 Nm).
After tire service, drive above 15 mph (25 km/h) for a short time to allow the TPMS readings to update.
Tire pressure changes with temperature, driving and sunlight. Underinflation can reduce range, accelerate wear and create a safety risk.
Teslas do not come with a spare! Consider purchasing a Tesla spare tire package to ensure you never get stranded with a flat.

Shipping

Shipping is calculated at Checkout.

Shipping & Handling charges subject to change without prior notification. PLEASE NOTE THAT INTERNATIONAL SHIPMENTS ARE SUBJECT TO CUSTOMS TAXES/DUTIES, AS CHARGED BY YOUR COUNTRY (THERE ARE NO U.S. CUSTOMS FEES). INTERNATIONAL CUSTOMERS ARE RESPONSIBLE FOR PAYMENT OF THESE FEES. Due to service availability, some international orders may need to be sent to the nearest international airport.
FAQ

Can I use my Aero Covers / Hubcaps on the 19" TSS?
No, the Aero Covers / Hubcaps only fit on your factory wheels.

Which tire sizes are offered with the 19" TSS package?
Available fitments include 265/50R19 tires at all four corners and the 255/55R19 overland option for a taller sidewall and more rugged stance.

Do your TSS wheels fit my factory center caps?
Yes, 19x8.5" TSS wheels fit your factory Tesla center caps. They also fit your factory TPMS sensors and factory lug nuts, so no aftermarket wheel hardware is required.

How are the 19" TSS wheels made?
They are flow forged and tested to JWL, VIA and SAE J2530 standards.

Do I need to change the color of my existing lug nuts and center caps to match my new TSS wheels?
That's an aesthetic decision only you can make. All TSS wheels come with T Sportline color-matched center caps.

What is the warranty on TSS wheels?
Click here for T Sportline Limited Warranty

How long until my TSS wheels arrive after my order?
We process orders within 72 hours unless your wheels are back-ordered. Please allow 1–7 business days of transit time from the day you receive a tracking number. We will email you if your wheels are back-ordered.

Do you ship internationally?
Yes! We ship worldwide and offer flat rate FedEx/DHL shipping to select countries.

Will installing your Wheel & Tire Package void my warranty?
Changing wheels and tires won't void your Tesla warranty unless Tesla can prove that our wheels caused the need for repairs. Also, we use factory-size or acceptable alternate size tires only. In other words, your warranty will still be valid when your windshield wiper malfunctions, even if you've upgraded to our Wheel & Tire Package.
