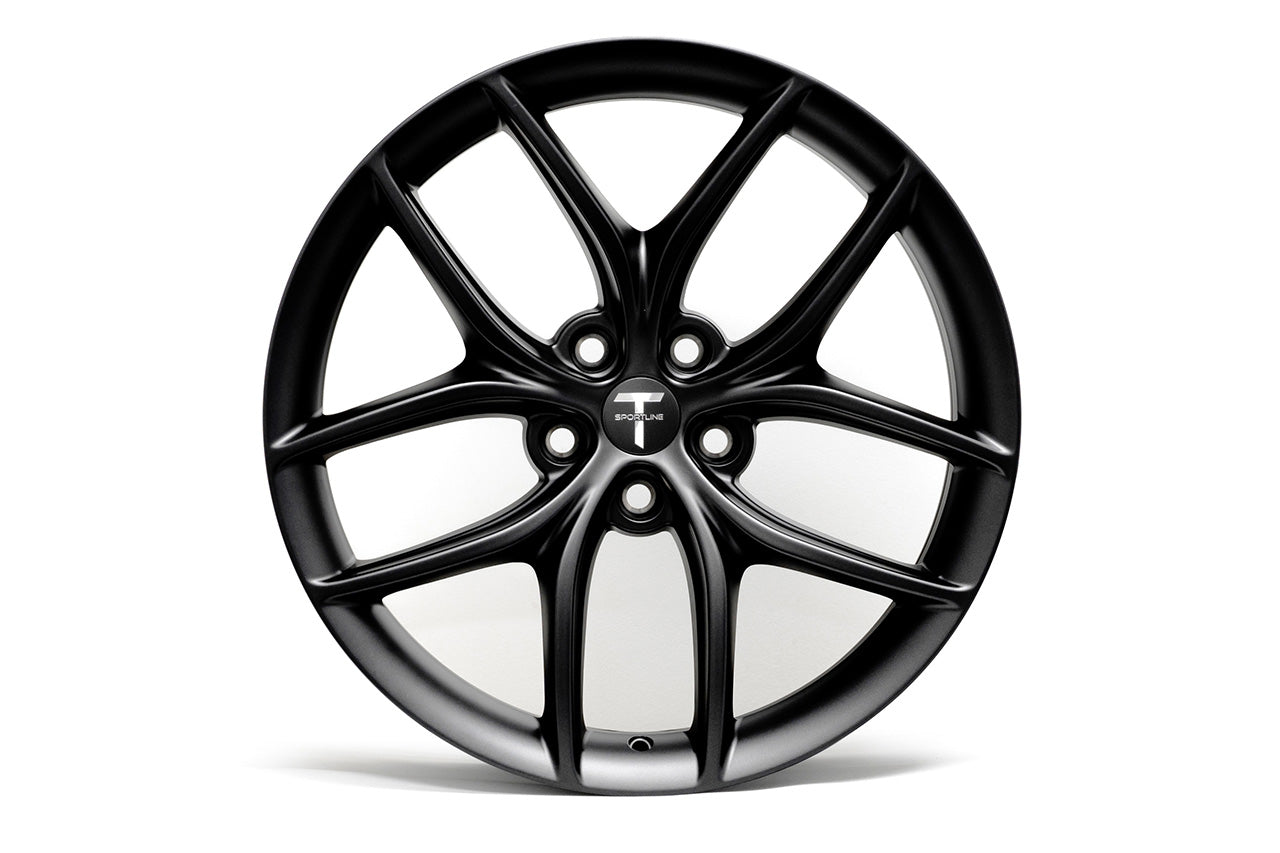

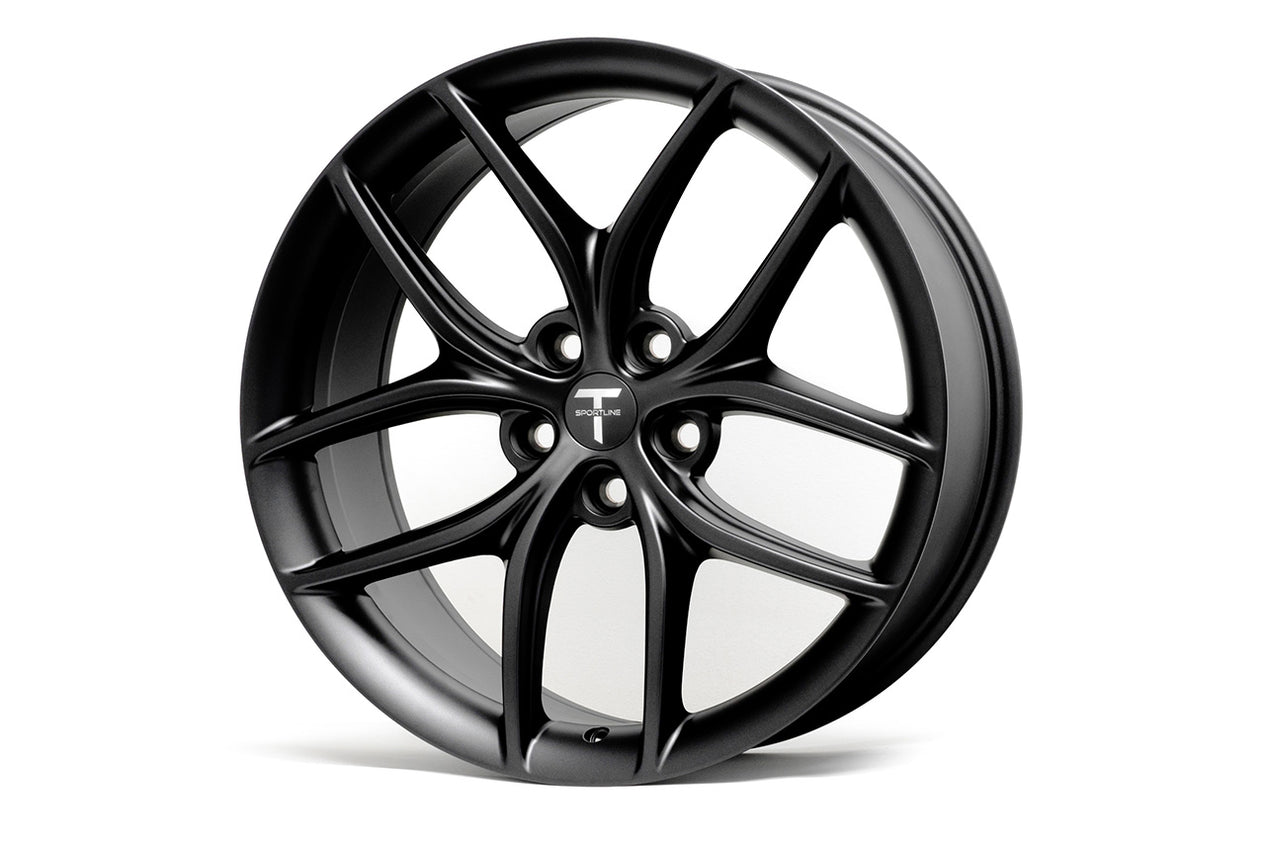

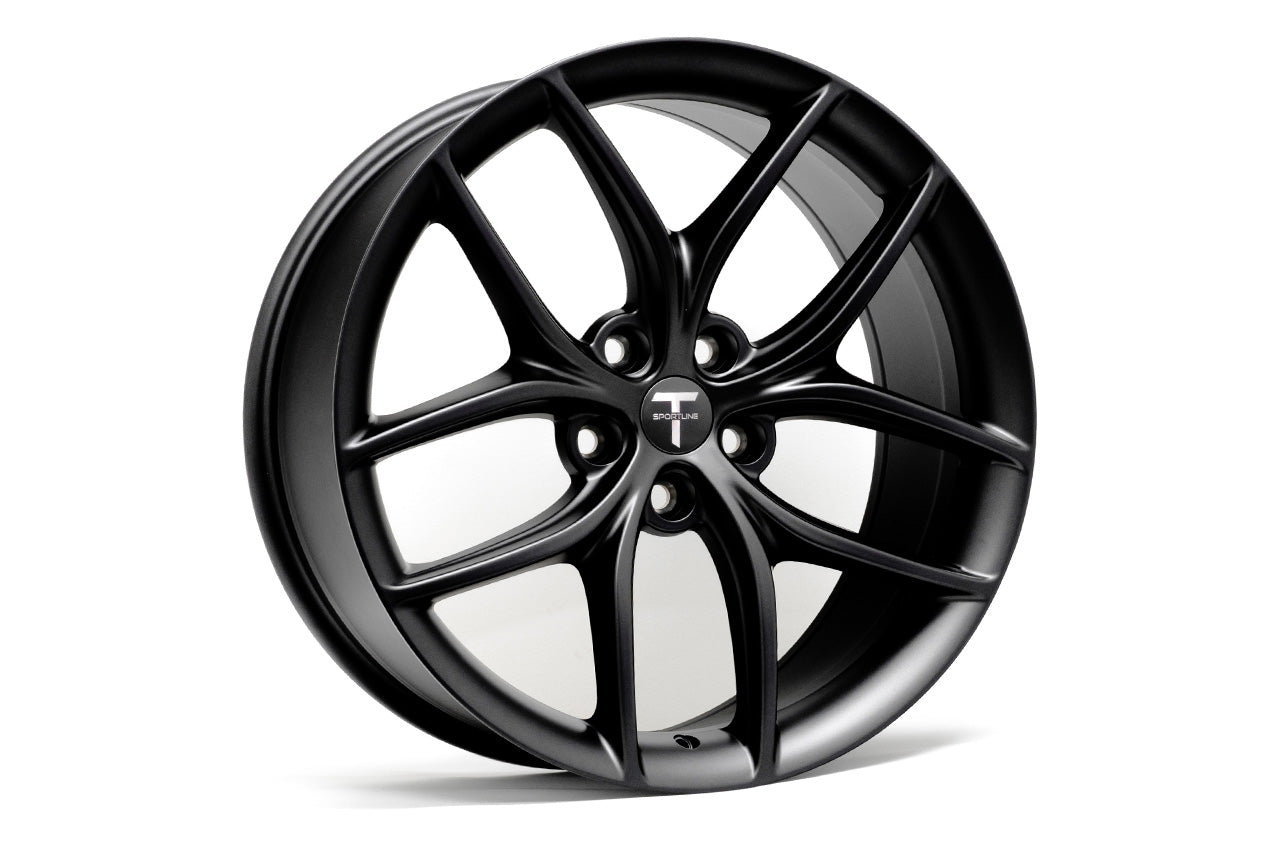

Specifications (Fits All Tesla Model 3 Variants)

• Size: 20x8.5" Front, 20x10" Rear
• Offset: +35 Front, +40 Rear
• Bolt Pattern (PCD): 5x114.3
• Center Bore: 64.1
• Construction: Flow Forged
• Weight: 20x8.5": 28.4 lbs; 20x10": 29.8 lbs
• Load Rating: 650 kg/1,433 lbs
• Tire Size: 20x8.5": 235/35-20; 20x10": 275/30-20
• Colors: Satin Gray and Satin Black.

Description

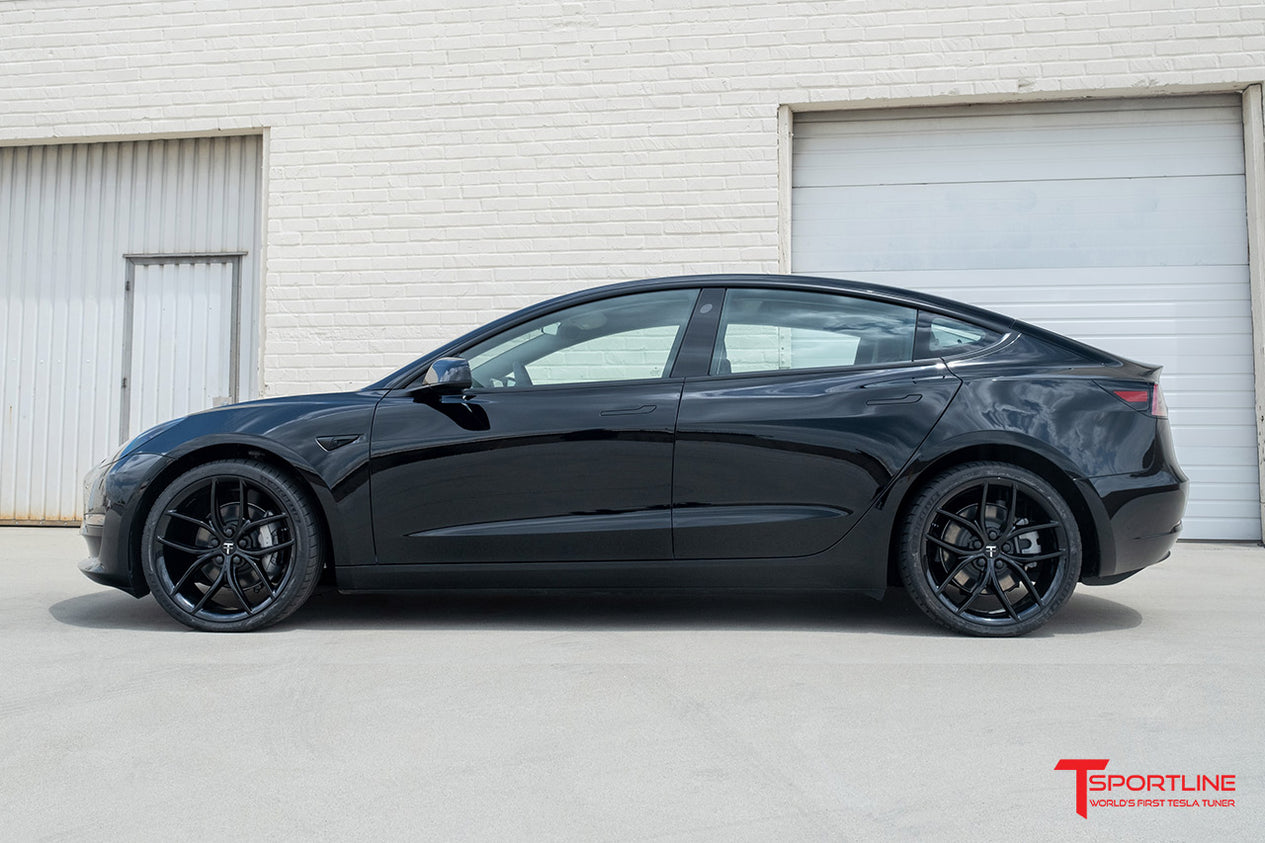

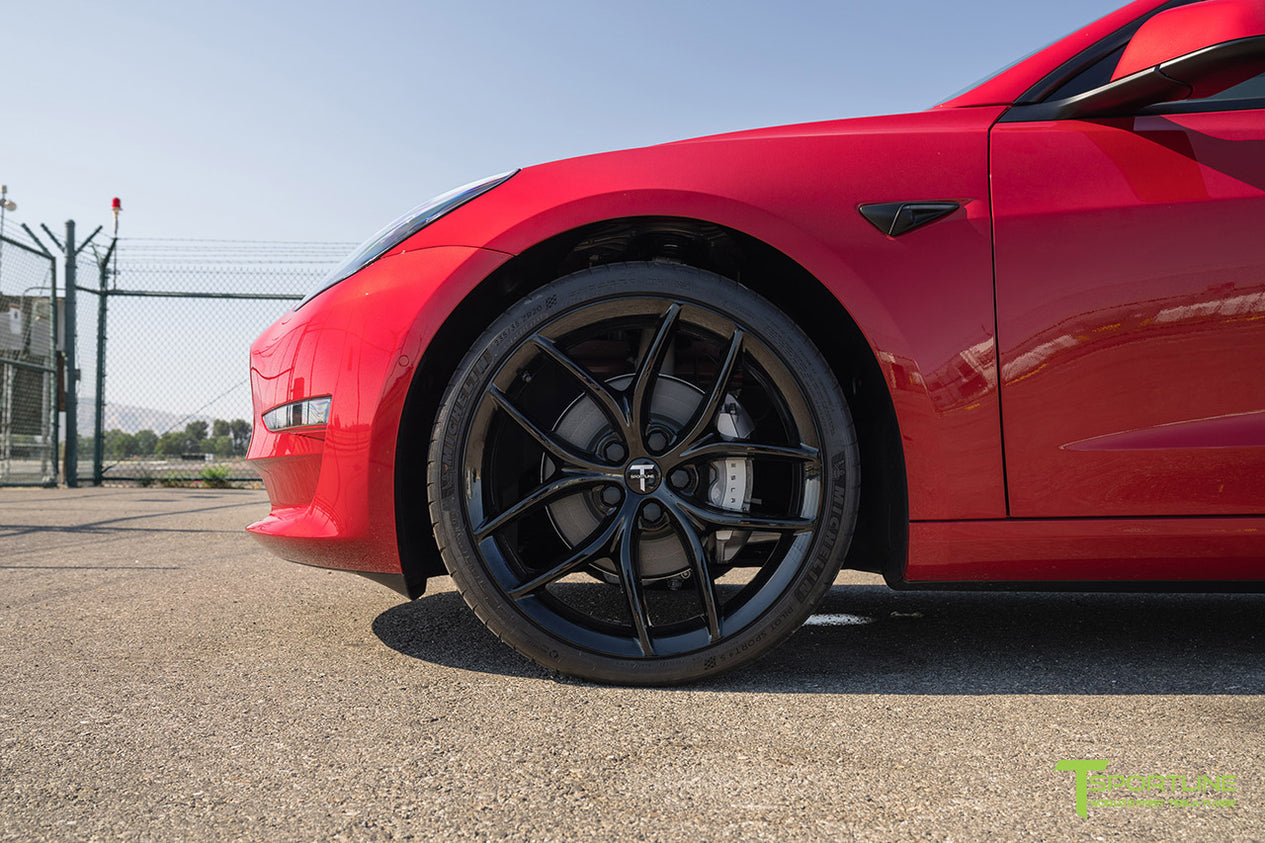

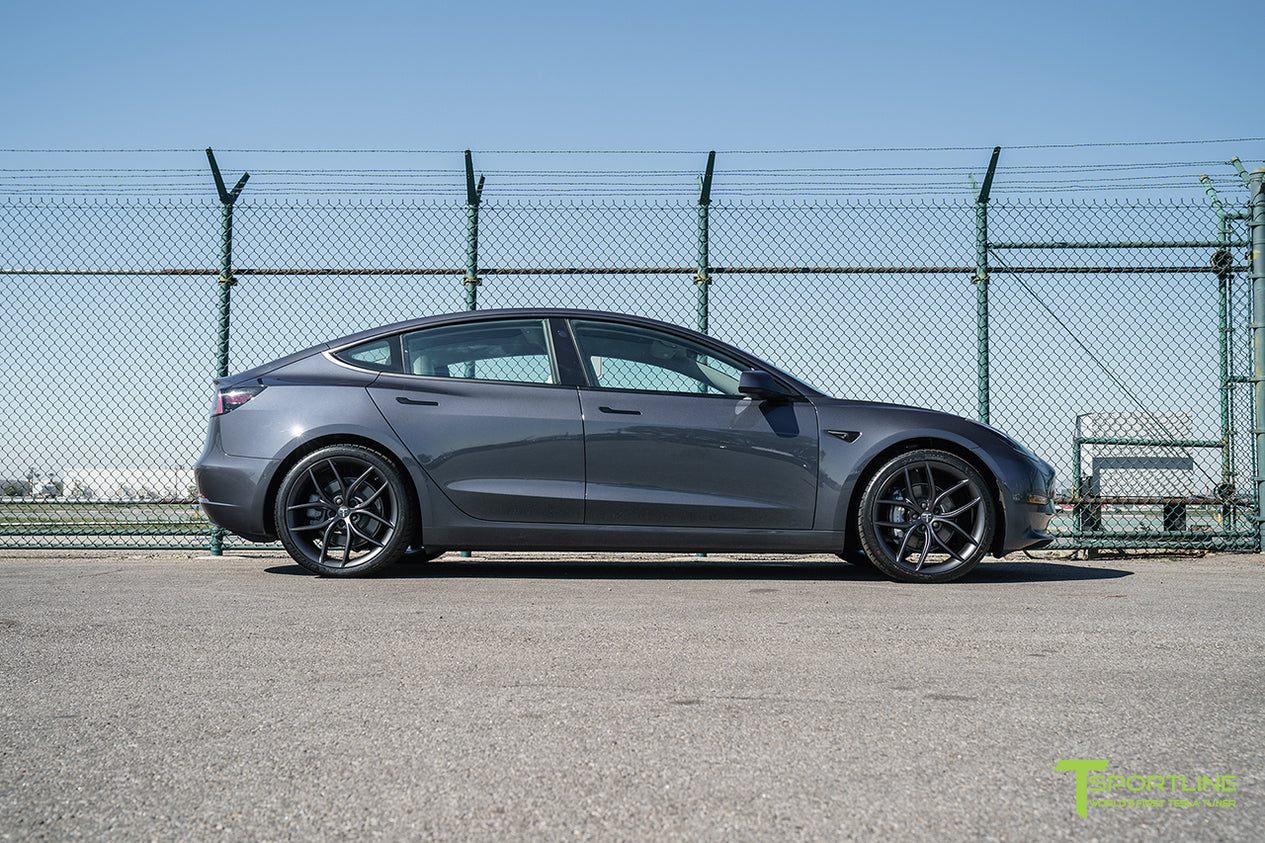

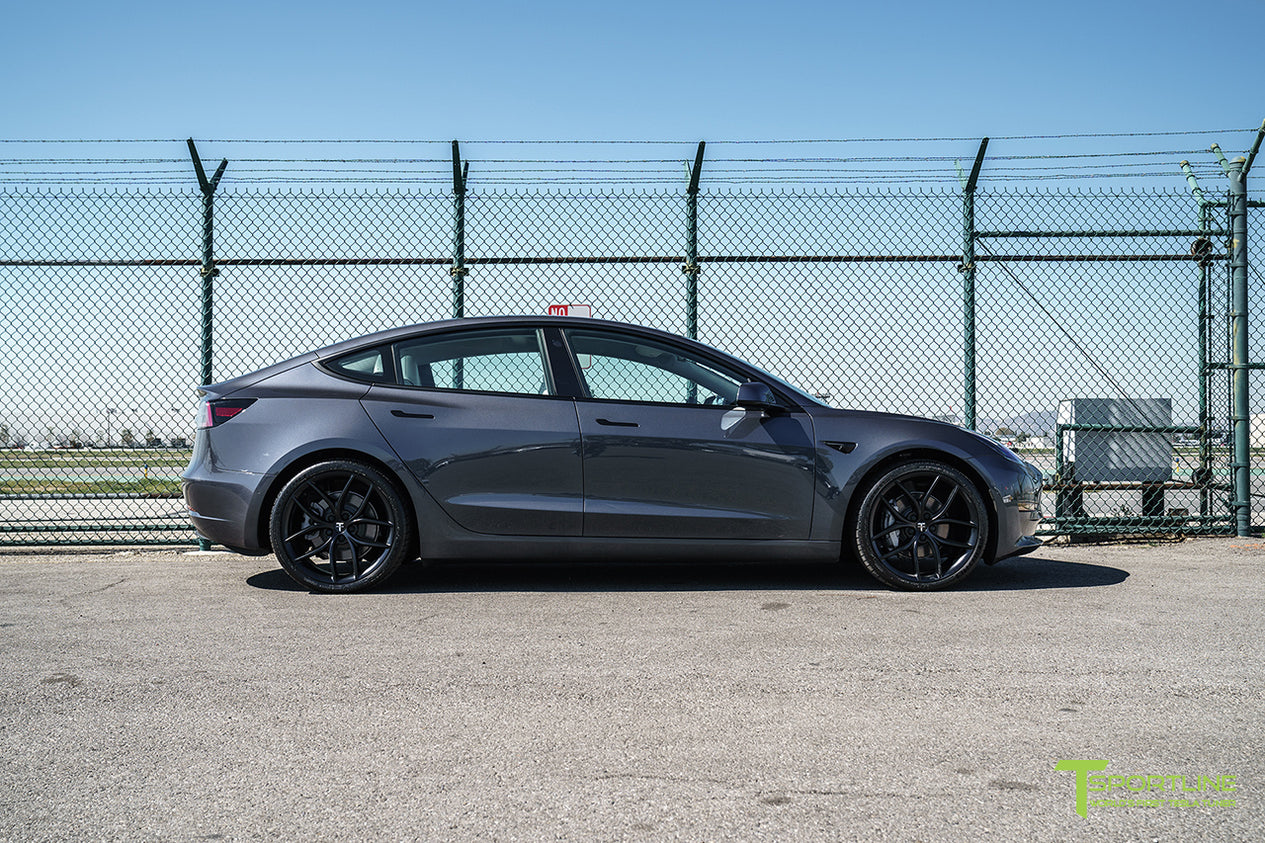

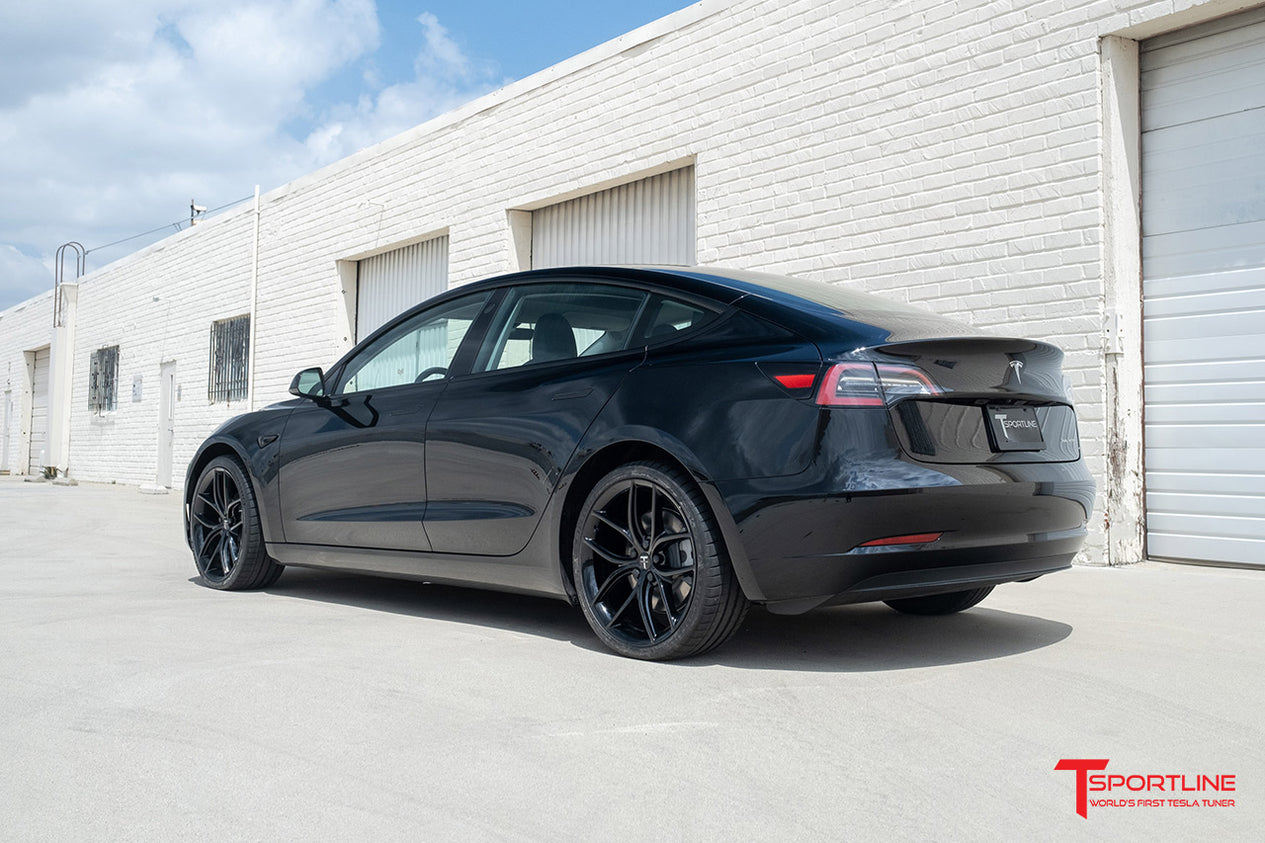

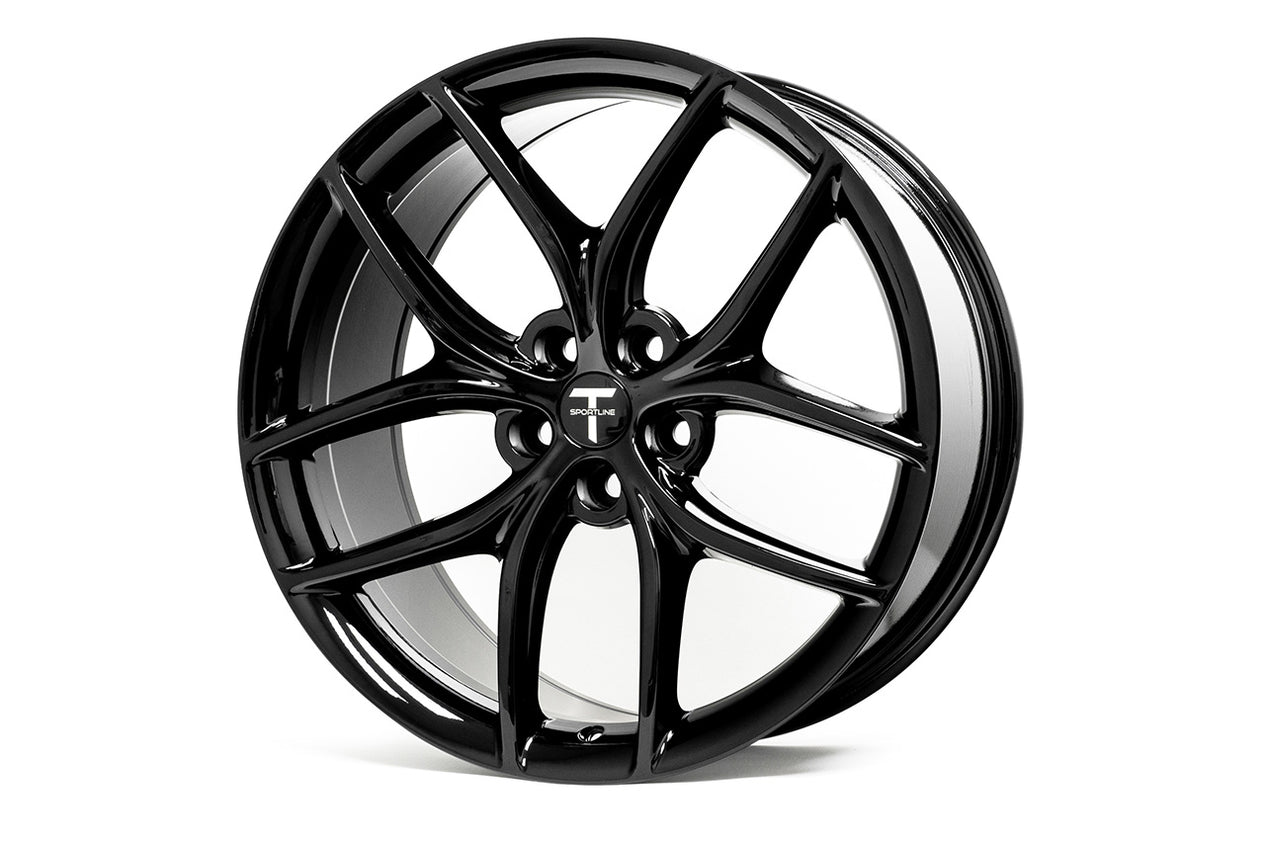

• 20 inch TS5 wheel built exclusively for the Tesla Model 3.
• Manufactured in a Flow Forged Process.
• Fits all Tesla Model 3 variants (Single Motor, Dual Motor, Performance).
• Fully tested to the JWL, VIA & SAE J2530 standard.
• Range Oriented Size: 20x8.5" +35 Front & Rear (Square)
• Performance Oriented Size: 20x8.5" + 35 Front & 20x10" +40  Rear (Staggered)
• Accepts factory Tesla center cap, factory Tesla lug nut, factory Tesla TPMS sensor and factory 20" tire (235/35-20 Front & Rear or 235/35-20 Front, 275/30-20 Rear).
• A great alternative to 18" Tesla Model 3 factory wheel, 19" Tesla Model 3 Sport wheel, 20" Tesla Model 3 Performance wheel. View our Model 3 Wheel Guide Here.
• Color-matched T Sportline center cap included, but you can use a factory Tesla center cap.

Shipping is calculated at Checkout.

Shipping & Handling charges subject to change without prior notification. PLEASE NOTE THAT INTERNATIONAL SHIPMENTS ARE SUBJECT TO CUSTOMS TAXES/DUTIES, AS CHARGED BY YOUR COUNTRY (THERE ARE NO U.S. CUSTOMS FEES). INTERNATIONAL CUSTOMERS ARE RESPONSIBLE FOR PAYMENT OF THESE FEES. Due to service availability, some international orders may need to be sent to the nearest international airport.

Do your TS5 wheels fit my factory center caps?
Yes, 20x8.5" and 20x10" TS5 wheels fit your factory Tesla center caps. They also fit your factory TPMS and your factory lug nuts. In other words, there's no need to use any aftermarket hardware.

Are the TS5 wheels forged or cast?
They are Flow Forged. The 20" TS5 wheels are manufactured in a Flow Forged process. They have been tested to the SAE J2530 standard.

Do I need to change the color of my existing lug nuts and center caps to match my new TS5 wheels?
That's an aesthetic decision only you can make. All TS5 Wheels come with T Sportline color-matched center caps. For those who purchase Satin Gray, Satin Black, or Gloss Black finish, we recommend purchasing our Lug Nut Cap Covers for a stealth appearance.

What is the warranty on TS5 wheels?
Click here for T Sportline Limited Warranty

How long until my TS5 wheels arrive after my order?
We process orders within 72 hours (unless your wheels are back-ordered). Please allow for 1-7 business days transit time from the day you receive a tracking number. We will email you if your wheels are back-ordered.

Do you ship internationally?
Yes! We ship worldwide and offer flat rate FedEx/DHL shipping to select countries.

Will installing your wheels void my warranty?

Changing wheels won't void your Tesla warranty unless Tesla can prove that our wheels caused the need for repairs. In other words, your warranty will still be valid when your rear window cracks, even if you've upgraded to our wheels.
