    TS5 20" Tesla Model 3 Autocross & Road Racing Wheel and Competition Tire Track Package (Set of 4)

    Color
    Satin Gray

    Satin Gray

    Satin Black

    Satin Black

    TPMS
    Model Year (Fits all Model 3 Trims)
    z
    z
    • Description

      Backordered ETA

      • Satin Gray 20x10": Backordered - Estimated Ship Date Beginning of December

      • Satin Black: Backordered - Estimated Ship Date Beginning of December

      Fits:

      • 2017-2023 Model 3 Standard Range, Standard Range +, Long Range AWD
      • 2017-2023 Model 3 Performance
      • 2024-Present Model 3
      • 2024-Present Model 3 Performance



      Includes

      • 4x 20x8.5" Wheels
      • 4x 245/35/20 Tires
      • 4x T Sportline Wheel Center Caps
      • No additional hardware required. Use your factory lug nuts!

      Optional

      • Factory TPMS Sensors (not included in base package)

        Specifications (Fits All Tesla Model 3 Variants)

        • Size: 20x8.5"
        • Offset: +35
        • Bolt Pattern (PCD): 5x114.3
        • Center Bore: 64.1
        • Construction: Flow Forged
        • Weight: 26.3 lbs
        • Load Rating: 650 kg/1,433 lbs
        • Tire Size: 245/35/20
        • Colors: Satin Gray and Satin Black.
        • Tires: Michelin Pilot Sport Cup 2 Performance Sport.

        TUV Certified

        Description

        T Sportline’s Tesla Model 3 Track Package is a specific wheel and tire package designed to give you maximum cornering, acceleration, and braking tire grip, along with high-speed stability for the best racing course or lap times. This kit will allow you to spare and preserve your daily use wheel and tire setup, keeping the wear and tear on your ‘racing wheels and tires’, while dramatically improving your racing performance at the same time. This setup is performance optimized for enthusiast-based autocross, x-cross, time-attack, SCCA events, road courses, road racing, short track and circle track racing.



        Wheels

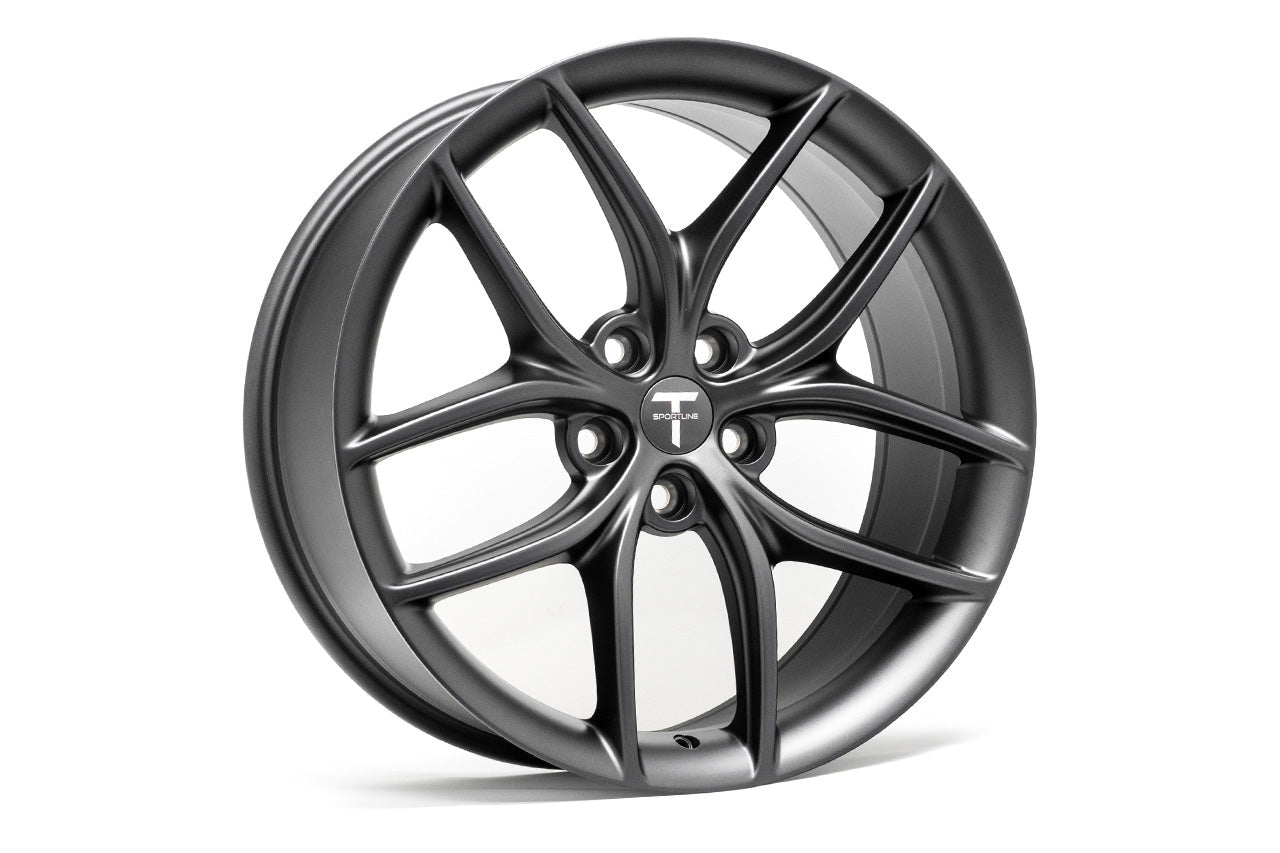

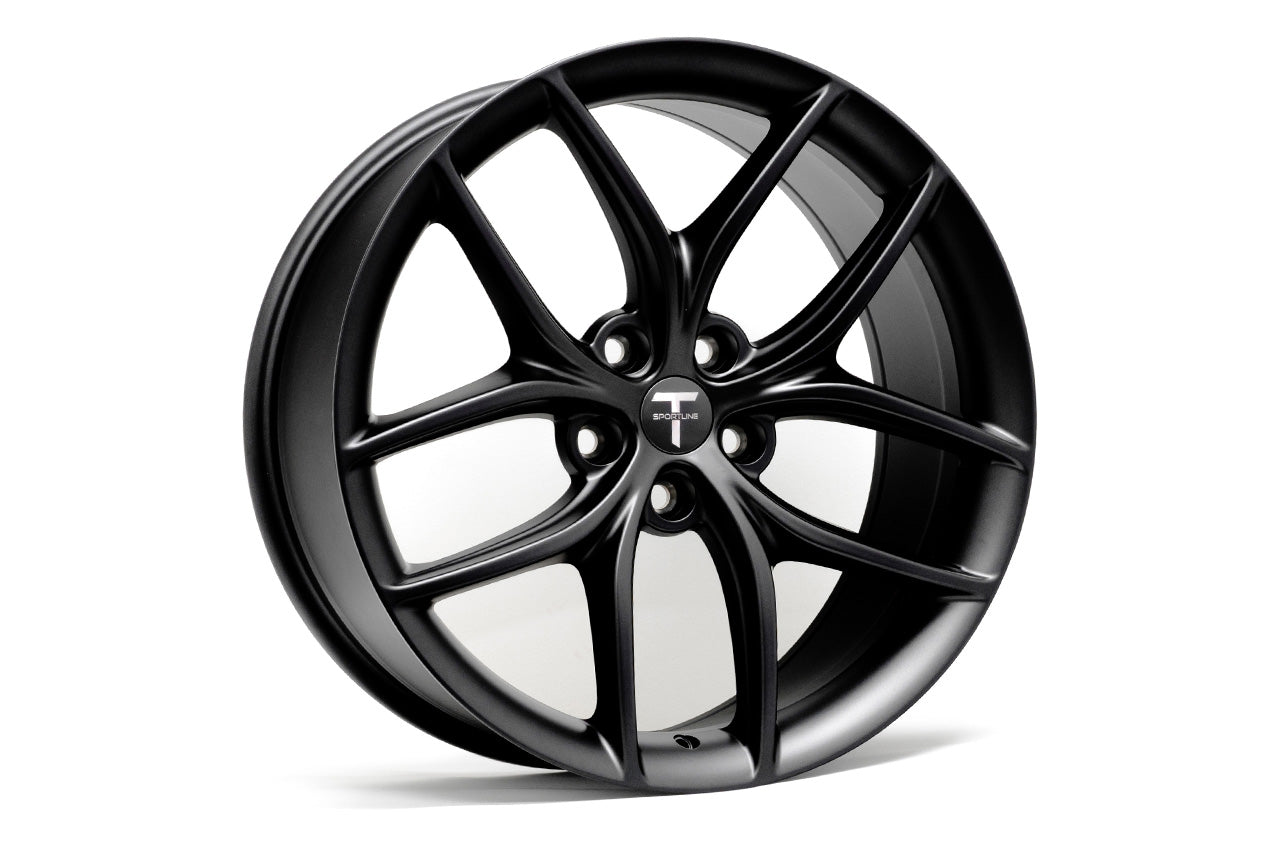

        We have specified the lightest weight 20" flow forged wheel we offer, TS5, measuring a racing compliant “same as stock” 20x8.5” and weighing 26.3 lbs (versus factory cast wheels: 20” Model 3 sport wheels weigh 28.75lbs, 20” Model 3 Überturbine wheels weigh 32lbs). This package uses TS5 flow forged wheels to balance value and performance. If you prefer a fully forged or custom spec wheel or tire setup, call us directly to special order (310) 880-3256.



        Tires

        The Michelin Pilot Sport Cup 2 tires are 245/35/20 (26.8” diameter), measuring the same size as Tesla’s aftermarket Model 3 Track Package and about 1.1% taller than
        factory 20” Sport wheel and tire 235/35/20 (26.5” diameter).

        The Pilot Sport Cup 2 is Michelin's (DOT compliant) street-friendly track and competition tire originally developd for use on the supercars such as the Ferrari 458 Speciale, Porsche 918 Spyder, and Mercedes SLS AMG. Designed around enabling maximum performance and quickest lap tops, the Pilot Sport Cup 2 radial utilizes Michelin's Bi-Compound technology into an asymmetric design. The treads inboard and outboard sections utilize different compound rubbers for optimal performance. The oversized outboard shoulders claim a tread rubber whose hardness was selected to deliver the best adherence and dry grip around turns and tight apexes. The notched center ribs and an inboard shoulder use a rigid elastomer tread rubber to deliver precision steering. Pilot Sport Cup 2 tires include Variable Contact Patch 3.0, an innovation which maximizes the contact patch size and optimizes its contact pressure so that more rubber remains in contact with the track when cornering to ensure superior grip in tight corners and curves.

        Structurally, the tires feature twin steel belts reinforced by spirally wound Twaron cord
        (a polyamide cord that offers a lightweight, high-strength reinforcement above the steel belts) to enhance high-speed stability, durability, handling and wear. Finally, the
        Pilot Sport Cup 2 tires features a polyester casing that combines comfort and handling. The bead region is 10% wider than that of traditional sports tires and is strengthened with a high modulus rubber compound that increases the tire's lateral stiffness and delivers precise steering and responsiveness.


        The T Sportline Michelin measures 3.1% wider (9.6” wide), versus factory tire width of
        only 9.3”, further increasing tire grip for racing. The package is fully DOT compliant
        (street legal) and load rating compliant (95Y vs factory 92Y), allowing the convenience
        of installation at home and suitable for drives to and from the racing event in warm and dry weather (for long distance travel to racing events or during wet conditions, we recommend swapping this package on at the track).


        Usage recommendations for peak performance:

        • Operating Temperature: 160°F to 220°F
        • Cold Inflation Pressure: 45 (psi)

        The tires are not intended to be driven in sub-40F temperatures, nor through snow or on ice. The tires should always be stored indoors at temperatures maintained above 15F.



        Hardware

        As with all T Sportline wheel & tire packages, the assembly bolts on without modification, re-using original factory lug nuts and accepts factory center caps. However, as a cost savings, TPMS sensors are not included with the base package, since tire pressure is manually monitored in racing scenarios. For an optional additional charge, Tesla TPMS sensors can be added.

      • Shipping

        Shipping is calculated at Checkout.

        Shipping & Handling charges subject to change without prior notification. PLEASE NOTE THAT INTERNATIONAL SHIPMENTS ARE SUBJECT TO CUSTOMS TAXES/DUTIES, AS CHARGED BY YOUR COUNTRY (THERE ARE NO U.S. CUSTOMS FEES). INTERNATIONAL CUSTOMERS ARE RESPONSIBLE FOR PAYMENT OF THESE FEES. Due to service availability, some international orders may need to be sent to the nearest international airport.



      • FAQ

        Do your TS5 wheels fit my factory center caps?
        Yes, 20x8.5" TS5 wheels fit your factory Tesla center caps. They also fit your factory TPMS, factory 235/35-20" tires and your factory lug nuts. In other words, there's no need to use any aftermarket hardware.

        Are the TS5 wheels forged or cast?
        They are Flow Forged. The 20" TS5 wheels are manufactured in a Flow Forged process. They have been tested to the JWL, VIA, SAE J2530 & TÜV standard.

        Do I need to change the color of my existing lug nuts and center caps to match to my new TS5 wheels?

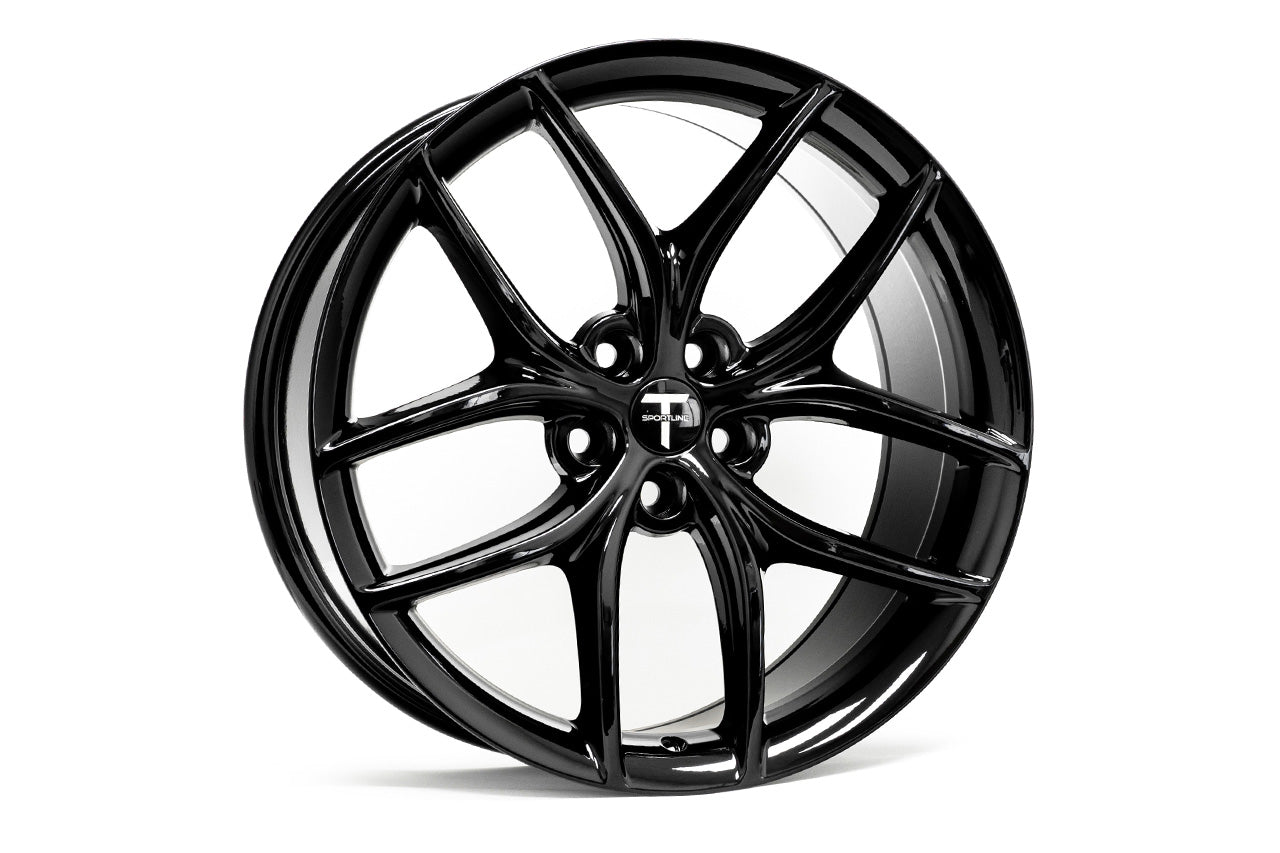

        That's an aesthetic decision only you can make. All TS5 Wheels come with T Sportline color-matched center caps. For those who purchase Satin Gray, Satin Black, or Gloss Black finish, we recommend purchasing our Lug Nut Cap Covers in Black for a stealth appearance.

        What is the warranty on TS5 wheels?
        Click here for T Sportline Limited Warranty

        How long until my TS5 wheels arrive after my order?
        We process orders within 72 hours (unless your wheels are back-ordered). Please allow for 1-7 business days transit time from the day you receive a tracking number. We will email you if your wheels are back-ordered.

        Do you ship internationally?
        Yes! We ship worldwide and offer flat rate FedEx/DHL shipping to select countries.

        Will installing your Wheel & Tire Package void my warranty?

        Changing wheels and tires won't void your Tesla warranty unless Tesla can prove that our wheels caused the need for repairs. Also, we use factory-size tires only. In other words, your warranty will still be valid when your windshield wiper malfunctions, even if you've upgraded to our Wheel & Tire Package.
