    T520909005120SG

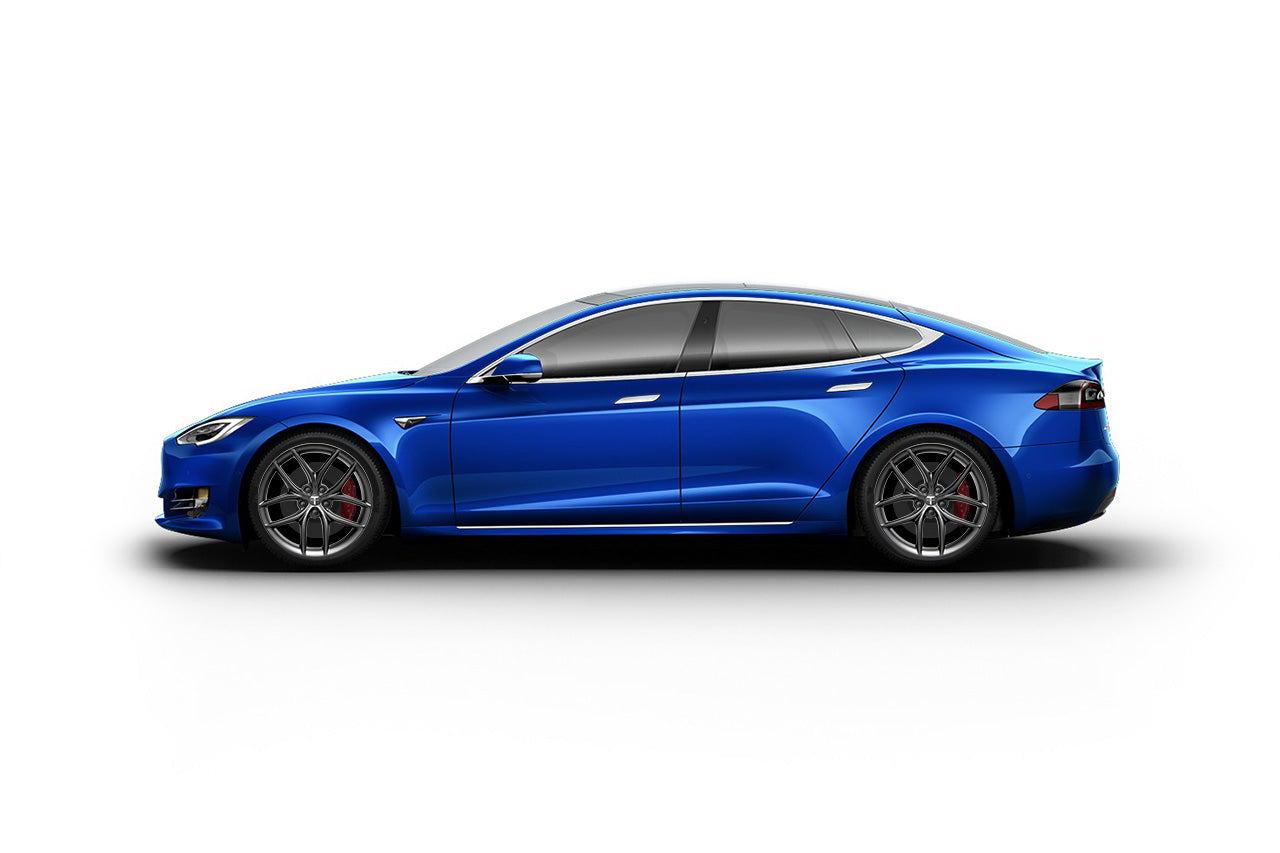

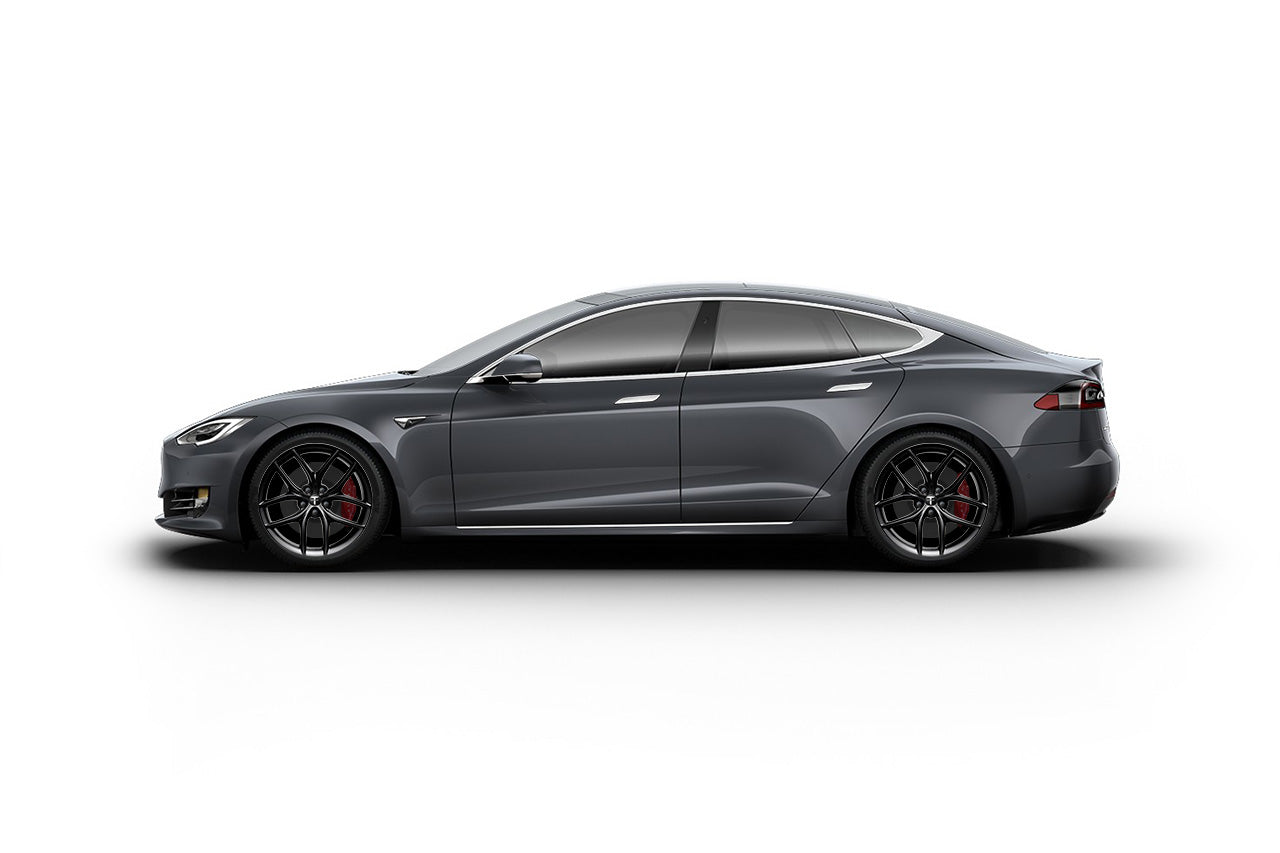

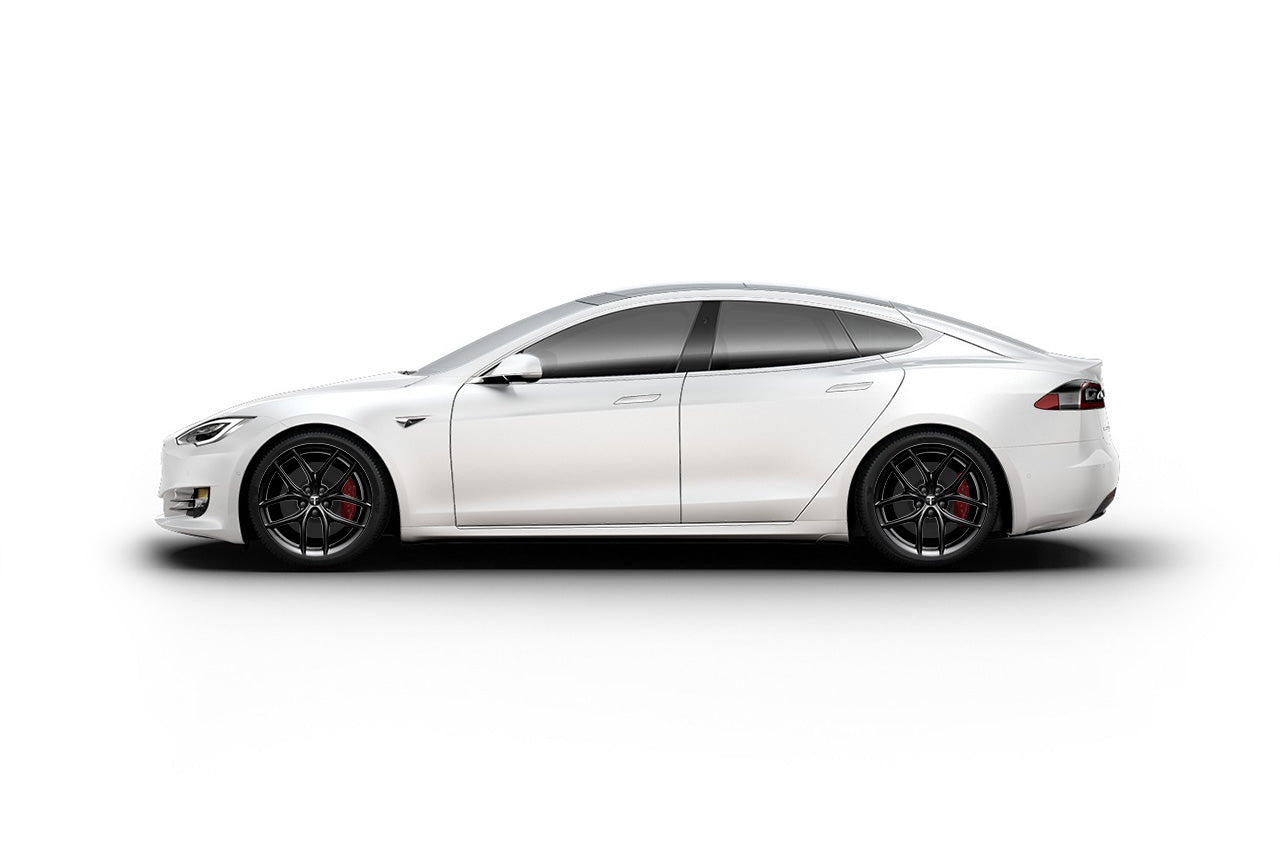

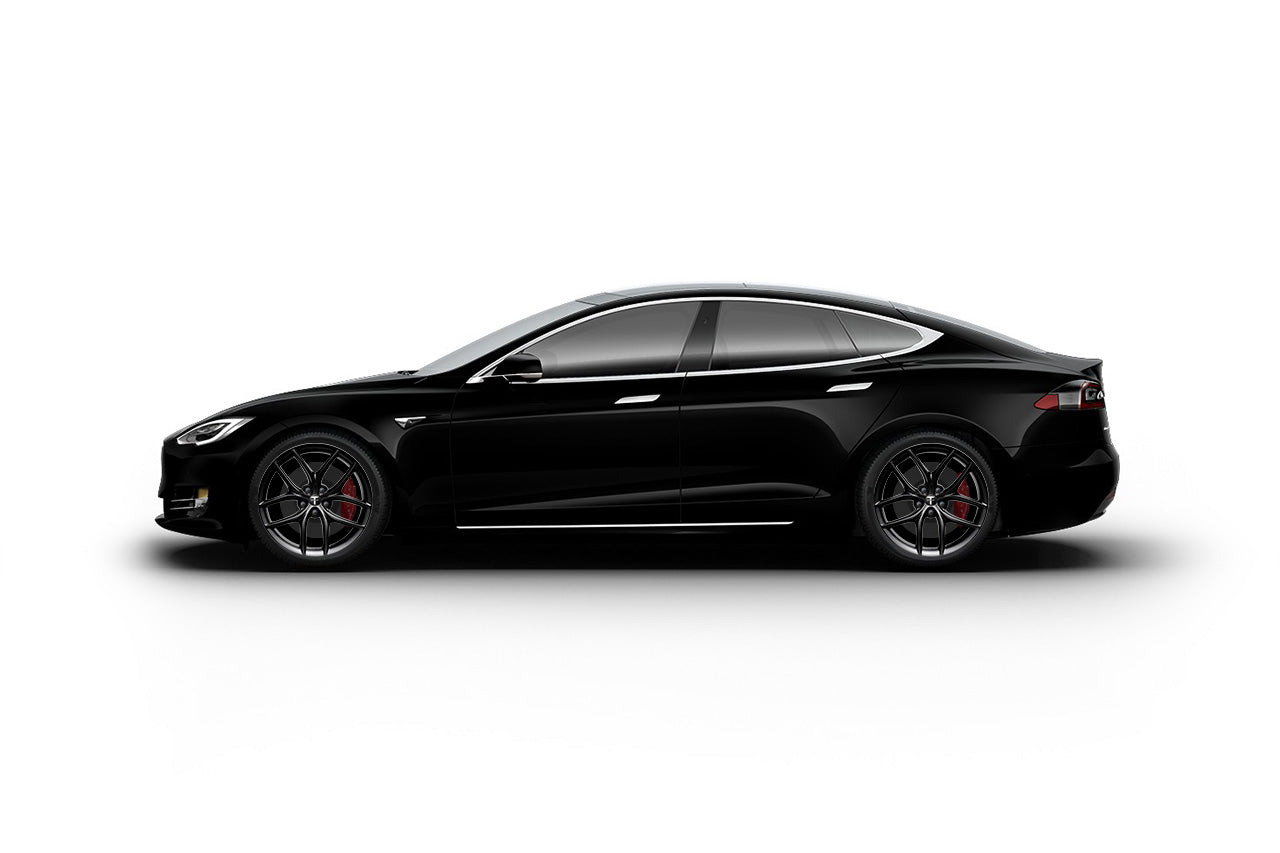

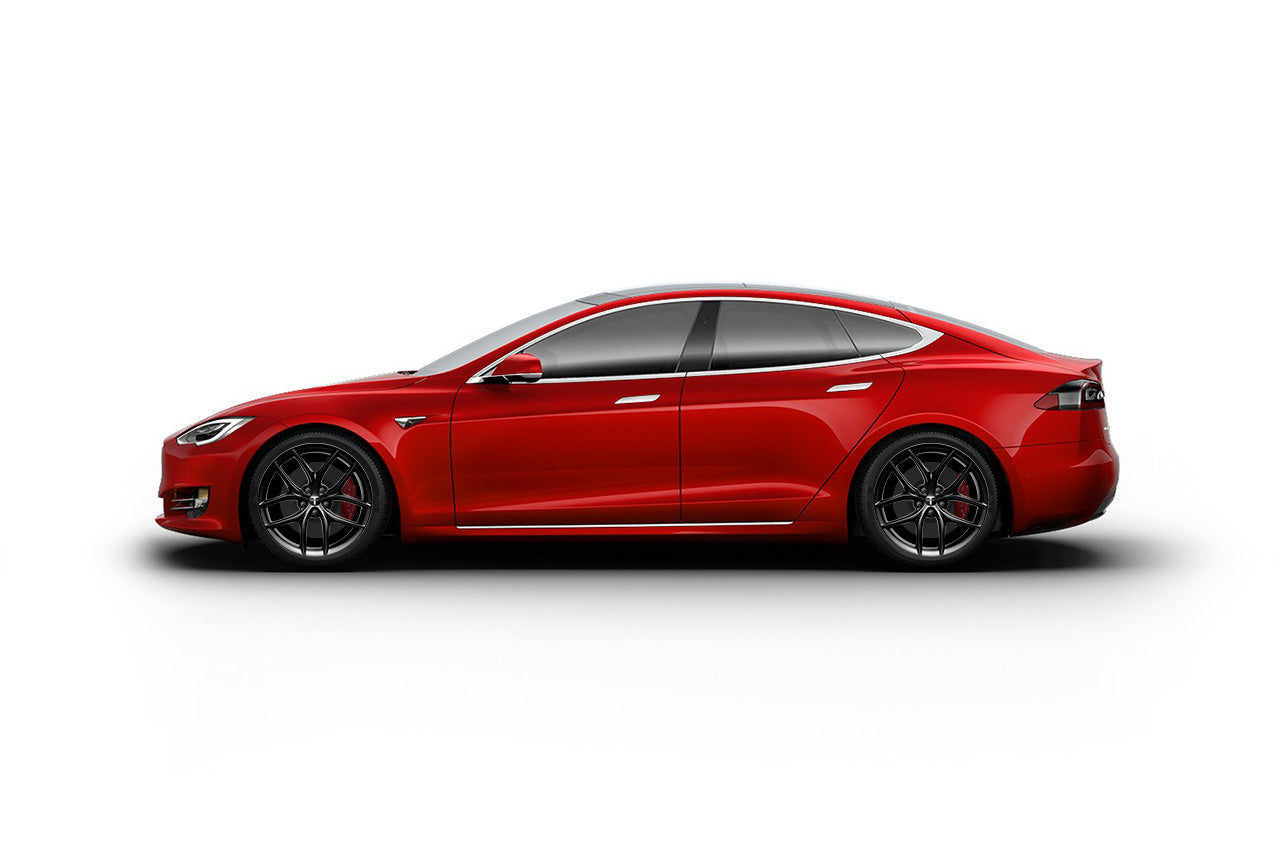

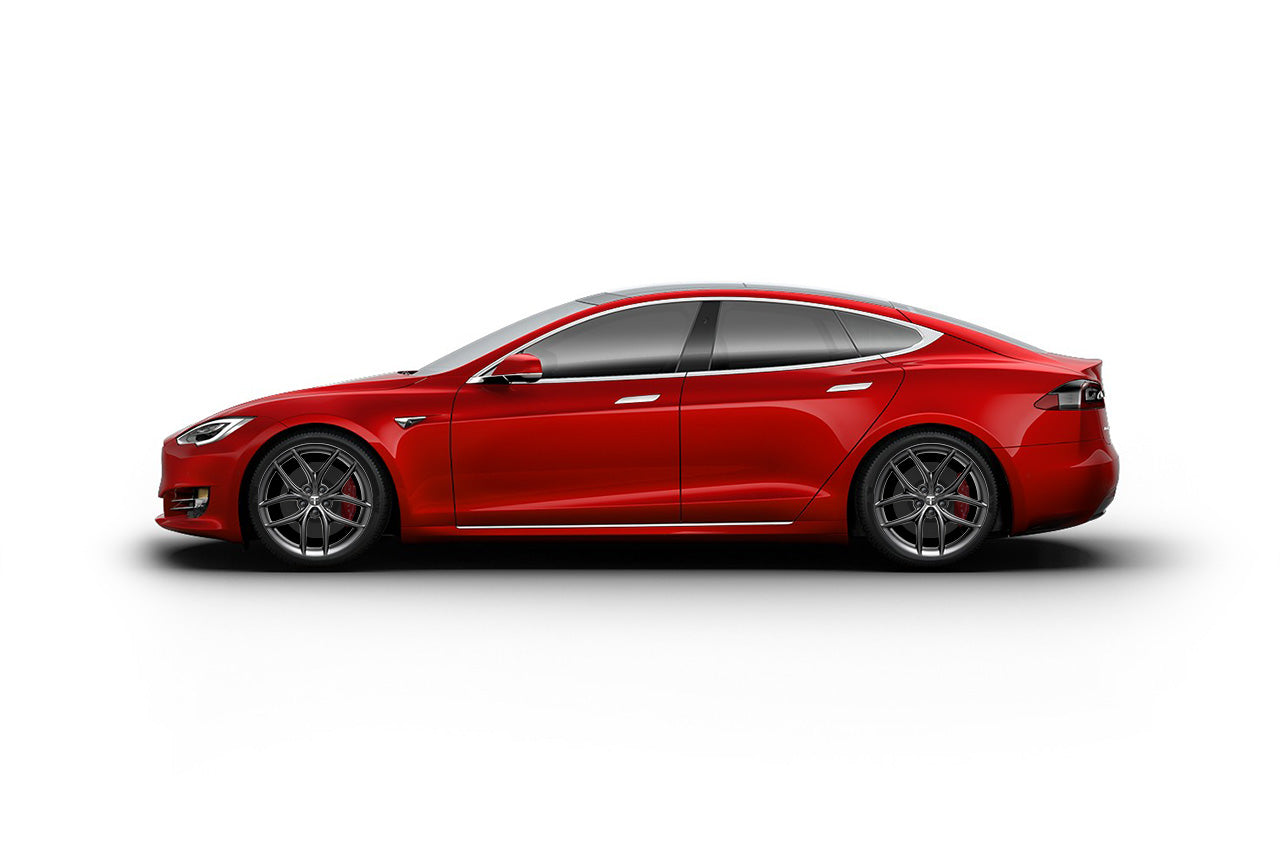

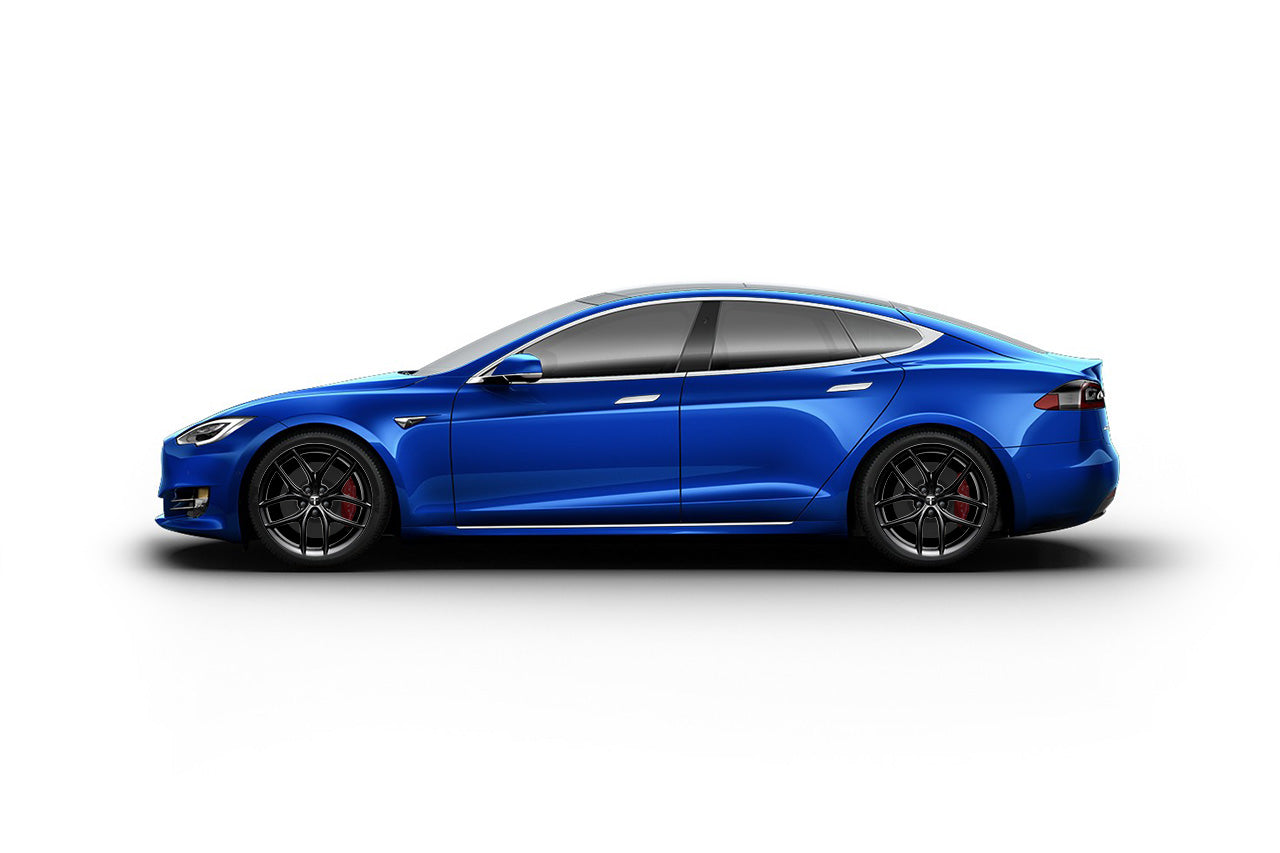

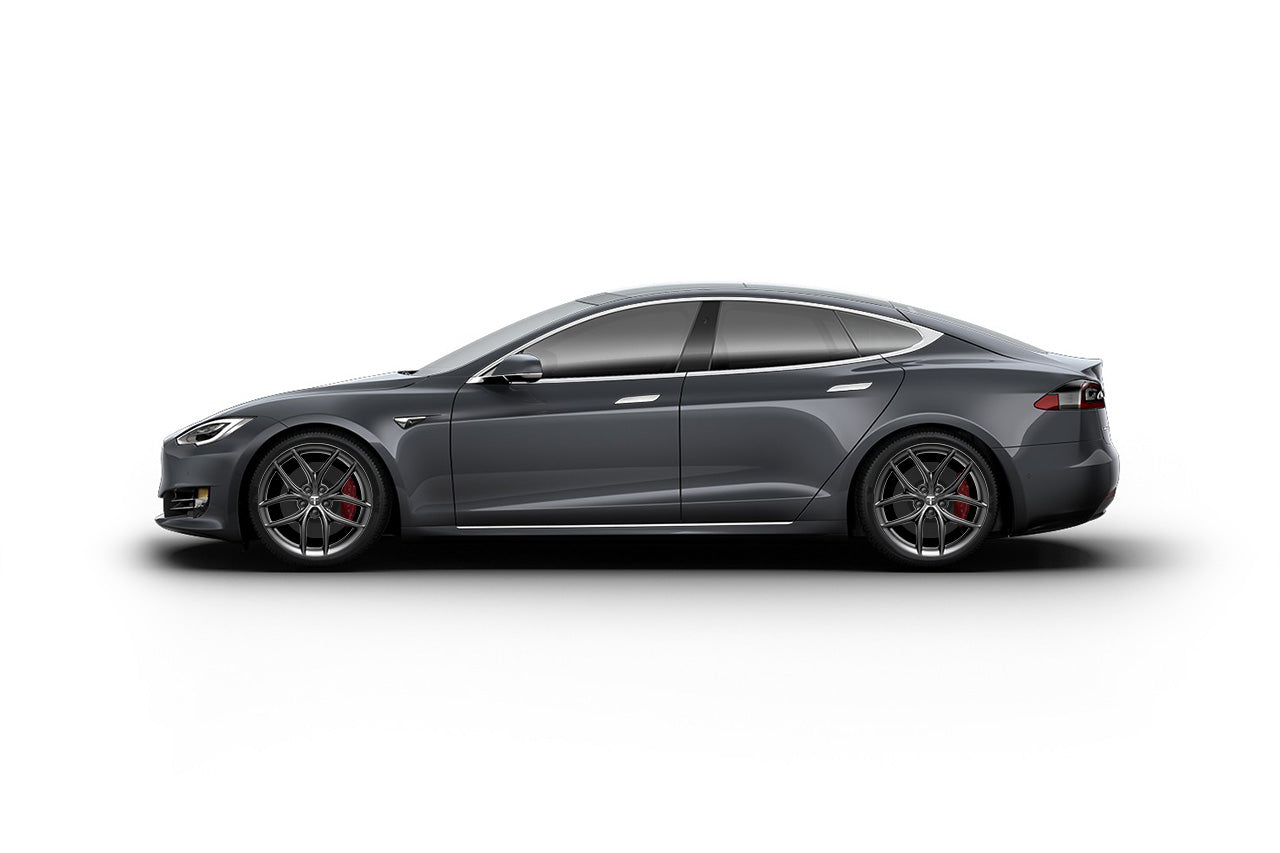

    TS5 20" Tesla Model S Wheel (Set of 4)

    Color
    Satin Gray

    Satin Gray

    Satin Black

    Satin Black

    Size
    z
    z
    • Description

      Backordered ETA

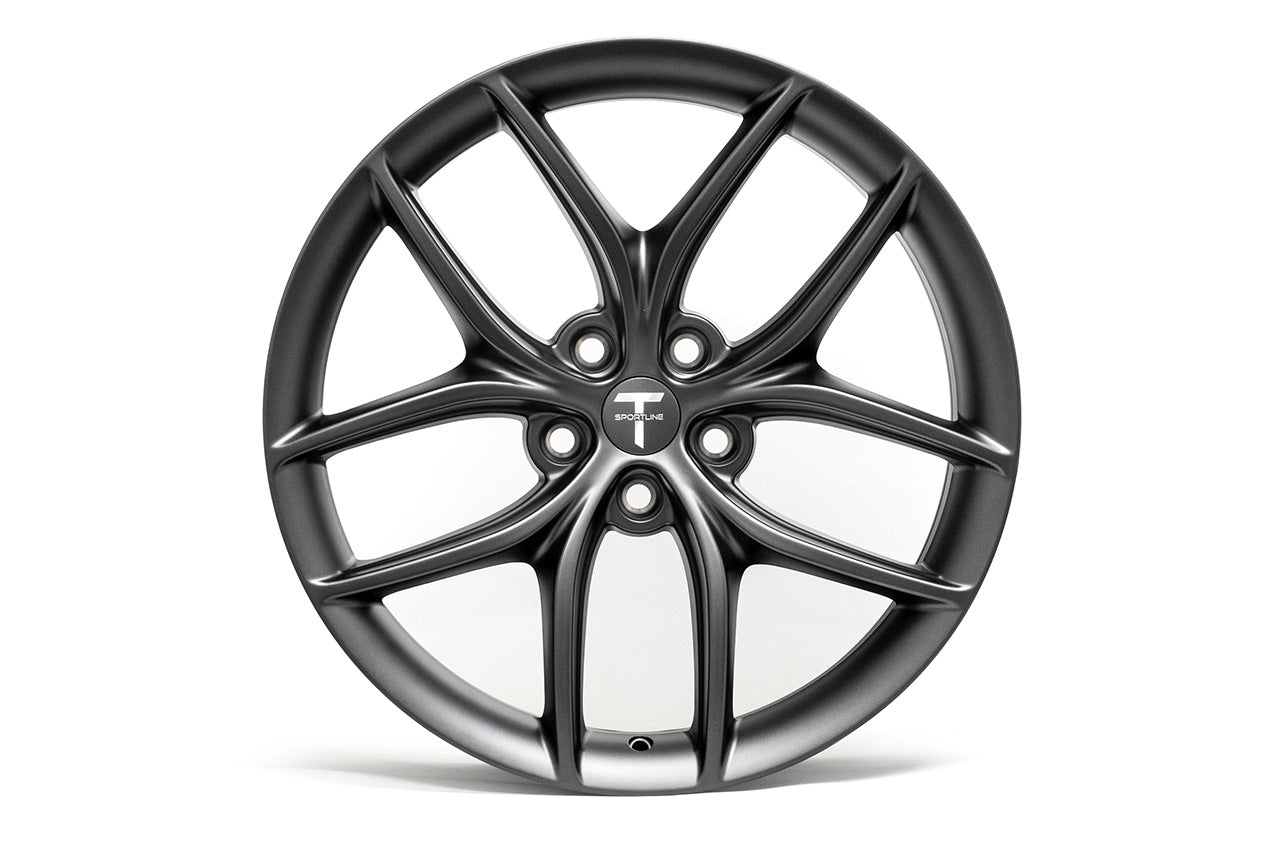

      • Satin Gray 20x10": Backordered - Estimated Ship Date Beginning of December

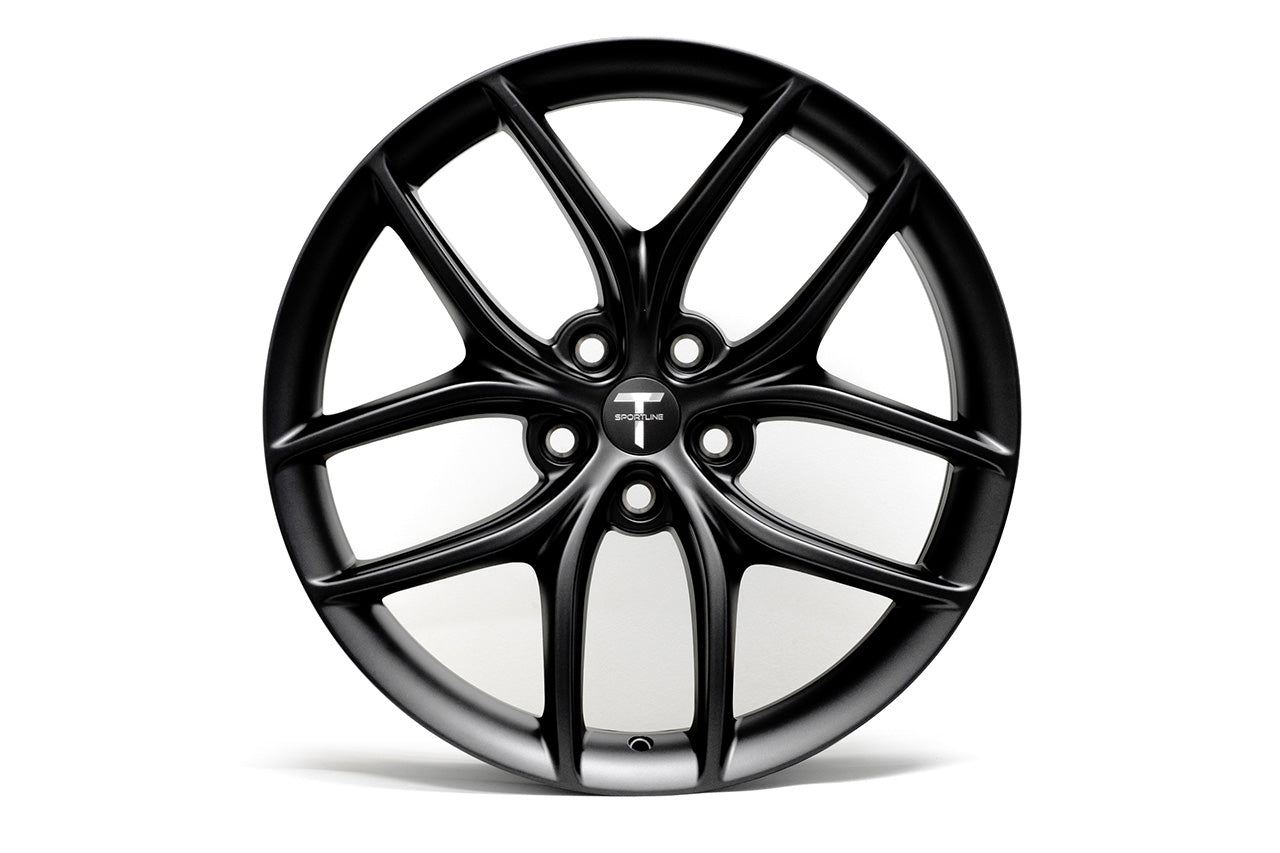

      • Satin Black: Backordered - Estimated Ship Date Beginning of December

      These wheels will not fit the New 2021 Model S.

          Specifications

          • Size:  20x9.0" Front & Rear, or 20x9.0" Front & 20x10" Rear
          • Offset: +35
          • Bolt Pattern (PCD): 5x120
          • Center Bore: 64.1
          • Construction: Flow Forged
          • Weight: 20x9.0": 26.75 lbs; 20x10": 29.8 lbs
          • Load Rating: 900 kg/1,980 lbs
          • Tire Size: 20x9.0": 245/40-20; 20x10": 275/40-20
          • Colors: Satin Gray and Satin Black.

          TUV Certified

          Description

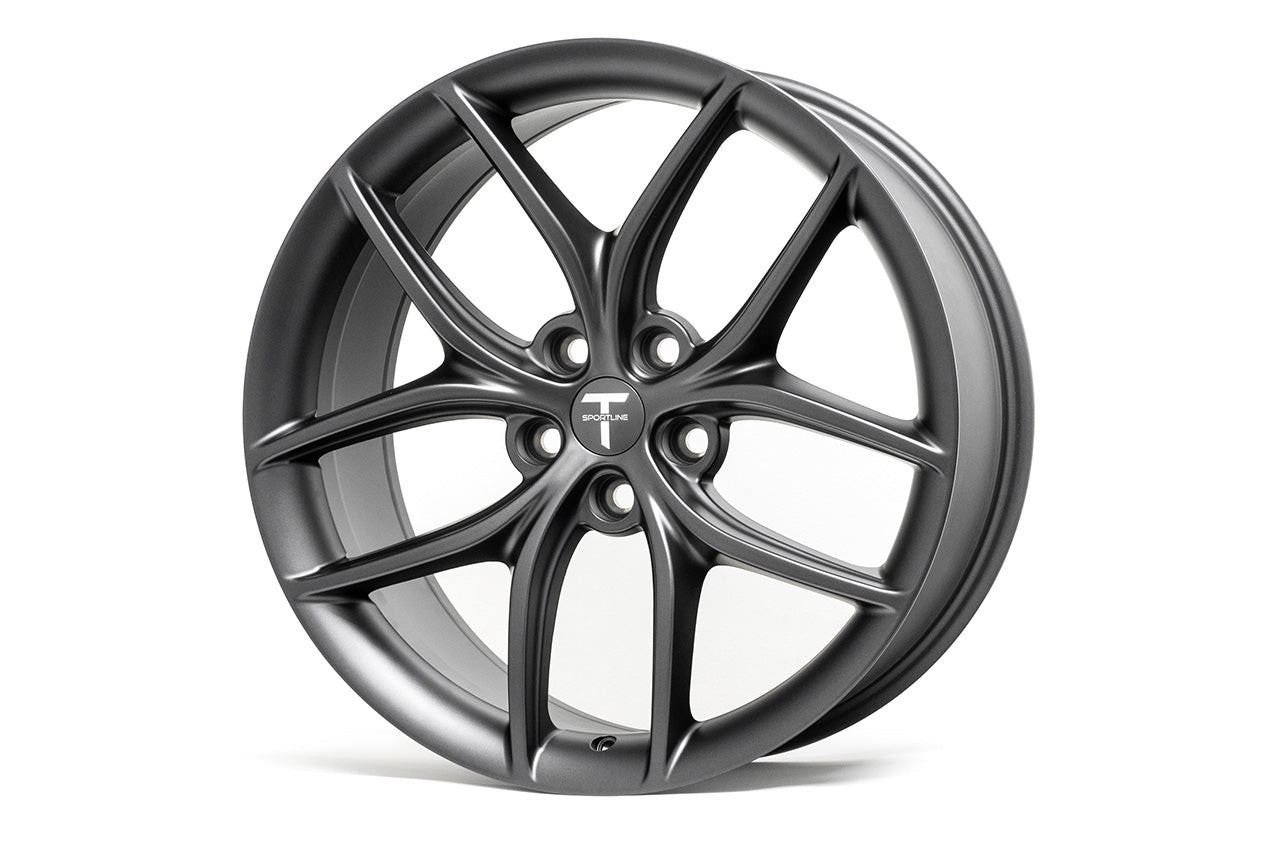

          • 20 inch TS5 wheel built exclusively for the Tesla Model S.
          • Manufactured in a Flow Forged Process.
          • Fully tested to the JWL, VIA, SAE J2530 & TÜV standard.
          • Range Oriented Size: 20x9.0" +35 Front & Rear (Square)
          • Performance Oriented Size: 20x9.0" + 35 Front & 20x10" +35  Rear (Staggered)
          • Accepts factory Tesla center cap, factory Tesla lug nut, and factory Tesla TPMS sensor.
          • A great alternative to 19" Tesla Model S factory wheel, 21" Tesla Model S Turbine & Twin Turbine wheel. View our Model S Wheel Guide Here.
          • Color-matched T Sportline center cap included, but you can use a factory Tesla center cap.
          • If you have a 2014 model or older, please let us know if the last 5 digits of your VIN number are under 50,900 so we can supply the correct tire pressure sensors. Alternatively, if you have a 2012-2014 and you have had your TPMS SYSTEM upgraded by Tesla, please let us know.
        • Shipping

          Shipping is calculated at Checkout.

          Shipping & Handling charges subject to change without prior notification. PLEASE NOTE THAT INTERNATIONAL SHIPMENTS ARE SUBJECT TO CUSTOMS TAXES/DUTIES, AS CHARGED BY YOUR COUNTRY (THERE ARE NO U.S. CUSTOMS FEES). INTERNATIONAL CUSTOMERS ARE RESPONSIBLE FOR PAYMENT OF THESE FEES. Due to service availability, some international orders may need to be sent to the nearest international airport.



        • FAQ

          Do your TS5 wheels fit my factory center caps?
          Yes, 20x9.0" and 20x10" TS5 wheels fit your factory Tesla center caps. They also fit your factory TPMS, and your factory lug nuts. In other words, there's no need to use any aftermarket hardware.

          Are the TS5 wheels forged or cast?
          They are Flow Forged. The 20" TS5 wheels are manufactured in a Flow Forged process. They have been tested to the JWL, VIA, SAE J2530 & TÜV standard.

          Do I need to change the color of my existing lug nuts and center caps to match my new TS5 wheels?
          That's an aesthetic decision only you can make. All TS5 Wheels come with T Sportline color-matched center caps. For those who purchase Satin Gray, Satin Black, or Gloss Black finish, we recommend purchasing our Lug Nut Cap Covers in Black for a stealth appearance.

          What is the warranty on TS5 wheels?
          Click here for T Sportline Limited Warranty

          How long until my TS5 wheels arrive after my order?
          We process orders within 72 hours (unless your wheels are back-ordered). Please allow for 1-7 business days transit time from the day you receive a tracking number. We will email you if your wheels are back-ordered.

          Do you ship internationally?
          Yes! We ship worldwide and offer flat rate FedEx/DHL shipping to select countries.

          Will installing your wheels void my warranty?

          Changing wheels won't void your Tesla warranty unless Tesla can prove that our wheels caused the need for repairs. In other words, your warranty will still be valid when your rear window cracks, even if you've upgraded to our wheels.
