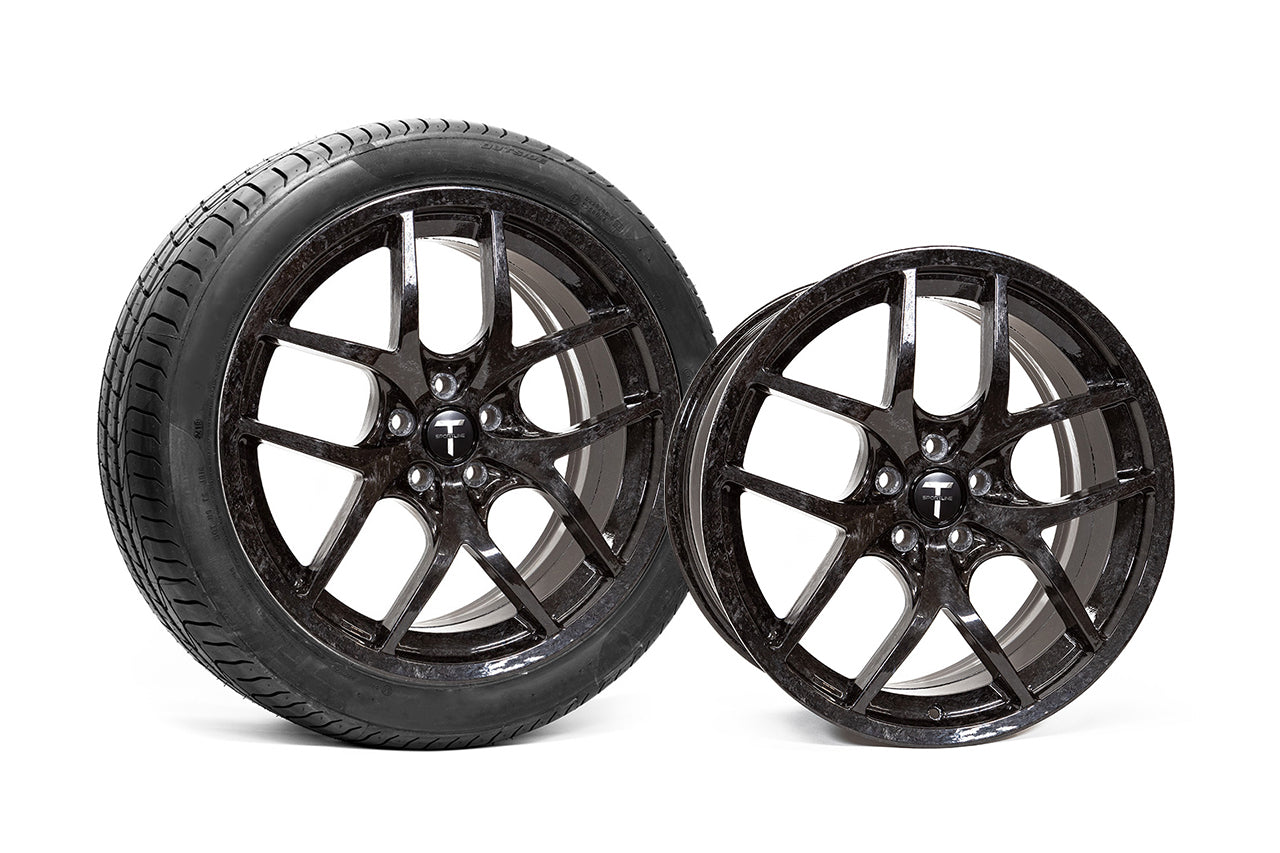

Name: TSC 20" Tesla Model Y Forged Carbon Fiber Wheel and Tire Package (Set of 4)
Brand: T Sportline
SKU: SC2095950511435GB
Price: 6995.0 USD
Availability: InStock

Description

Upgrade your Tesla Model Y with T Sportline TSC 20-inch Forged Carbon Fiber wheels and wheel-and-tire packages. Made in the USA from forged carbon fiber composite, the TSC delivers an exotic high-gloss forged-carbon appearance, engineered strength and exceptionally low mass. Each 20x9.5-inch square wheel weighs 20.25 lbs, features a +35mm offset and carries a 750 kg (1,653 lbs) load rating per wheel. Choose 255/40R20 factory-size tires for everyday efficiency, wider 275/40R20 tires for additional sidewall and wheel-edge coverage, or 285/35R20 ultra-wide performance tires for maximum dry-grip potential. TSC wheels accept factory Tesla center caps and TPMS sensors, and come with gloss black T Sportline center caps and the required special black mag lug nuts. Factory Tesla lug nuts, lug caps and wheel locks are not compatible with these forged-carbon wheels. Select four wheels only or a professionally mounted, balanced, TPMS-equipped wheel-and-tire package.

Tesla Model Y Compatibility

Confirmed Fit

Approved for all Tesla Model Y versions from 2020–Present

2020 2021 2022 2023 2024 2025 2026

✓ Approved to replace factory 18", 19", 20" or 21" wheels & tires

Rear-Wheel Drive Versions Standard Range RWD, Rear-Wheel Drive and Long Range RWD

All-Wheel Drive Versions Long Range AWD, All-Wheel Drive and Dual Motor AWD

Performance Model Model Y Performance configurations

Model Y L Six-seat Model Y L configurations

Wheel and Wheel & Tire Package Offerings

20x9.5" Fitment Wheels & Tires (Square = all 4 wheels & tires the same size)

Wheel Package — What Is Included

Set of 4 wheels
4x 20x9.5" TSC wheels 4x gloss black T Sportline wheel center caps 20 special black mag lug nuts (included)

Wheel & Tire Package — What Is Included

Set of 4 wheels & tires—mounted, balanced, & ready to install!
4x 20x9.5" TSC wheels 4x 255/40R20, 275/40R20 or 285/35R20 tires 4x factory-spec Tesla TPMS sensors 4x gloss black T Sportline wheel center caps 20 special black mag lug nuts (included)

Recommended Add-On Options

Factory Tesla Wheel Trade-In — Ask about applicable trade-in rebates for your original Model Y wheels
Tesla Tire Road Hazard Protection — Rest easy with tire protection
Ceramic Coating — Protect the finish and make cleaning easier

Wheel Features and Benefits

Wheel Specifications

Wheel Model: TSC
Vehicle: Tesla Model Y
Wheel Size: 20x9.5" — Square Fitment (all four wheels)
Offset: +35mm
Bolt Pattern: 5x114.3
Center Bore: 64.1mm
Construction: 100% Forged Carbon Fiber Composite
Country of Manufacture: Made in the USA
Wheel Weight: 20.25 lbs per wheel
Load Rating: 750 kg / 1,653 lbs per wheel
Tire Sizes: 255/40R20, 275/40R20 or 285/35R20
Finish: High-Gloss Forged Carbon
Engineering / Testing: FEA analyzed under 3,400 lbs; engineered to SAE J3204 wheel testing requirements
Factory Hardware: Compatible with factory Tesla center caps and TPMS sensors; factory lug nuts, lug caps and wheel locks are NOT compatible
Included Mounting Hardware: Special black mag lug nuts, 20 pieces (required for TSC installation)

Forged Carbon Strength & Lightweight Design

Unlike a conventional forged aluminum wheel, the TSC is molded from advanced forged carbon fiber composite and engineered for Tesla Model Y load and impact requirements. At just 20.25 lbs per 20x9.5-inch wheel, its low rotational mass can help improve responsiveness while the striking forged-carbon pattern distinguishes each wheel.

The TSC carries a 750 kg (1,653 lbs) load rating. The design has undergone finite-element analysis at a 3,400 lb test load and was developed to SAE J3204 engineering requirements. Made in the USA, TSC wheels use their own special black mag lug nuts, which are included with each wheel set.

20-Inch Sporty OEM+ Balance

The 20-inch setup offers a sportier appearance and responsive steering feel while maintaining practical everyday usability. Compared with 18-inch and 19-inch setups, 20-inch wheels generally provide a firmer ride and a more performance-oriented appearance. They typically offer greater ride comfort and sidewall protection than 21-inch packages, depending on tire selection. Choose factory-size 255/40R20 tires for familiar 20-inch proportions, wider 275/40R20 tires for a more substantial stance and additional wheel protection, or ultra-wide 285/35R20 performance tires for a lower-profile stance.

TSC Forged Carbon Fiber Design

Forged carbon fiber creates an unmistakable mottled high-gloss carbon pattern, offering an exotic-car-inspired look that differs from the woven appearance of traditional carbon fiber. The TSC wheel was developed specifically for Tesla fitments and is manufactured in the USA using a forged-carbon process.

Its lightweight composite construction and distinctive multi-spoke appearance help transform the Model Y without changing to a larger wheel diameter. Gloss black T Sportline center caps are included, and compatible factory Tesla center caps may also be installed.

Tesla Compatibility

Factory Tesla lug nuts, aftermarket/Tesla wheel lock nuts and lug caps are NOT compatible
Accepts factory Tesla center caps
Accepts factory Tesla TPMS sensors
Includes color-matched T Sportline center caps
Includes special black mag lug nuts
Will NOT void Tesla Warranty
Does NOT work with factory Tesla "Aero Covers / Hubcaps"

Square Fitment & Tire Rotation

The 20x9.5" square setup uses the same wheel and tire size at all four corners, allowing conventional front-to-rear tire rotation. Choose factory-size 255/40R20 tires for a familiar fitment, wider 275/40R20 tires for additional wheel protection, or ultra-wide 285/35R20 performance tires for a more aggressive stance.

TSC 20-Inch Wheel Weight

20.25 lbsper wheel

Scale photo coming soon

Tire Comparison & Selection Guide

	255/40R20	275/40R20	285/35R20
Tire Type	Stock Tesla Tire Size	Extra-Wide / Wheel Protection	Ultra-Wide / Performance
Range & Efficiency	Factory-size baseline	Wider tire may reduce range	Ultra-wide tire may reduce range
Ride Comfort	Balanced 20-inch ride	More sidewall height	Lower-profile performance ride
Pothole Protection	Factory-size sidewall	More sidewall height	Shorter sidewall
Curb Protection	Factory-size coverage	Extra width and sidewall coverage	Wide tread with shorter sidewall
Handling & Steering	Balanced everyday response	Wider square footprint	Performance-focused response
Dry Traction	Balanced everyday grip	Wider contact patch potential	Ultra-wide dry-grip potential
Wet & Snow Traction	Depends on tire model	Depends on tire model	Depends on tire model
Tire Rotation	Front-to-rear rotation	Front-to-rear rotation	Front-to-rear rotation

Choose 255/40R20 if your priority is: Factory-size tire proportions, balanced efficiency and everyday tire rotation.

Choose 275/40R20 if your priority is: More sidewall protection, wider appearance and the convenience of tire rotation.

Choose 285/35R20 if your priority is: Ultra-wide performance-oriented tires with a lower profile and strong dry-grip potential.

Rating Key: Not Rated Good Better Best

Choose the right tire type for your driving: All-season for everyday use, all-weather for enhanced year-round versatility, summer for warm-weather performance, or dedicated winter tires for cold and snowy conditions. Tire model, rolling resistance, construction, inflation pressure, compound and tread design also affect driving characteristics.

View Instructions & Tesla Tire Care Guide DIY Installation instructions and Learn more about proper Tesla tire maintenance & rotation for maximum range and tread wear

View the T Sportline Tesla Wheel & Tire DIY Installation Guide
Follow the recommended cold tire pressures on your vehicle's Tire and Loading Information label (located inside the driver-side door jamb). Check pressure after the vehicle has been parked out of direct sunlight for more than three hours. Use our AMAXX Tesla Digital Tire Inflator for convenient pressure checks and adjustments.
Rotate tires every 6,250 miles, or sooner if tread-depth difference reaches 2/32 inch, to help maximize tread life and maintain even wear.
Use only the included TSC-specific black mag lug nuts; factory Tesla lug nuts and wheel-lock hardware are not compatible. Follow the supplied TSC installation and torque instructions. Do not substitute factory lug nuts.
After tire service, drive approximately five miles to allow the TPMS readings to update.
Tire pressure changes with temperature, driving and sunlight. Underinflation can reduce range, accelerate wear and create a safety risk.
Teslas do not come with a spare! Consider purchasing a Tesla spare tire package to ensure you never get stranded with a flat.

Shipping

Shipping is calculated at Checkout.

Shipping & Handling charges subject to change without prior notification. PLEASE NOTE THAT INTERNATIONAL SHIPMENTS ARE SUBJECT TO CUSTOMS TAXES/DUTIES, AS CHARGED BY YOUR COUNTRY (THERE ARE NO U.S. CUSTOMS FEES). INTERNATIONAL CUSTOMERS ARE RESPONSIBLE FOR PAYMENT OF THESE FEES. Due to service availability, some international orders may need to be sent to the nearest international airport.
FAQ

Can I use my Aero Covers / Hubcaps on the 20" TSC?
No, the Aero Covers / Hubcaps only fit on your factory wheels.

Which tire sizes are offered with the 20" TSC package?
Available fitments include the factory-size 255/40R20, the extra-wide 275/40R20 and the ultra-wide 285/35R20 performance option, subject to current tire selections and availability.

Do your TSC wheels fit my factory center caps?
Yes, 20x9.5" TSC wheels fit compatible factory Tesla center caps and your factory TPMS sensors. Factory Tesla lug nuts, wheel locks and lug caps are NOT compatible; the required TSC-specific black mag lug nuts are included.

How are the 20" TSC wheels made?
They are made in the USA from 100% forged carbon fiber composite, developed using finite-element analysis, evaluated under a 3,400 lb design load and engineered to SAE J3204 testing requirements.

What is the warranty on TSC wheels?
Click here for T Sportline Limited Warranty

How long until my TSC wheels arrive after my order?
Custom Order — Contact us to confirm timing.

Do you ship internationally?
Yes! We ship worldwide and offer flat rate FedEx/DHL shipping to select countries.

Will installing your Wheel & Tire Package void my warranty?
Changing wheels and tires won't void your Tesla warranty unless Tesla can prove that our wheels caused the need for repairs. In other words, your warranty will still be valid when your windshield wiper malfunctions, even if you've upgraded to our Wheel & Tire Package. Also, we use factory-size or acceptable alternate size tires only.

How much does a 20-inch TSC wheel weigh, and what is its load rating?
The 20x9.5" TSC wheel weighs 20.25 lbs. Each TSC forged carbon fiber wheel carries a 750 kg (1,653 lbs) load rating.

Can I rotate my tires with the 20" TSC package?
Yes. The TSC uses a 20x9.5" square setup, allowing front-to-rear rotation when all four tires share the same size and have a compatible tread design.

Which TSC wheel finishes are offered?
The TSC is available in a distinctive high-gloss forged carbon finish. Gloss black T Sportline center caps and the required black mag lug nuts are included.
