Name: TST 20" Tesla Model X Wheel and Tire Package (Set of 4)
Brand: T Sportline
SKU: ST20901005120SB
Price: 2050.0 USD
Availability: OutOfStock

Description

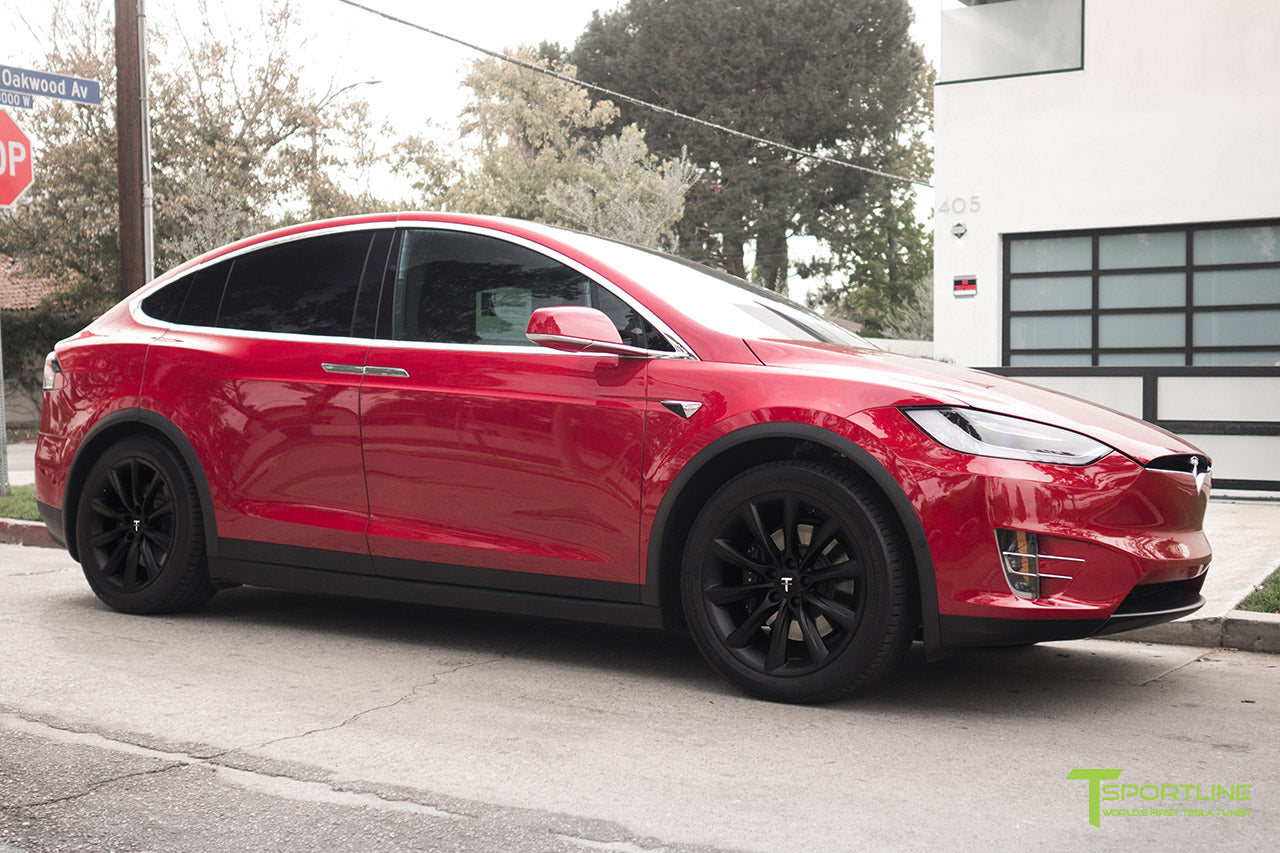

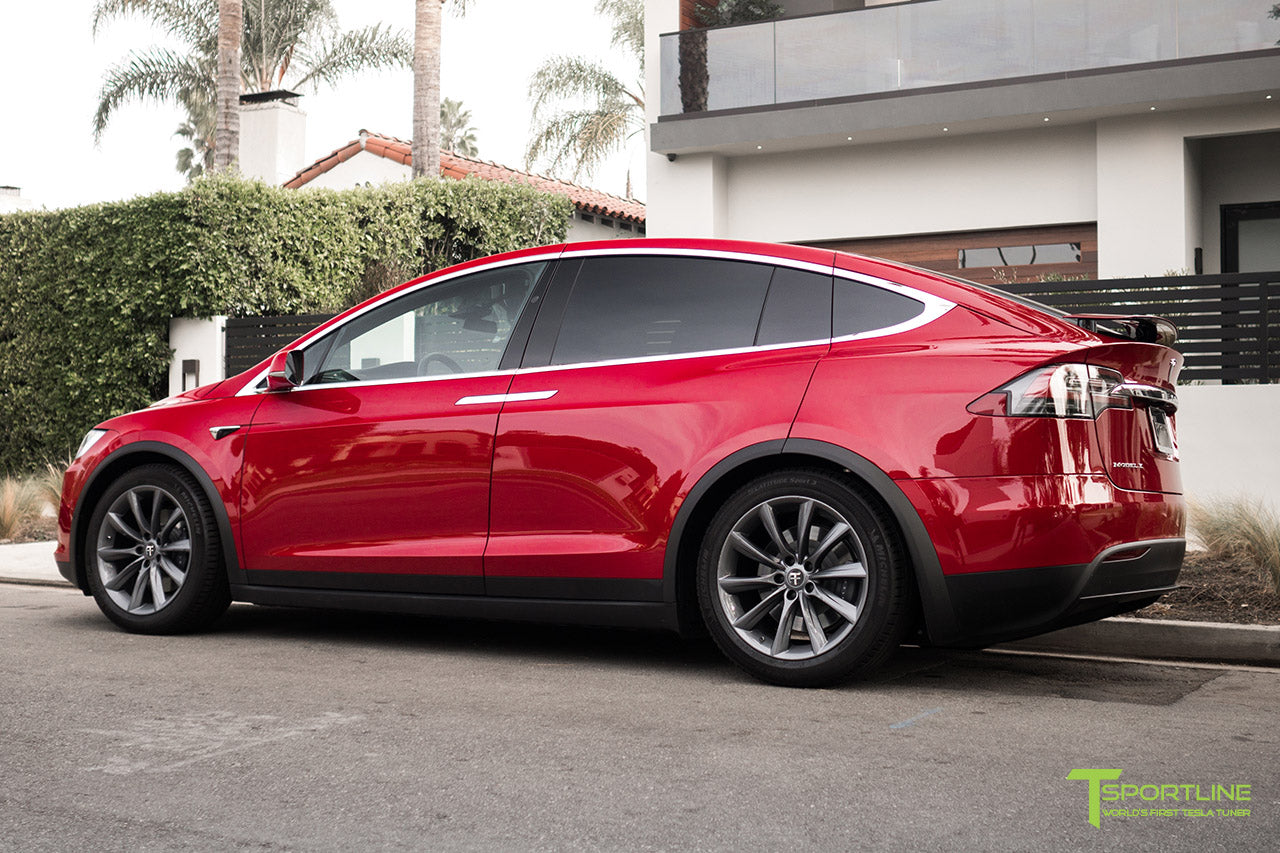

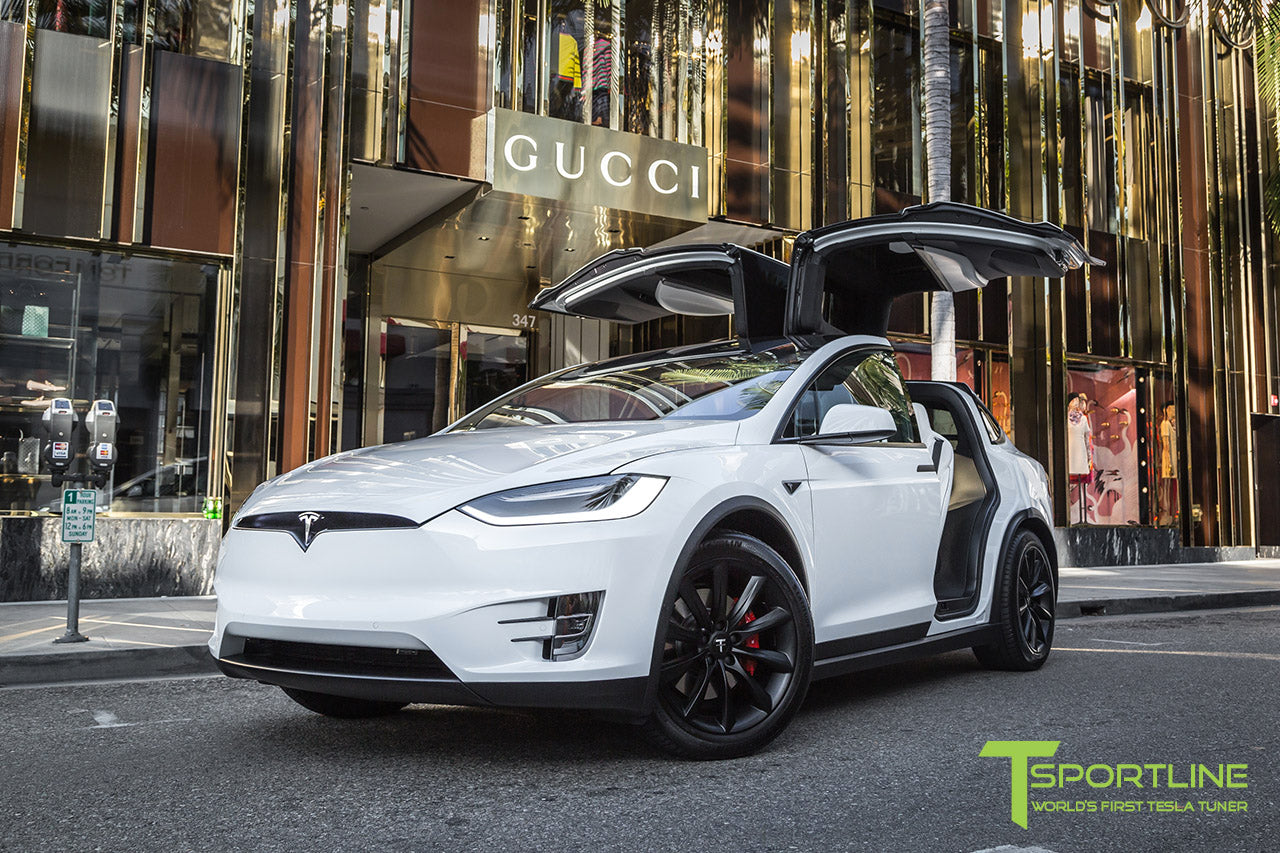

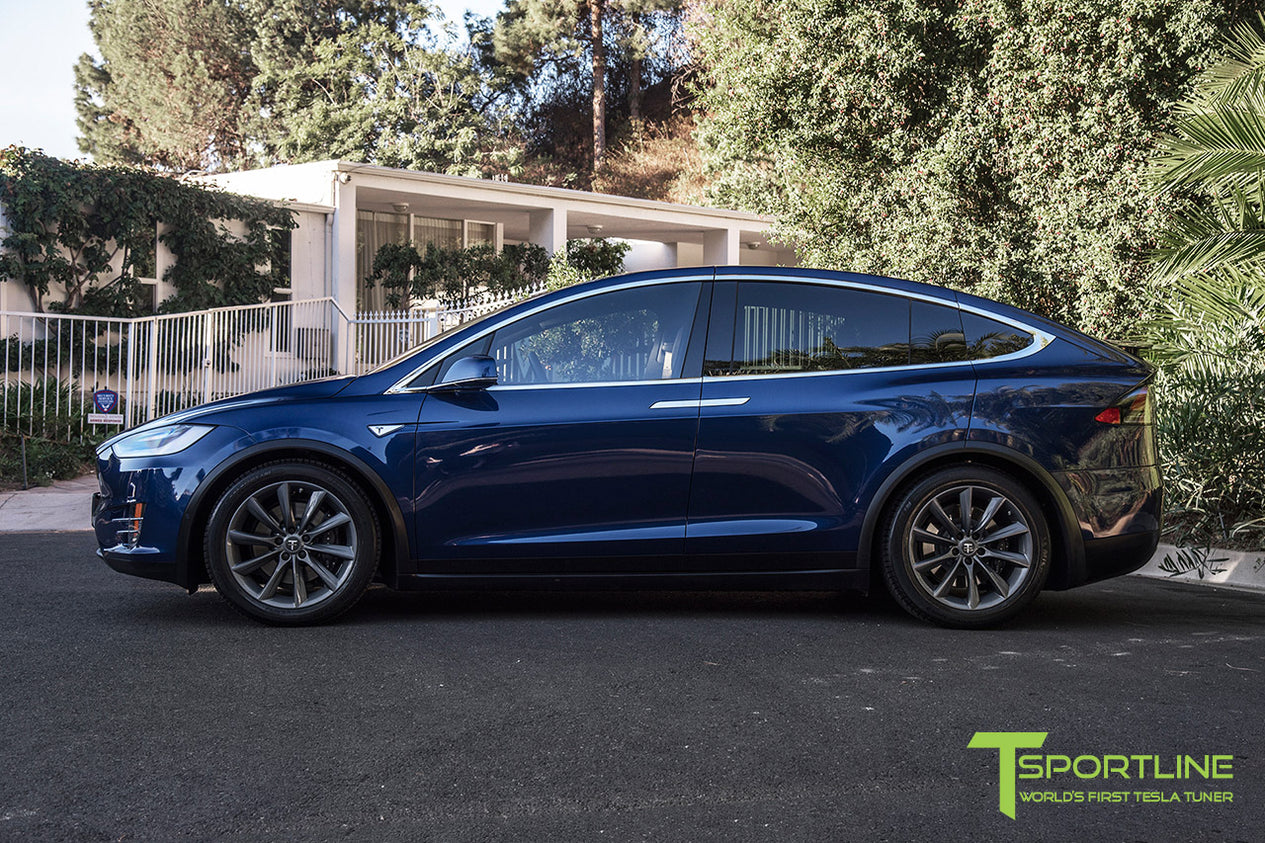

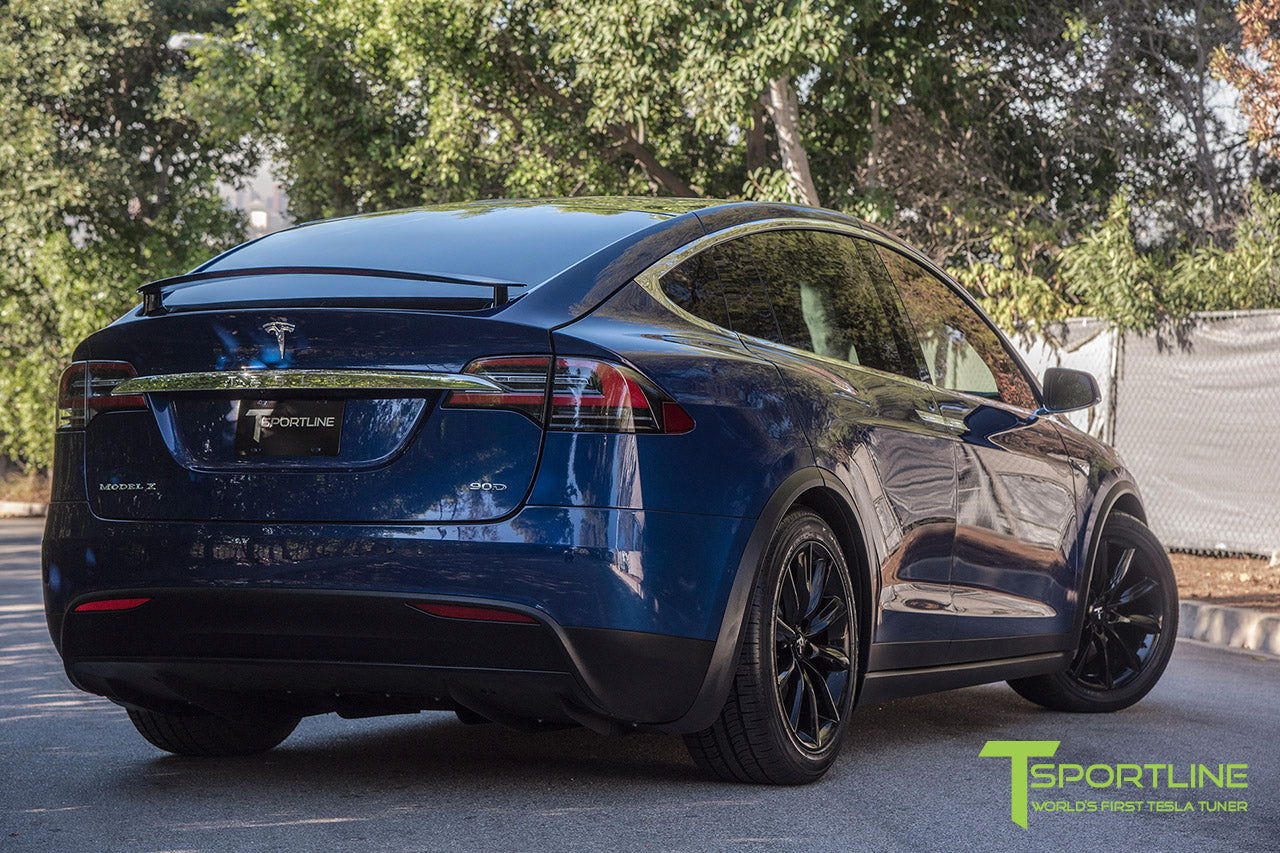

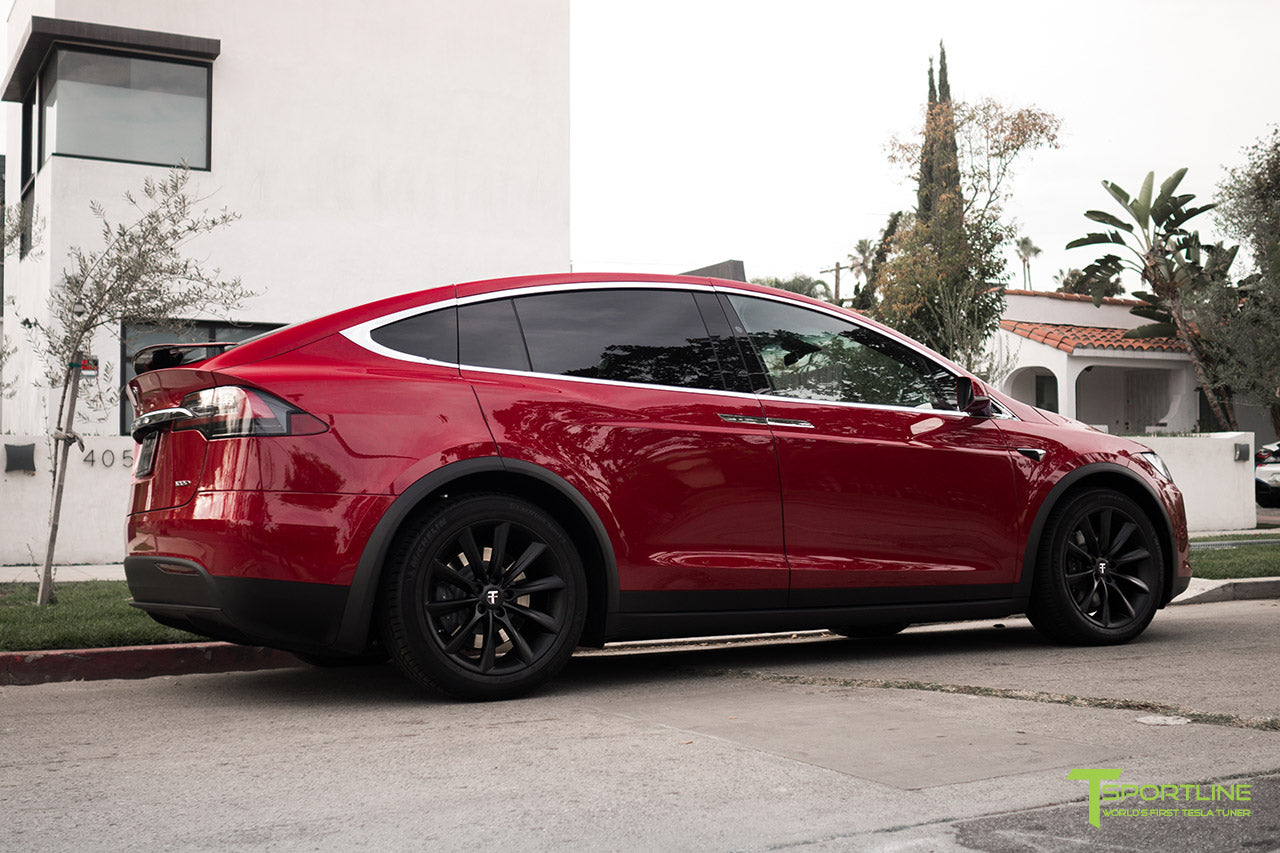

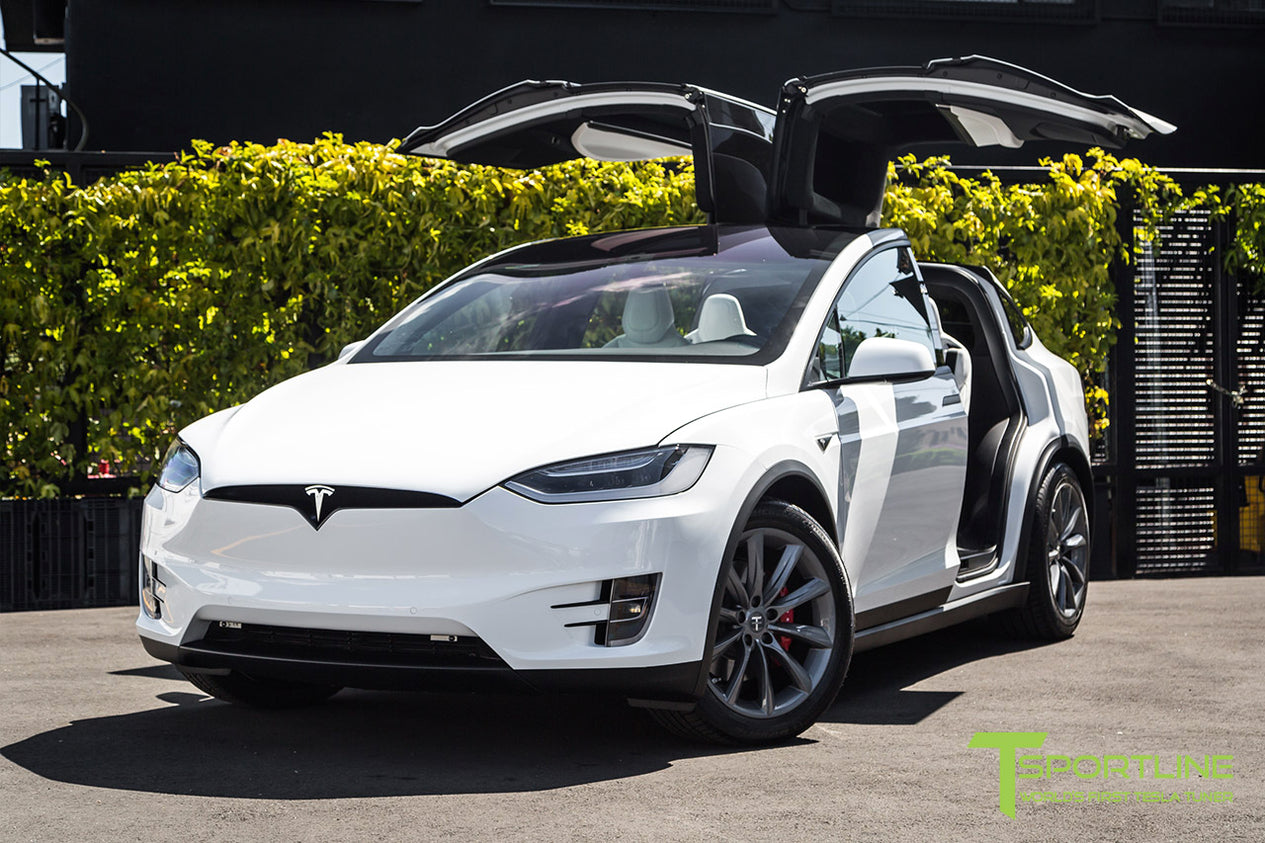

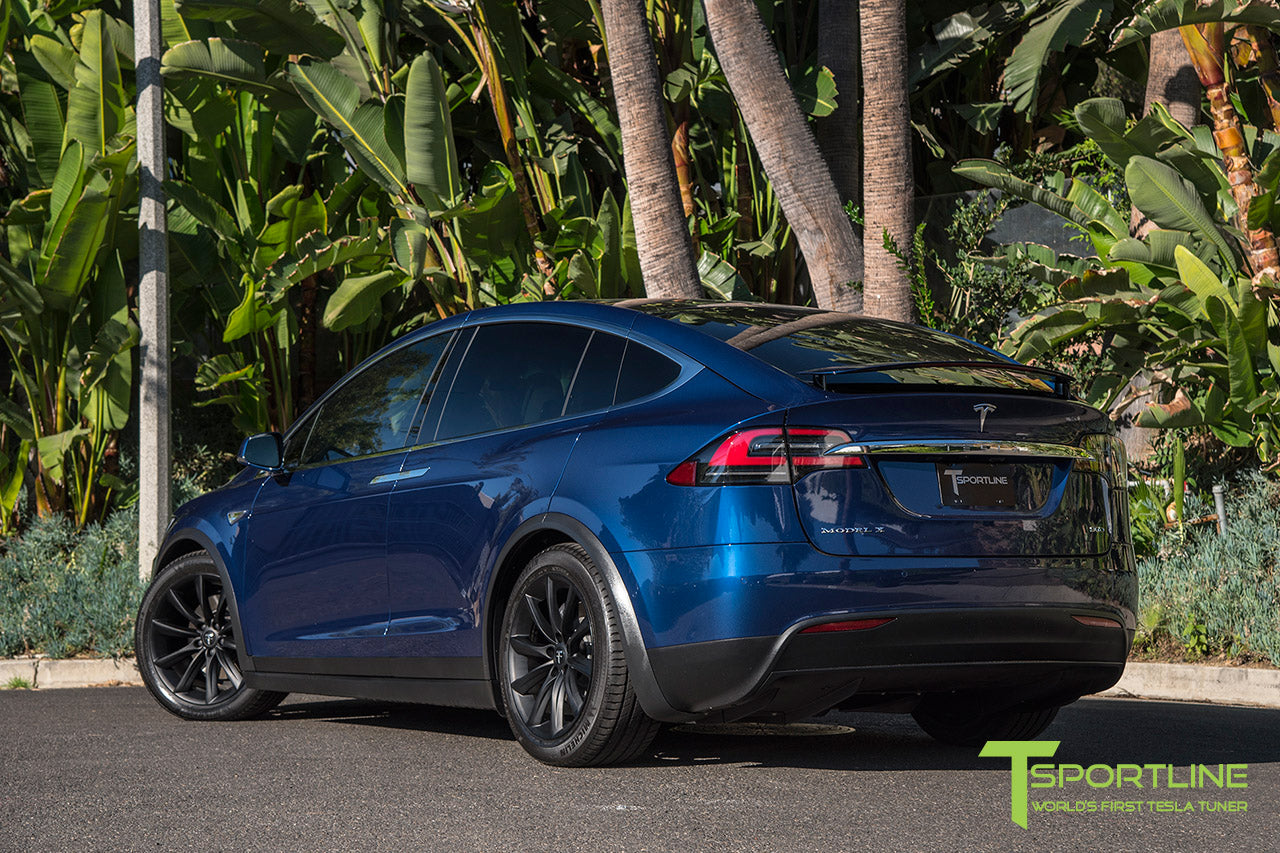

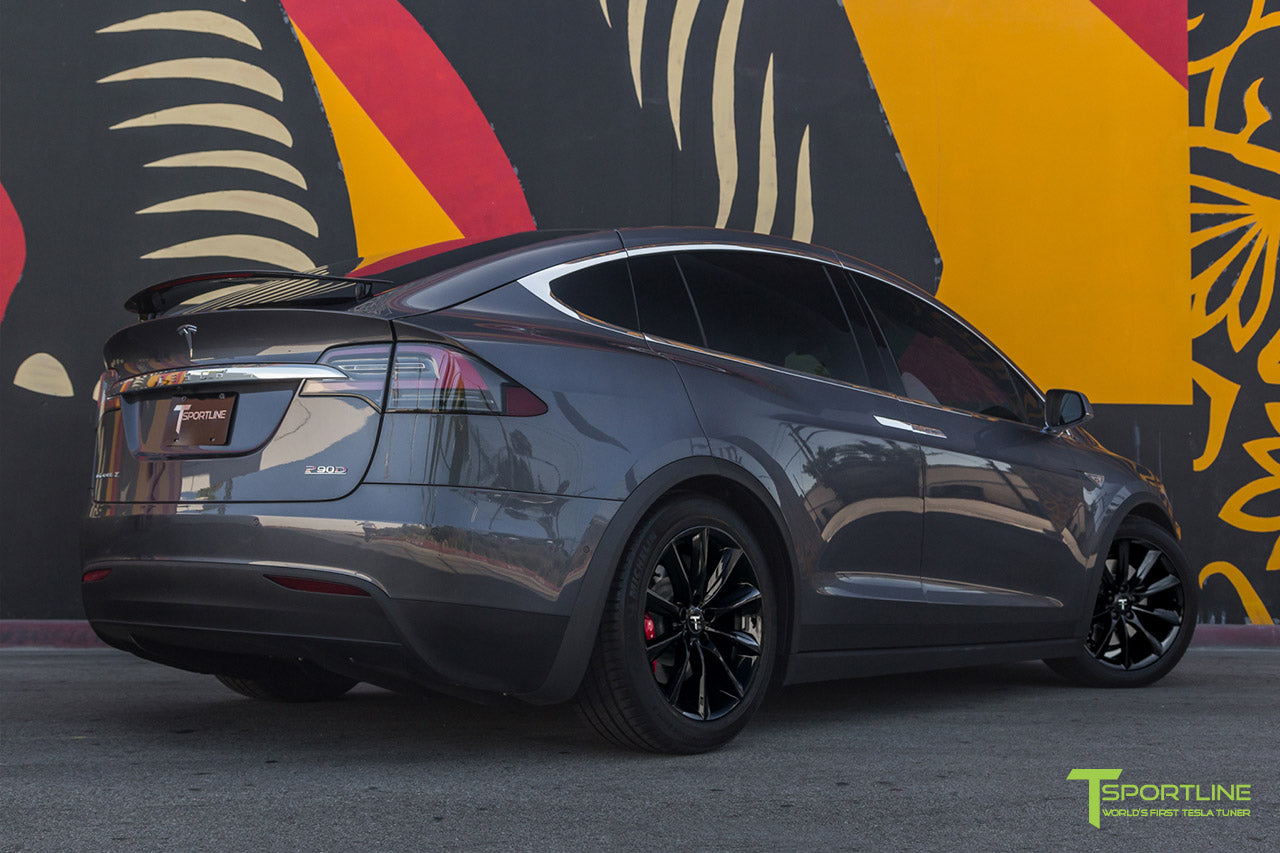

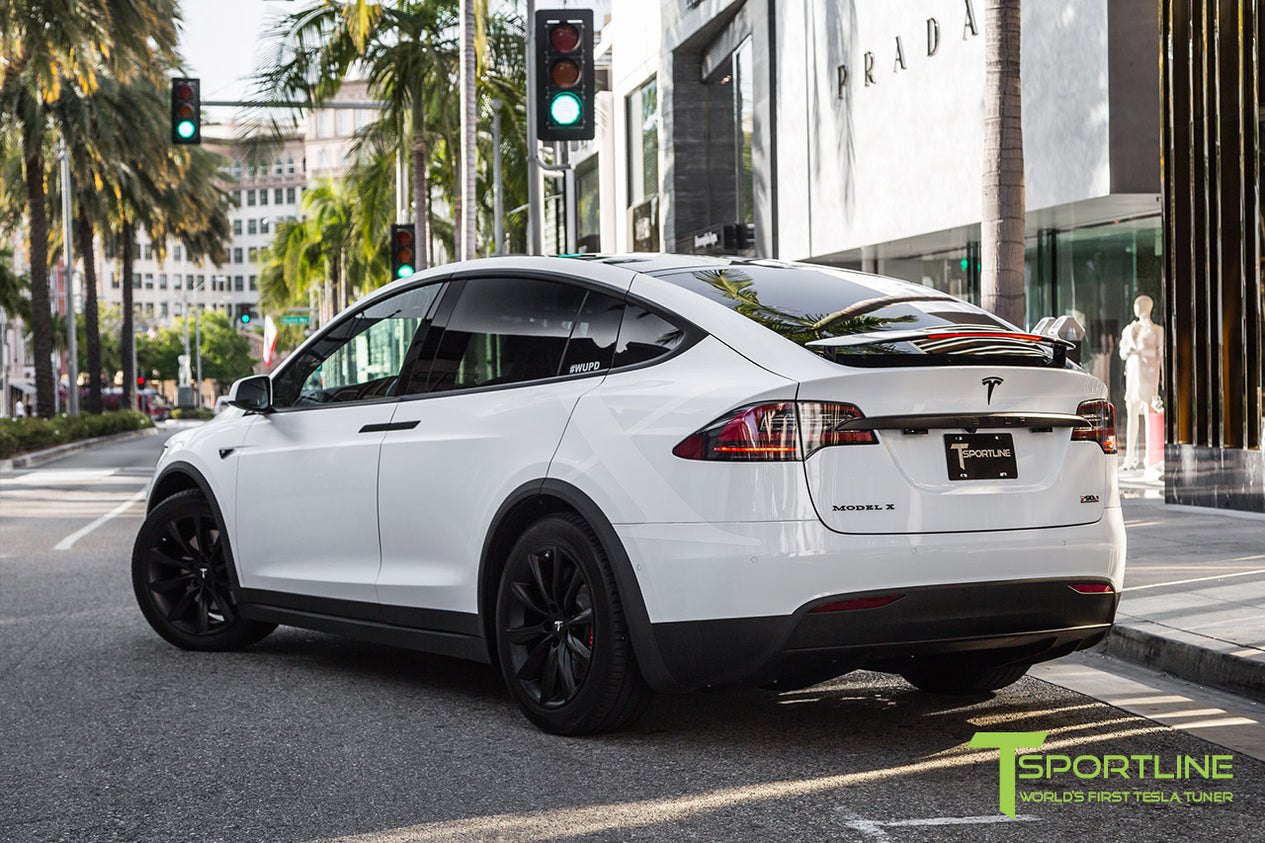

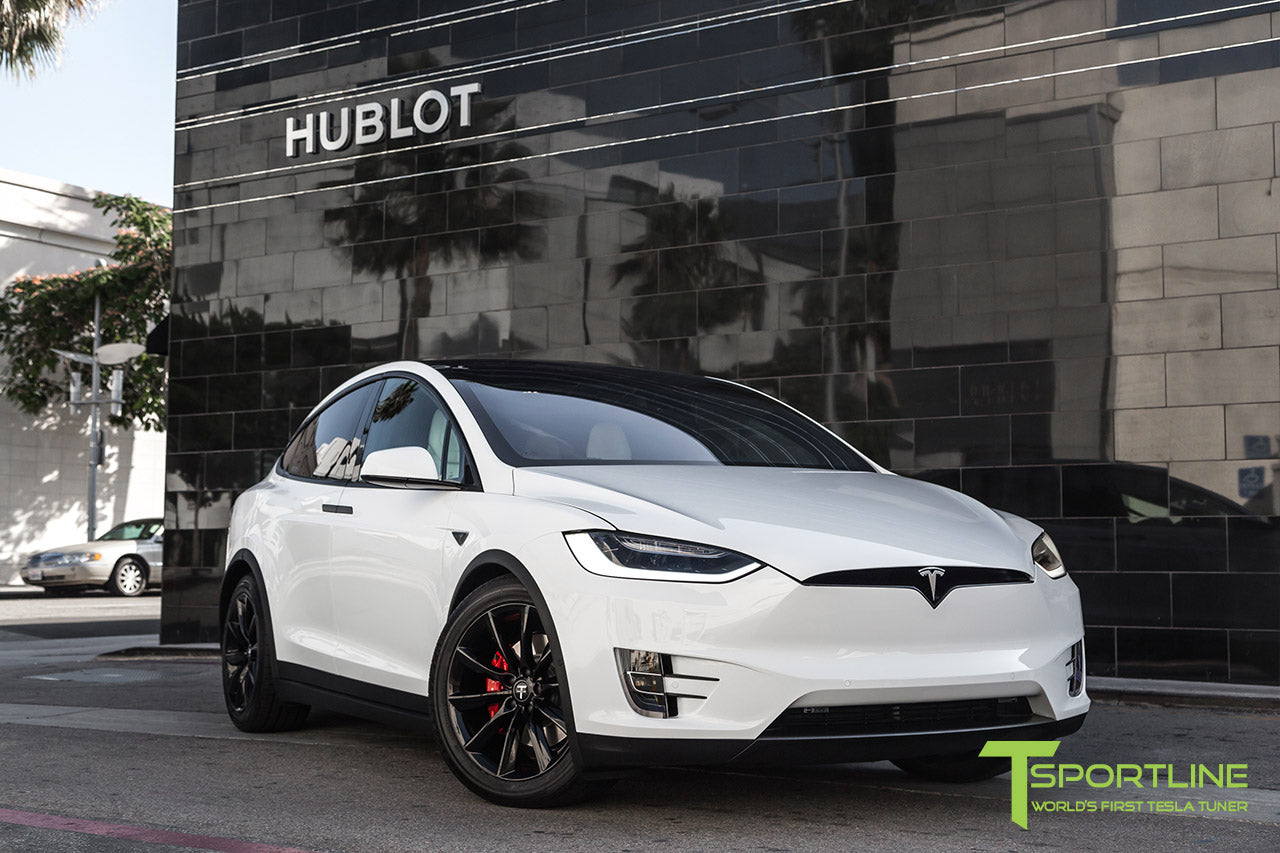

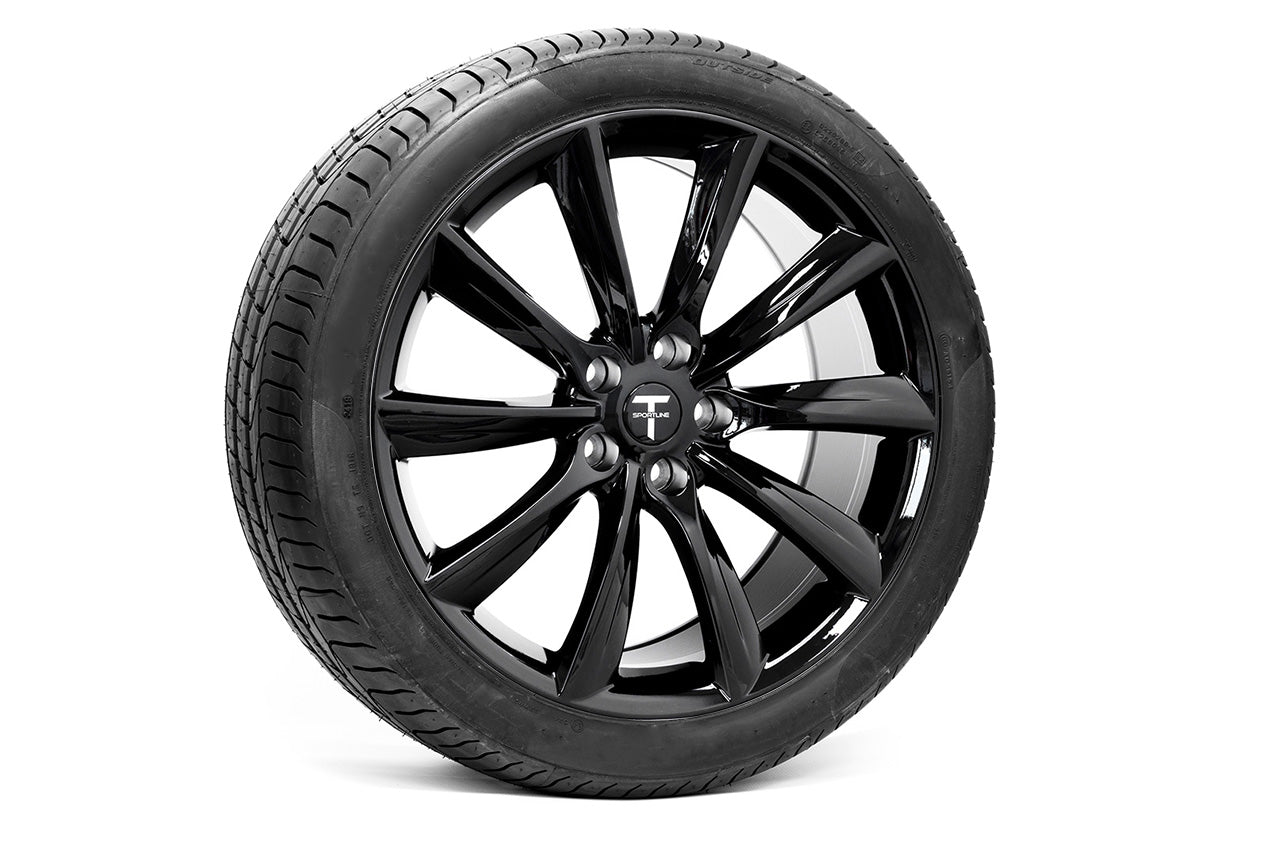

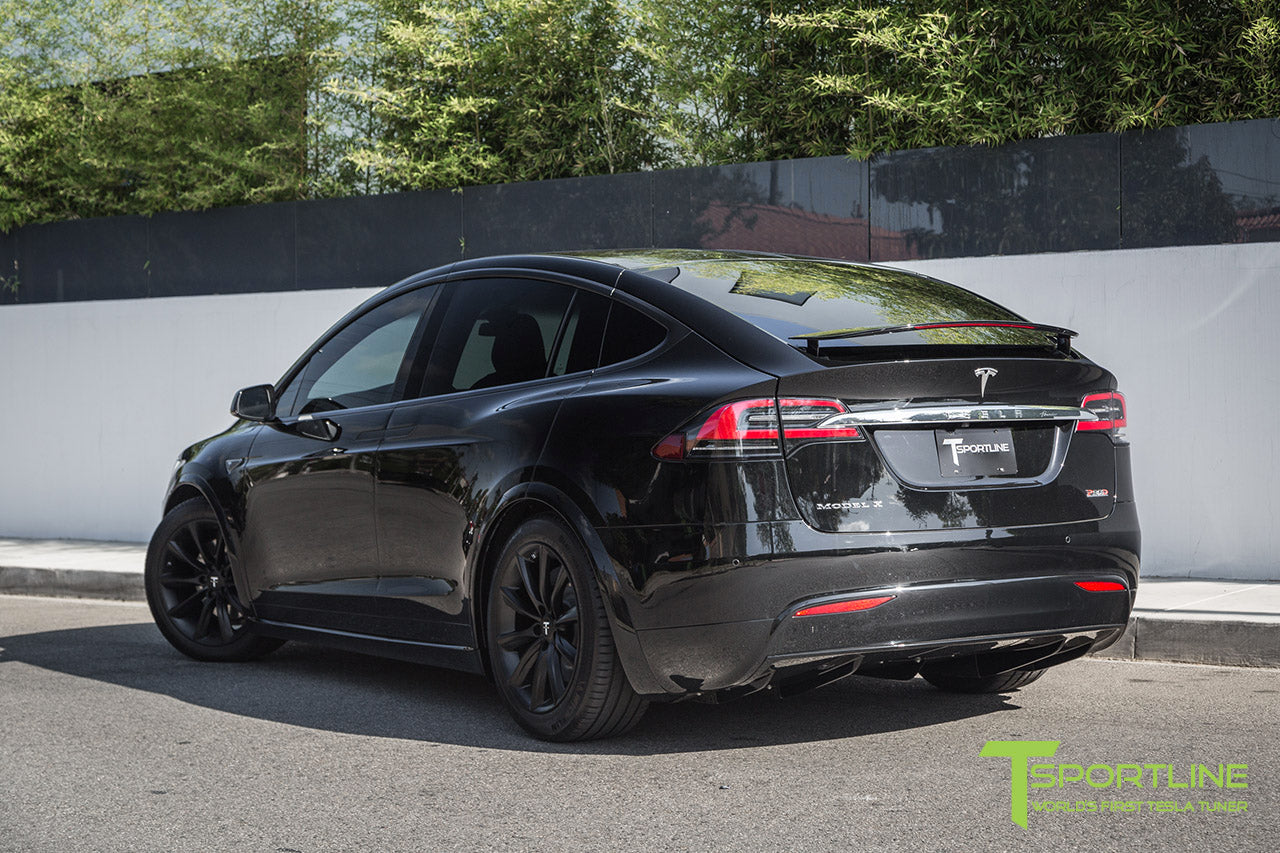

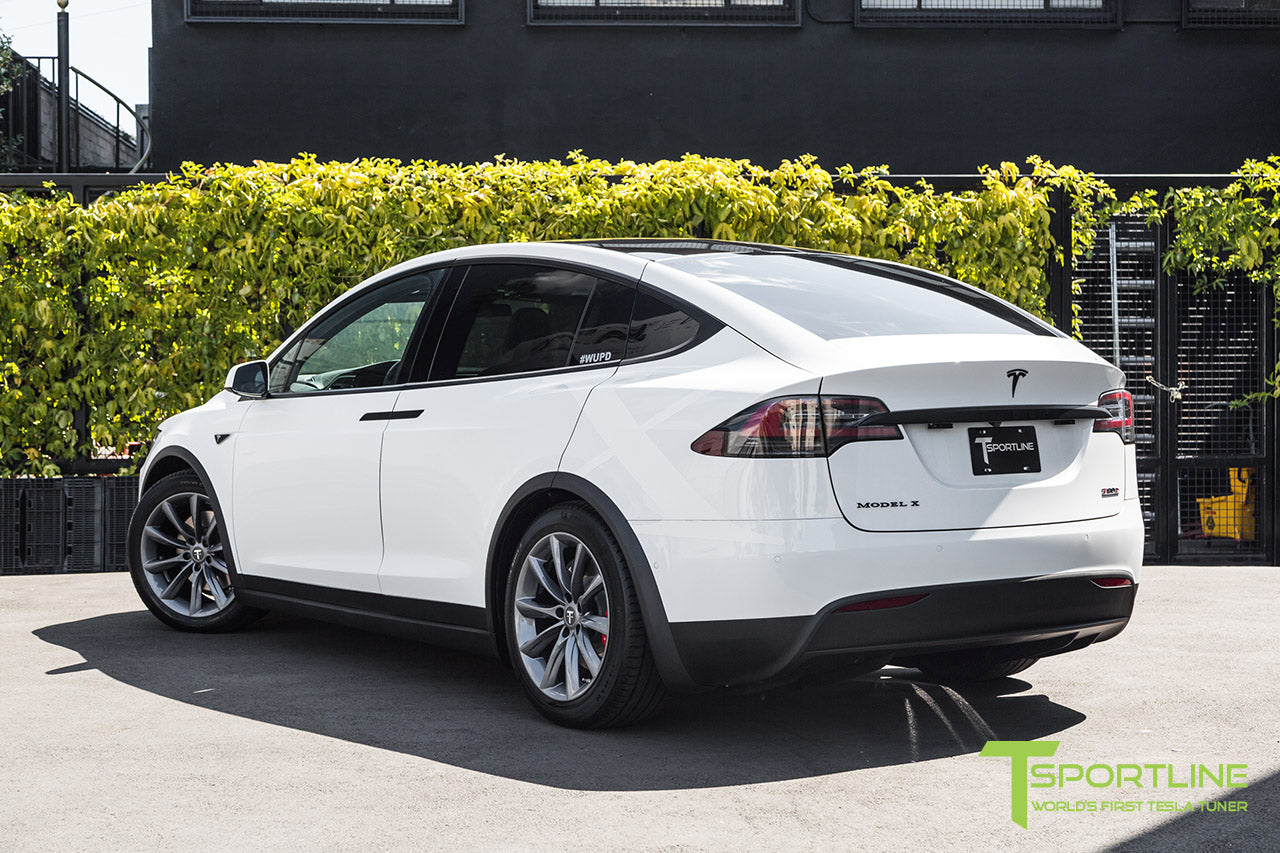

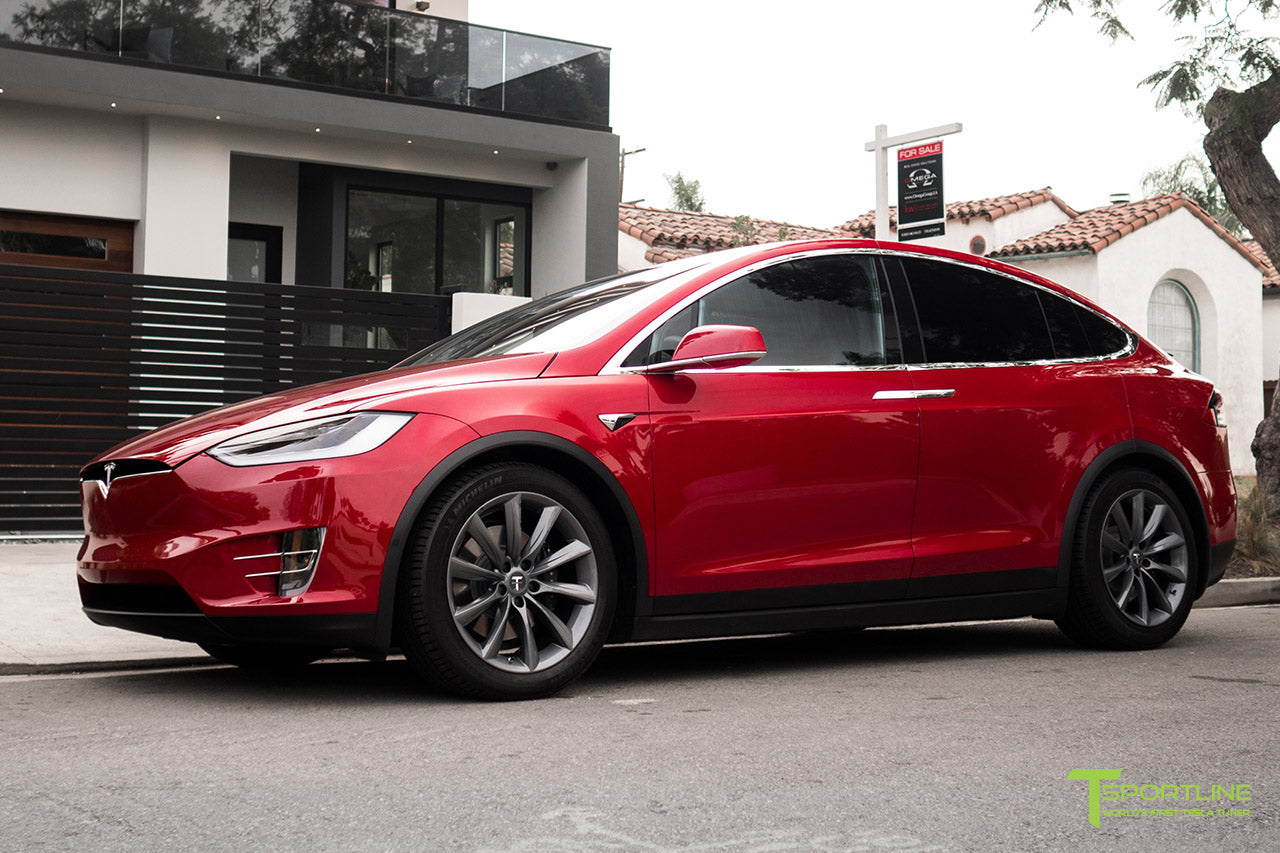

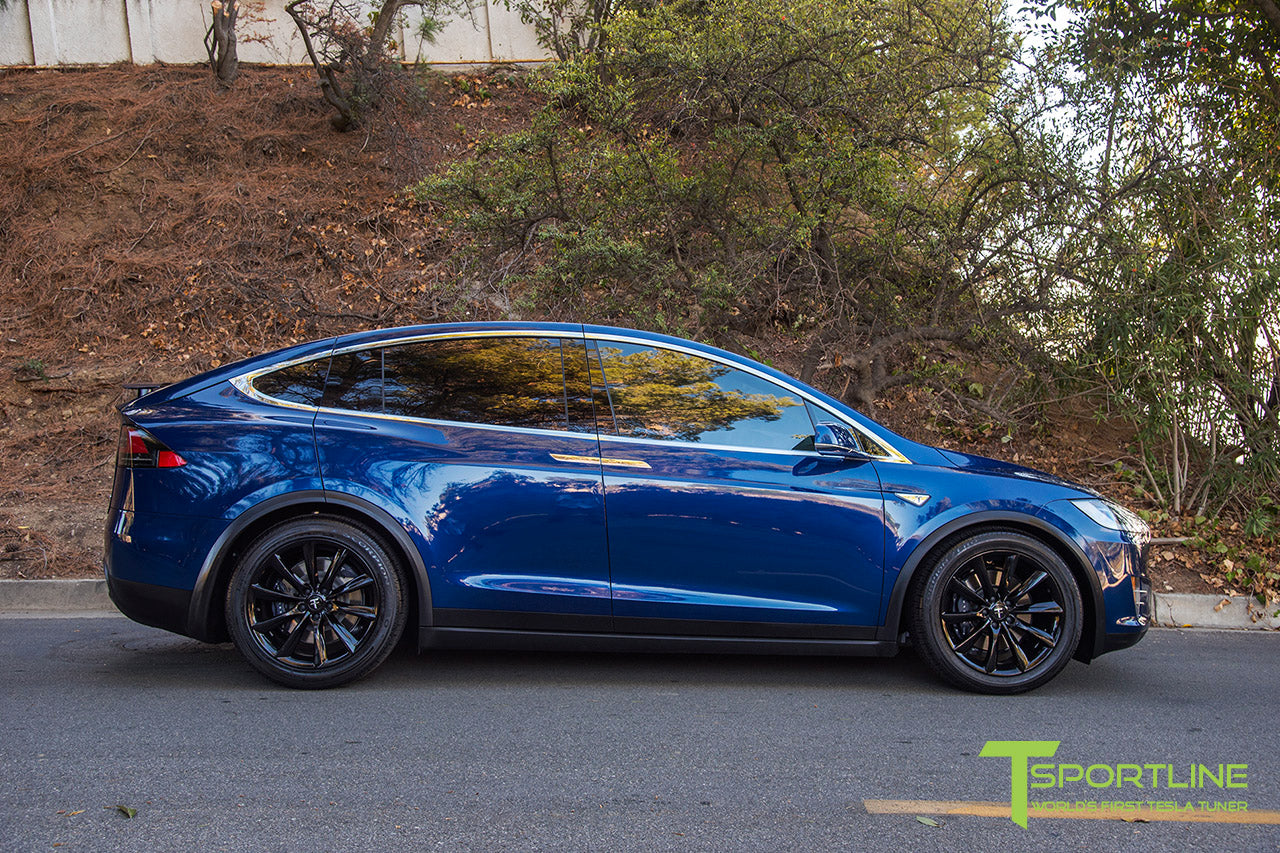

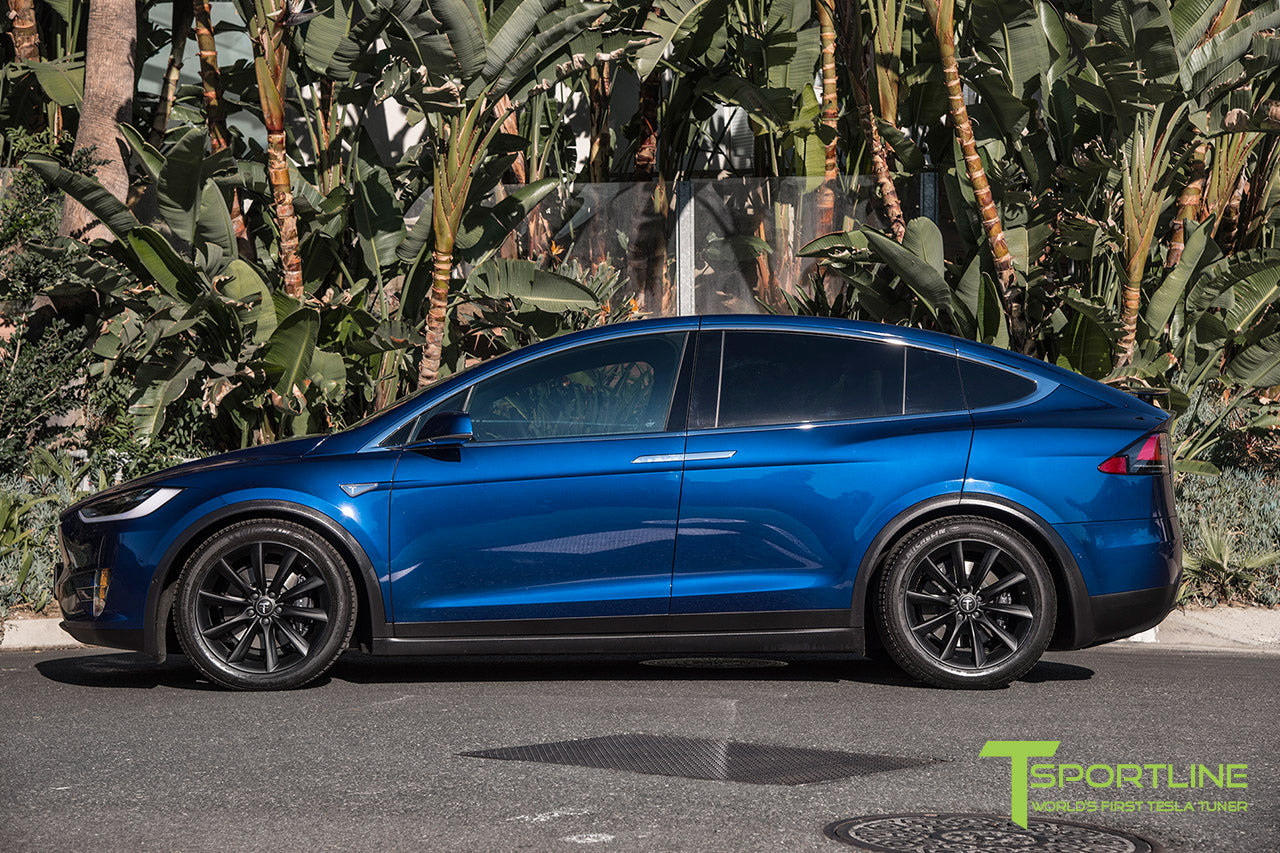

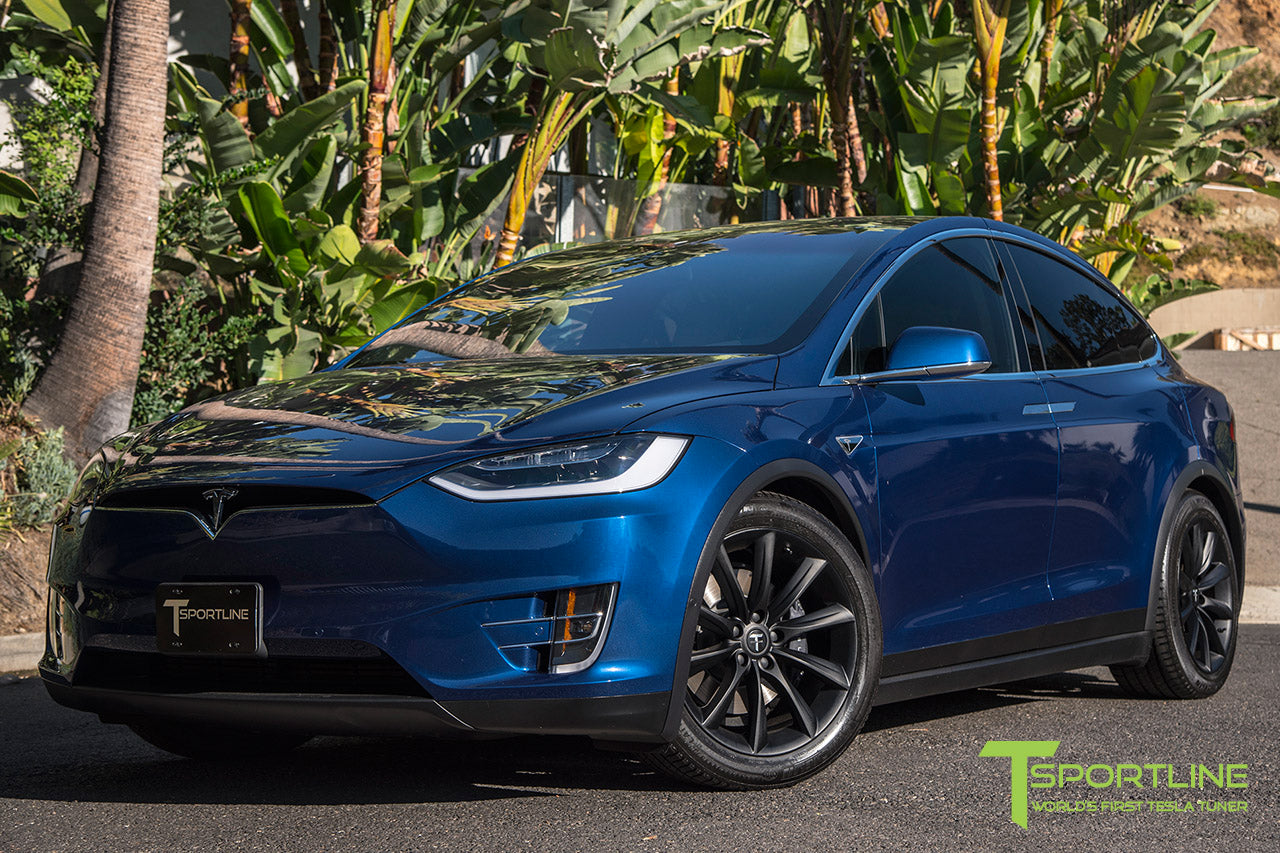

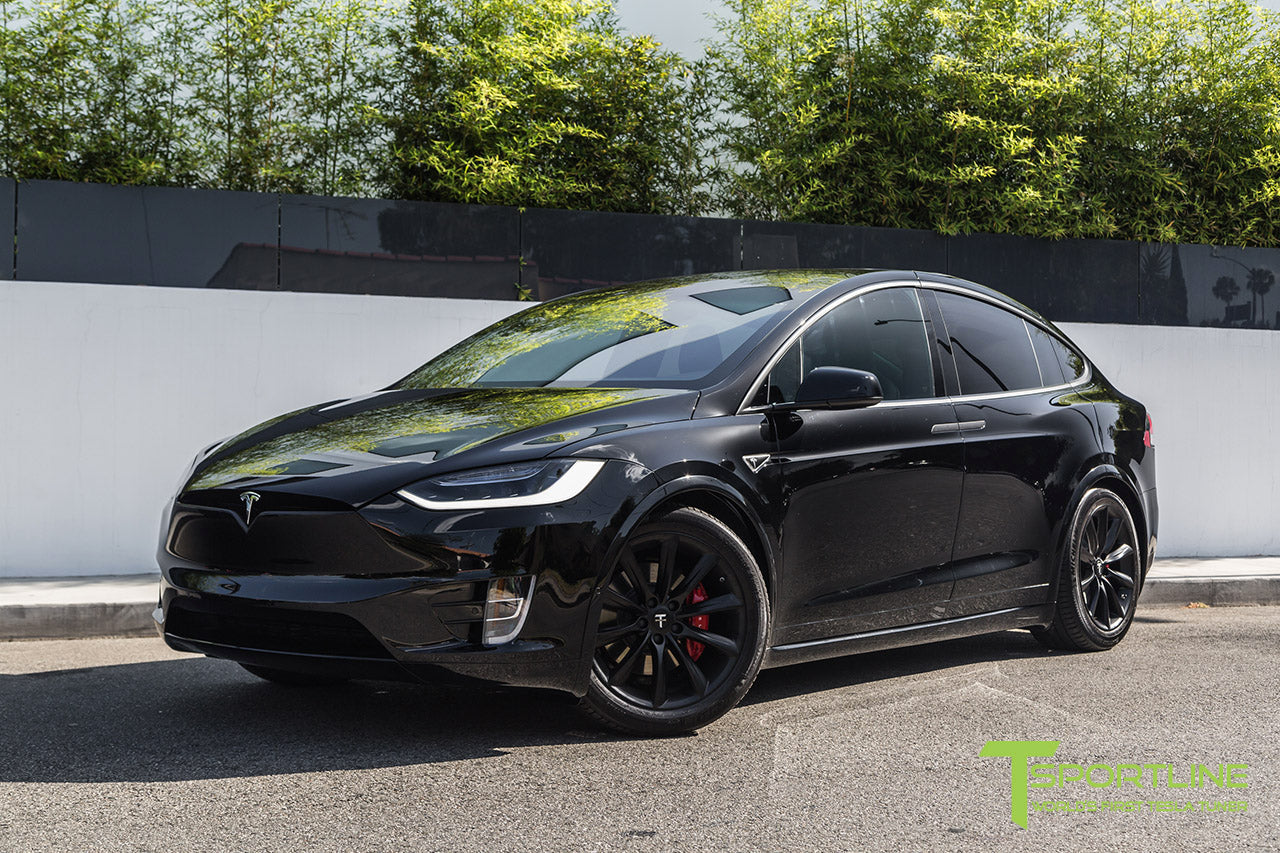

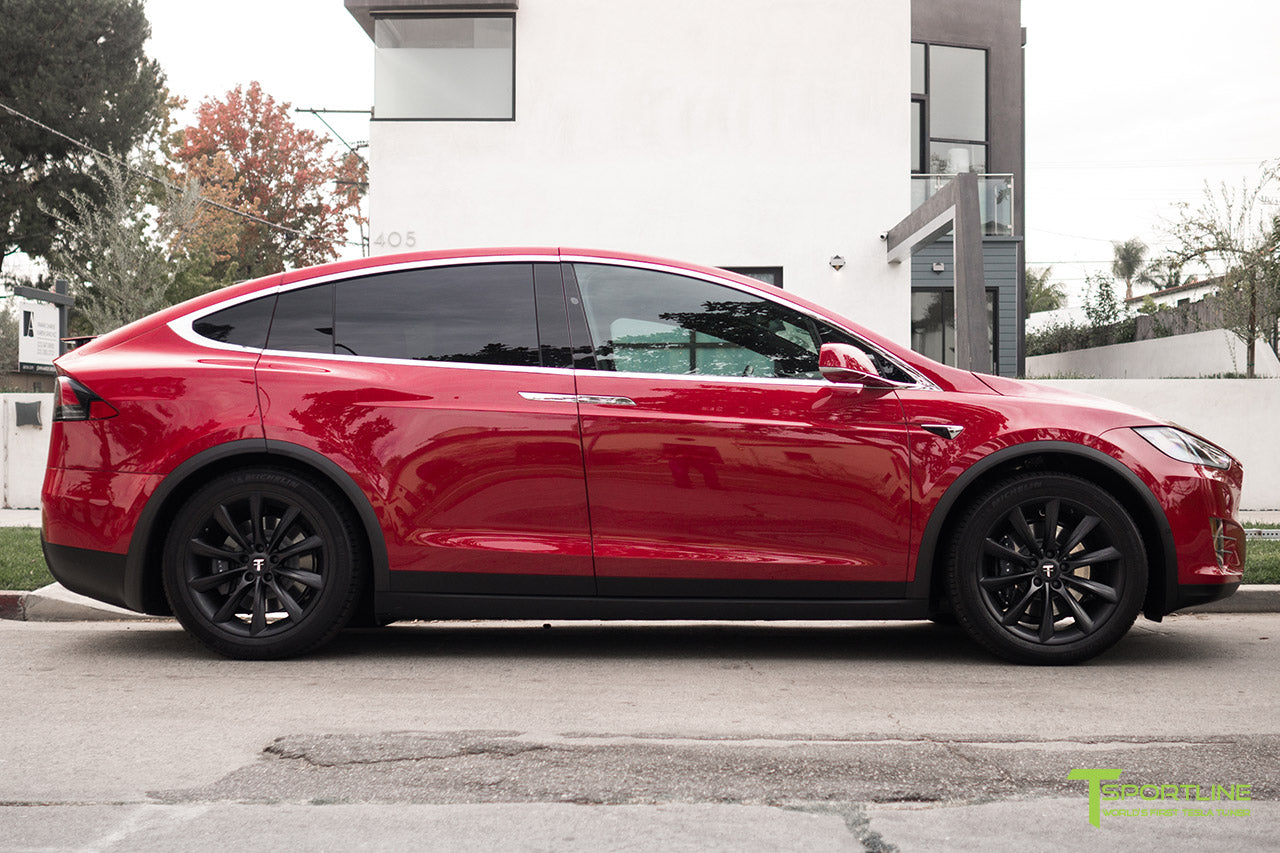

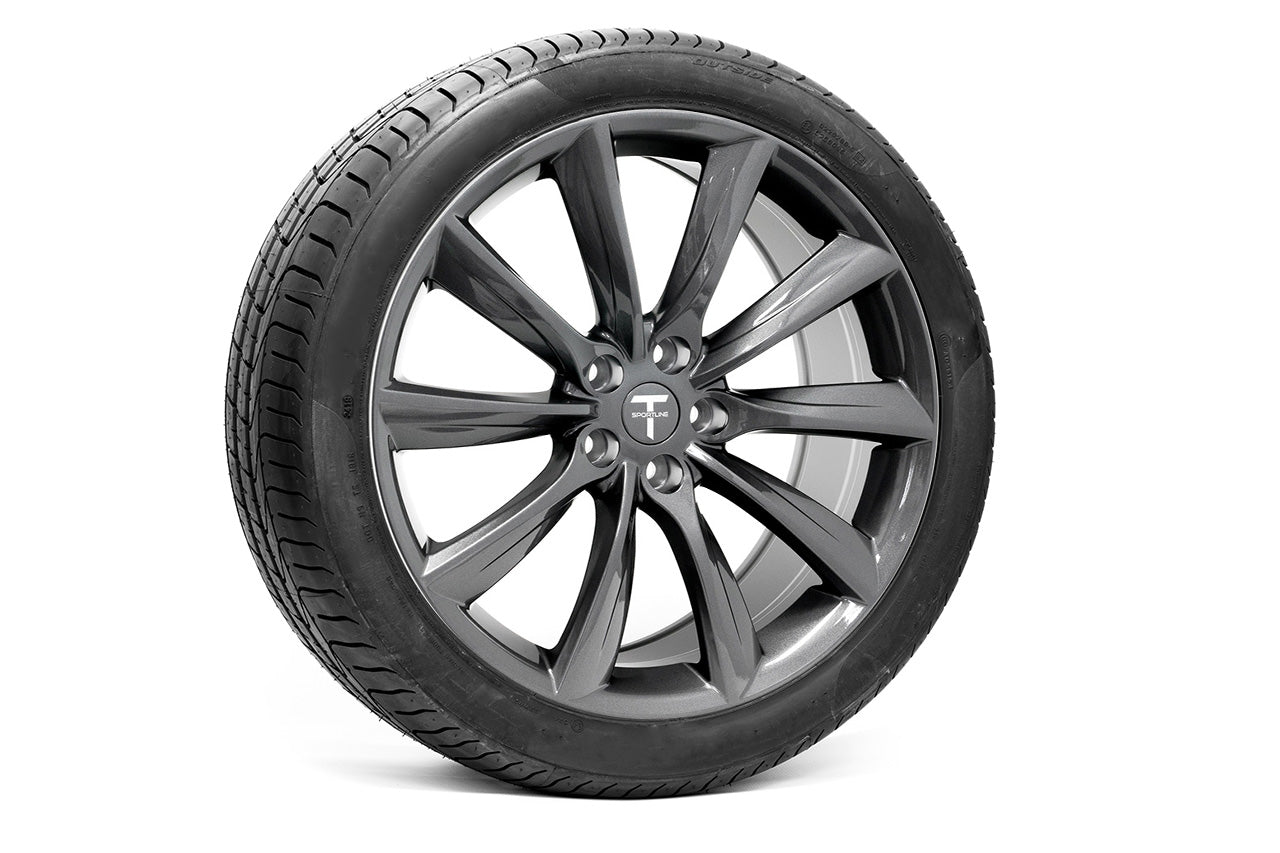

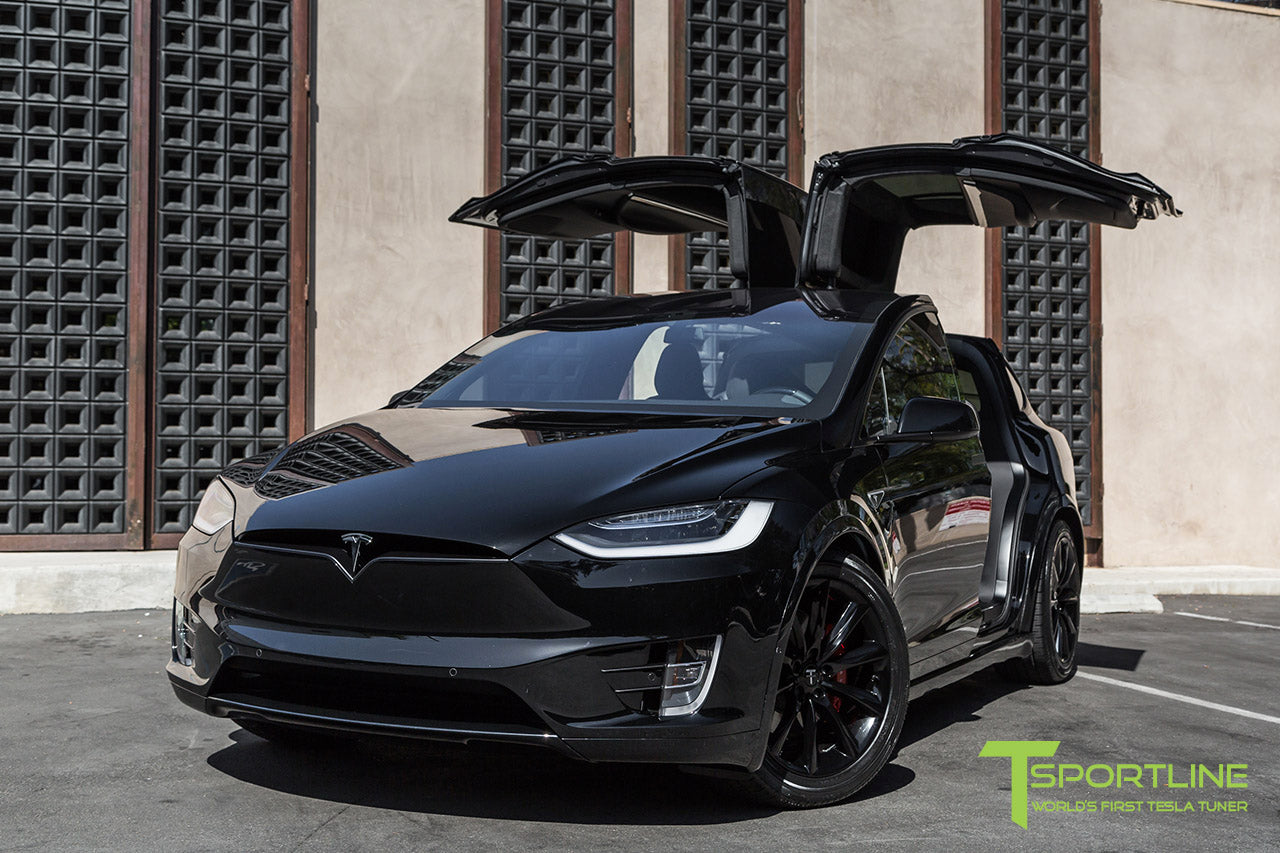

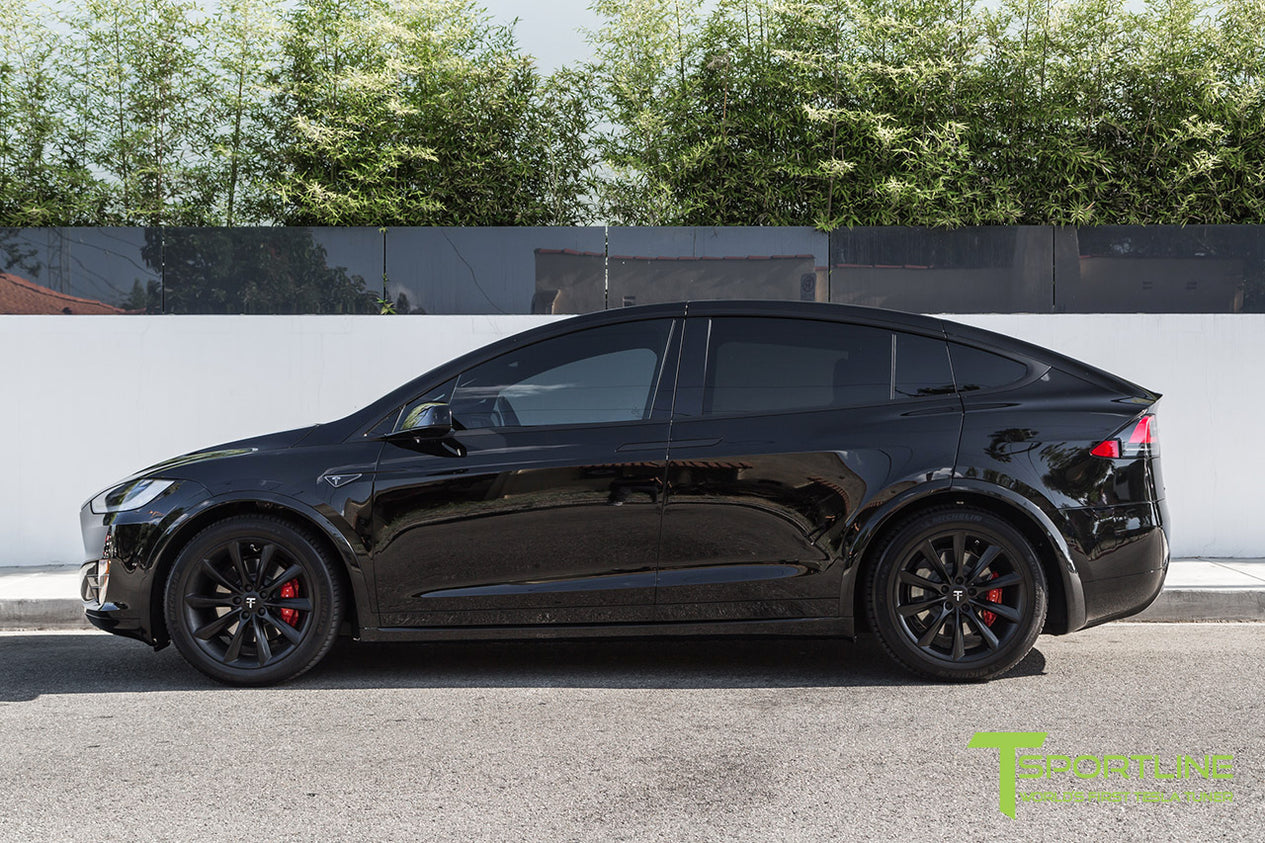

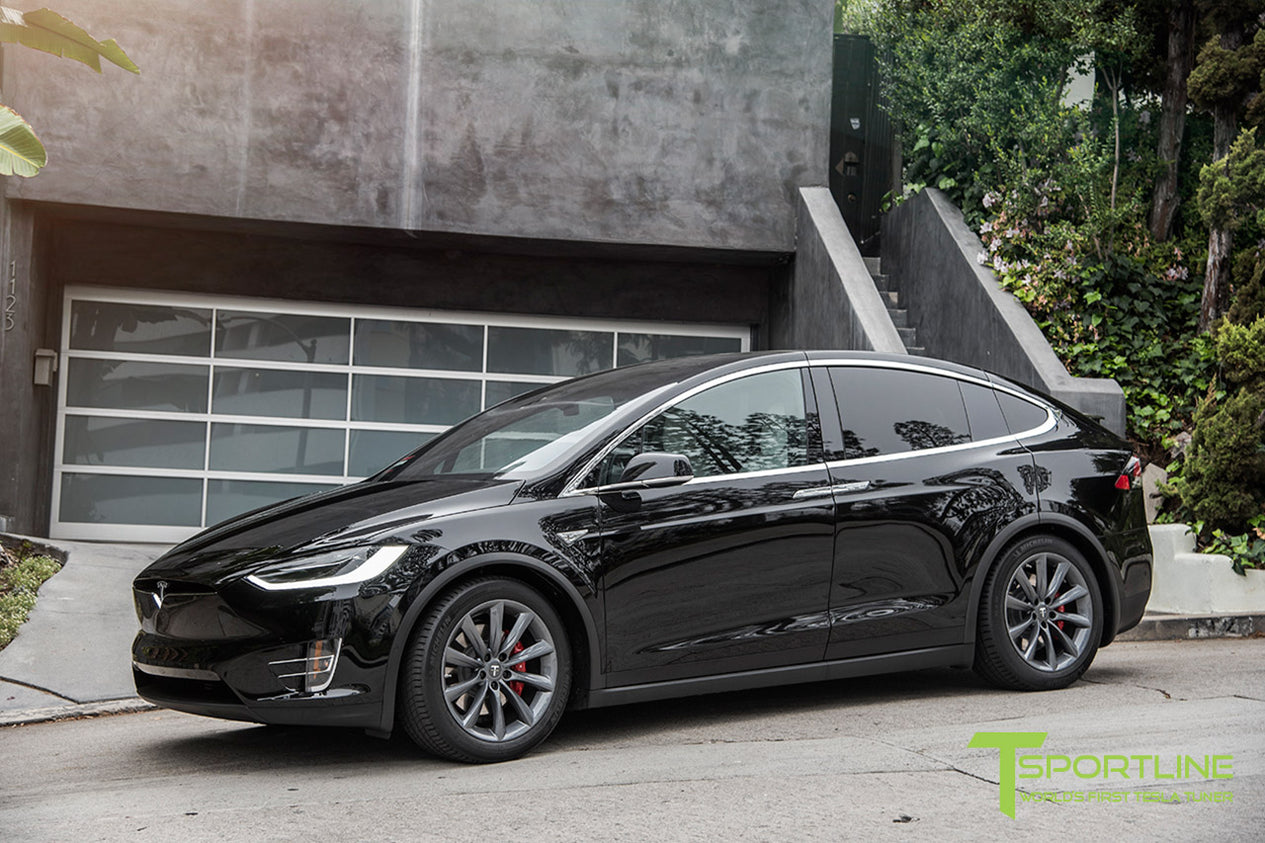

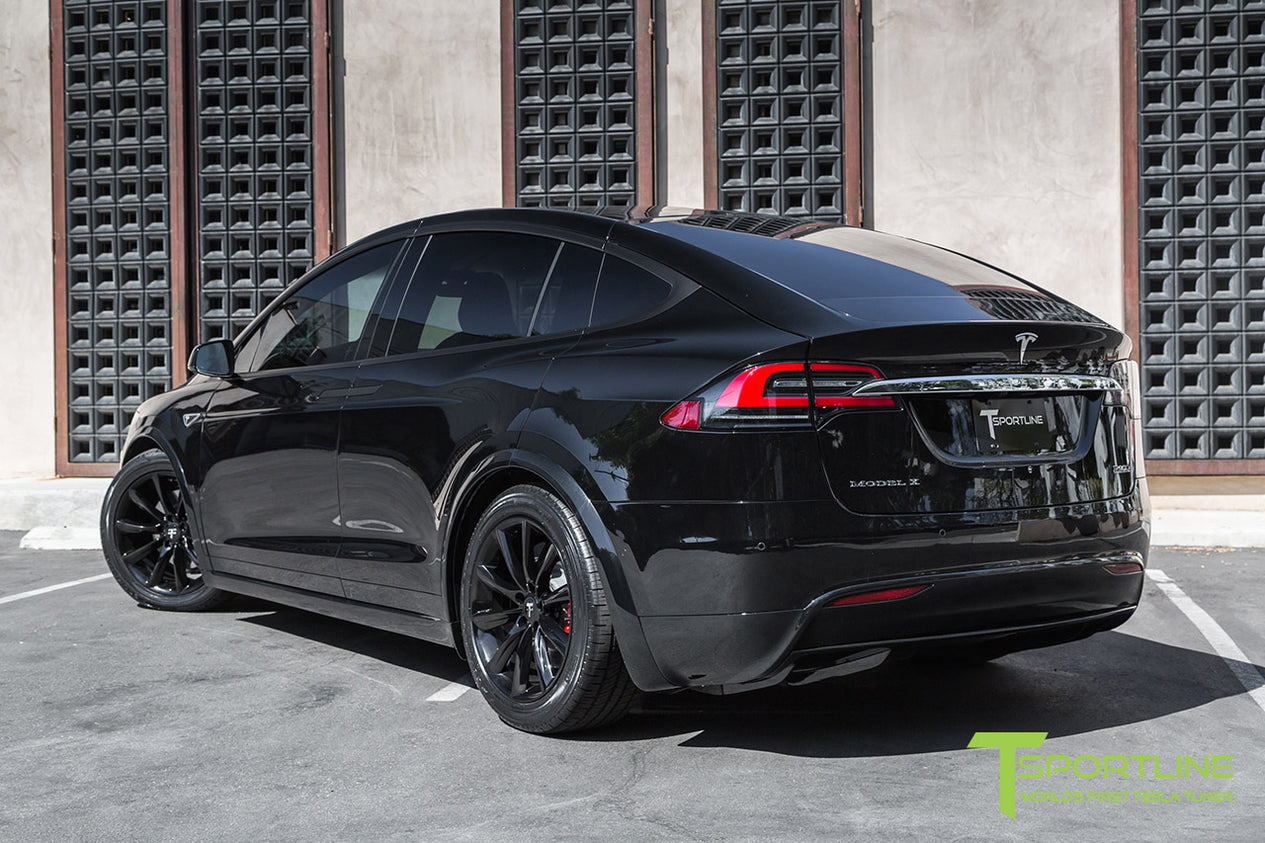

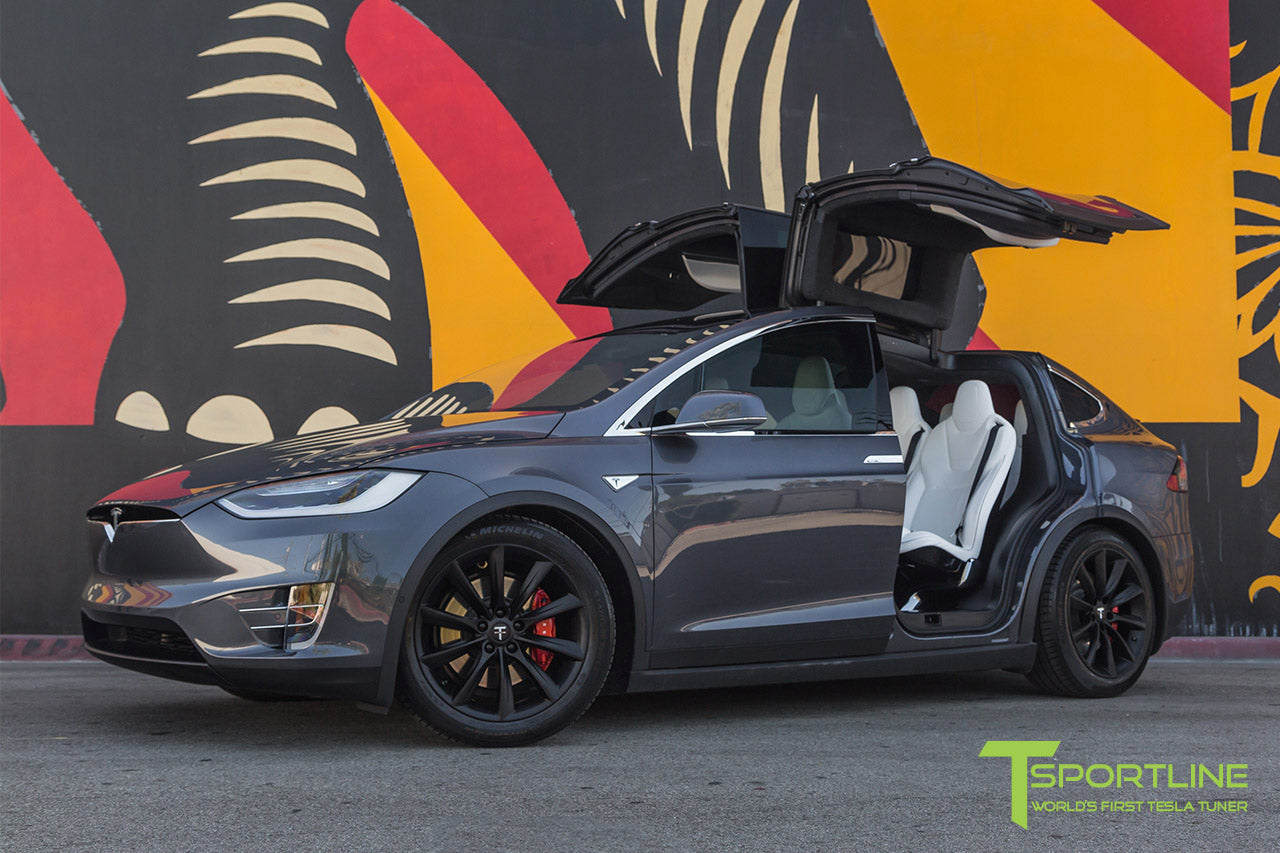

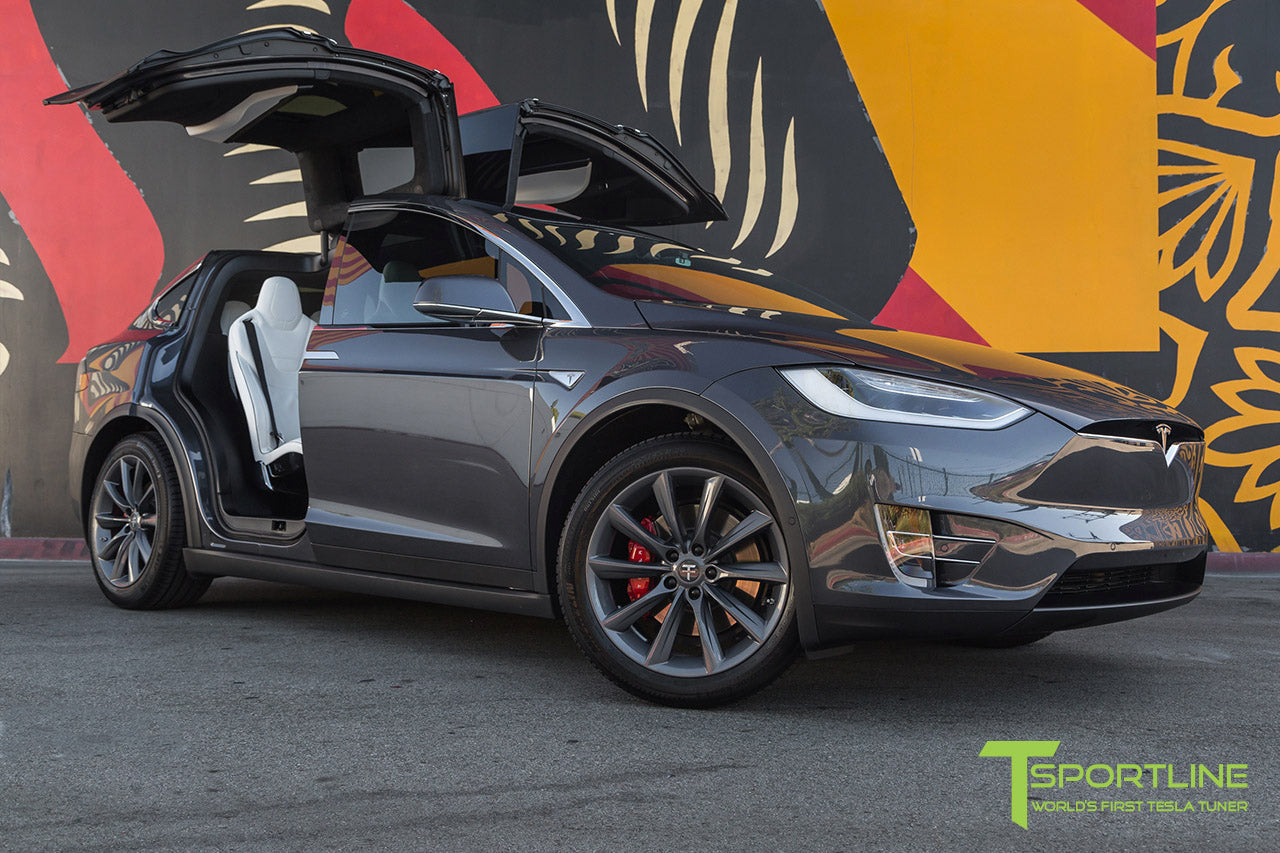

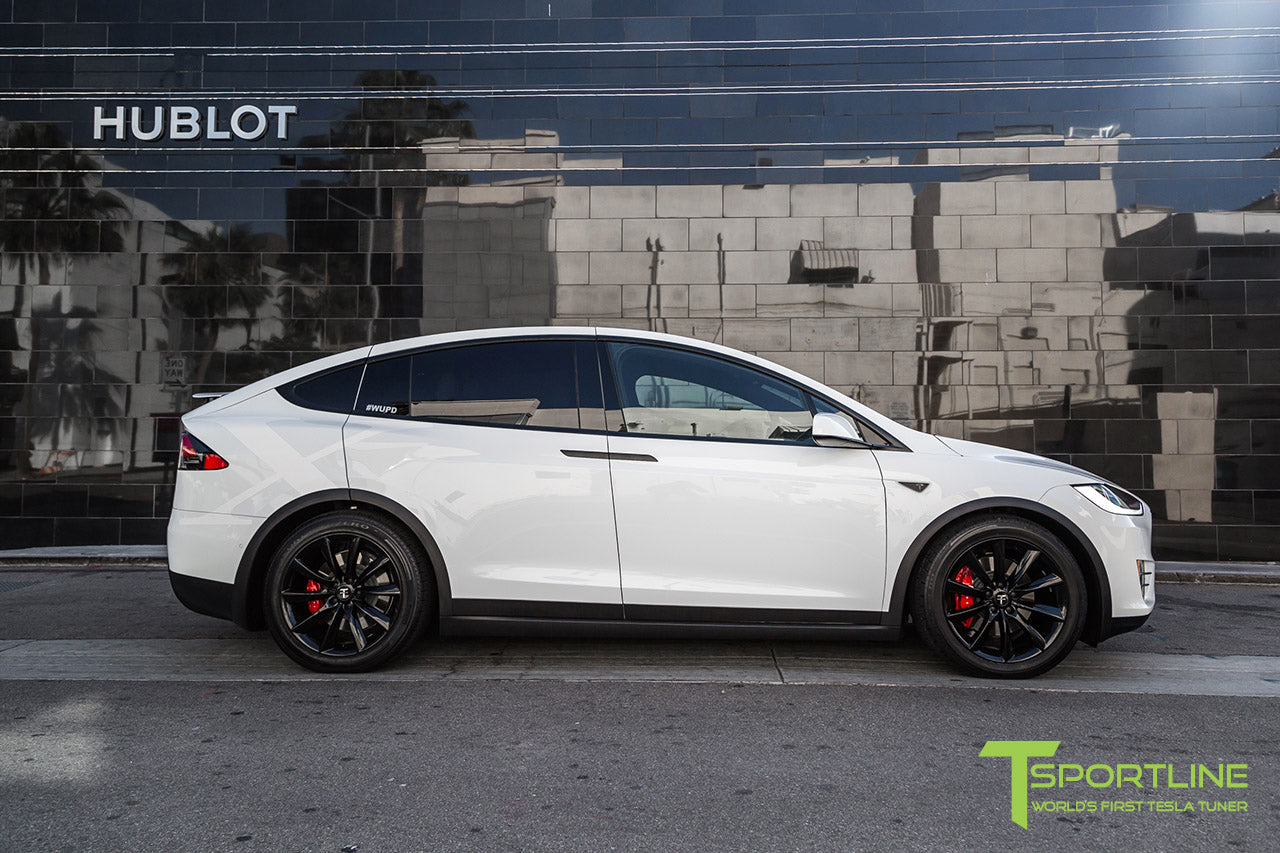

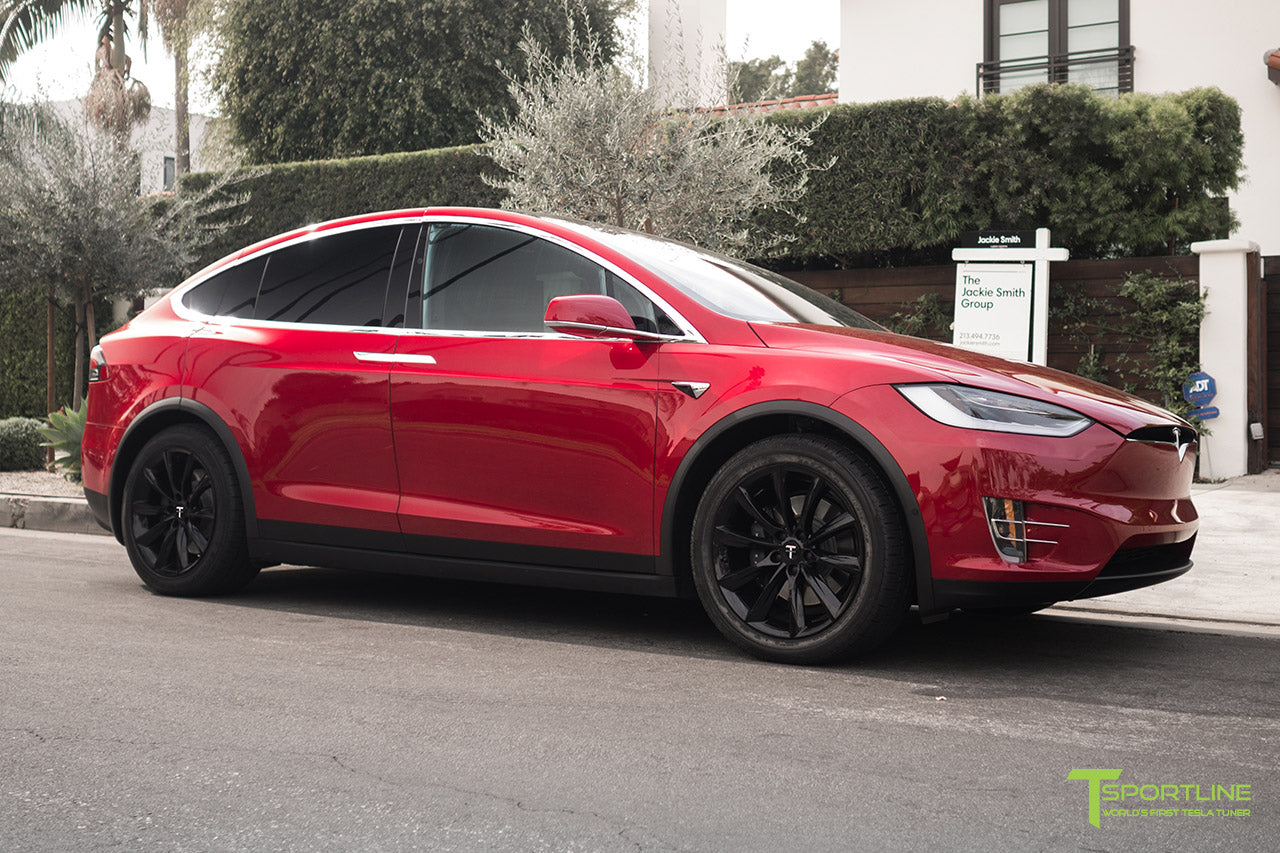

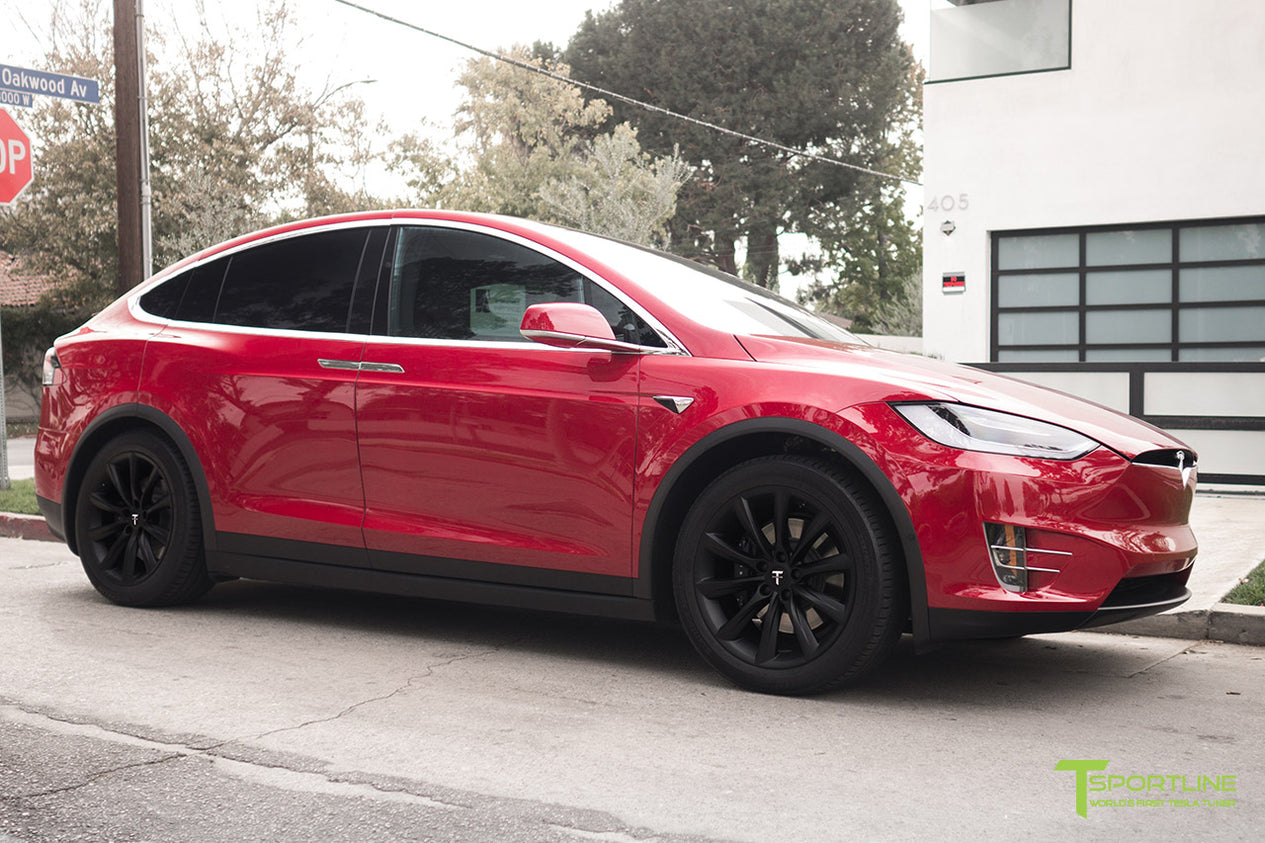

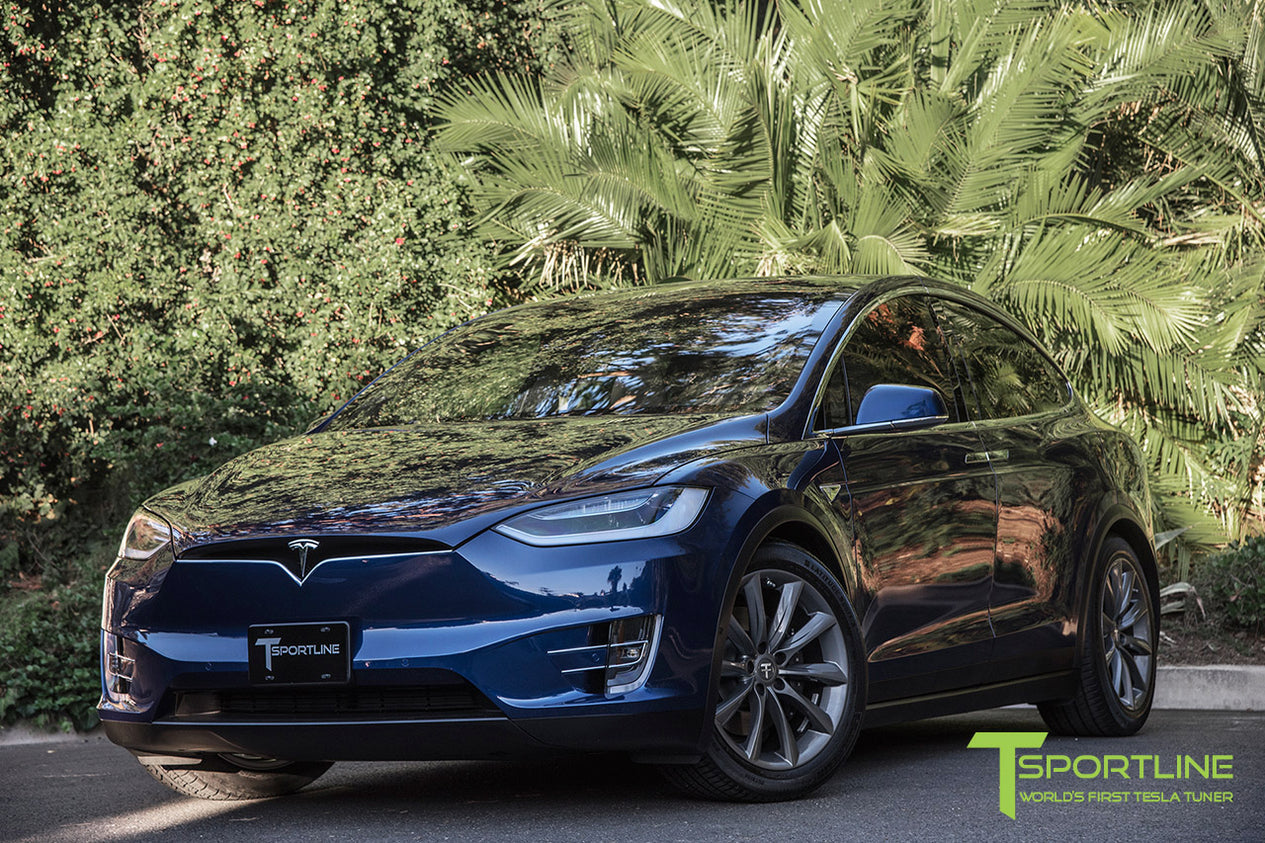

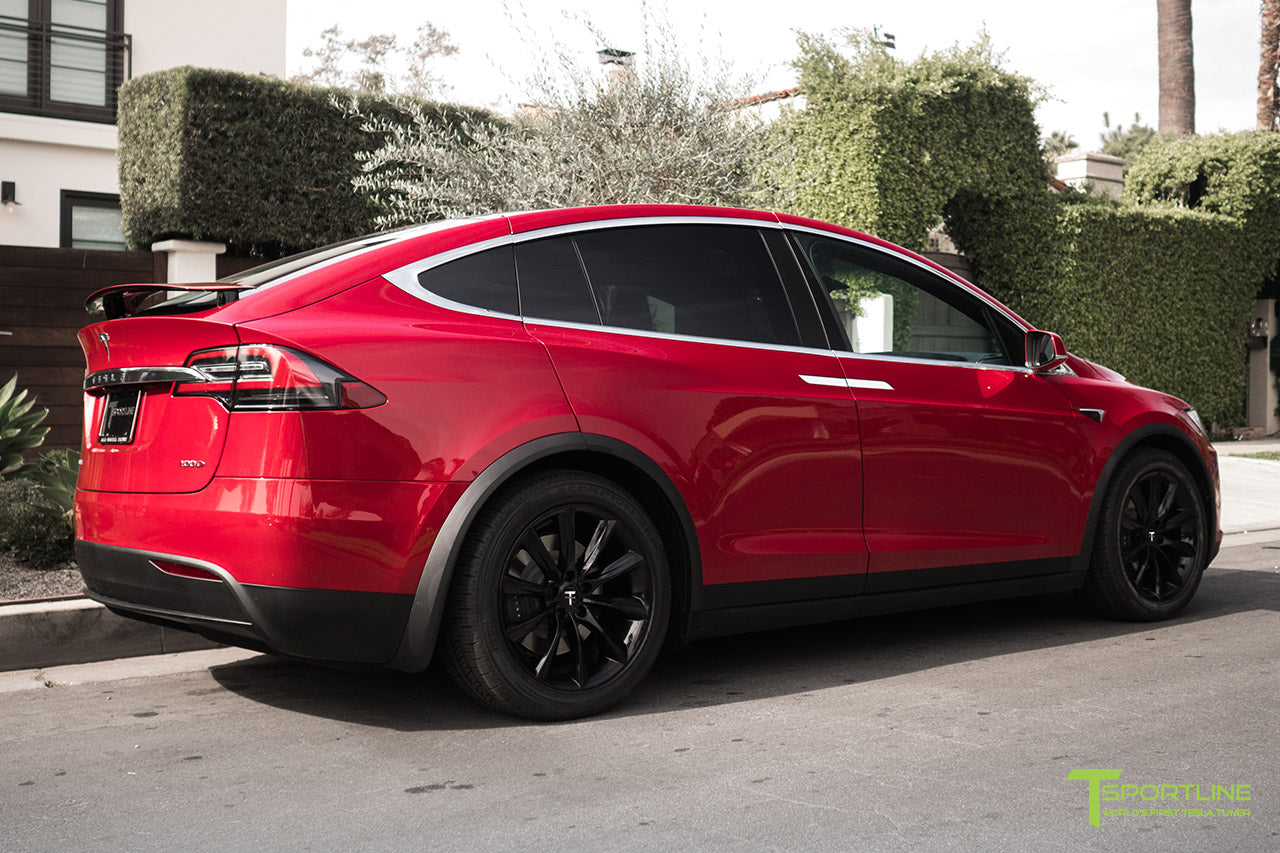

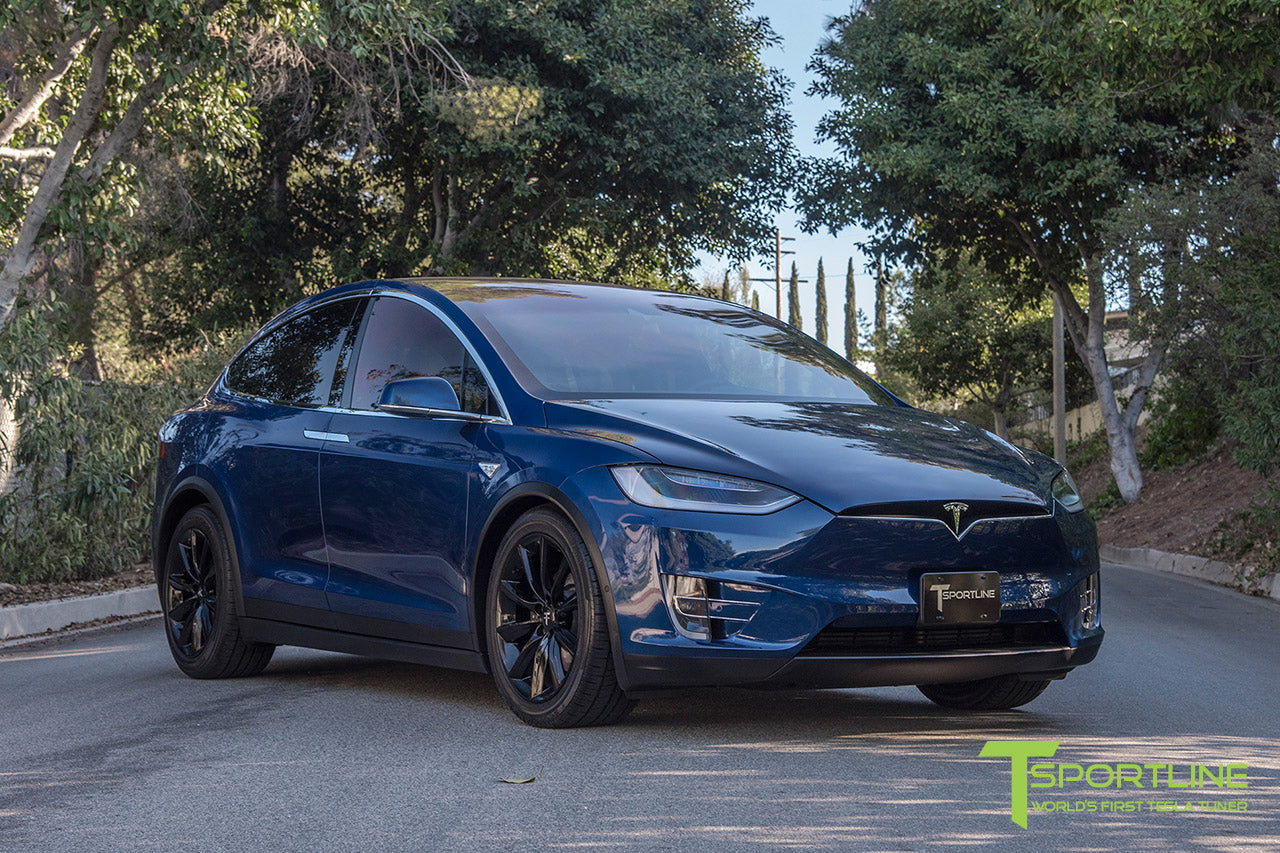

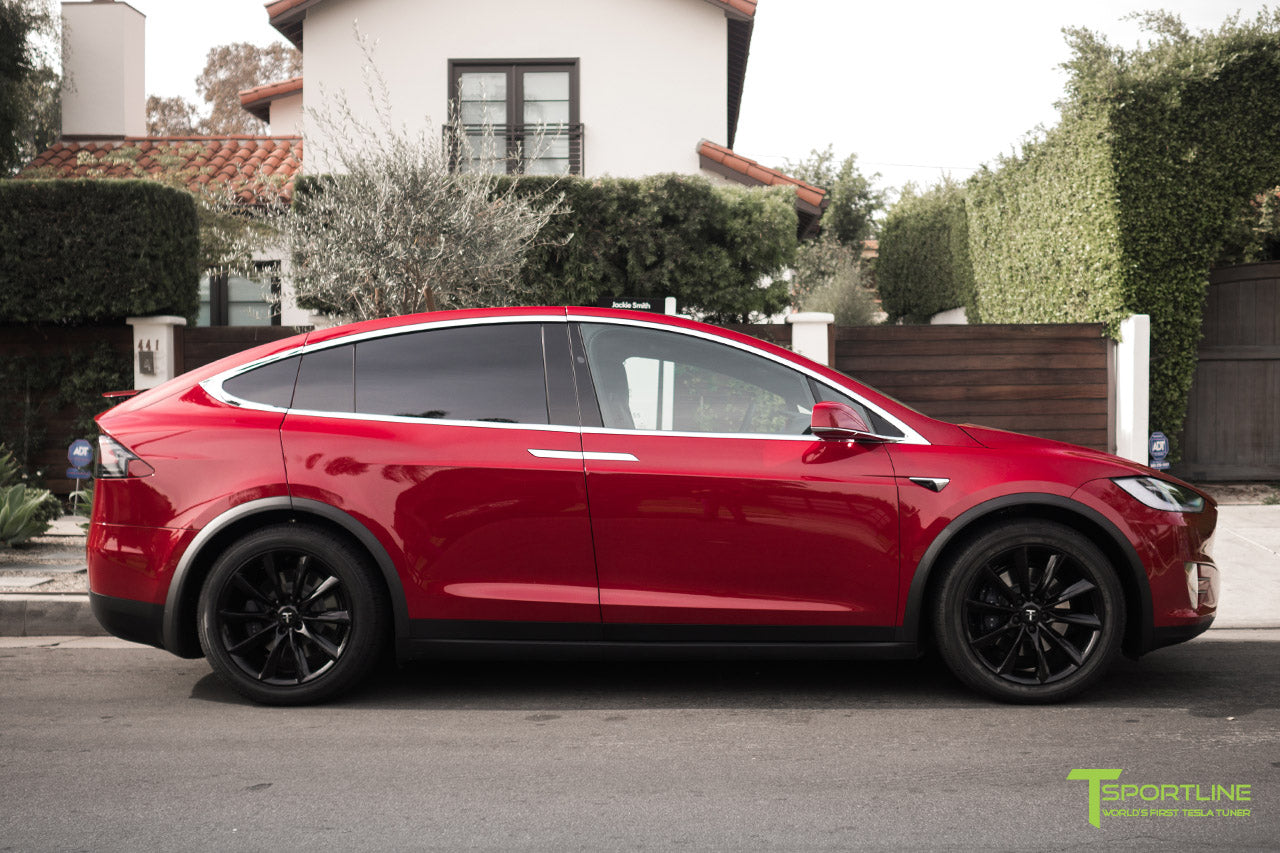

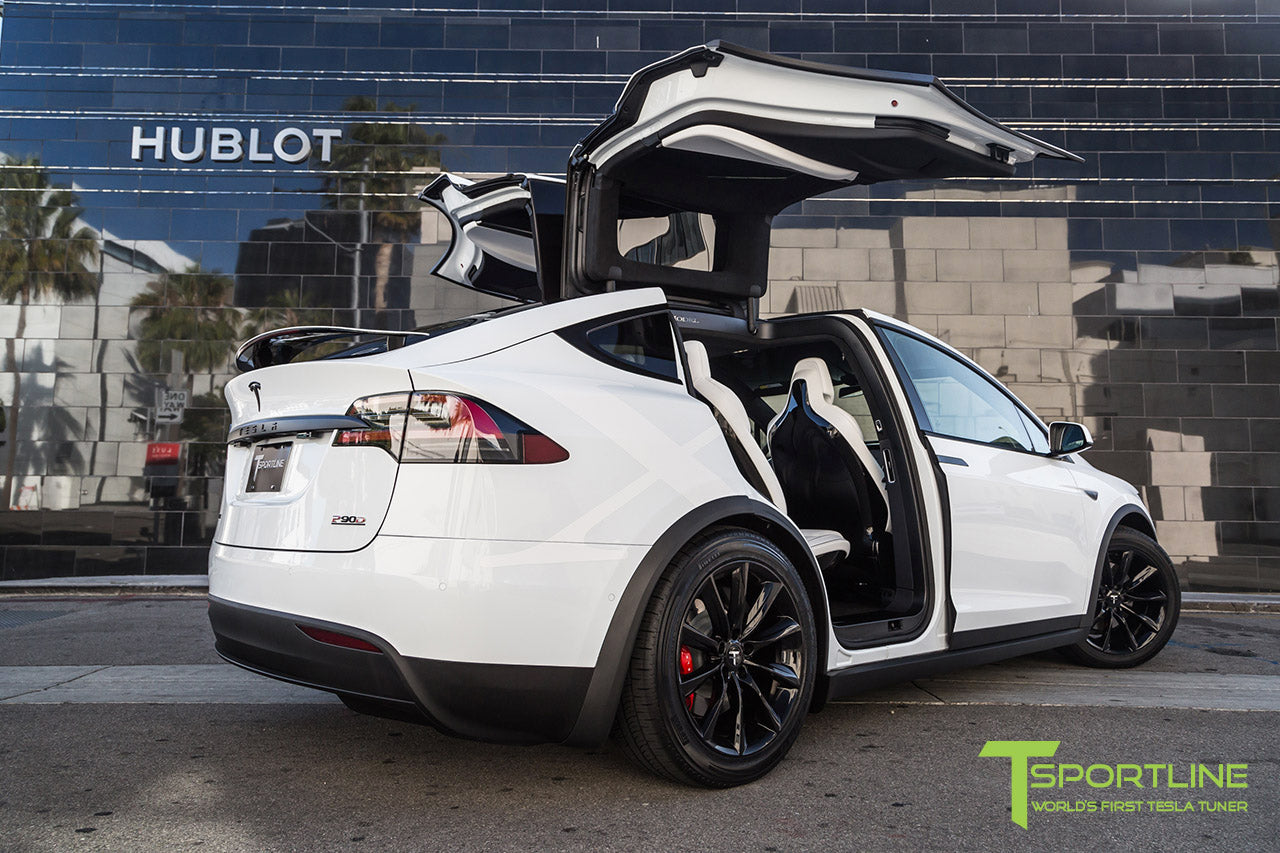

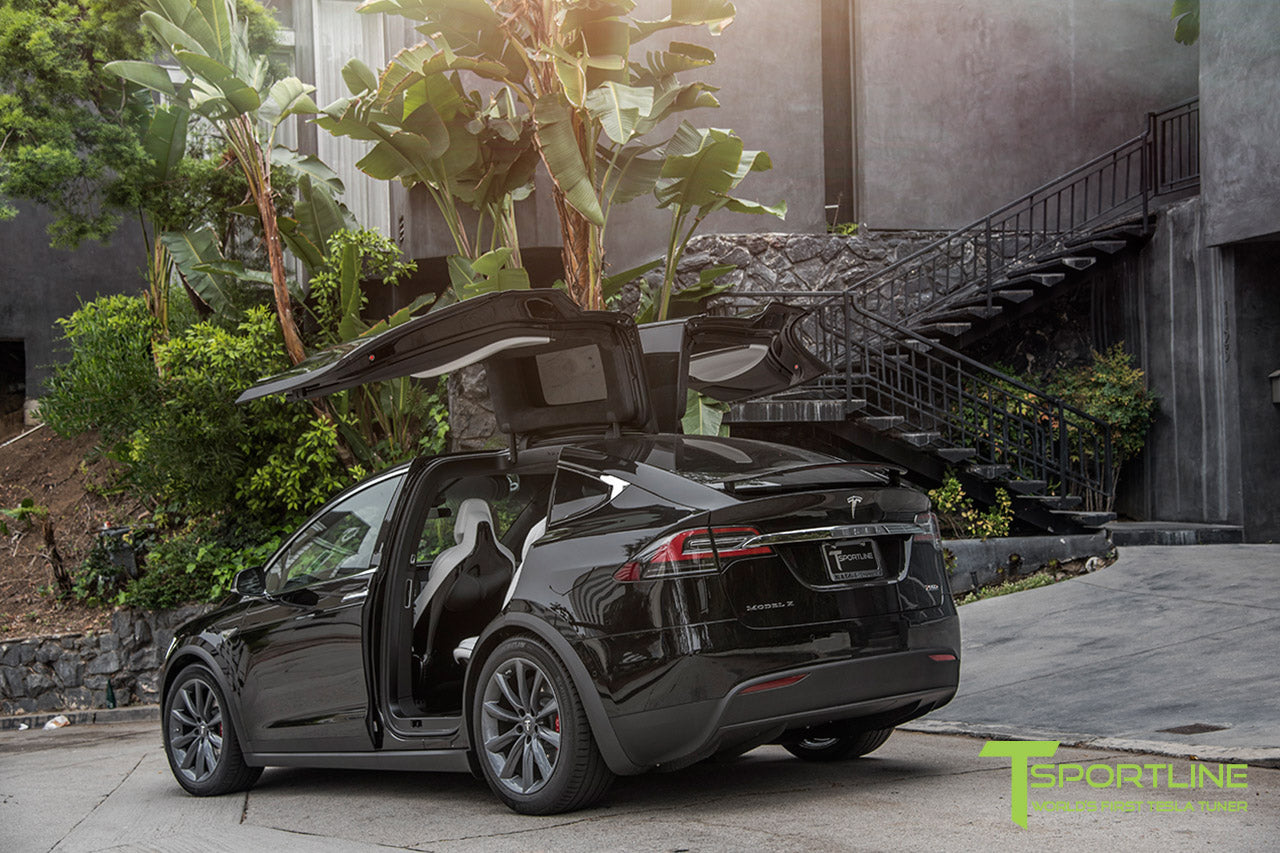

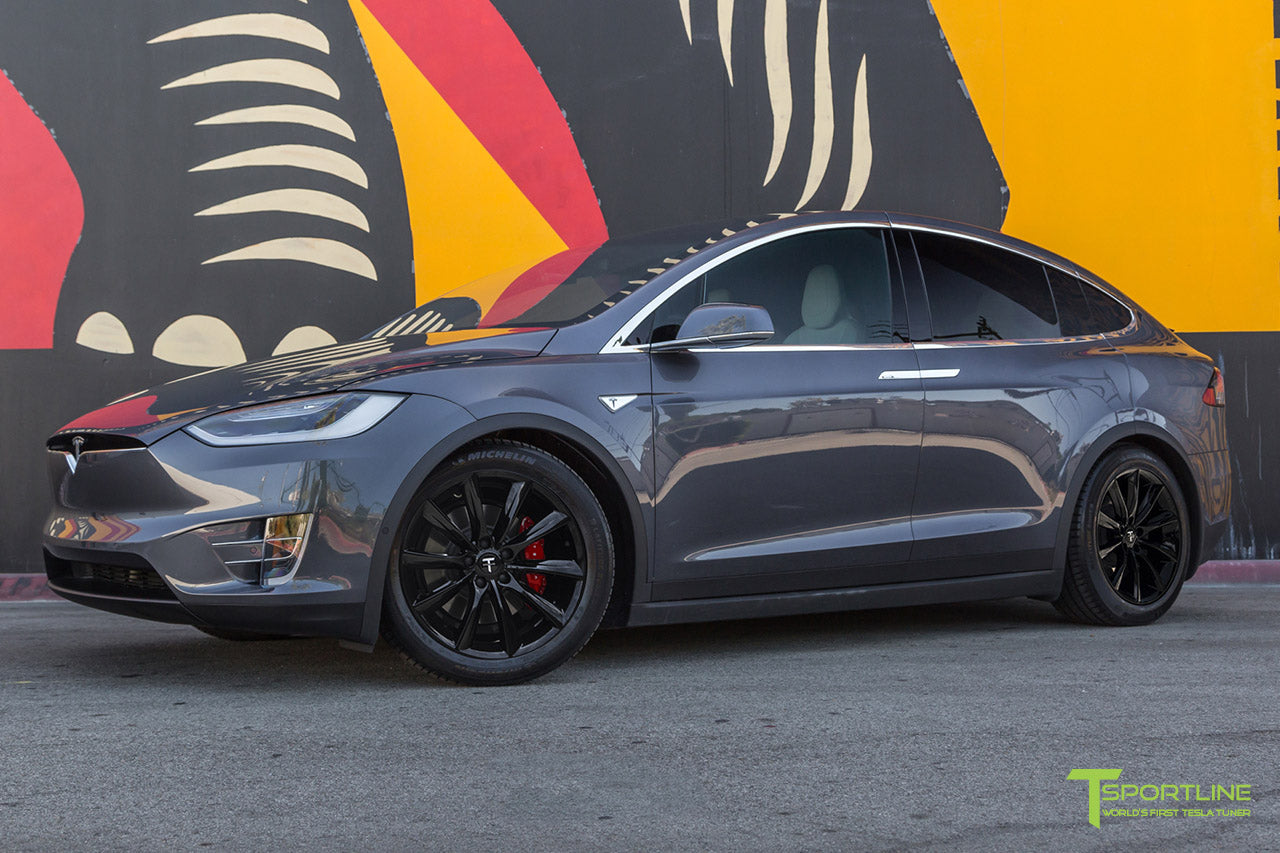

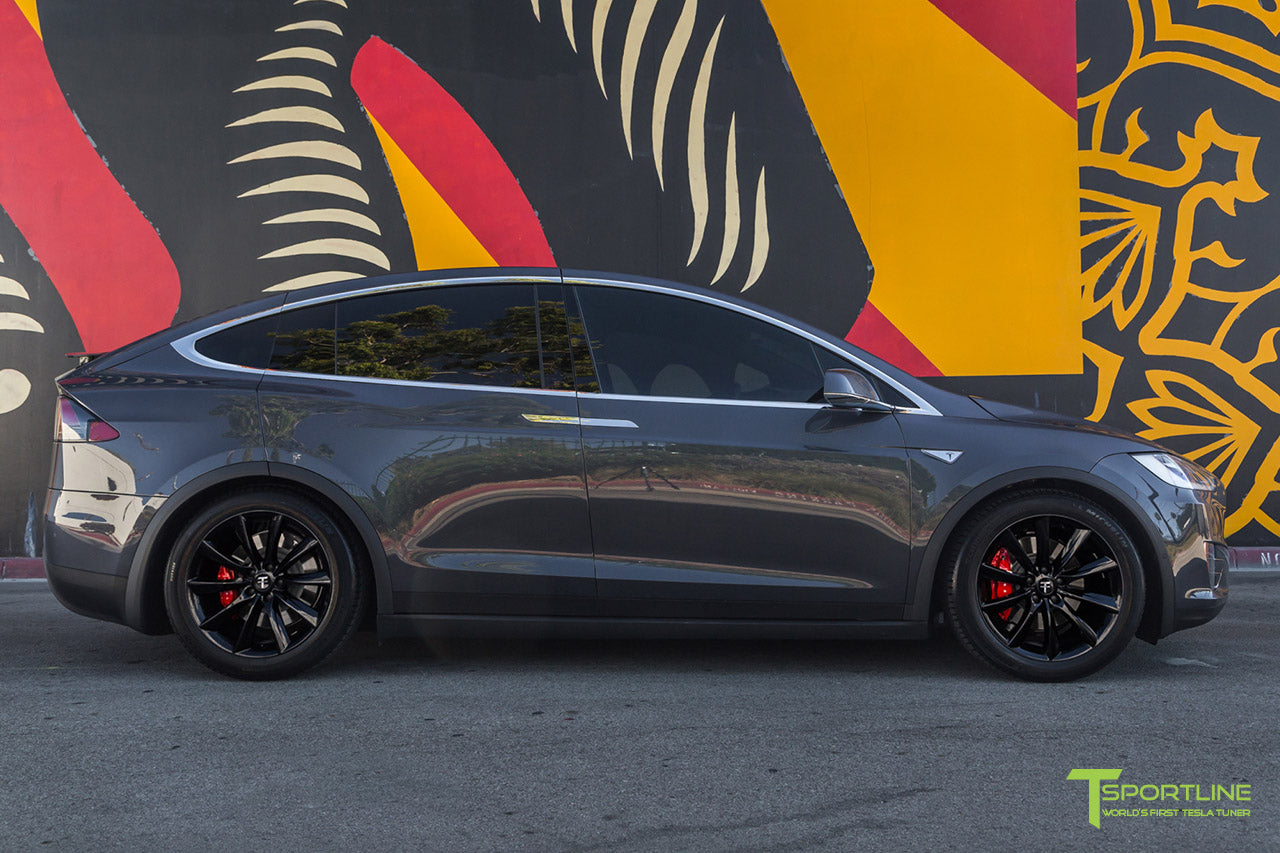

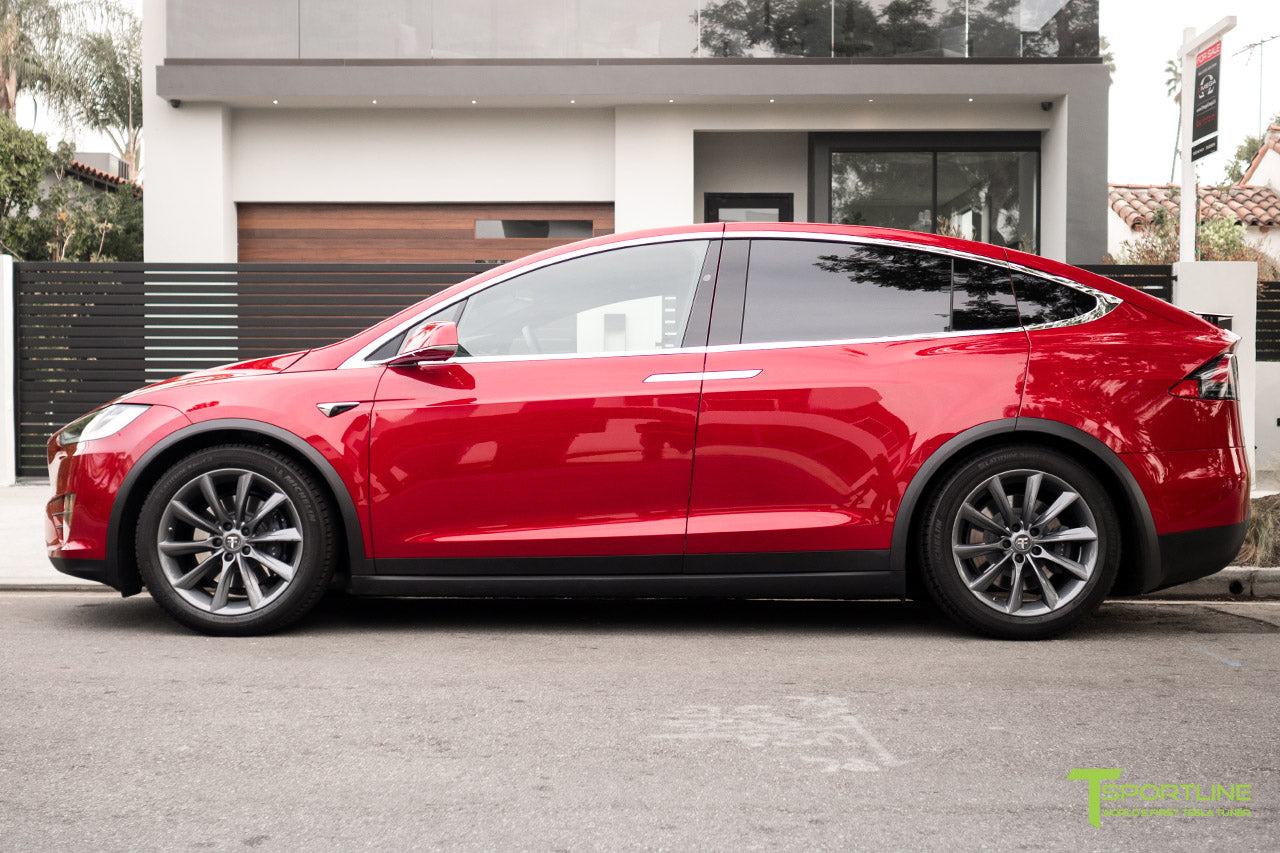

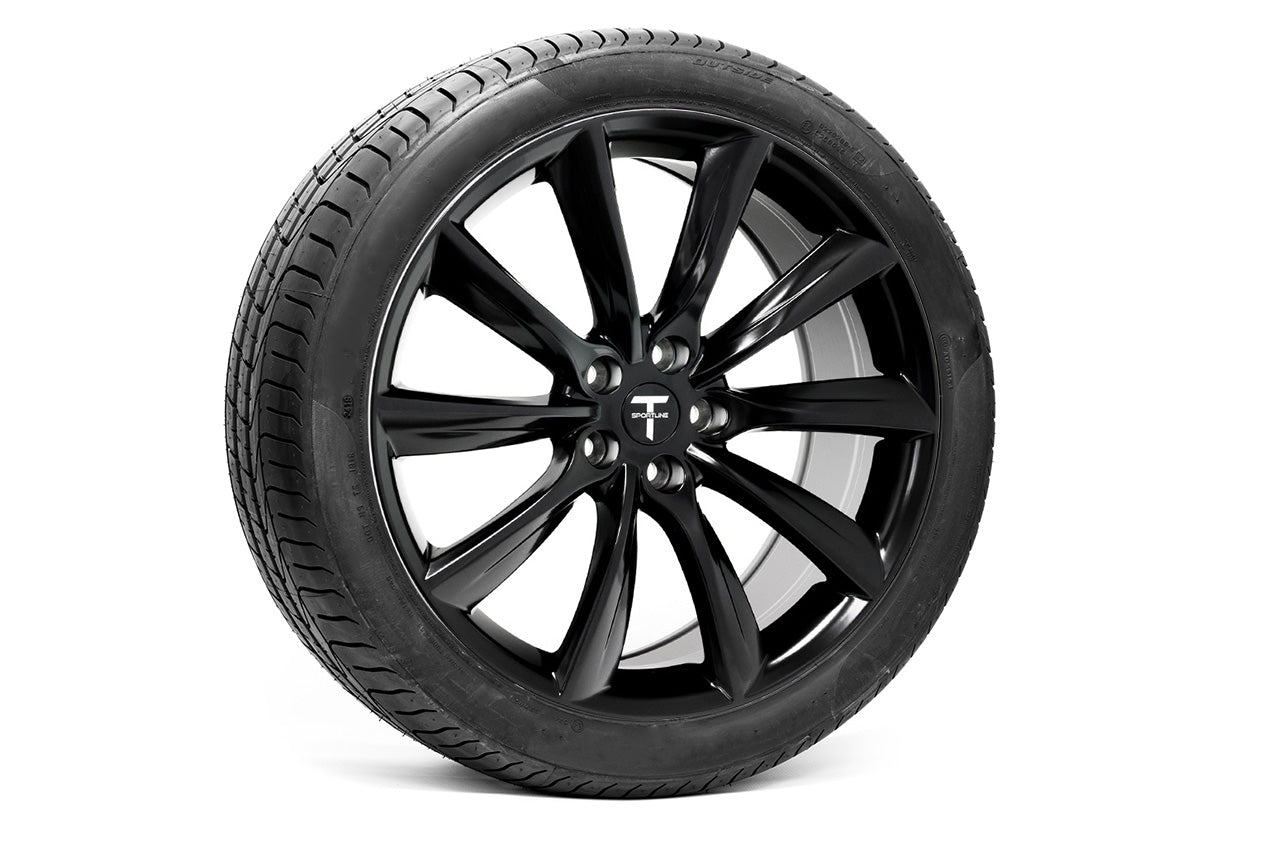

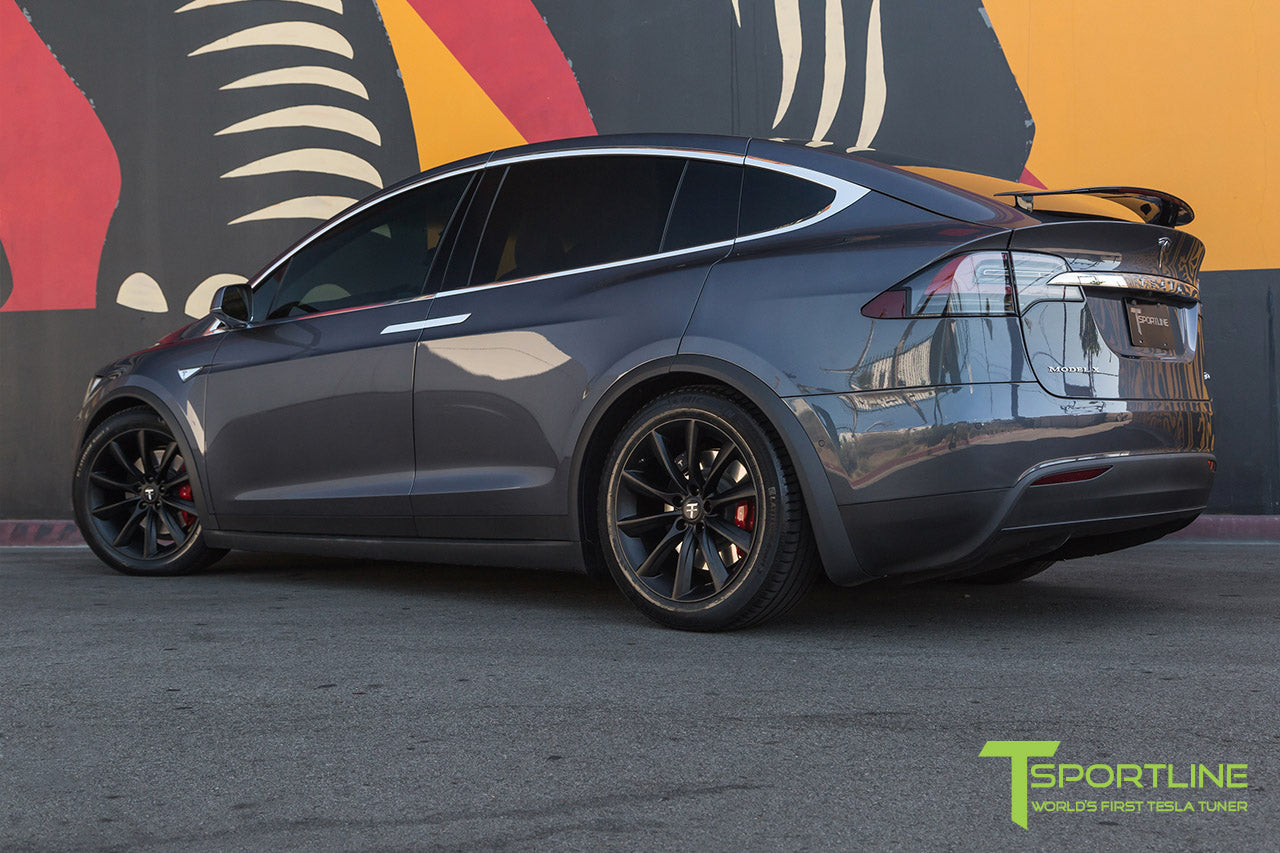

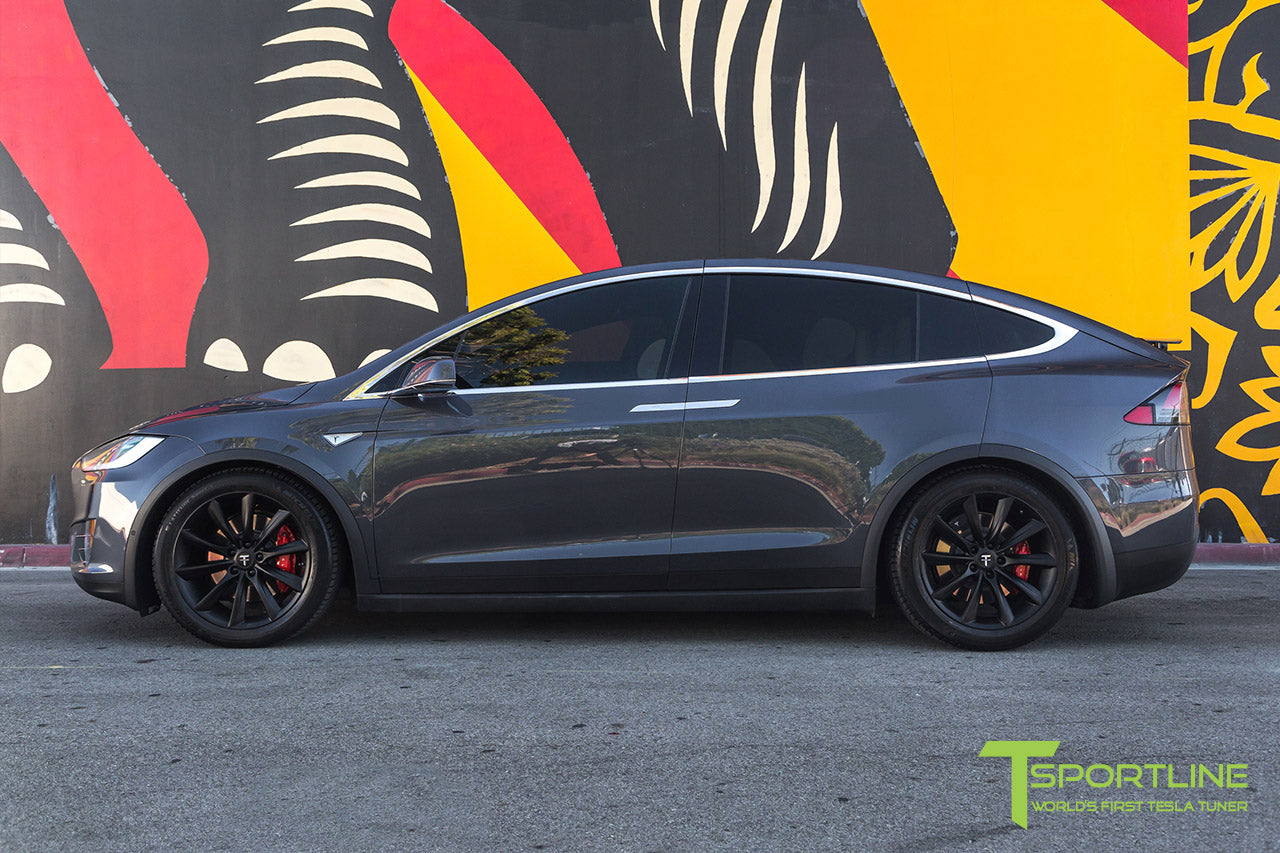

Upgrade your Tesla Model X with the T Sportline TST 20-inch wheel and tire package. Inspired by Tesla's iconic Turbine wheel design, the TST features sleek 10-spoke turbine styling, flow-forged construction and precise bolt-on compatibility with factory Tesla lug nuts, center caps and TPMS sensors. The staggered 20x9-inch front and 20x10-inch rear setup uses the factory Model X 20-inch tire sizes—265/45R20 front and 275/45R20 rear—with wheel weights of 28.8 lbs (20x9") and 31 lbs (20x10"). Compared with the factory 22-inch wheels, the 20-inch package delivers a softer ride, more range and taller sidewalls that help protect the wheels from potholes and curbs.

Tesla Model X Compatibility

Confirmed Fit

Approved for all Tesla Model X versions from September 2015–May 2026

Sep 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 2026

✓ Approved to replace factory 20" or 22" wheels & tires

All-Wheel Drive Versions Long Range, Dual Motor and All-Wheel Drive configurations

Performance & Plaid Models All Tesla Model X Performance and Plaid configurations

2016–2020 Model X Built September 2015–February 2021 with factory 20" Slipstream or Helix, or 22" Turbine wheels

2021–2026 Model X Built March 2021–May 2026 with factory 20" Cyberstream or Perihelix, or 22" Turbine or Machina wheels

Wheel and Wheel & Tire Package Offerings

20x9" Front / 20x10" Rear Fitment Wheels & Tires (Staggered = wider rear wheels & tires)

Wheel Package — What Is Included

Set of 4 wheels
2x 20x9" TST front wheels 2x 20x10" TST rear wheels 4x color-matched T Sportline wheel center caps

Wheel & Tire Package — What Is Included

Set of 4 wheels & tires—mounted, balanced, & ready to install!
2x 20x9" TST front wheels 2x 20x10" TST rear wheels 2x 265/45R20 front tires 2x 275/45R20 rear tires 4x factory-spec Tesla TPMS sensors matched to the selected model year 4x color-matched T Sportline wheel center caps

Recommended Add-On Options

Lug Nuts or Lug Nut Covers — No lug nuts are included. Factory lug nuts can be reused with optional covers or replaced with our forged or titanium lug nuts
Tesla Tire Road Hazard Protection — Rest easy with tire protection
Curb Protection Guards — Protect rims against scrapes
Ceramic Coating — Protect the finish and make cleaning easier

Wheel Features and Benefits

Wheel Specifications

Wheel Model: TST
Vehicle: Tesla Model X
Wheel Size: 20x9" front / 20x10" rear — Staggered Fitment (wider rear wheels)
Offset: +35mm front and rear
Bolt Pattern: 5x120
Center Bore: 64.1mm
Construction: Flow Forged
Wheel Weight: 20x9": 28.8 lbs; 20x10": 31 lbs
Load Rating: 20x9": 900 kg / 1,984 lbs; 20x10": 800 kg / 1,764 lbs per wheel
Tire Sizes: 265/45R20 front / 275/45R20 rear
Finish: Satin Black
Testing Standards: JWL, VIA and SAE J2530
Factory Hardware: Compatible with factory Tesla lug nuts, center caps and TPMS sensors

Lighter & Stronger Than Tesla Wheels

TST wheels are manufactured using a flow-forged process and tested to JWL, VIA and SAE J2530 standards. Factory Tesla wheels are typically gravity cast, which can result in heavier wheels with lower strength-to-weight performance. Our wheels use an advanced flow-forging process to increase strength while reducing weight—helping improve resistance to road-hazard damage, reduce unsprung mass, and preserve range.

20-Inch OEM+ Balance

The 20-inch setup matches the diameter, wheel widths and tire sizes of the factory Model X 20-inch package, preserving its balanced ride, range and handling while delivering a distinctive aftermarket appearance. Compared with the factory 22-inch wheels, it offers a softer ride, more range and taller sidewalls that help protect the wheels from potholes and curbs. The 265/45R20 front and 275/45R20 rear tires are the factory Model X 20-inch sizes.

Turbine Inspired Design

The TST turbine blade wheel design was inspired to showcase an OEM+ high-end Tesla look. Classic yet affluent, the 10-spoke turbine appeals as a clear and obvious upgraded wheel that looks undeniably proper on all Tesla models. It is the best go-to look for owners who cannot decide which wheel style is best.

Tesla Compatibility

Accepts factory Tesla lug nuts
Accepts factory Tesla center caps
Accepts factory Tesla TPMS sensors
Includes color-matched T Sportline center caps
No aftermarket wheel hardware required
Will NOT void Tesla Warranty
Does NOT work with factory Tesla "Aero Covers / Hubcaps"

Staggered Fitment

The staggered setup uses 20x9" front and 20x10" rear wheels with 265/45R20 front and 275/45R20 rear tires—the factory Model X 20-inch tire sizes. Because the front and rear wheel widths and tire sizes differ, staggered wheel and tire packages cannot be rotated front to rear.

TST 20-Inch Wheel Weight

20x9"28.8 lbsper wheel

20x10"31 lbsper wheel

Scale photo coming soon

Tire Comparison & Selection Guide

	265/45R20 Front / 275/45R20 Rear Fitment	Choosing a Tire Model
Tire Type	Factory Model X 20-inch tire sizes	Summer, all-season, all-weather or winter
Range & Efficiency	Factory 20-inch baseline—more range than the factory 22-inch setup	Rolling resistance and tread compound vary by tire model; EV-specific tires focus on efficiency
Ride Comfort	Taller sidewall than the factory 22-inch tires	EV-specific tires with noise-cancelling foam help reduce cabin noise
Pothole Protection	More sidewall height than the factory 22-inch tires	Correct cold tire pressure is essential for maximum protection
Curb Protection	Factory 20-inch sidewall profile	Sidewall shape and rim-protector design vary by tire model
Handling & Steering	Wider rear tires for balanced, factory-like response	Summer performance tires provide the sharpest response
Dry Traction	Wider rear footprint helps put power down	Summer performance tires provide maximum warm-weather grip
Wet & Snow Traction	Depends on tire model	All-weather and dedicated winter tires offer the most cold-weather and snow capability
Tire Rotation	No front-to-rear rotation	Front and rear pairs may need replacement at different times

265/45R20 Front / 275/45R20 Rear Fitment: The factory Model X 20-inch tire sizes deliver familiar range, ride comfort and balanced handling, with taller sidewalls than the factory 22-inch tires.

Choose the tire model for your driving: Select the Michelin Pilot Sport 4 SUV or Pilot Sport EV for maximum warm-weather grip, an all-season tire for year-round flexibility, the snow-rated Michelin CrossClimate2 all-weather tire, or Michelin X-Ice Snow or Pirelli Scorpion Winter tires for cold and snowy conditions.

Rating Key: Not Rated Good Better Best

Choose the right tire type for your driving: All-season for everyday use, all-weather for enhanced year-round versatility, summer for warm-weather performance, or dedicated winter tires for cold and snowy conditions. Tire model, rolling resistance, construction, inflation pressure, compound and tread design also affect driving characteristics.

View Instructions & Tesla Tire Care Guide DIY Installation instructions and Learn more about proper Tesla tire maintenance & rotation for maximum range and tread wear

View the T Sportline Tesla Wheel & Tire DIY Installation Guide
Follow the recommended cold tire pressures on your vehicle's Tire and Loading Information label (located inside the driver-side door jamb). Check pressure after the vehicle has been parked out of direct sunlight for more than three hours. Use our AMAXX Tesla Digital Tire Inflator for convenient pressure checks and adjustments.
Staggered fitments cannot be rotated front to rear.
When installing wheels, torque the 21mm lug nuts to 129 lb-ft (175 Nm).
After tire service, drive above 15 mph (25 km/h) for a short time to allow the TPMS readings to update.
Tire pressure changes with temperature, driving and sunlight. Underinflation can reduce range, accelerate wear and create a safety risk.
Teslas do not come with a spare! Consider purchasing a Tesla spare tire package to ensure you never get stranded with a flat.

Shipping

Shipping is calculated at Checkout.

Shipping & Handling charges subject to change without prior notification. PLEASE NOTE THAT INTERNATIONAL SHIPMENTS ARE SUBJECT TO CUSTOMS TAXES/DUTIES, AS CHARGED BY YOUR COUNTRY (THERE ARE NO U.S. CUSTOMS FEES). INTERNATIONAL CUSTOMERS ARE RESPONSIBLE FOR PAYMENT OF THESE FEES. Due to service availability, some international orders may need to be sent to the nearest international airport.
FAQ

Can I use my Aero Covers / Hubcaps on the 20" TST?
No, the Aero Covers / Hubcaps only fit on your factory wheels.

Which tire sizes are offered with the 20" TST package?
The staggered package uses 265/45R20 front and 275/45R20 rear tires, the factory Model X 20-inch tire sizes.

Do your TST wheels fit my factory center caps?
Yes, 20x9" and 20x10" TST wheels fit your factory Tesla center caps. They also fit your factory TPMS sensors and factory lug nuts, so no aftermarket wheel hardware is required.

How are the 20" TST wheels made?
They are flow forged and tested to JWL, VIA and SAE J2530 standards.

Do I need to change the color of my existing lug nuts and center caps to match my new TST wheels?
That's an aesthetic decision only you can make. All TST wheels come with T Sportline color-matched center caps.

What is the warranty on TST wheels?
Click here for T Sportline Limited Warranty

How long until my TST wheels arrive after my order?
We process orders within 72 hours unless your wheels are back-ordered. Please allow 1–7 business days of transit time from the day you receive a tracking number. We will email you if your wheels are back-ordered.

Do you ship internationally?
Yes! We ship worldwide and offer flat rate FedEx/DHL shipping to select countries.

Will installing your Wheel & Tire Package void my warranty?
Changing wheels and tires won't void your Tesla warranty unless Tesla can prove that our wheels caused the need for repairs. Also, we use factory-size or acceptable alternate size tires only. In other words, your warranty will still be valid when your windshield wiper malfunctions, even if you've upgraded to our Wheel & Tire Package.

How much do TST 20-inch wheels weigh?
The TST 20x9" wheel weighs approximately 28.8 lbs with a 900 kg (1,984 lbs) load rating, and the 20x10" wheel weighs approximately 31 lbs with an 800 kg (1,764 lbs) load rating. Wheel weight does not include the tire, TPMS sensor or lug nuts.

Are TST wheels the same as Tesla's factory Turbine wheels?
No. TST wheels are T Sportline aftermarket wheels inspired by the original Tesla Model S 21-inch Turbine wheel design. The TST 20-inch package is engineered specifically for the Tesla Model X, with a 20x9" front / 20x10" rear staggered fitment.

Can I rotate my tires with the 20" TST package?
No. The front and rear wheels and tires use different sizes (20x9" front / 20x10" rear with 265/45R20 front and 275/45R20 rear tires), so the wheel and tire assemblies cannot be rotated front to rear.

Which TST wheel finishes are offered?
TST 20-inch Model X wheels are offered in Satin Black. Each set includes color-matched T Sportline center caps.
