Name: TSV 20" Tesla Model S Wheel and Tire Package (Set of 4)
Brand: T Sportline
SKU: SV20909005120SG
Price: 2050.0 USD
Availability: InStock

Description

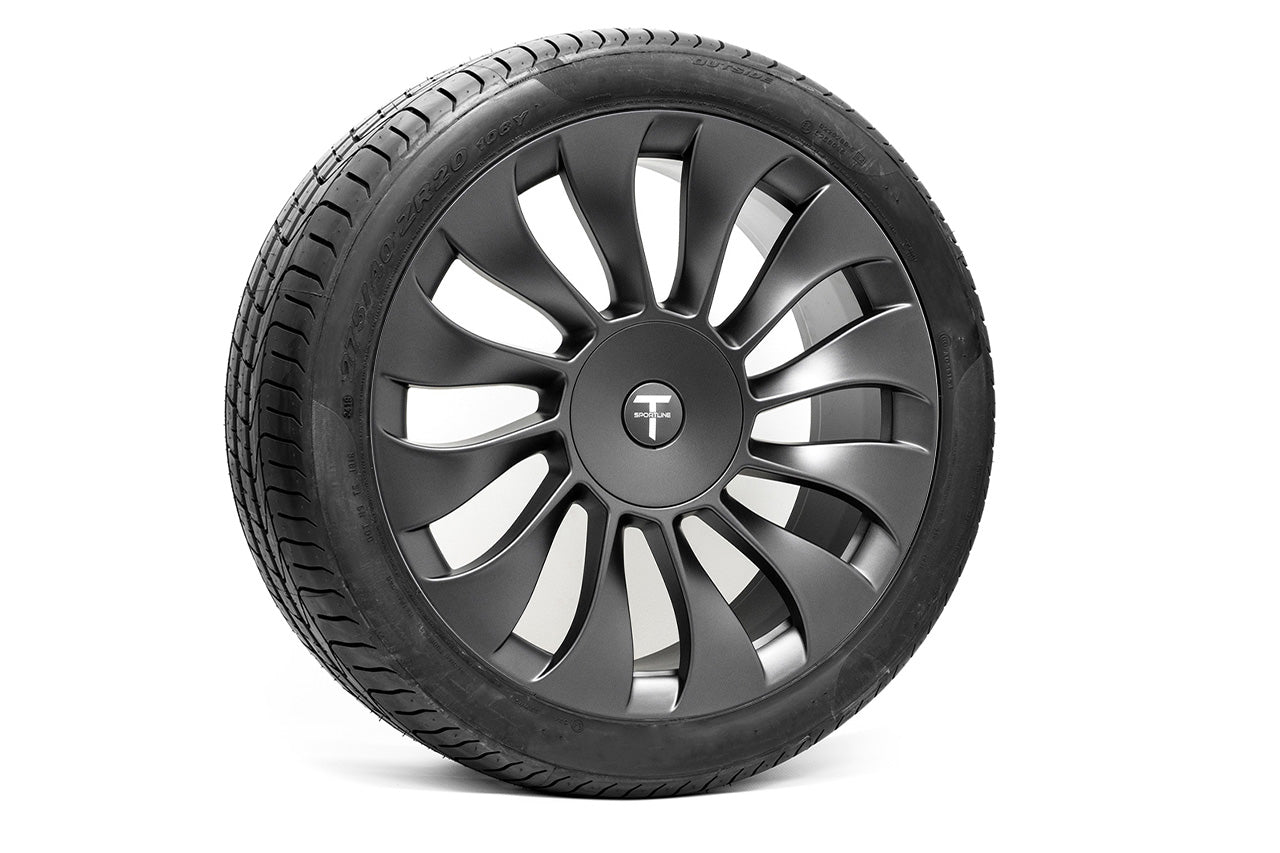

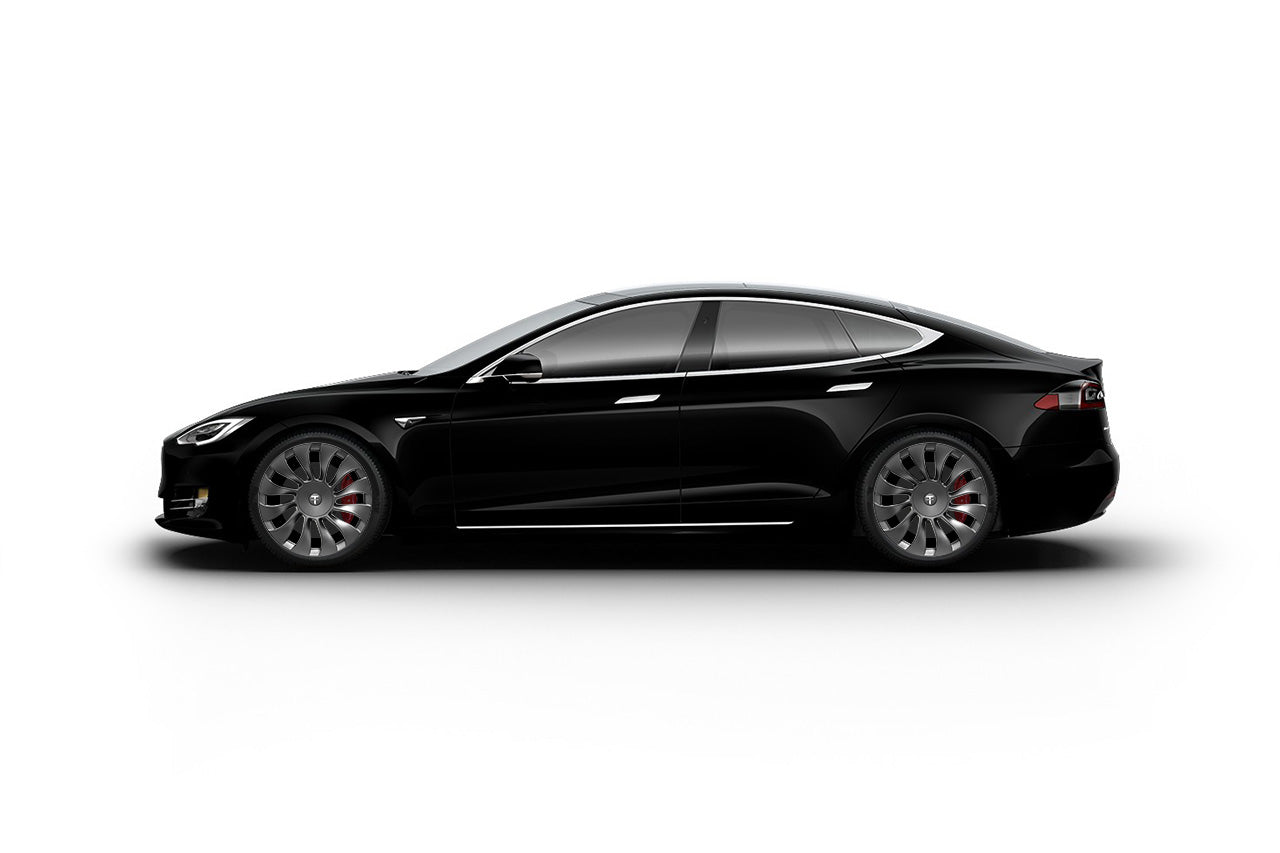

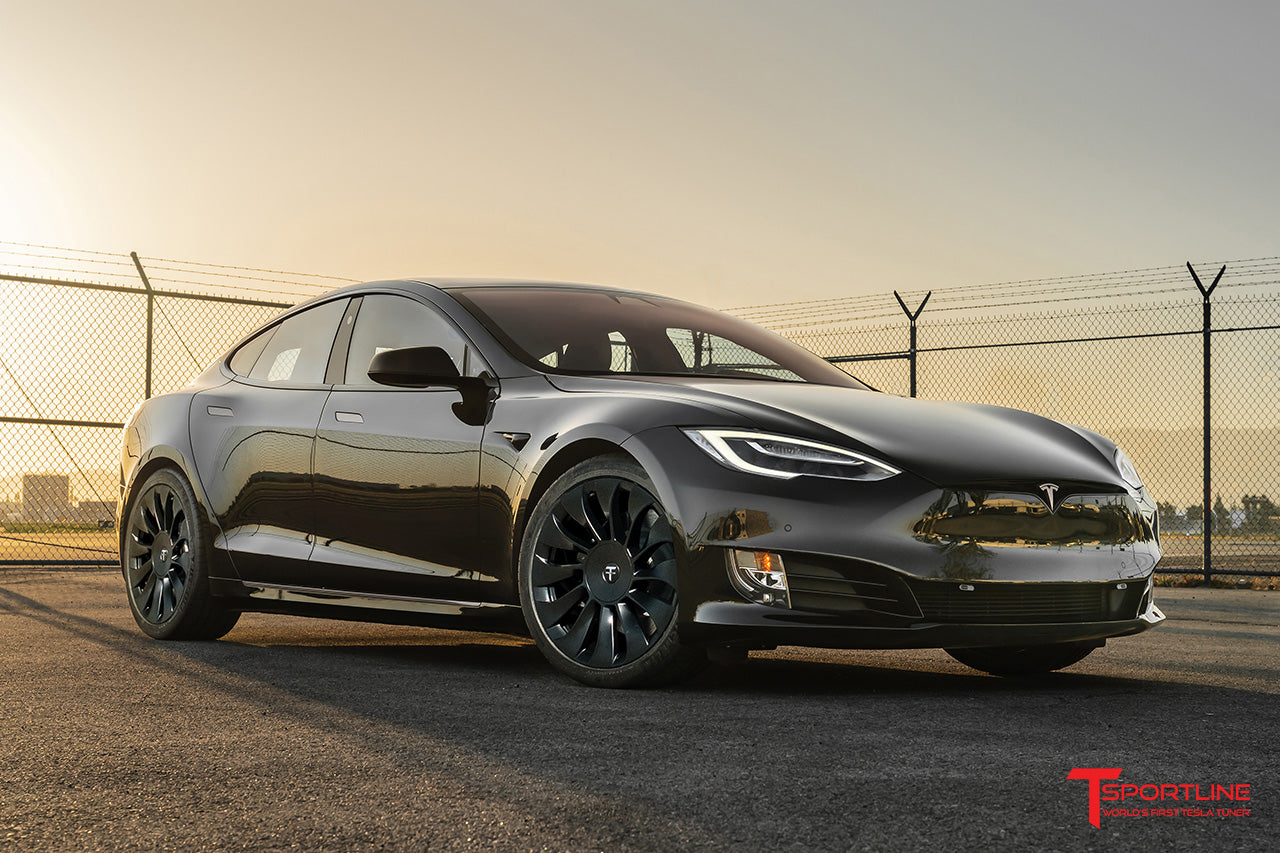

Upgrade your Tesla Model S with the T Sportline TSV 20-inch wheel and tire package. Inspired by Tesla's Überturbine wheel design, the TSV features an aggressive finned multi-spoke turbine face, flow-forged construction and precise bolt-on compatibility with factory Tesla lug nuts, center caps and TPMS sensors. The square 20x9-inch setup uses 245/40R20 tires at all four corners for front-to-rear tire rotation, with a winter tire option for cold and snowy conditions. The 20x9-inch wheel uses a +35mm offset. Each wheel carries a 900 kg (1,984 lbs) load rating; the wheel weight is to be confirmed. The finish option is Satin Gray. Choose a set of four wheels only or a professionally mounted and balanced wheel-and-tire package ready for installation.

Tesla Model S Compatibility

Confirmed Fit

Approved for all Tesla Model S versions from February 2012–January 2021

Feb 2012 2013 2014 2015 2016 2017 2018 2019 2020 Jan 2021

✓ Approved to replace factory 19" or 21" wheels & tires

Rear-Wheel Drive Versions All single-motor rear-wheel drive configurations

All-Wheel Drive Versions Dual Motor (D), Standard Range, Long Range and Long Range Plus configurations

Performance Models All P-model and Performance configurations, including Ludicrous

2012–2020 Model S Built February 2012–January 2021 with factory 19" or 21" wheels

Have a February 2021–2026 Model S? Shop 20" Wheel & Tire Packages for Model S Plaid & Long Range (2021 - 2026)

Wheel and Wheel & Tire Package Offerings

20x9" Fitment Wheels & Tires (Square = all 4 wheels & tires the same size)

Wheel Package — What Is Included

Set of 4 wheels
4x 20x9" TSV wheels 4x color-matched T Sportline wheel center caps

Wheel & Tire Package — What Is Included

Set of 4 wheels & tires—mounted, balanced, & ready to install!

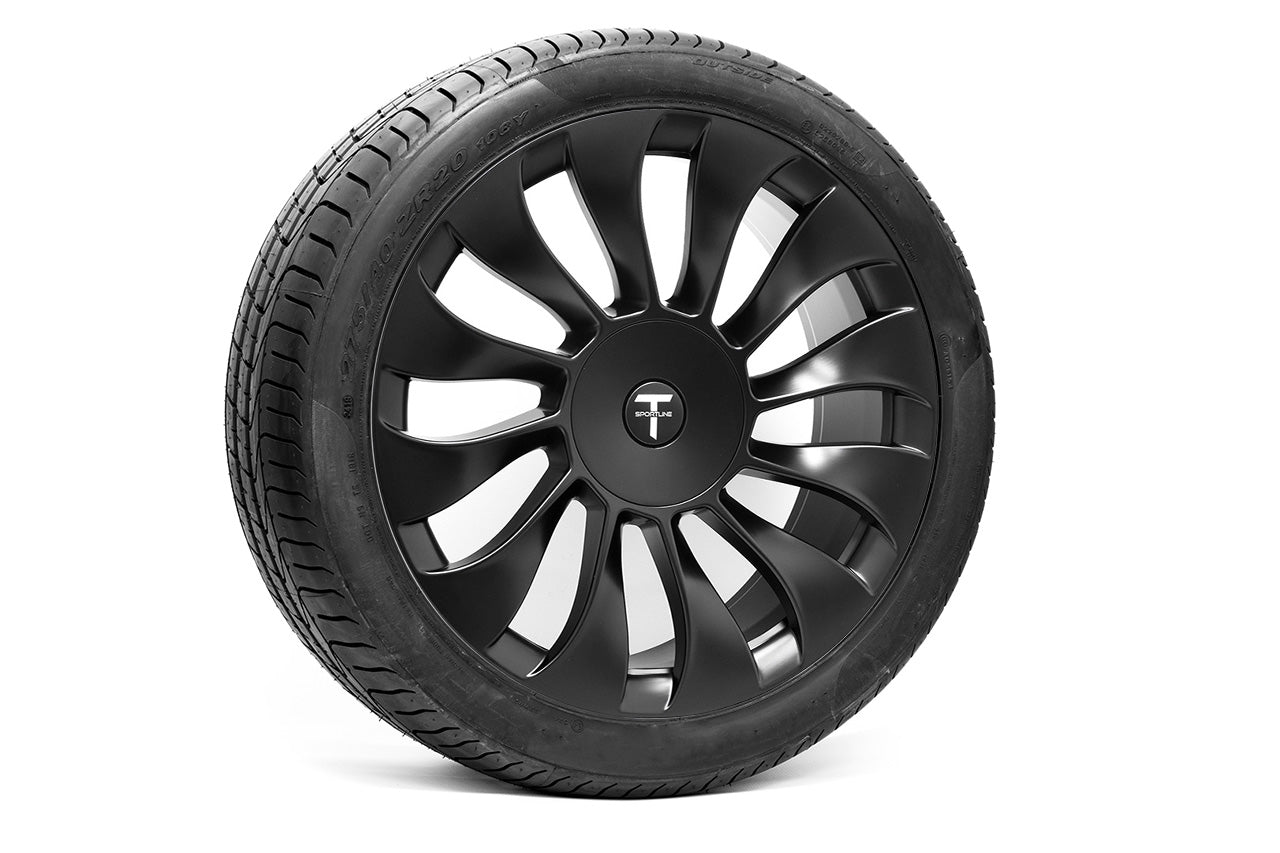

4x 20x9" TSV wheels 4x 245/40R20 tires 4x factory-spec Tesla TPMS sensors 4x color-matched T Sportline wheel center caps

Recommended Add-On Options

Lug Nuts or Lug Nut Covers — No lug nuts are included. Factory lug nuts can be reused with optional covers or replaced with our forged or titanium lug nuts
Tesla Tire Road Hazard Protection — Rest easy with tire protection
Curb Protection Guards — Protect rims against scrapes
Ceramic Coating — Protect the finish and make cleaning easier

Wheel Features and Benefits

Wheel Specifications

Wheel Model: TSV
Vehicle: Tesla Model S
Wheel Size: 20x9" front and rear
Offset: +35mm
Bolt Pattern: 5x120
Center Bore: 64.1mm
Construction: Flow Forged
Wheel Weight: TBD
Load Rating: 900 kg / 1,984 lbs per wheel
Tire Sizes: 245/40R20 front and rear

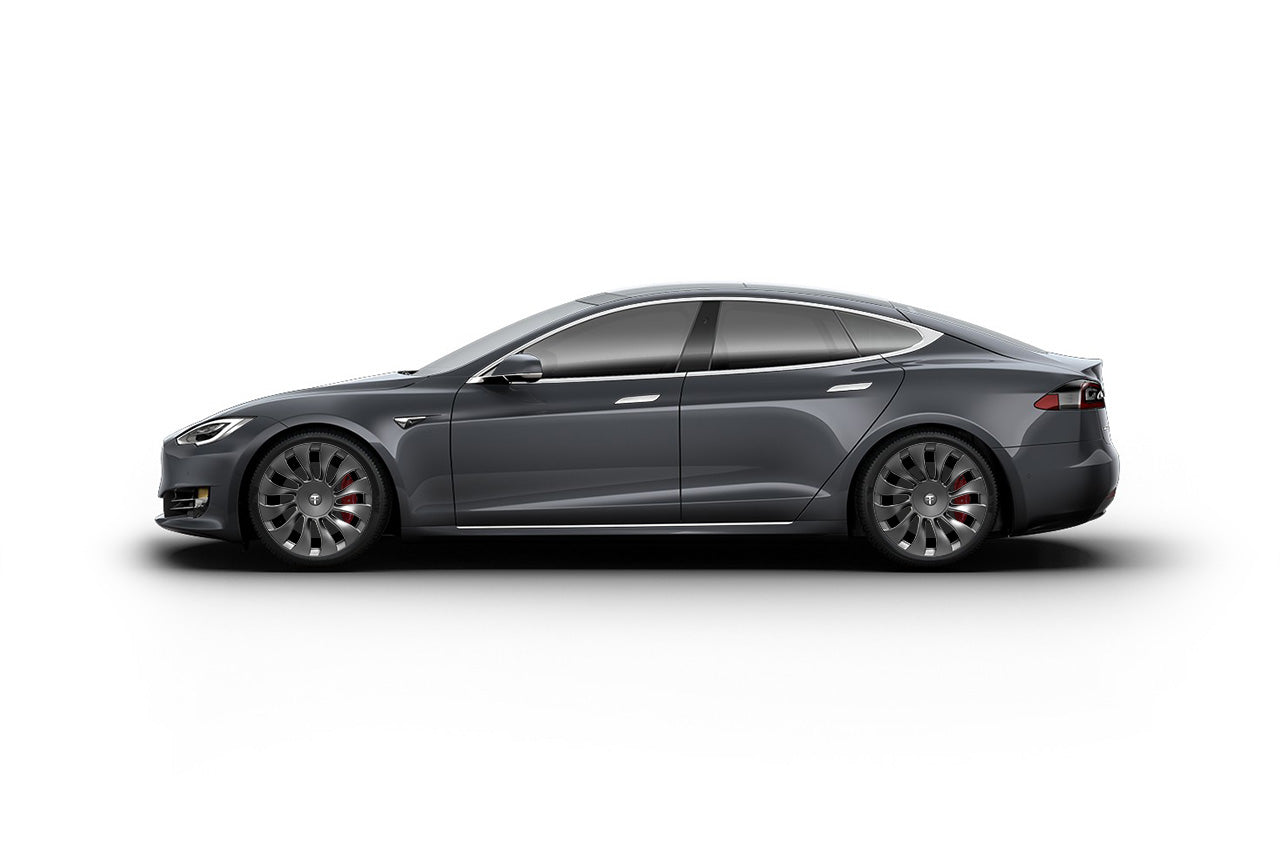

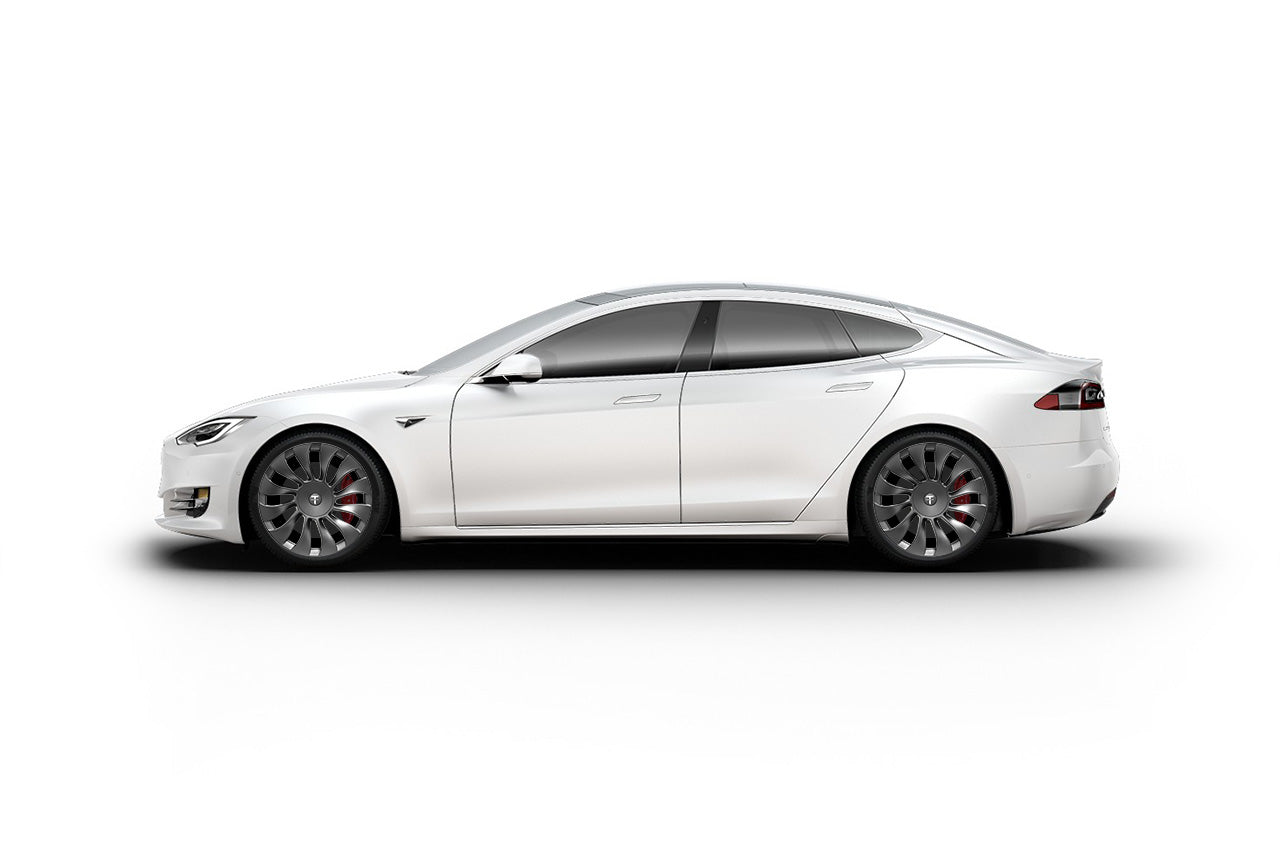

Finishes: Satin Gray
Testing / Facility: JWL, VIA, SAE J2530 and manufactured in a TÜV-certified facility
Factory Hardware: Compatible with factory Tesla lug nuts, center caps and TPMS sensors

Flow-Forged Strength & Durability

TSV wheels are manufactured using a precision flow-forging process that forms and strengthens the wheel barrel while optimizing material distribution. This produces a strong, durable wheel structure engineered for the weight and performance demands of the Tesla Model S. Compared with conventional gravity-cast construction, flow forging can improve barrel strength and material efficiency. Each TSV 20x9" wheel carries a 900 kg (1,984 lbs) load rating, combining robust construction with a distinctive Überturbine-inspired design.

20-Inch Sporty OEM+ Balance

The 20-inch setup offers a sportier appearance and responsive steering feel while maintaining practical everyday usability. Compared with the factory Model S 19-inch wheels, 20-inch wheels generally provide a firmer ride and a more performance-oriented appearance. They typically offer greater ride comfort and sidewall protection than the factory 21-inch package, depending on tire selection.

The 20x9" square setup uses 245/40R20 tires at all four corners for front-to-rear tire rotation, including a dedicated winter tire option.

Überturbine Inspired Design

The TSV wheel is inspired by Tesla's 21-inch Überturbine design. Its tightly spaced, finned multi-spoke face amplifies the performance-oriented turbine appearance that has become a signature look on high-performance Teslas, while providing proper Model S fitment in a 20-inch size.

Tesla Compatibility

Accepts factory Tesla lug nuts
Accepts factory Tesla center caps
Accepts factory Tesla TPMS sensors
Includes color-matched T Sportline center caps
No aftermarket wheel hardware required
Will NOT void Tesla Warranty
Does NOT work with factory Tesla "Aero Covers / Hubcaps"

Square Fitment & Tire Rotation

The 20x9" square setup uses the same wheel and tire size at all four corners, allowing conventional front-to-rear tire rotation.

Tire Comparison & Selection Guide

	245/40R20 Front & Rear Fitment	Choosing a Tire Model
Tire Type	Same 245/40R20 tire size at all four corners	Summer, all-season, all-weather or winter
Range & Efficiency	245mm tires at all four corners	Rolling resistance and tread compound vary by tire model; EV-specific tires focus on efficiency
Ride Comfort	Balanced 20-inch ride	EV-specific tires with noise-cancelling foam help reduce cabin noise
Pothole Protection	Balanced 20-inch sidewall protection	Correct cold tire pressure is essential for maximum protection
Curb Protection	Sidewall helps shield the wheel edge	Sidewall shape and rim-protector design vary by tire model
Handling & Steering	Balanced everyday response	Summer performance tires provide the sharpest response
Dry Traction	Balanced everyday grip	Summer performance tires provide maximum warm-weather grip
Wet & Snow Traction	Narrower tires plus a dedicated winter tire option	All-weather and dedicated winter tires offer the most cold-weather and snow capability
Tire Rotation	Front-to-rear rotation	Same tire size at all four corners

245/40R20 Front & Rear Fitment: The same 245/40R20 tire size at all four corners delivers balanced range, ride comfort and handling, plus front-to-rear tire rotation.

Choose the tire model for your driving: Select the Falken Azenis FK510 or Michelin Pilot Sport 4S for maximum warm-weather grip, an all-season tire for year-round flexibility, the snow-rated Michelin CrossClimate2 or Pirelli Cinturato WeatherActive all-weather tires, or Pirelli Winter Sottozero 3 winter tires for cold and snowy conditions.

Rating Key: Not Rated Good Better Best

Choose the right tire type for your driving: All-season for everyday use, all-weather for enhanced year-round versatility, summer for warm-weather performance, or dedicated winter tires for cold and snowy conditions. Tire model, rolling resistance, construction, inflation pressure, compound and tread design also affect driving characteristics.

View Instructions & Tesla Tire Care Guide DIY Installation instructions and Learn more about proper Tesla tire maintenance & rotation for maximum range and tread wear

View the T Sportline Tesla Wheel & Tire DIY Installation Guide
Follow the recommended cold tire pressures on your vehicle's Tire and Loading Information label (located inside the driver-side door jamb). Check pressure after the vehicle has been parked out of direct sunlight for more than three hours. Use our AMAXX Tesla Digital Tire Inflator for convenient pressure checks and adjustments.
For square fitments, rotate tires every 6,250 miles, or sooner if tread-depth difference reaches 2/32 inch. Staggered fitments cannot be rotated front to rear.
When installing wheels, torque the 21mm lug nuts to 129 lb-ft (175 Nm).
After tire service, drive above 15 mph (25 km/h) for a short time to allow the TPMS readings to update.
Tire pressure changes with temperature, driving and sunlight. Underinflation can reduce range, accelerate wear and create a safety risk.
Teslas do not come with a spare! Consider purchasing a Tesla spare tire package to ensure you never get stranded with a flat.

Shipping

Shipping is calculated at Checkout.

Shipping & Handling charges subject to change without prior notification. PLEASE NOTE THAT INTERNATIONAL SHIPMENTS ARE SUBJECT TO CUSTOMS TAXES/DUTIES, AS CHARGED BY YOUR COUNTRY (THERE ARE NO U.S. CUSTOMS FEES). INTERNATIONAL CUSTOMERS ARE RESPONSIBLE FOR PAYMENT OF THESE FEES. Due to service availability, some international orders may need to be sent to the nearest international airport.
FAQ

Can I use my Aero Covers / Hubcaps on the 20" TSV?
No, the Aero Covers / Hubcaps only fit on your factory wheels.

Which tire sizes are offered with the 20" TSV package?
All four wheels use 245/40R20 tires on 20x9" wheels, including the winter tire option.

Do your TSV wheels fit my factory center caps?
Yes, 20x9" TSV wheels fit your factory Tesla center caps. They also fit your factory TPMS sensors and factory lug nuts, so no aftermarket wheel hardware is required.

How are the 20" TSV wheels made?
They are flow forged, tested to JWL, VIA and SAE J2530 standards and manufactured in a TÜV-certified facility.

Do I need to change the color of my existing lug nuts and center caps to match my new TSV wheels?
That's an aesthetic decision only you can make. All TSV wheels come with T Sportline color-matched center caps.

What is the warranty on TSV wheels?
Click here for T Sportline Limited Warranty

How long until my TSV wheels arrive after my order?
We process orders within 72 hours unless your wheels are back-ordered. Please allow 1–7 business days of transit time from the day you receive a tracking number. We will email you if your wheels are back-ordered.

Do you ship internationally?
Yes! We ship worldwide and offer flat rate FedEx/DHL shipping to select countries.

Will installing your Wheel & Tire Package void my warranty?
Changing wheels and tires won't void your Tesla warranty unless Tesla can prove that our wheels caused the need for repairs. In other words, your warranty will still be valid when your windshield wiper malfunctions, even if you've upgraded to our Wheel & Tire Package. Also, we use factory-size or acceptable alternate size tires only.

Are TSV wheels the same as Tesla's factory Überturbine wheels?
No. TSV wheels are T Sportline aftermarket wheels inspired by the appearance of Tesla's factory Überturbine wheels. The TSV 20-inch package features a 20x9" square fitment that allows front-to-rear tire rotation with matching tires.

Can I rotate my tires with the TSV 20-inch package?
Yes. The TSV 20x9" square fitment uses matching wheel and tire sizes at all four corners, allowing conventional front-to-rear tire rotation, subject to the tire manufacturer's recommendations.

What finishes are available for TSV 20-inch wheels?
TSV 20-inch Model S wheels are offered in Satin Gray. Each set includes color-matched T Sportline center caps.
