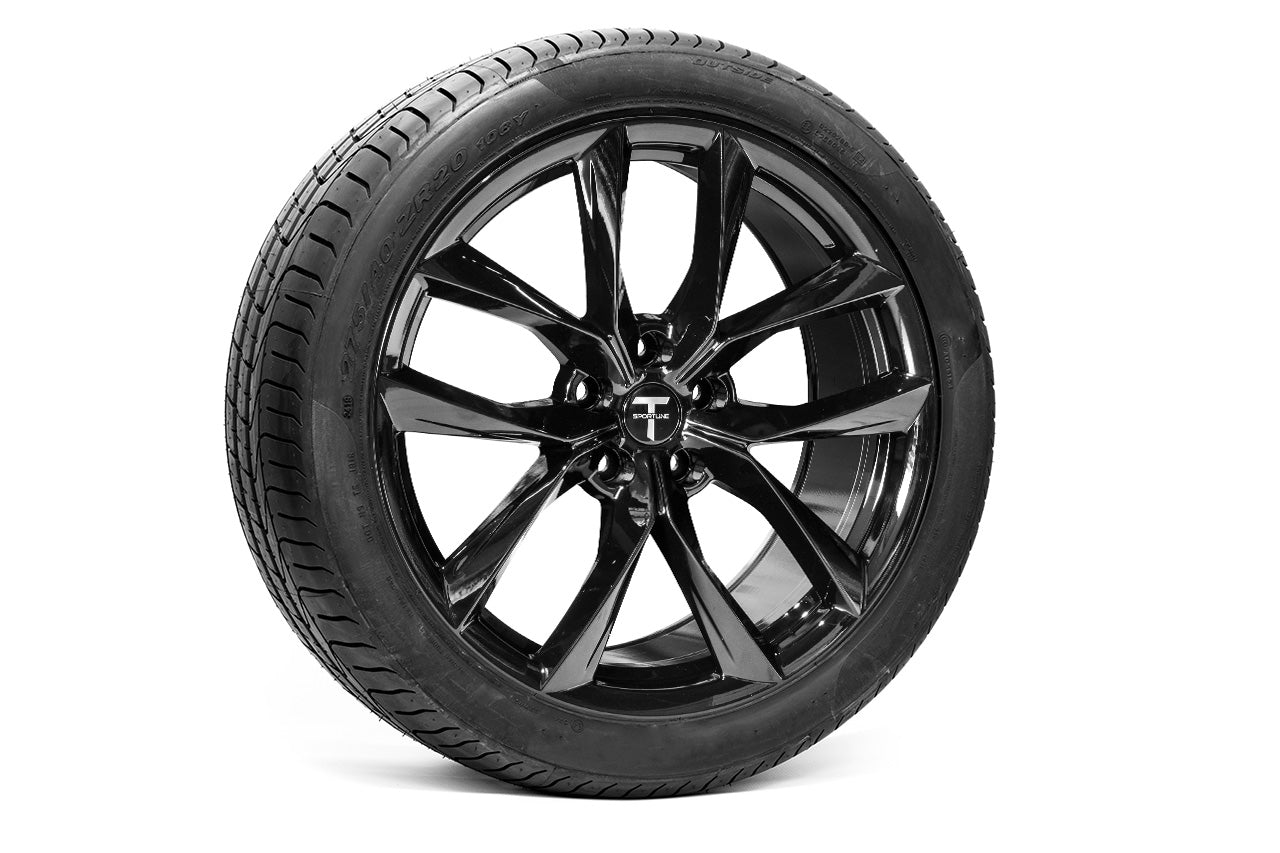

Name: TSS 20" Tesla Model S Wheel and Tire Package (Set of 4)
Brand: T Sportline
SKU: SS20909005120SB
Price: 2050.0 USD
Availability: InStock

Description

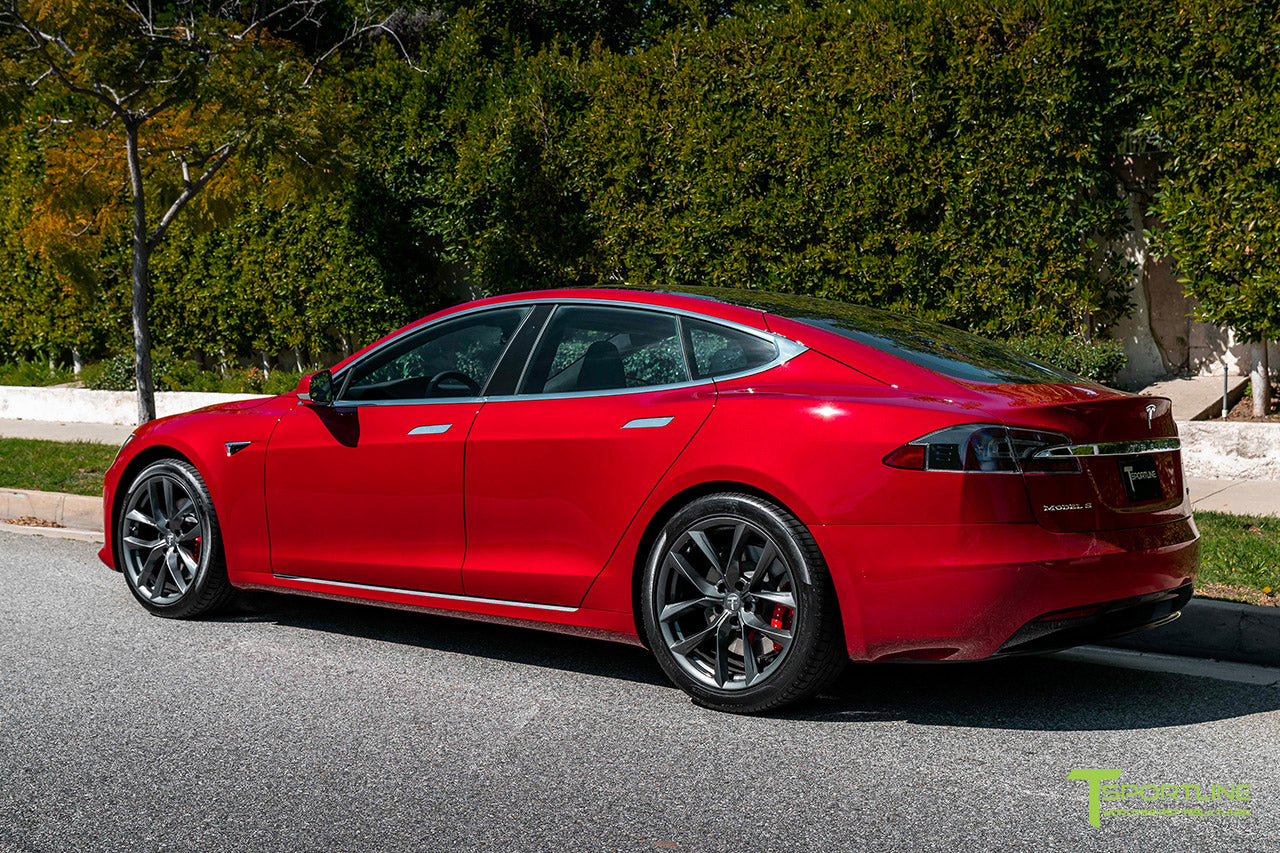

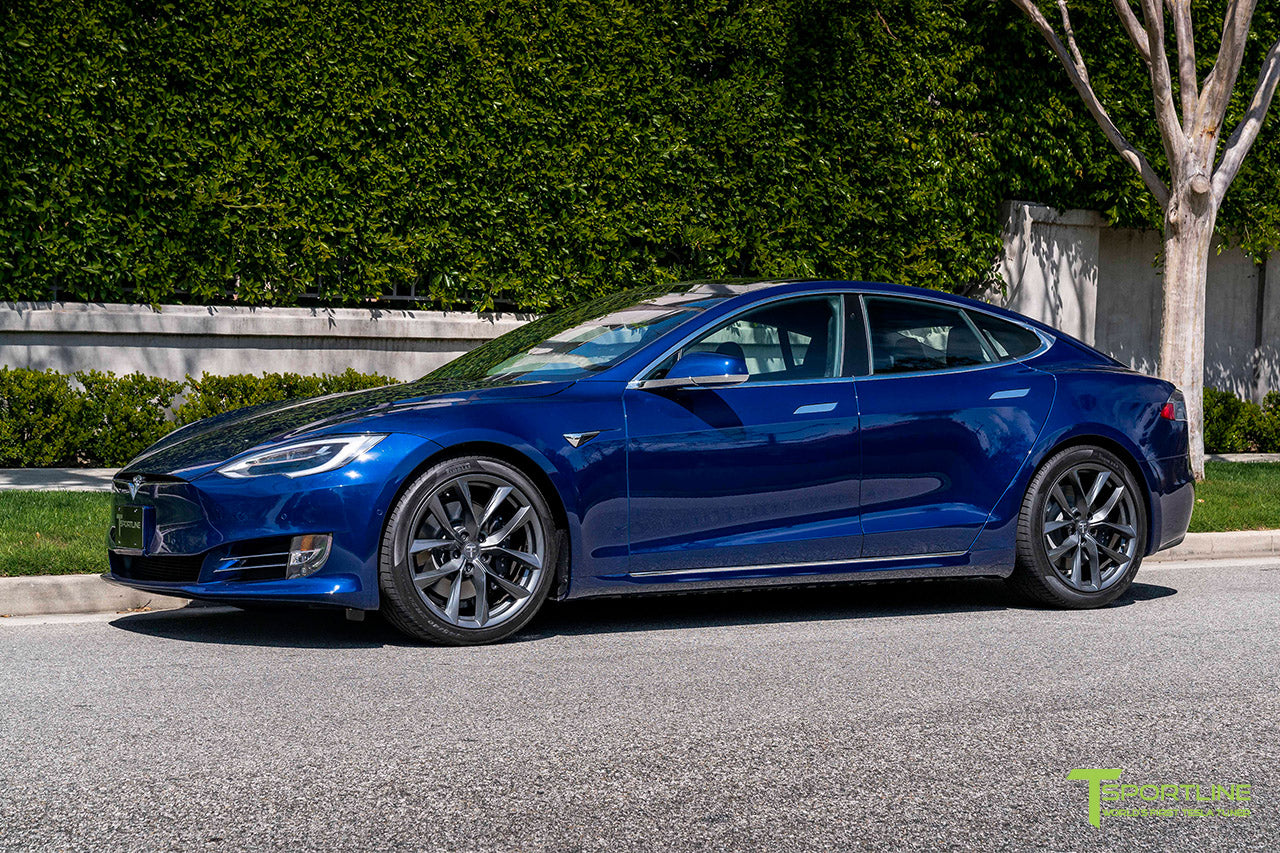

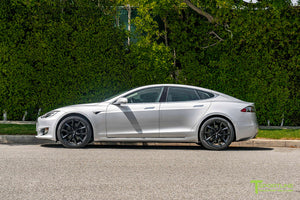

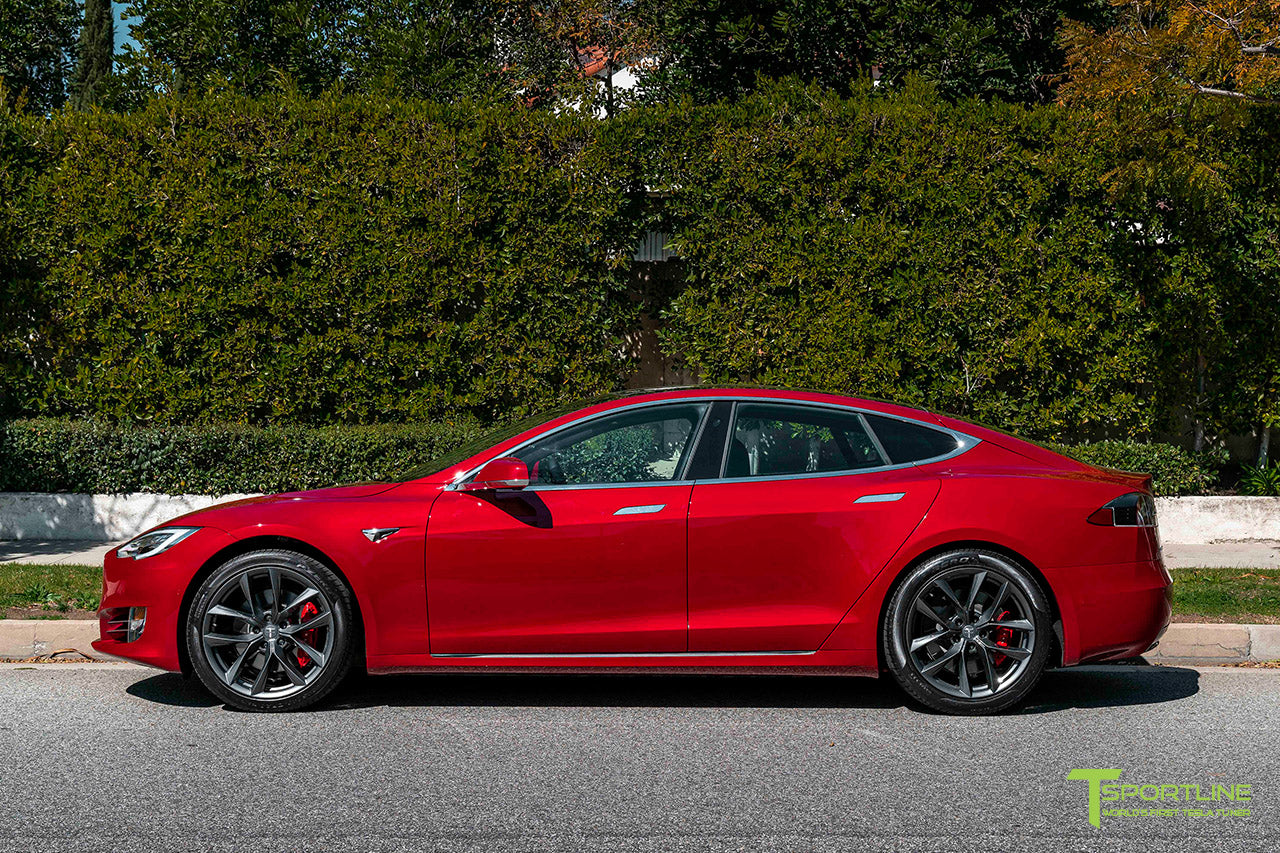

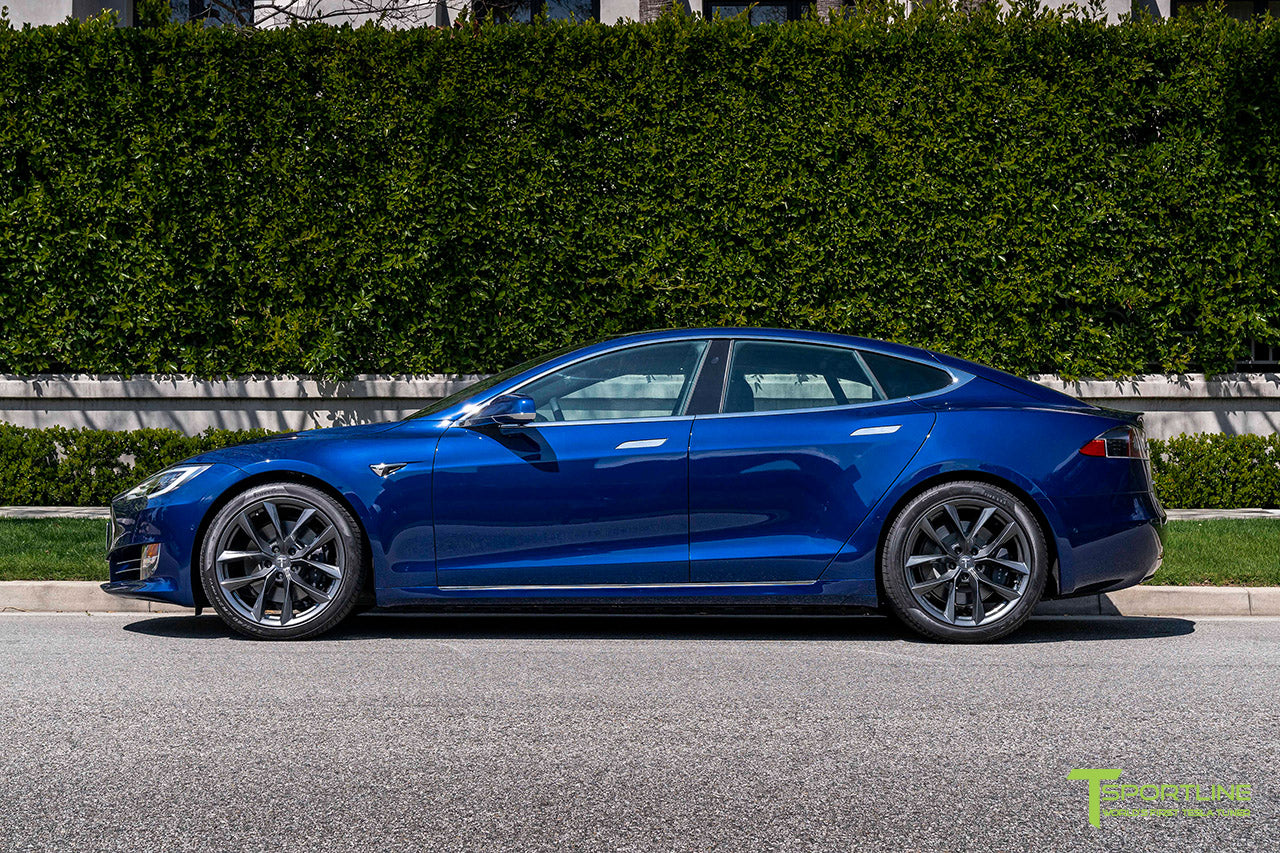

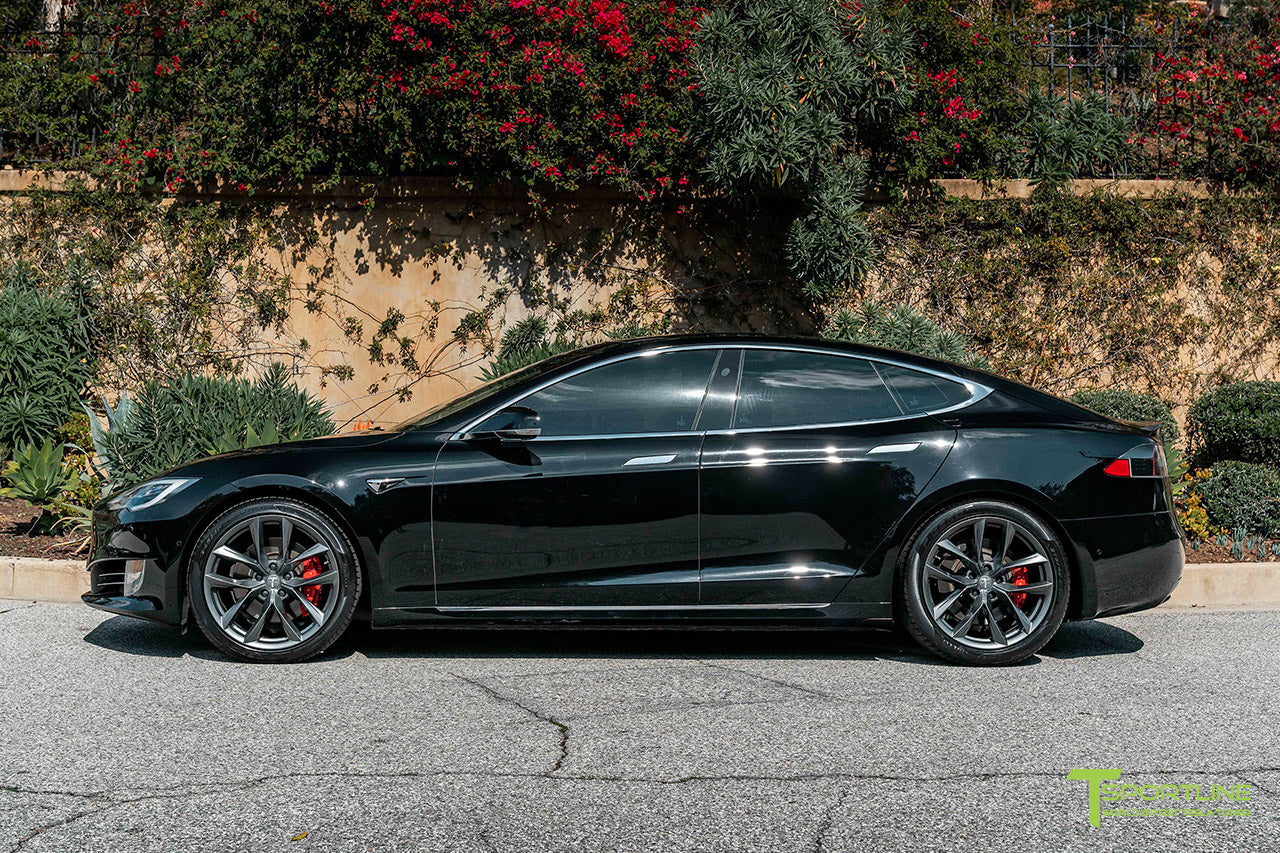

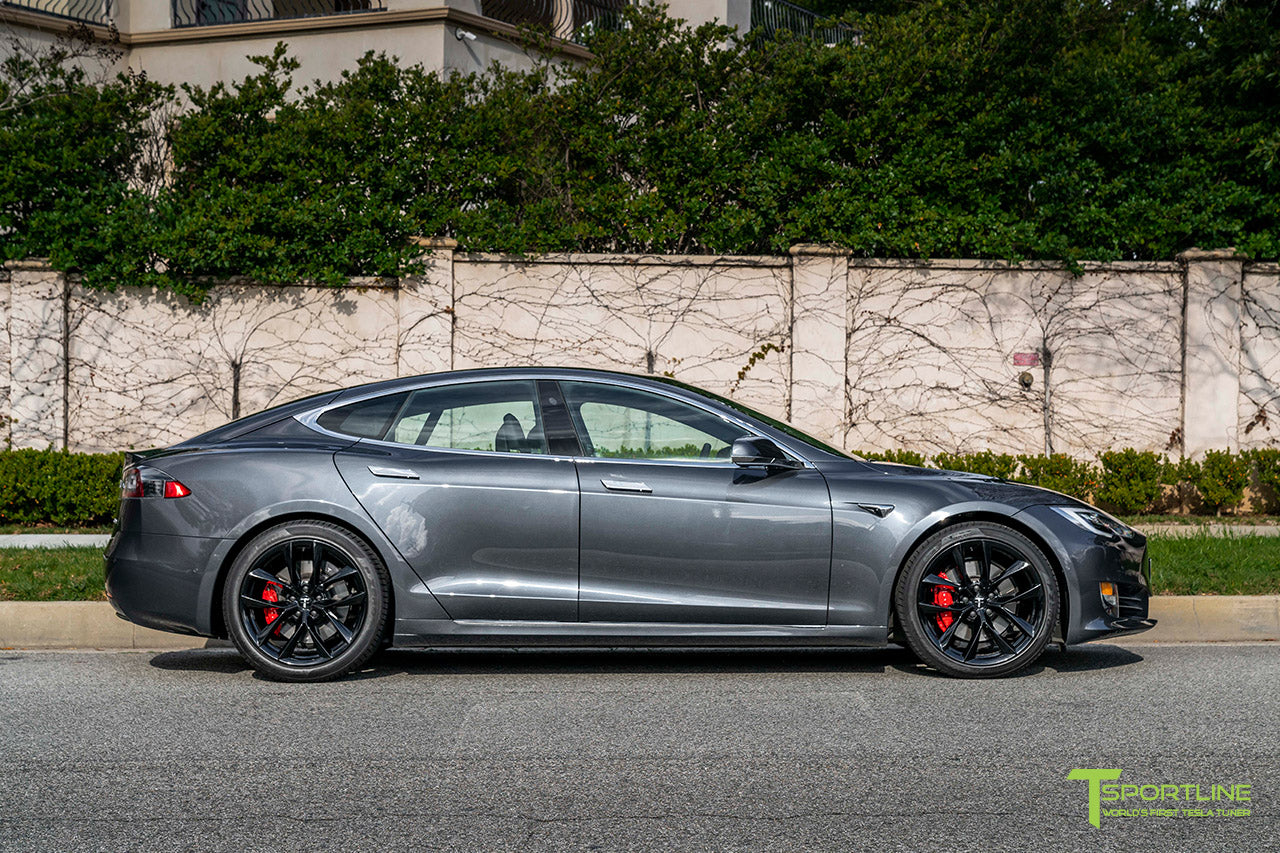

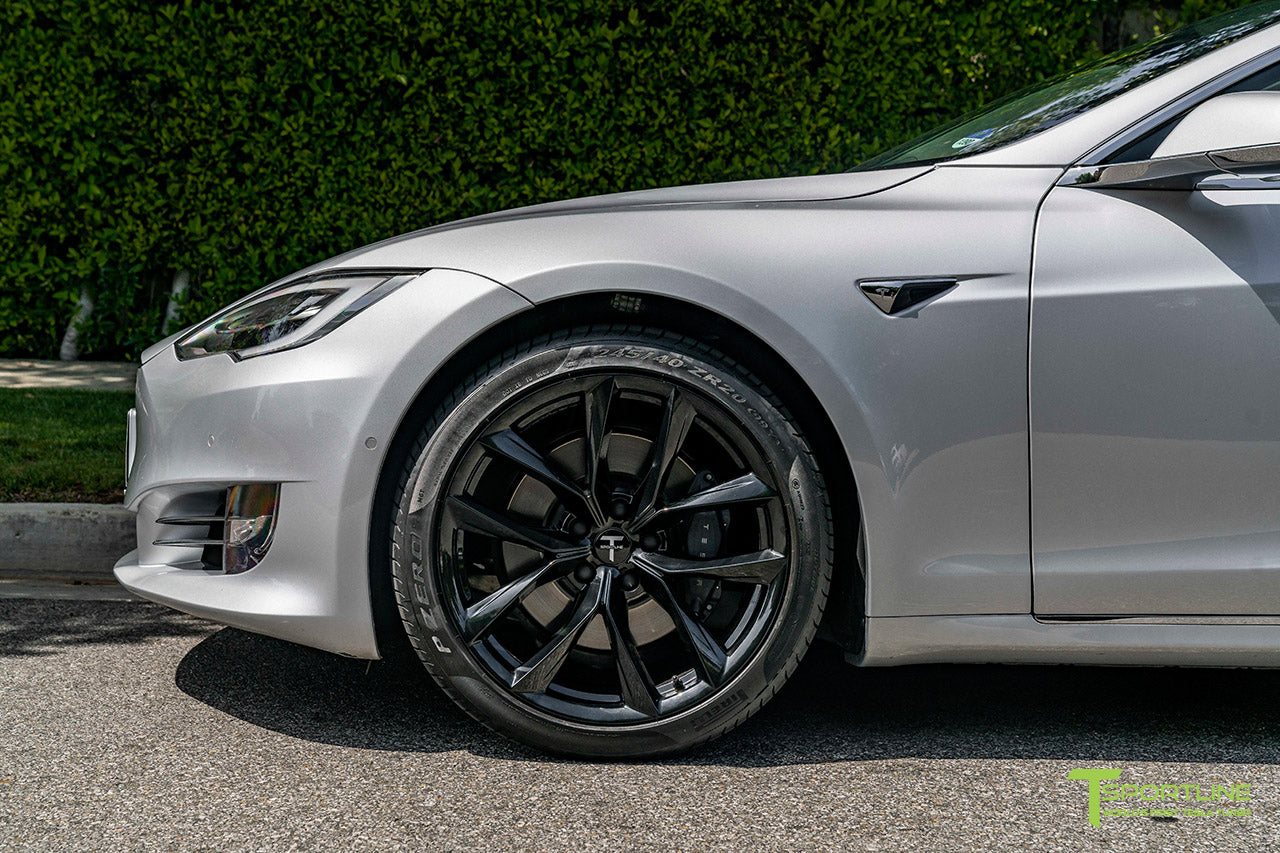

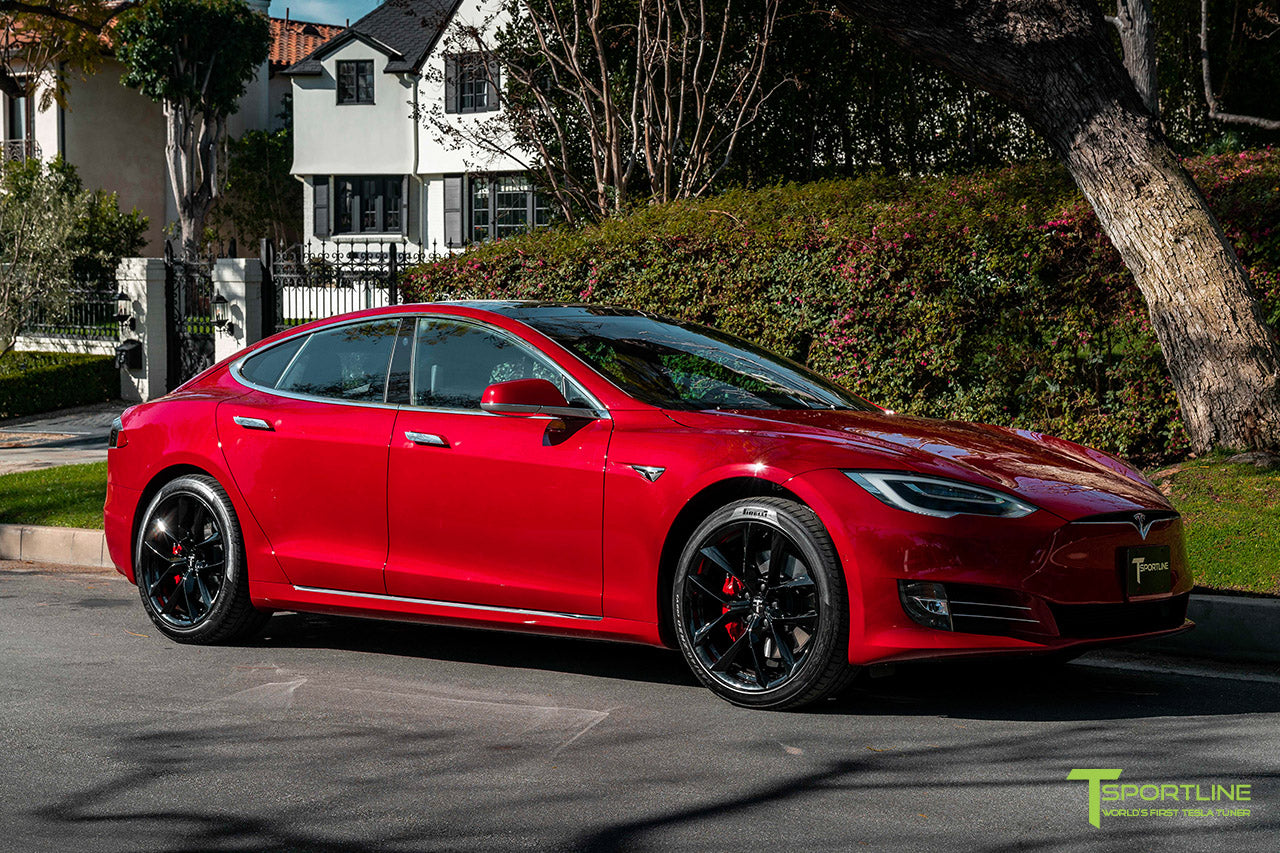

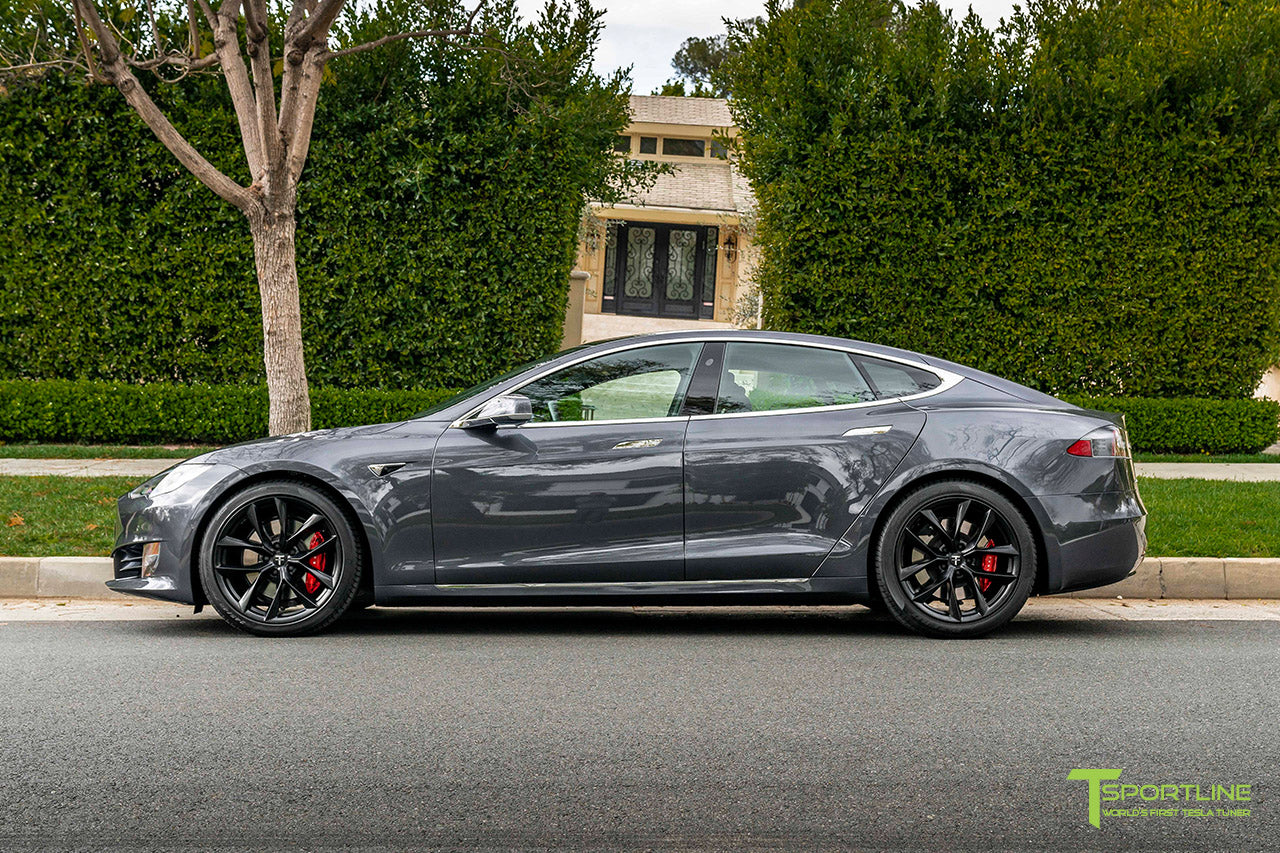

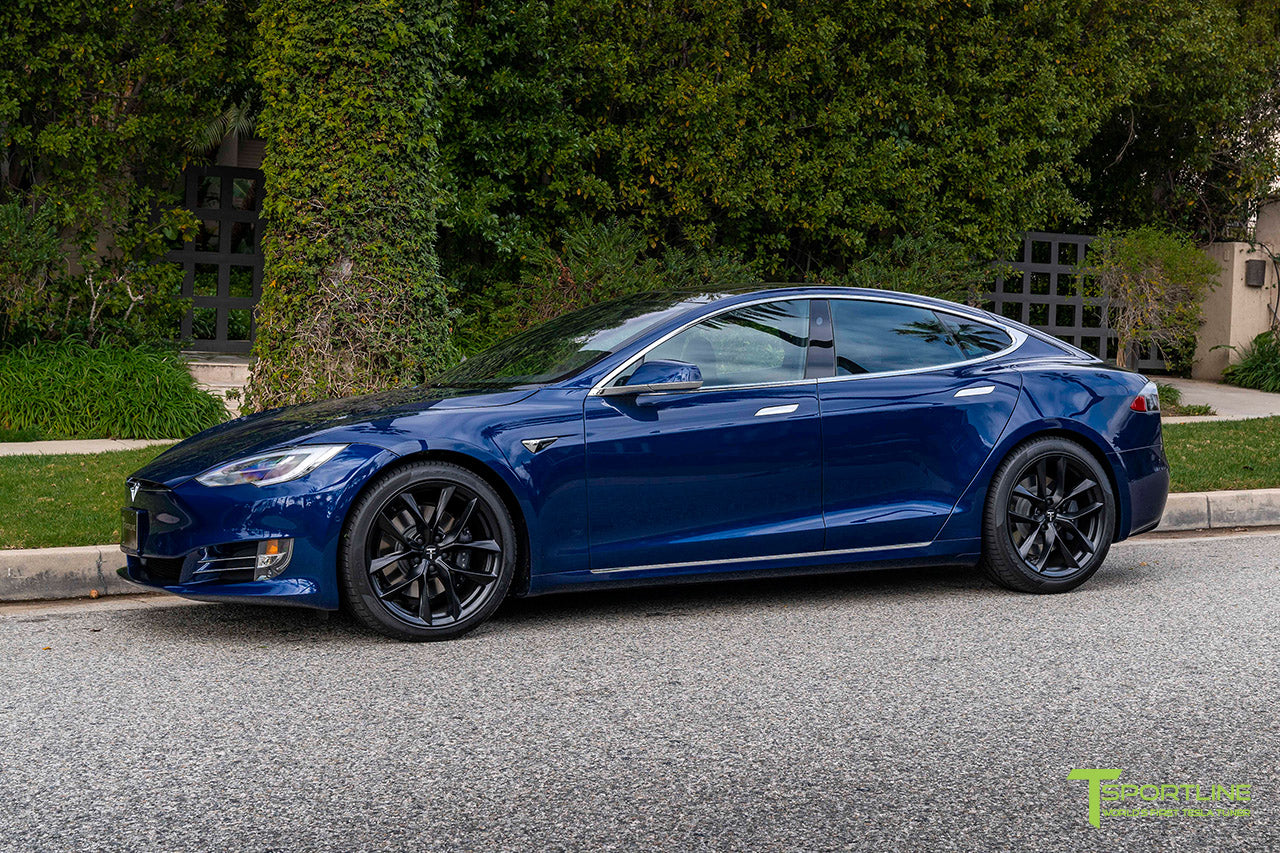

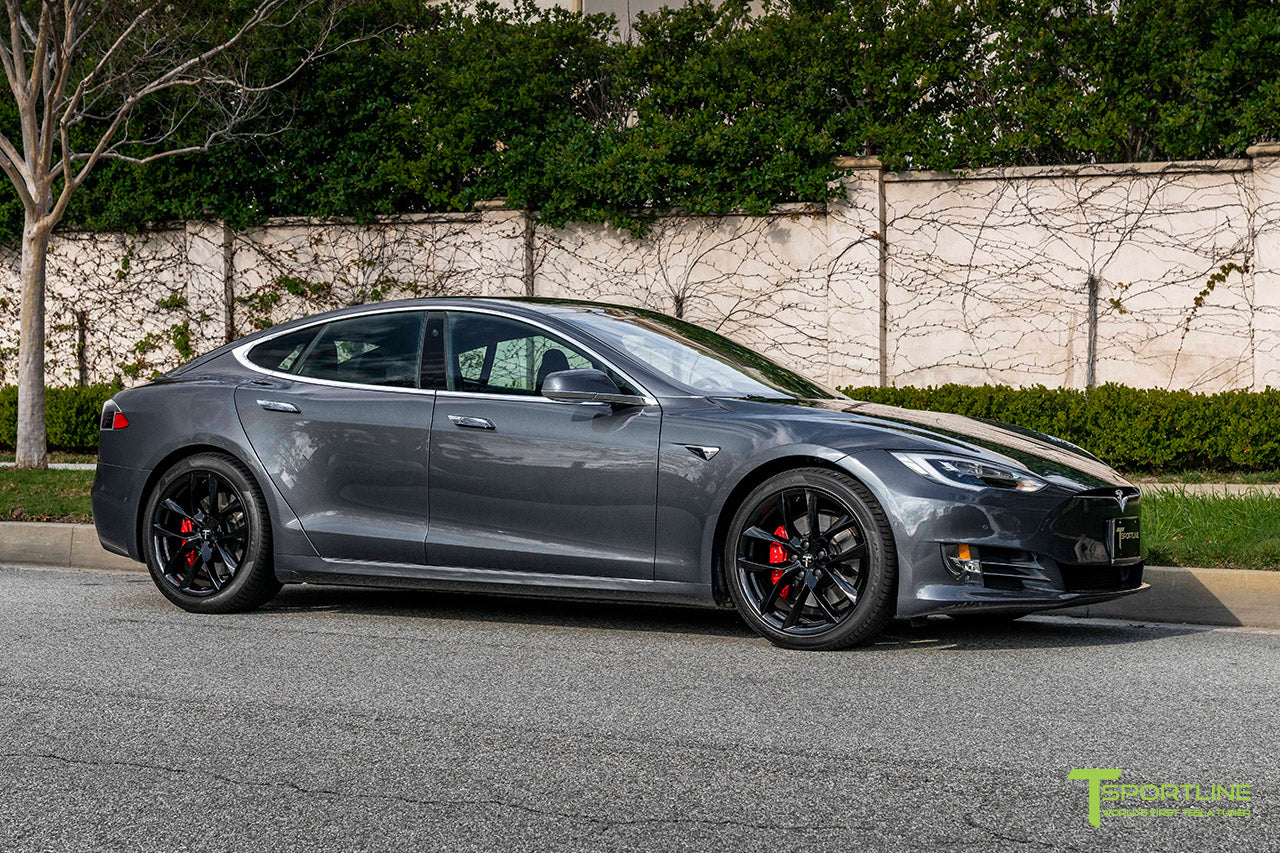

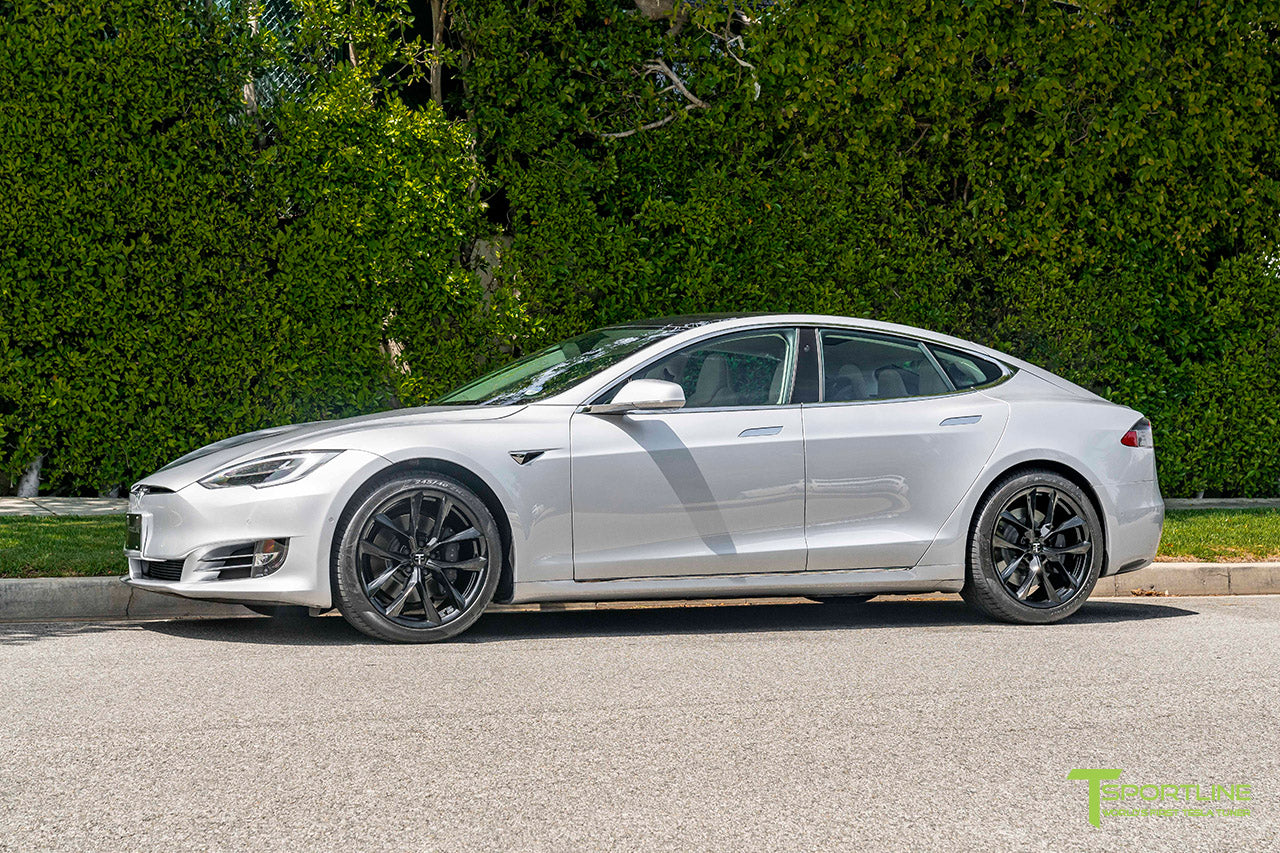

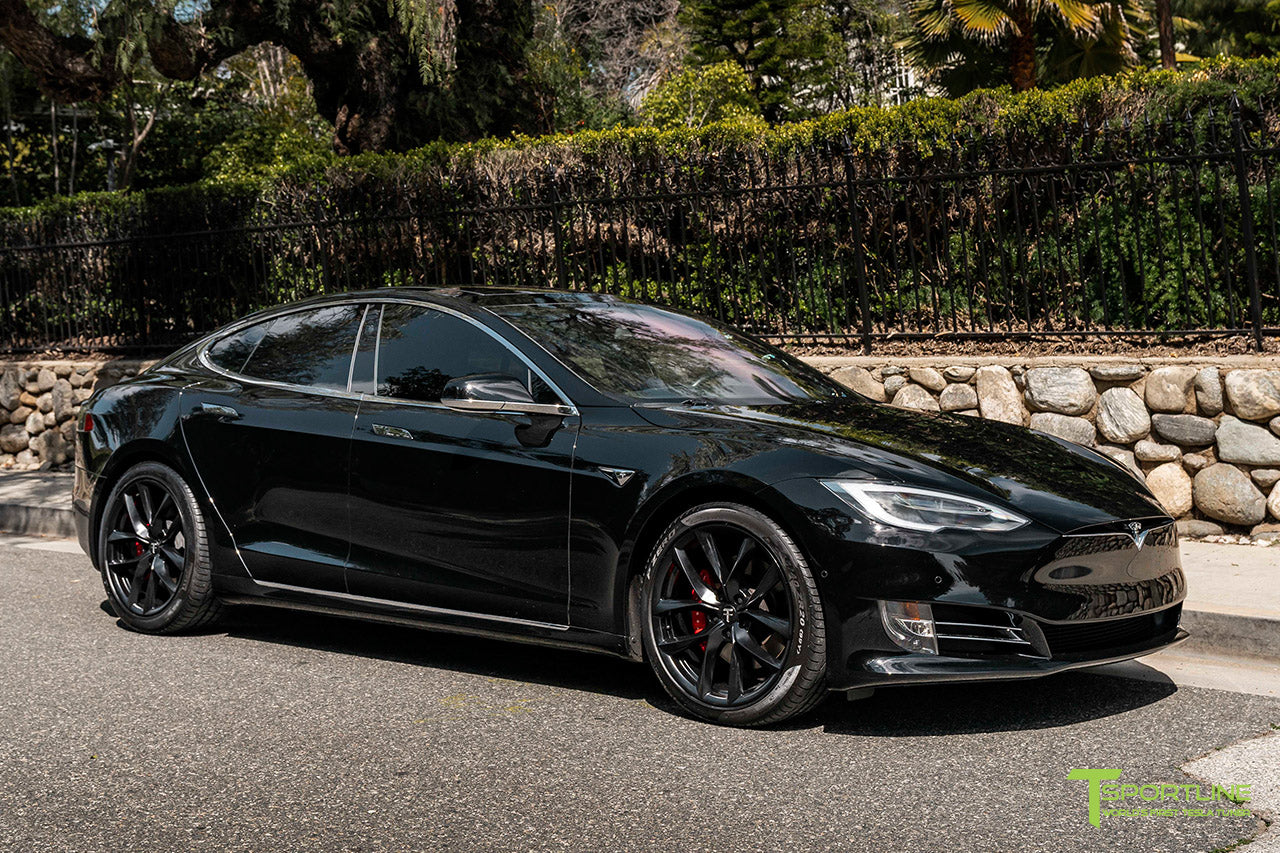

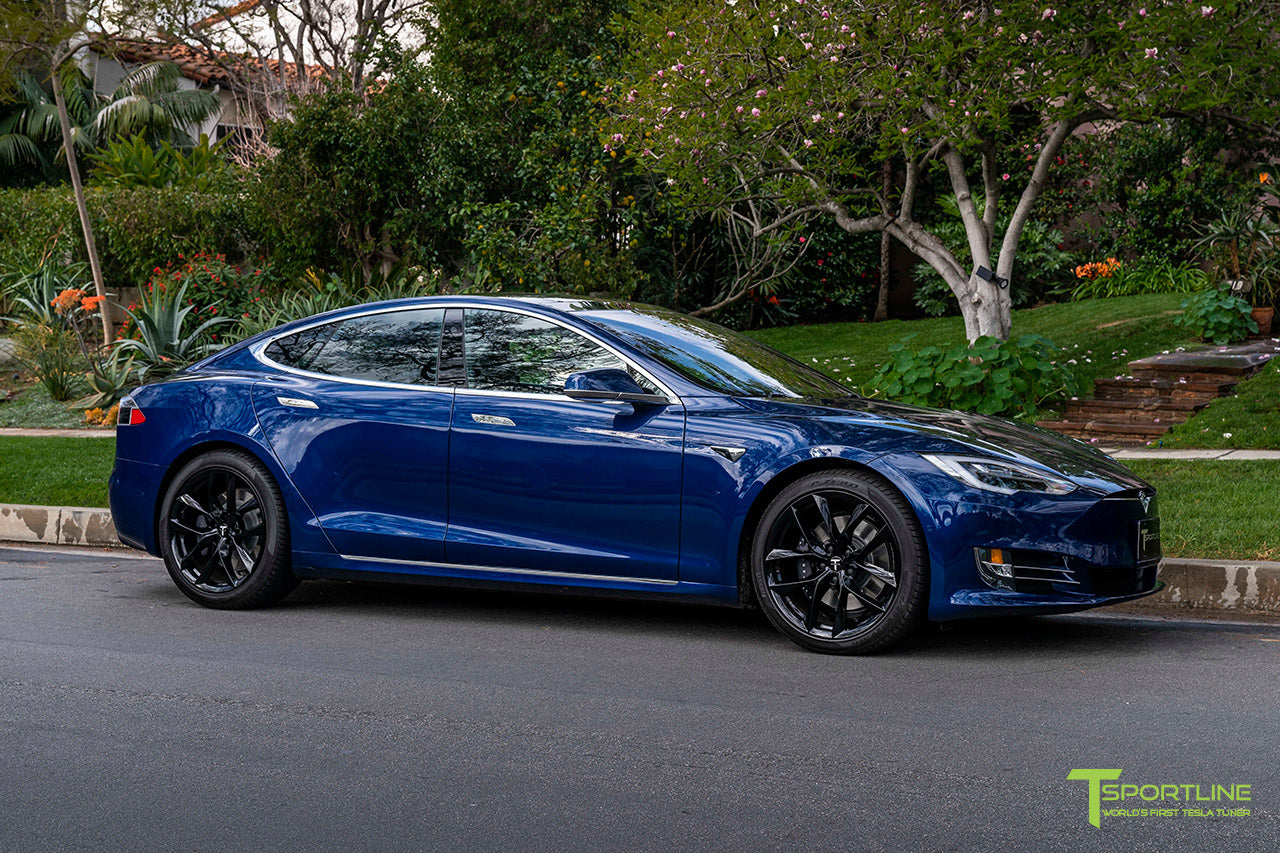

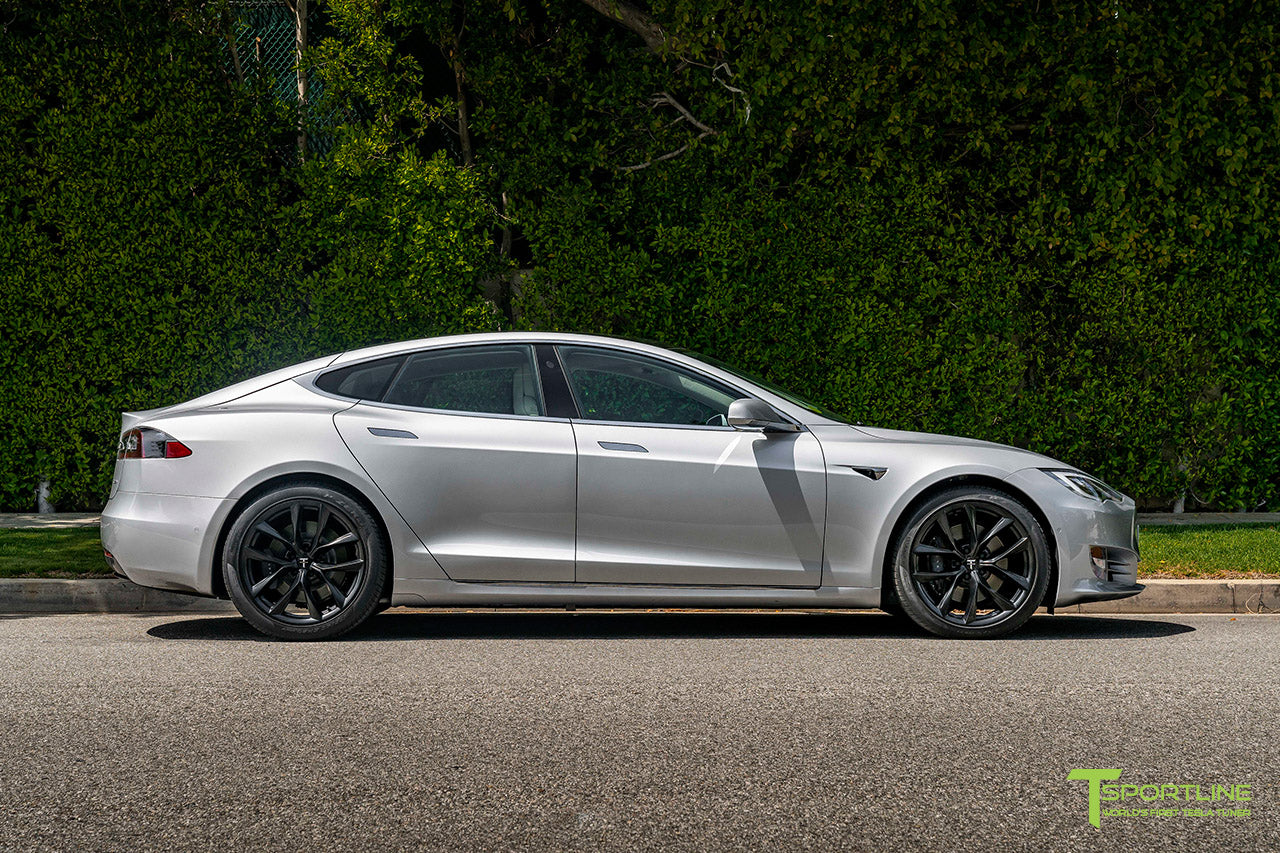

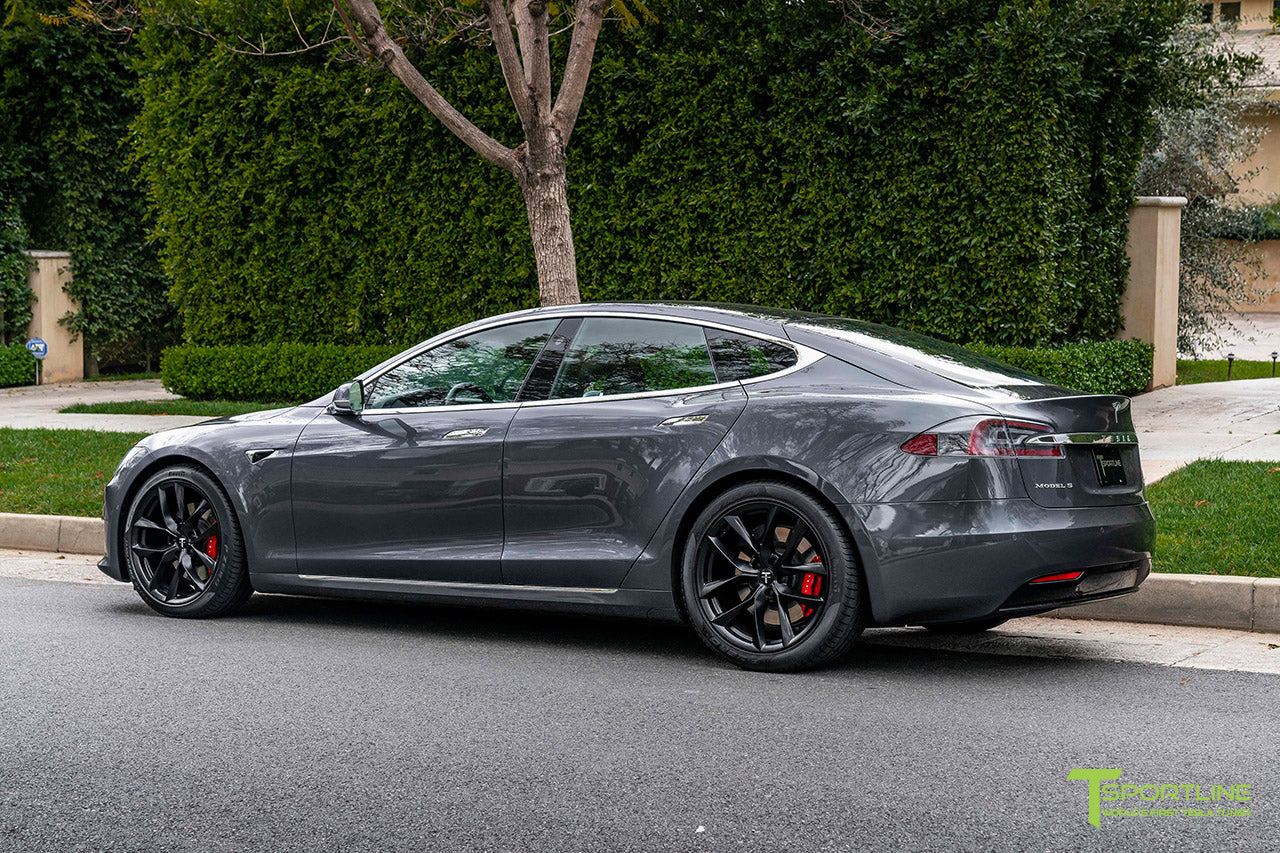

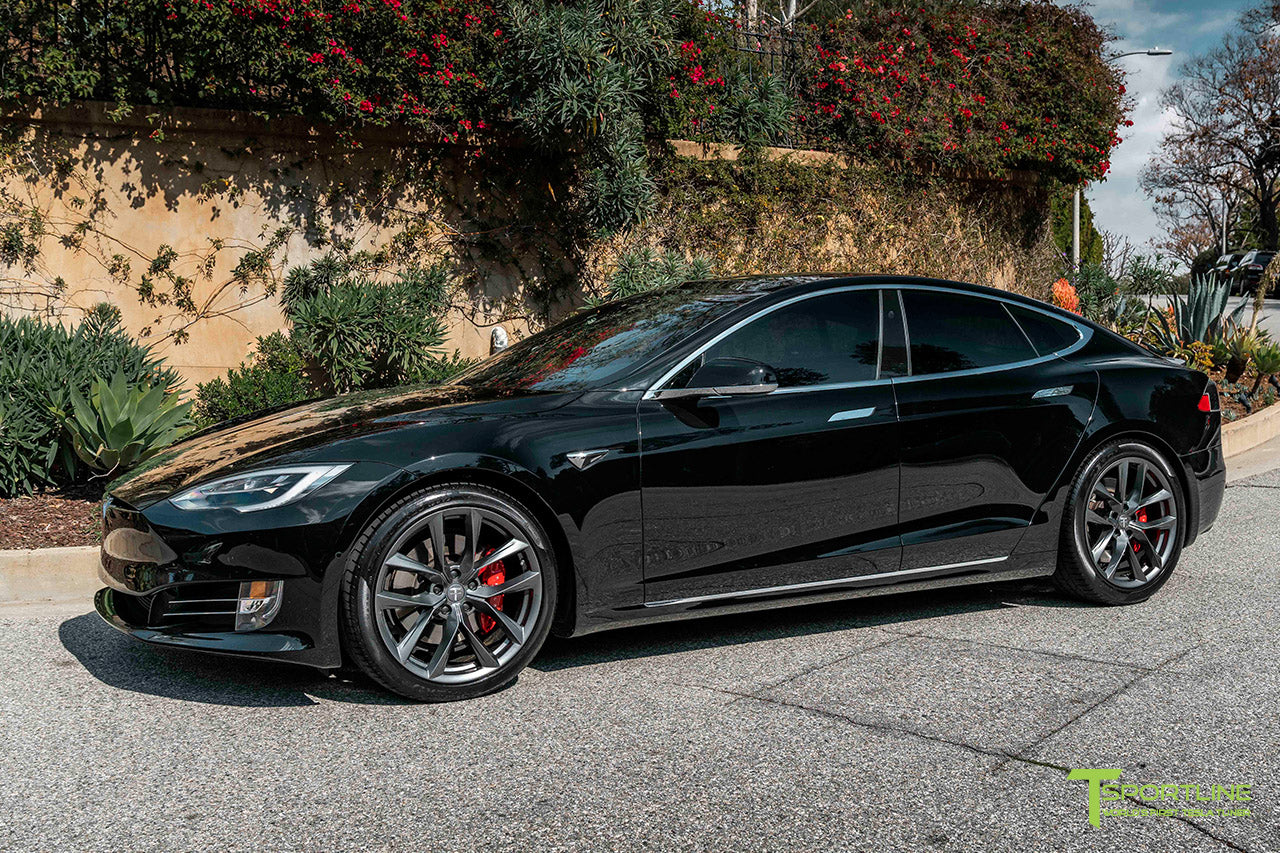

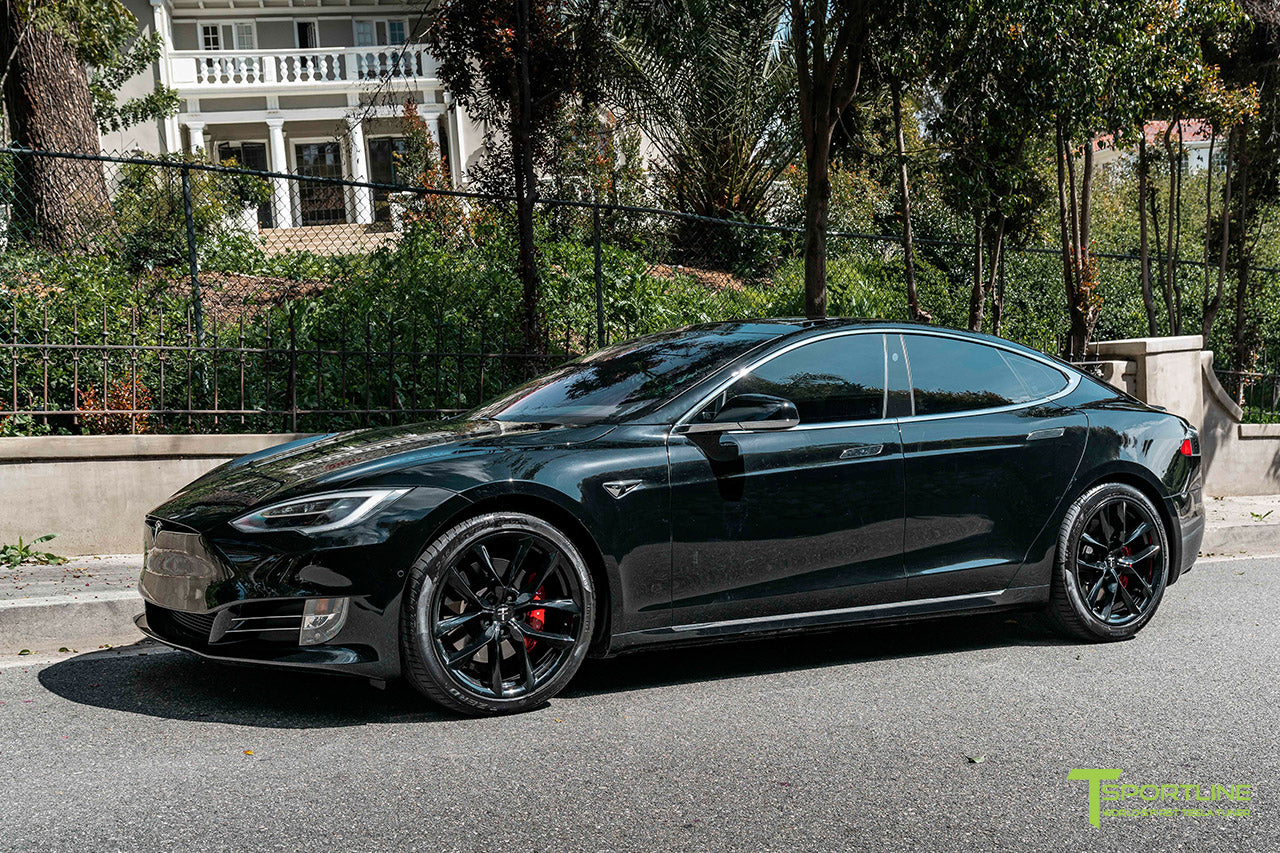

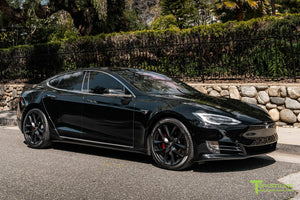

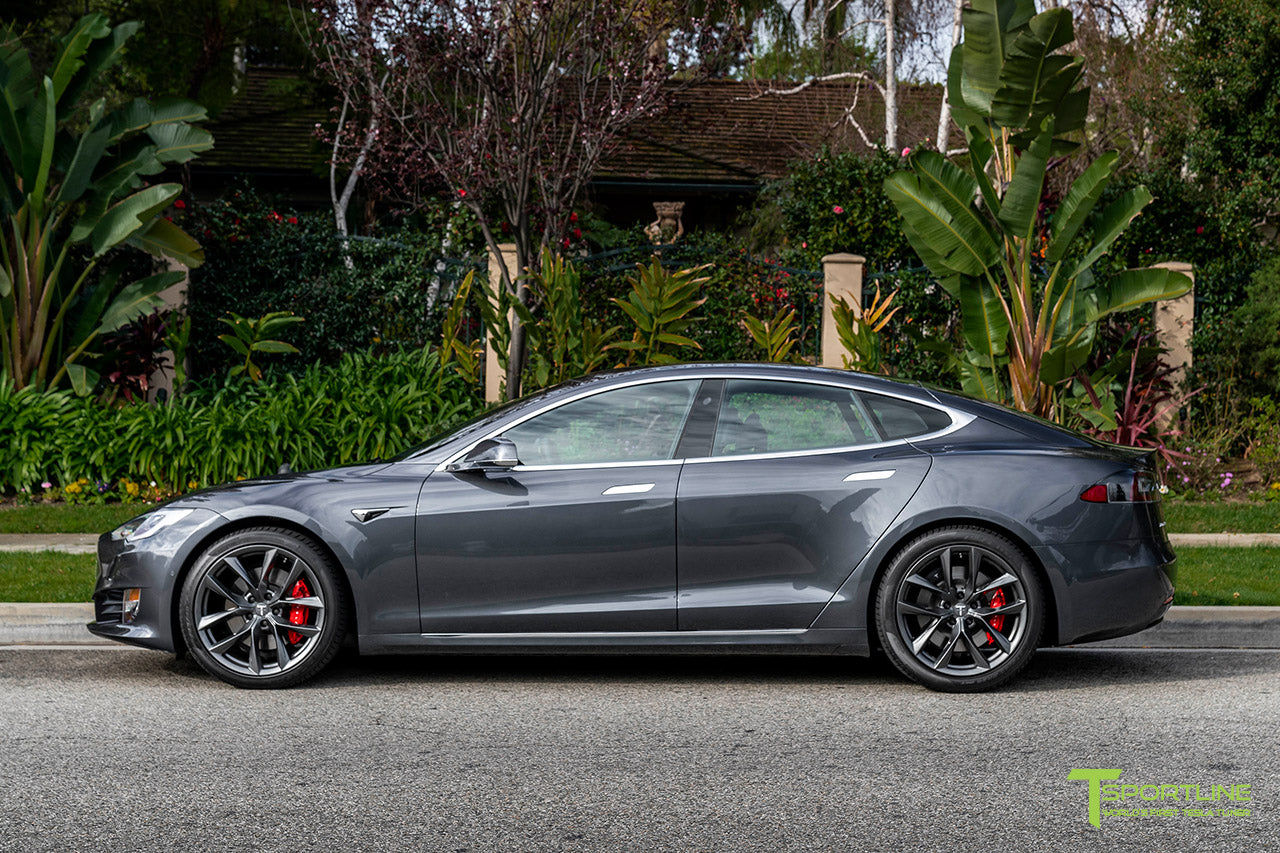

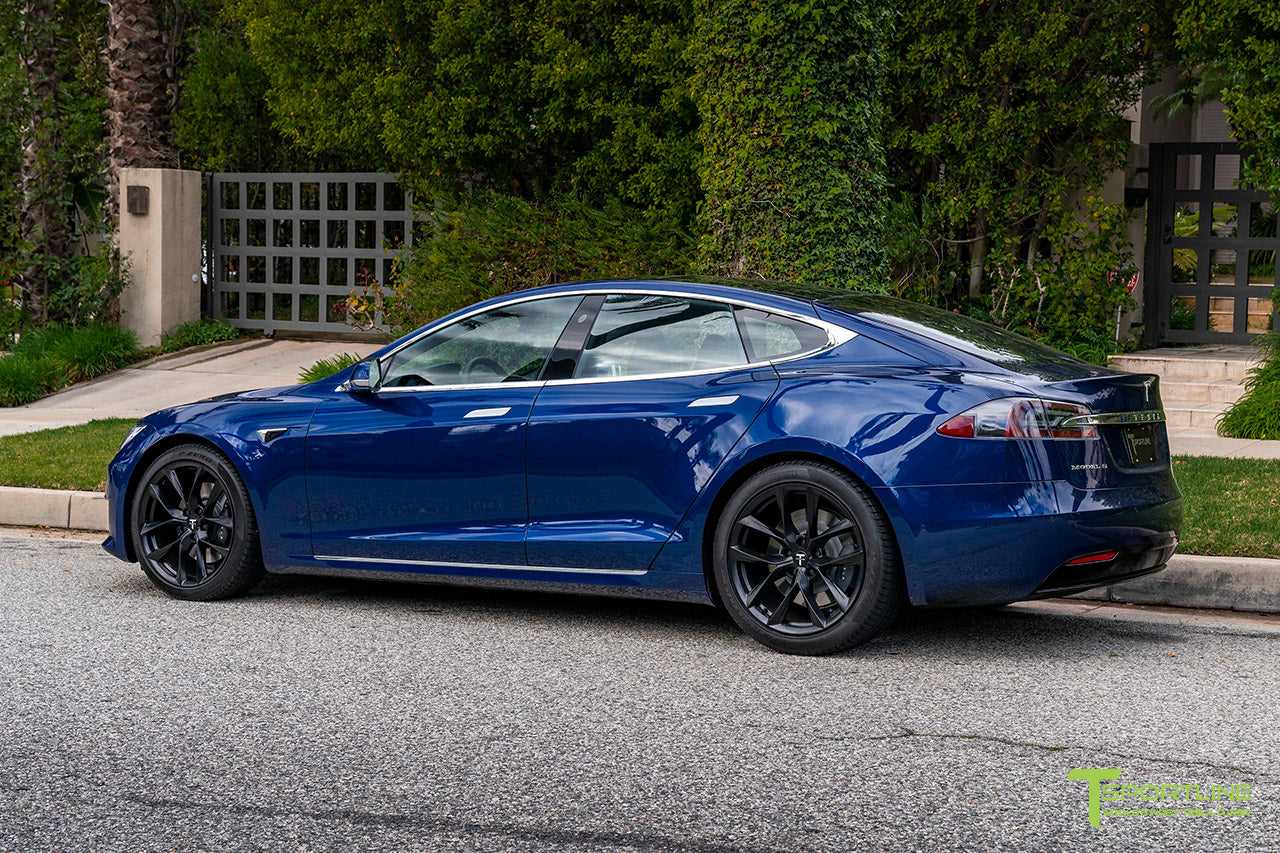

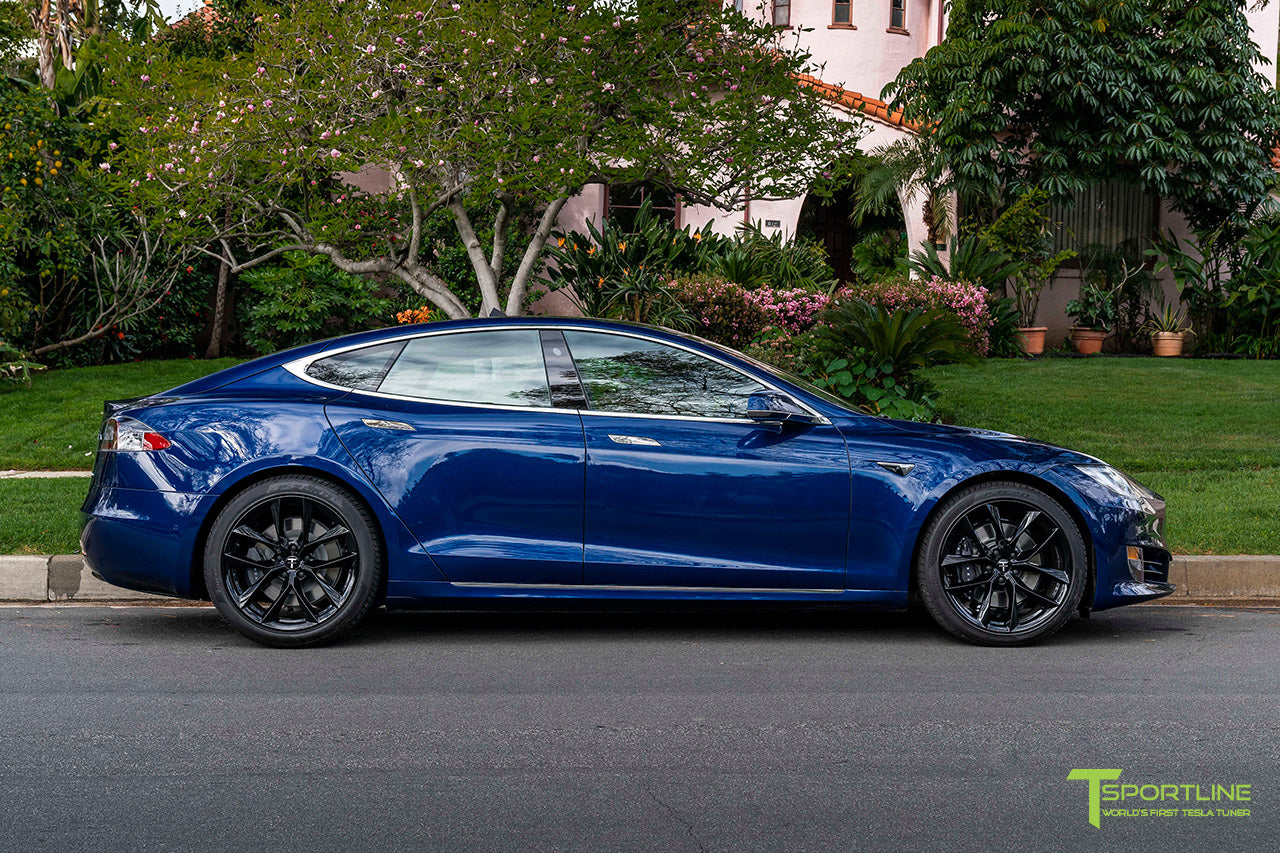

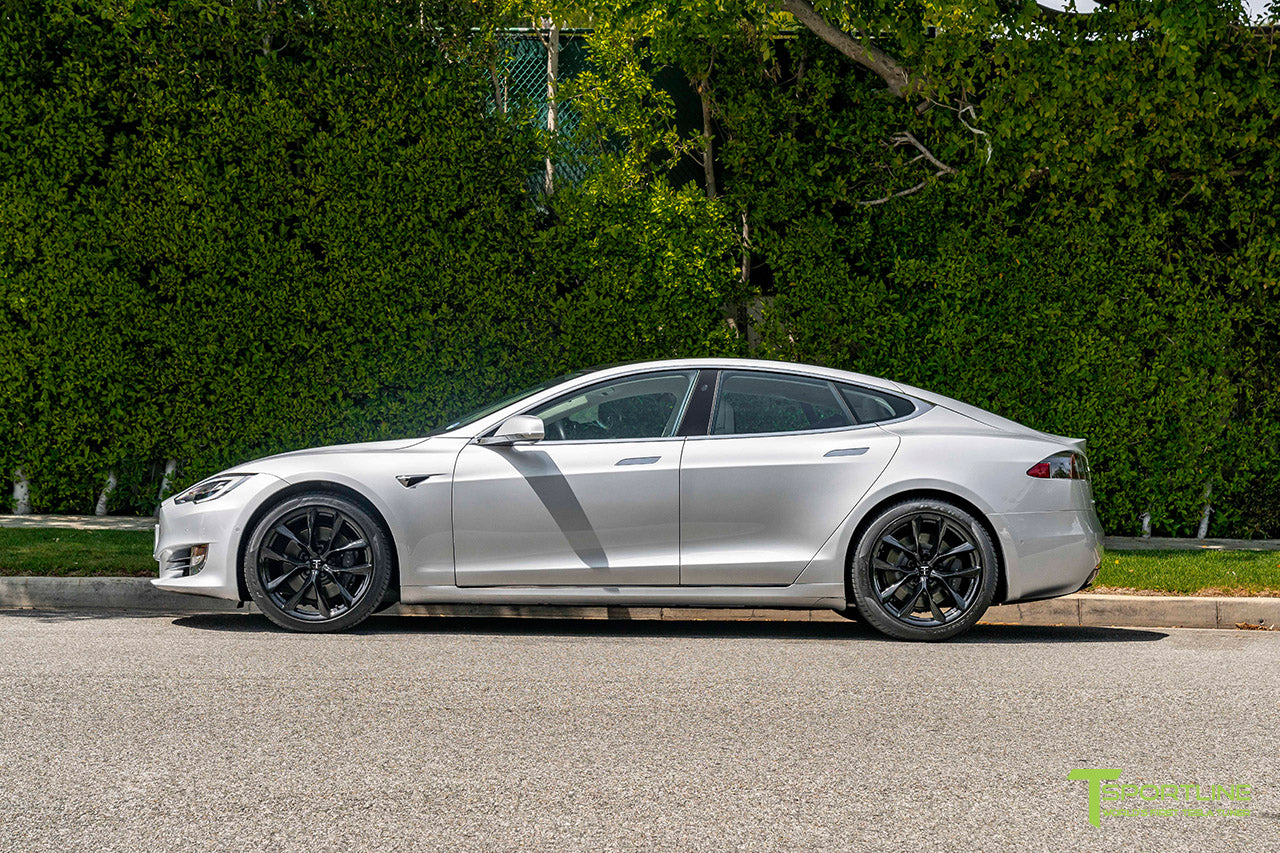

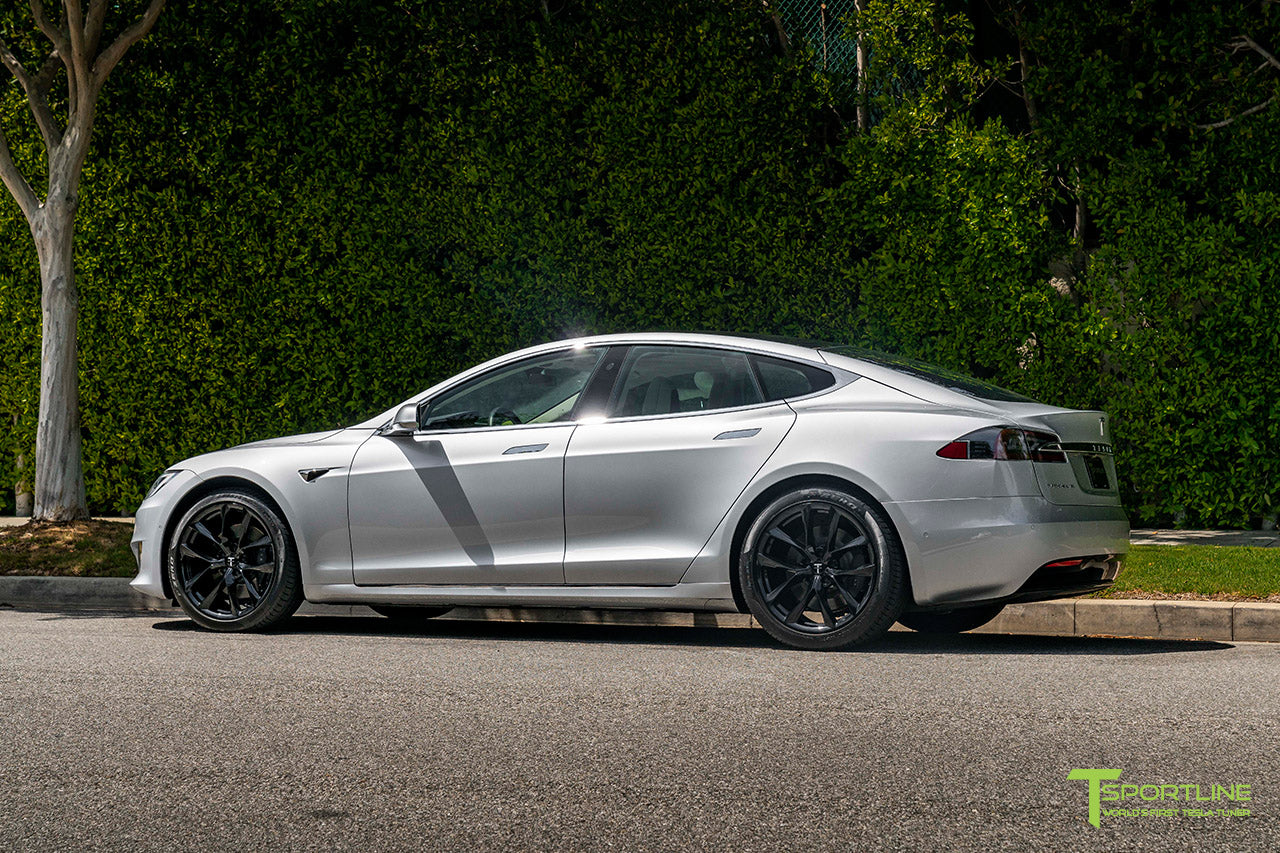

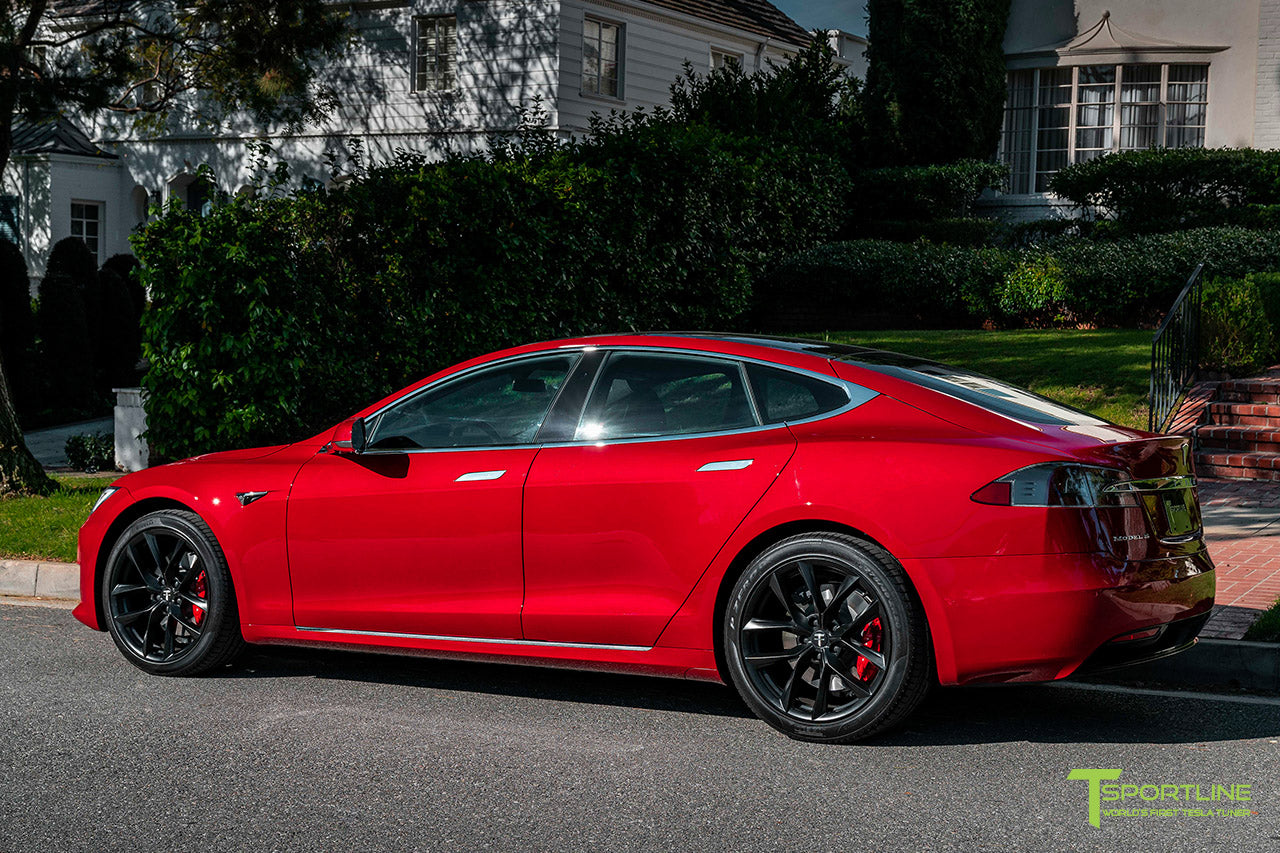

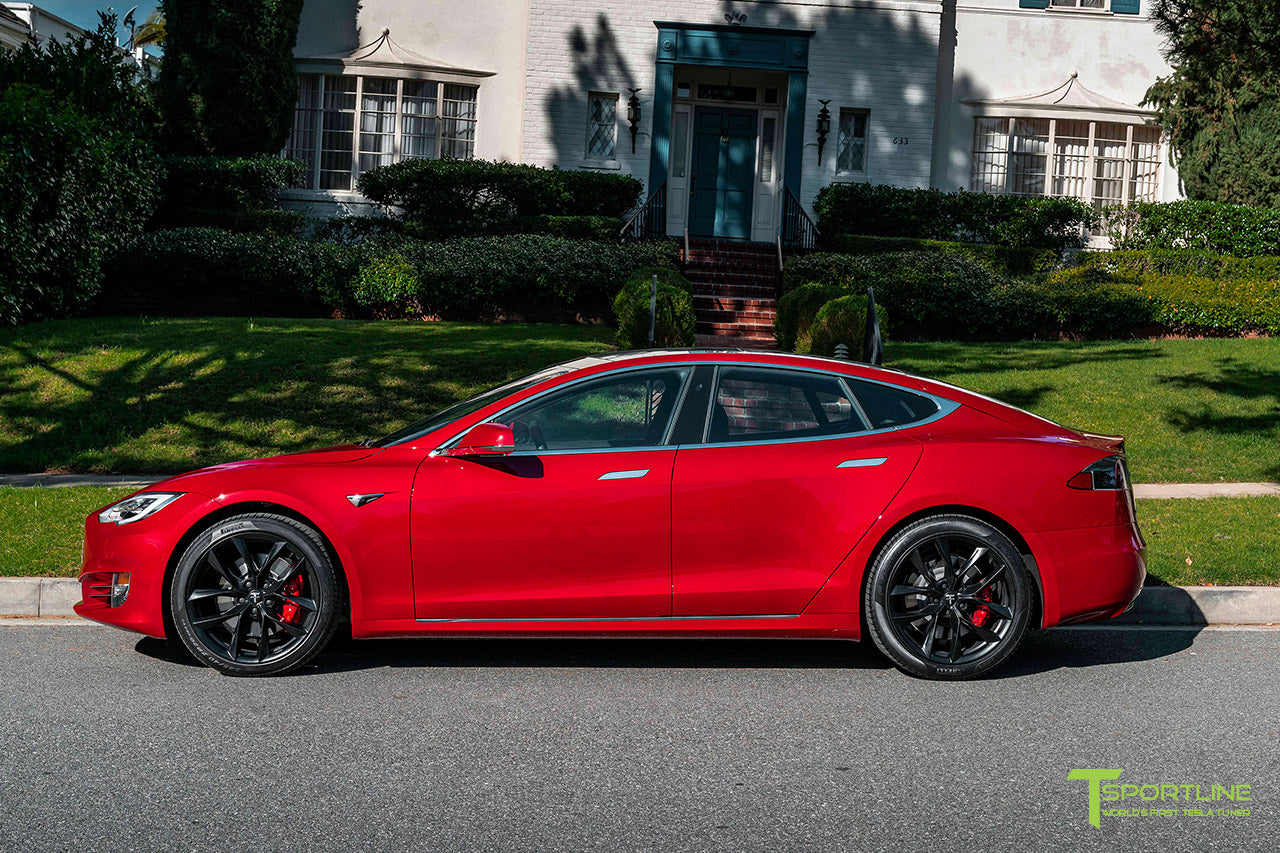

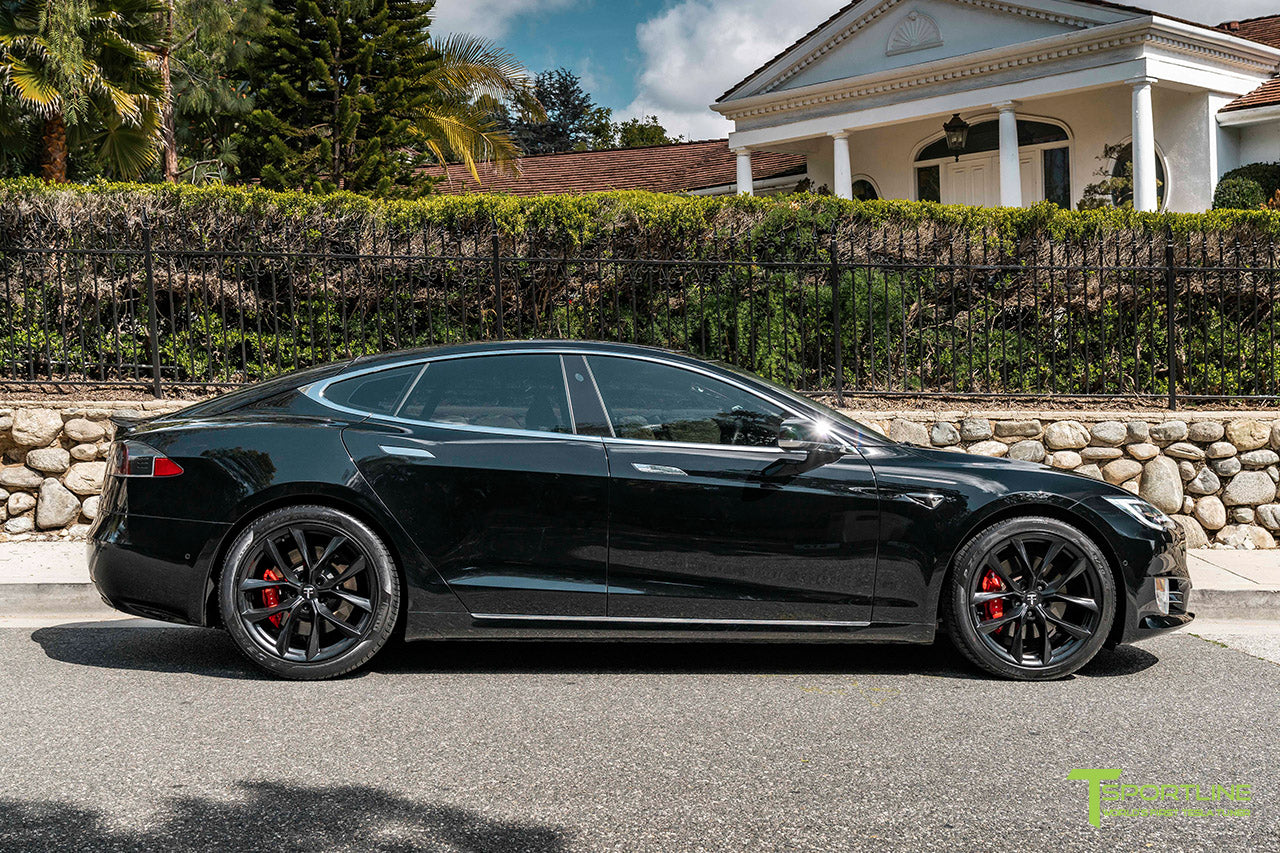

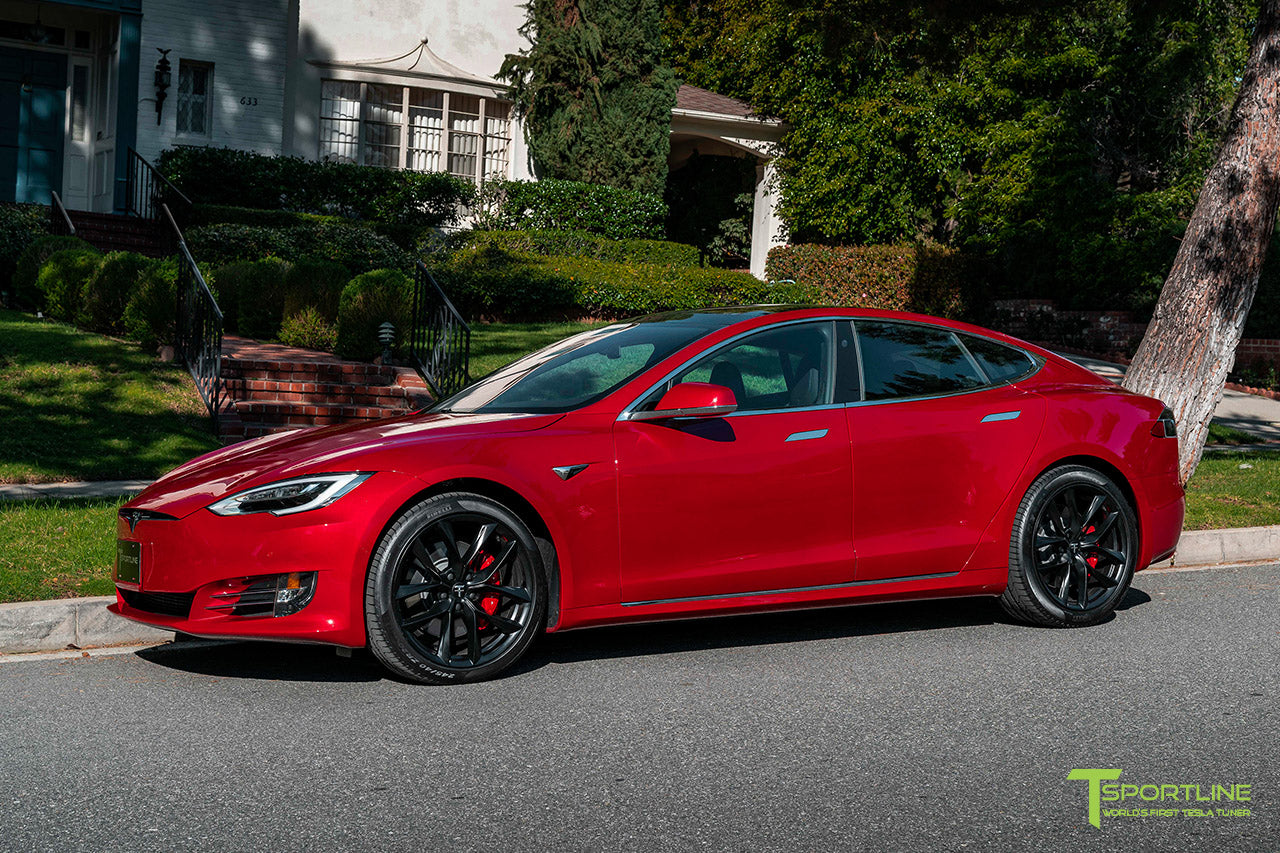

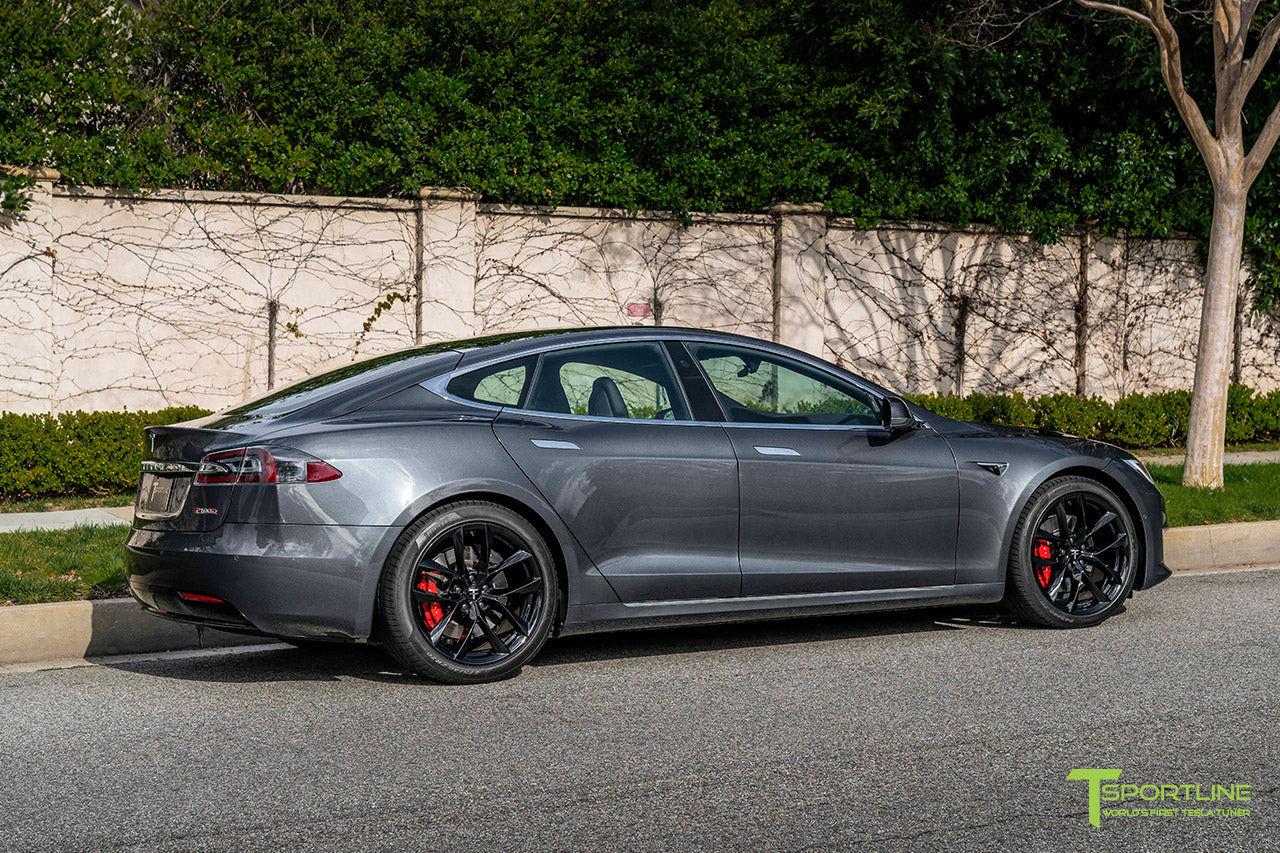

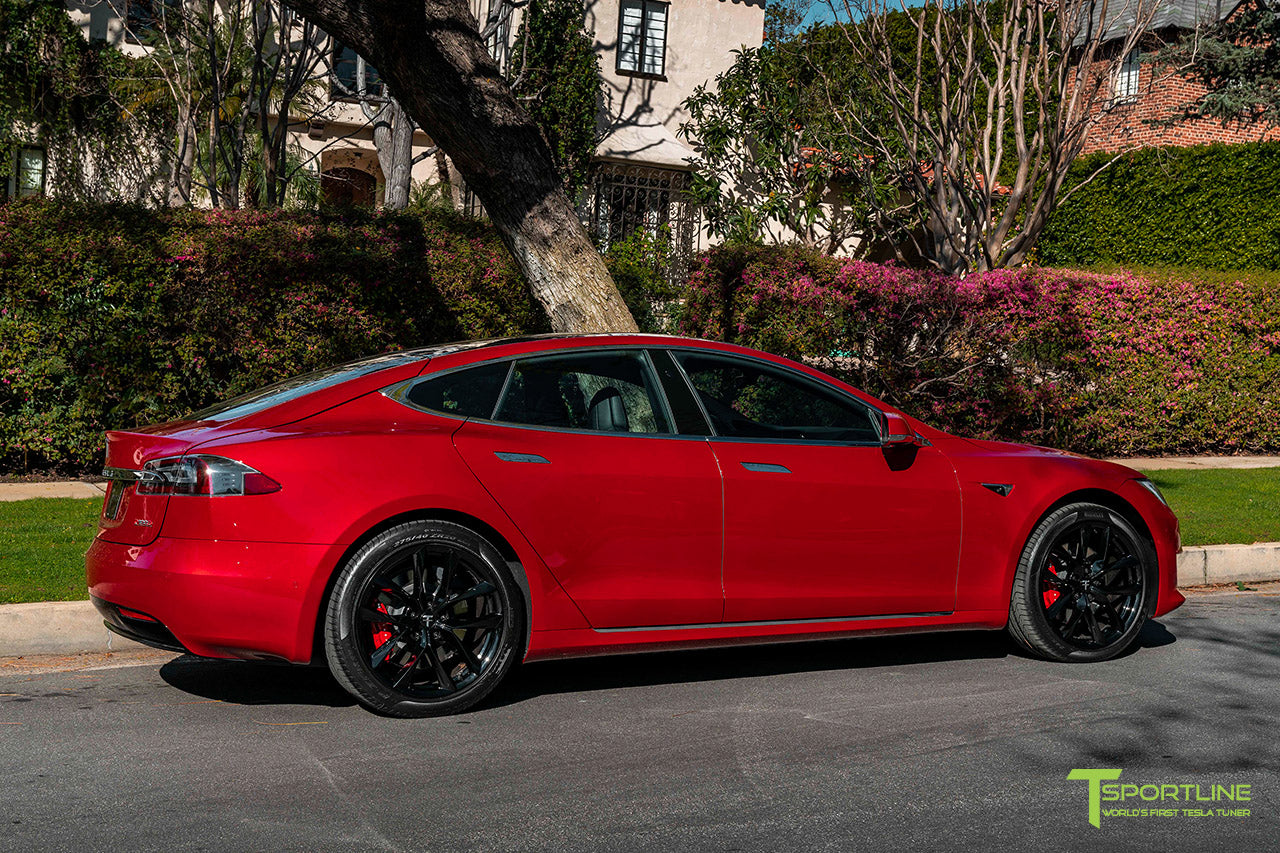

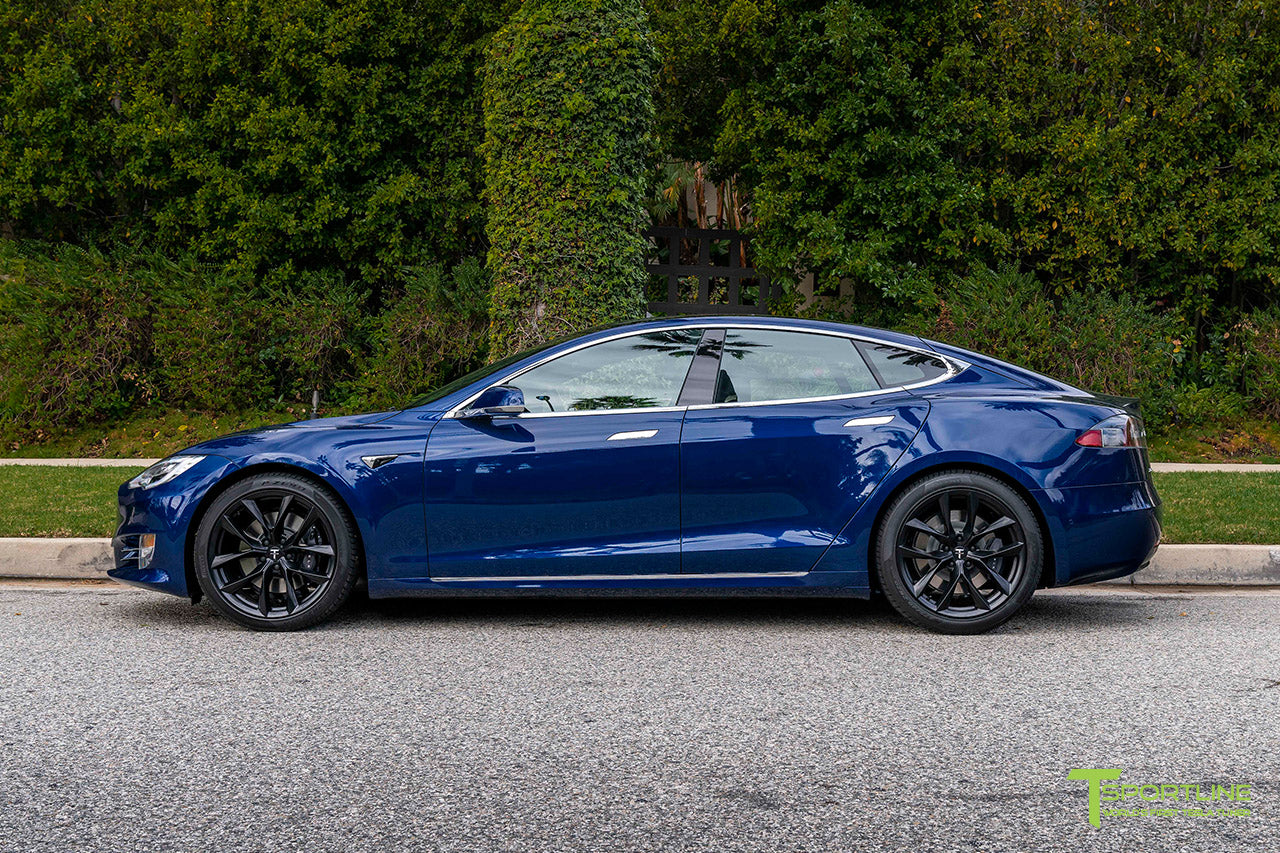

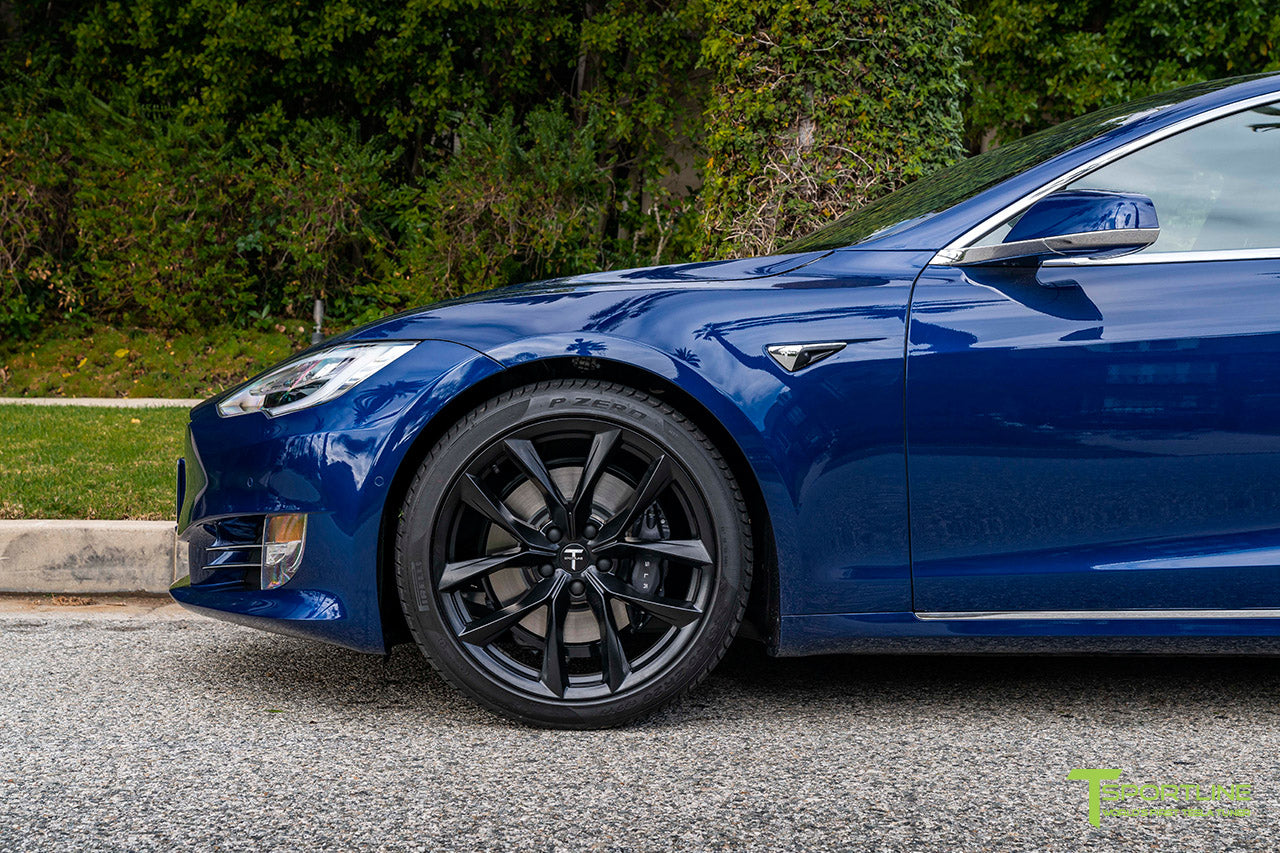

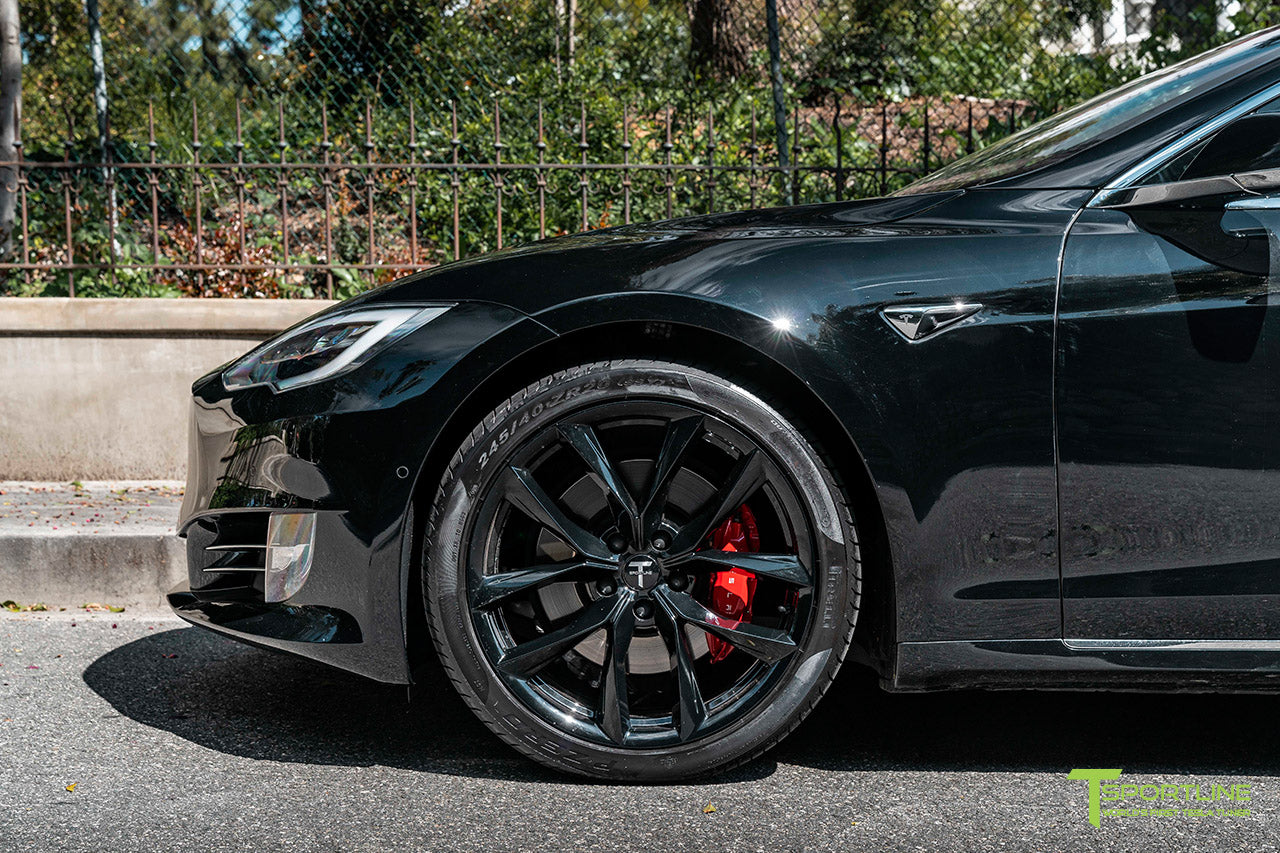

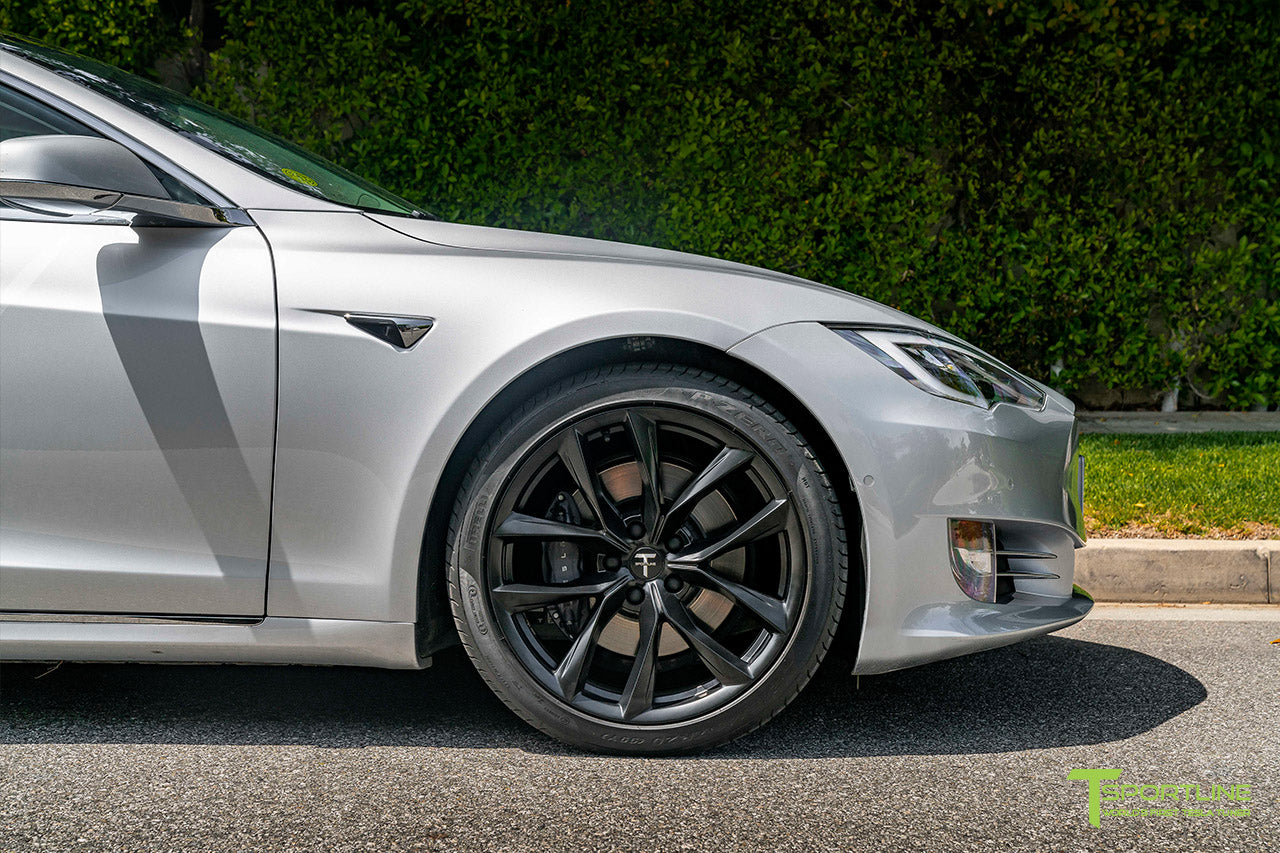

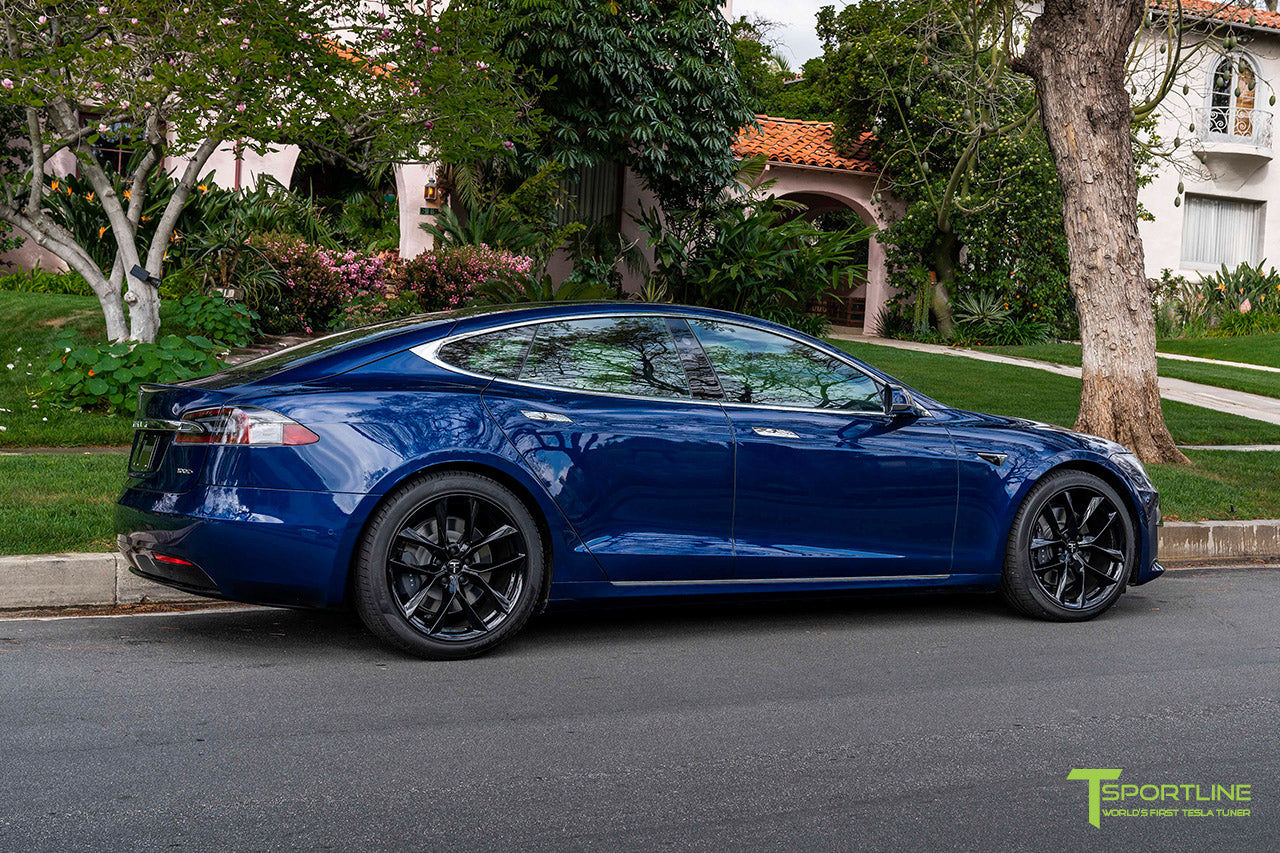

Upgrade your Tesla Model S with the T Sportline TSS 20-inch wheel and tire package. Inspired by Tesla's iconic Arachnid wheel design, the TSS features a chiseled triangular split-five-spoke pattern, flow-forged construction and precise bolt-on compatibility with factory Tesla lug nuts, center caps and TPMS sensors. Choose a square 20x9-inch setup with 245/40R20 tires at all four corners for tire rotation and a winter tire option, or a staggered 20x9-inch front and 20x10-inch rear setup with 245/40R20 front and 275/35R20 rear tires for a performance stance and extra rear traction. Both wheel widths use a +35mm offset. The 20x9-inch wheel weighs 31.1 lbs, the 20x10-inch wheel weighs 33.25 lbs, and each wheel carries a 900 kg (1,984 lbs) load rating. The finish options are Satin Black and Space Gray. Choose a set of four wheels only or a professionally mounted and balanced wheel-and-tire package ready for installation.

Tesla Model S Compatibility

Confirmed Fit

Approved for all Tesla Model S versions from February 2012–January 2021

Feb 2012 2013 2014 2015 2016 2017 2018 2019 2020 Jan 2021

✓ Approved to replace factory 19" or 21" wheels & tires

Rear-Wheel Drive Versions All single-motor rear-wheel drive configurations

All-Wheel Drive Versions Dual Motor (D), Standard Range, Long Range and Long Range Plus configurations

Performance Models All P-model and Performance configurations, including Ludicrous

2012–2020 Model S Built February 2012–January 2021 with factory 19" or 21" wheels

Have a February 2021–2026 Model S? Shop the TSS 20" Wheel & Tire Package for Model S Plaid & Long Range (2021 - 2026)

Wheel and Wheel & Tire Package Offerings

20x9" Fitment Wheels & Tires (Square = all 4 wheels & tires the same size)

Wheel Package — What Is Included

Set of 4 wheels
4x 20x9" TSS wheels 4x color-matched T Sportline wheel center caps

Wheel & Tire Package — What Is Included

Set of 4 wheels & tires—mounted, balanced, & ready to install!
4x 20x9" TSS wheels 4x 245/40R20 tires 4x factory-spec Tesla TPMS sensors 4x color-matched T Sportline wheel center caps

20x9" Front / 20x10" Rear Fitment Wheels & Tires (Staggered = wider rear wheels & tires)

Wheel Package — What Is Included

Set of 4 wheels
2x 20x9" TSS front wheels 2x 20x10" TSS rear wheels 4x color-matched T Sportline wheel center caps

Wheel & Tire Package — What Is Included

Set of 4 wheels & tires—mounted, balanced, & ready to install!
2x 20x9" TSS front wheels 2x 20x10" TSS rear wheels 2x 245/40R20 front tires 2x 275/35R20 rear tires 4x factory-spec Tesla TPMS sensors 4x color-matched T Sportline wheel center caps

Recommended Add-On Options

Lug Nuts or Lug Nut Covers — No lug nuts are included. Factory lug nuts can be reused with optional covers or replaced with our forged or titanium lug nuts
Tesla Tire Road Hazard Protection — Rest easy with tire protection
Curb Protection Guards — Protect rims against scrapes
Ceramic Coating — Protect the finish and make cleaning easier

Wheel Features and Benefits

Wheel Specifications

Wheel Model: TSS
Vehicle: Tesla Model S
Square Wheel Size: 20x9" front and rear
Staggered Wheel Size: 20x9" front / 20x10" rear
Offset: +35mm
Bolt Pattern: 5x120
Center Bore: 64.1mm
Construction: Flow Forged
Wheel Weight: 31.1 lbs (20x9") or 33.25 lbs (20x10") per wheel
Load Rating: 900 kg / 1,984 lbs per wheel
Square Tire Sizes: 245/40R20
Staggered Tire Sizes: 245/40R20 front / 275/35R20 rear

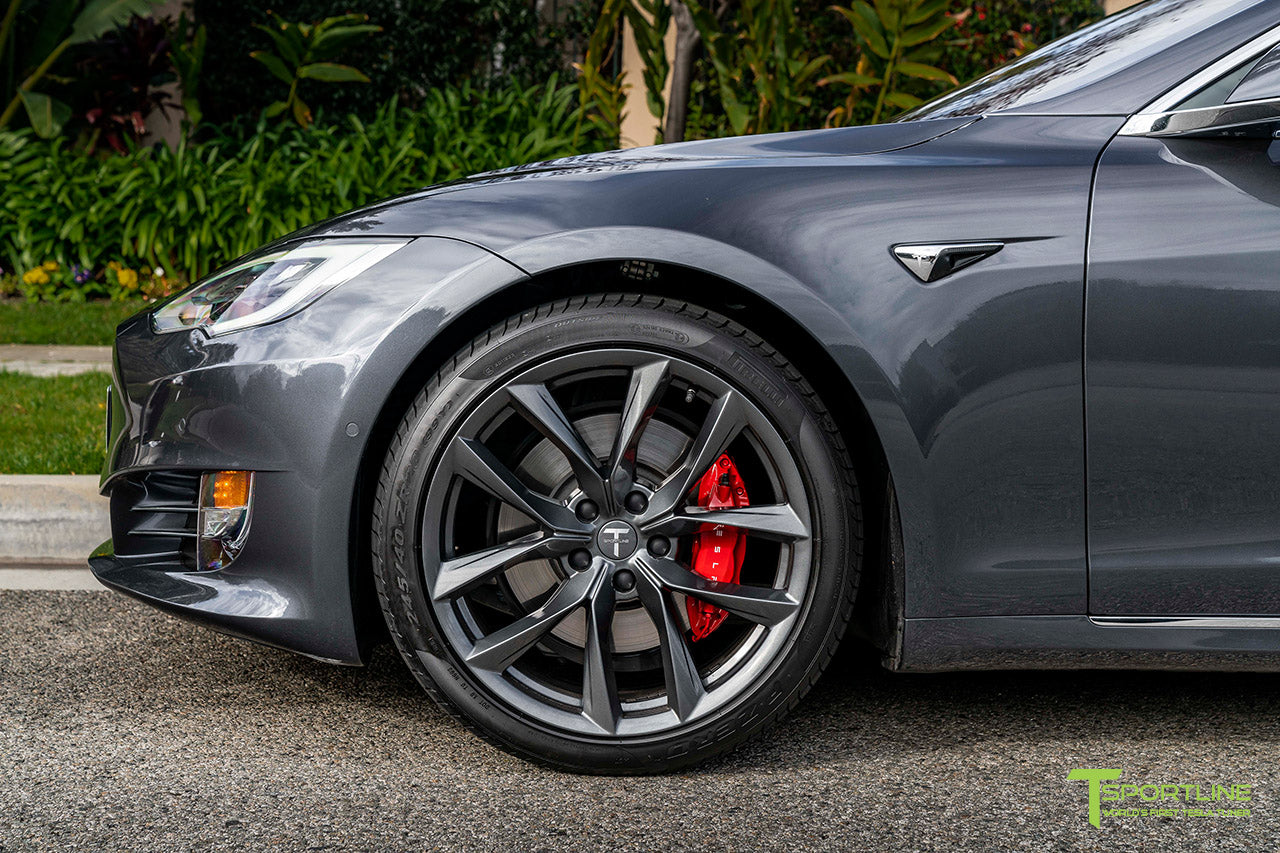

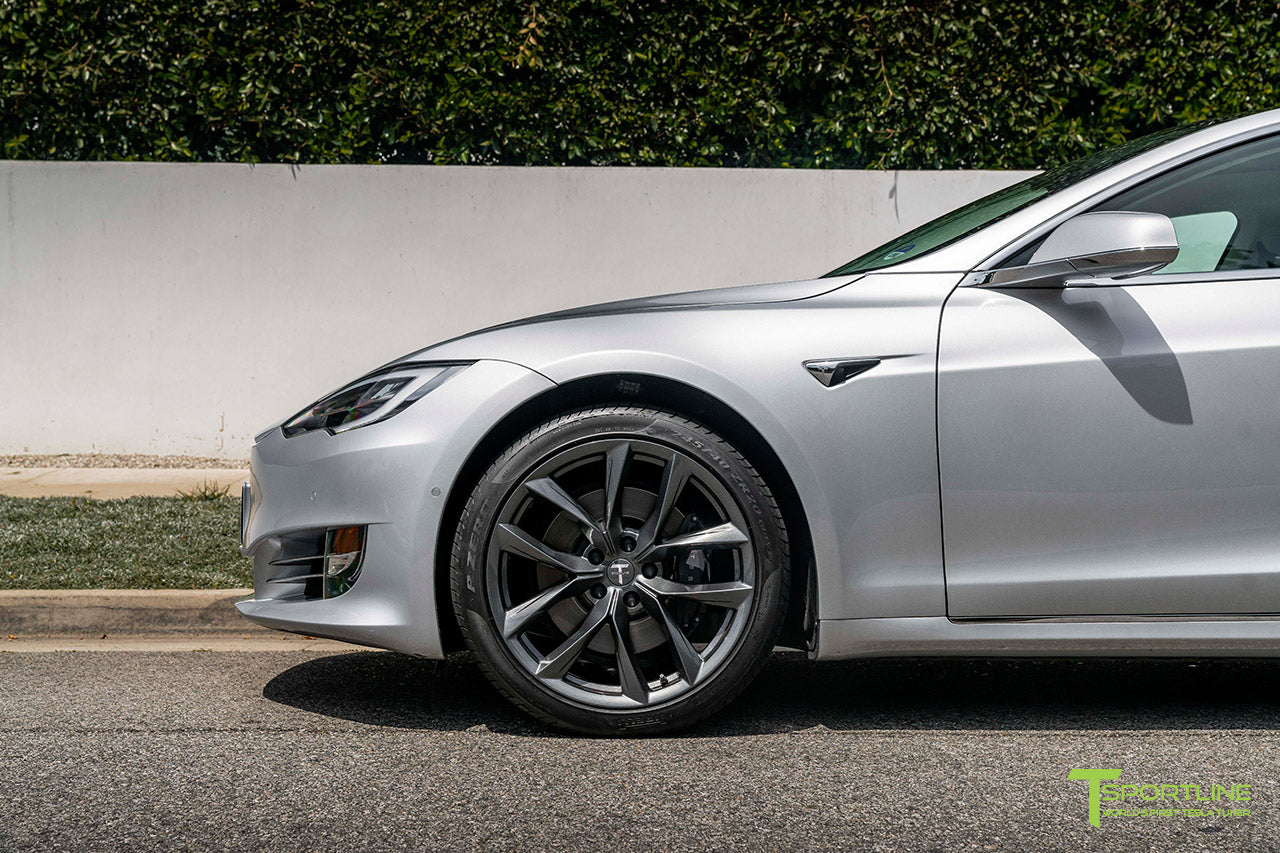

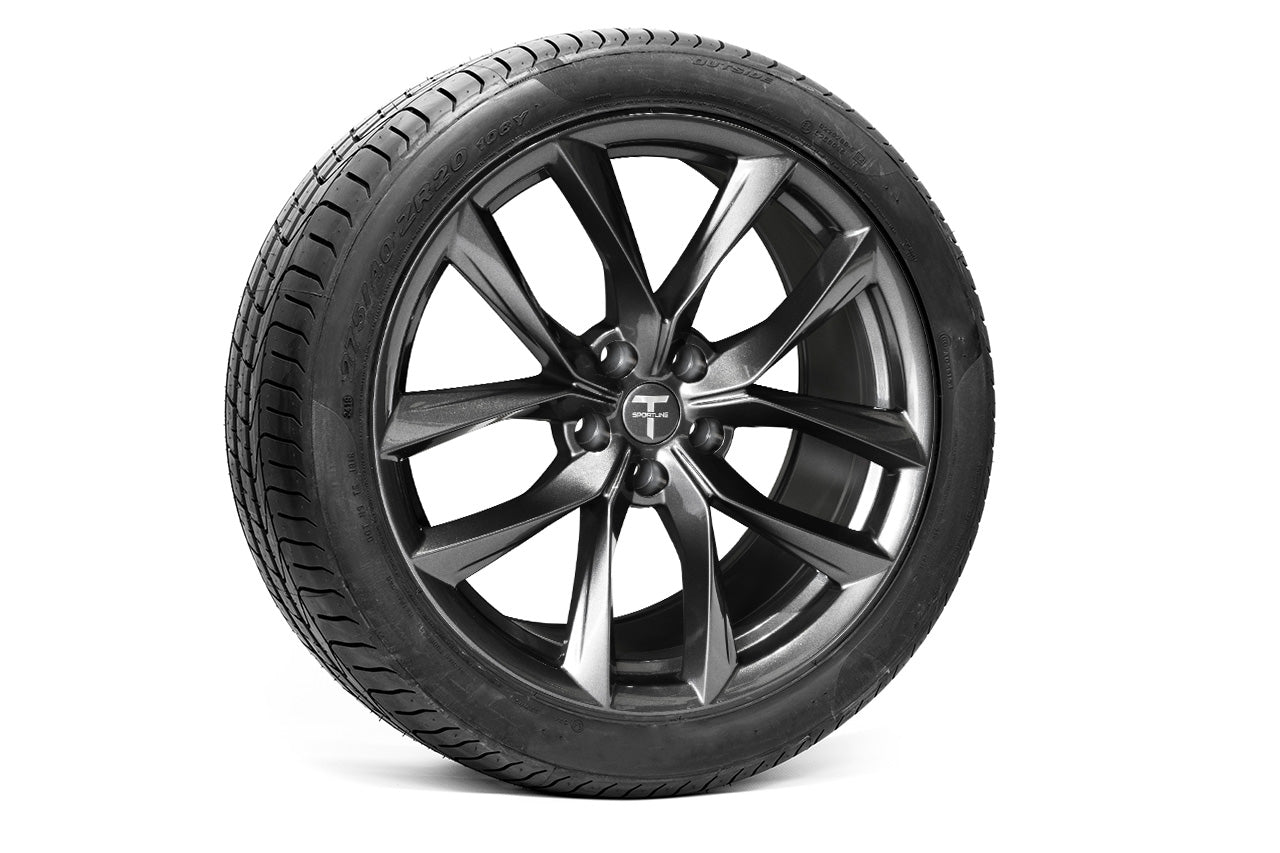

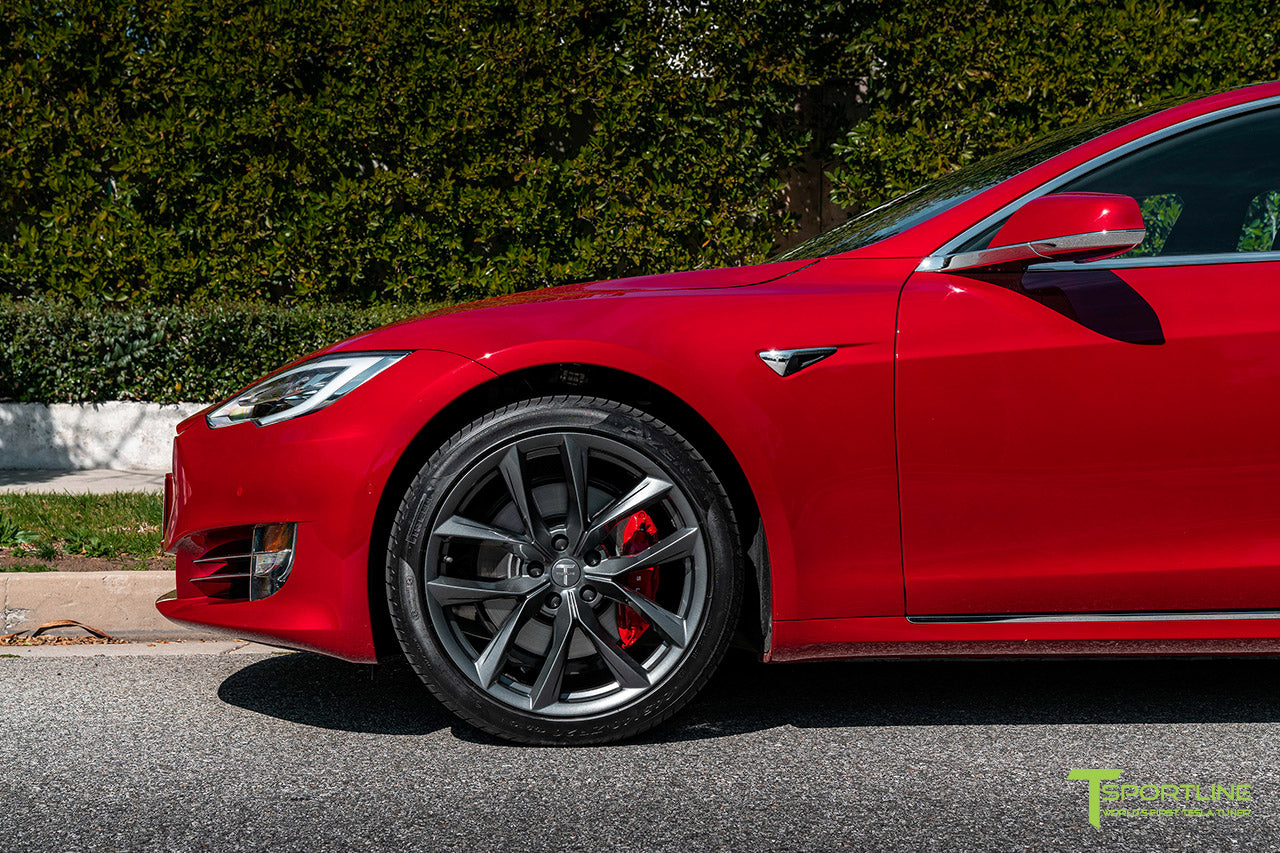

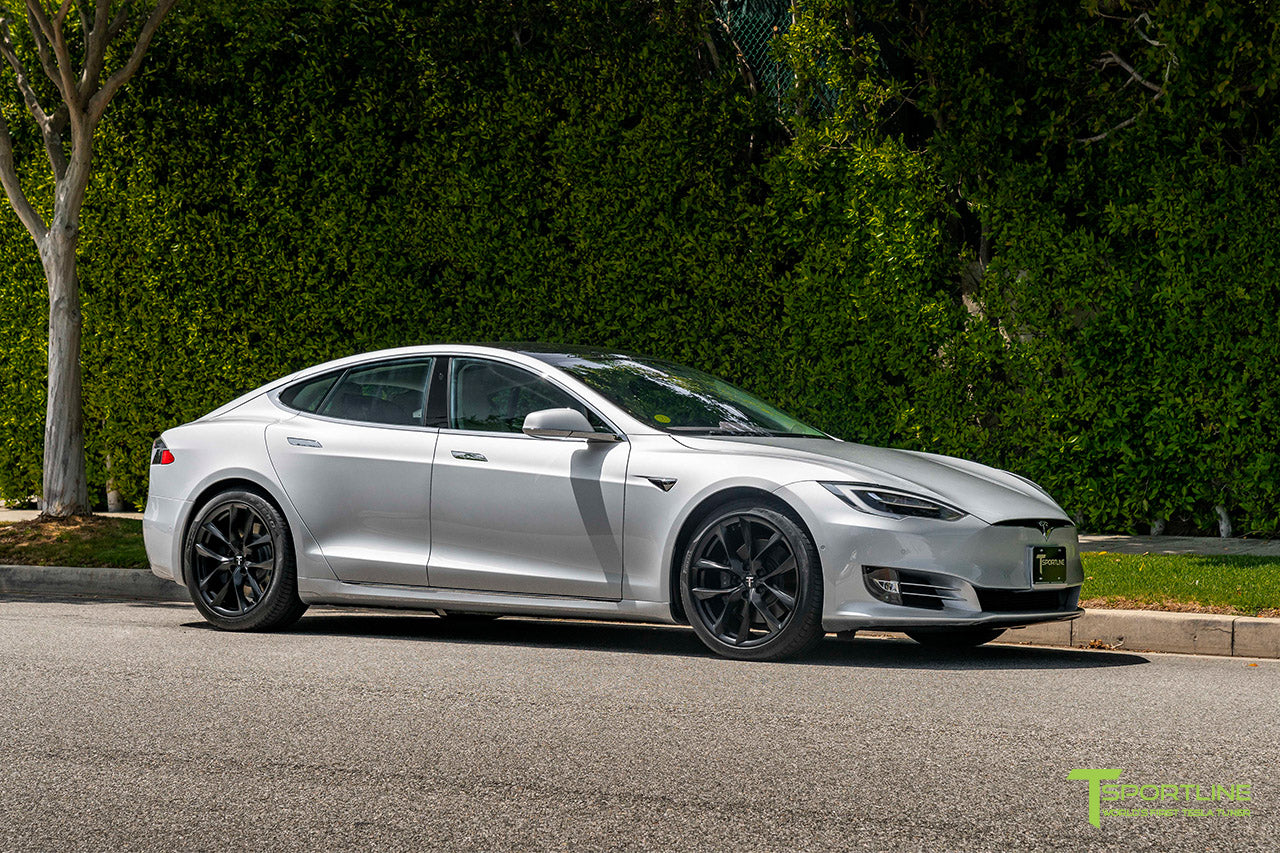

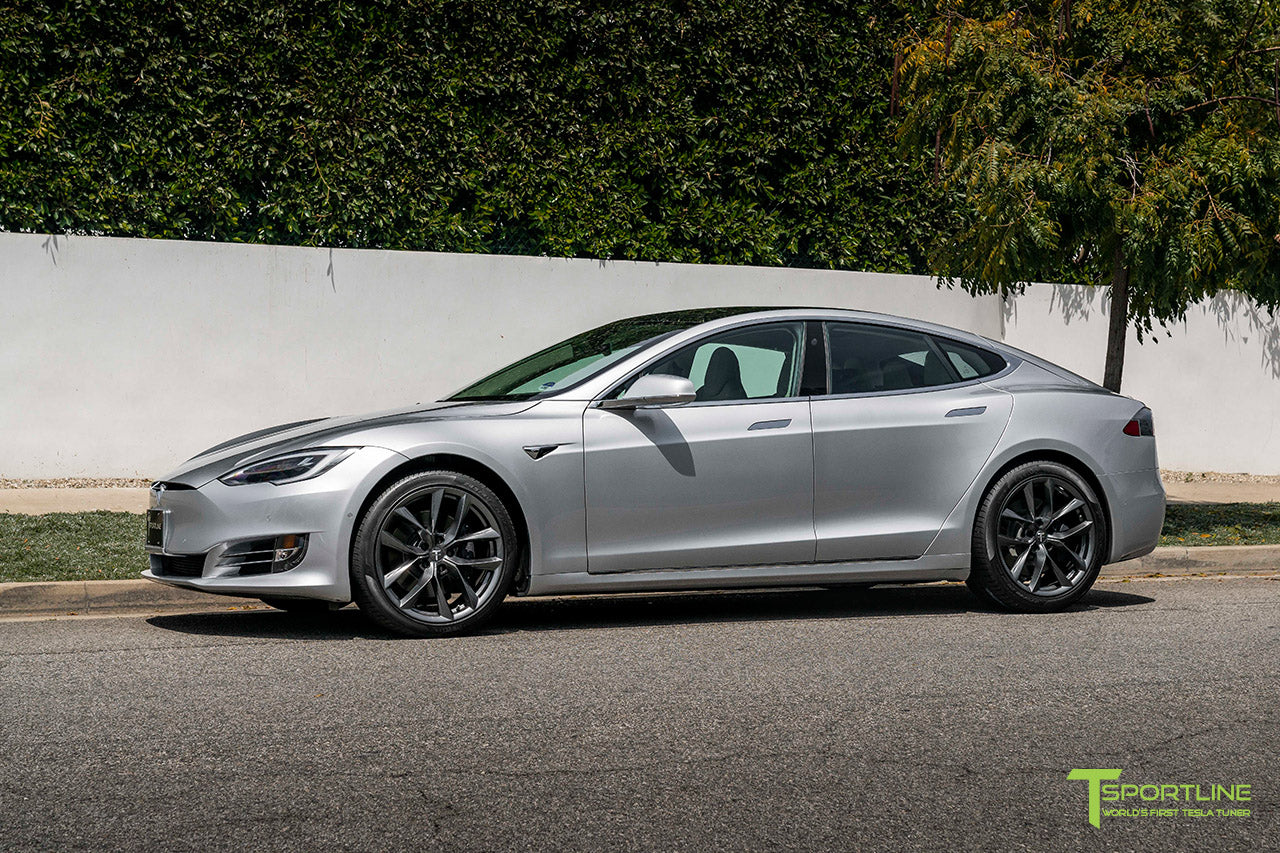

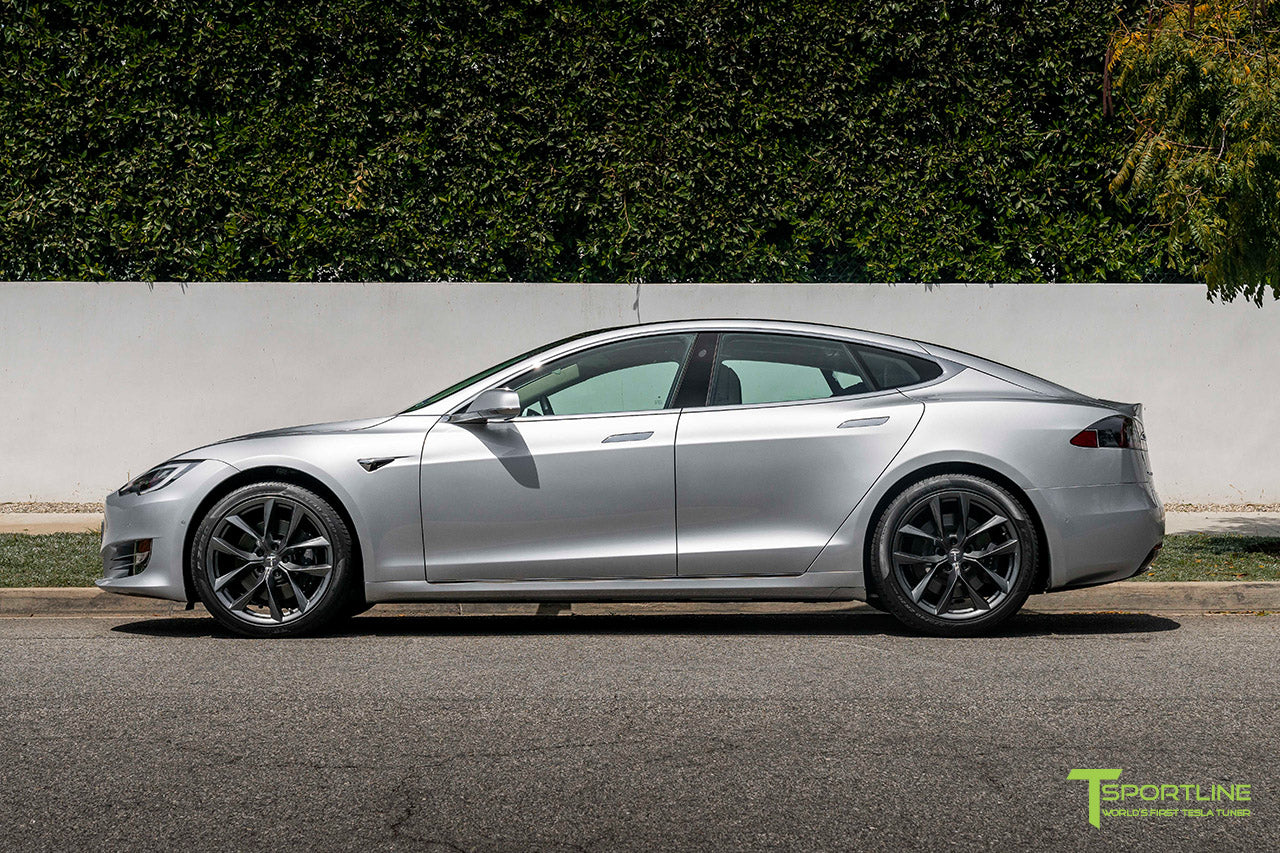

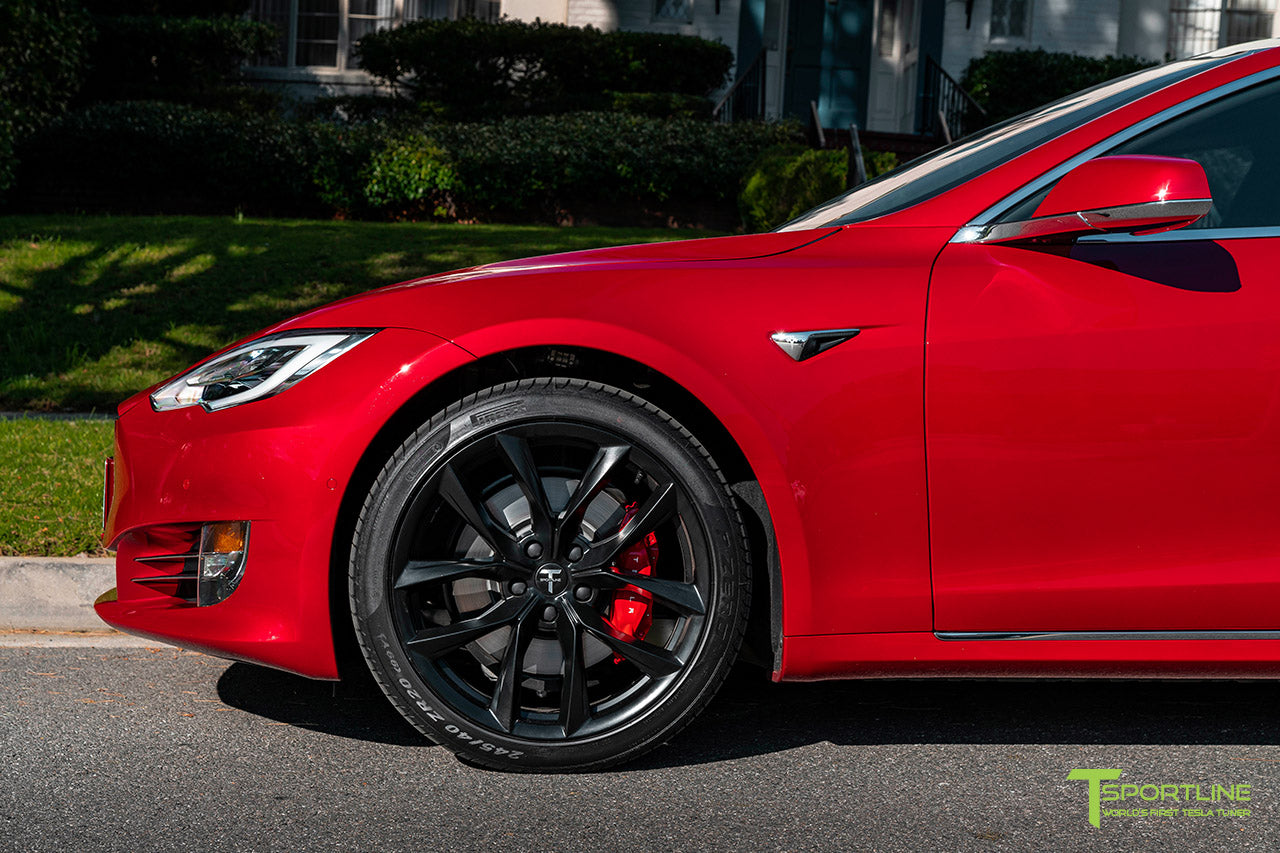

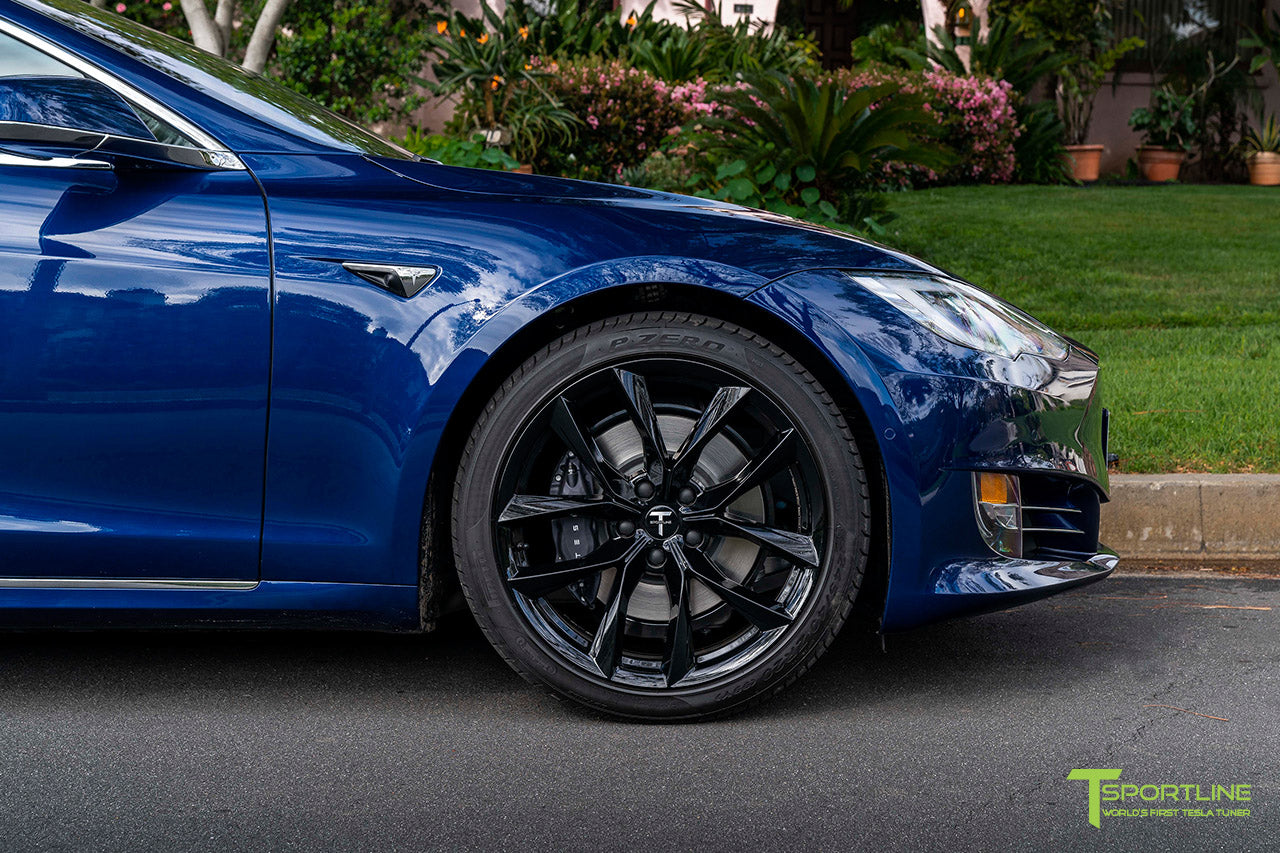

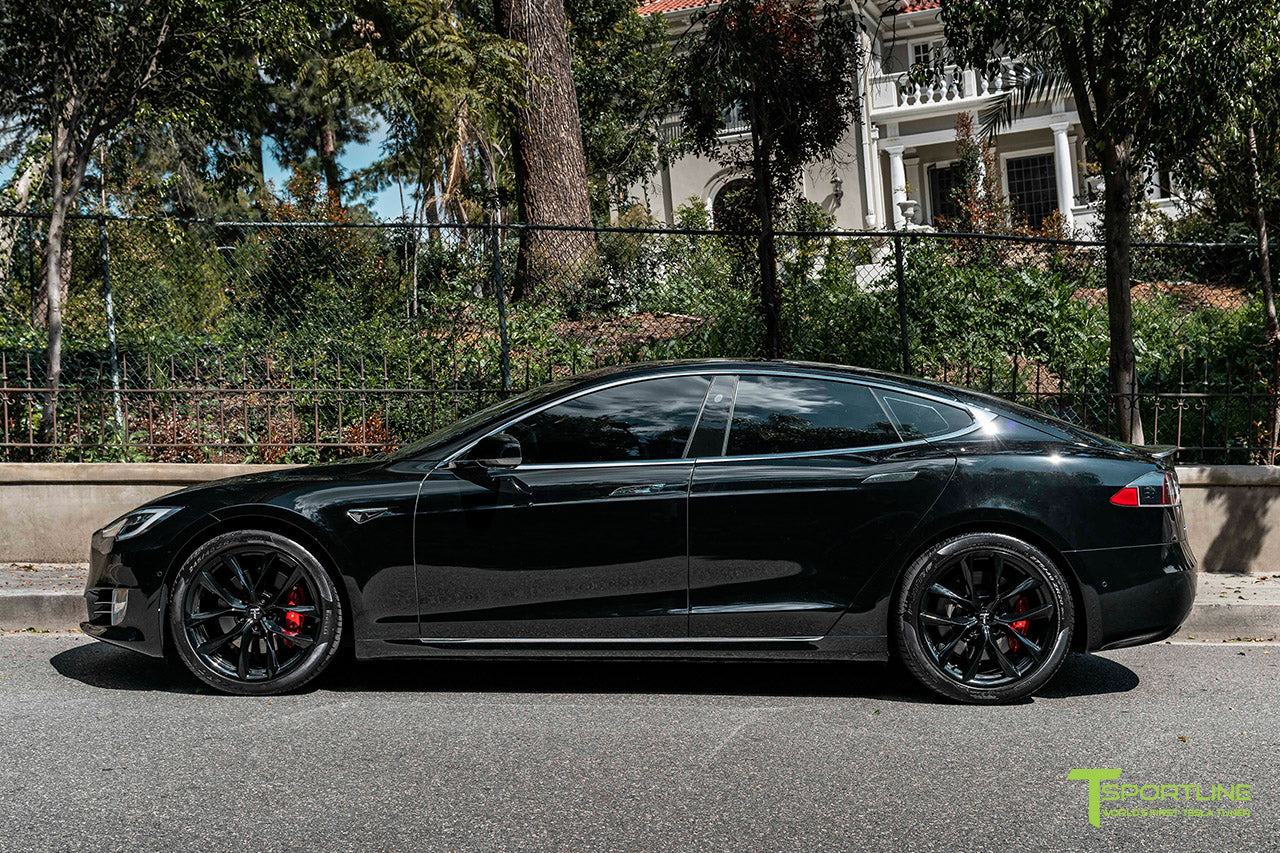

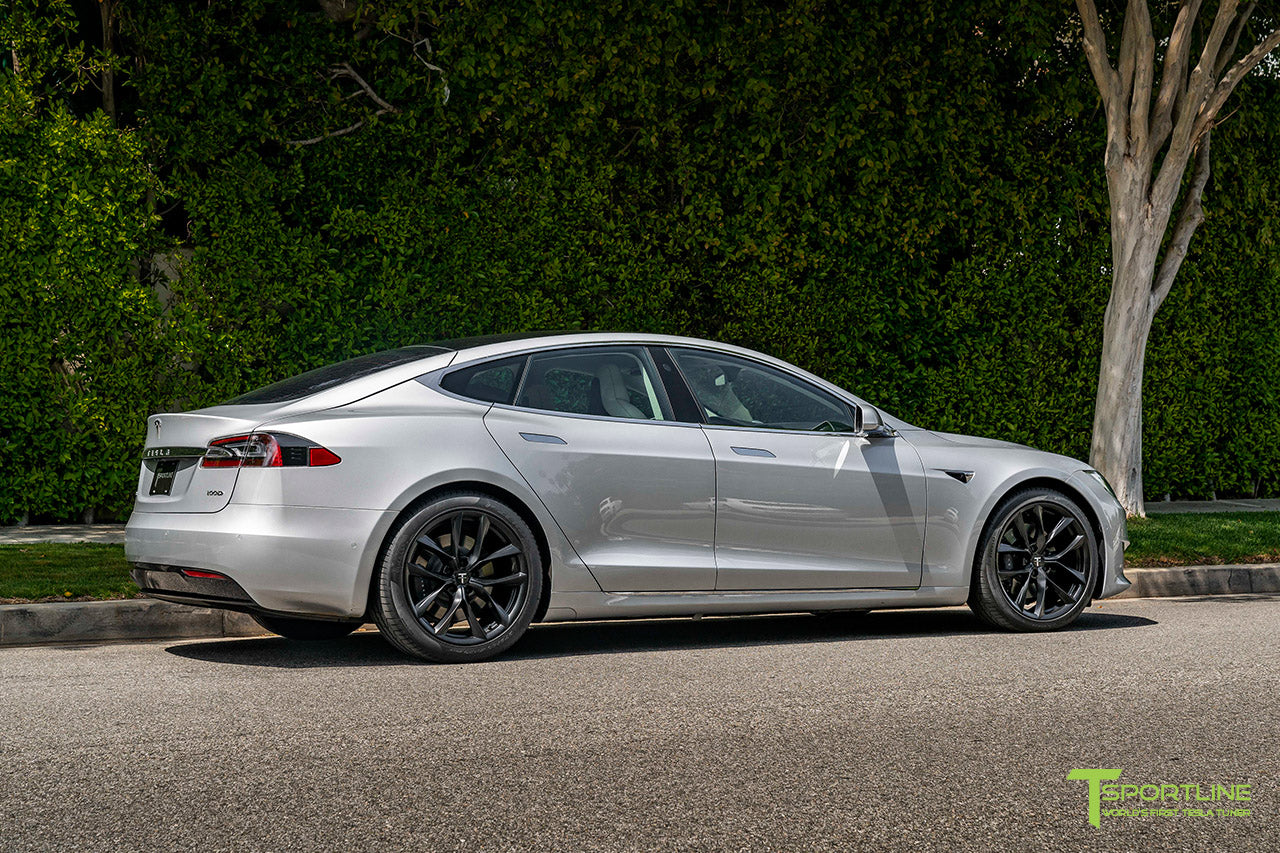

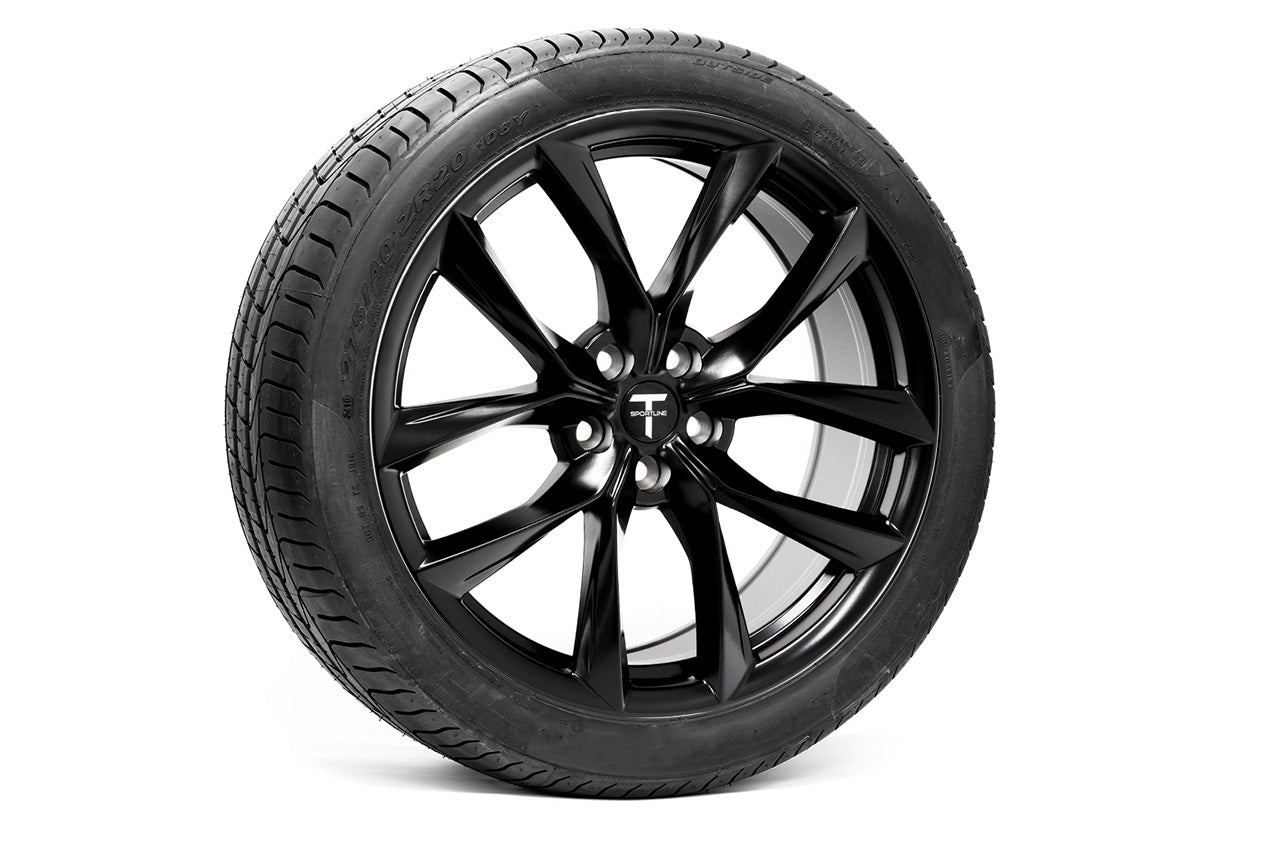

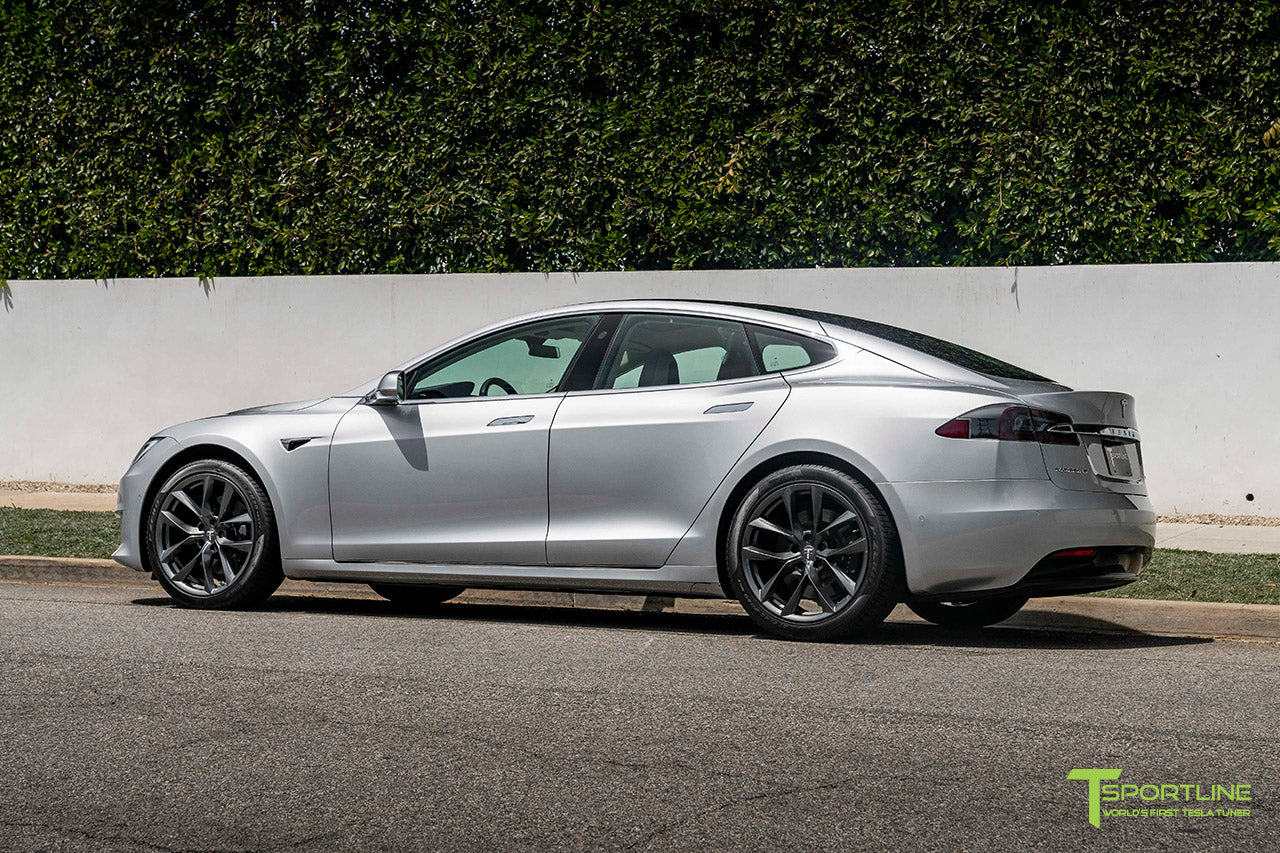

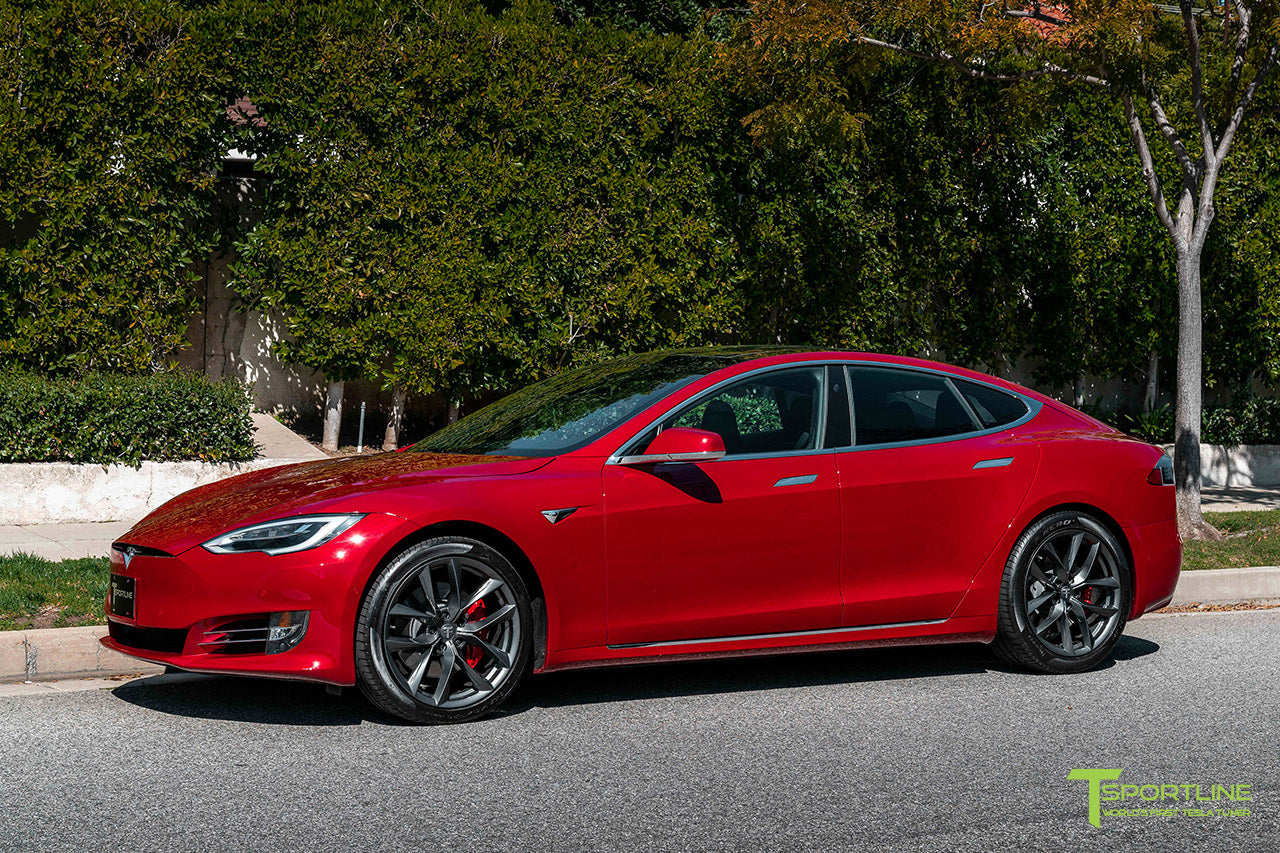

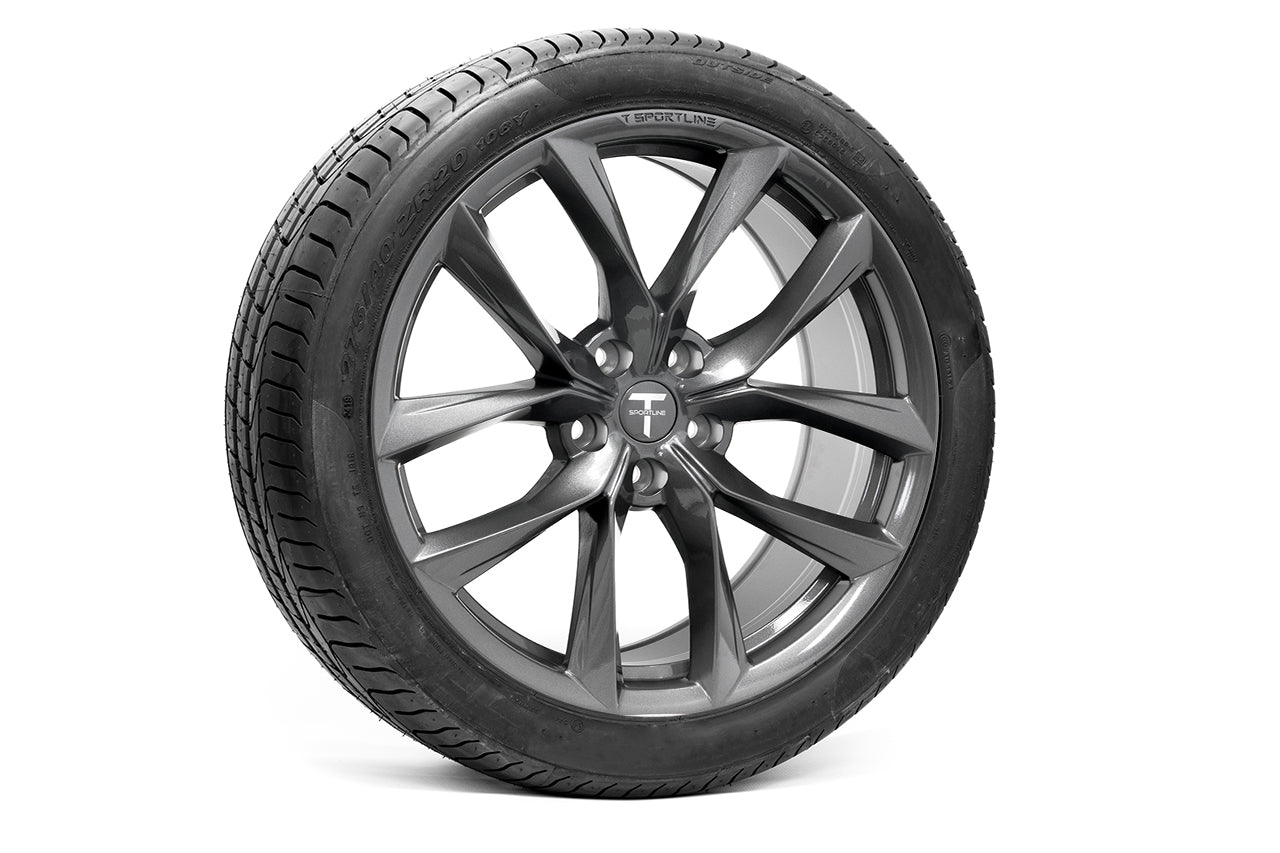

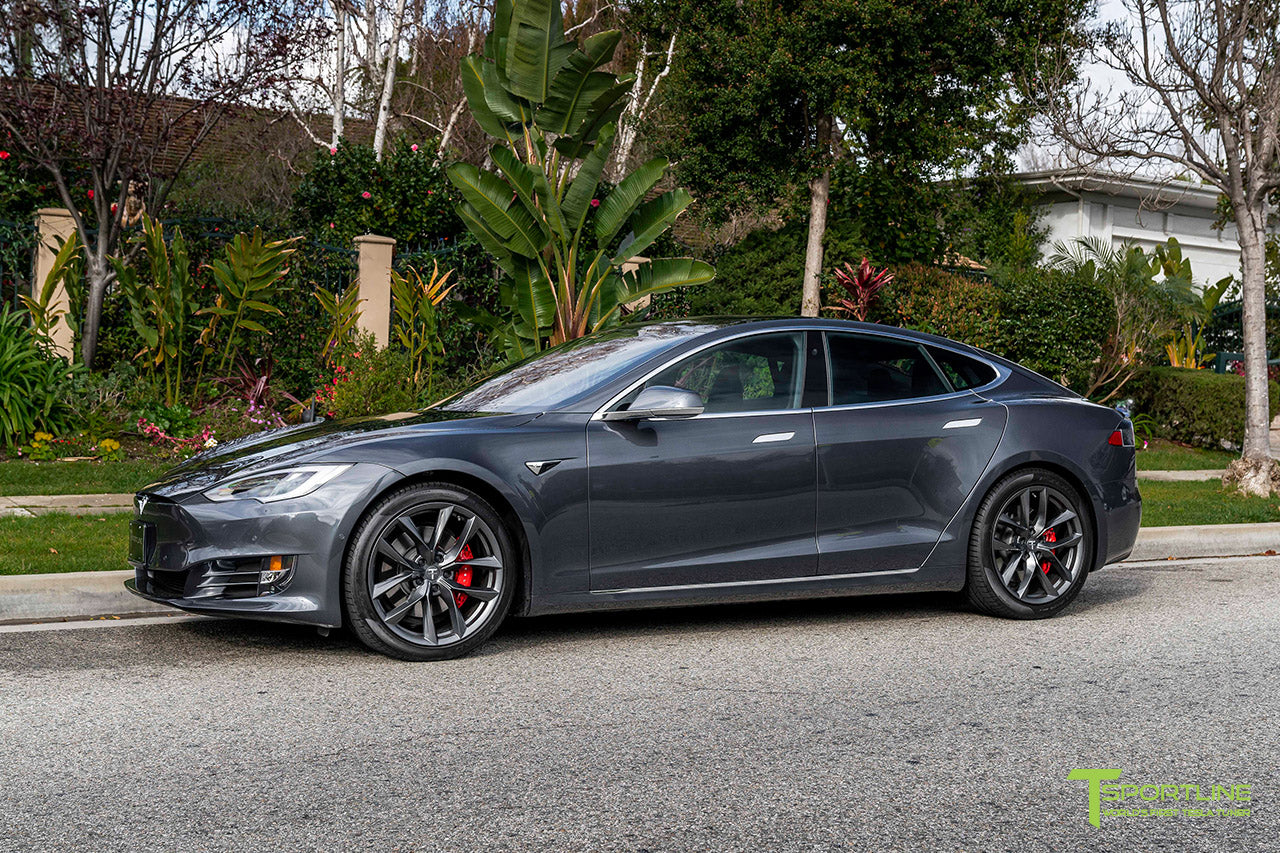

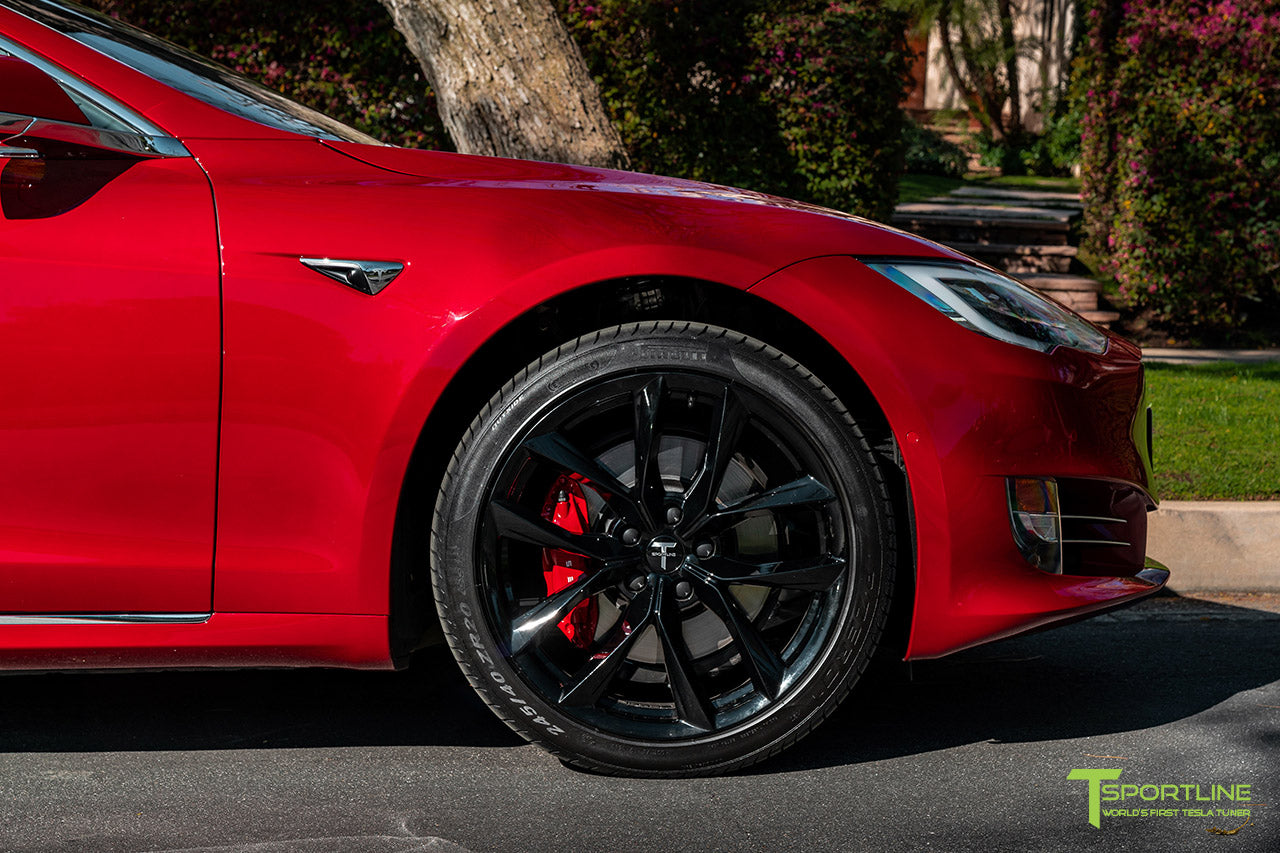

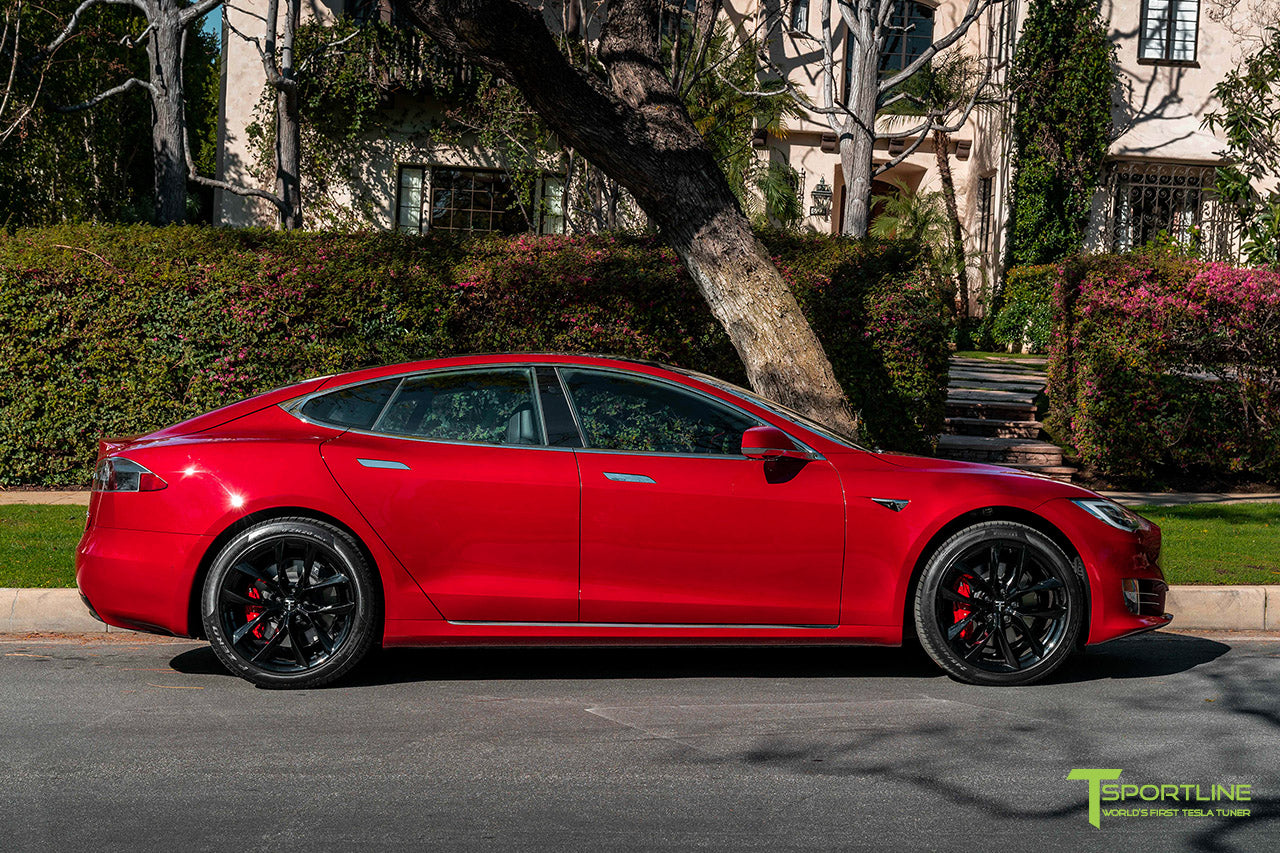

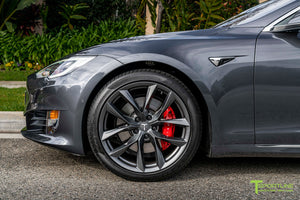

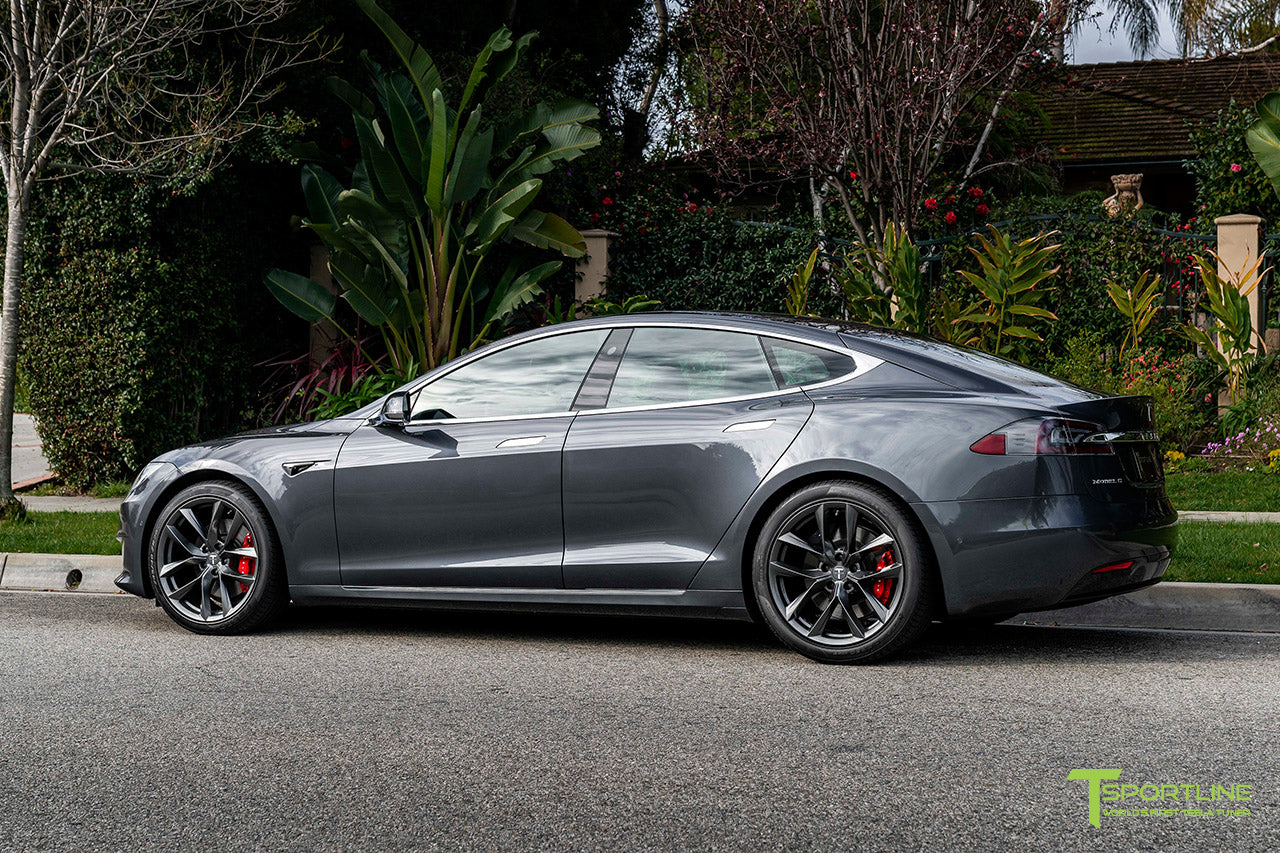

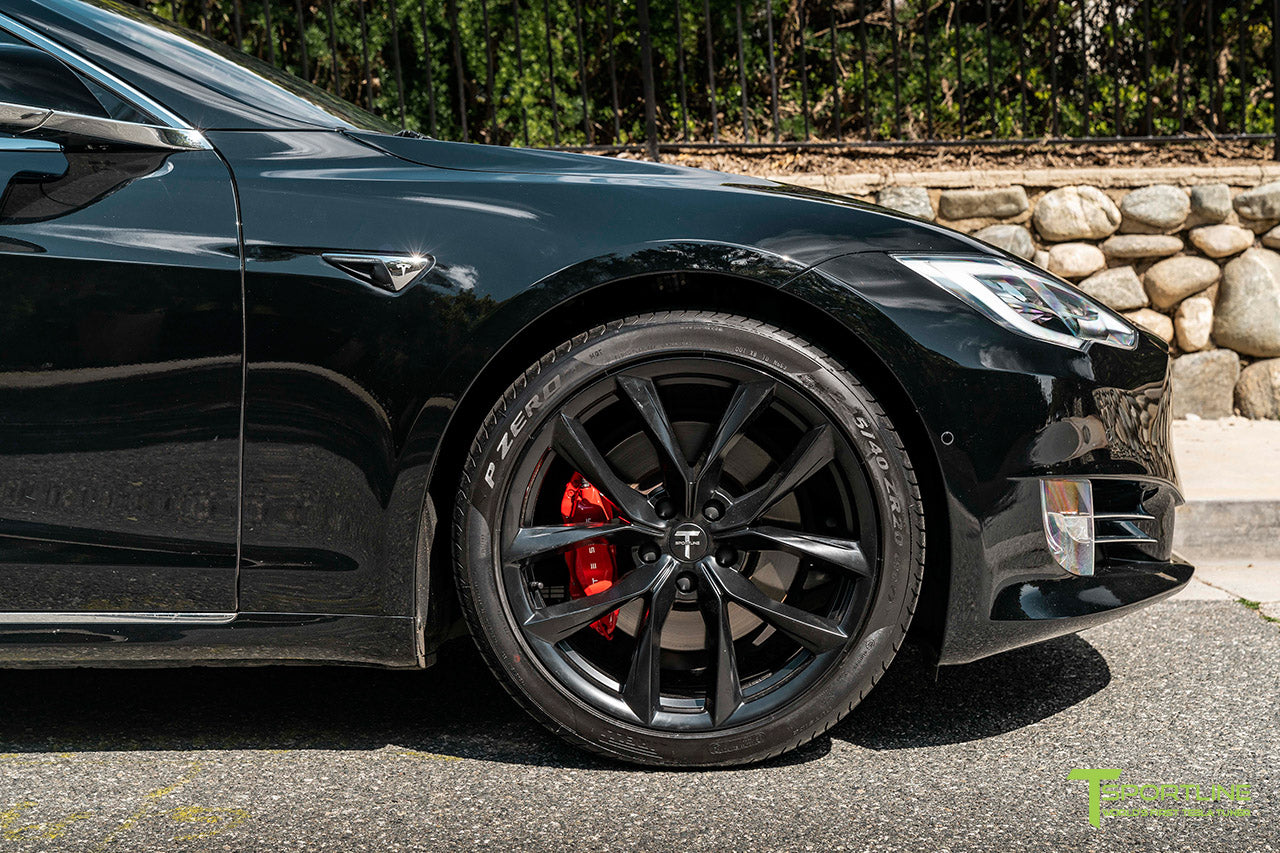

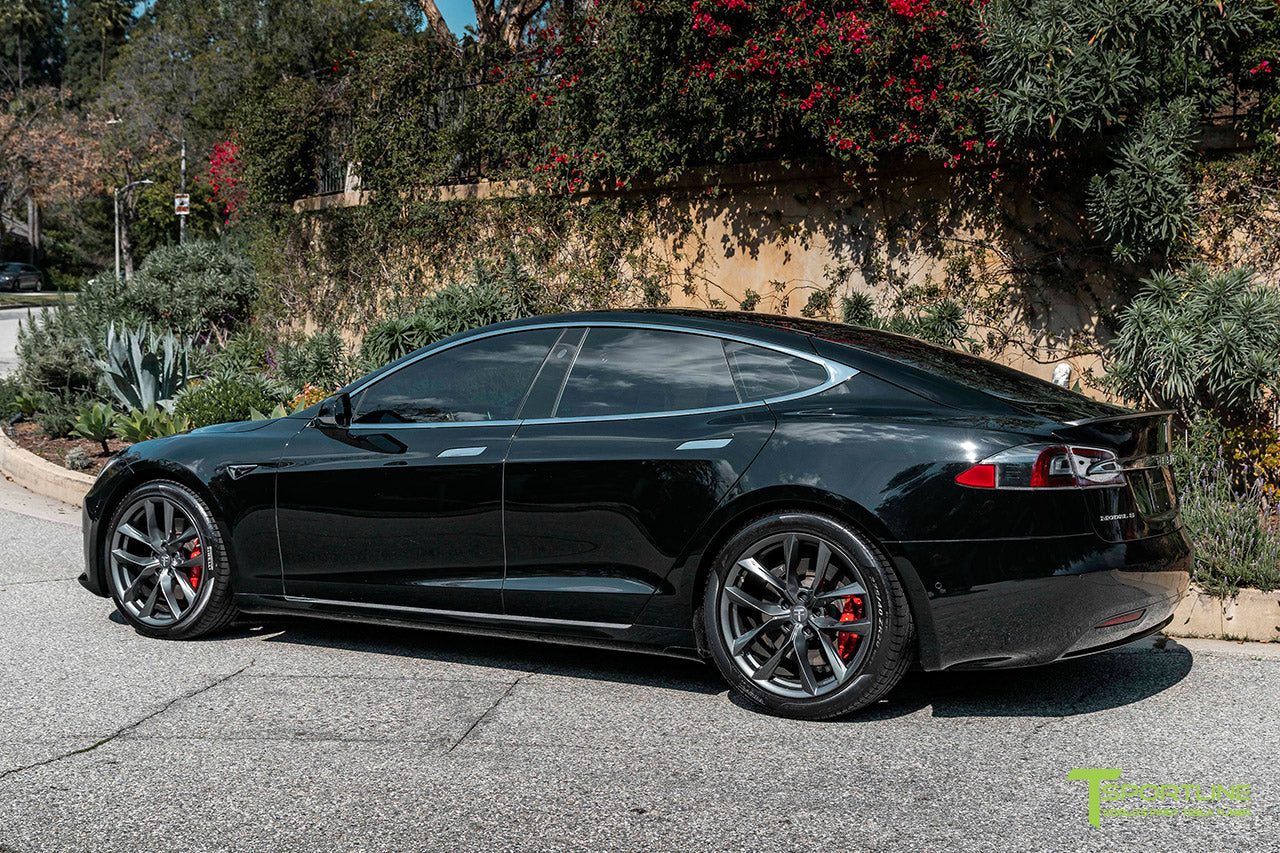

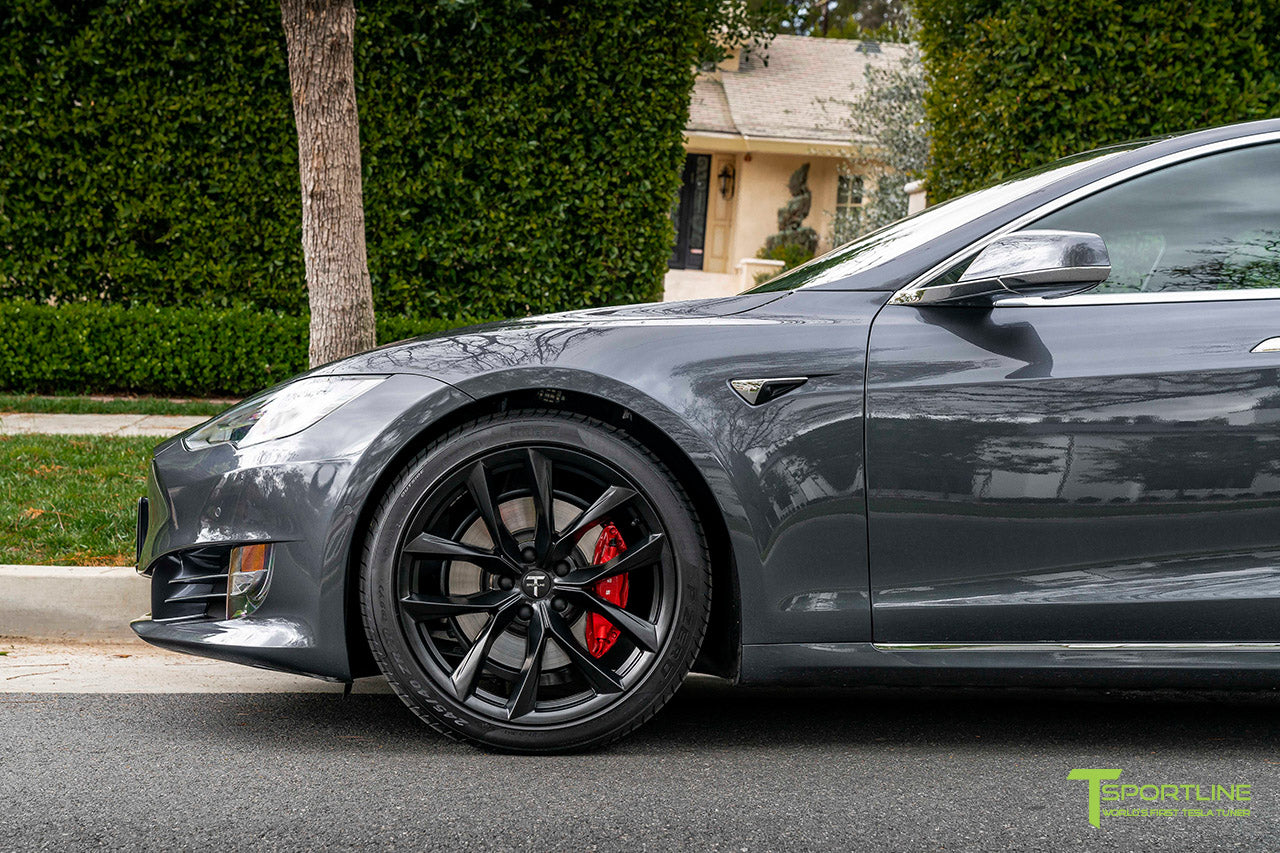

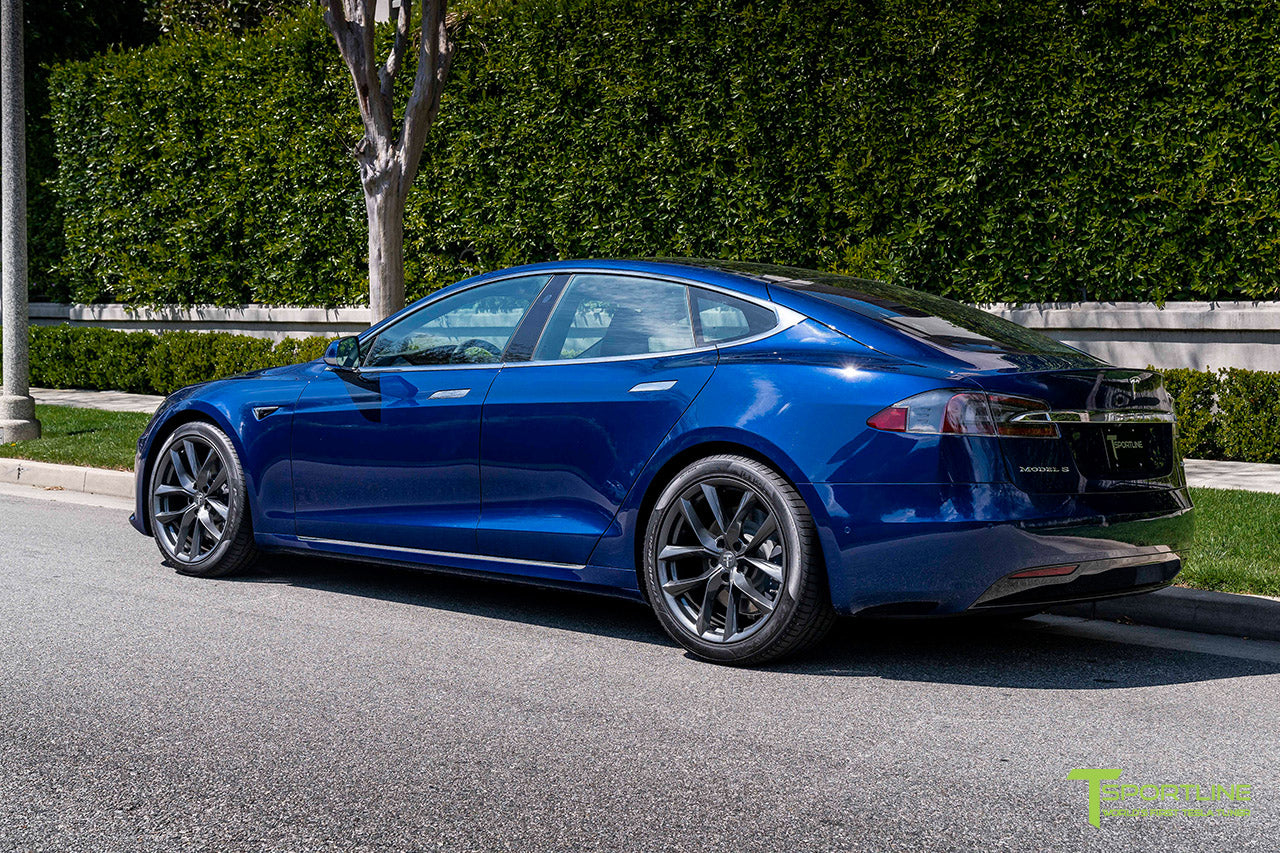

Finishes: Satin Black and Space Gray
Testing / Facility: JWL, VIA, SAE J2530 and manufactured in a TÜV-certified facility
Factory Hardware: Compatible with factory Tesla lug nuts, center caps and TPMS sensors

Flow-Forged Strength & Durability

TSS wheels are manufactured using a precision flow-forging process that forms and strengthens the wheel barrel while optimizing material distribution. This produces a strong, durable wheel structure engineered for the weight and performance demands of the Tesla Model S. Compared with conventional gravity-cast construction, flow forging can improve barrel strength and material efficiency. The TSS 20x9" wheel weighs 31.1 lbs and the 20x10" wheel weighs 33.25 lbs, and each carries a 900 kg (1,984 lbs) load rating, combining robust construction with a distinctive Arachnid-inspired design.

20-Inch Sporty OEM+ Balance

The 20-inch setup offers a sportier appearance and responsive steering feel while maintaining practical everyday usability. Compared with the factory Model S 19-inch wheels, 20-inch wheels generally provide a firmer ride and a more performance-oriented appearance. They typically offer greater ride comfort and sidewall protection than the factory 21-inch package, depending on tire selection.

Choose the square 20x9" setup with 245/40R20 tires at all four corners for tire rotation, or the staggered 20x9" front / 20x10" rear setup with 245/40R20 front and 275/35R20 rear tires for a performance stance.

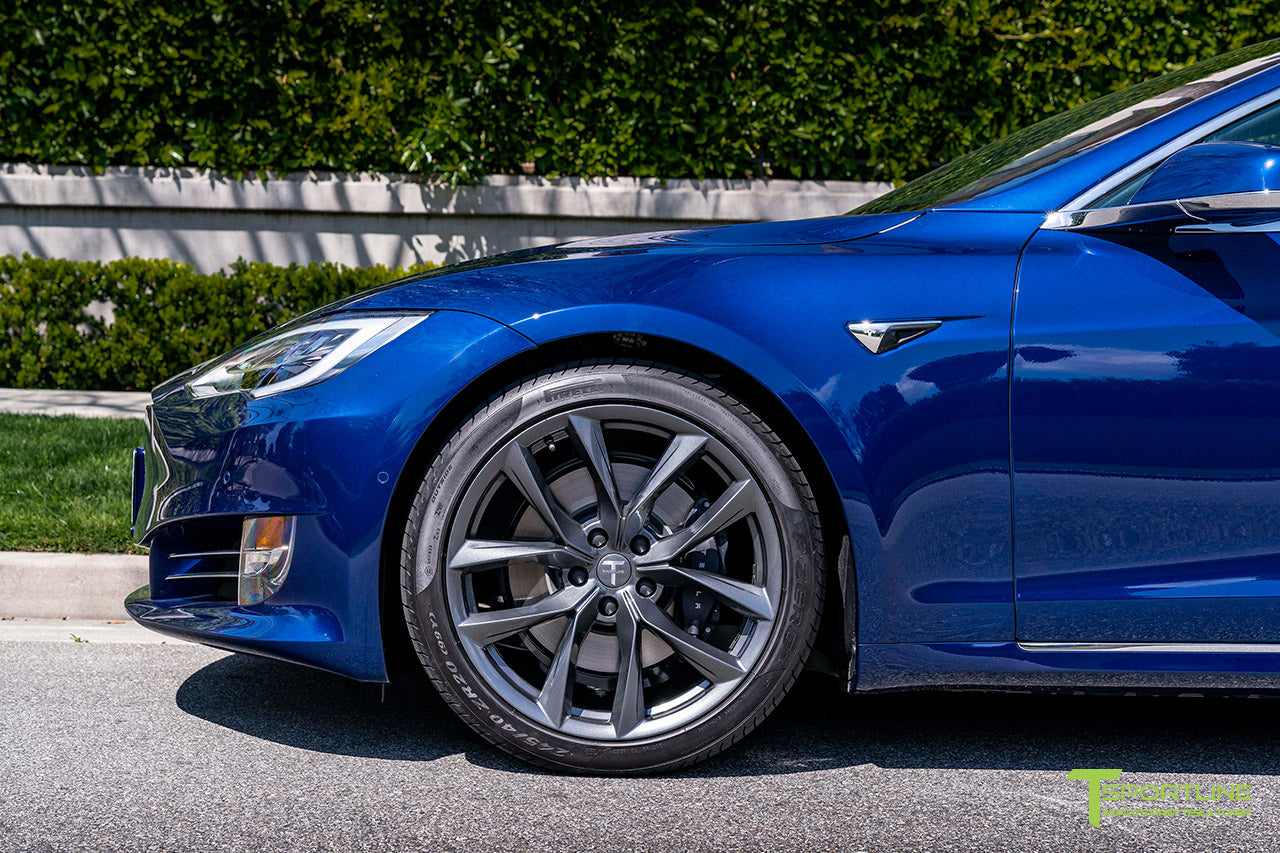

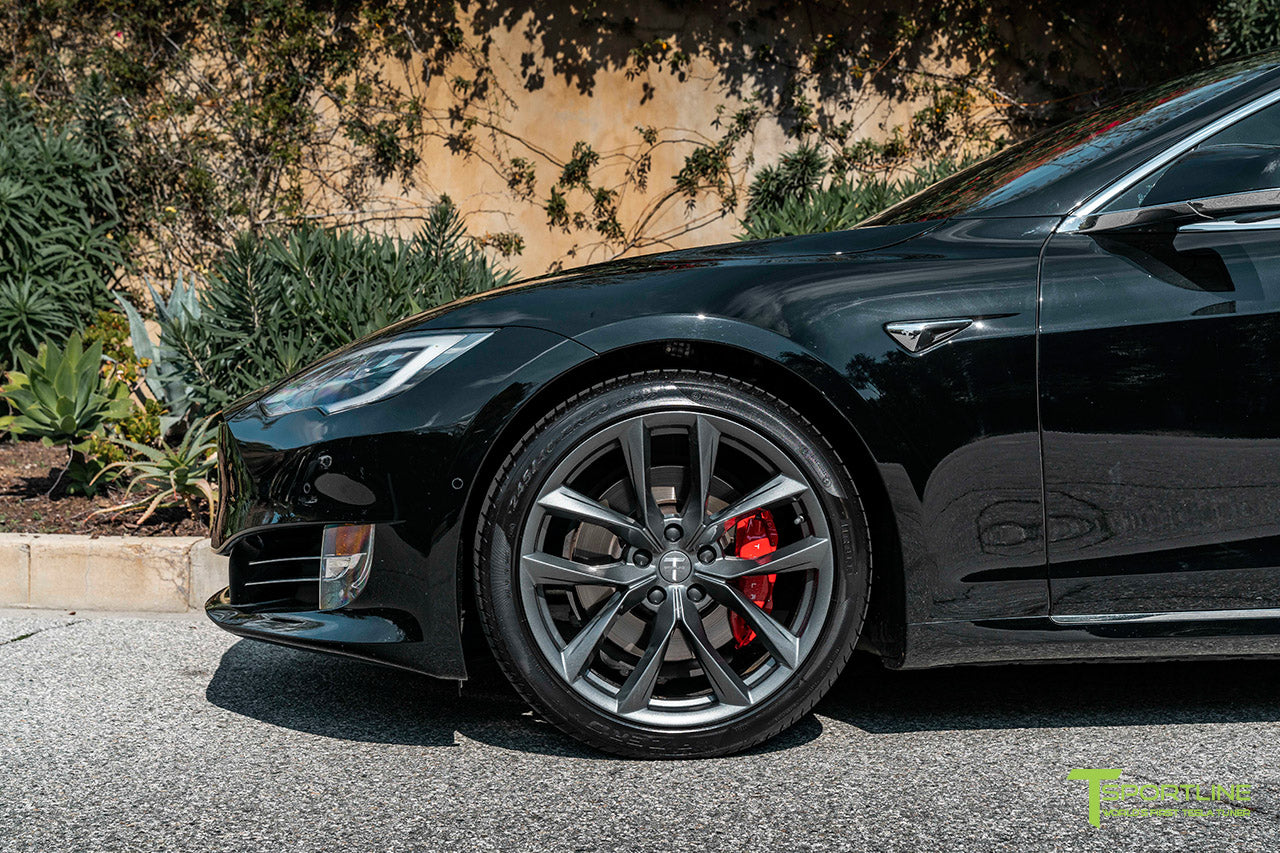

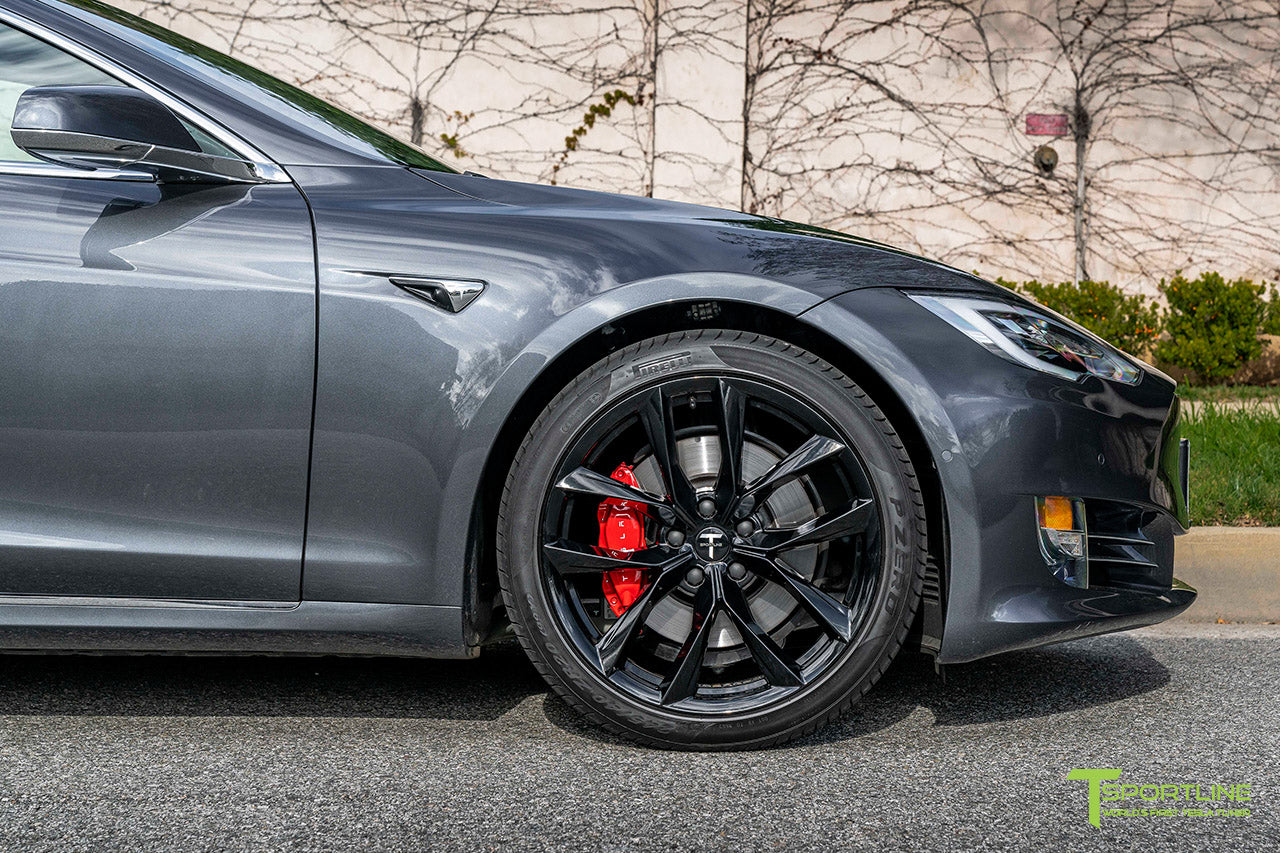

Arachnid Inspired Design

The TSS chiseled triangular spoke wheel design was inspired by Tesla Arachnid wheels. A look that immediately evokes a sporty and upgraded vibe, this is a timeless look that Tesla owners continue to love. The split five-spoke design achieves good looks while allowing for lightweight wheels.

Tesla Compatibility

Accepts factory Tesla lug nuts
Accepts factory Tesla center caps
Accepts factory Tesla TPMS sensors
Includes color-matched T Sportline center caps
No aftermarket wheel hardware required
Will NOT void Tesla Warranty
Does NOT work with factory Tesla "Aero Covers / Hubcaps"

Square or Staggered Fitment

The 20x9" square setup uses the same wheel and tire size at all four corners, allowing conventional front-to-rear tire rotation. The staggered setup uses 20x9" front and 20x10" rear wheels with 245/40R20 front and 275/35R20 rear tires for a wider-rear performance stance. Staggered wheel and tire packages cannot be rotated front to rear.

Tire Comparison & Selection Guide

	Square 245/40R20	Staggered 245/40R20 Front / 275/35R20 Rear
Tire Type	Square / Tire Rotation	Staggered / Performance Stance
Range & Efficiency	Narrower rear tires	Wider rear tires may reduce range
Ride Comfort	Balanced 20-inch ride	Similar sidewall height front and rear
Pothole Protection	Balanced 20-inch sidewall protection	Similar sidewall height front and rear
Curb Protection	Sidewall helps shield the wheel edge	Wider rear tire coverage
Handling & Steering	Balanced, neutral response	Performance-focused staggered balance
Dry Traction	Balanced everyday grip	Wider rear tires for acceleration grip
Wet & Snow Traction	Narrower tires plus a dedicated winter tire option	Wide rear tires depend more on tire model
Tire Rotation	Front-to-rear rotation	No front-to-rear rotation

Choose Square 245/40R20 if your priority is: Tire rotation, range, even tire wear and winter tire availability.

Choose Staggered 245/40R20 + 275/35R20 if your priority is: A performance-focused staggered stance with wider rear tires for acceleration grip.

Rating Key: Not Rated Good Better Best

Choose the right tire type for your driving: All-season for everyday use, all-weather for enhanced year-round versatility, summer for warm-weather performance, or dedicated winter tires for cold and snowy conditions. Tire model, rolling resistance, construction, inflation pressure, compound and tread design also affect driving characteristics.

View Instructions & Tesla Tire Care Guide DIY Installation instructions and Learn more about proper Tesla tire maintenance & rotation for maximum range and tread wear

View the T Sportline Tesla Wheel & Tire DIY Installation Guide
Follow the recommended cold tire pressures on your vehicle's Tire and Loading Information label (located inside the driver-side door jamb). Check pressure after the vehicle has been parked out of direct sunlight for more than three hours. Use our AMAXX Tesla Digital Tire Inflator for convenient pressure checks and adjustments.
For square fitments, rotate tires every 6,250 miles, or sooner if tread-depth difference reaches 2/32 inch. Staggered fitments cannot be rotated front to rear.
When installing wheels, torque the 21mm lug nuts to 129 lb-ft (175 Nm).
After tire service, drive above 15 mph (25 km/h) for a short time to allow the TPMS readings to update.
Tire pressure changes with temperature, driving and sunlight. Underinflation can reduce range, accelerate wear and create a safety risk.
Teslas do not come with a spare! Consider purchasing a Tesla spare tire package to ensure you never get stranded with a flat.

Shipping

Shipping is calculated at Checkout.

Shipping & Handling charges subject to change without prior notification. PLEASE NOTE THAT INTERNATIONAL SHIPMENTS ARE SUBJECT TO CUSTOMS TAXES/DUTIES, AS CHARGED BY YOUR COUNTRY (THERE ARE NO U.S. CUSTOMS FEES). INTERNATIONAL CUSTOMERS ARE RESPONSIBLE FOR PAYMENT OF THESE FEES. Due to service availability, some international orders may need to be sent to the nearest international airport.
FAQ

Can I use my Aero Covers / Hubcaps on the 20" TSS?
No, the Aero Covers / Hubcaps only fit on your factory wheels.

Which tire sizes are offered with the 20" TSS package?
Square packages use 245/40R20 tires at all four corners on 20x9" wheels, including the winter tire option. Staggered packages use 245/40R20 front and 275/35R20 rear tires on 20x9" front and 20x10" rear wheels.

Do your TSS wheels fit my factory center caps?
Yes, 20x9" and 20x10" TSS wheels fit your factory Tesla center caps. They also fit your factory TPMS sensors and factory lug nuts, so no aftermarket wheel hardware is required.

How are the 20" TSS wheels made?
They are flow forged, tested to JWL, VIA and SAE J2530 standards and manufactured in a TÜV-certified facility.

Do I need to change the color of my existing lug nuts and center caps to match my new TSS wheels?
That's an aesthetic decision only you can make. All TSS wheels come with T Sportline color-matched center caps.

What is the warranty on TSS wheels?
Click here for T Sportline Limited Warranty

How long until my TSS wheels arrive after my order?
We process orders within 72 hours unless your wheels are back-ordered. Please allow 1–7 business days of transit time from the day you receive a tracking number. We will email you if your wheels are back-ordered. Space Gray finish is custom painted; please allow 3 weeks for paint processing before shipping.

Do you ship internationally?
Yes! We ship worldwide and offer flat rate FedEx/DHL shipping to select countries.

Will installing your Wheel & Tire Package void my warranty?
Changing wheels and tires won't void your Tesla warranty unless Tesla can prove that our wheels caused the need for repairs. In other words, your warranty will still be valid when your windshield wiper malfunctions, even if you've upgraded to our Wheel & Tire Package. Also, we use factory-size or acceptable alternate size tires only.
