Name: TS5 20" Tesla Model 3 Autocross & Road Racing Wheel and Competition Tire Track Package (Set of 4)
Brand: T Sportline
SKU: T520858505114SB
Price: 1950.0 USD
Availability: OutOfStock

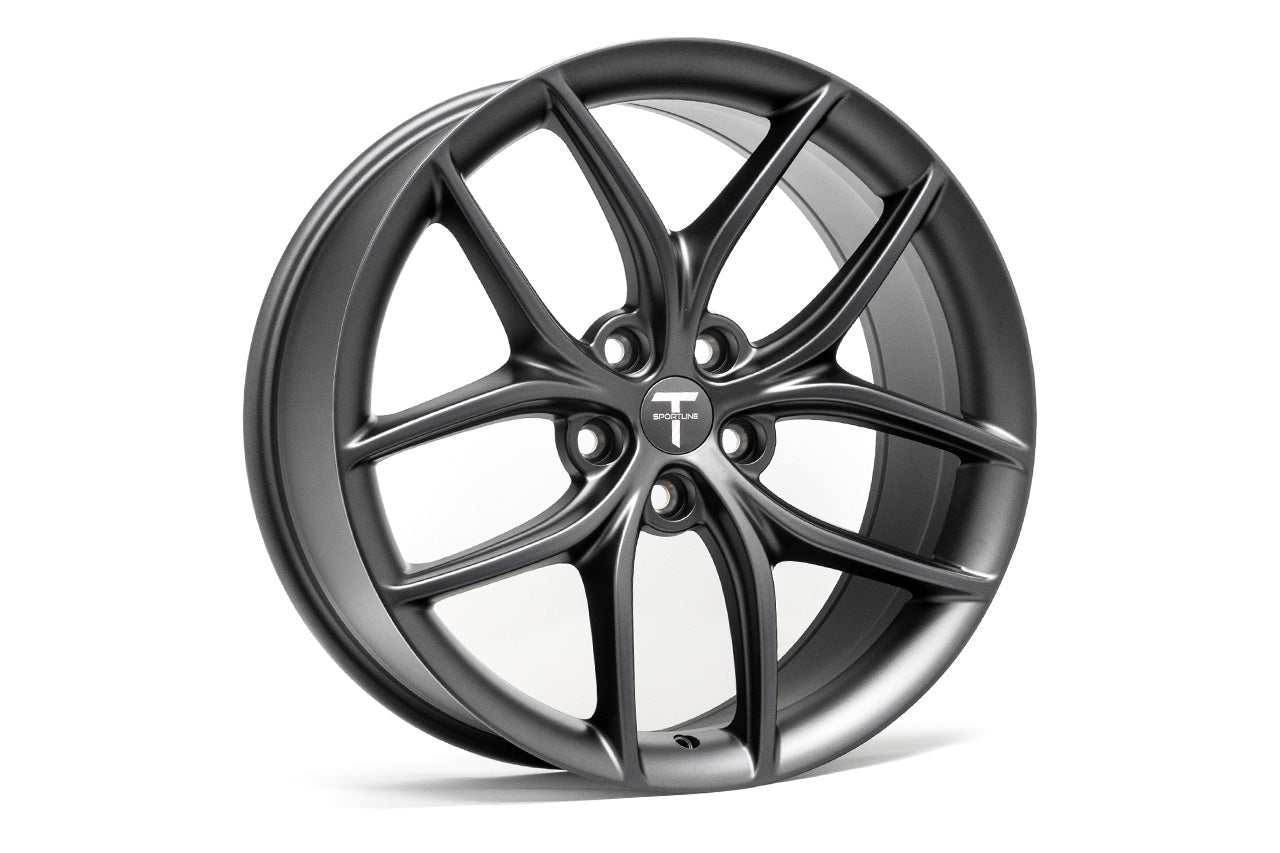

T Sportline TS5 20-inch flow-forged wheel in Satin Gray

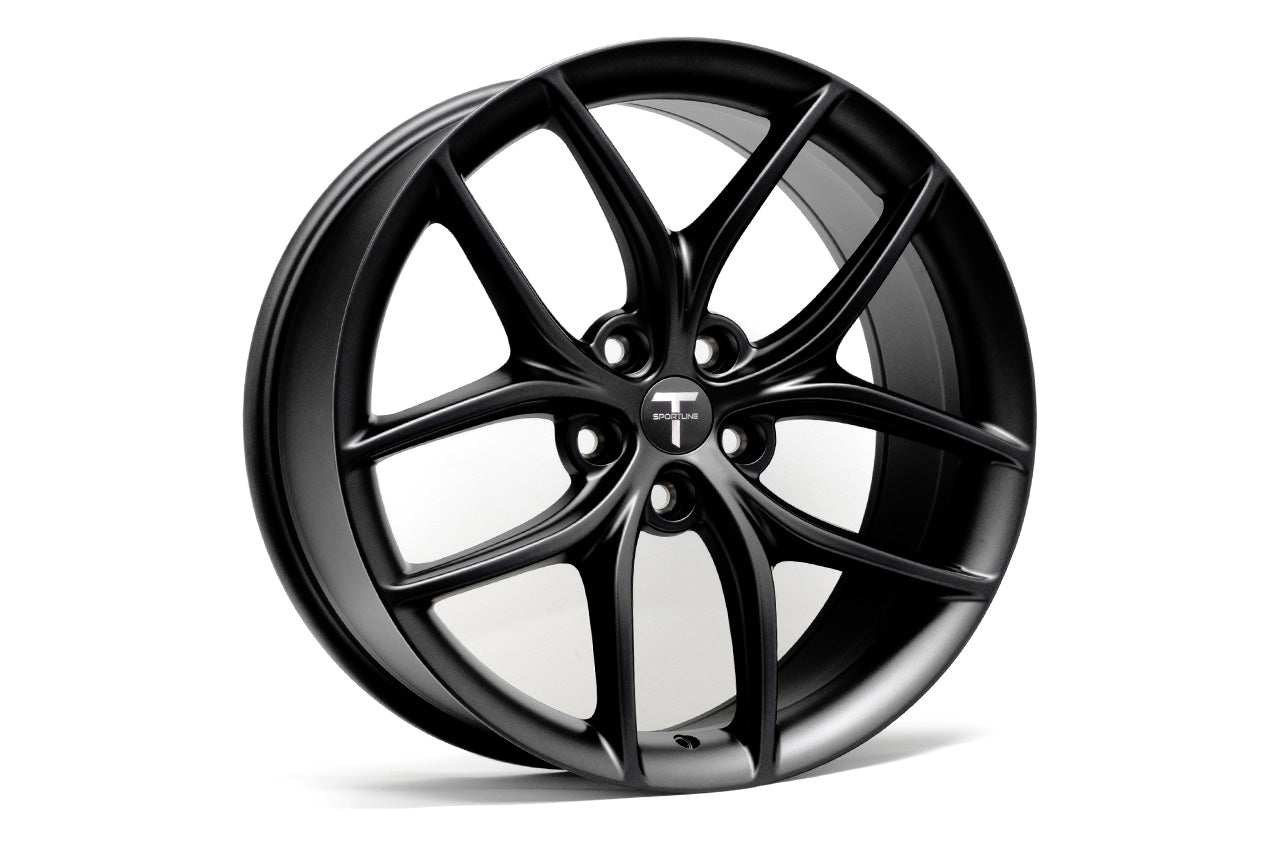

T Sportline TS5 20-inch flow-forged wheel in Satin Black

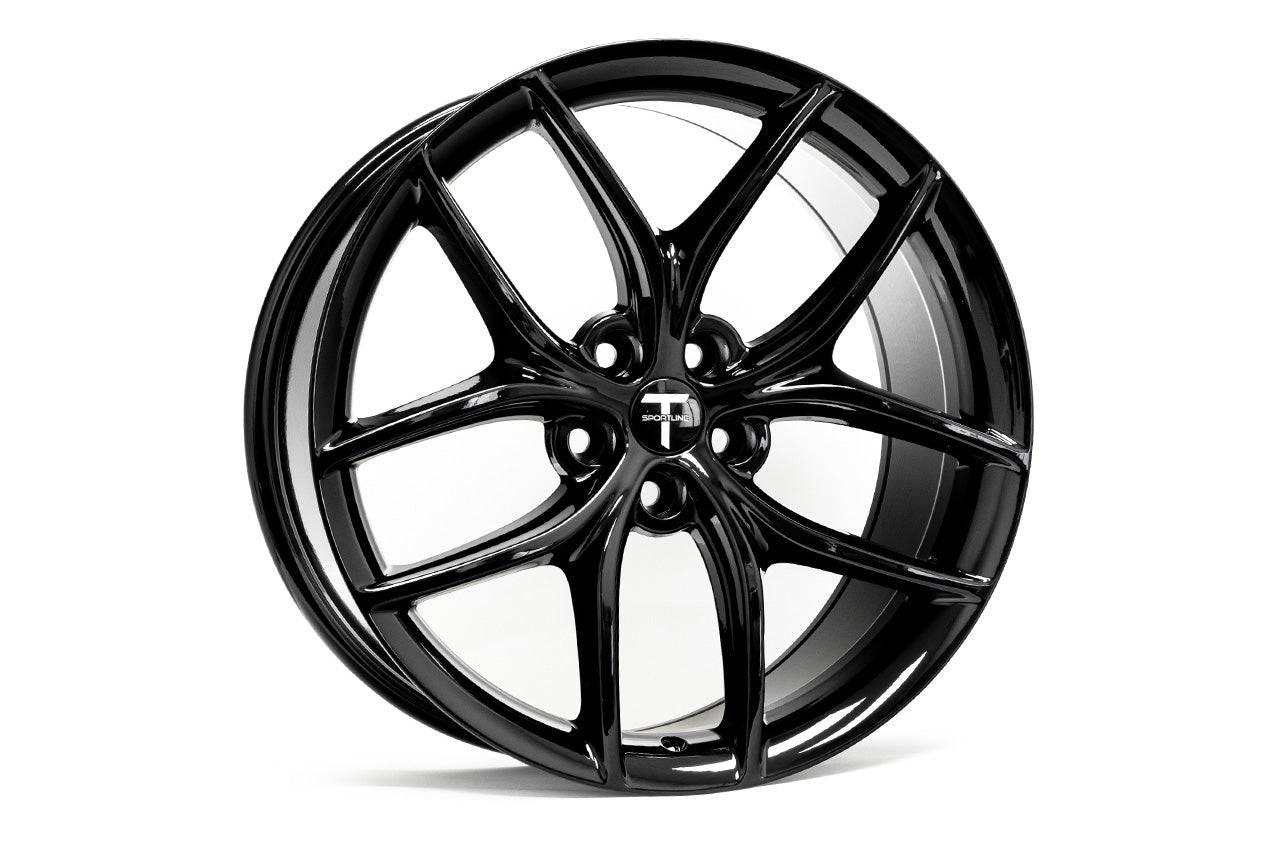

T Sportline TS5 20-inch flow-forged wheel in Gloss Black

T520858505114SB

TS5 20" Tesla Model 3 Autocross & Road Racing Wheel and Competition Tire Track Package (Set of 4)

$1,950.00 $1,950.00

Select Wheel Color

Satin Black

Select Option - Add Tires (Ships Bolt-on Ready! Mounted & Balanced including TPMS)

No Tires (Purchase Wheels Only)

Michelin Pilot Sport Cup 2 Track & Competition 245/35R20

You Must Confirm Model Year👇🏻

October 2020 - Present

2017 - September 2020

Description

T Sportline's TS5 20-inch Tesla Model 3 Autocross & Road Racing Track Package pairs lightweight flow-forged TS5 wheels with Michelin Pilot Sport Cup 2 competition tires for maximum cornering, acceleration and braking grip, along with high-speed stability for your best course and lap times. Inspired by Tesla's Zero-G Track Package wheel, the TS5 measures a racing-compliant, same-as-stock 20x8.5 inches and weighs 26.3 lbs, versus 28.75 lbs for the factory 20-inch Model 3 Sport wheel and 32 lbs for the 20-inch Überturbine wheel. A dedicated track set keeps the wear off your daily wheels and tires while dramatically improving your performance at autocross, time-attack, SCCA, road-course and road-racing events. The package bolts on with your factory Tesla lug nuts, center caps and TPMS sensors. For a fully forged or custom-spec wheel or tire setup, call us at (310) 880-3256 to special order.

Tesla Model 3 Compatibility

Confirmed Fit

Approved for all Tesla Model 3 versions from 2017–Present

2017 2018 2019 2020 2021 2022 2023 2024 2025 2026

✓ Approved to replace factory 18", 19" or 20" wheels & tires

Rear-Wheel Drive Versions Mid Range RWD, Standard Range, Standard Range Plus, Rear-Wheel Drive and Long Range RWD

All-Wheel Drive Versions Long Range AWD, All-Wheel Drive and Dual Motor AWD

Performance Model All Tesla Model 3 Performance configurations

New Model 3 / Highland 2024–Present RWD, Long Range RWD, Long Range AWD and Performance configurations

Wheel and Wheel & Tire Package Offerings

20x8.5" Fitment Wheels & Tires (Square = all 4 wheels & tires the same size)

Wheel Package — What Is Included

Set of 4 wheels
4x 20x8.5" TS5 wheels 4x color-matched T Sportline wheel center caps

Wheel & Tire Package — What Is Included

Set of 4 wheels & tires—mounted, balanced, & ready to install!
4x 20x8.5" TS5 wheels 4x 245/35R20 Michelin Pilot Sport Cup 2 track & competition tires 4x factory-spec Tesla TPMS sensors matched to the selected model year 4x color-matched T Sportline wheel center caps

Recommended Add-On Options

Lug Nuts or Lug Nut Covers — No lug nuts are included. Factory lug nuts can be reused with optional covers or replaced with our forged or titanium lug nuts
Tesla Tire Road Hazard Protection — Rest easy with tire protection
Curb Protection Guards — Protect rims against scrapes
Ceramic Coating — Protect the finish and make cleaning easier

Wheel Features and Benefits

Wheel Specifications

Wheel Model: TS5
Vehicle: Tesla Model 3
Wheel Size: 20x8.5" front and rear
Offset: +35mm
Bolt Pattern: 5x114.3
Center Bore: 64.1mm
Construction: Flow Forged
Wheel Weight: 26.3 lbs per wheel
Load Rating: 900 kg / 1,984 lbs per wheel
Tire Sizes: 245/35R20 (Michelin Pilot Sport Cup 2)
Finishes: Satin Gray, Satin Black and Gloss Black (Custom)
Testing Standards: JWL, VIA, SAE J2530 and TÜV
Factory Hardware: Compatible with factory Tesla lug nuts, center caps and TPMS sensors

Lighter & Stronger Than Tesla Wheels

TS5 wheels are manufactured using a flow-forged process and tested to JWL, VIA, SAE J2530 and TÜV standards. Factory Tesla wheels are typically gravity cast, which can result in heavier wheels with lower strength-to-weight performance. Our wheels use an advanced flow-forging process to increase strength while reducing weight—helping improve resistance to road-hazard damage, reduce unsprung mass, and preserve range.

Dedicated Track Package

This setup is optimized for enthusiast autocross, time-attack, SCCA events, road courses and road racing. Michelin's DOT-compliant Pilot Sport Cup 2 uses a bi-compound asymmetric tread, with a grippier outboard shoulder for cornering and a stiffer inboard section for precise steering, plus twin steel belts reinforced with Twaron cord for high-speed stability. The 245/35R20 Cup 2 measures 26.8 inches tall, about 1% taller than the factory 235/35R20 tire, and carries a 95Y load rating versus the factory 92Y. It is street legal for warm, dry drives to and from events; for long trips or wet conditions, we recommend swapping the package on at the track.

Zero-G Inspired Design

The TS5 split-spoke wheel design was inspired by Tesla Zero-G Track Package wheels. Its svelte split-spoke face presents lightweight, performance-focused footwork—ideal for enthusiast owners seeking standout looks and an overachieving lightweight wheel.

Tesla Compatibility

Accepts factory Tesla lug nuts
Accepts factory Tesla center caps
Accepts factory Tesla TPMS sensors
Includes color-matched T Sportline center caps
No aftermarket wheel hardware required
Will NOT void Tesla Warranty
Does NOT work with factory Tesla "Aero Covers / Hubcaps"

Square Fitment & Tire Rotation

The 20x8.5" square setup uses the same wheel and tire size at all four corners, allowing conventional front-to-rear tire rotation.

TS5 20-Inch Wheel Weight

26.3 lbsper wheel

Scale photo coming soon

Tire Comparison & Selection Guide

	245/35R20 Michelin Pilot Sport Cup 2	Track Use Guidance
Tire Type	Streetable track & competition tire (DOT)	Built for autocross, time-attack, SCCA and road-course events
Range & Efficiency	Sticky competition compound is not optimized for range	Swap back to your daily wheel and tire set for everyday driving
Ride Comfort	Stiff competition construction gives a firm ride	Suited to short drives to and from events in warm, dry weather
Pothole Protection	Low-profile 20-inch sidewall offers limited impact cushion	Correct cold tire pressure is essential for maximum protection
Curb Protection	Slightly wider than the factory 235/35R20 tire	Inspect wheels and tires before and after each event
Handling & Steering	Maximum cornering grip and precise steering response	Peak performance at 160°F to 220°F operating temperature
Dry Traction	Maximum dry grip for the quickest course and lap times	Recommended cold inflation pressure: 45 psi
Wet & Snow Traction	Not recommended for wet, freezing or snowy conditions	Do not drive below 40°F or on snow or ice; store indoors above 15°F
Tire Rotation	Front-to-rear rotation	Same tire size at all four corners

245/35R20 Michelin Pilot Sport Cup 2: Maximum dry grip, precise steering and high-speed stability for autocross, time-attack and road-course events.

Track use: Install for events and warm, dry drives to and from the track; keep your daily wheel and tire set for everyday driving.

Rating Key: Not Rated Good Better Best

Choose the right tire type for your driving: All-season for everyday use, all-weather for enhanced year-round versatility, summer for warm-weather performance, or dedicated winter tires for cold and snowy conditions. Tire model, rolling resistance, construction, inflation pressure, compound and tread design also affect driving characteristics.

View Instructions & Tesla Tire Care Guide DIY Installation instructions and Learn more about proper Tesla tire maintenance & rotation for maximum range and tread wear

View the T Sportline Tesla Wheel & Tire DIY Installation Guide
Follow the recommended cold tire pressures on your vehicle's Tire and Loading Information label (located inside the driver-side door jamb). Check pressure after the vehicle has been parked out of direct sunlight for more than three hours. Use our AMAXX Tesla Digital Tire Inflator for convenient pressure checks and adjustments.
Rotate tires every 6,250 miles, or sooner if tread-depth difference reaches 2/32 inch, to help maximize tread life and maintain even wear.
When installing wheels, torque the 21mm lug nuts to 129 lb-ft (175 Nm).
After tire service, drive approximately five miles to allow the TPMS readings to update.
Tire pressure changes with temperature, driving and sunlight. Underinflation can reduce range, accelerate wear and create a safety risk.
Teslas do not come with a spare! Consider purchasing a Tesla spare tire package to ensure you never get stranded with a flat.

Shipping

Shipping is calculated at Checkout.

Shipping & Handling charges subject to change without prior notification. PLEASE NOTE THAT INTERNATIONAL SHIPMENTS ARE SUBJECT TO CUSTOMS TAXES/DUTIES, AS CHARGED BY YOUR COUNTRY (THERE ARE NO U.S. CUSTOMS FEES). INTERNATIONAL CUSTOMERS ARE RESPONSIBLE FOR PAYMENT OF THESE FEES. Due to service availability, some international orders may need to be sent to the nearest international airport.
FAQ

Can I use my Aero Covers / Hubcaps on the 20" TS5?
No, the Aero Covers / Hubcaps only fit on your factory wheels.

Does the 20" TS5 Track Package use the factory 20" Model 3 tire size?
No. It uses 245/35R20 Michelin Pilot Sport Cup 2 tires, about 1% taller and slightly wider than the factory 235/35R20 tire, with a higher 95Y load rating versus the factory 92Y.

Do your TS5 wheels fit my factory center caps?
Yes, 20x8.5" TS5 wheels fit your factory Tesla center caps. They also fit your factory TPMS sensors and factory lug nuts, so no aftermarket wheel hardware is required.

How are the 20" TS5 wheels made?
They are flow forged and tested to JWL, VIA, SAE J2530 and TÜV standards.

Do I need to change the color of my existing lug nuts and center caps to match my new TS5 wheels?
That's an aesthetic decision only you can make. All TS5 wheels come with T Sportline color-matched center caps.

What is the warranty on TS5 wheels?
Click here for T Sportline Limited Warranty

How long until my TS5 wheels arrive after my order?
We process orders within 72 hours unless your wheels are back-ordered. Please allow 1–7 business days of transit time from the day you receive a tracking number. We will email you if your wheels are back-ordered.

Do you ship internationally?
Yes! We ship worldwide and offer flat rate FedEx/DHL shipping to select countries.

Will installing your Wheel & Tire Package void my warranty?
Changing wheels and tires won't void your Tesla warranty unless Tesla can prove that our wheels caused the need for repairs. Also, we use factory-size or acceptable alternate size tires only. In other words, your warranty will still be valid when your windshield wiper malfunctions, even if you've upgraded to our Wheel & Tire Package.
