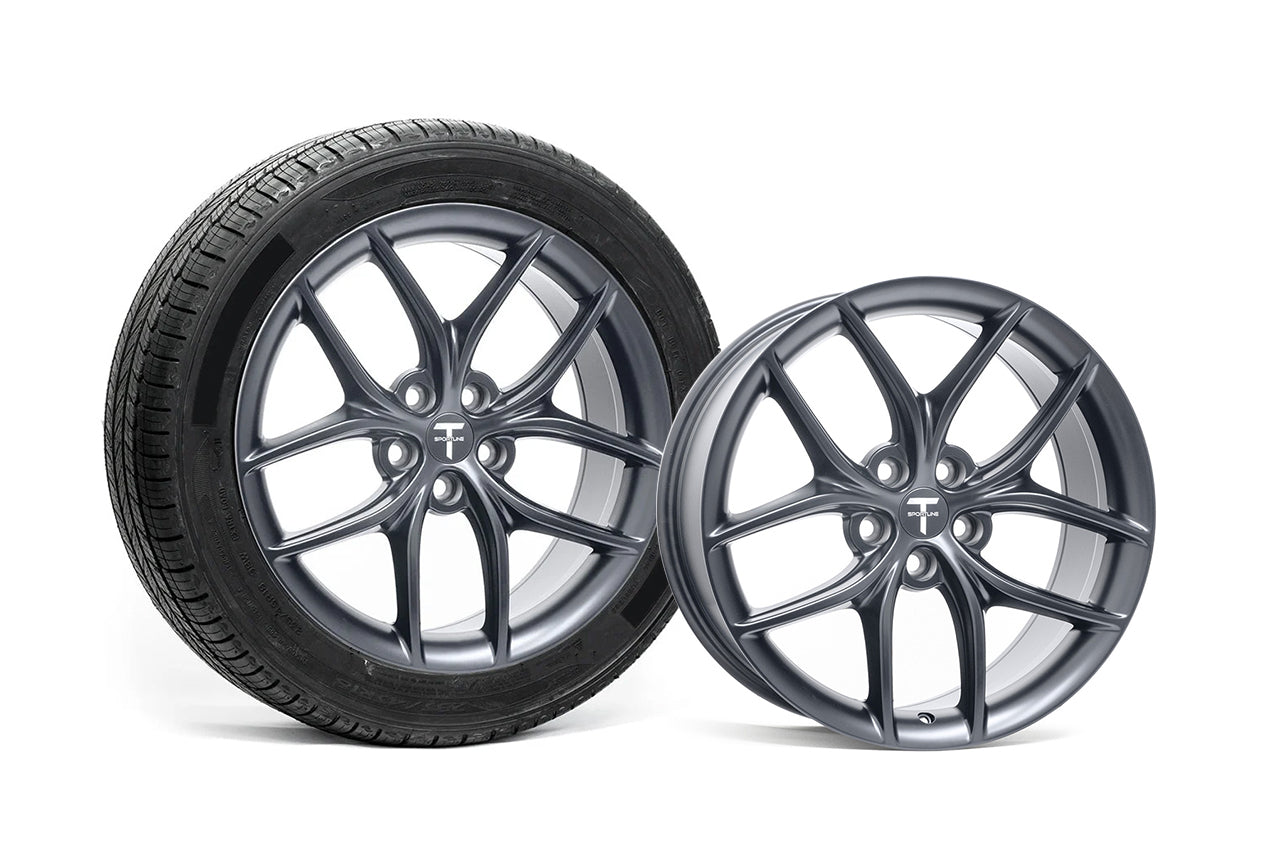

Upgrade your Tesla Model 3 with the T Sportline TS5 18-inch wheel and tire package. Inspired by Tesla Zero-G Track Package wheels, the TS5 features a sleek split-spoke design, lightweight flow-forged construction and precise bolt-on compatibility with factory Tesla lug nuts, center caps and TPMS sensors. At approximately 22.25 pounds per wheel, the TS5 helps reduce unsprung and rotating mass, while the factory-size 235/45R18 tires preserve balanced range, ride comfort and responsive handling.

Tesla Model 3 Compatibility

Confirmed Fit

Approved for all Tesla Model 3 versions from 2017–Present

✓2017 ✓2018 ✓2019 ✓2020 ✓2021 ✓2022 ✓2023 ✓2024 ✓2025 ✓2026

✓ Approved to replace factory 18", 19" or 20" wheels & tires

Rear-Wheel Drive Versions Mid Range RWD, Standard Range, Standard Range Plus, Rear-Wheel Drive and Long Range RWD

All-Wheel Drive Versions Long Range AWD, All-Wheel Drive and Dual Motor AWD

Performance Model All Tesla Model 3 Performance configurations

New Model 3 / Highland 2024–Present RWD, Long Range RWD, Long Range AWD and Performance configurations

Wheel and Tire Package Offerings

18x8.5" Fitment Wheels & Tires (Square = all 4 wheels & tires the same size)

What Is Included

Set of 4 wheels & tires—mounted, balanced, & ready to install!
4x 18x8.5" TS5 wheels 4x 235/45R18 tires 4x factory-spec Tesla TPMS sensors matched to the selected model year 4x color-matched T Sportline wheel center caps

Recommended Add-On Options

1Lug Nuts or Lug Nut Covers — No lug nuts are included. Factory lug nuts can be reused with optional covers or replace the factory lug nuts with our forged or titanium lug nuts
2Tesla Tire Road Hazard Protection — rest easy with tire-protection
3Curb Protection Guards — Protect rims against scrapes
4Ceramic Coating — protect the finish and make cleaning easier

Wheel Features and Benefits

Wheel Specifications

Wheel Model: TS5
Vehicle: Tesla Model 3
Wheel Size: 18x8.5" front and rear
Offset: +35
Bolt Pattern: 5x114.3
Center Bore: 64.1mm
Construction: Flow Forged

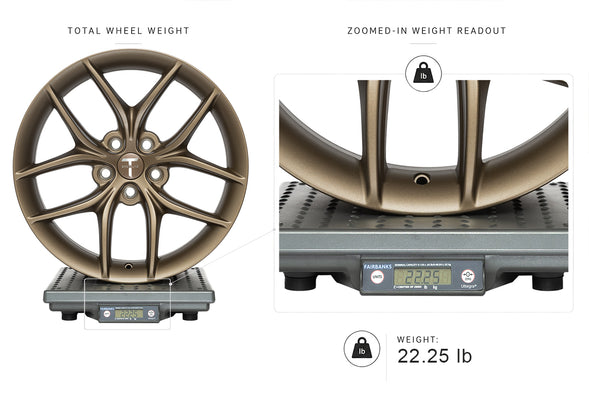

Wheel Weight: 22.25 lbs
Load Rating: 750 kg / 1,653 lbs per wheel
Tire Sizes: 235/45R18
Finishes: Satin Black, Satin Gray and Satin Bronze
Testing Standards: JWL, VIA, SAE J2530 and TÜV
Factory Hardware: Compatible with factory Tesla lug nuts, center caps and TPMS sensors

Zero-G Inspired Design

The TS5 split-spoke wheel design was inspired by Tesla Zero-G Track Package wheels. Its svelte split spokes create a lightweight, performance-focused appearance—ideal for enthusiast owners seeking exceptional style, low mass and responsive handling.

18-Inch Ride Comfort

The 18-inch wheel and 235/45R18 tire combination provides more sidewall than the Model 3's larger 19-inch and 20-inch factory wheel packages, helping absorb sharp impacts from rough pavement and potholes while providing additional protection from curb contact.

Lighter & Stronger Than Tesla Wheels

TS5 wheels are manufactured using a flow forged process and tested to JWL, VIA, SAE J2530 and TÜV standards. Factory Tesla wheels are typically gravity cast, which can result in heavier wheels with lower strength-to-weight performance. Our wheels use an advanced flow-forging process to increase strength while reducing weight—helping improve resistance to road-hazard damage, reduce unsprung mass and preserve range.

Tesla Compatibility

Accepts factory Tesla lug nuts
Accepts factory Tesla center caps
Accepts factory Tesla TPMS sensors
Includes color-matched T Sportline center caps
No aftermarket wheel hardware required
Will NOT void Tesla Warranty
Does NOT work with factory Tesla "Aero Covers / Hub Caps"

Square Fitment & Tire Rotation

The 18x8.5" square setup uses the same wheel and tire size at all four corners, allowing conventional front-to-rear tire rotation.

Tire Comparison & Selection Guide

← Swipe or scroll to review tire fitment and selection guidance →

	235/45R18 Fitment	Choosing a Tire Model
Tire Type	Factory Tesla Model 3 18-inch tire size	All-season, all-weather or performance summer
Range & Efficiency	Factory-equivalent overall diameter for balanced efficiency	Low-rolling-resistance and EV-specific tires help prioritize range
Ride Comfort	More sidewall cushion than the Model 3's 19-inch and 20-inch factory packages	Touring and all-season tires generally emphasize quietness and comfort
Pothole Protection	More impact-absorbing sidewall than larger-diameter wheel packages	Correct cold tire pressure is essential for maximum protection
Curb Protection	Taller sidewall provides added protection for the wheel edge	Sidewall shape and rim-protector design vary by tire model
Handling & Steering	Balanced factory-size response for everyday driving	Ultra-high-performance all-season and summer tires provide the sharpest response
Dry Traction	Factory-size contact patch preserves predictable Model 3 handling	Performance summer tires provide maximum warm-weather grip
Wet & Snow Traction	Factory-size geometry supports proper vehicle-system operation	All-weather snow-rated tires offer the strongest winter capability; summer tires are not intended for freezing or snowy conditions

235/45R18 Fitment: The factory Model 3 18-inch tire size delivers balanced range, comfort, handling and broad tire availability.

Choose the tire model for your driving: Select all-season for year-round flexibility, all-weather for greater winter capability or summer performance for maximum warm-weather grip.

View Instructions & Tesla Tire Care Guide DIY Installation instructions and Learn more about proper Tesla tire maintenance & rotation for maximum range and tread wear

View the T Sportline Tesla Wheel & Tire DIY Installation Guide
Follow the recommended cold tire pressures on your vehicle's Tire and Loading Information label (located on inside the driver side door jam). Check pressure after the vehicle has been parked out of direct sunlight for more than three hours. Use our AMAXX Tesla Digital Tire Inflator for convenient pressure checks and adjustments.
Rotate tires every 6,250 miles, or sooner if tread-depth difference reaches 2/32 inch, to help maximize tread life and maintain even wear.
When installing wheels, torque the 21 mm lug nuts to 129 lb-ft (175 Nm).
After tire service, drive approximately five miles to allow the TPMS readings to update.
Tire pressure changes with temperature, driving and sunlight. Underinflation can reduce range, accelerate wear and create a safety risk.
Teslas do not come with a spare! Consider purchasing a Tesla spare tire package to ensure you never get stranded with a flat.

Shipping

Shipping is calculated at Checkout.

Shipping & Handling charges subject to change without prior notification. PLEASE NOTE THAT INTERNATIONAL SHIPMENTS ARE SUBJECT TO CUSTOMS TAXES/DUTIES, AS CHARGED BY YOUR COUNTRY (THERE ARE NO U.S. CUSTOMS FEES). INTERNATIONAL CUSTOMERS ARE RESPONSIBLE FOR PAYMENT OF THESE FEES. Due to service availability, some international orders may need to be sent to the nearest international airport.
FAQ

Can I use my Aero Covers / Hubcaps on the 18" TS5?
No, the Aero Covers / Hubcaps only fit on your factory wheels.

Does the 18" TS5 use the same tire size as the factory 18" Model 3 wheel?
Yes. This package uses the factory-size 235/45R18 tire.

Do your TS5 wheels fit my factory center caps?
Yes. The 18x8.5" TS5 wheels accept factory Tesla center caps, factory lug nuts, factory TPMS sensors and factory-size 235/45R18 tires. No aftermarket wheel hardware is required.

How are the 18" TS5 wheels made?
They are flow forged and tested to JWL, VIA, SAE J2530 & TÜV standards.

Do I need to change the color of my existing lug nuts and center caps to match my new TS5 wheels?
That's an aesthetic decision only you can make. All TS5 wheels come with T Sportline color-matched center caps.

What is the warranty on TS5 wheels?
Click here for T Sportline Limited Warranty

How long until my TS5 wheels arrive after my order?
We process orders within 72 hours unless your wheels are back-ordered. Please allow 1–7 business days of transit time from the day you receive a tracking number. We will email you if your wheels are back-ordered.

Do you ship internationally?
Yes! We ship worldwide and offer flat-rate FedEx/DHL shipping to select countries.

Will installing your Wheel & Tire Package void my warranty?
Changing wheels and tires won't void your Tesla warranty unless Tesla can prove that our wheels caused the need for repairs. We also use the factory-size 235/45R18 tire. In other words, your warranty will still be valid when an unrelated vehicle component malfunctions, even if you've upgraded to our Wheel & Tire Package.
