    1TC3801-1TC3560-1TC3602

    Tesla Cybertruck Big Brake Caliper & Rotor Kit (BBK) - 6 Piston Calipers & Two-Piece Rotors

    Select Kit
    z
    z
    • Description

      New For Cybertruck

      In Stock!



      The Tesla Cybertruck is equipped with standard issue cast iron brake rotors and overweight calipers.  Factory Tesla brakes are sufficient for a daily driver, but offer limited stopping performance and minimal heat dissipation ability.   Case in point, when re-gen is off, the factory brake performance is can be startlingly underwhelming.  For the Cybertruck enthusiast seeking a DIY-friendly bolt-on high performance Cybertruck big brake kit, T Sportline engineers nailed a Cybertruck-specific full brake system upgrade solution.  Besides shaving unsprung weight from each corner, the T Sportline big brake kit is engineered for extreme duty performance, longevity, and improved brake modulation.   For the driving enthusiast, off-road and track competitor, heavy load and tow user, or the owner who wants the best, T Sportline's BBK will serve success. The T Sportline Cybertruck Big Brake Kit features both front and rear upgrades as follows:



      Front Brakes: We include new lightweight 6 piston calipers, high-temp stainless steel brake lines, huge 2-piece performance brake discs with lightweight aluminum rotor hats, and high performance larger surface area brake pads. Everything here is a bolt-on replacement for stock parts, no modifications needed and everything is fully compatible with Cybertruck controls, ABS, and braking system.



      Rear Brakes: We include huge 2-piece performance brake discs with lightweight aluminum rotor hats, and high performance larger surface area brake pads.  Note - the rear caliper is not changed due to the integrated electronic parking brake - no aftermarket rear caliper will work with the Tesla control system -- we offer two optional cosmetic rear caliper upgrades for those wanting to match the color with the new 6 piston front calipers; or just keep the rear calipers raw aluminum if you prefer.  Everything here is a bolt-on replacement for stock parts, no modifications needed and everything is fully compatible with Cybertruck controls, ABS, electronic parking brake, and braking system.



      Performance Highlights:

      • Improved firm and surefooted pedal feel, yet not too hard or rigid
      • Increased stopping power leveraging larger diameter rotors & increased surface area pads
      • Easier to modulate (smooth & liner braking control, not switch like "On/Off")
        • 6 front pistons (vs stock 4 pistons)
      • Extreme heat dissipation, sustain elevated heat (spirited driving/towing) without 'fading'
      • Pad formulation
        • Increased friction area vs stock
        • Firmer and quicker pedal response
        • No squeaking
        • Low dust
        • Cooper free and environmentally friendly
        • Long lasting
      • Improved non-braking vehicle dynamics
        • Reduced unsprung weight (lightweight calipers)
      • Precision fitment - Engineered specifically for Cybertruck and clears both factory and 20" or larger T Sportline wheels
      • Unbeatable high performance looks



      Caliper Specifications:

      •  T Sportline Front Calipers
        • 6 piston, 2-piece forged (vs stock caliper 4 piston cast)
        • 12.1lbs (vs 21.4lbs stock calipers)
        • Powder coated Red



      Rotor Specifications:

      • Directional (curved vanes / slots) for maximum efficiency
      • Extends brake component longvevity through improved thermal management
      • Aluminum rotor hat improves heat dissipation rate and capacitance

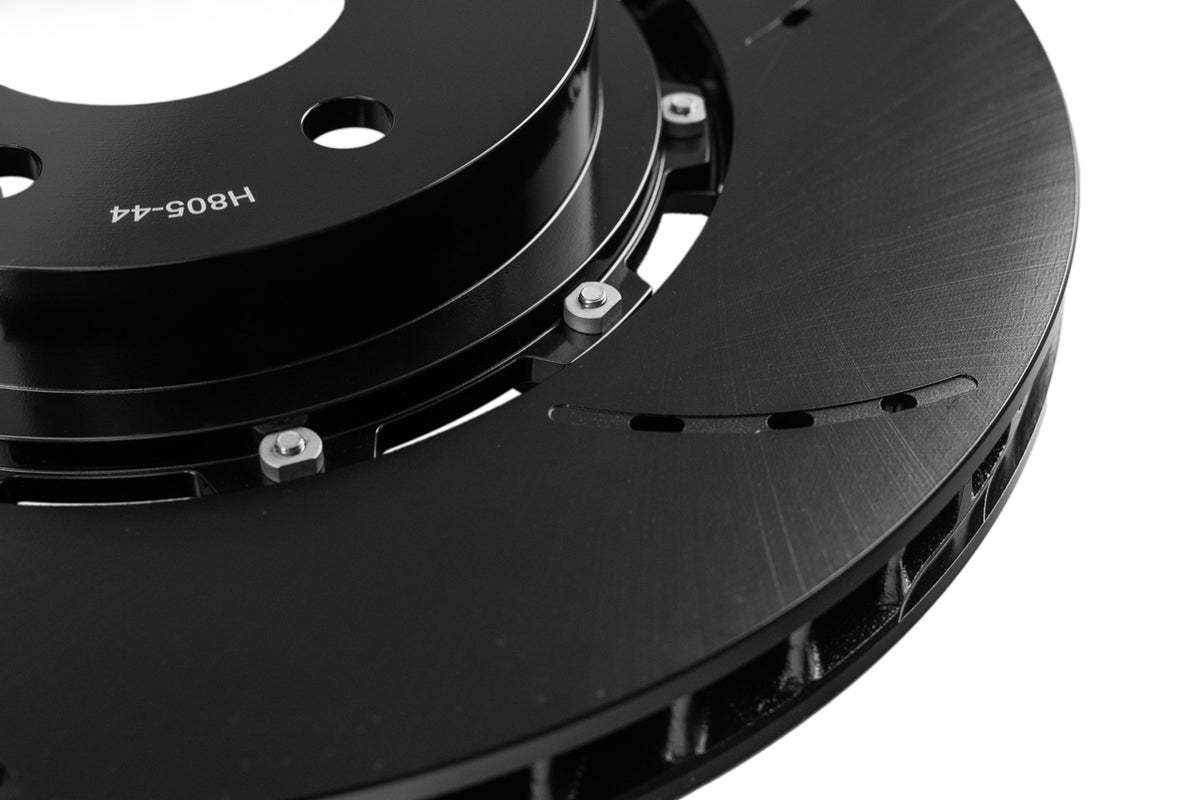

      • Front Rotors:
        • 410mm x 34mm - 28.1lbs (vs 350mm x 32mm - 24.2lbs stock)
      • Rear Rotors:
        • 356mm x 23mm - 14.77lbs (vs 356mm x 23mm - 18.2lbs stock)



      Brake pads

      • 306 cm^2 vs 292 cm^2 front area
      • Performance oriented compound suited for sustained high heat braking
      • Fade resistant compound
      • Offers linear brake modulation



      Replacement Rotor Ring Discs

      • Service parts (when replacing worn parts)
      • Bolt-on replacement (Rotor hat is re-usable)



      Installation Recommendations:

      • Requires bleeding brake system, recommend our optional add-on vacuum assist bleeder tool.  Do not attempt DIY installation if you have no experience bleeding brake systems - seek professional installation only.
      • Recommend optional High-Temp Brembo Brake Fluid for full system flush
      • Tesla caliper instructions HERE
      • While this product can be DIY installed, professional installation is recommended.  Be mindful of your DIY skill and understand this product involves brake safety.  Use proper jack and jack stand and follow safety precautions during installation and be sure vehicle is on flat and stable ground.



      High-Temp Brembo Brake Fluid (Requires brake system flush and bleed)

      • Bottle Size: 500ml
      • Boiling Point Wet: 203 C / 399 F
      • Boiling Point Dry: 316 C / 601 F
      • DOT Rating: Exceeds DOT 4 specifications per US FMVSS 116
      • Mixes safely with other DOT3, DOT4, and DOT 5.1 fluids
